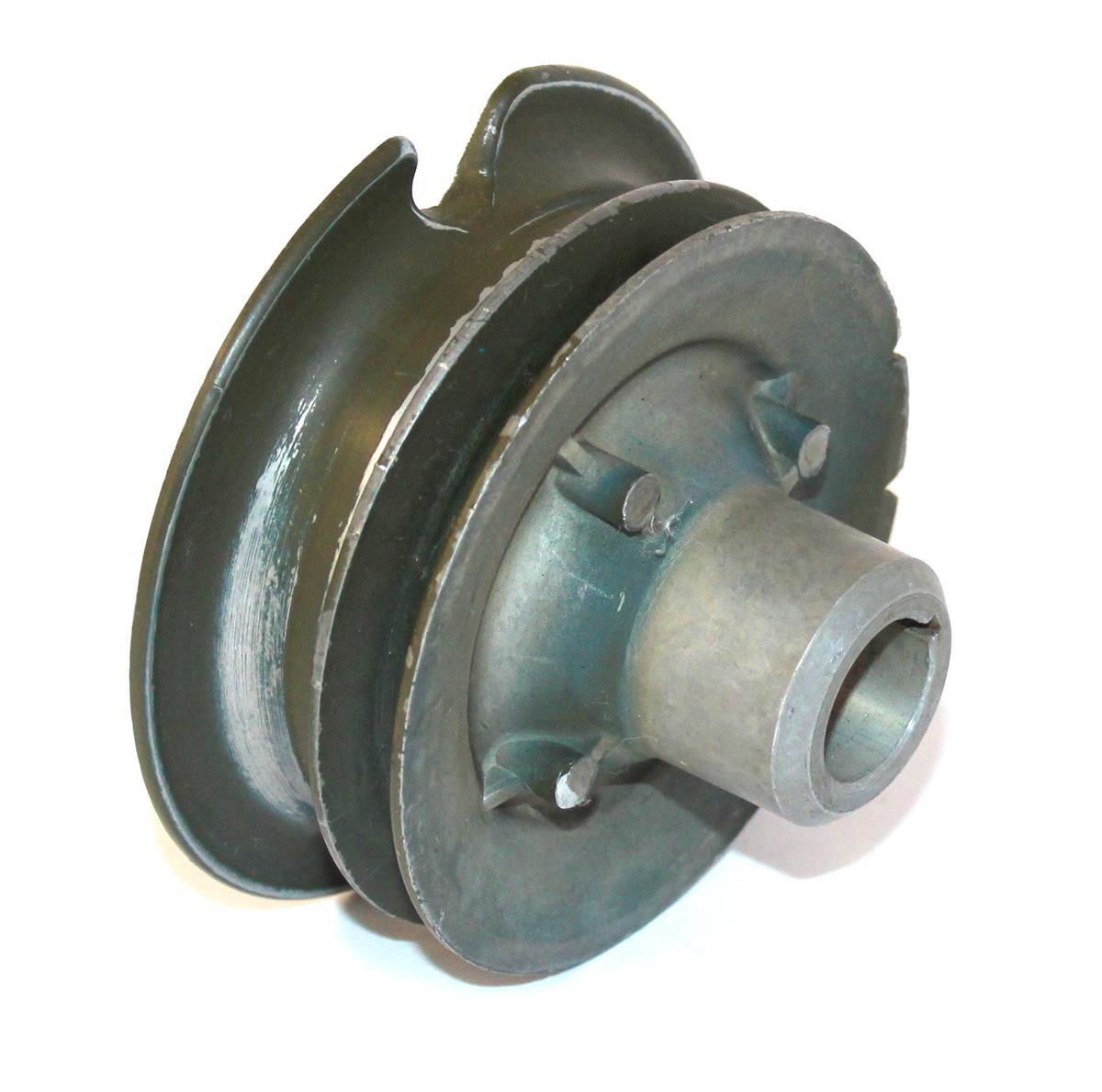

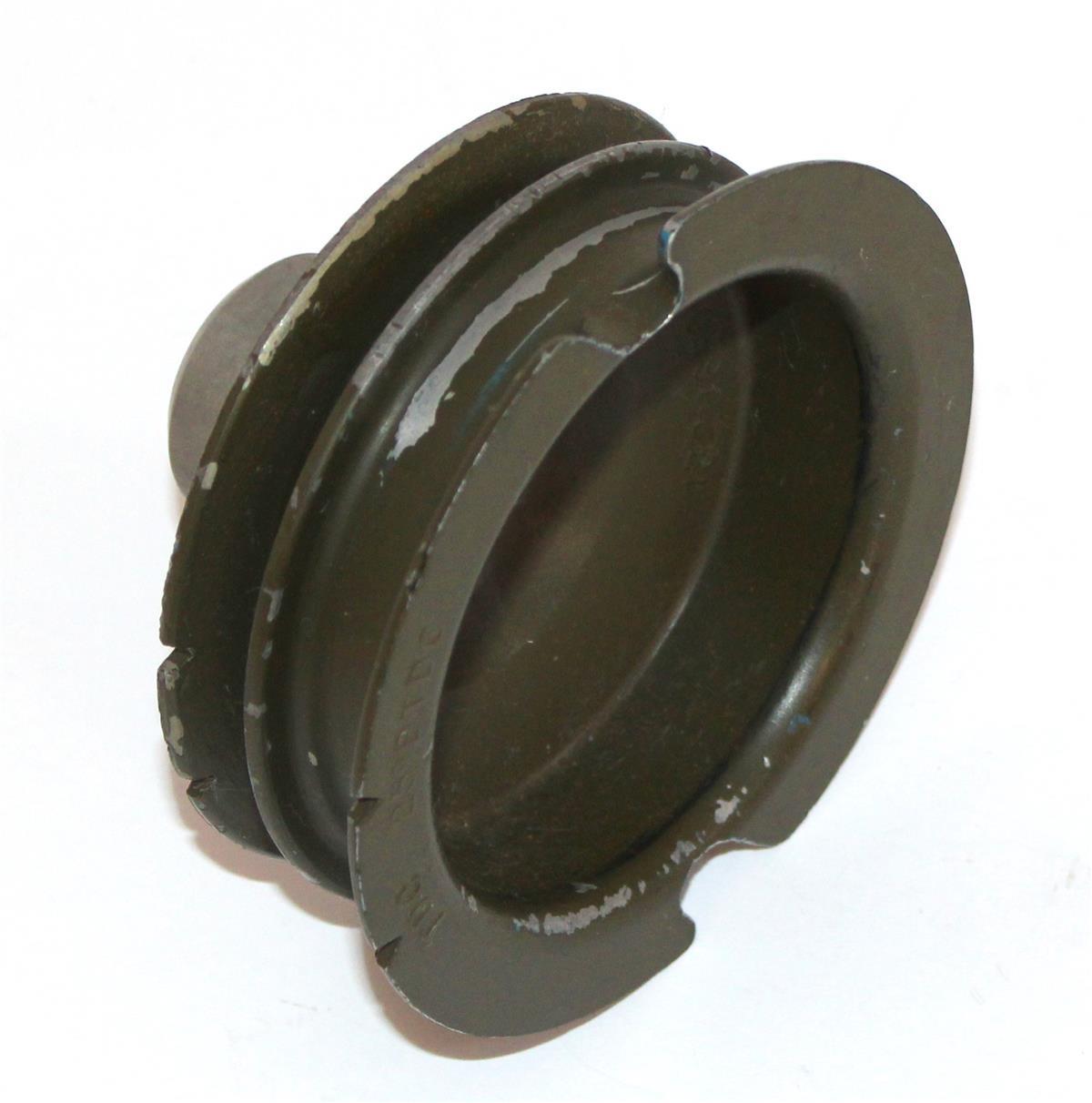

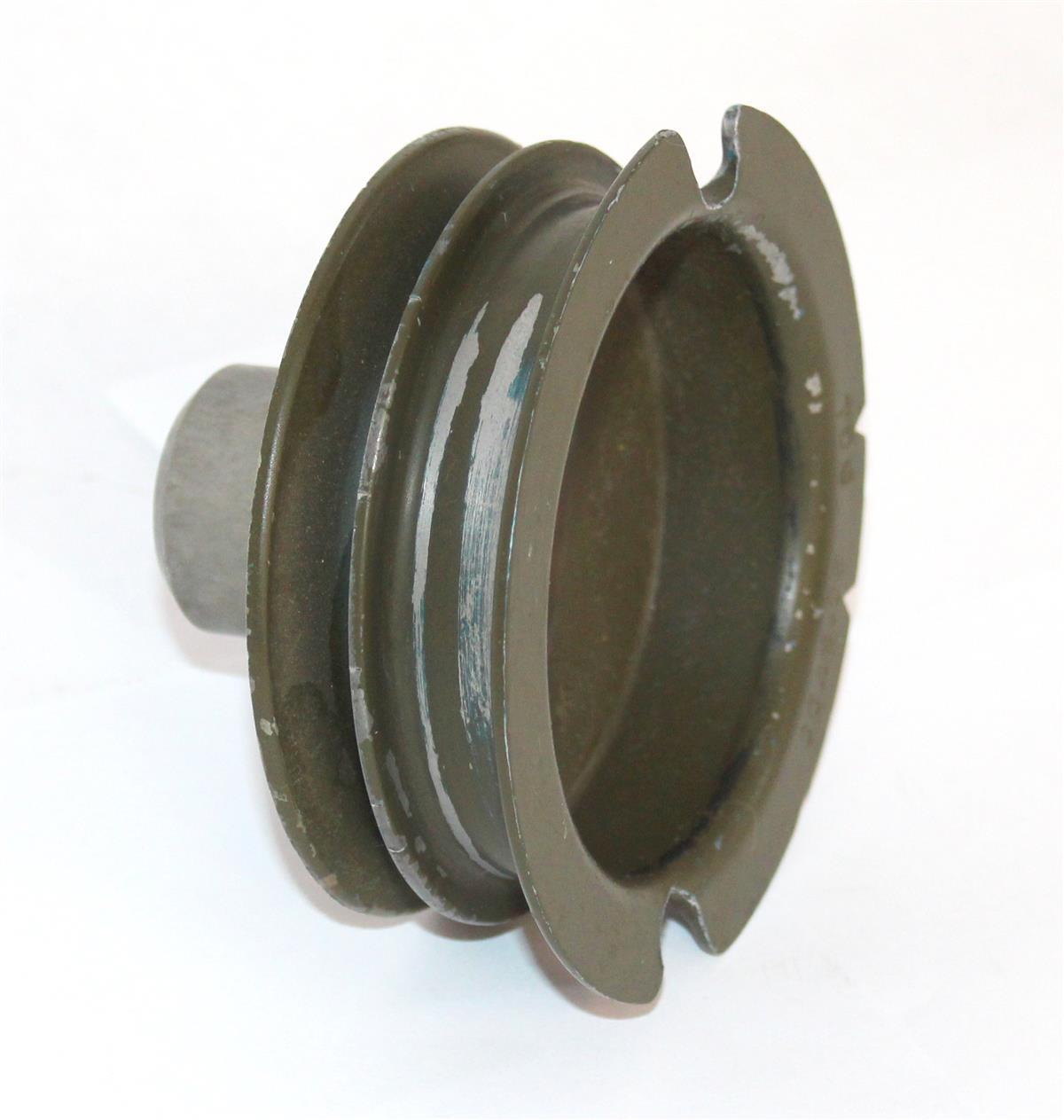

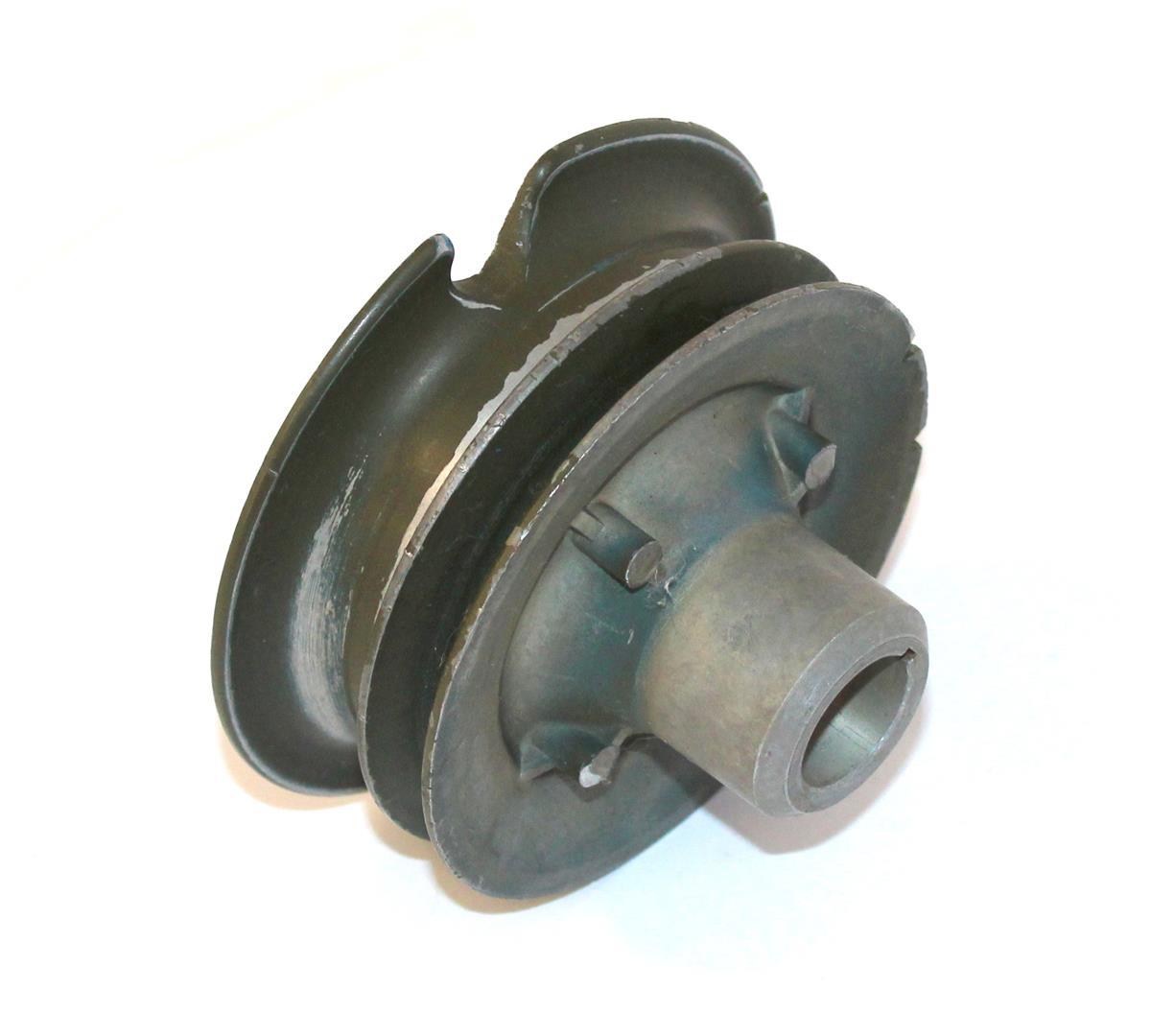

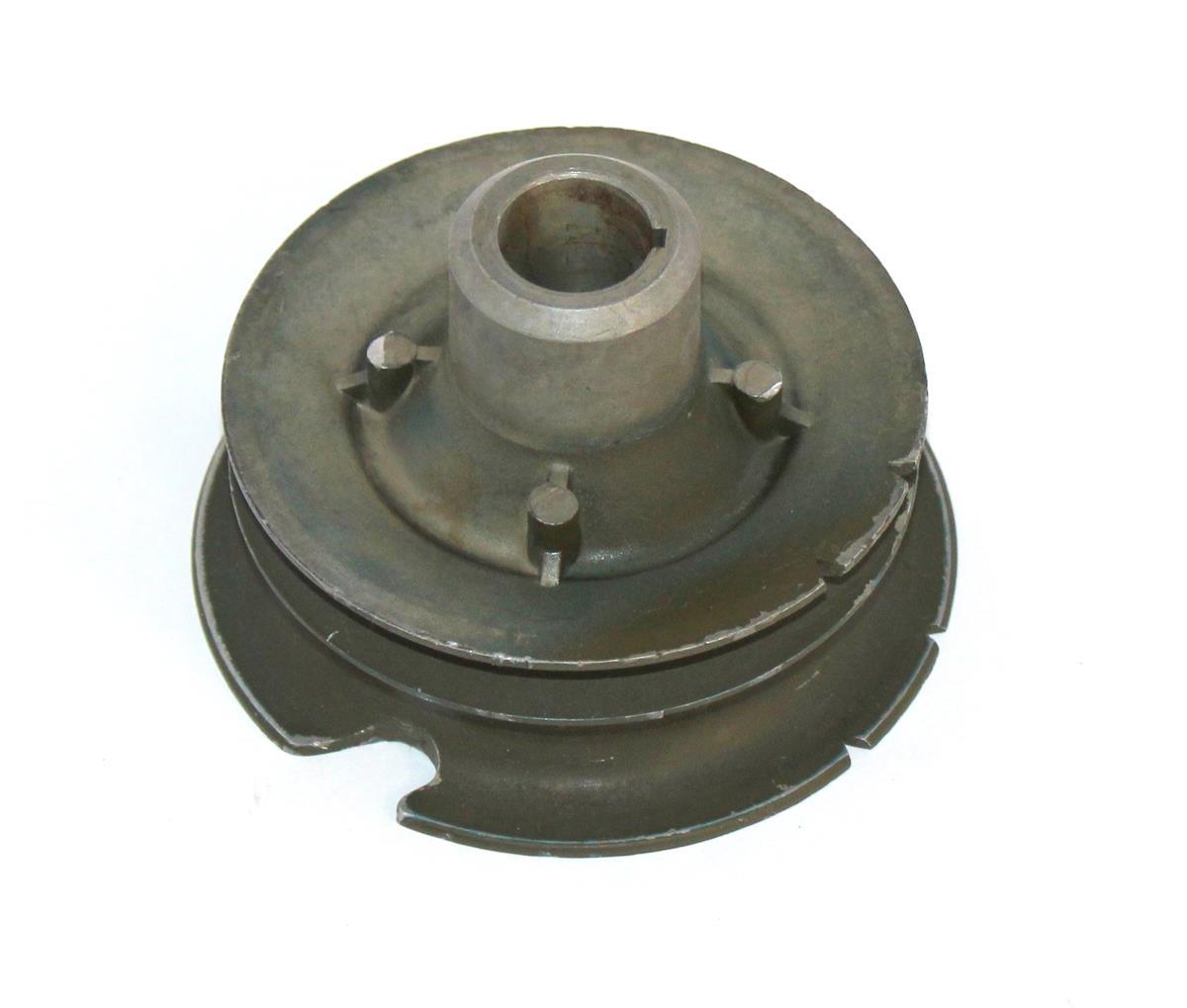

Pulley Engine Starter Rope Pulley Military Standard Engine Gen-Set 4A032 Old Style

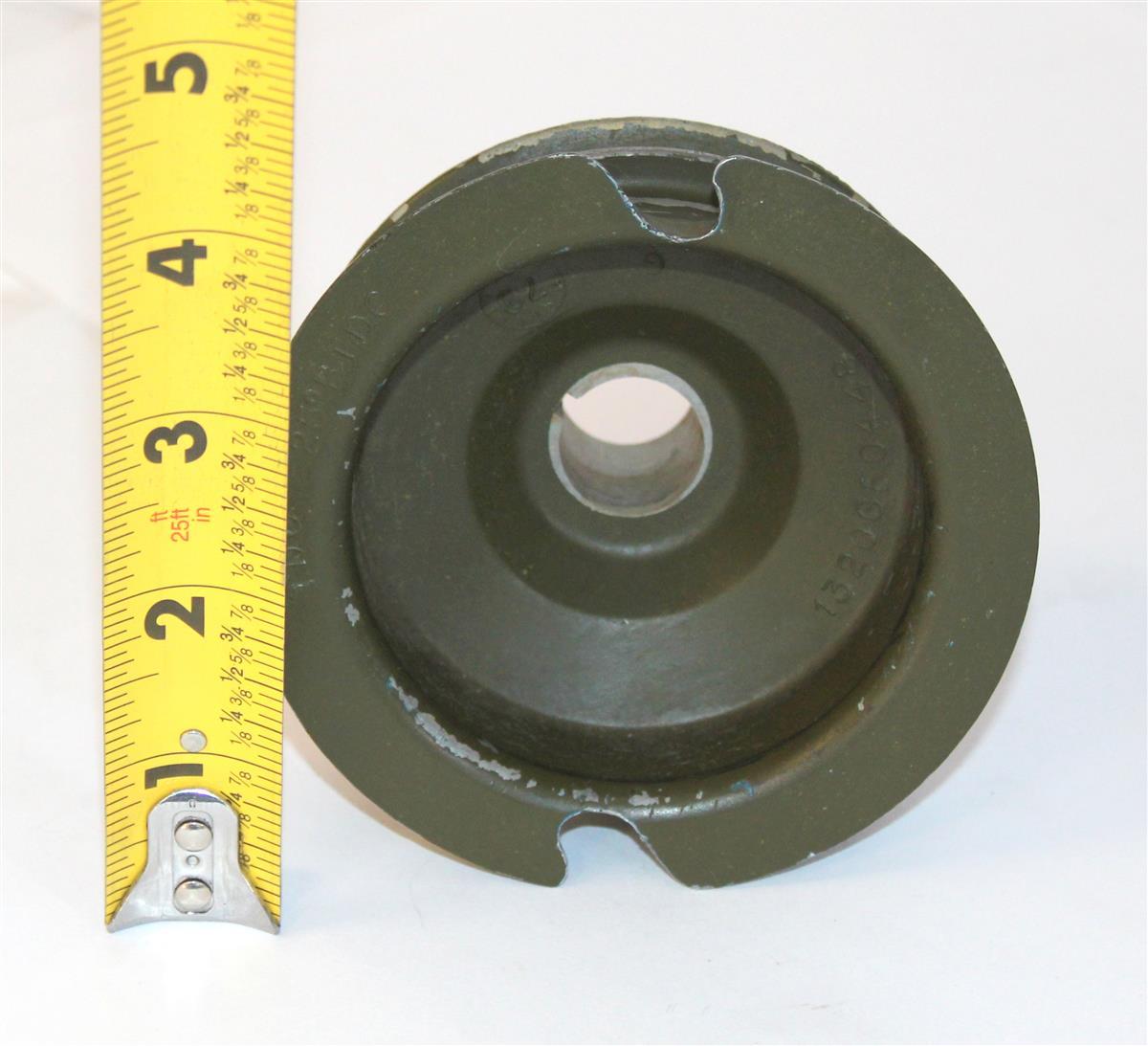

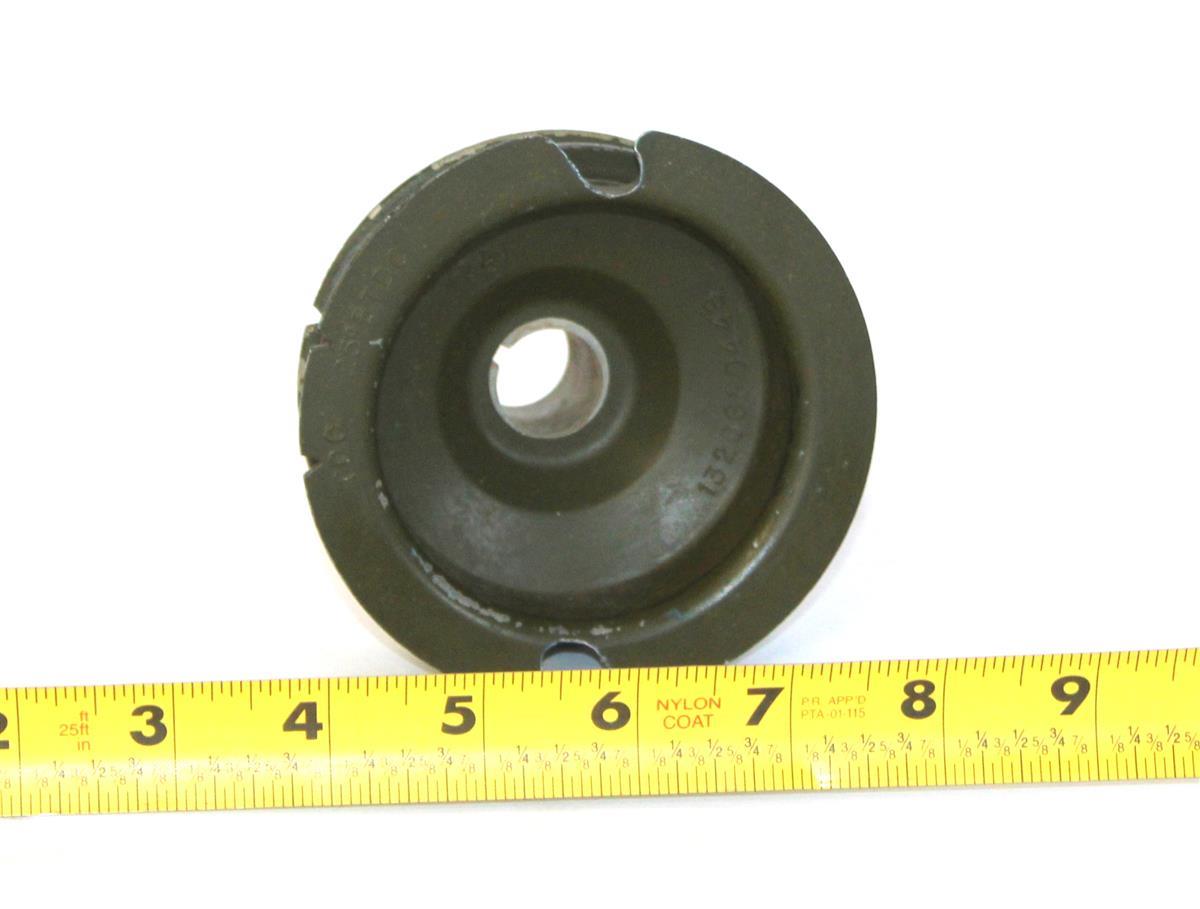

- Outside Diameter is 4 inches
- Diameter is 0.708 inches Minimum and 0.728 inches Maximum
- Keyway Width 0.126 inches Minimum and 0.128 inches Maximum
- Keyway Depth is 0.100 Minimum and 0.115 inches Maximum
- Length is 1.188 inches
- Keyway Length is 1.188 inches
- Rope Accommodation Width is 0.656 inches
- Rope Accommodation Diameter is 3.062 inches
- Hub Diameter is 1.1250 inches
- Aluminum Alloy Material

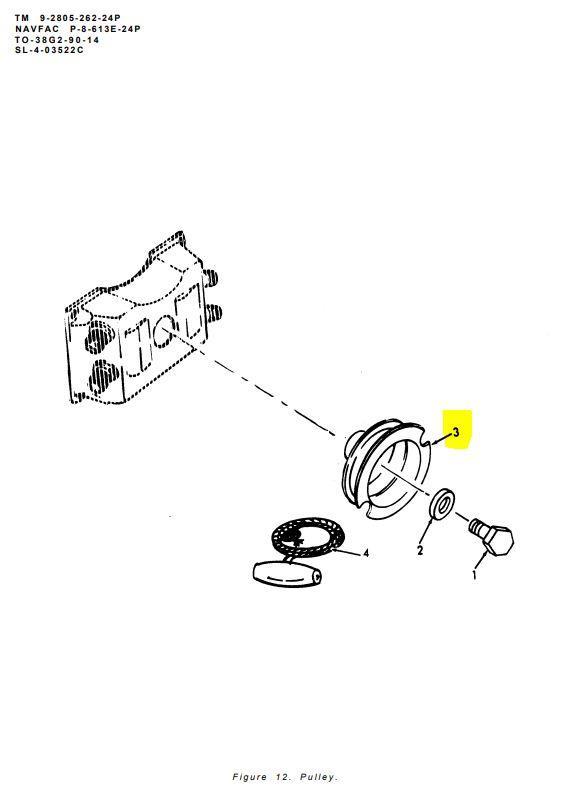

- Item Shown in Diagram
Fits:
Engine Model 4A032 3 KW Generator Gen-Set
MEP-021A – 400 HZ – Gasoline Engine Driven
MEP-026A – DC – Gasoline Engine Driven
