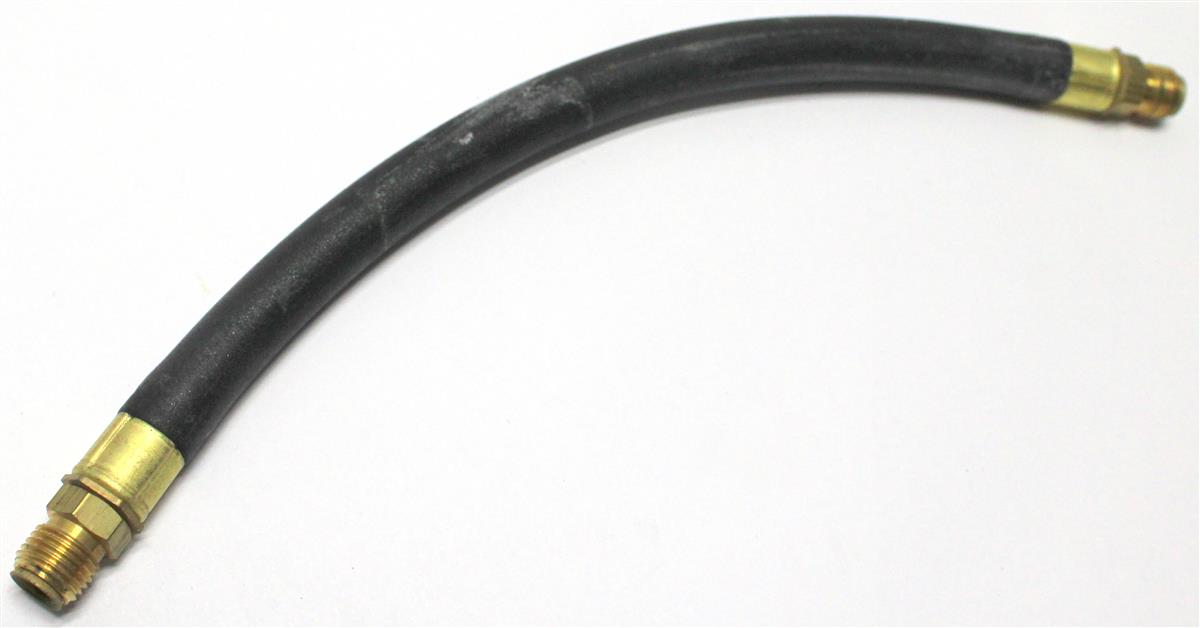

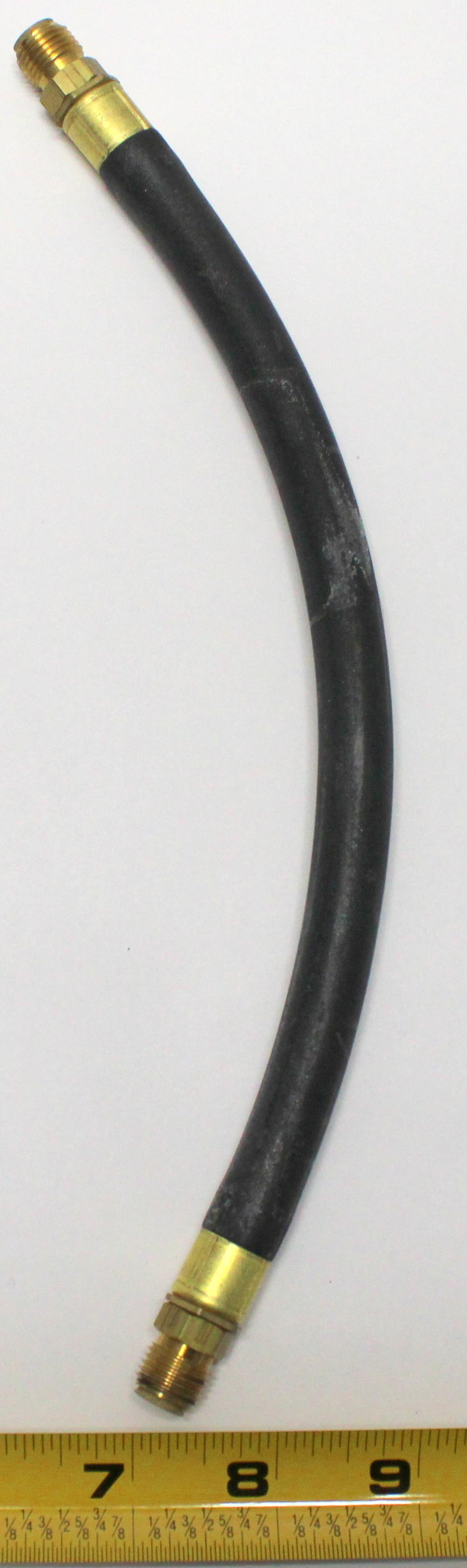

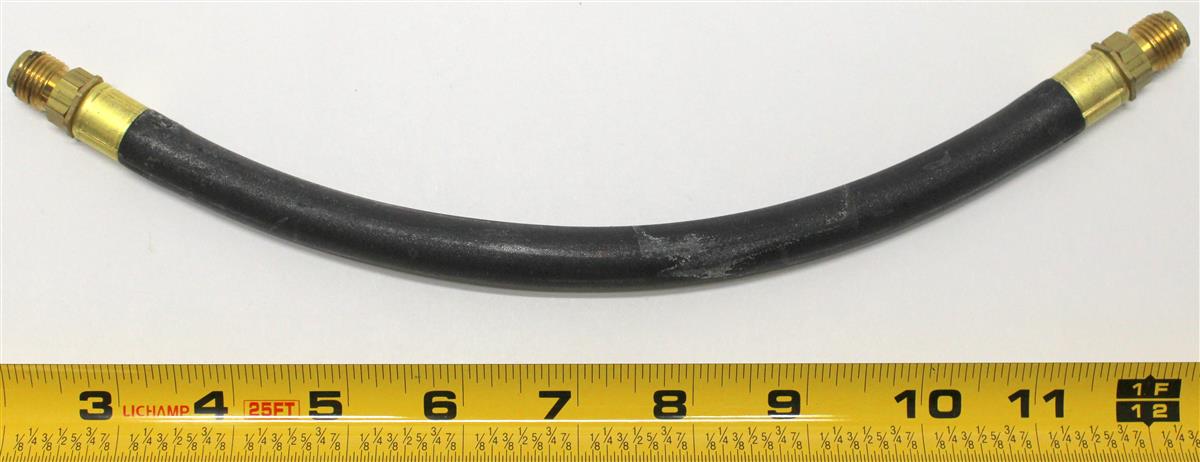

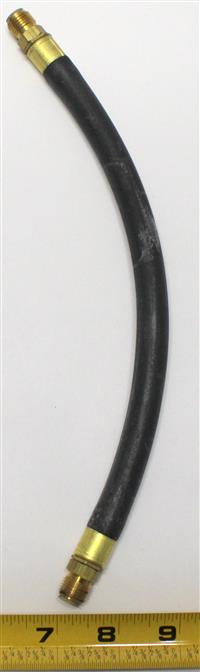

Oil Line Hose Assembly for 2A042 5KW Military Standard Gasoline Engine
-
Inside Diameter - 0.250 Inches
-
Temp Rating - -40.0 Deg Fahrenheit And 200.0 Deg Fahrenheit Single Response
-
Outside Diameter - 0.453 Inches Minimum And 0.500 Inches Maximum
-
Minimum Inside Bending Radius - 2.000 Inches
-

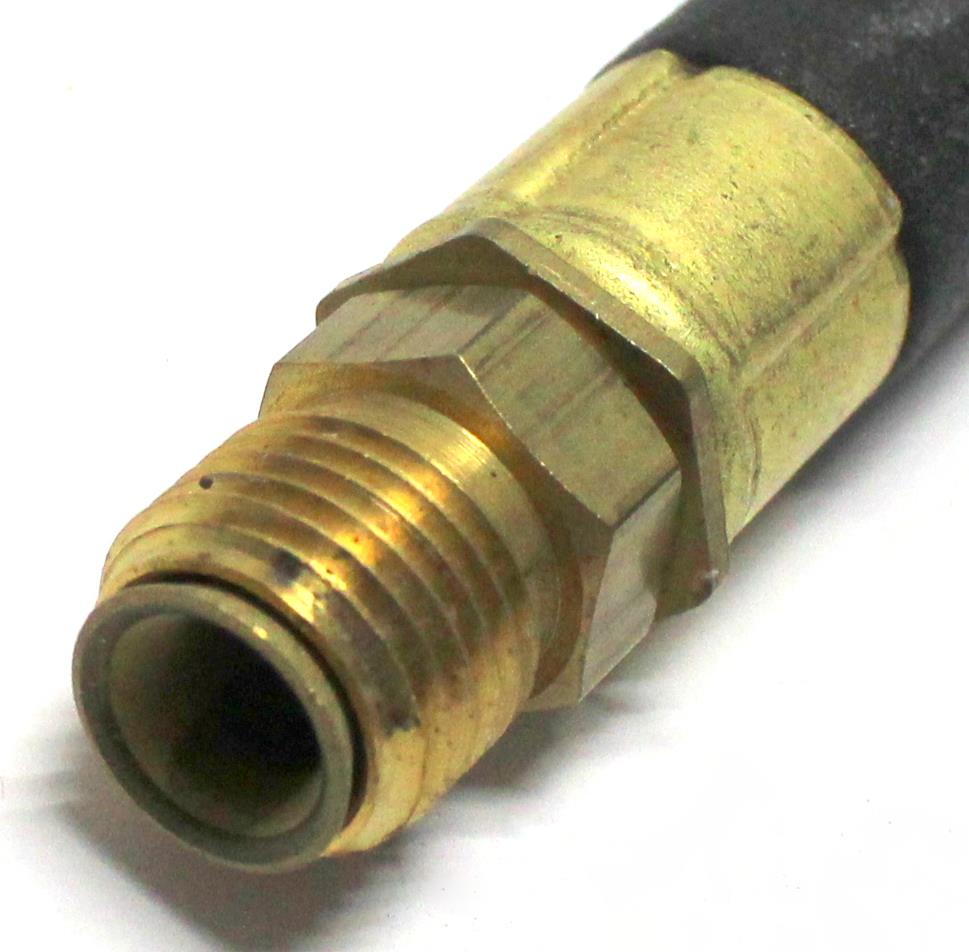

Connection Style - Swivel Nut, Inverted Flare 1st End
-
End Connection Design - Straight 1st End
-
Connection Type - Threaded External Tube 1st End
-
Burst Test Pressure - 700.0 Pounds Per Square Inch
-
Layer Composition And Location - 1st Layer Braided Cotton Cord And Outer Layer Molded Rubber, Synthetic
-
Maximum Operating Pressure - 175.0 Pounds Per Square Inch
-
Nominal Thread Size - 0.500 Inches 1st End
-
Hydrostatic Test Pressure - 350.0 Pounds Per Square Inch
-
Outer Covering Environmental Protection - Oil Resistant And Ozone Resistant
-
Inside Surface Condition - Smooth
-
Measuring Method And Length - 11.375 Inches Overall
-
Media For Which Designed - Fuel/Oil, Hydrocarbon Single Response
Fits:
Gen-Set 2A042 5 KW Generator
MEP-017A – 60 HZ – Gasoline Engine Driven
MEP-022A – 400 HZ – Gasoline Engine Driven
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
