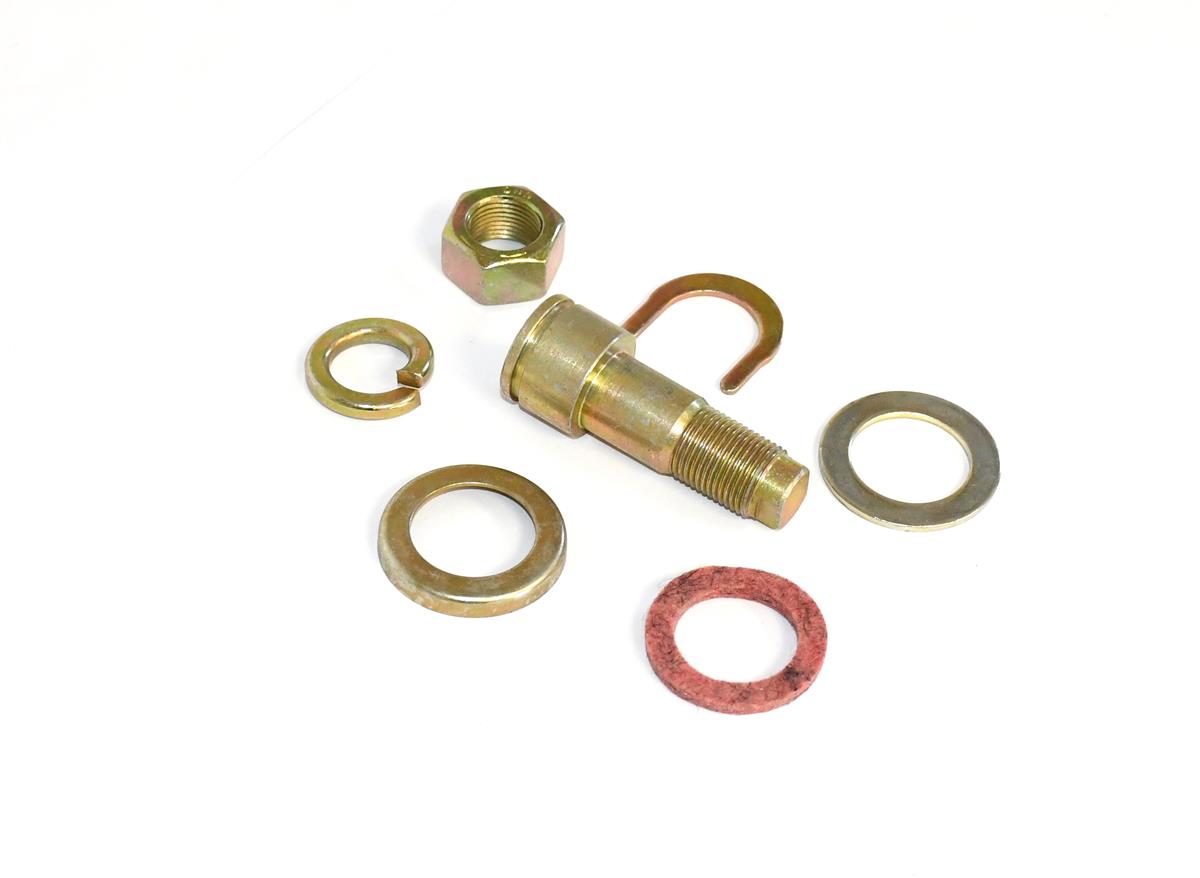

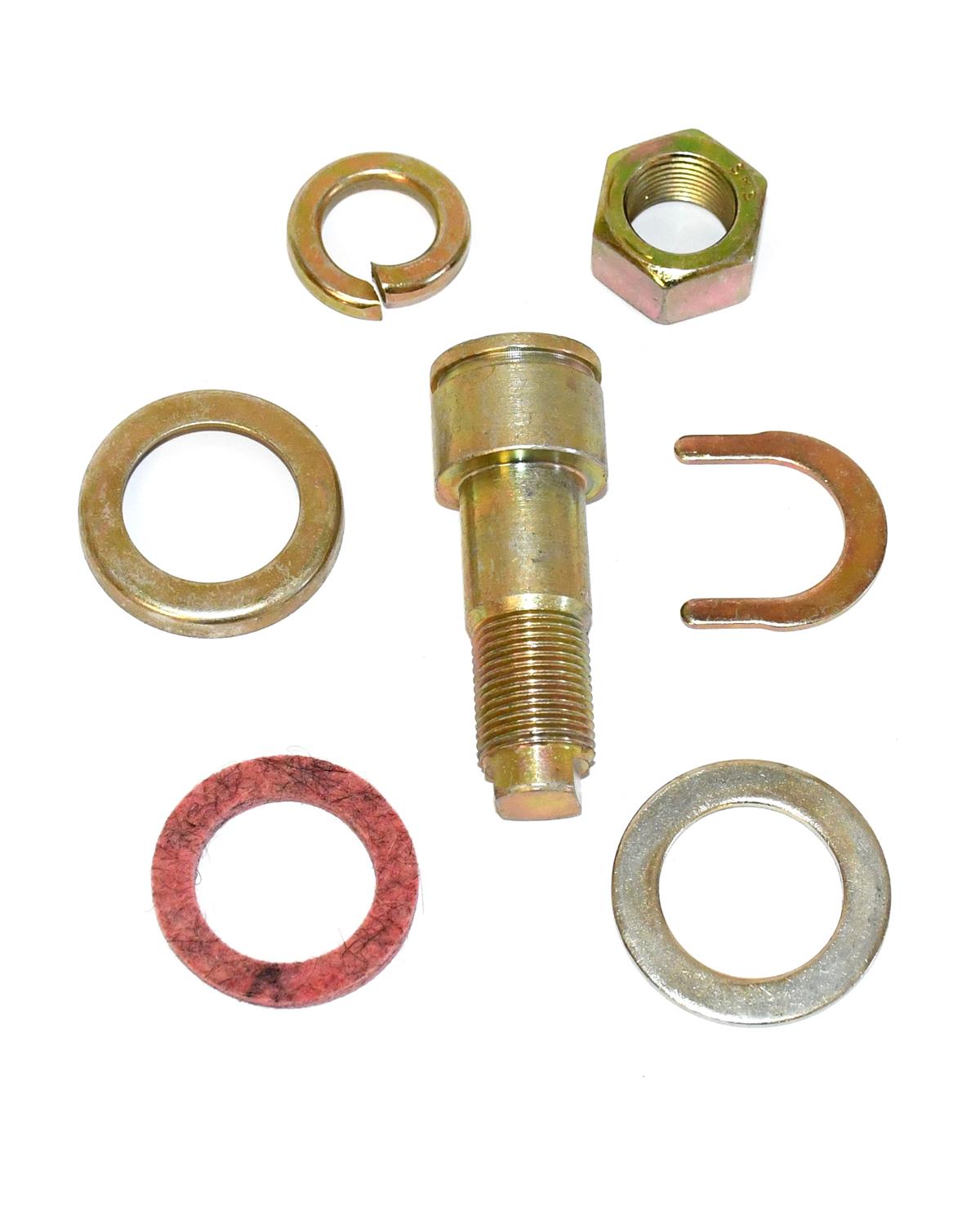

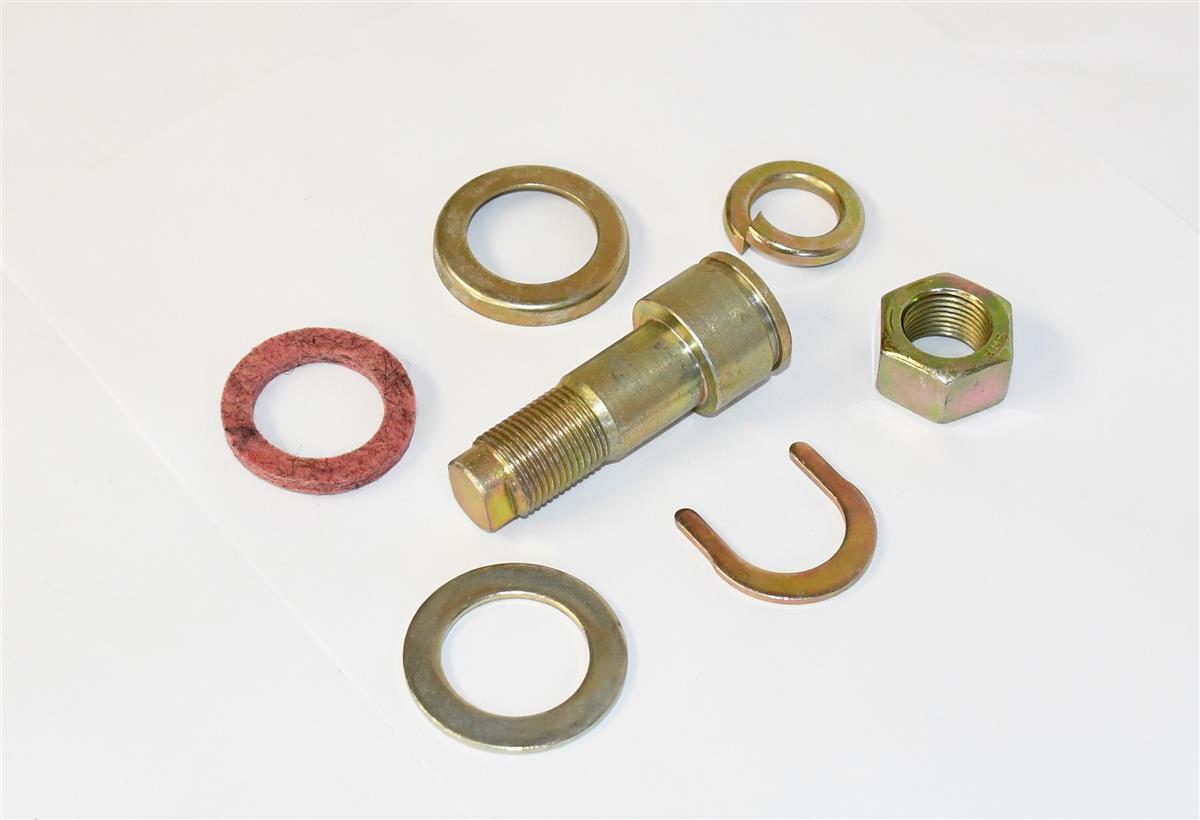

Eccentric Brake Shoe Parts Kit M35A2 M35A3 M109A3 M44
Includes
- Part Number 752171 Washer
- Part Number 5160345 Retainer
- Part Number 5160346 Washer
- Part Number 5160341 Pin Anchor
- Part Number 10896682 Horseshoe Clip

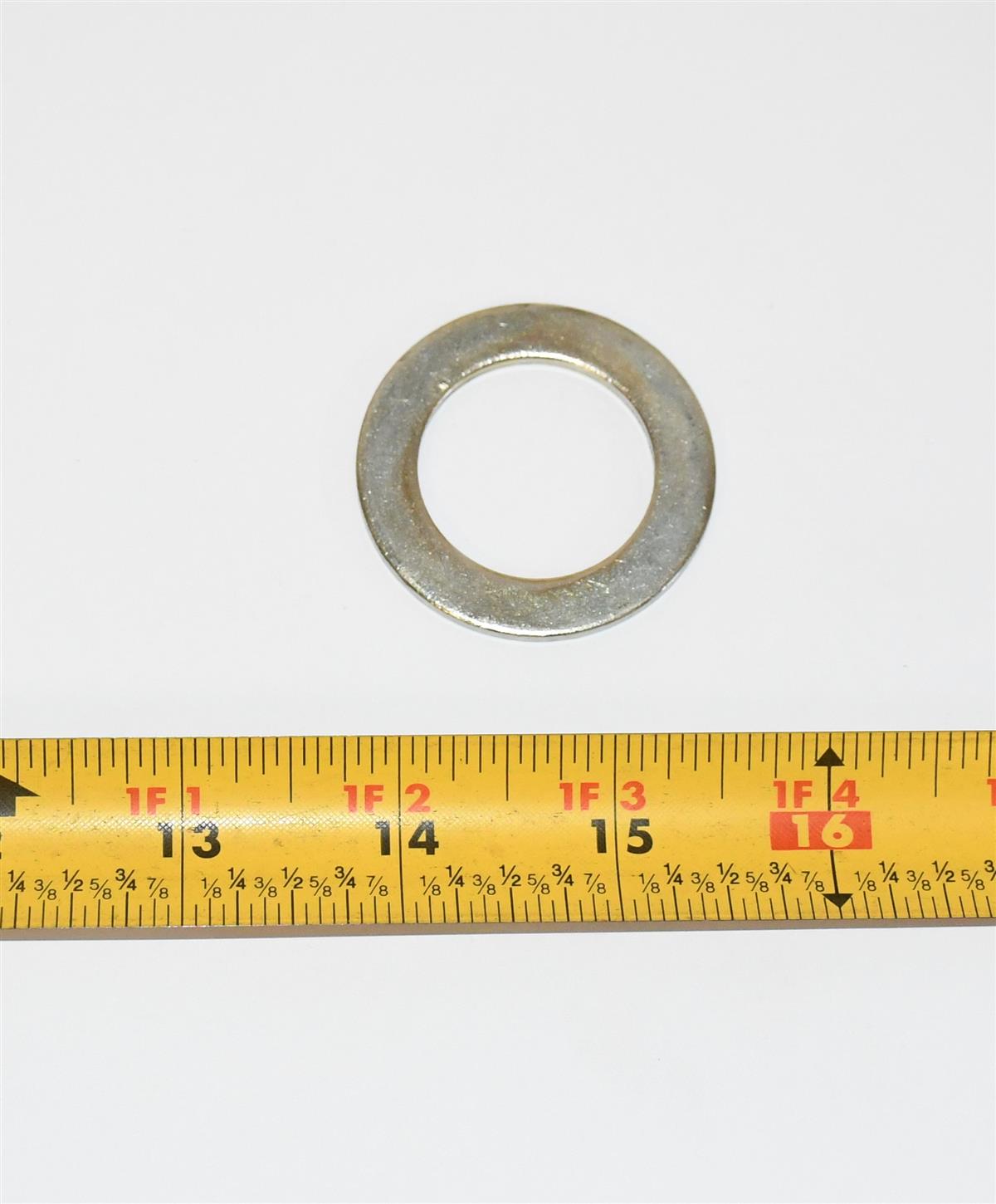

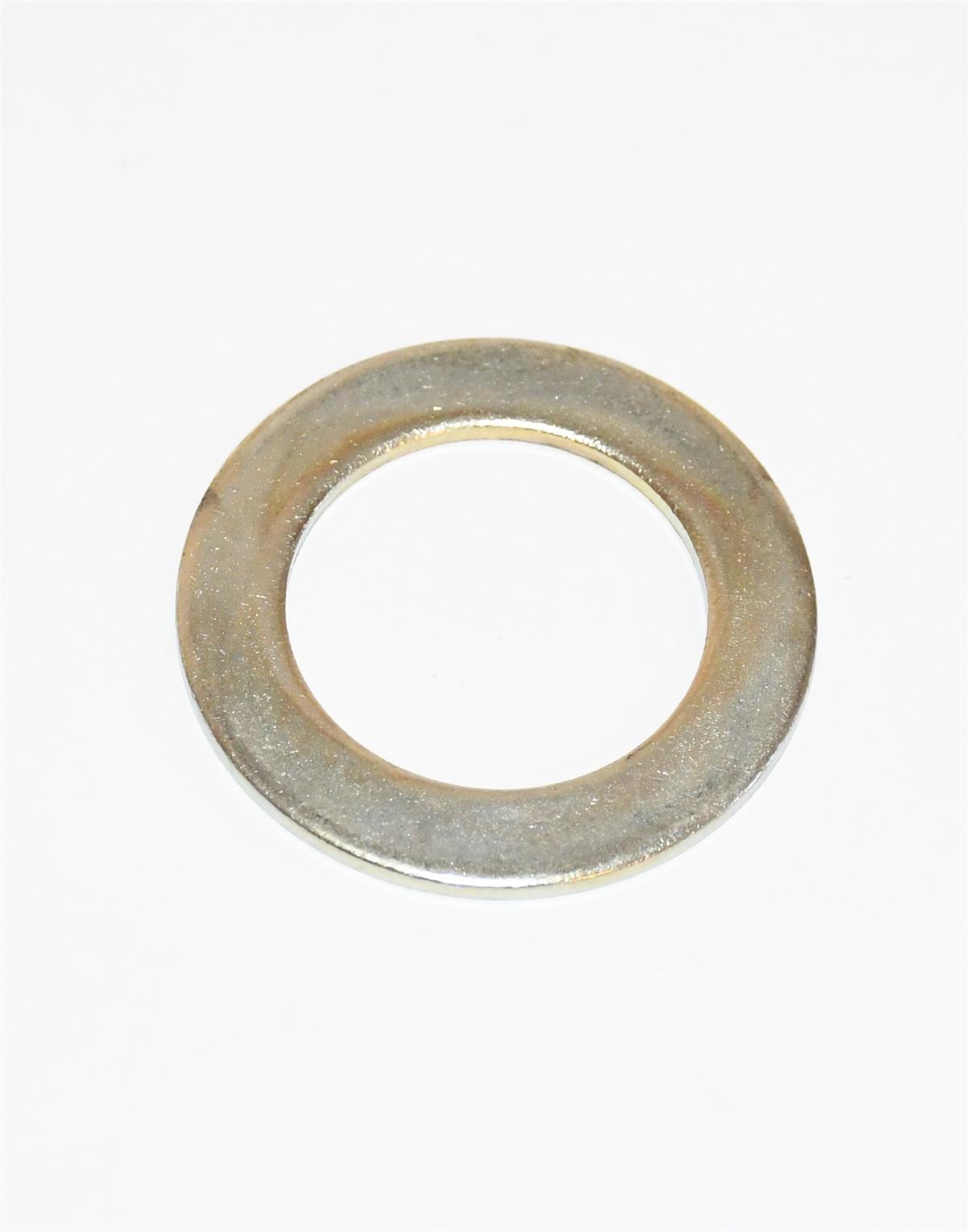

Washer PN# 7521711
- Hole Diameter is 1.140 inches
- Thickness is 0.090 inches
- Overall Diameter is 1.750 inches
- Steel Material

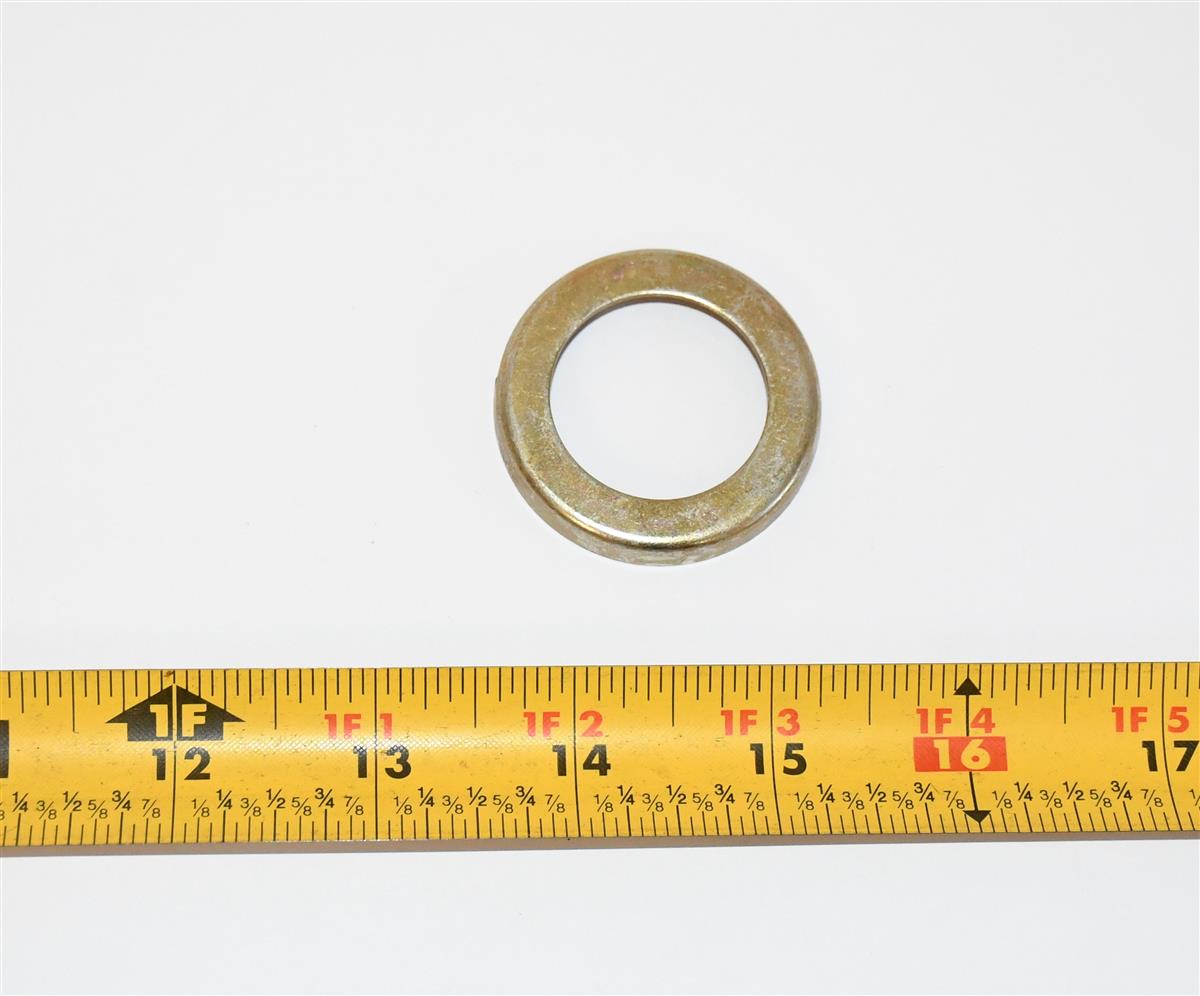

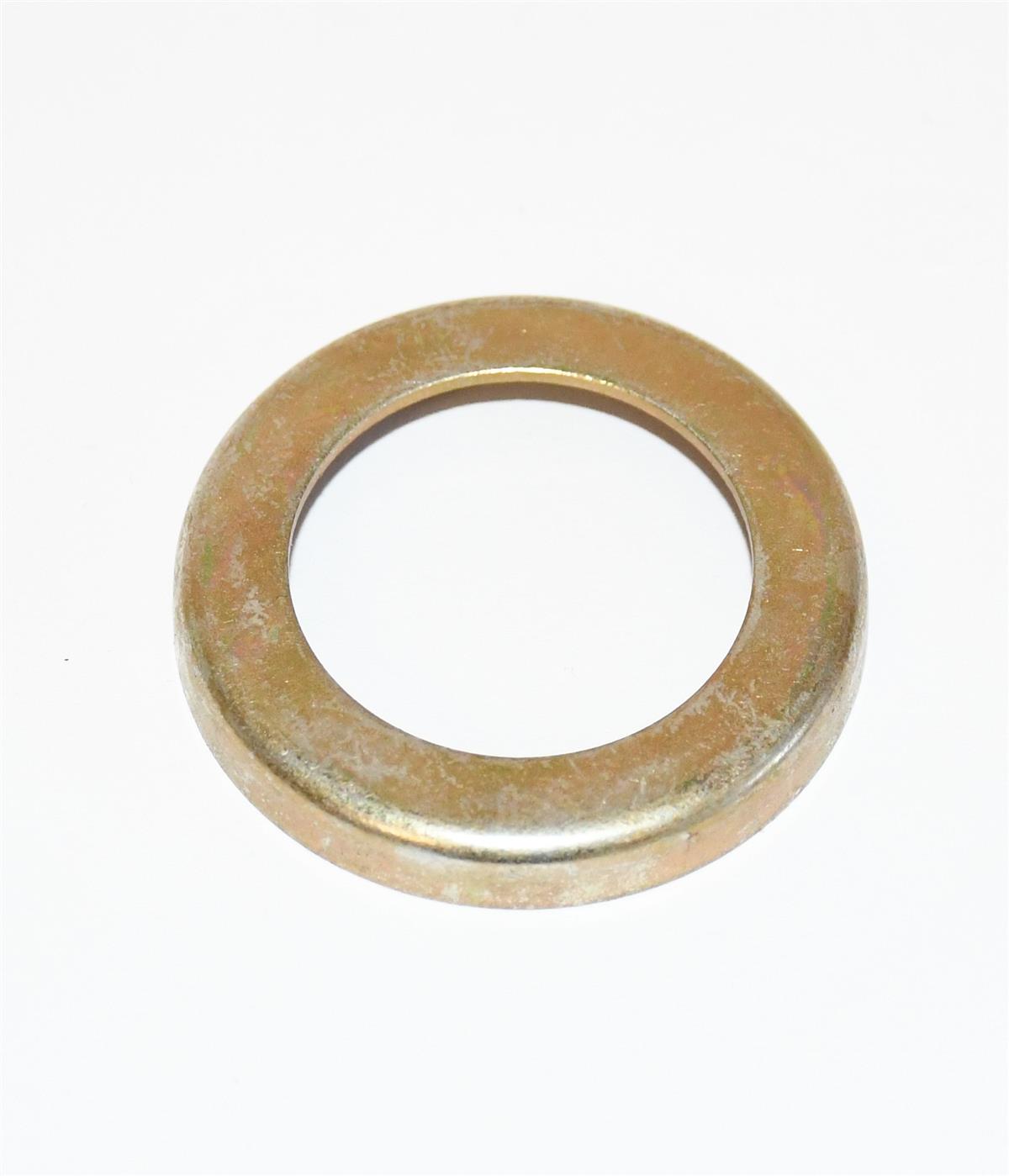

Washer PN# 5160345
- Hole Diameter is 1.131 inches Minimum and 1.151 inches Maximum
- Outside Diameter is 1.750 inches
- Overall Height is 0.238 inches Minimum and 0.248 inches Maximum
- Recess Depth is 0.1902 inches Minimum and 0.2002 inches Maximum
- Steel Material

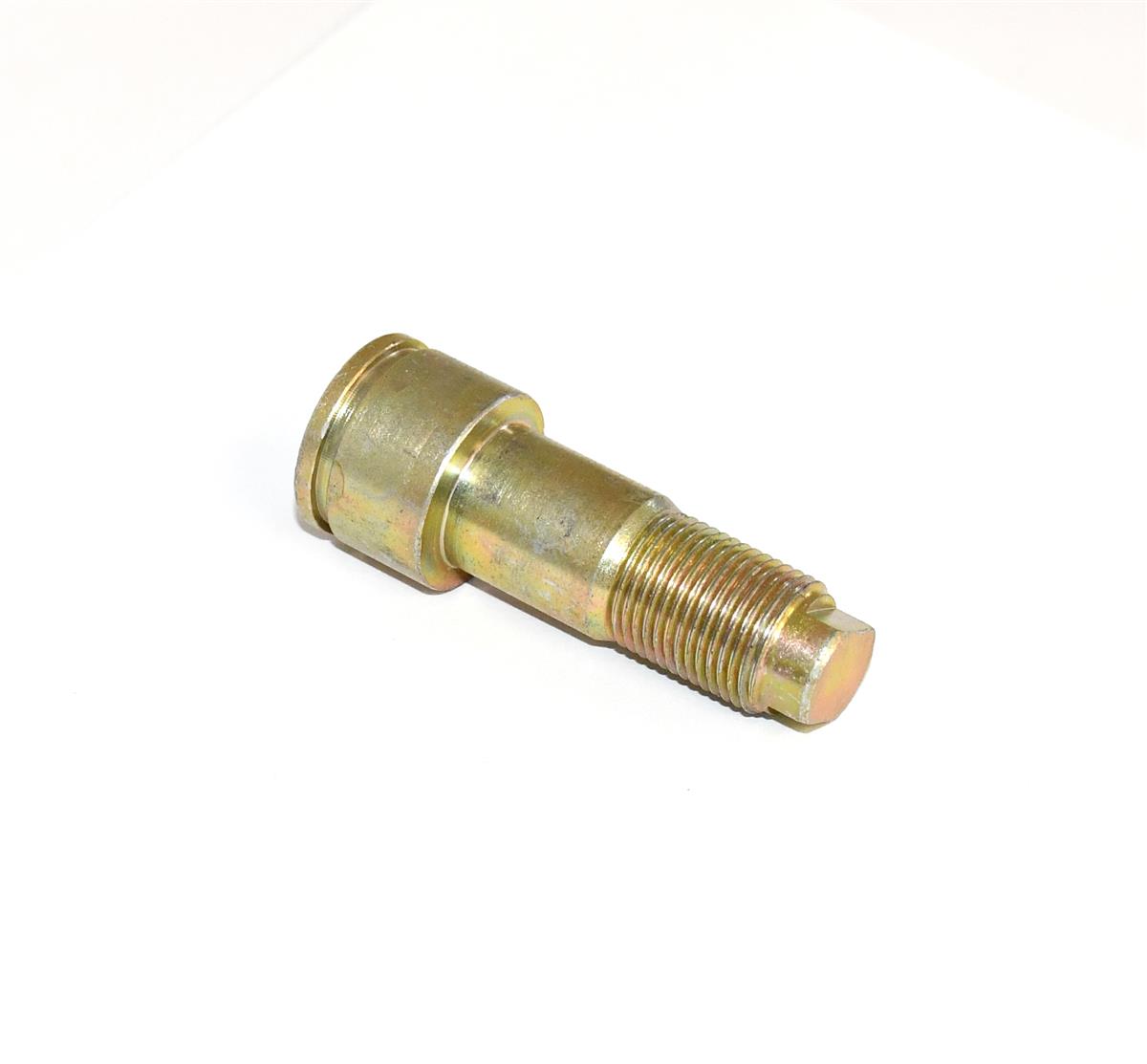

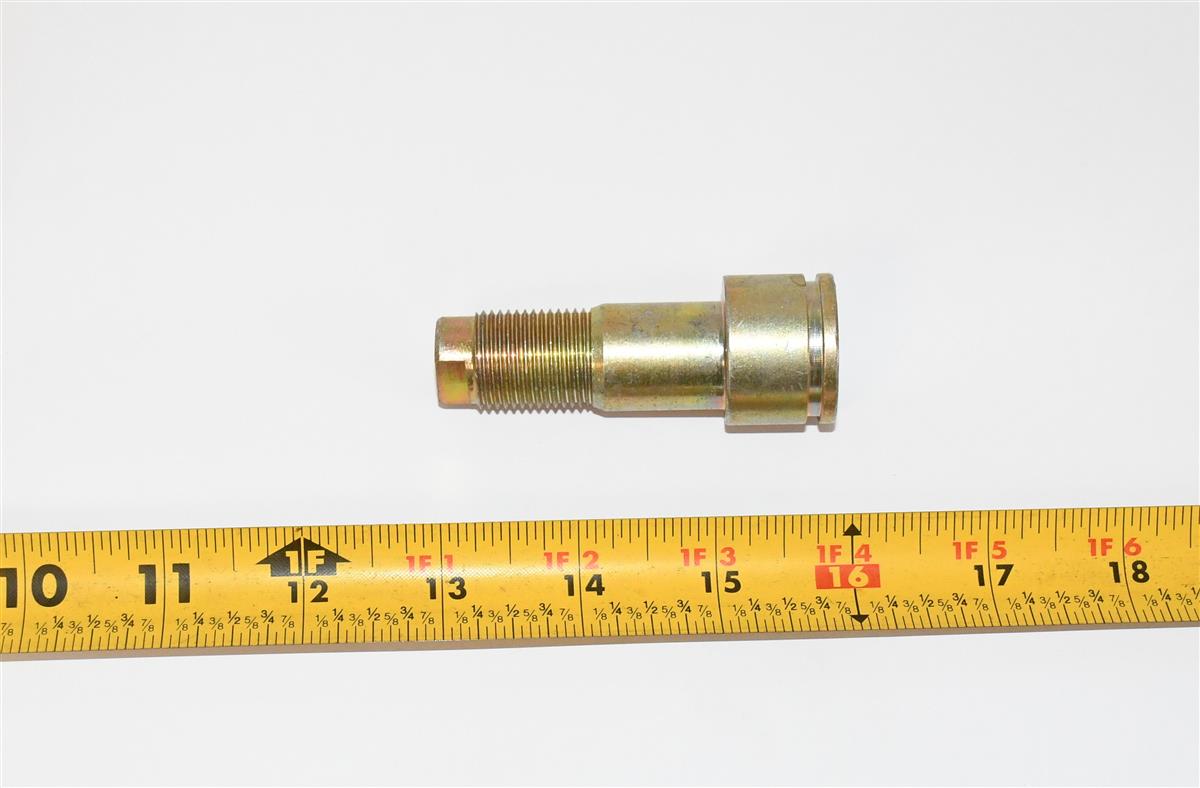

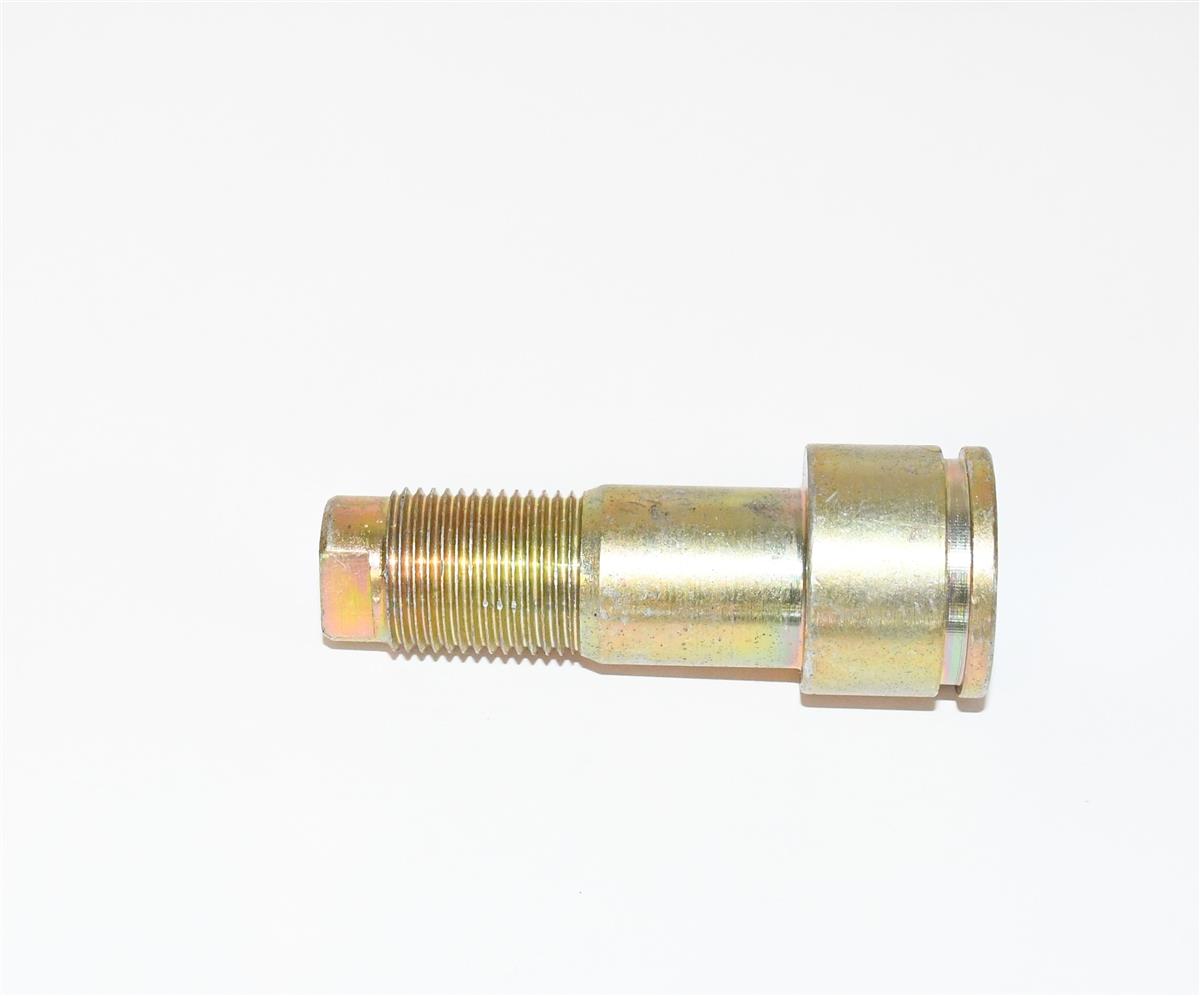

Anchor Pin PN# 51603411
- Inner Length is 2.937 inches
- Diameter First End is 1.120 inches
- Inner Bore Diameter is 0.500 inches
- Carbon Steel Material

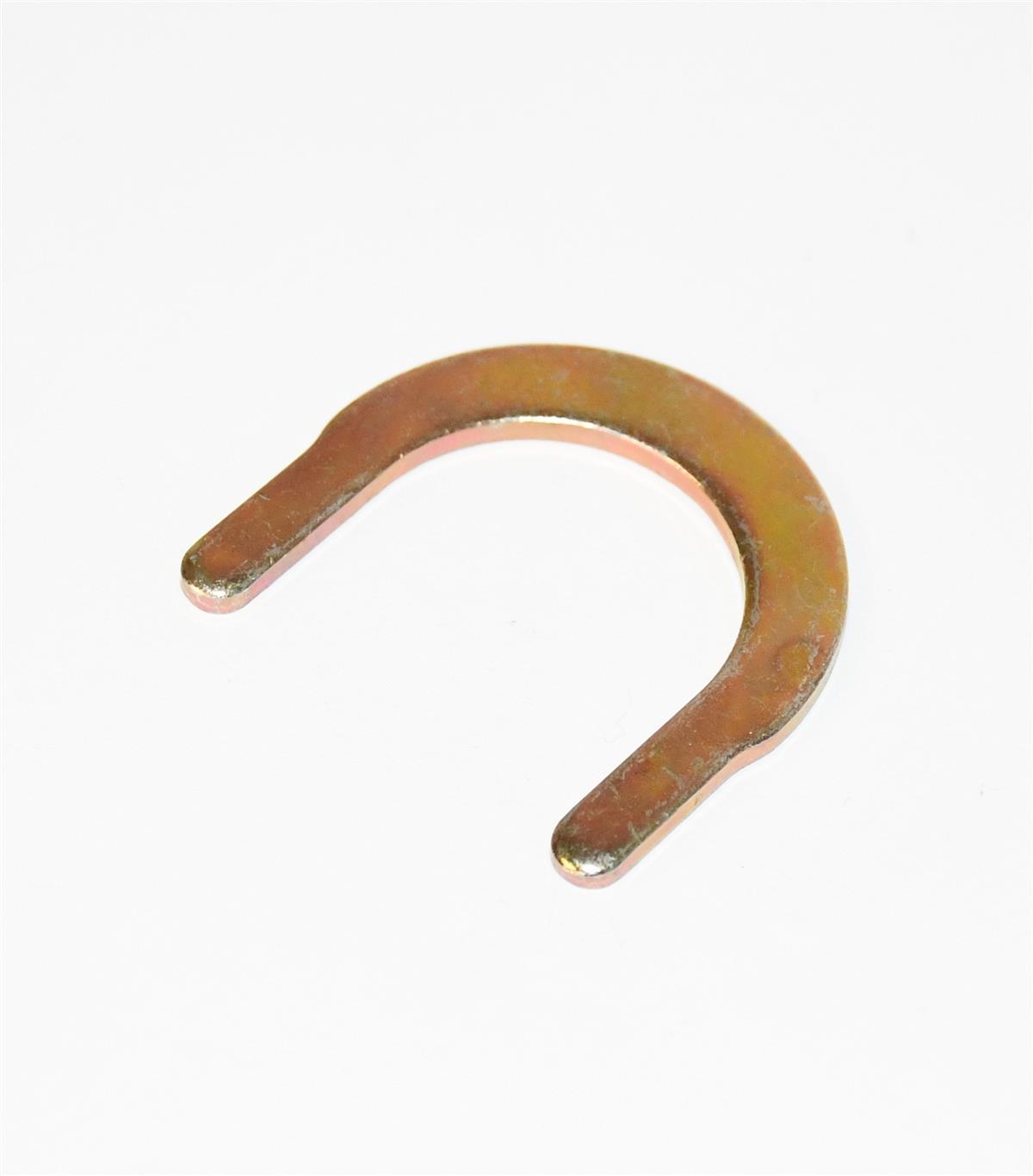

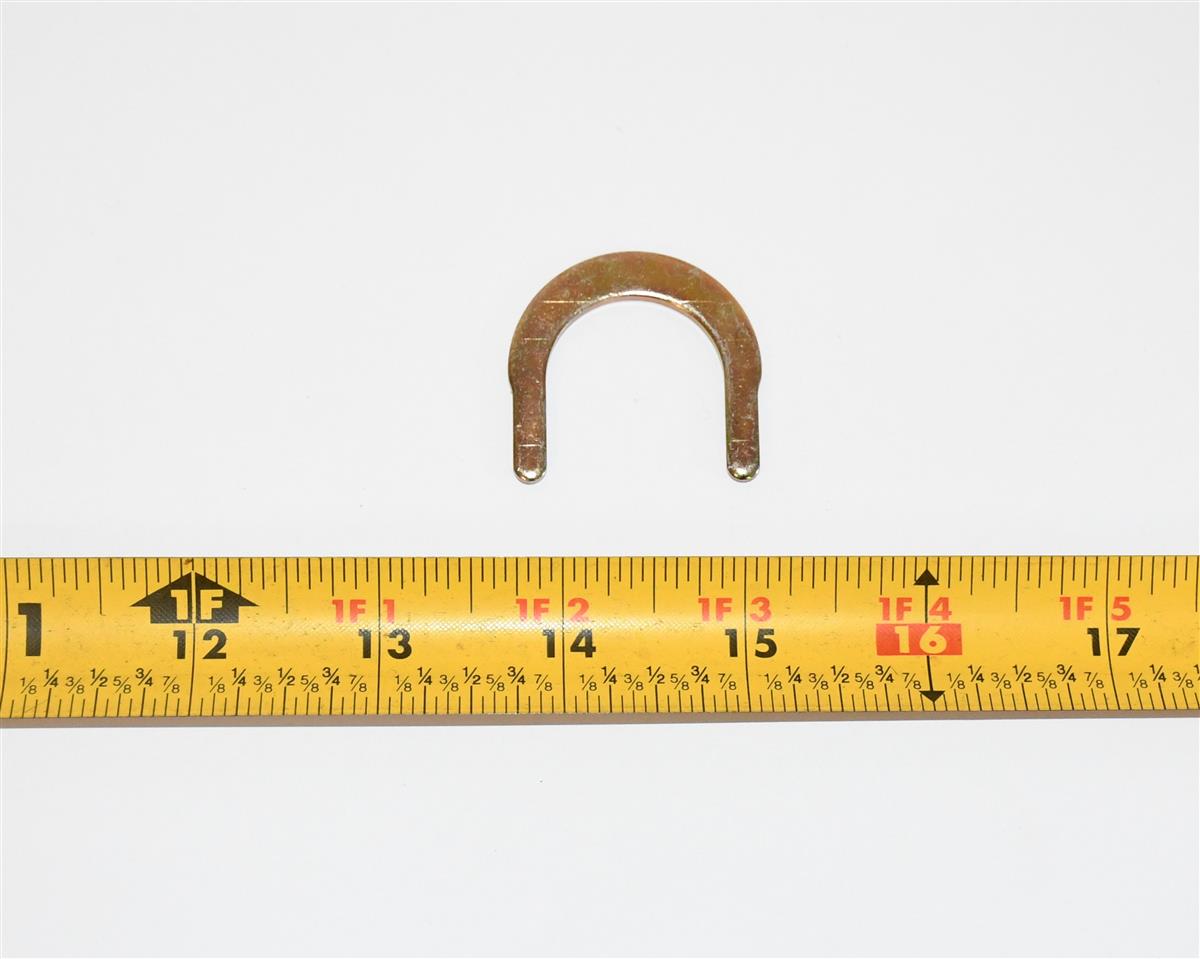

Horseshoe Clip PN# 10896682
- "Horseshoe Clip"
- Rounded Corners
- Inside Diameter 1.005 IN MIN and 1.010 IN MAX
- Major Thickness 0.090 IN
- Steel

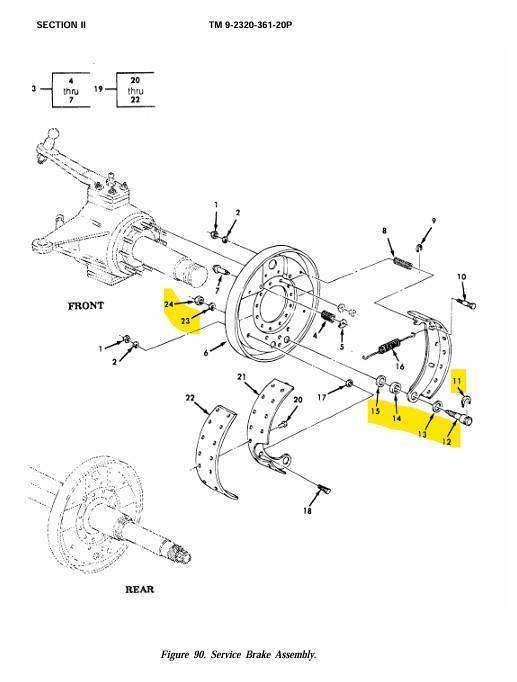

- Diagram Shown in Pictures
Fits: Deuce and a Half 6x6 Military Truck
M35A2, M49A2, M50A2, M36A2, M109A3, M275 2 ½ Ton Trucks
M35A3, M36A3, M109A4 2 ½ Ton Trucks
