HM-583 | 200 AMP Dual Volt Alternator and Regulator Assembly Upgrade Kit HMMWV

$190.00
NSN #:
2920-01-455-1630
2920-01-385-9823
2920-01-164-7091
Part #:
57K3520, 1987809

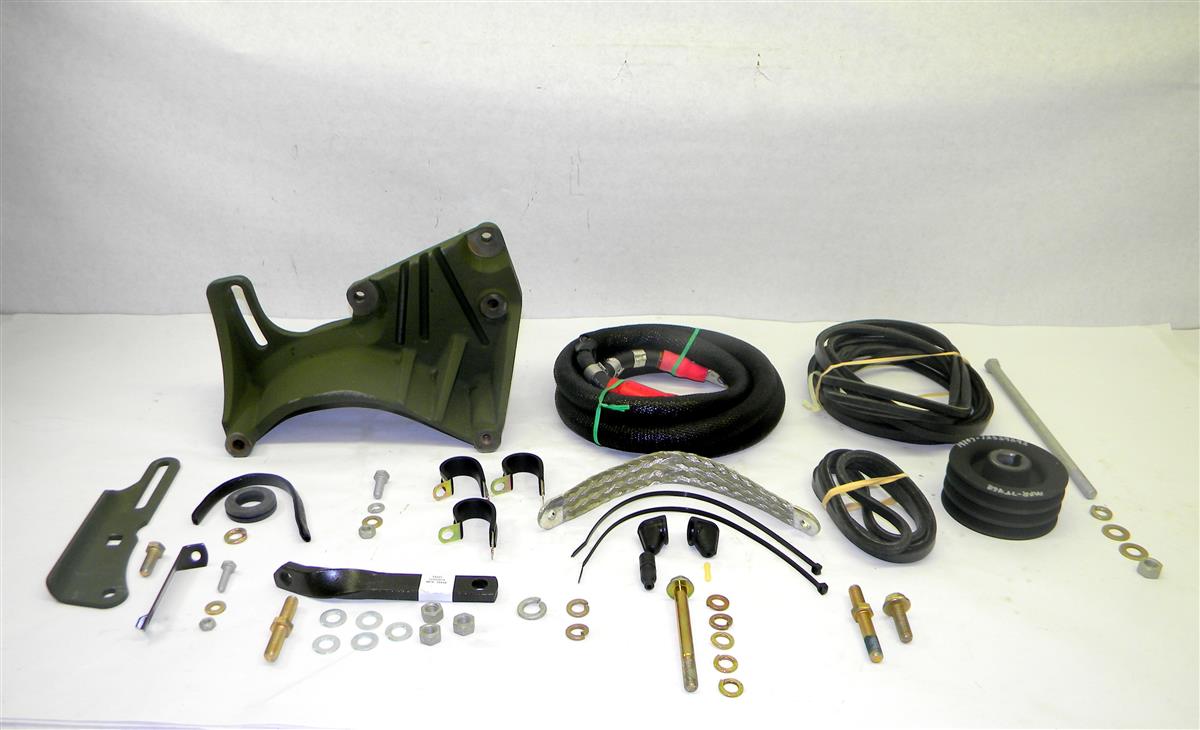

200 AMP Dual Volt Alternator and Regulator Assembly Upgrade Kit

Parts Kit, Engine Generator/ 200 AMP Dual Volt Alternator and Regulator Assembly Accessory Kit

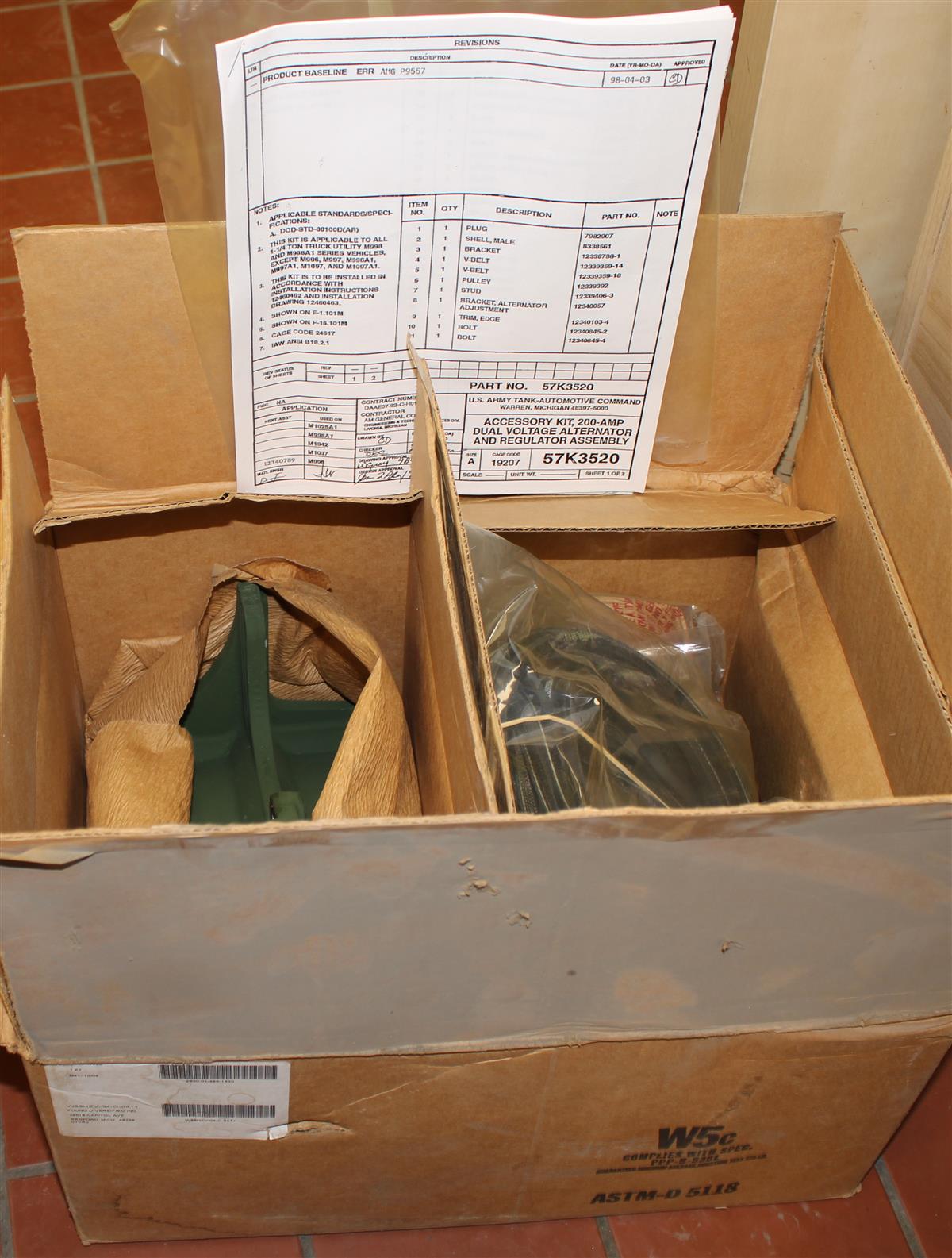

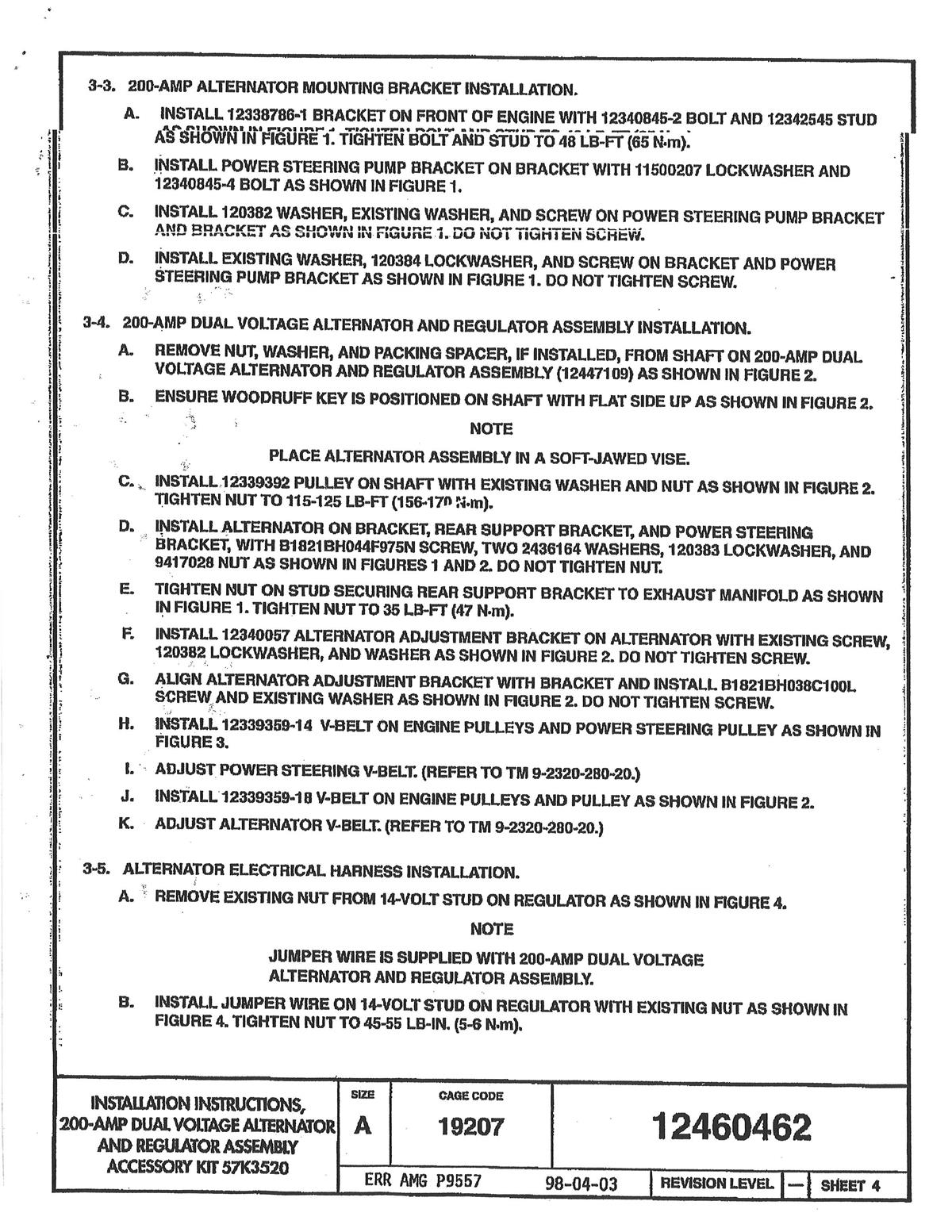

  • Installation Instructions and Installation Drawing Included
  • 1 QTY Plug Part Number 7982907
  • 1 QTY Male Shell Part Number 8338561
  • 1 QTY Bracket Part Number 12338786-1
  • 1 QTY V-Belt Part Number12339359-14
  • 1 QTY V-Belt Part Number 12339359-18

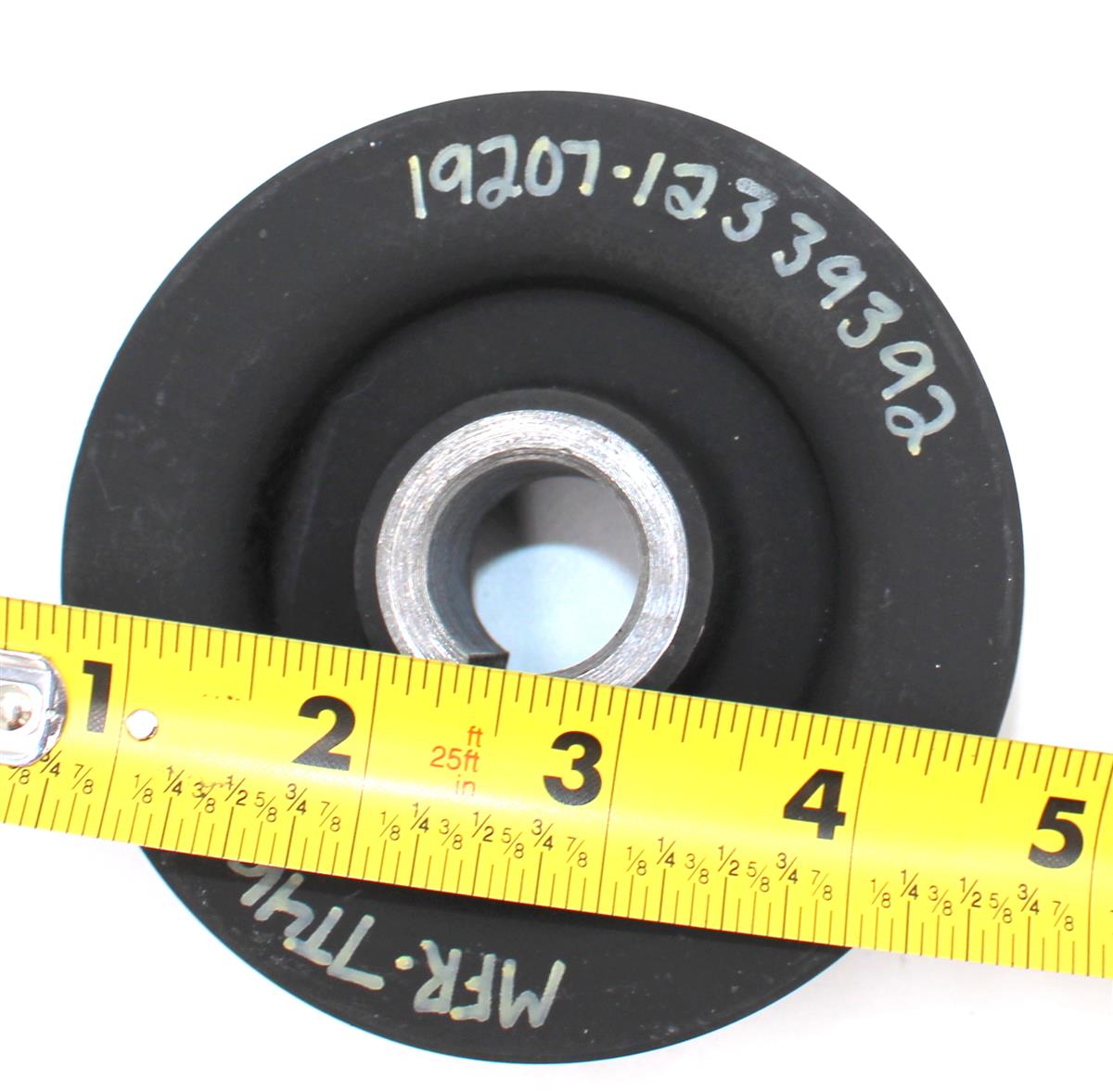

  • 1 QTY Pulley Part Number 12339392
  • 1 QTY Stud Part Number 12339406-3
  • 1 QTY Alternator Adjustment Bracket Part Number 12340057
  • 1 QTY Edge Trim Part Number 12340103-4
  • 1 QTY Bolt Part Number 12340845-2
  • 1 QTY Bolt Part Number 12340845-4
  • 1 QTY Grounding Strap Part Number 12341151
  • 1 QTY Rear Support Bracket Part Number 12342074
  • 1 QTY Power Steering Bracket Part Number 12342076
  • 1 QTY Stud Part Number 12342545
  • 1 QTY Cable Assembly Part Number 12446825
  • 2 QTY Boot Part Number 12460418
  • 3 QTY Clamp Part Number MS21333-128
  • 1 QTY Washer Part Number MS27183-10
  • 1 QTY Washer Part Number MS27183-12
  • 2 QTY Tiedown Strap Part Number MS3367-7-0
  • 1 QTY Grommet Part Number MS35489-23
  • 1 QTY Nut Part Number MS51943-31
  • 1 QTY Nut Part Number MS51967-6
  • 1 QTY Lockwasher Part Number 120214
  • 2 QTY Lockwasher Part Number 120382
  • 1 QTY Lockwasher Part Number 120383
  • 1 QTY Lockwasher Part Number 120384
  • 1 QTY Nut Part Number 9417028
  • 5 QTY Lockwasher Part Number 11500207
  • 5 QTY Washer Part Number 11500256
  • 2 QTY Washer Part Number 2436164
  • 3 QTY Nut Part Number B18241B100F
  • 1 QTY Screw Part Number B1821BH025C100N
  • 1 QTY Screw Part Number B1821BH031C100N
  • 1 QTY Screw Part Number B1821BH038C100L
  • 1 QTY Screw Part Number B1821BH044F975N
  • 1 QTY Lock Washer B5031


Click Here For HM-248 | Dual Voltage 200 Amp Alternator HMMWV

Click Here For HM-1457 | 200 Amp Alternator Mounting Bracket HMMWV

Click Here For HM-352 | 200 Amp Alternator Mounting Bracket HMMWV

Click Here For HM-2036 | Reconditioned Dual Voltage, 200 Amp Alternator HMMWV

Click Here For HM-1454 | Alternator Bracket Arm 200 Amp Alternator Top Mounting Bracket HMMWV

Fits: HMMWV Models

M1025 M1025A1 M1025A2 M1026 M1026A1 M1035 M1035A1 M1035A2 M1037 M1038 M1038A1 M1042 M1043 M1043A1 M1043A2 M1044 M1044A1 M1045 M1045A1 M1045A2 M1046 M1046A1 M1121 M1123 M998 M998A1 M1151 M1151A1 M1167

Hummer, Humvee hmmwv, hummer, hummvee, H1, AM General







Parts we offer for sale can be exported.  Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.



We can provide container loads of parts, loaded and shipped from our facility.







This item is only available in this condition (New Old Stock).
No alternate conditions are available at this time.
