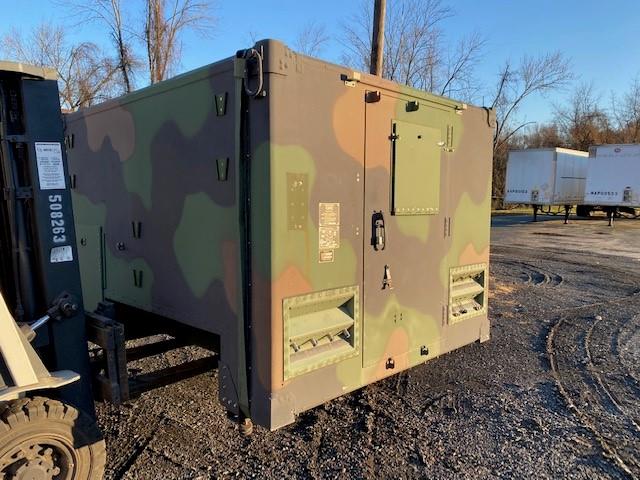

S-788 Electrical Equipment Shelter
S788 Gichner non-expandable
788
788S
Click Here For Shelter Mounting Kit for S-788 S788 Electrical Equipment Shelter HMMWV
Click Here For Gichner GSS-1497A Electric Equipment Shelter M1151 HMMWV
Alternate Part number possible 7043547-502
Alternate Part number 17-1-3725-02
Alternate Part number ALH-100052-003
Alternate Part number ALH-201102-005
LMS (Lightweight Multipurpose Shelter)

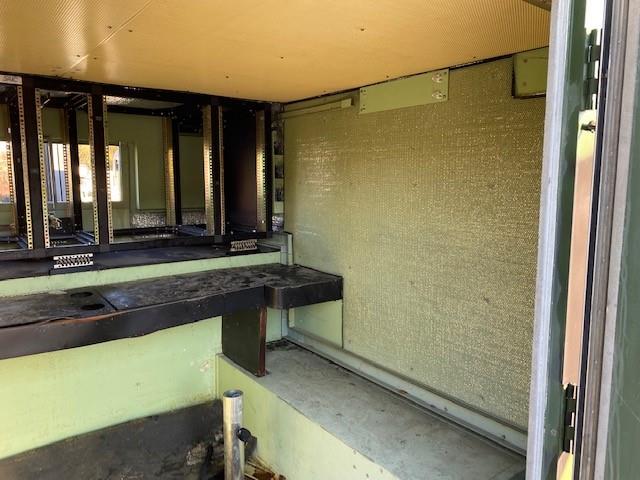

Shelter is equipped with electrical sockets, radio equipment racking, the exterior has four (4) folding steps in sidewall and one roof handhold, lift and tie down slings.
This shelter is designed to mount on the HMMWV, but can be used in various other cargo bed applications such as M1101 and M110t LTT trailers
NOTE: There are various sizes and configurations- this listing includes various types and selection of a unit specific for your needs
Exterior Dimension:
- Length: 90" Inches
- Width: 84" Inches
- Height: 67" Inches
Interior Dimensions
- Length: 87 1/2" inches
- Width: 81 1/2" Inches
- Height: 64 1/2" Inches

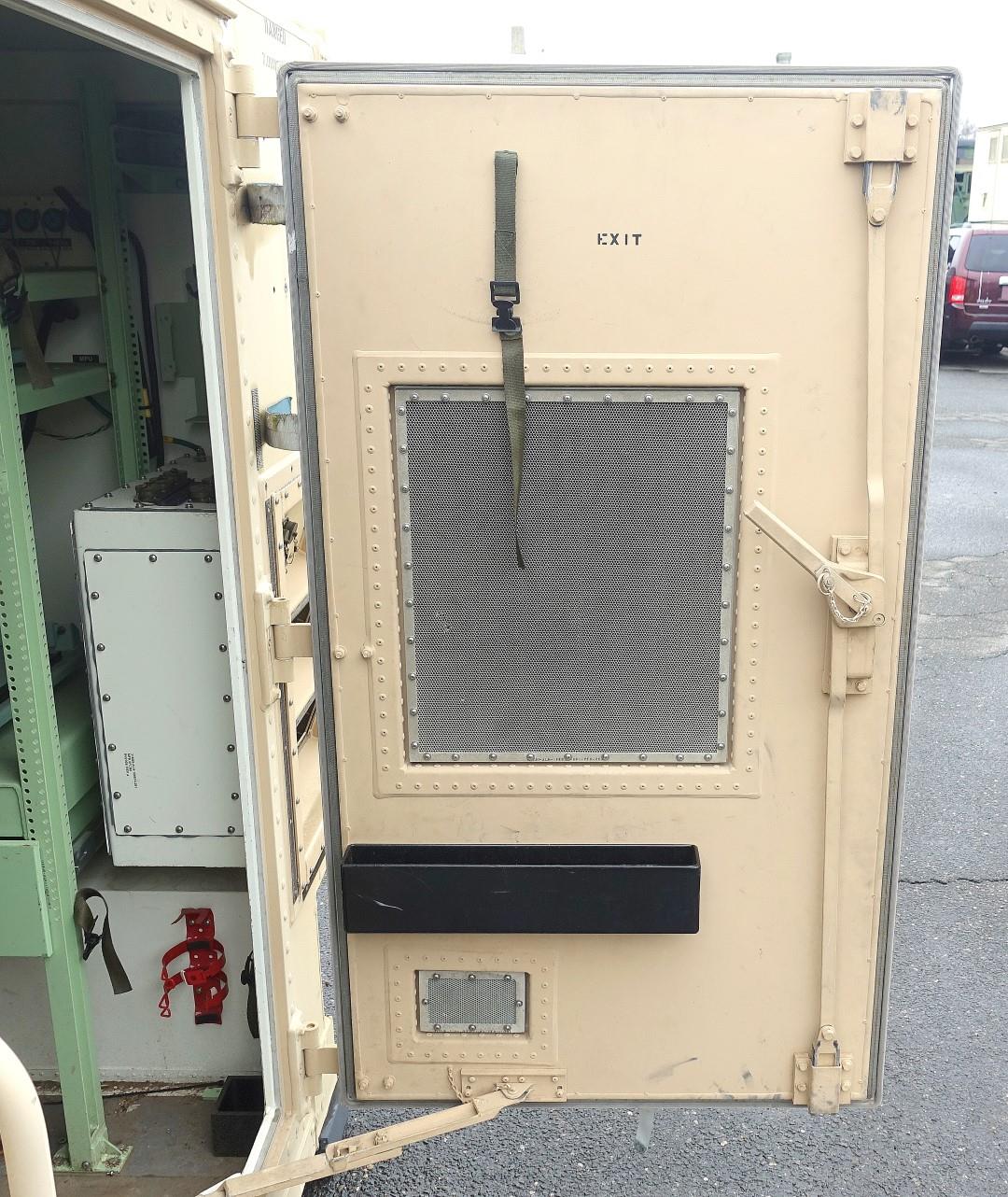

Width of front access door outside to outside approximately 30”
Length from front access door to the rear of shelter approximately 61”
Height from the ground to top edge approximately 16”
Width from the bottom inside to outside edge approximately 17”
The floor measurement at the rear outside to outside is approximately 51.5”
The floor measurement at the front outside to outside is approximately 84.5”
Air conditioning unit available separately - call or email for details
Fits: HMMWV Models
M1025 M1025A1 M1025A2 M1026 M1026A1 M1035 M1035A1 M1035A2 M1037 M1038 M1038A1 M1042 M1043 M1043A1 M1043A2 M1044 M1044A1 M1045 M1045A1 M1045A2 M1046 M1046A1 M1097 M1097A1 M1097A2 M1121 M1123 M966 M966A1 M996 M996A1 M997 M997A1 M997A2 M998 M998A1 M1151 M1151A1 M1167
Hummer, Humvee hmmwv, hummer, hummvee, H1, AM General
Hummer, Humvee hmmwv, hummer, hummvee, H1, AM General
Similar to General Dynamics Lightweight Multi-Purpose Shelter
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
