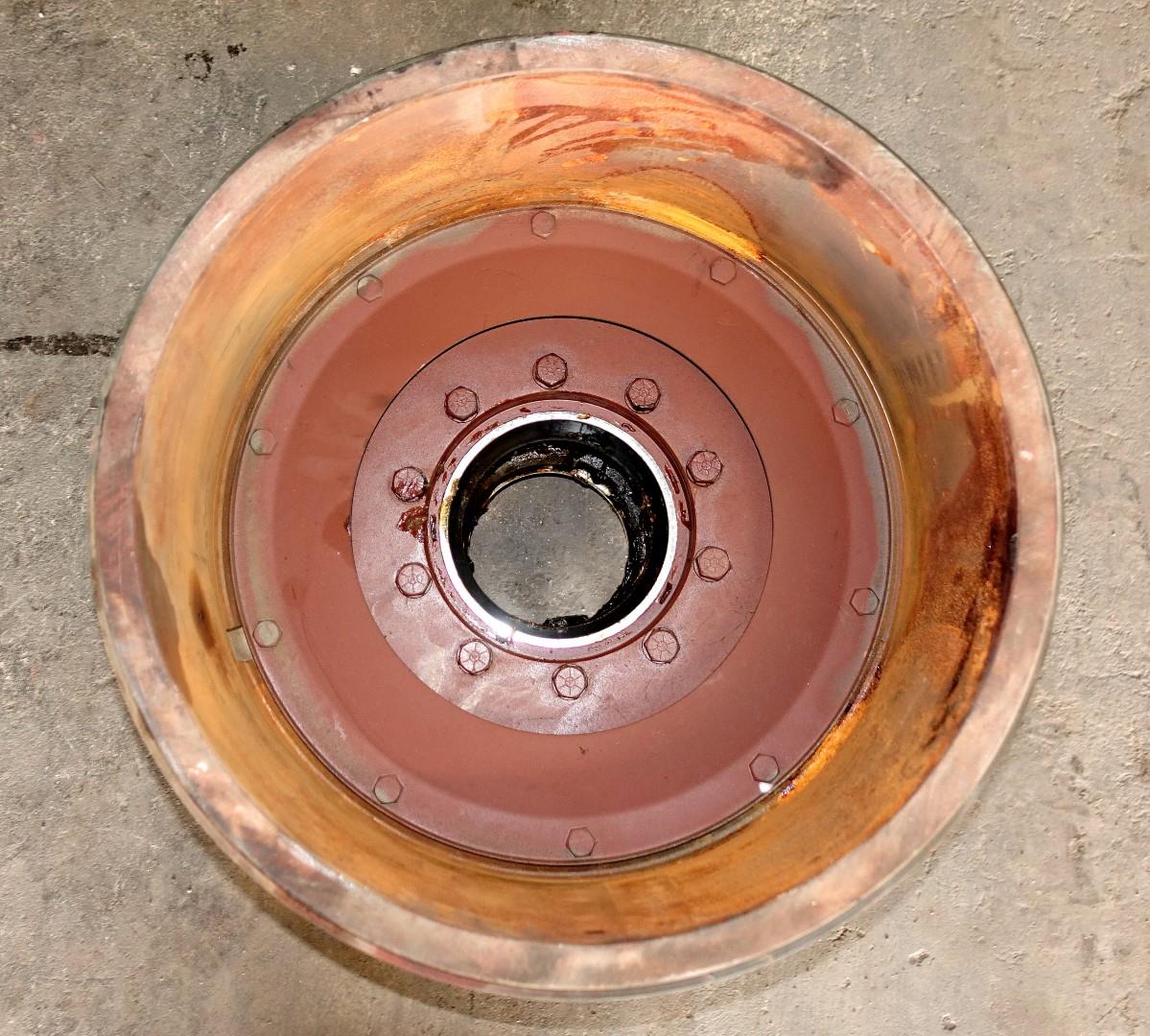

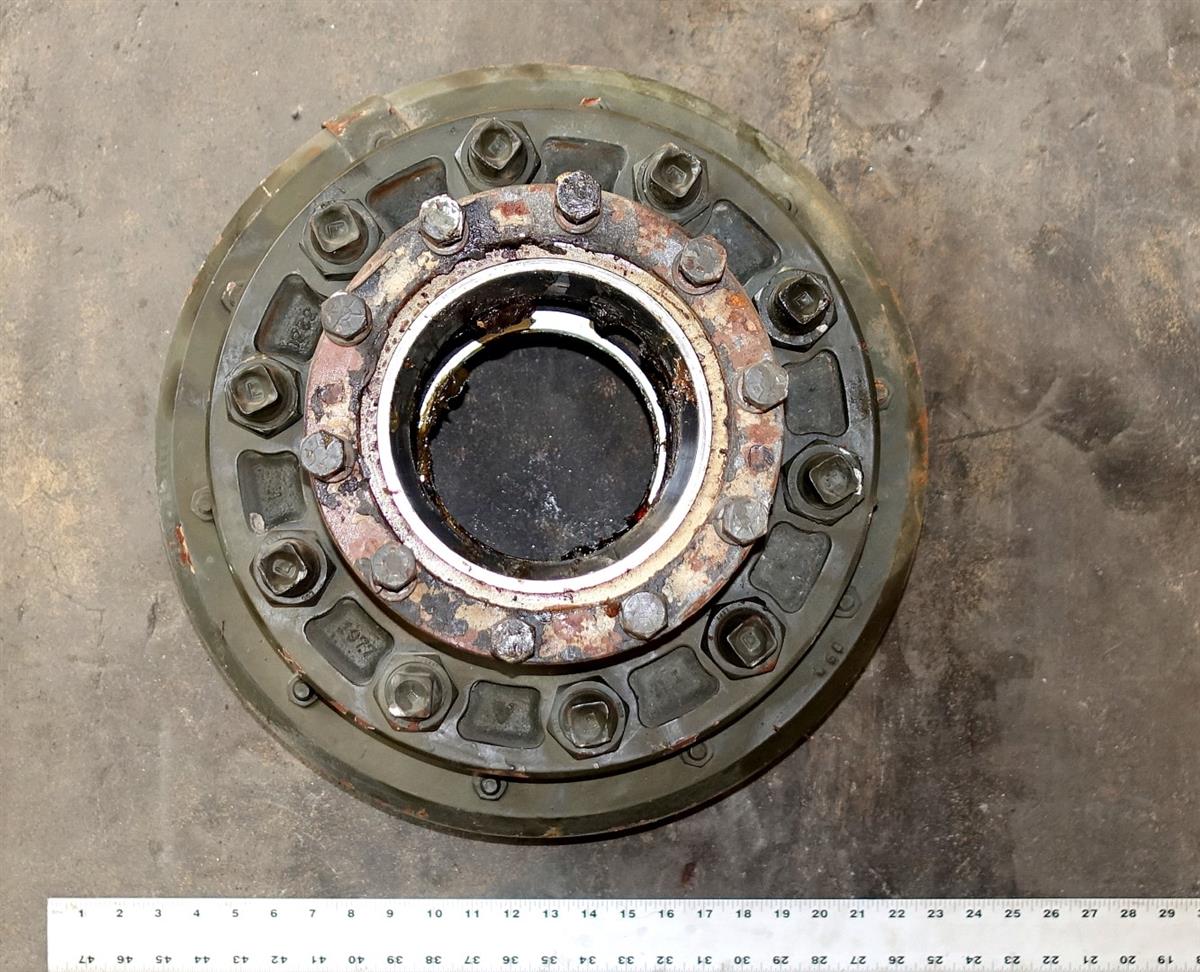

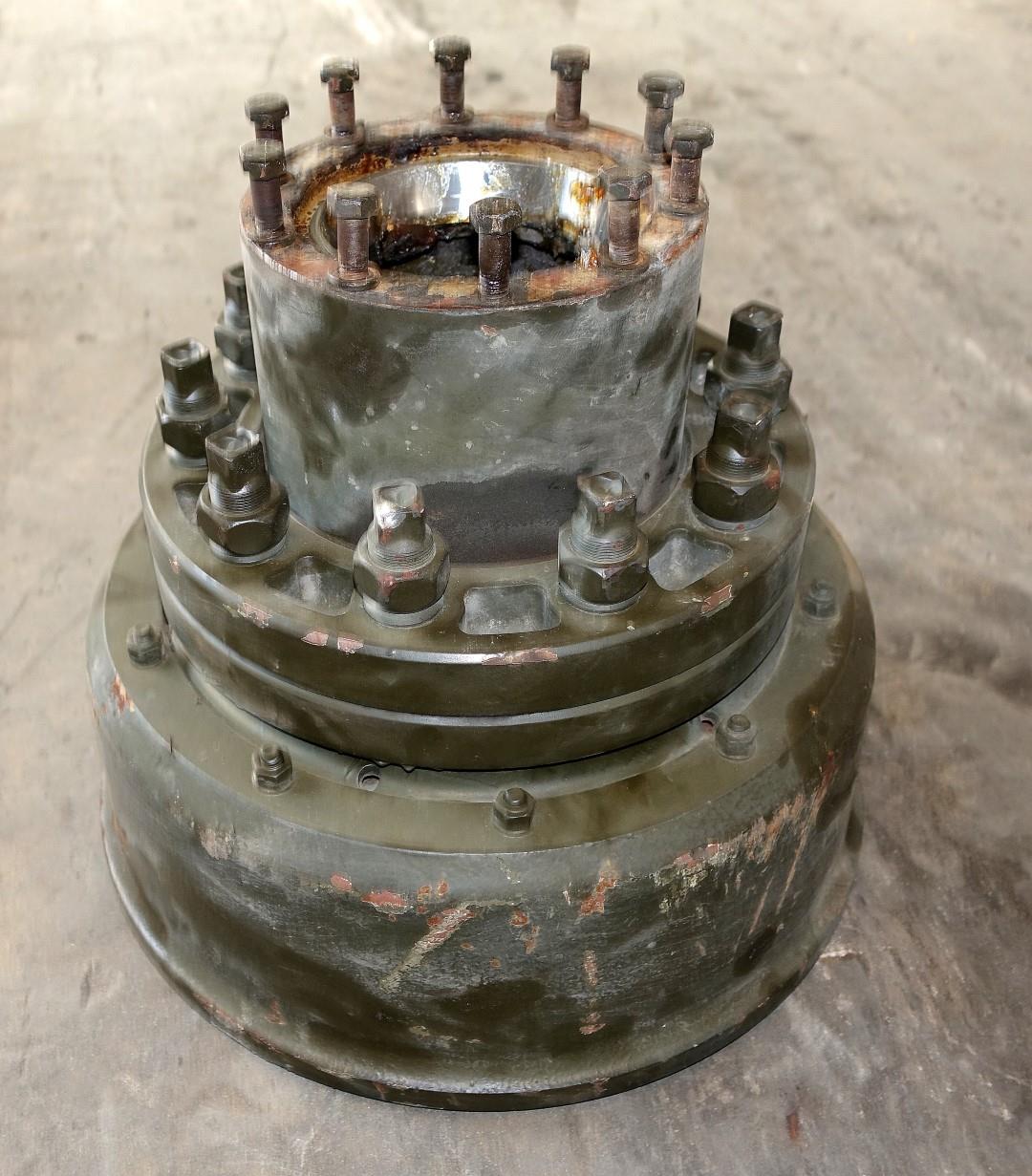

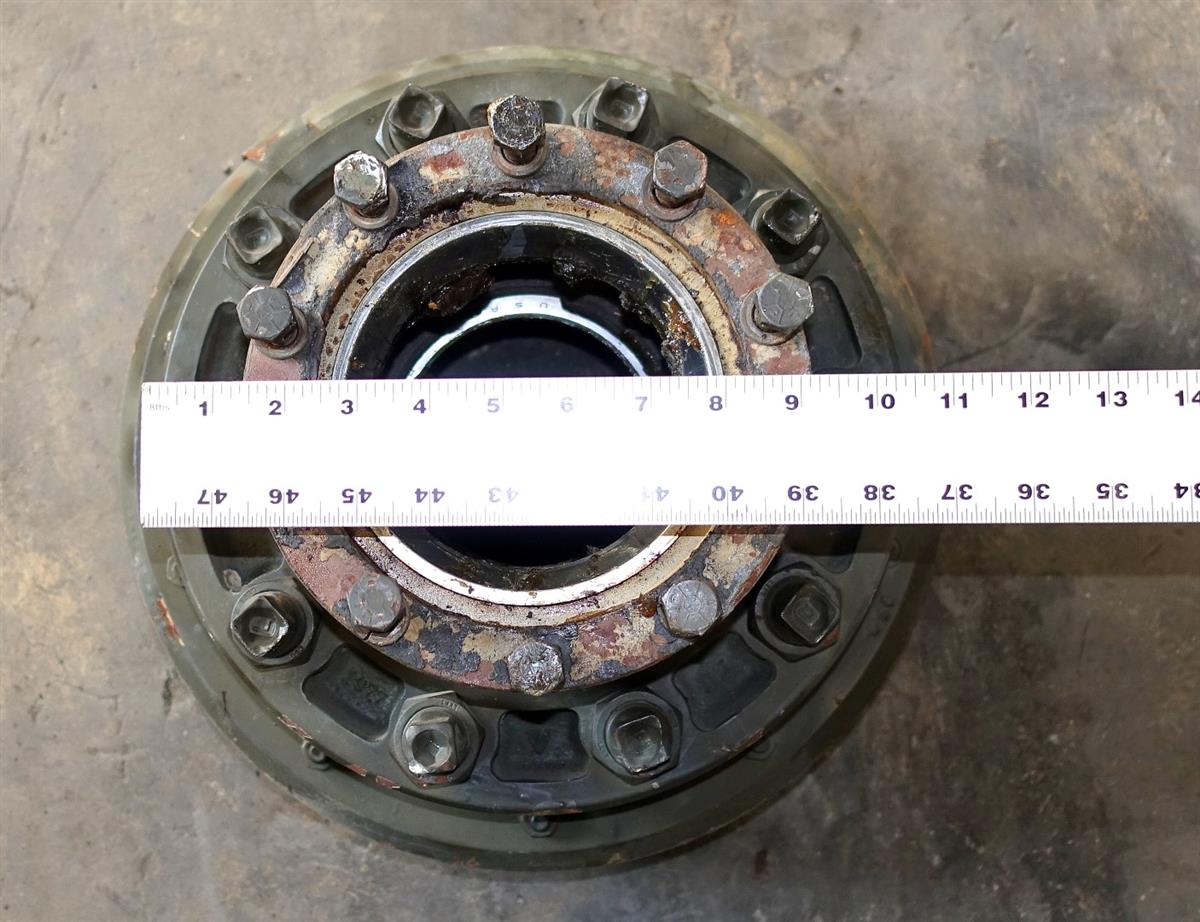

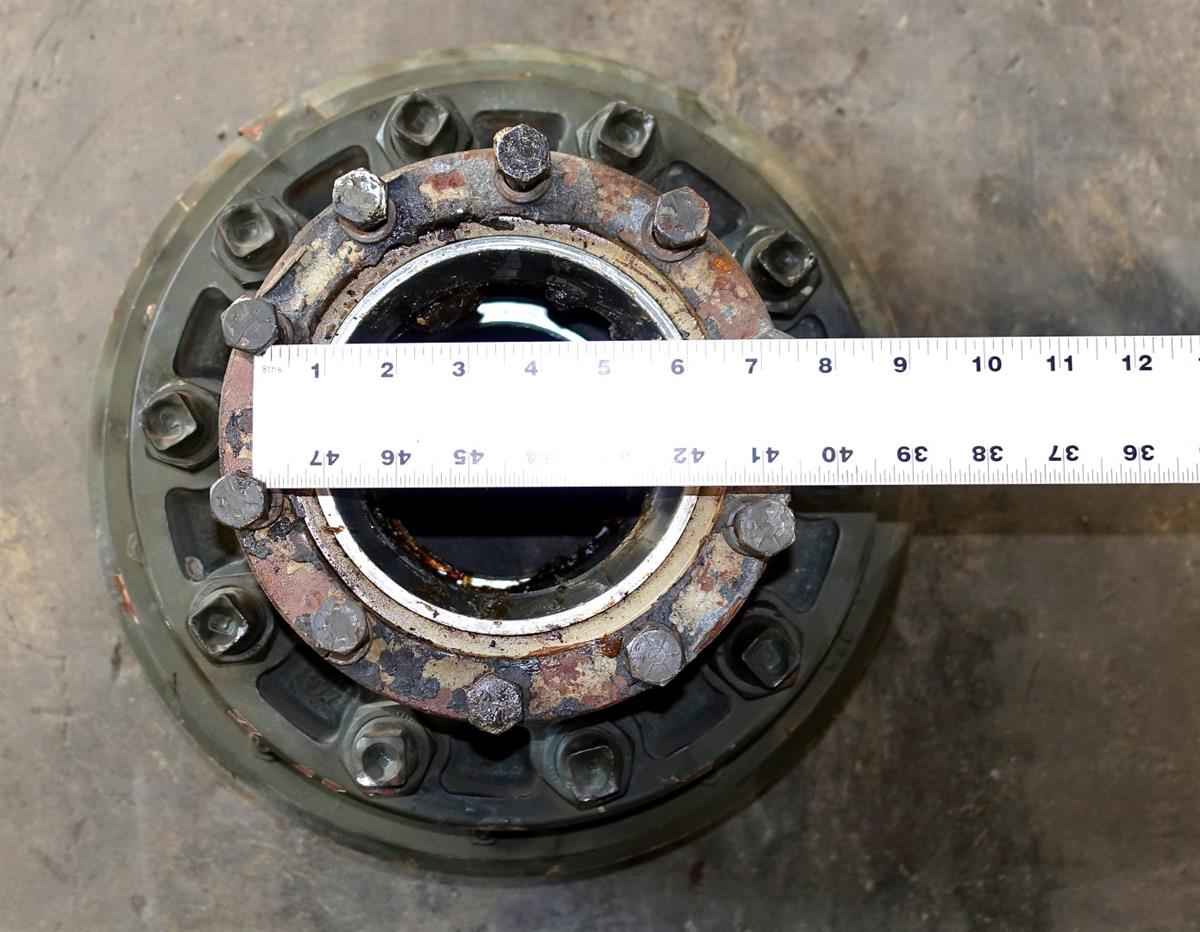

Hub and Brake Assembly, Bridge Truck Right Hand (RH)
Click Here For Hub and Brake Drum Assembly, Bridge Truck Left Hand (LH) M139 M812
Click Here For Spacer Wheel 1.5 inch Hub for Bridge Truck Rockwell Axle 10 Hole M139 M812 M945
Click Here For Axle Shaft Rear Drive Rockwell 5 Ton Bridge Truck M139 M812 M945
Fits:
M821 M812A1 5-Ton Trucks
M139 series Bridge Trucks
Item Includes:
- Bolt (RH) PN: 10938444-2 NSN: 5310-00-176-6521 item # 24 Shown in diagram Qty: 10
- Nut Cap (RH) PN: 1199J114C NSN: 2530-00-359-1162 item # 25 Shown in diagram Qty: 10
- Ribbed Bolt Stud (RH)
- Brake Drum PN: 7409394 NSN: 2530-00-093-5597 item # 8 Shown in diagram Qty: 1
- Spacer PN: 3280-A1977 NSN: 5365-01-132-2015 item # 9 Shown in diagram Qty: 2
- Hub Body PN: 7979324 NSN: 3040-00-421-3928 item # Shown in diagram Qty: 1
- Cover Access PN: 7979315 NSN: 5340-00-211-6129 item # 12 Shown in diagram Qty: 1
- Washer Lock PN: MS35338-47 NSN: 5310-00-209-0965 item # 13 Shown in diagram Qty:10
- Hexagon Nut PN: MS51968-11 NSN: 5310-880-7745 item # 14 Shown in diagram Qty: 10
