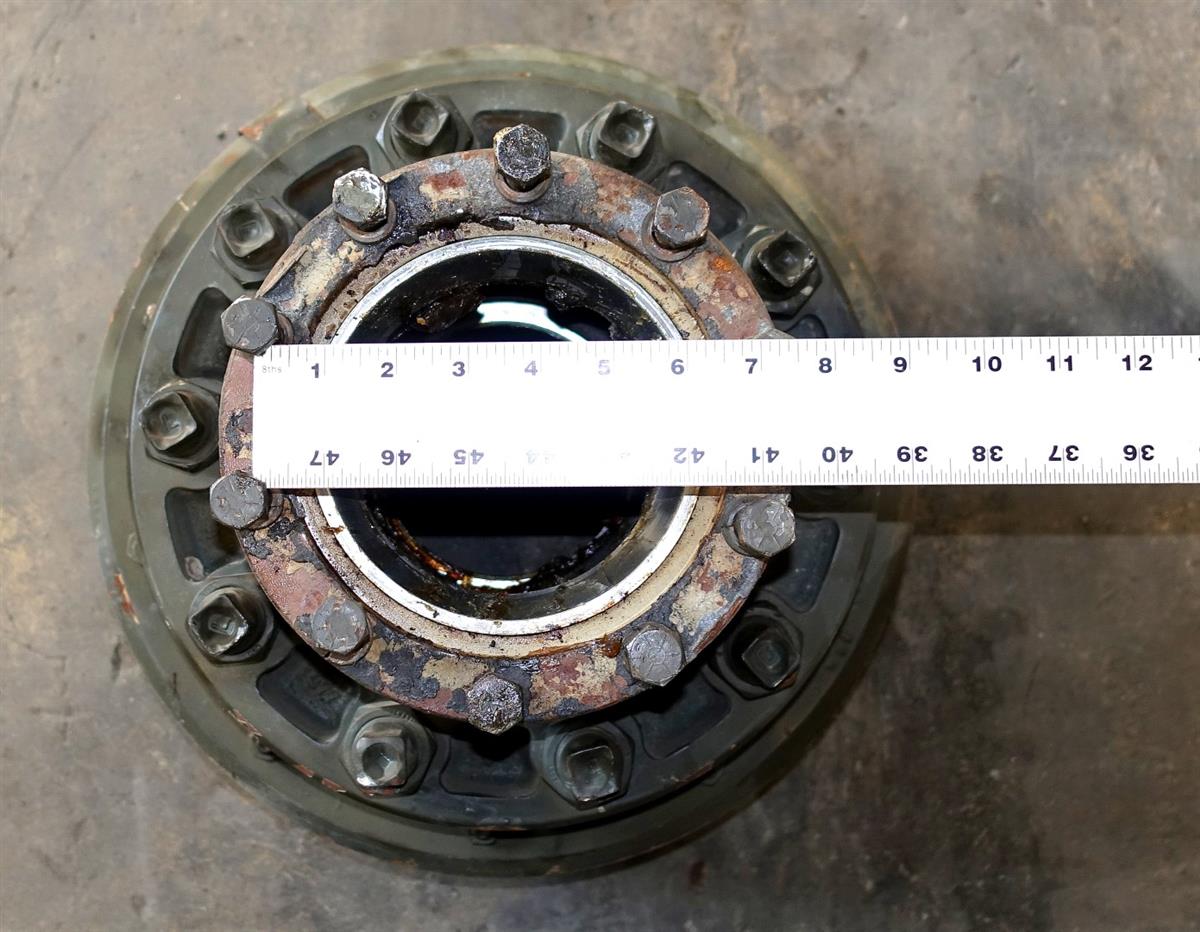

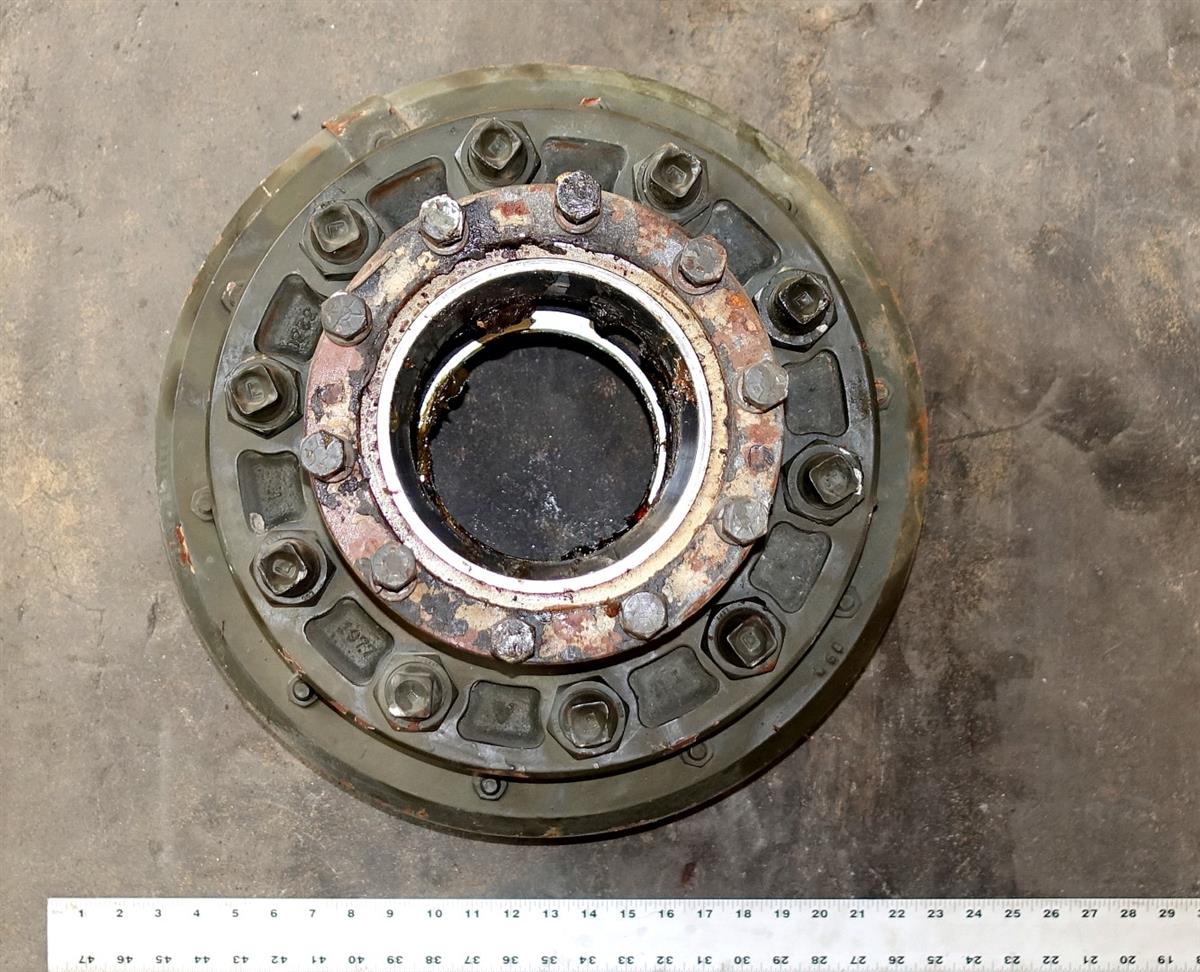

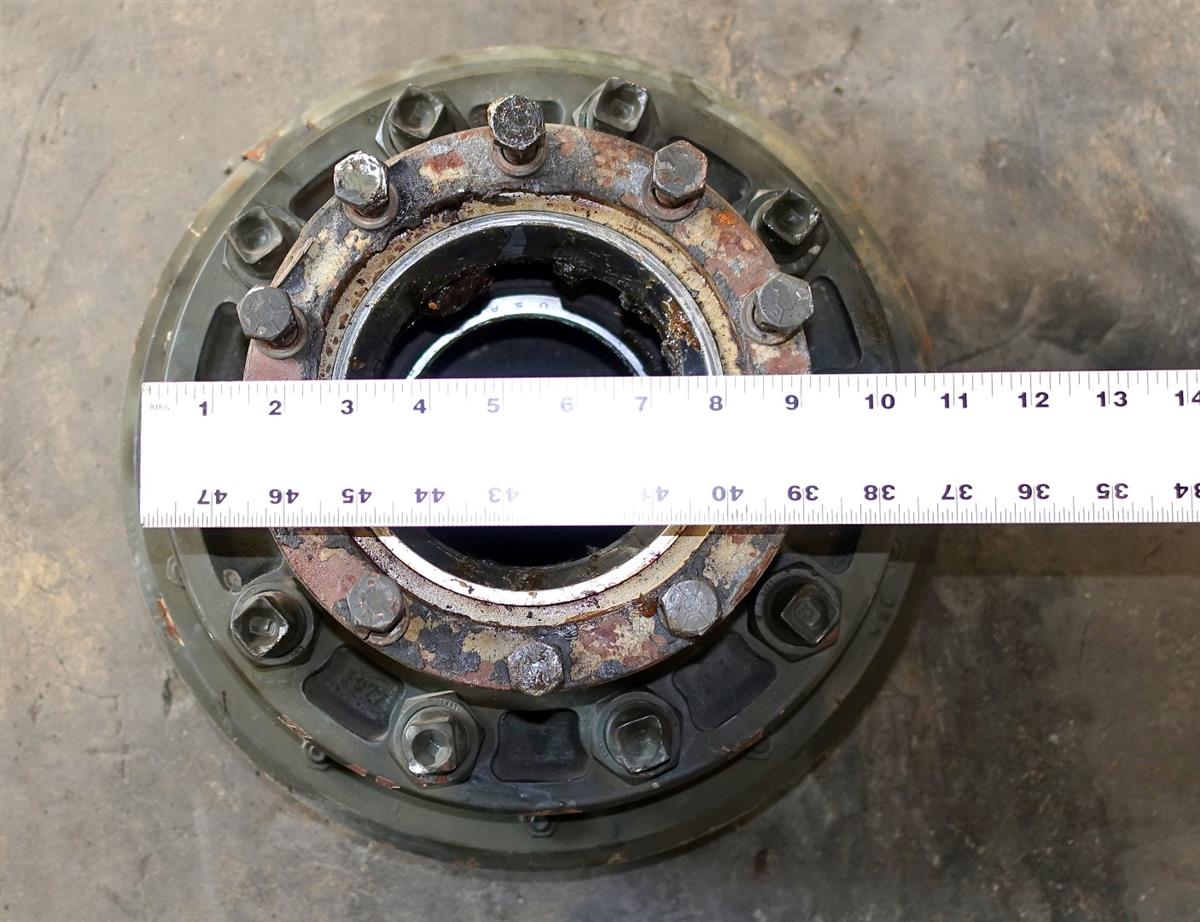

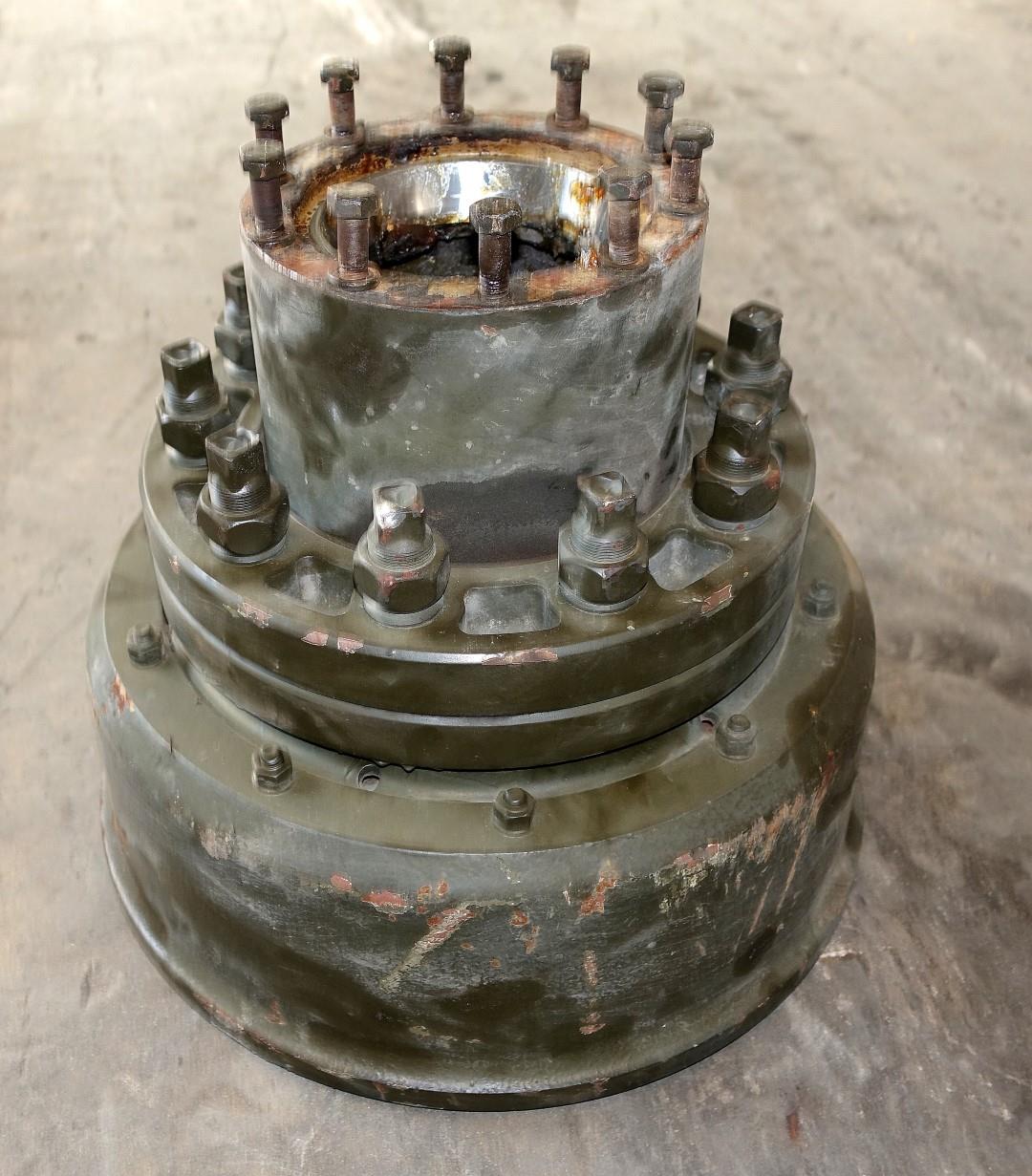

Bridge Truck Left Hand (LH) Hub and Brake Drum Assembly
Click Here For Hub and Brake Assembly, Bridge Truck Right Hand (RH)
Click Here For Spacer Wheel 1.5 inch Hub for Bridge Truck Rockwell Axle 10 Hole M139 M812 M945
Click Here For Axle Shaft Rear Drive Rockwell 5 Ton Bridge Truck M139 M812 M945
Fits:
M812A1 M821 5-Ton Trucks
M139 Series Bridge Trucks
Item Includes:
- Bolt (LH) PN: A-A-52427 NSN: 5310-01-270-5463 item # 24 Shown in diagram. Qty: 10
- Nut Cap (LH) PN: 10709 NSN: 2530-00-693-1029 item # 25 Shown In diagram Qty: 10
- Ribbed Bolt Stud (LH) PN: 7411180 NSN: 5306-00-741-1180 Qty: 10

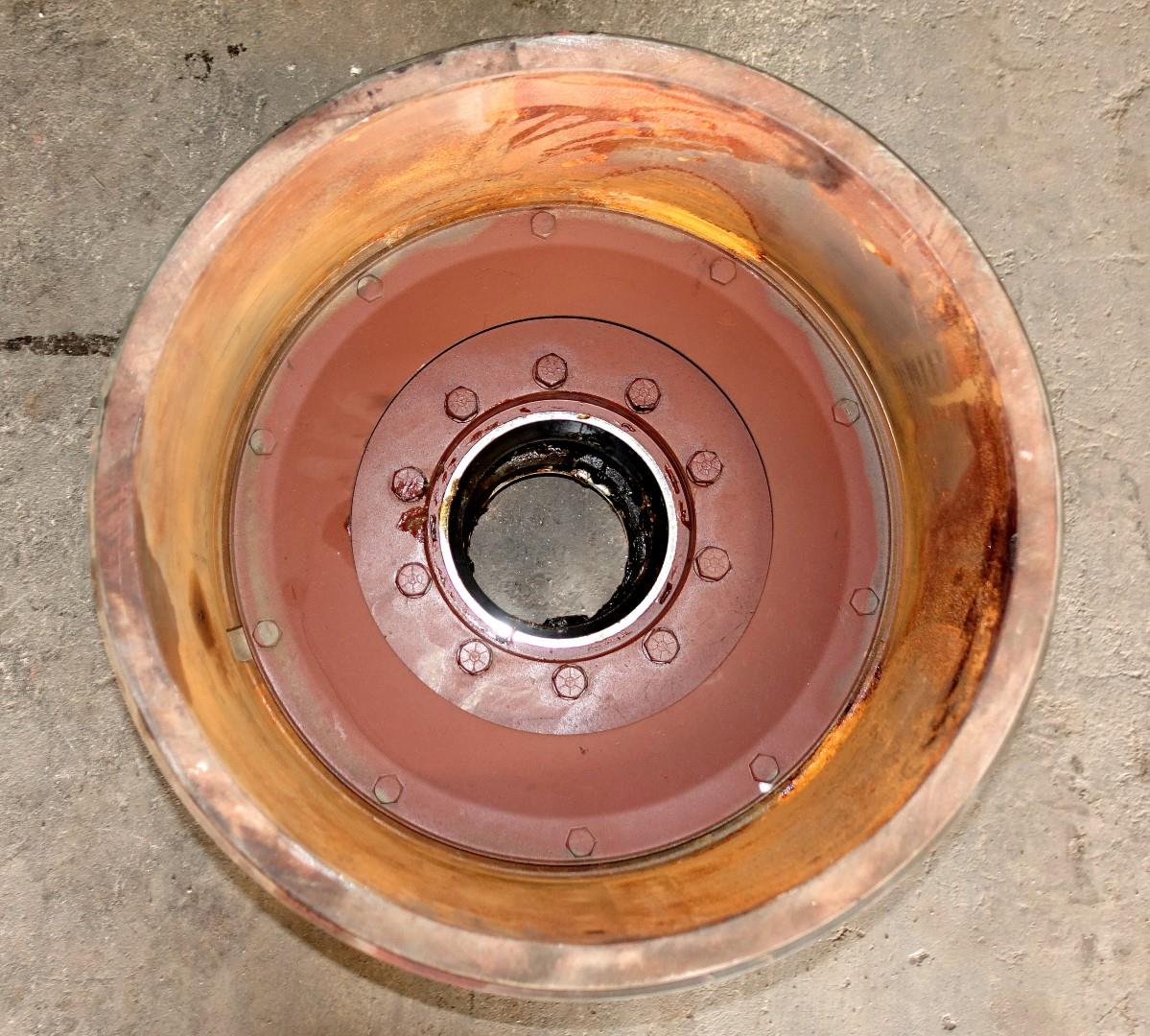

- Brake Drum PN: 7409394 NSN: 2530-00-093-5597 Item # 8 Shown in diagram. Qty: 1
- Spacer PN: 3280-A1977 NSN: 5365-01-132-2015 Item # 9 Shown in diagram. Qty: 2
- Hub Body PN: 7979324 NSN: 3040-00-421-3928 item # 10 Shown in diagram. Qty 1
- Cover Access PN; 7979315 NSN: 5340-00-211-6129 item # 12 Shown in diagram Qty: 1
- Washer Lock PN: MS35338-47 NSN: 5310-00-209-0965 item # 13 Shown in diagram Qty:10
- Hexagon Nut PN: MS51968-11 NSN: 5310-00-880-7745 item #14 Shown in diagram Qty: 10
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
