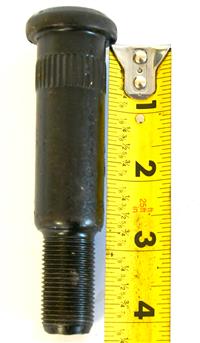

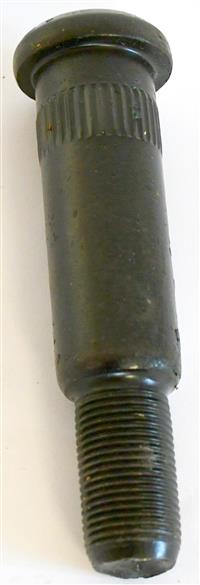

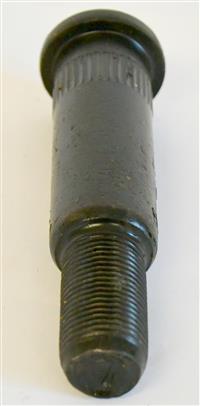

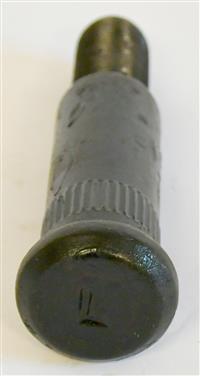

Left Hand Rear Wheel Hub Shoulder Bolt Stud M139 M812 Bridge Section Carrying Truck
This is not the standard Bolt for this M809 application- Check NSN
- Thread Length: 1.188" Inches
- Fastener Length: 4.188" Inches
- Head Diameter: 1.312" Inches
- Head Height: 0.312" Inches
- Shoulder Diameter: 0.973" Inches
- Shoulder Length: 2.688" Inches
- Rib Major Diameter: 1.020" Inches
- Rib Length: 0.438" Inches
- Nominal Thread Diameter: 0.750" Inches
Click Here For Right Hand Rear Wheel Hub Shoulder Bolt Stud M139 M812 Bridge Section Carrying Truck
Fits:
M139 and M812 Bridge Trucks
Item 11 Diagram
