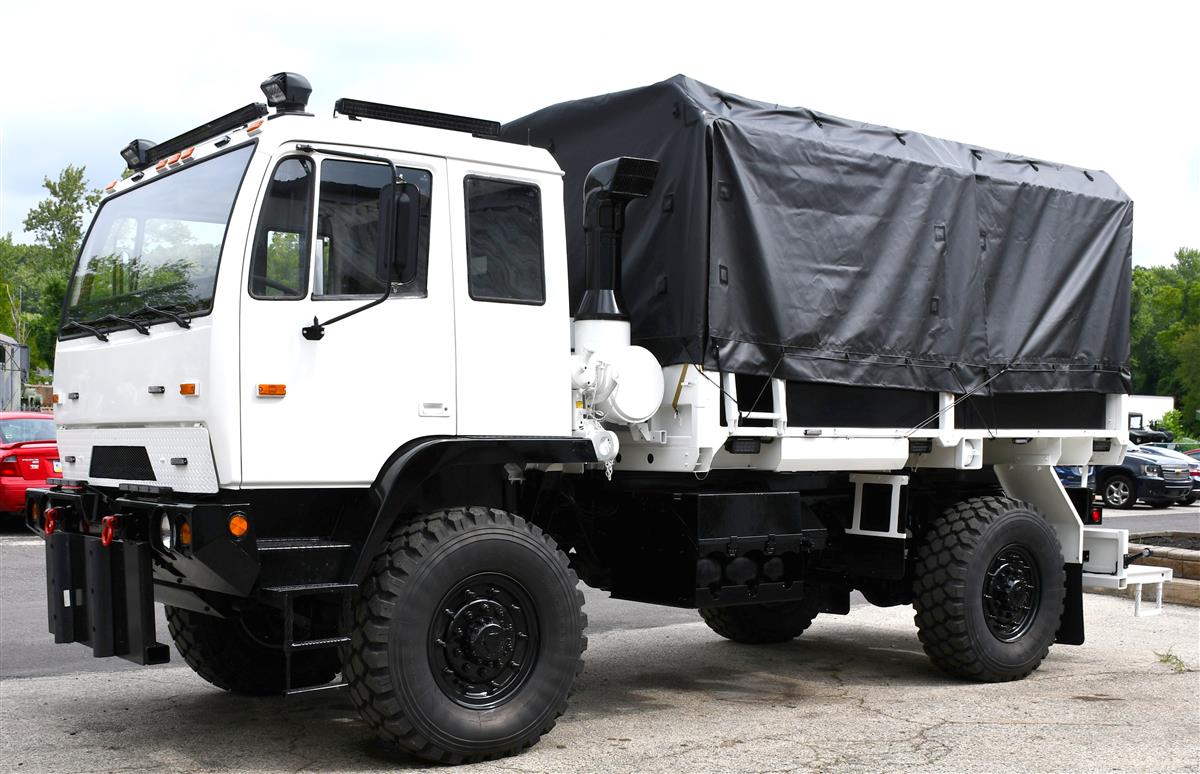

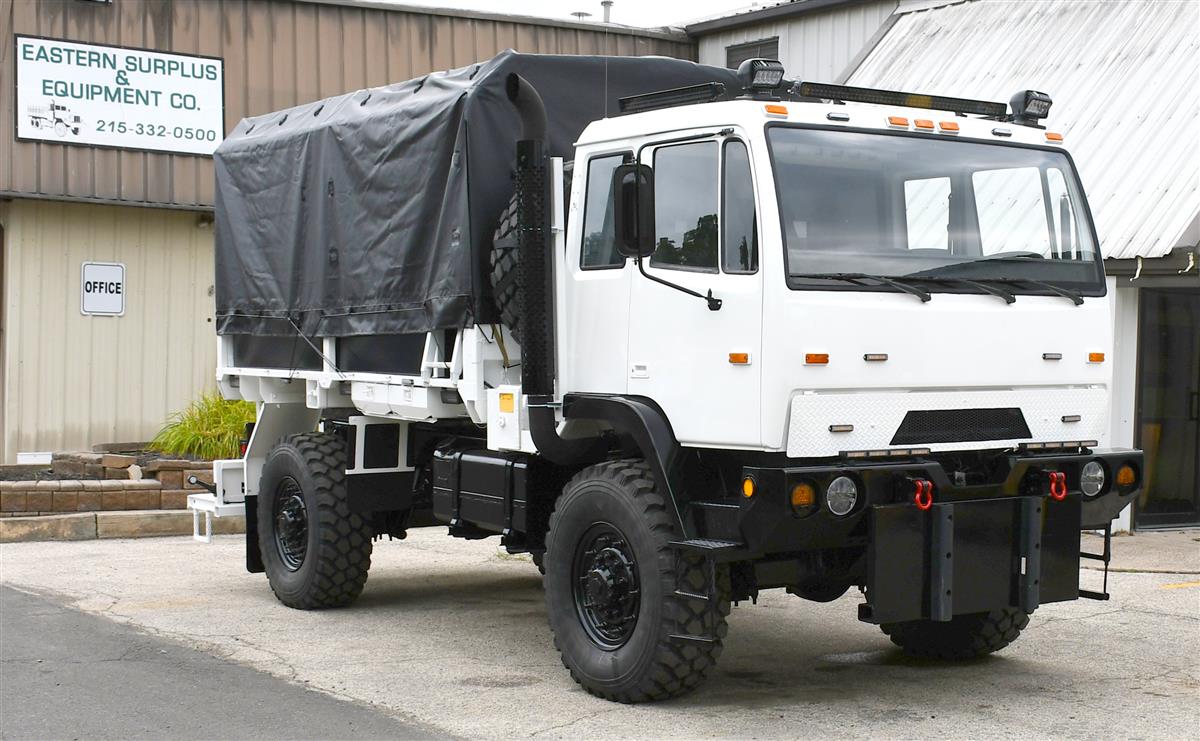

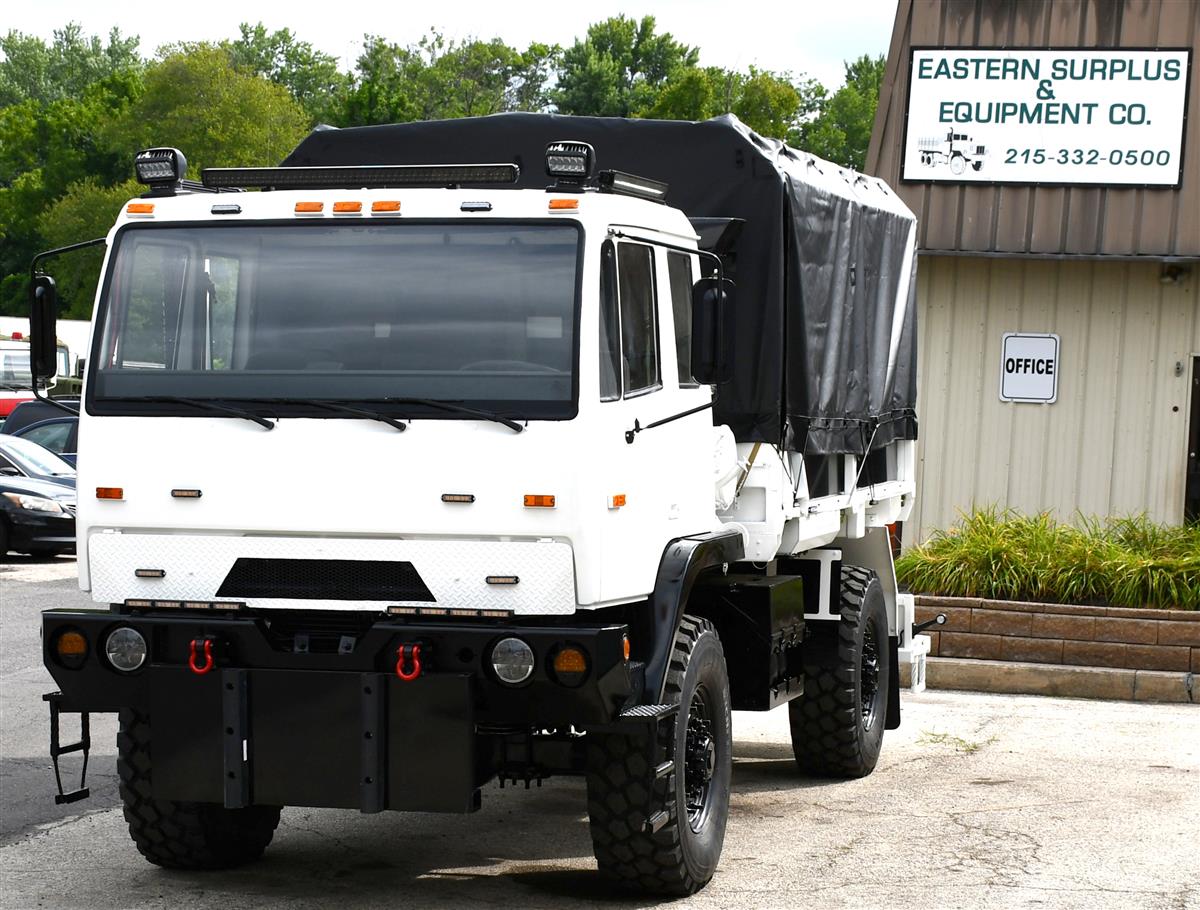

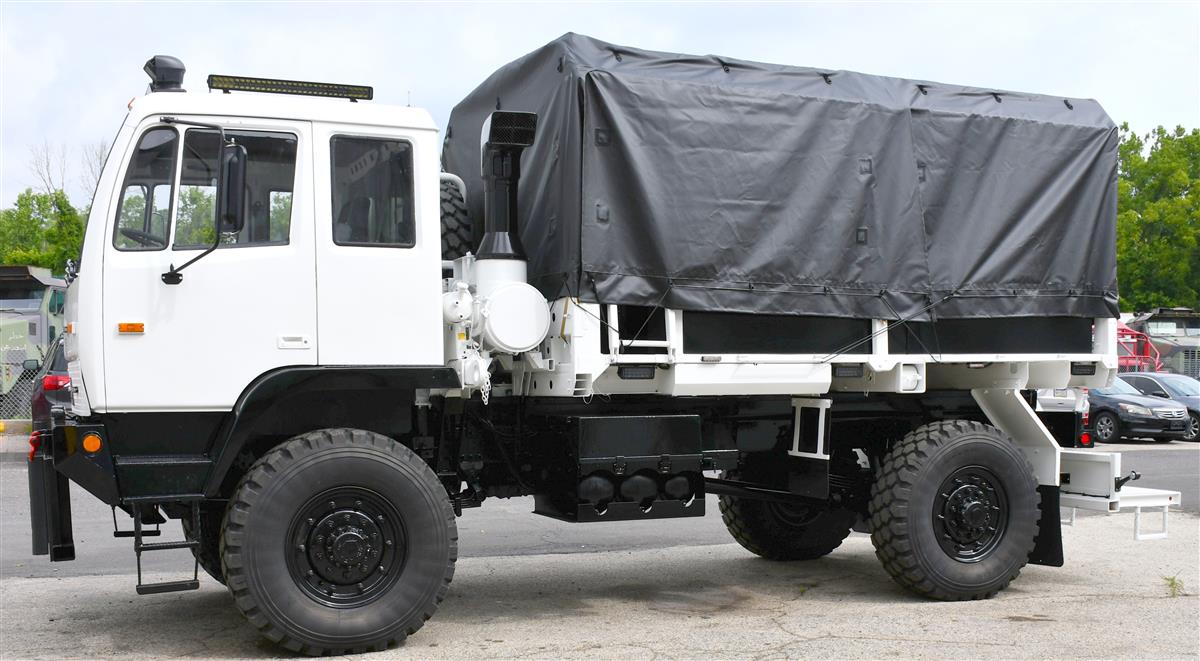

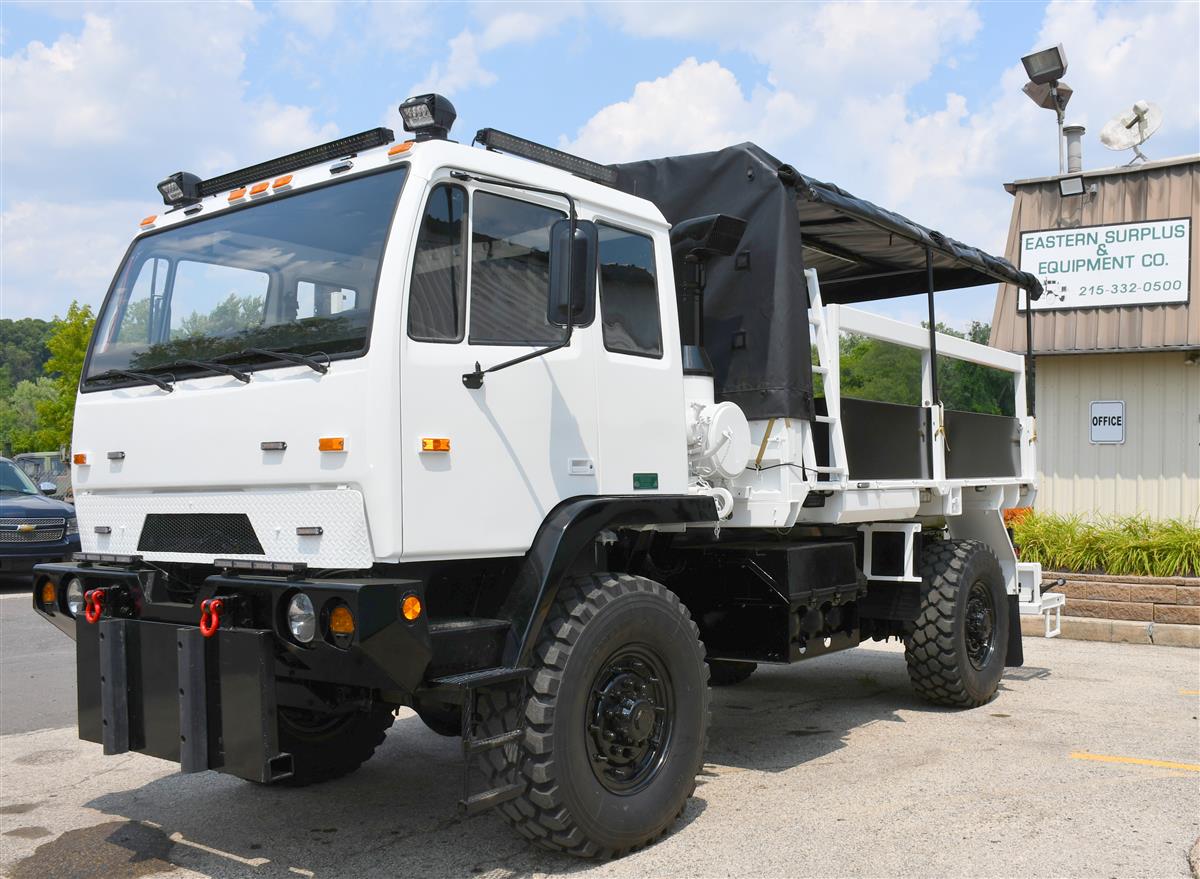

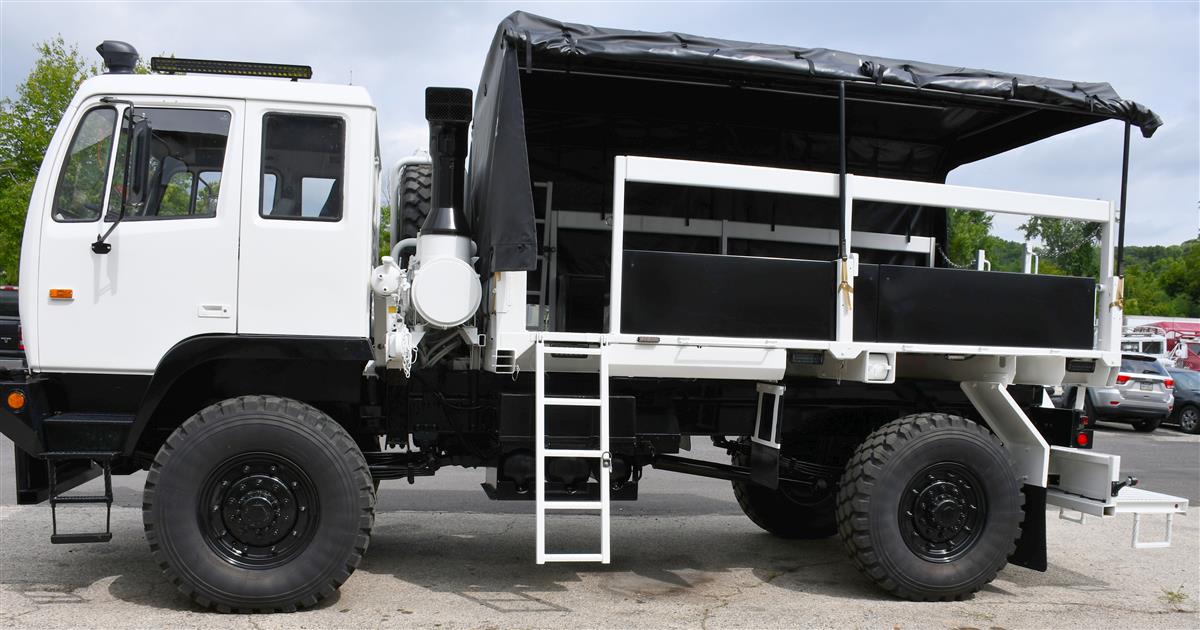

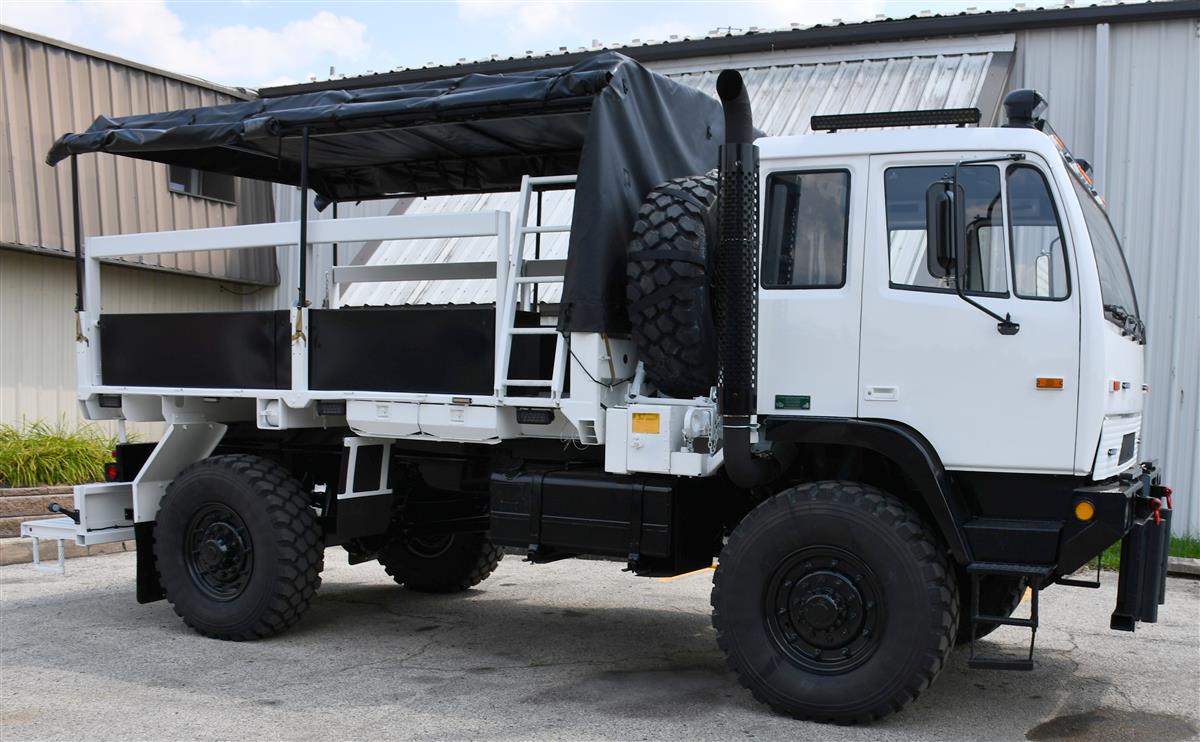

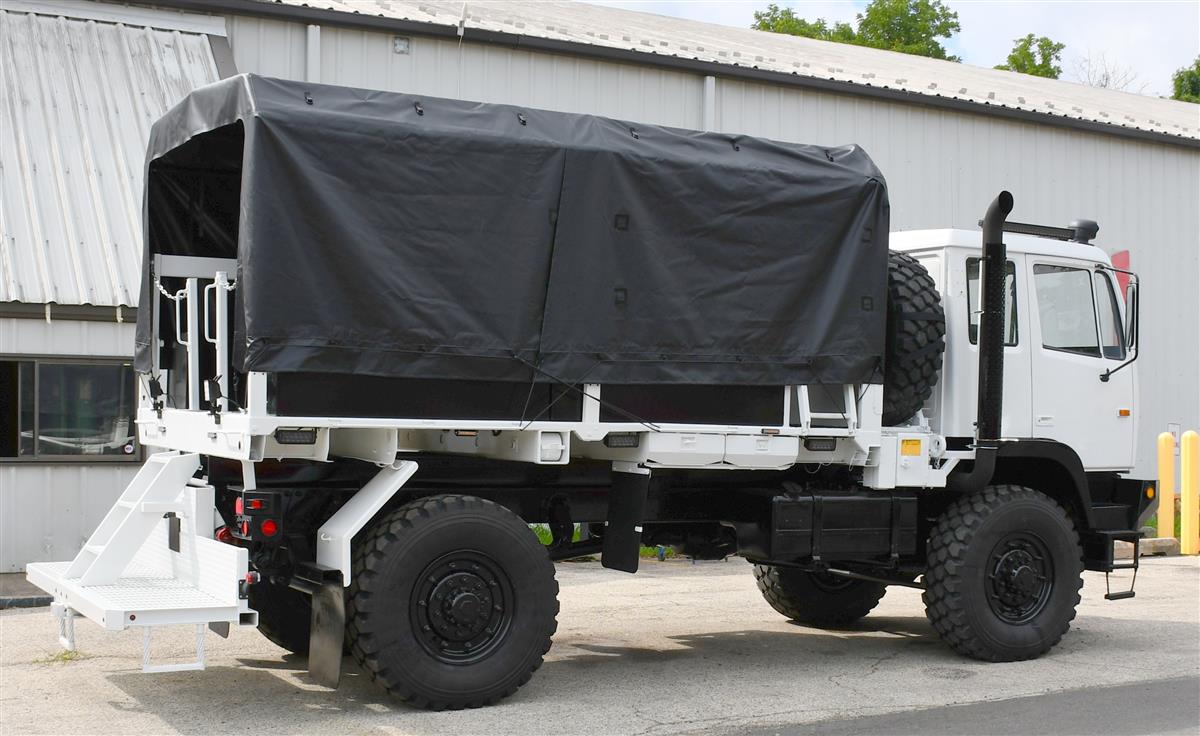

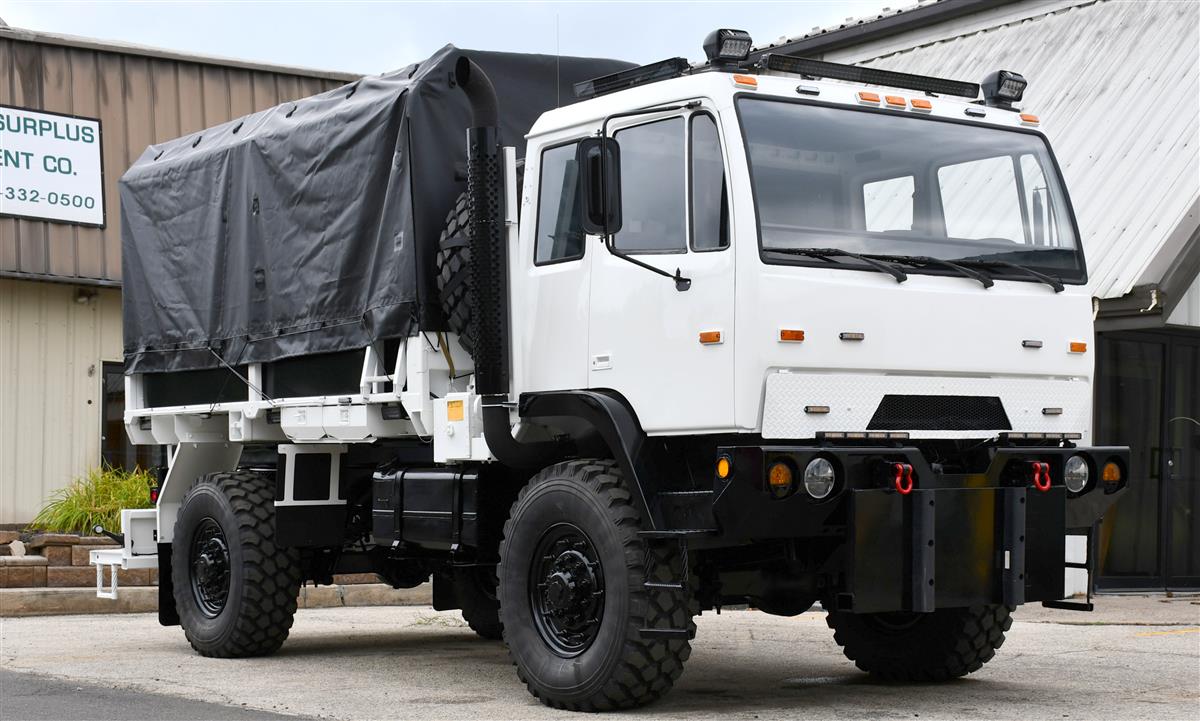

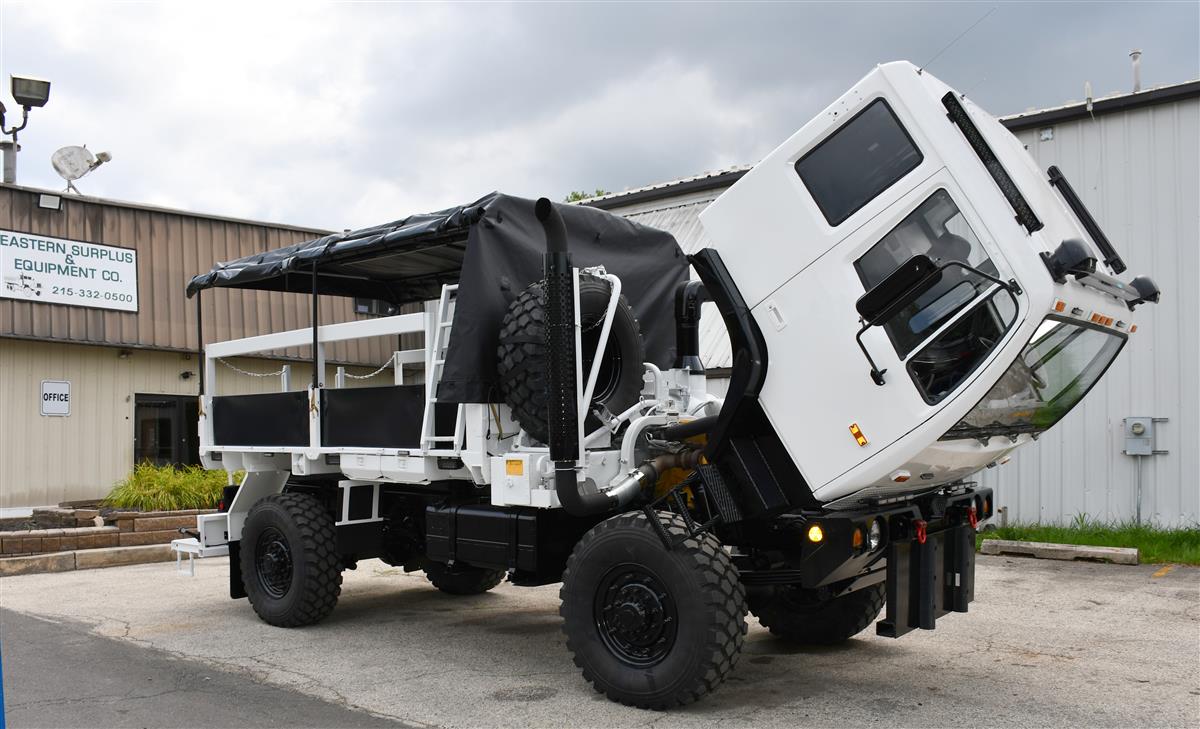

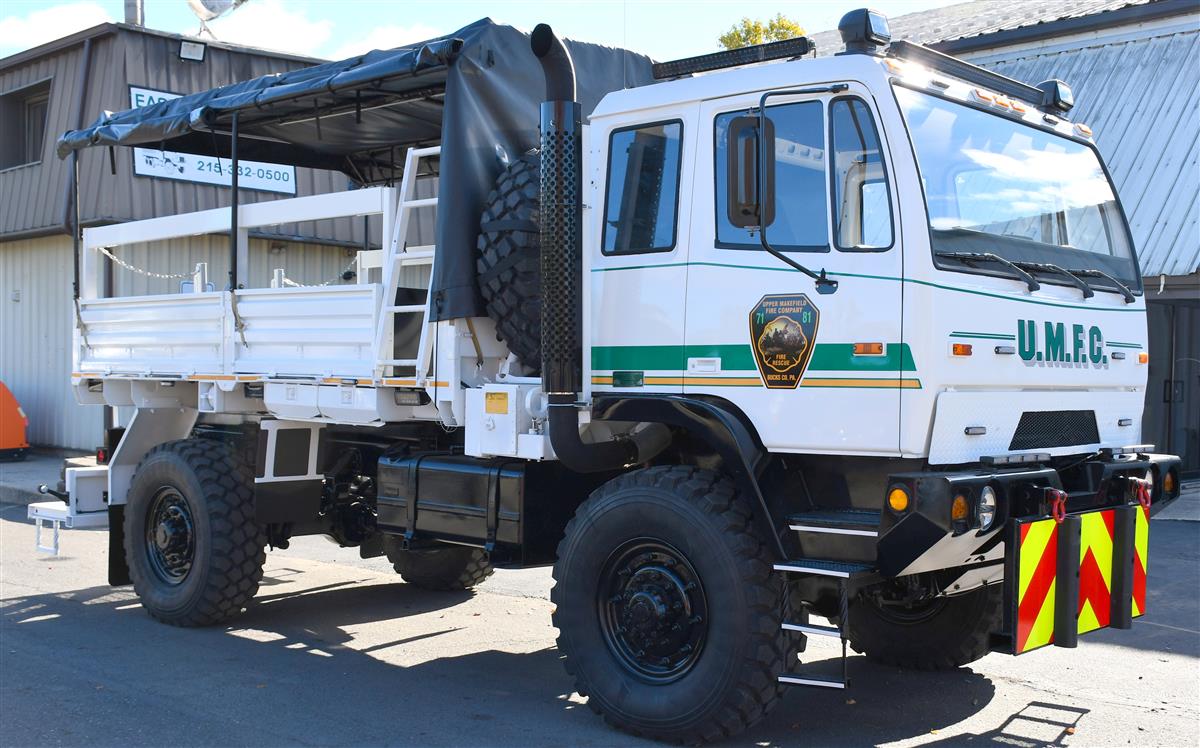

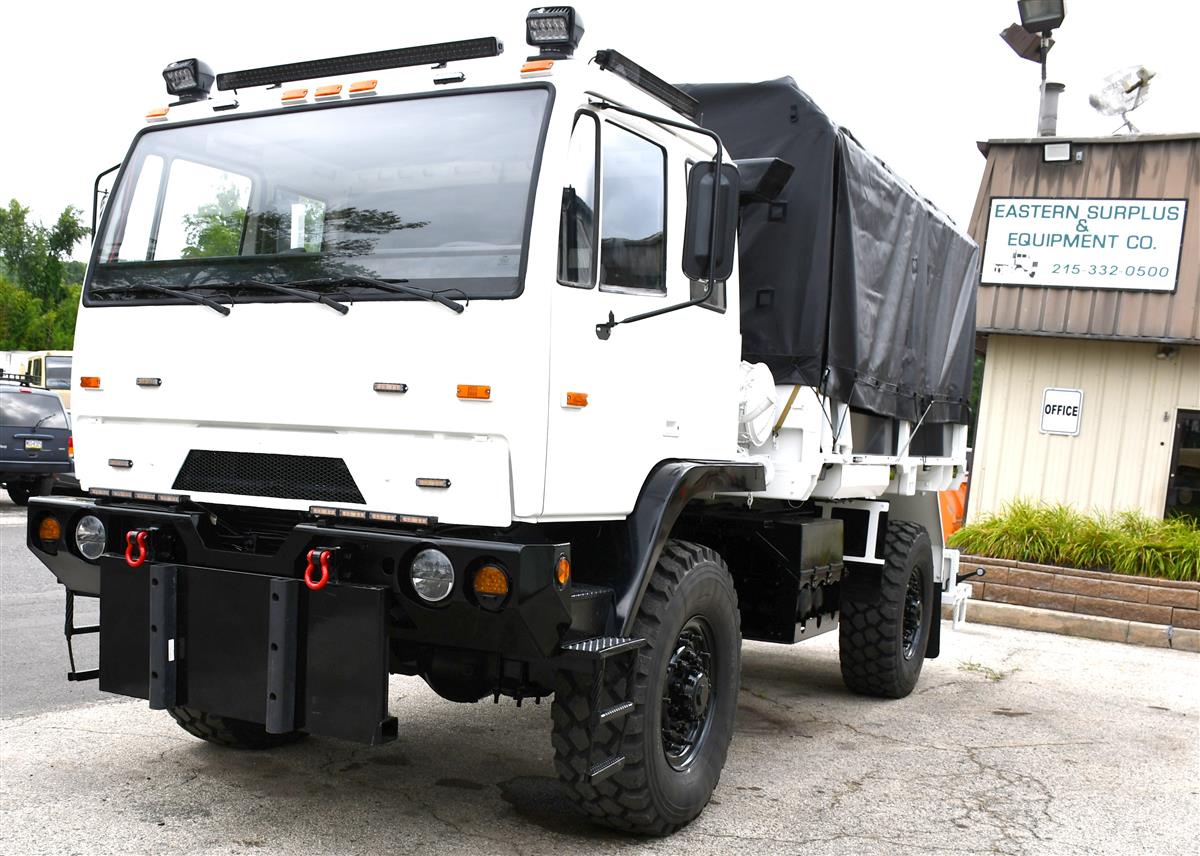

LMTV - M1078A1, 4x4, Cargo truck with 12’ bed:
Rebuilt/Reconditioned

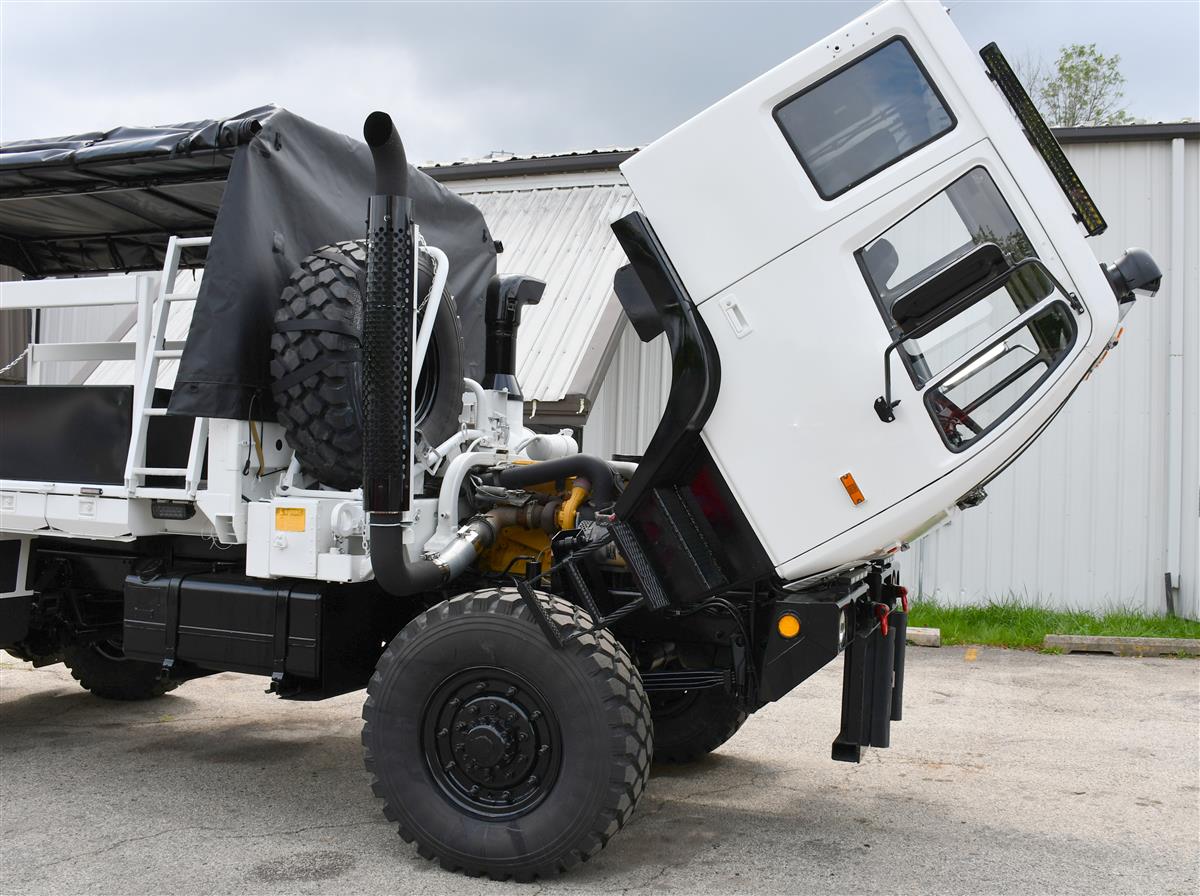

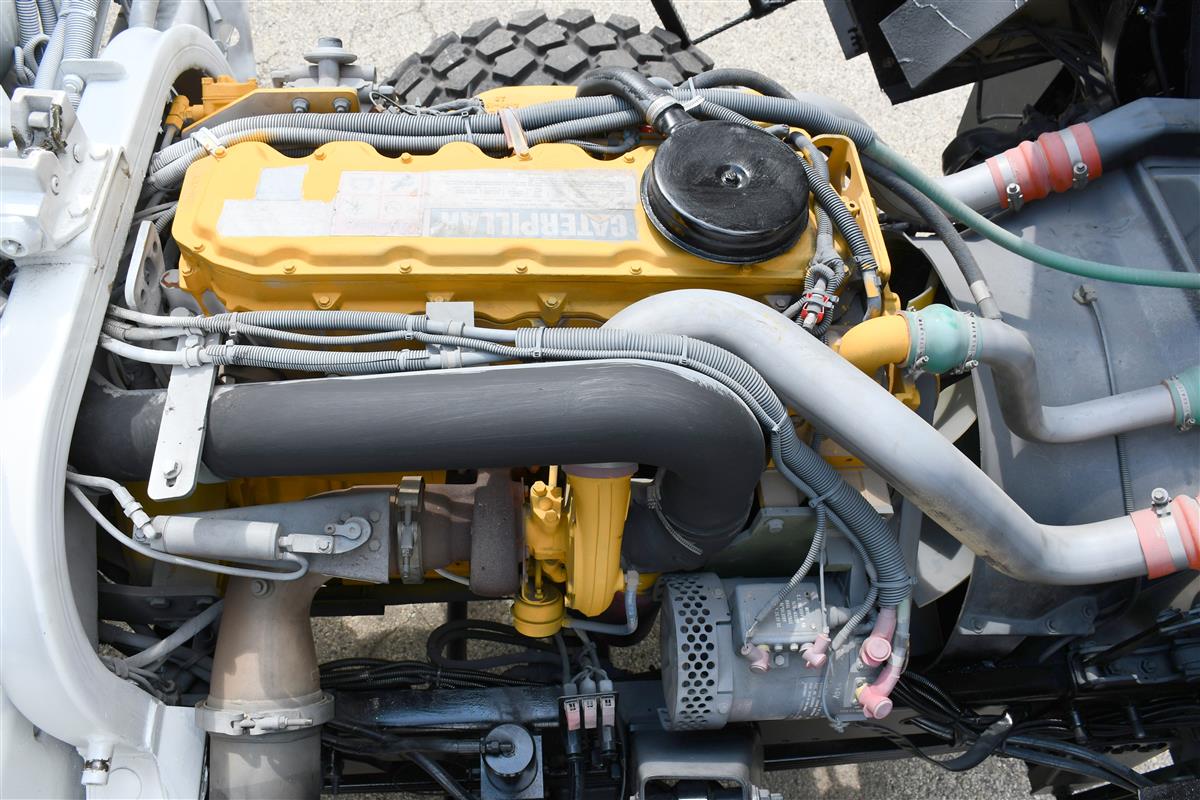

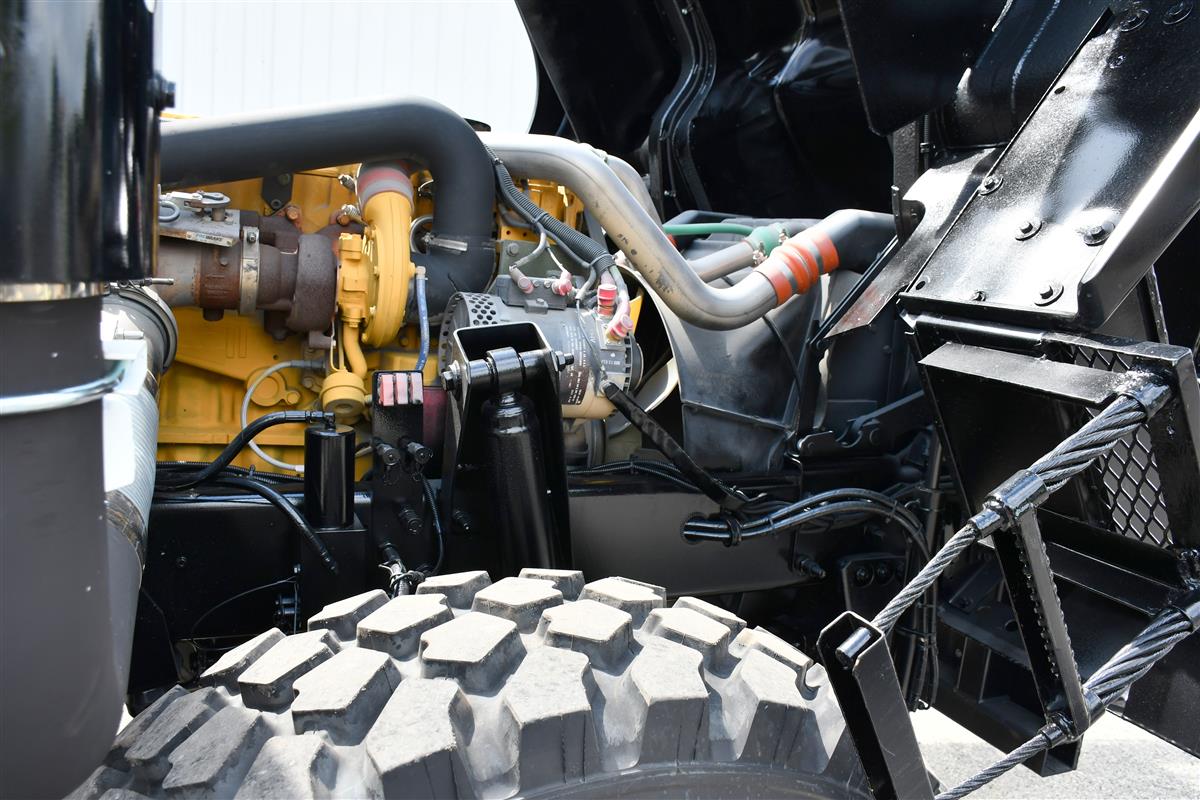

• Caterpillar Turbo Diesel Engine
• Allison Automatic Transmission
• Super Single Tires
• Cab Heater
• Full Air Brakes

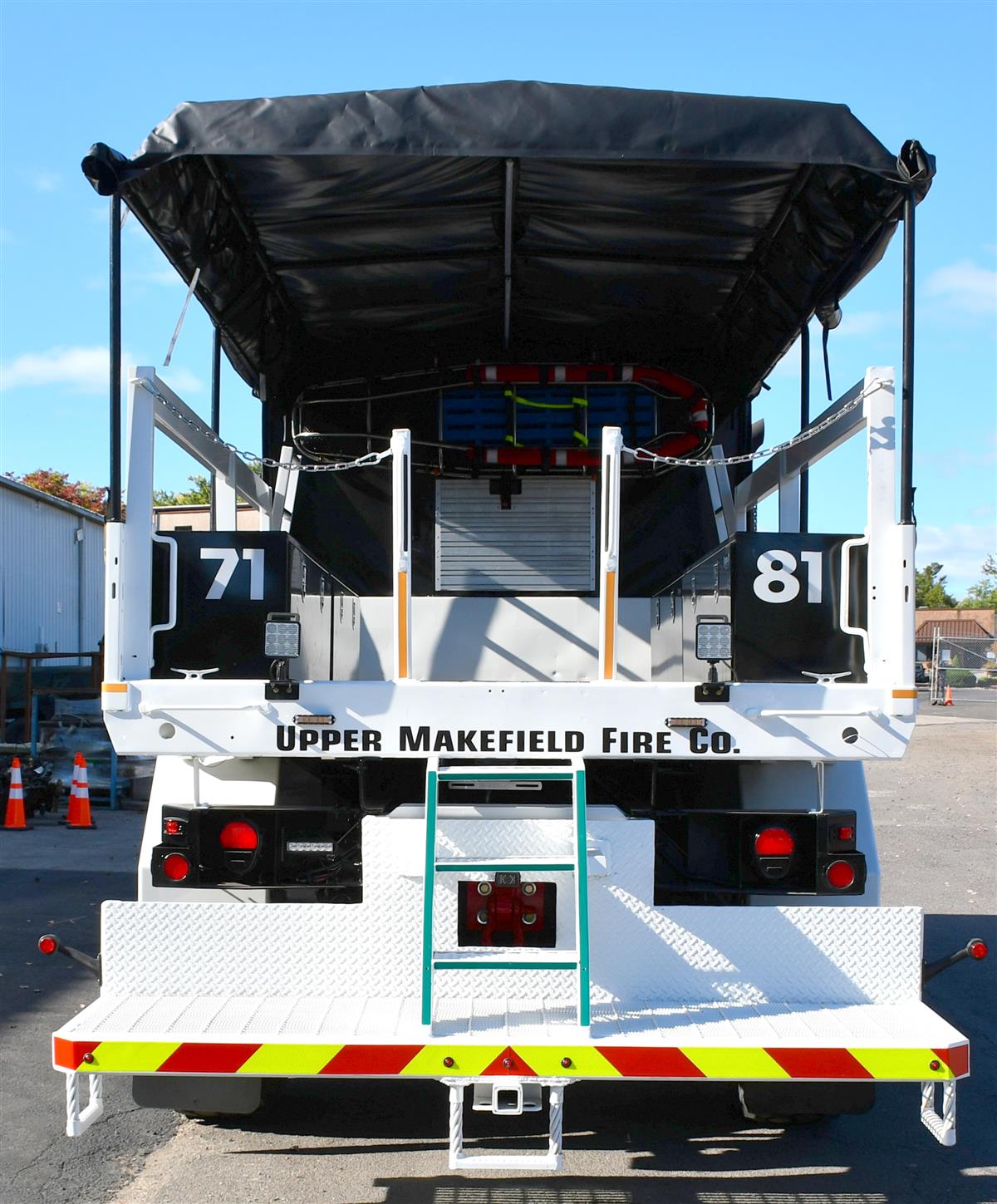

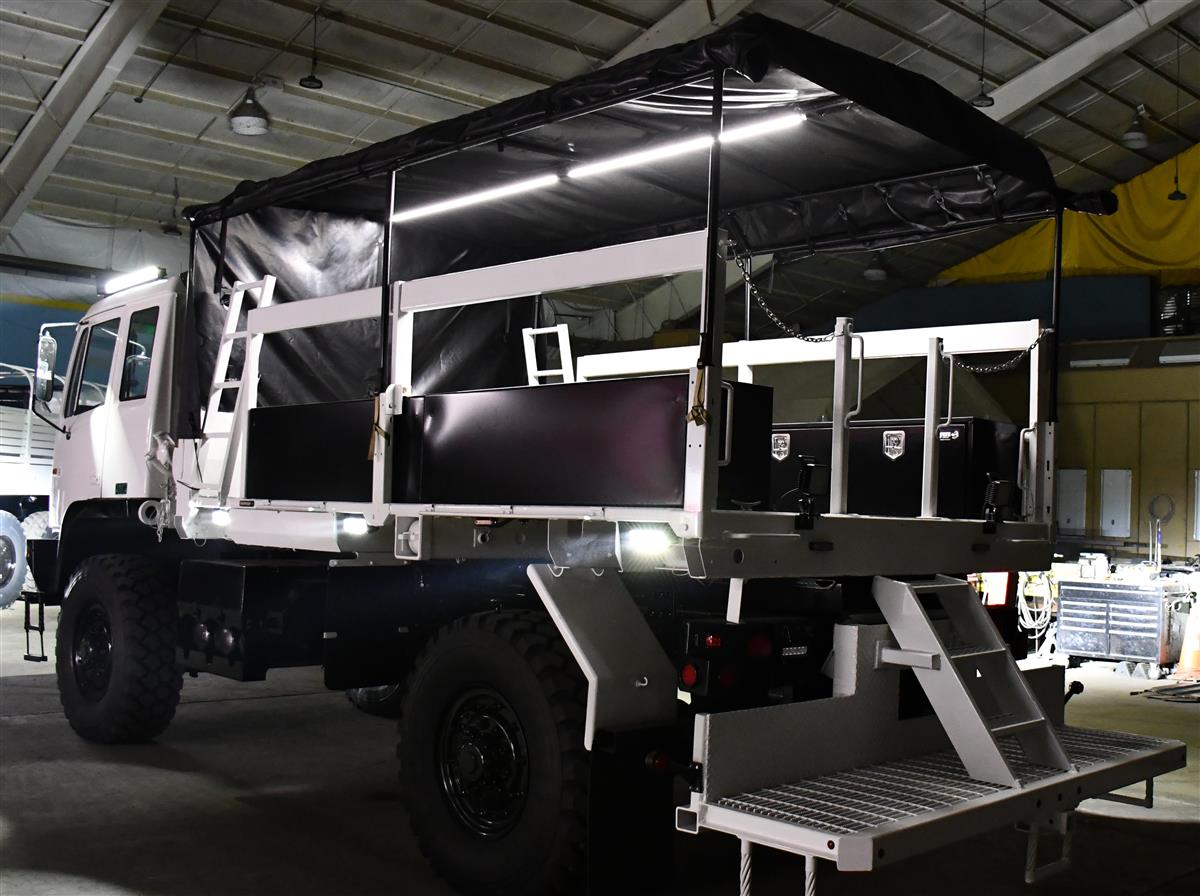

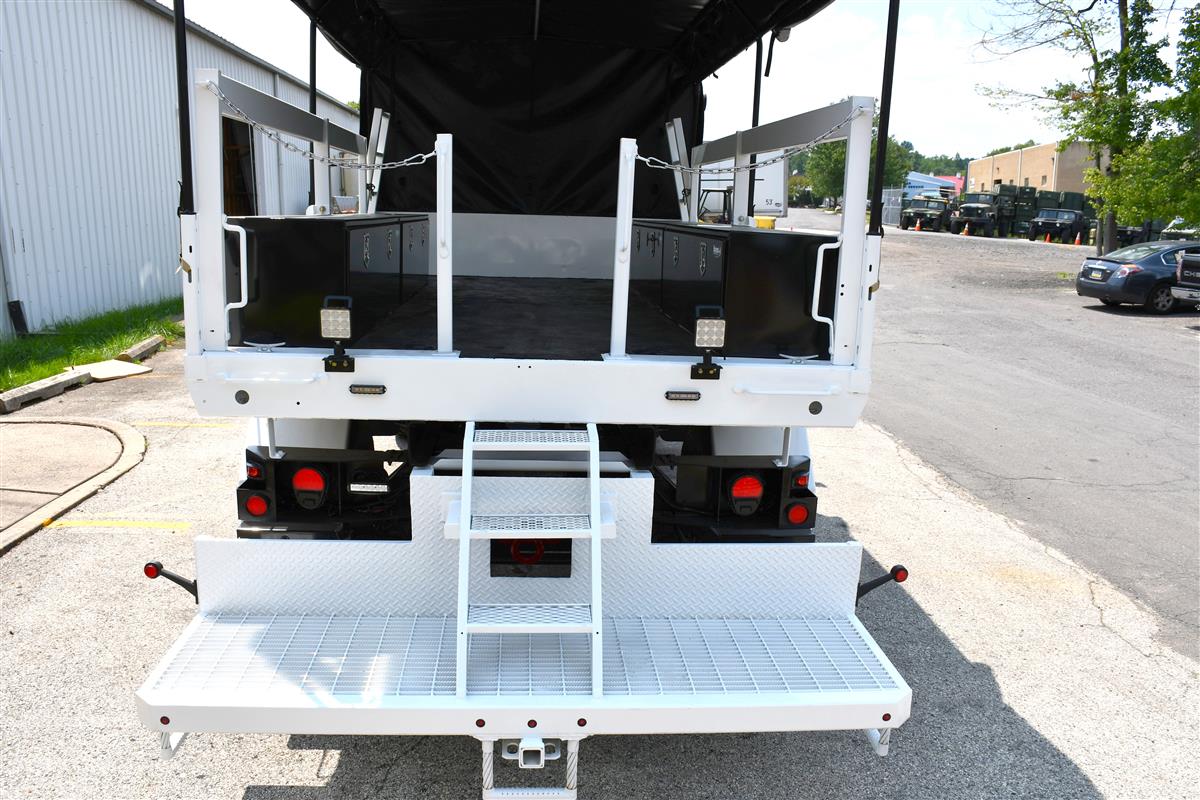

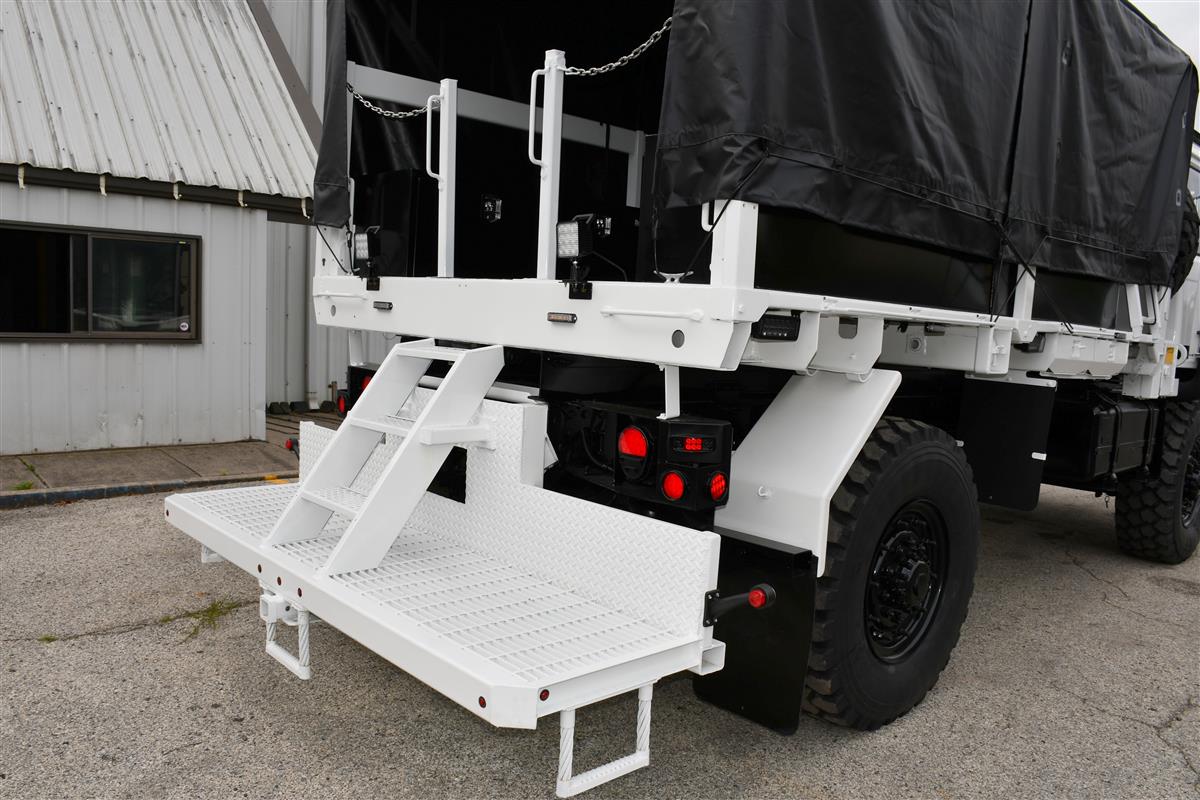

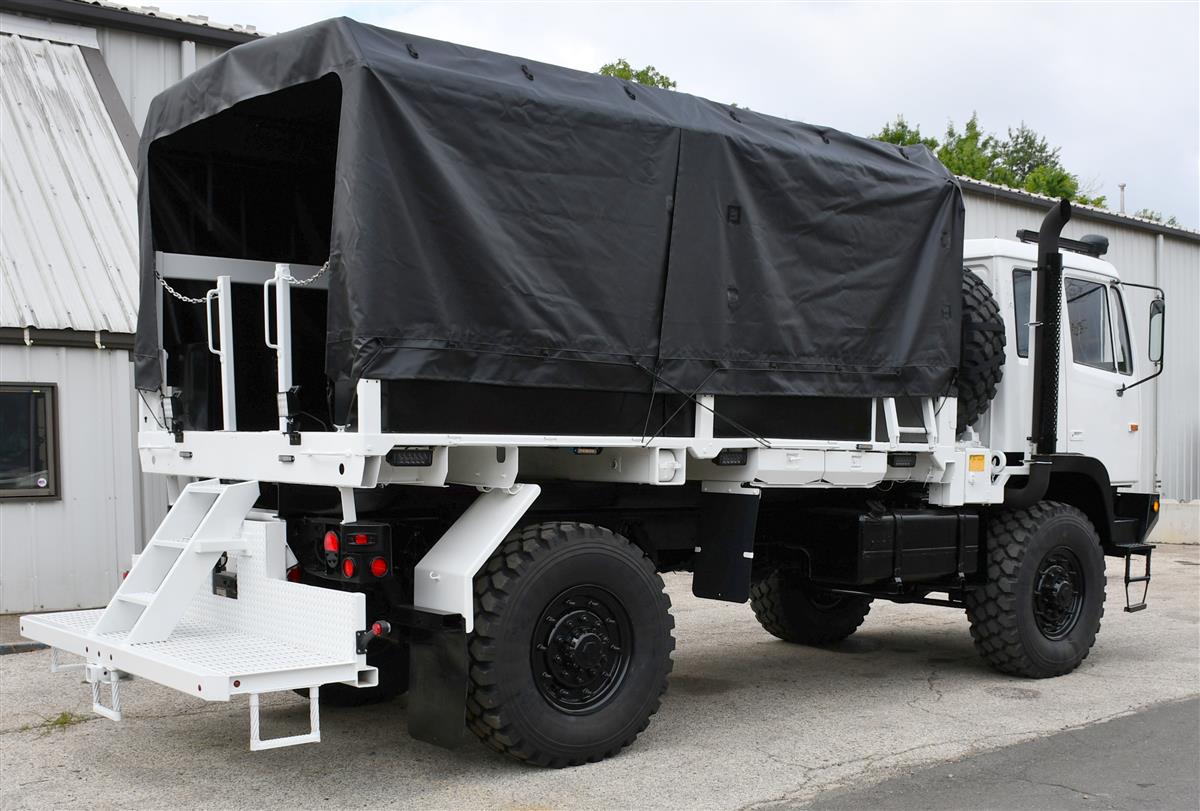

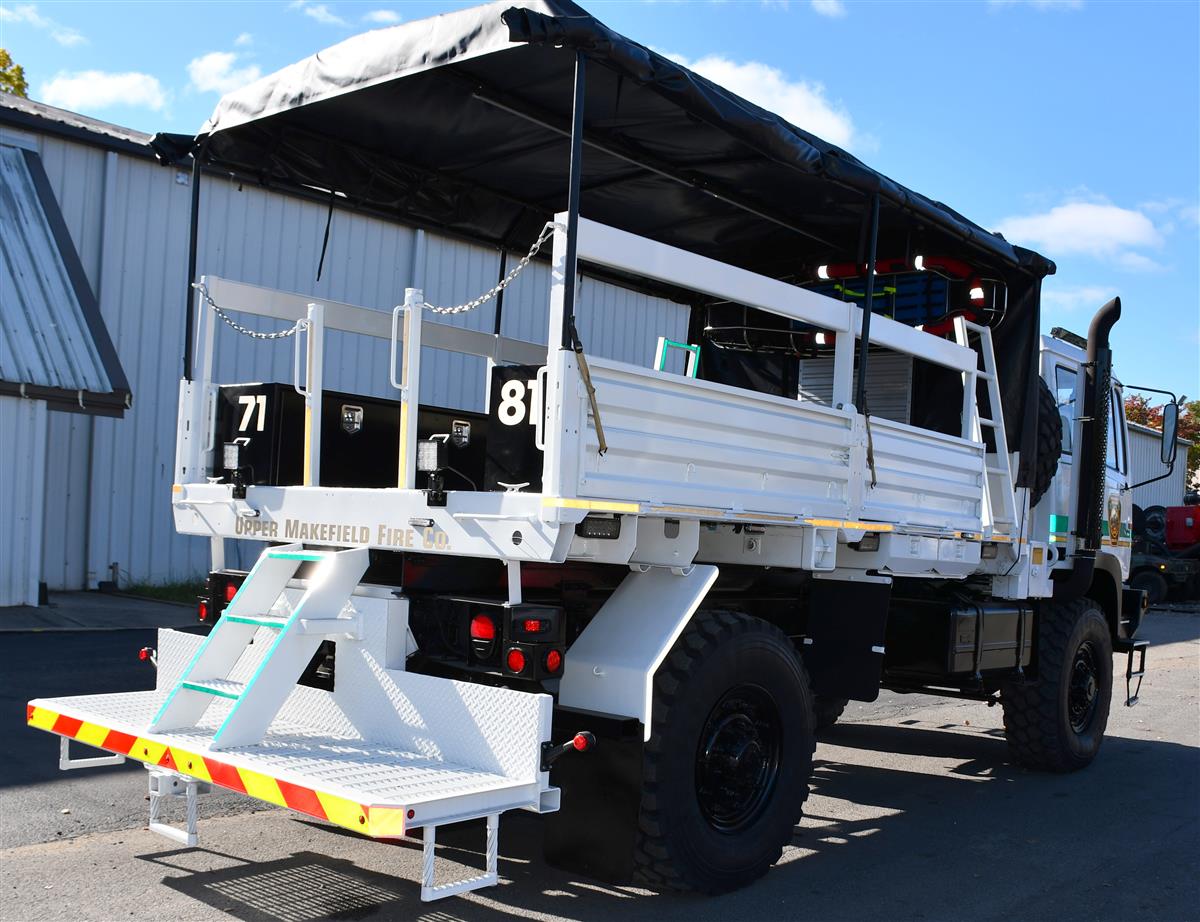

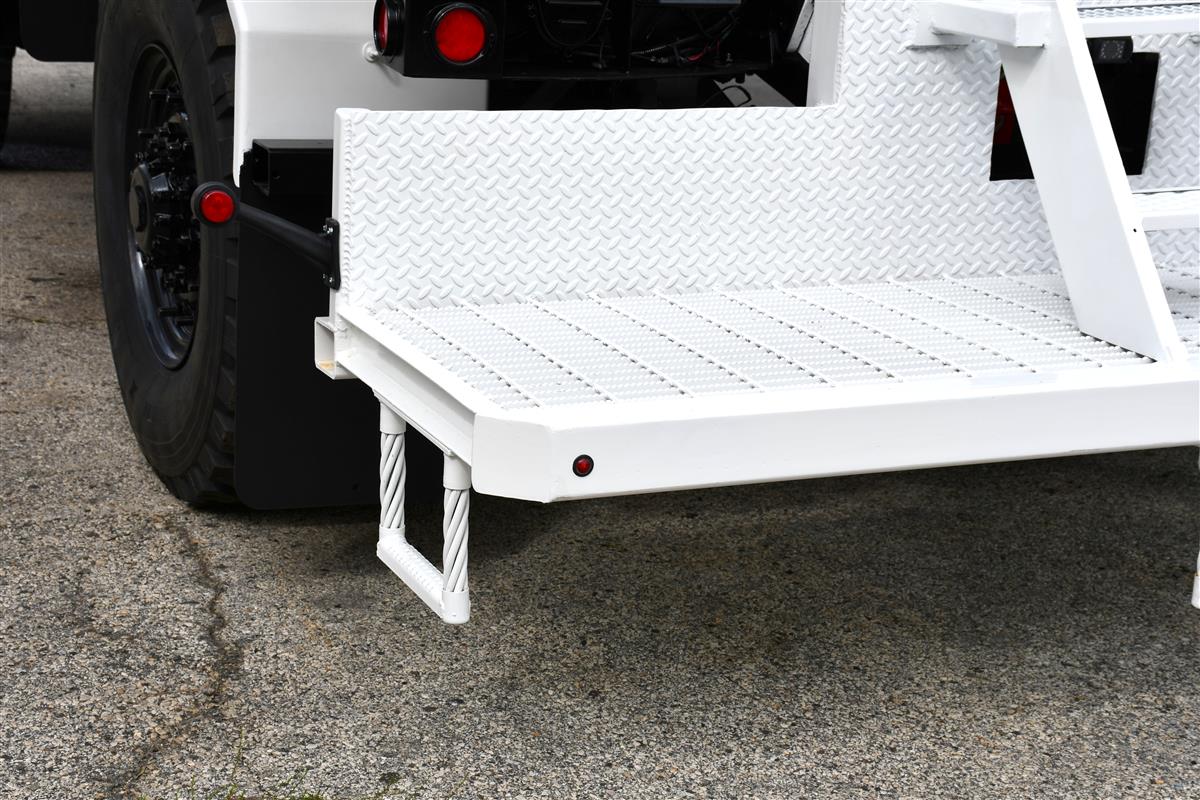

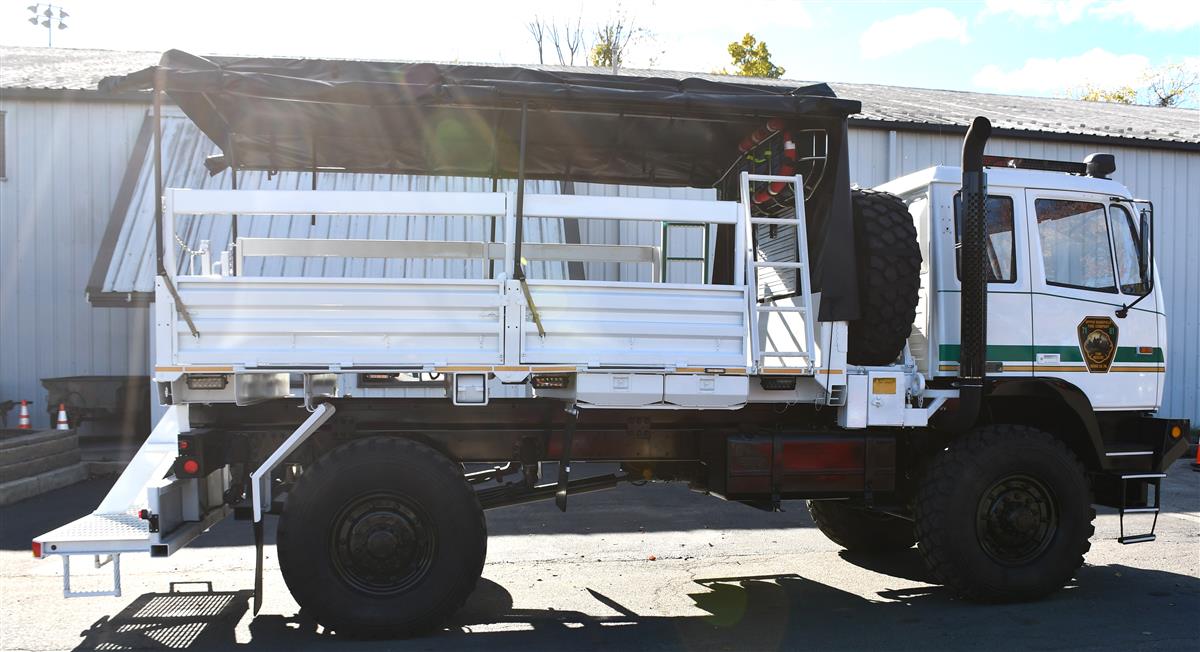

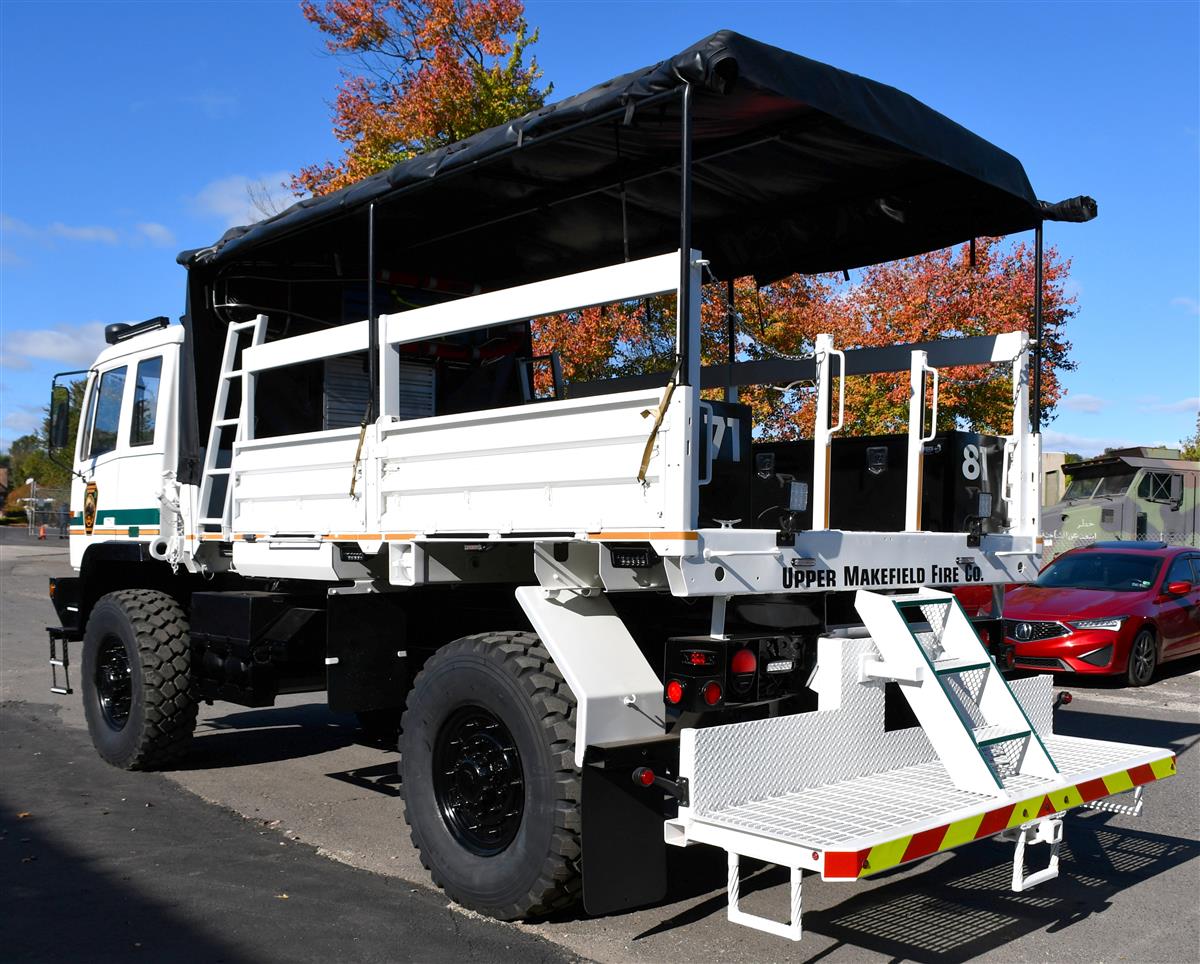

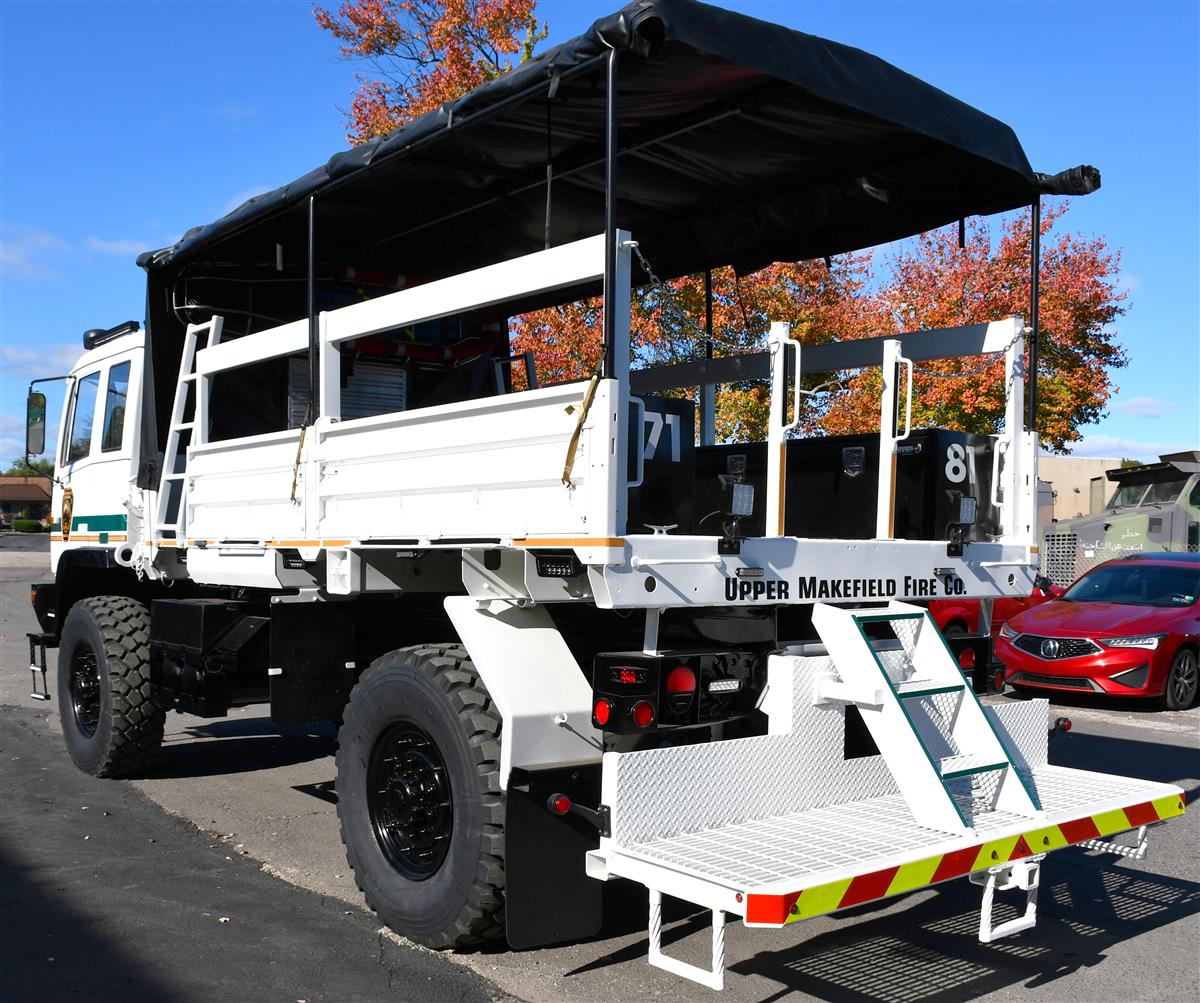

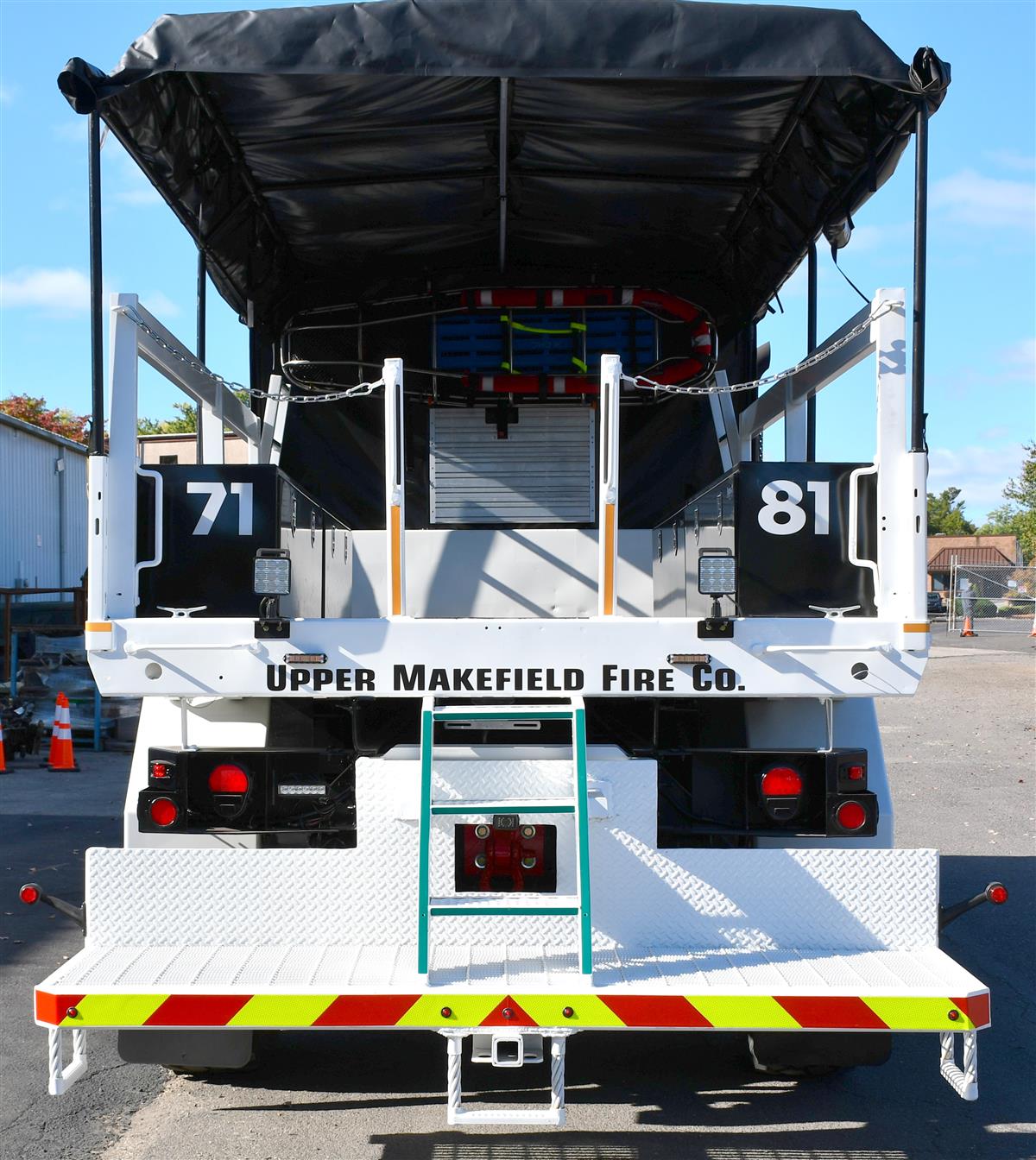

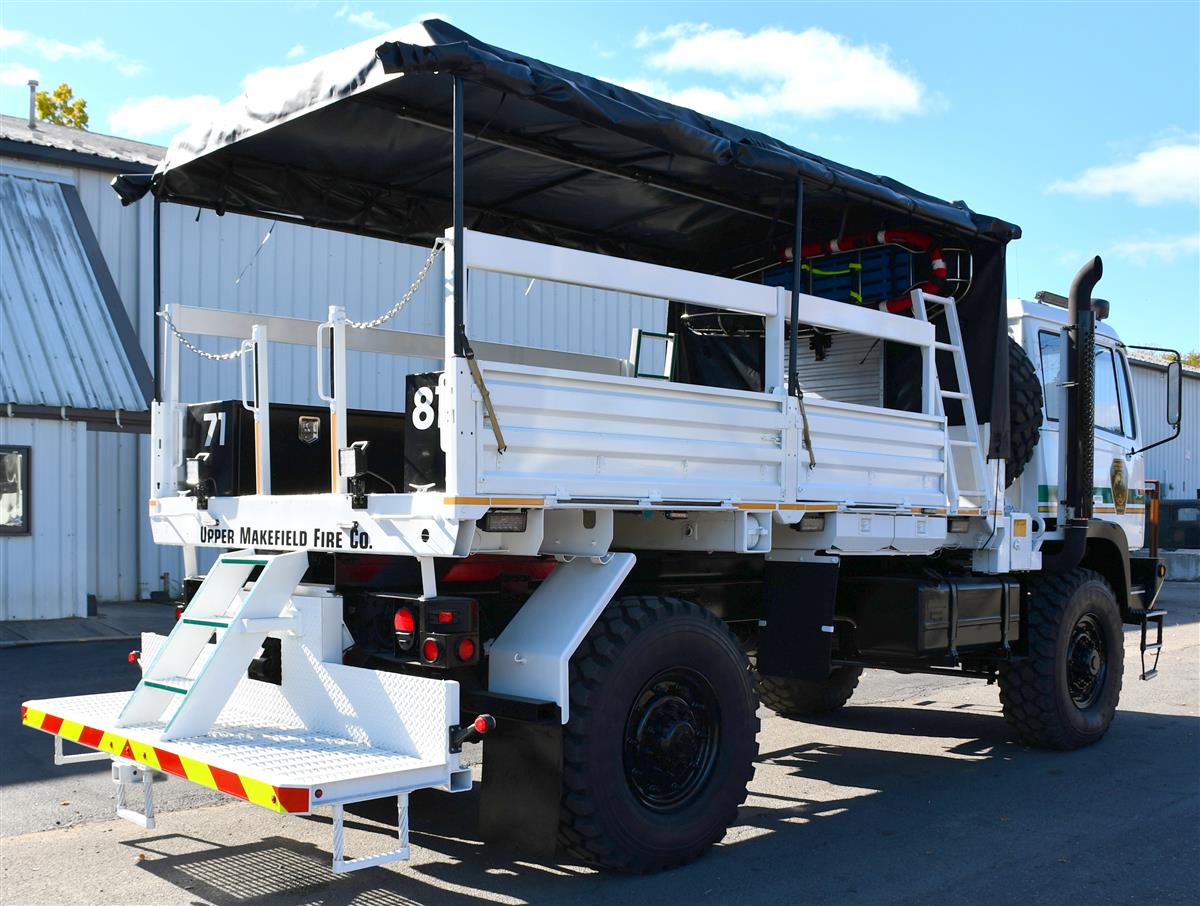

1. Rear Loading Platform custom fabricated (air lines capped off & factory hitch removed)
a) 24 inches Deep by 96 inches wide.
b) Rear corners of platform to be 45 degrees chamfered.
c) Bar grating decking (not punch plate).
d) Fixed steps that go into the cargo bed, off the rear platform.
e) Rope step ladders at left and right sides and at center rear- from ground to platform.
f) 2 Removeable handrail posts at top of ladder in bed.
g) Handrails added around the edge of truck bed.
h) Anchor points/Grab handles at each station at back of truck bed for personnel tether (1 left/1 right).
i) Class 3 trailer towing receiver hitch.
j) Break away marker lights.

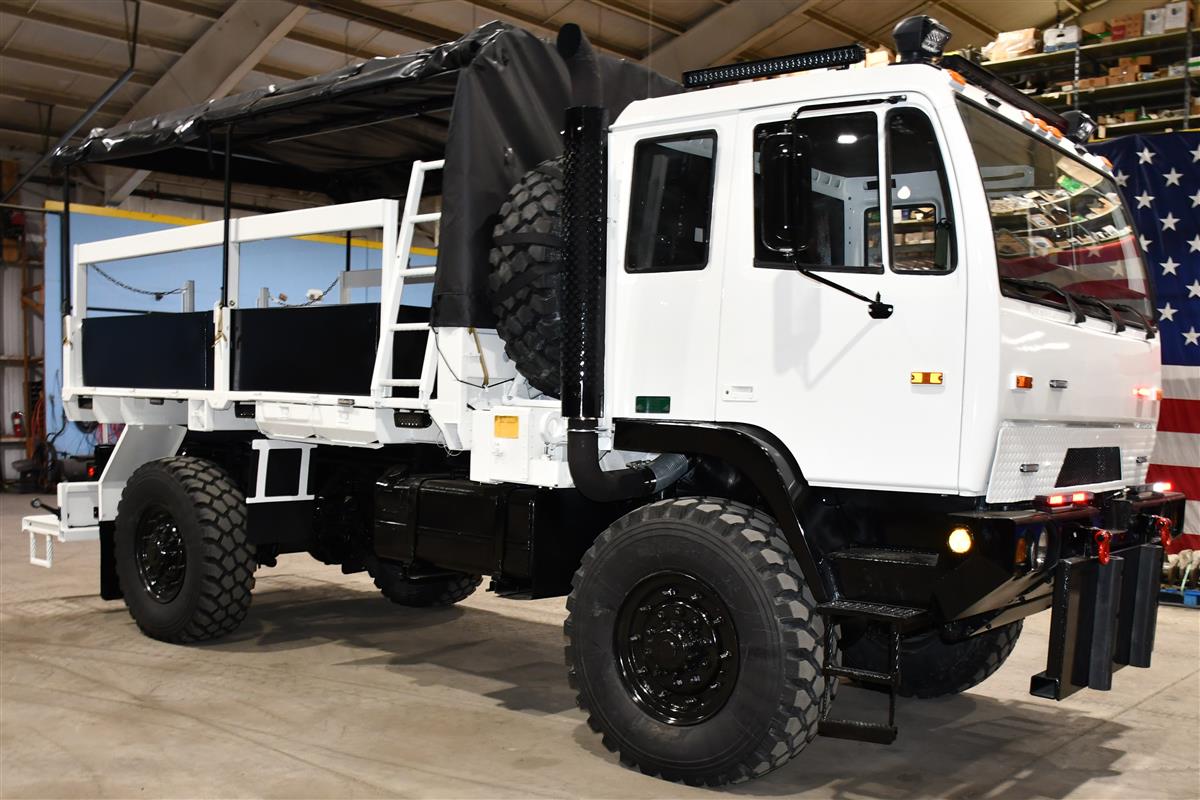

2. All exterior Truck lighting upgraded to LED (Headlights, taillights, marker lights, front turn signals).

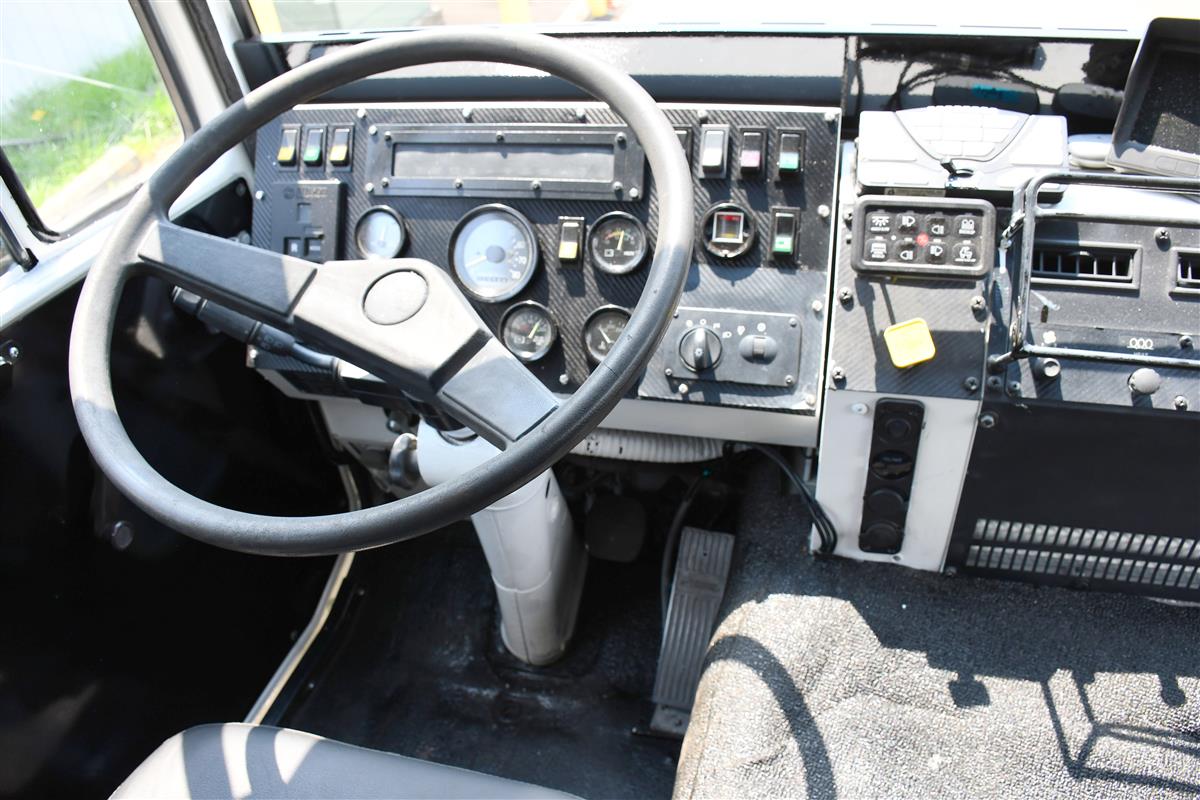

3. Lighting elements, all switched inside of cab through Controller:

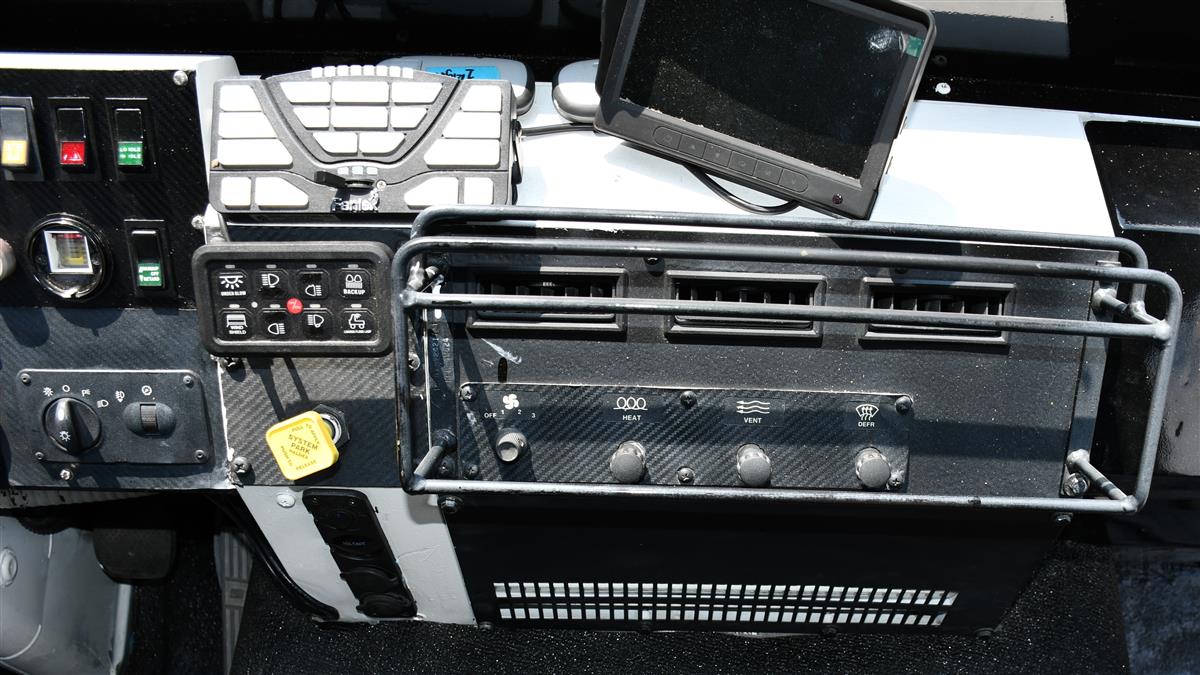

a) Supplied and installed Feniex 4200 Data link Controller

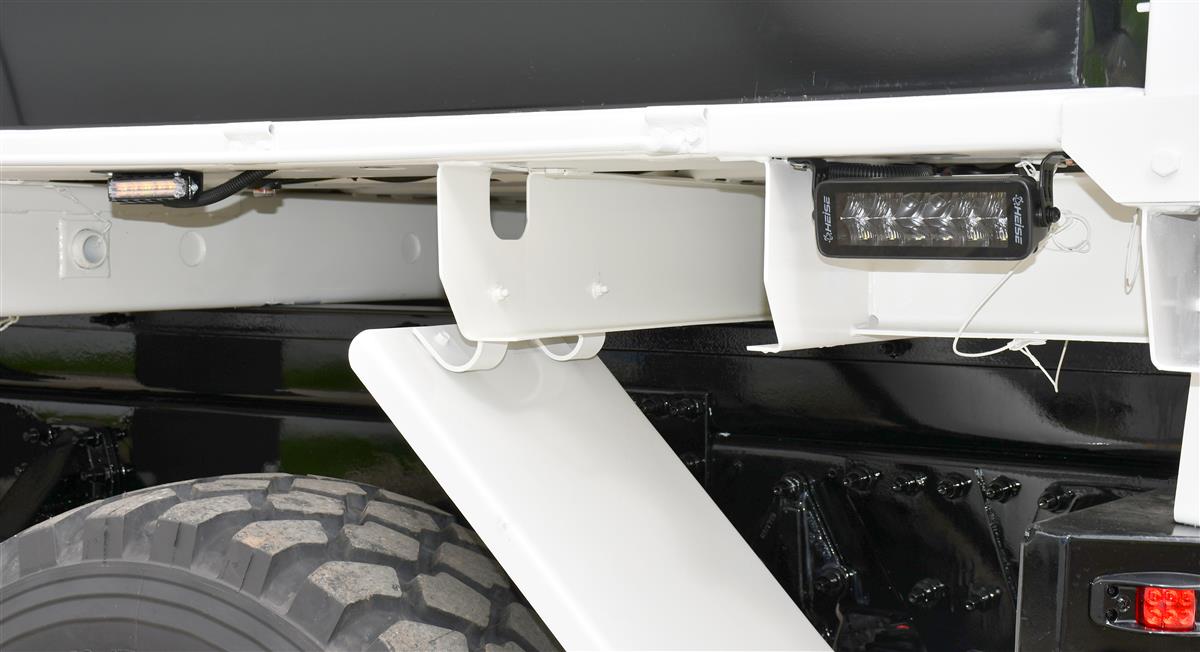

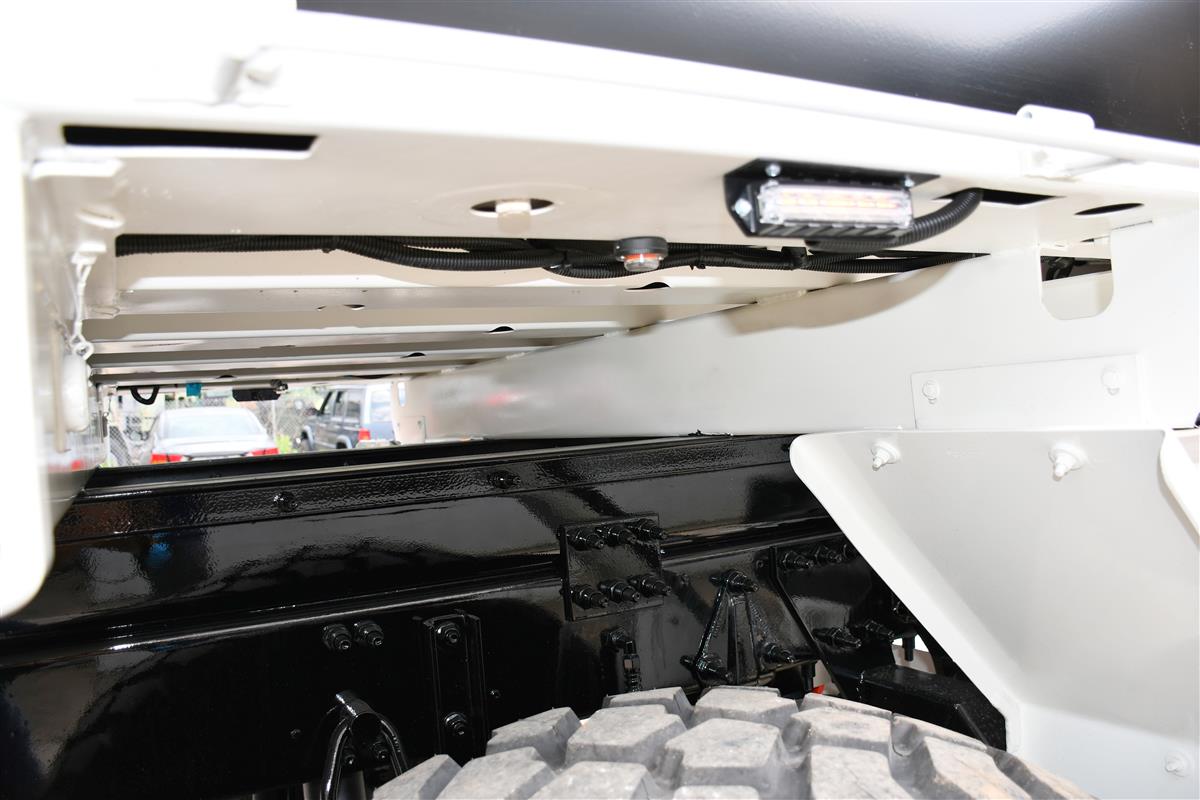

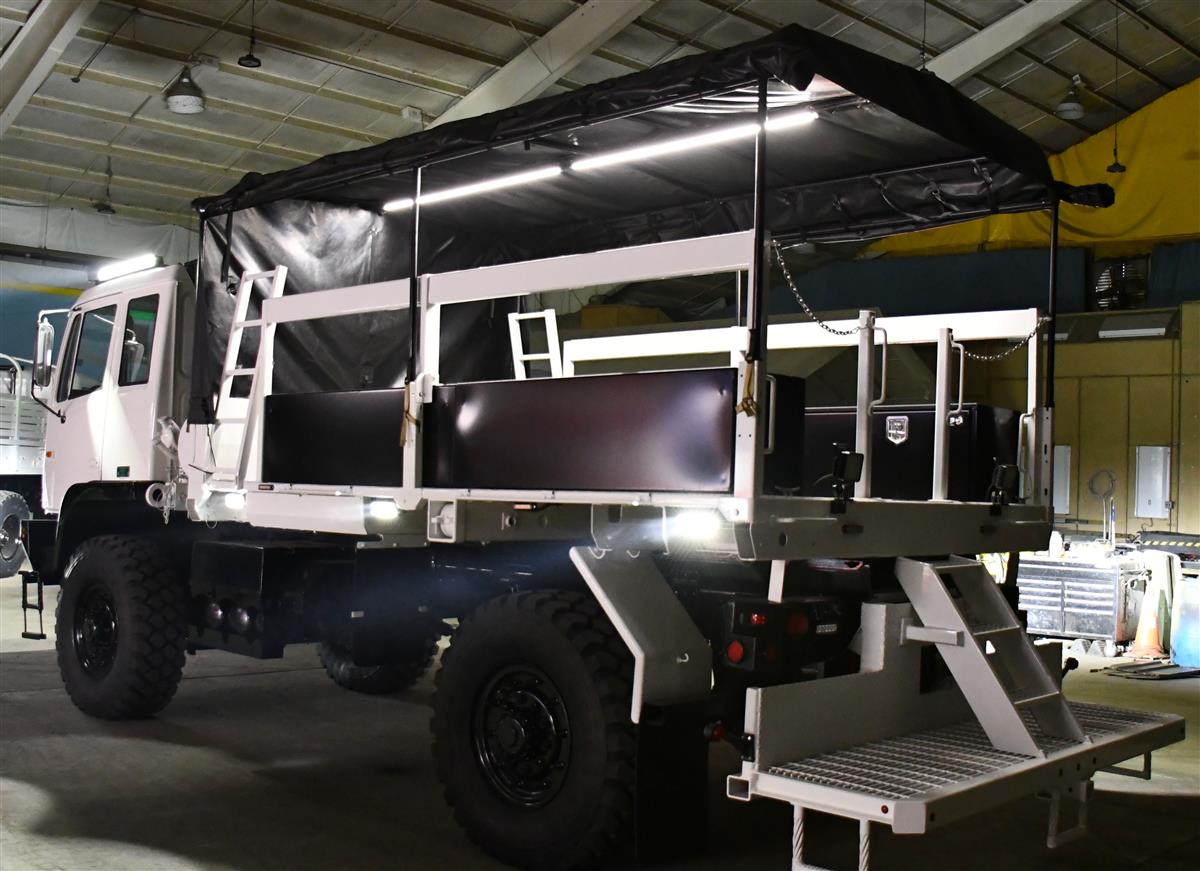

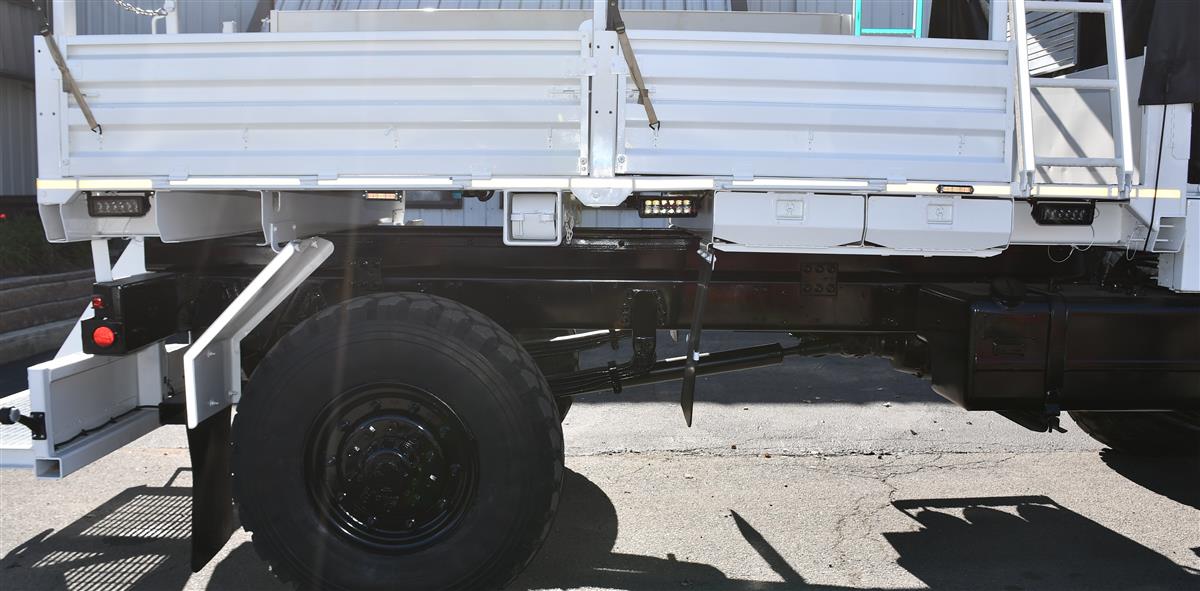

b) Added Work Lights/Scene lighting side / under cargo bed:
• 2 each side of bed, Feniex QQM-8101
• 3 each side of bed, Heise 8” Light Bar
• 3 each Feniex Q-2222 Quad Cannon
c) Added Scene lighting at rear of cargo bed:
• 2 each QQM-8101 Quad Surface Mount Lights
• 2 each Code 3 CW2451 9” Square Swivel Work Lights
d) Added Scene lighting at front of truck:
• 2 each Code 3 CW3010 Wireless spotlights
• 2 each Feniex Quantum 18” Stick Single Color
• 6 each Feniex QQM-8101 Quad Surface Mount Lights
• 2 each – Heise 32” Light bar

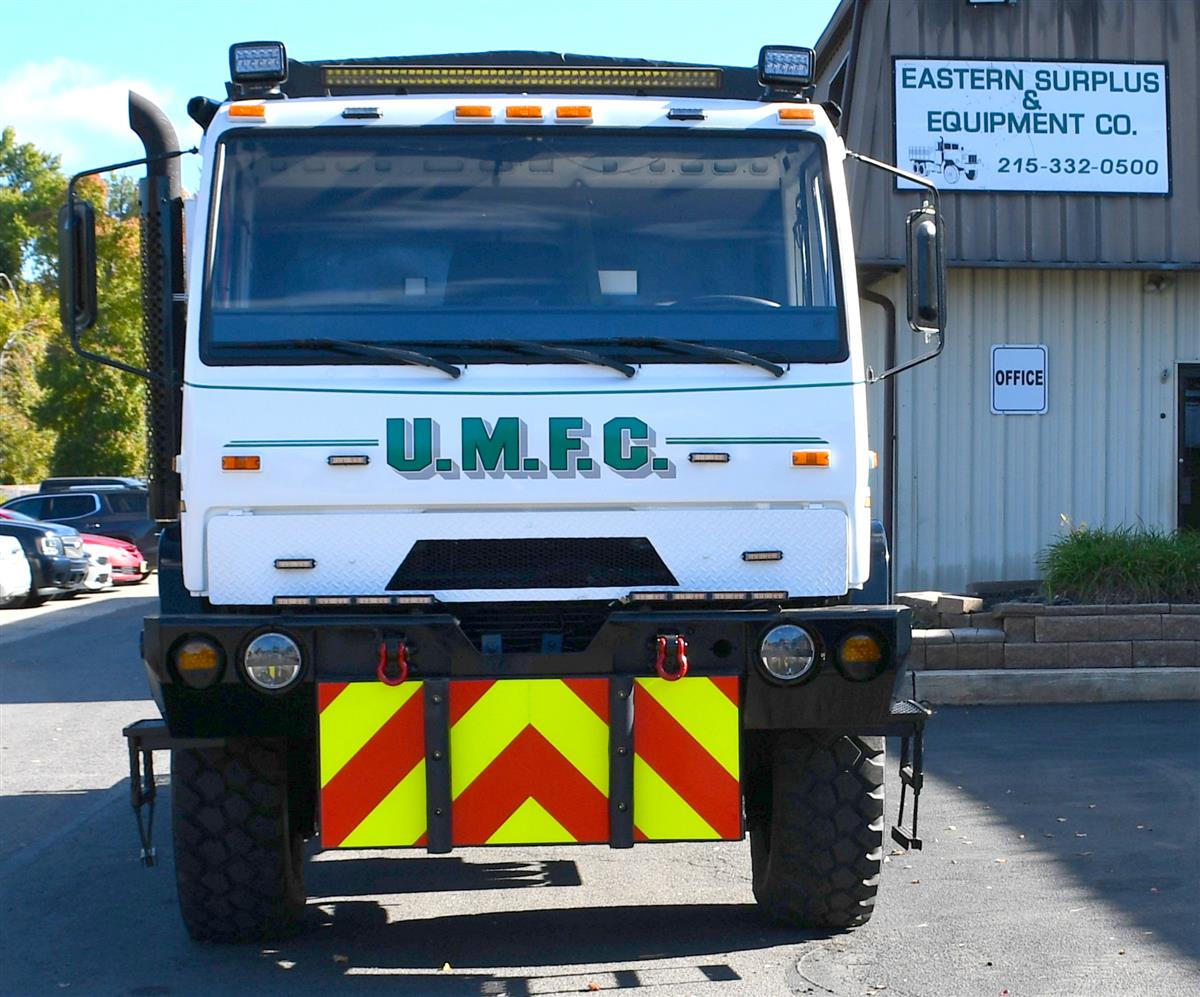

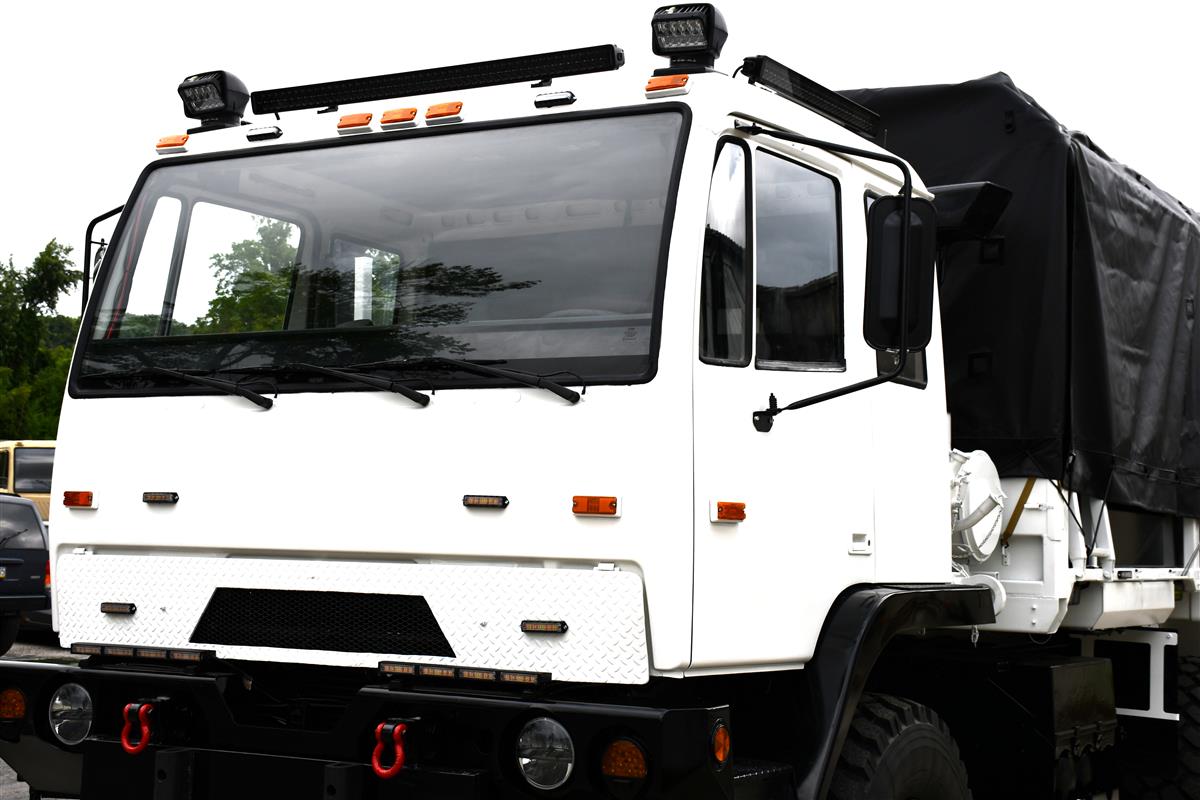

e) Emergency light bar over cab – Heise 50” brow light bar.
f) Siren and speakers installed, Feniex Storm Pro and Triton speaker.

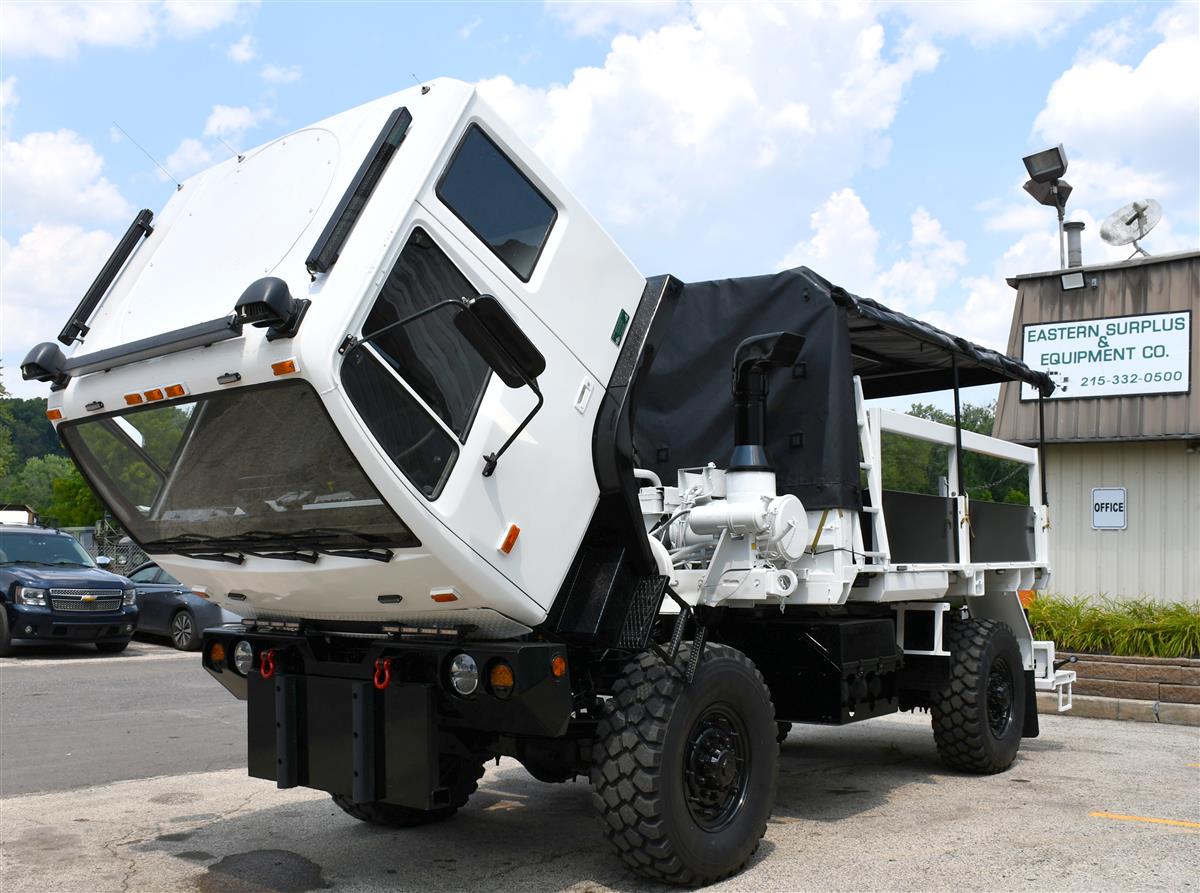

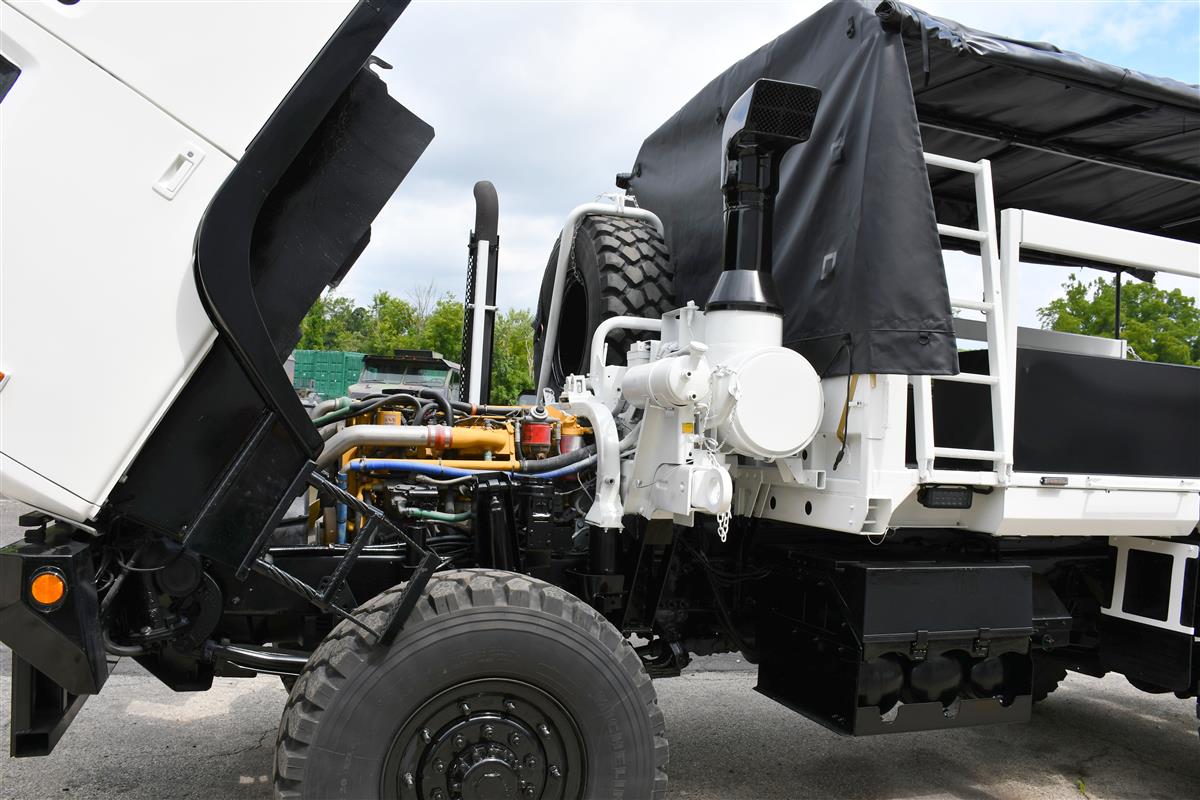

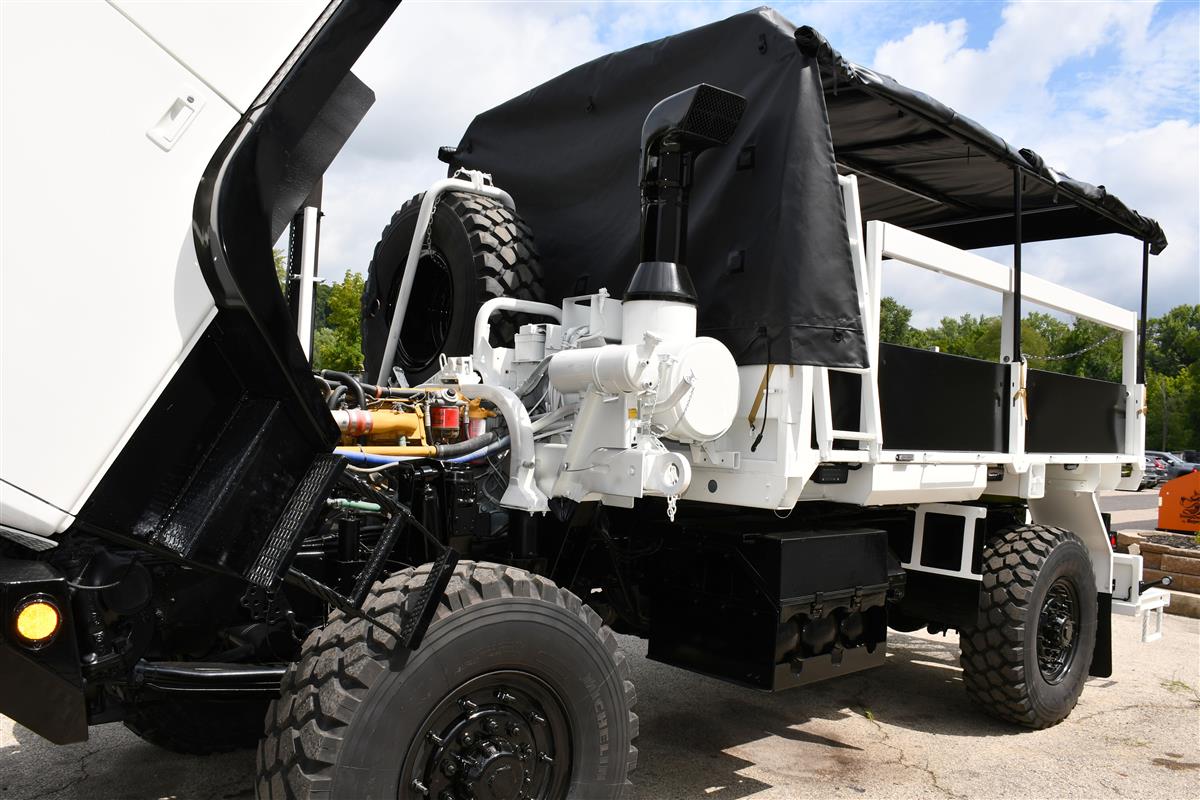

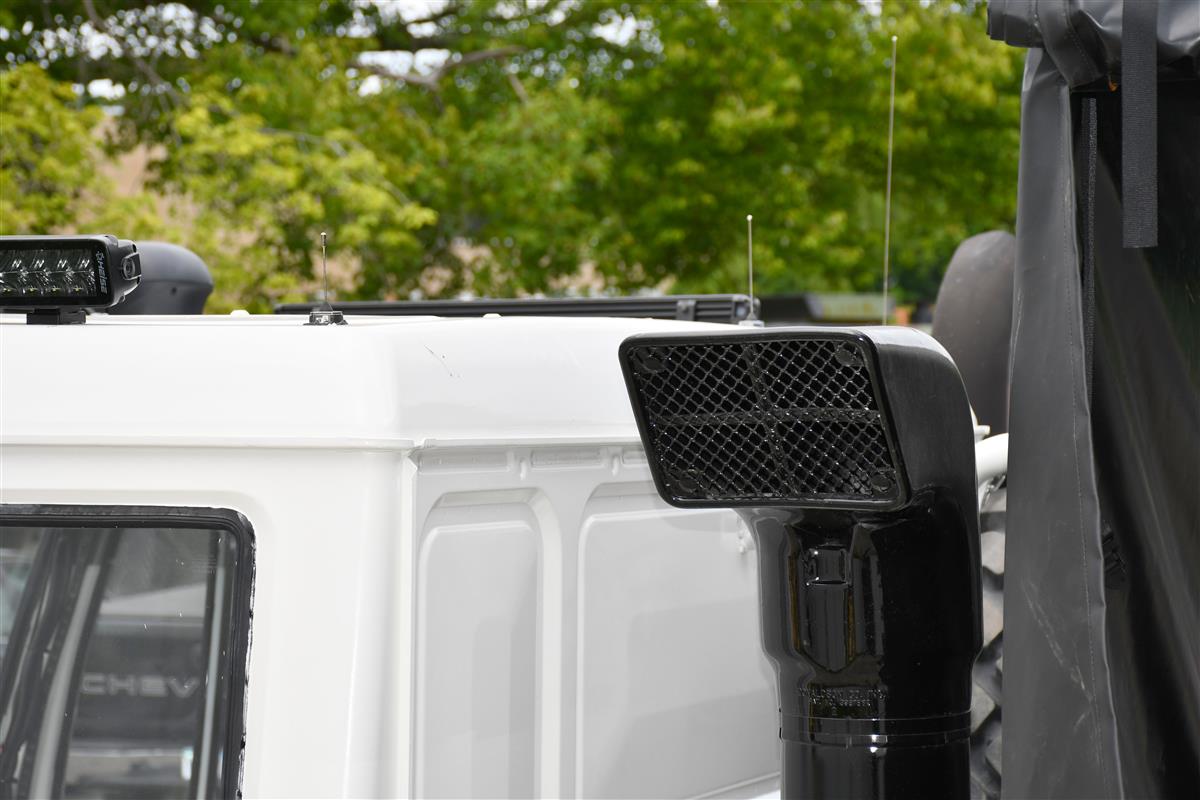

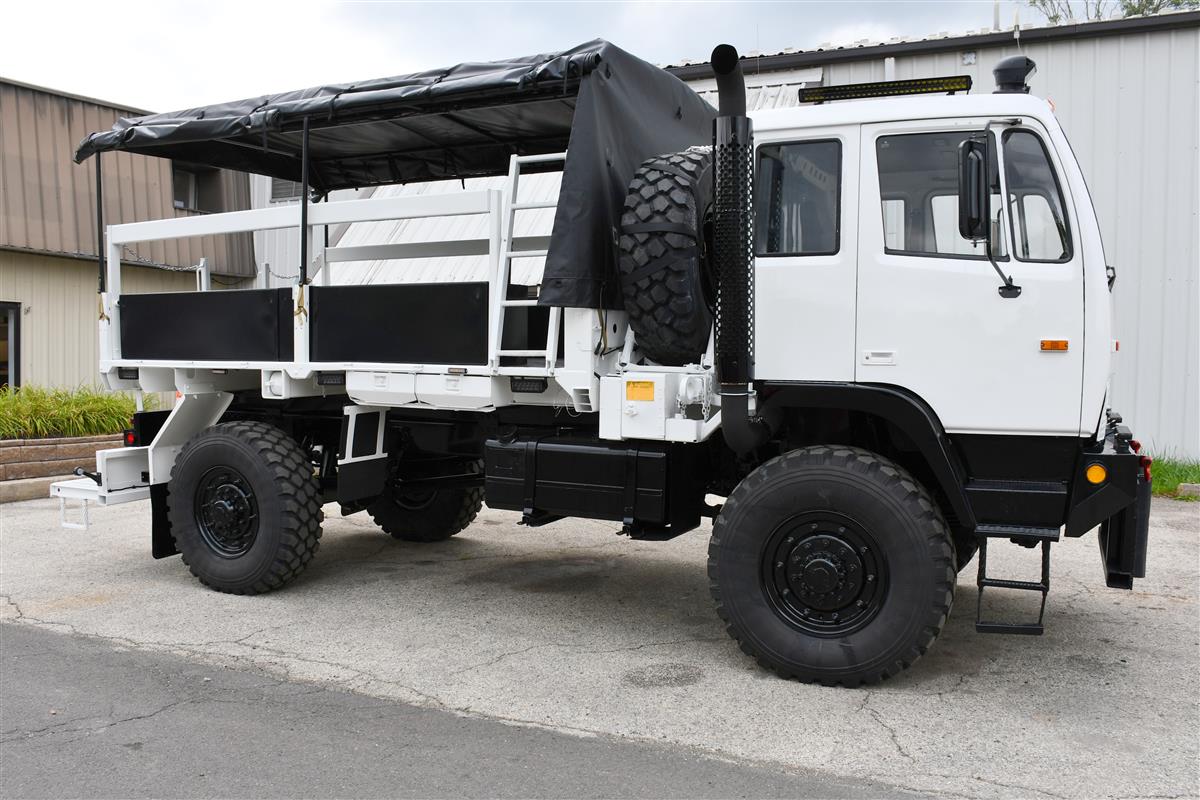

4. Exhaust relocated and elevated.
5. Supplied and installed back-up light and back-up alarm.
6. Supplied and installed backup camera with viewing screen in cab of truck.

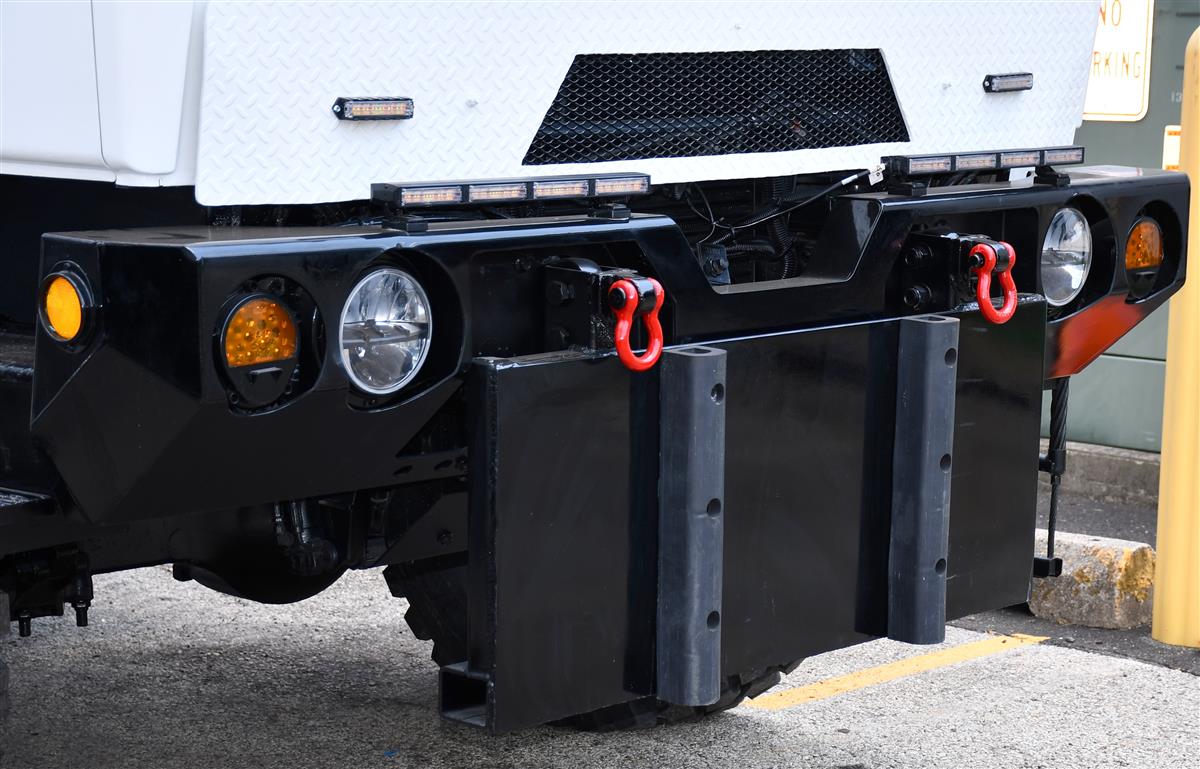

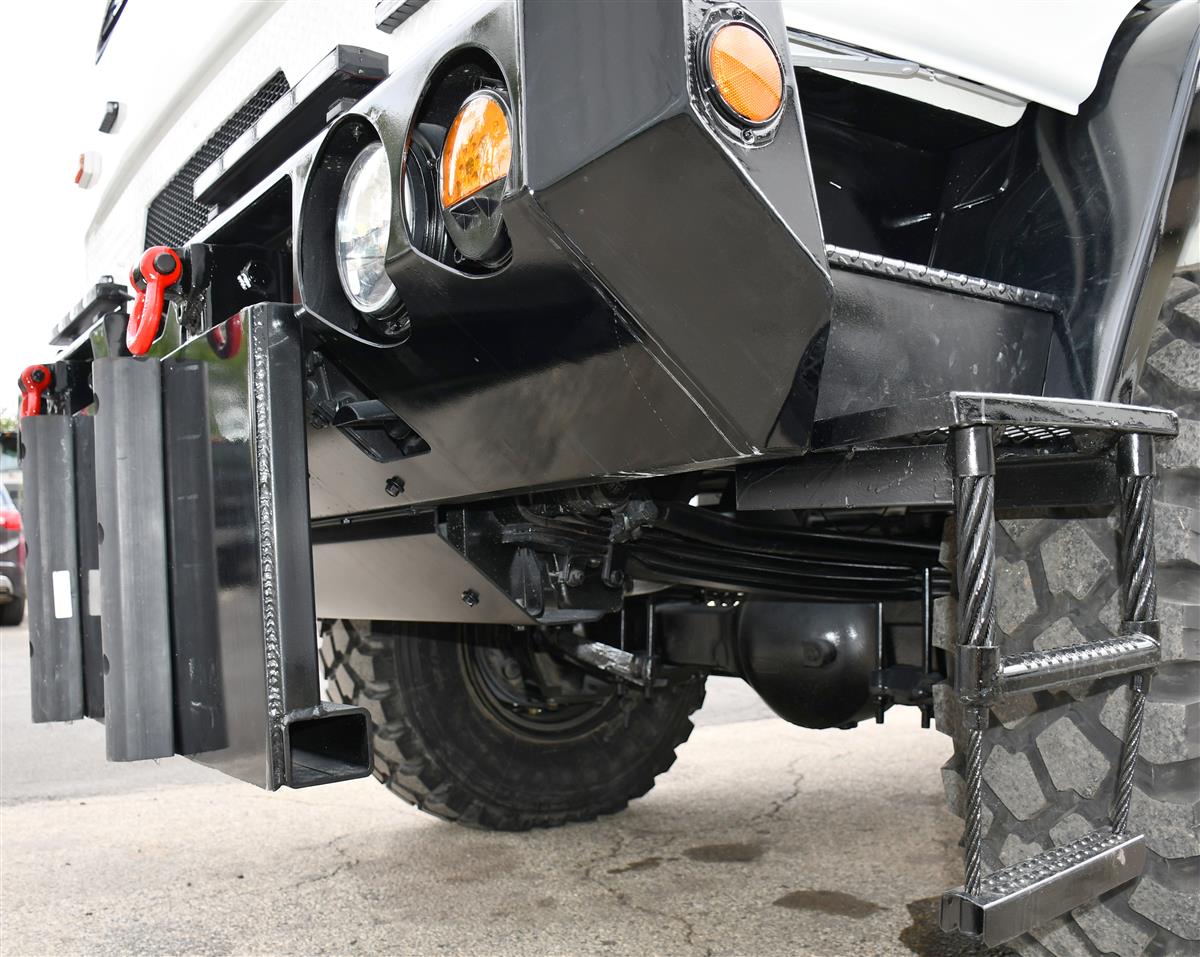

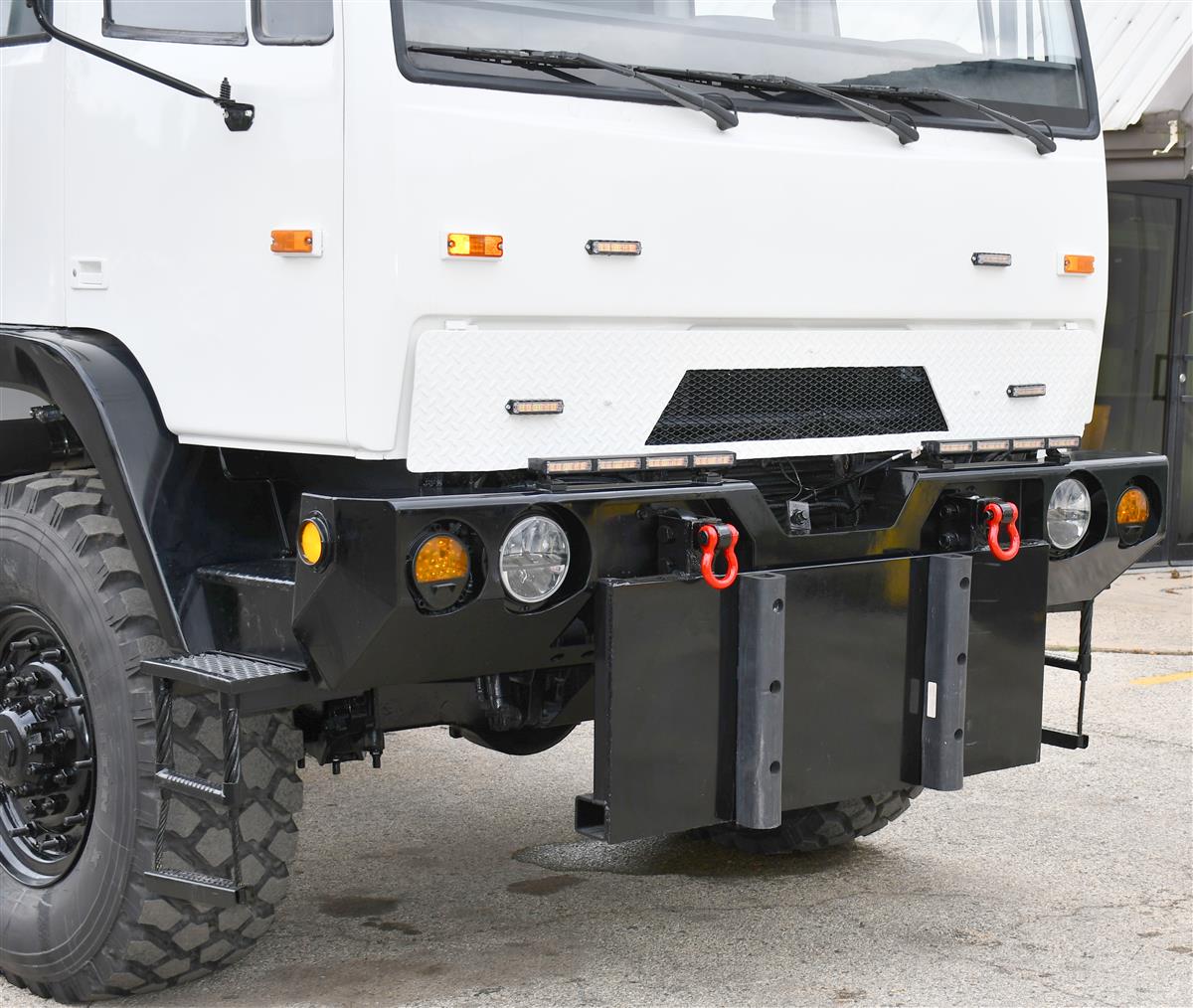

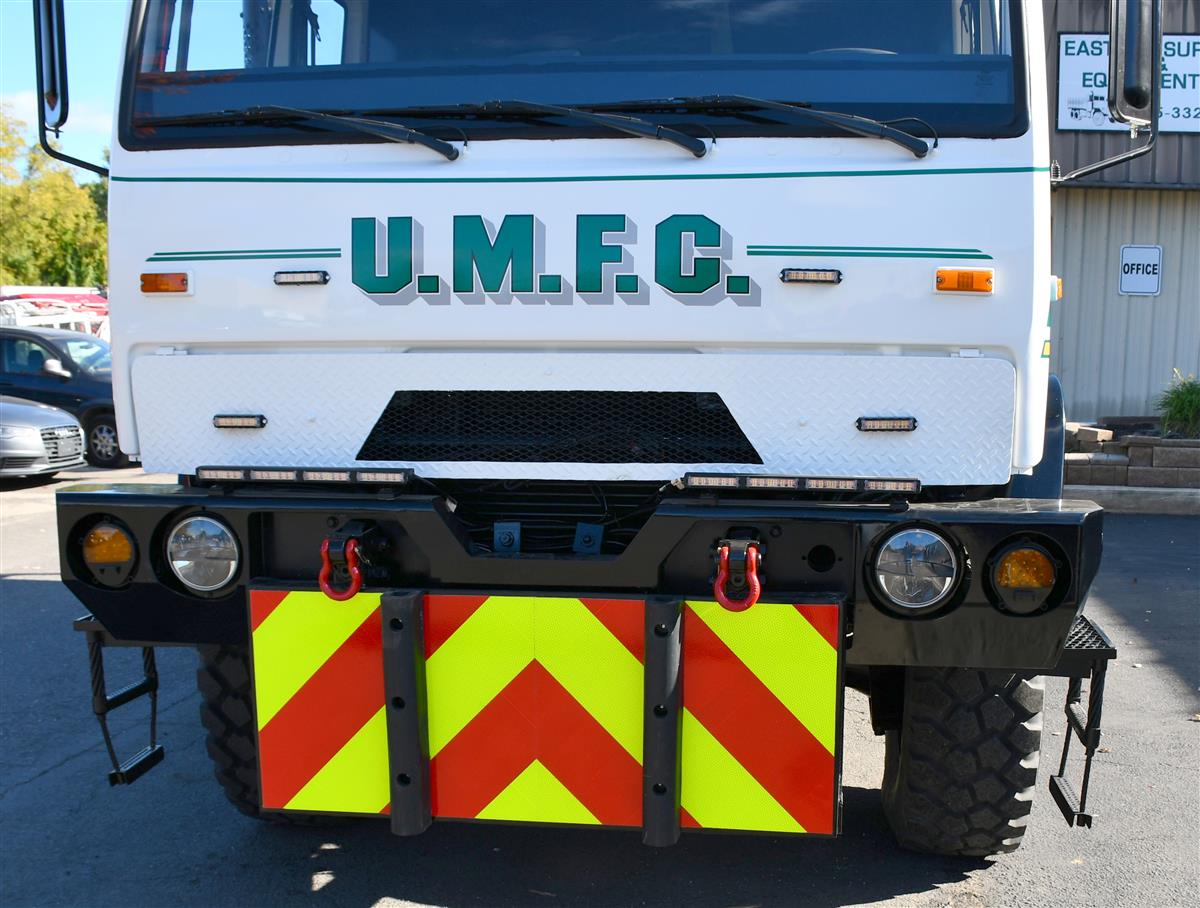

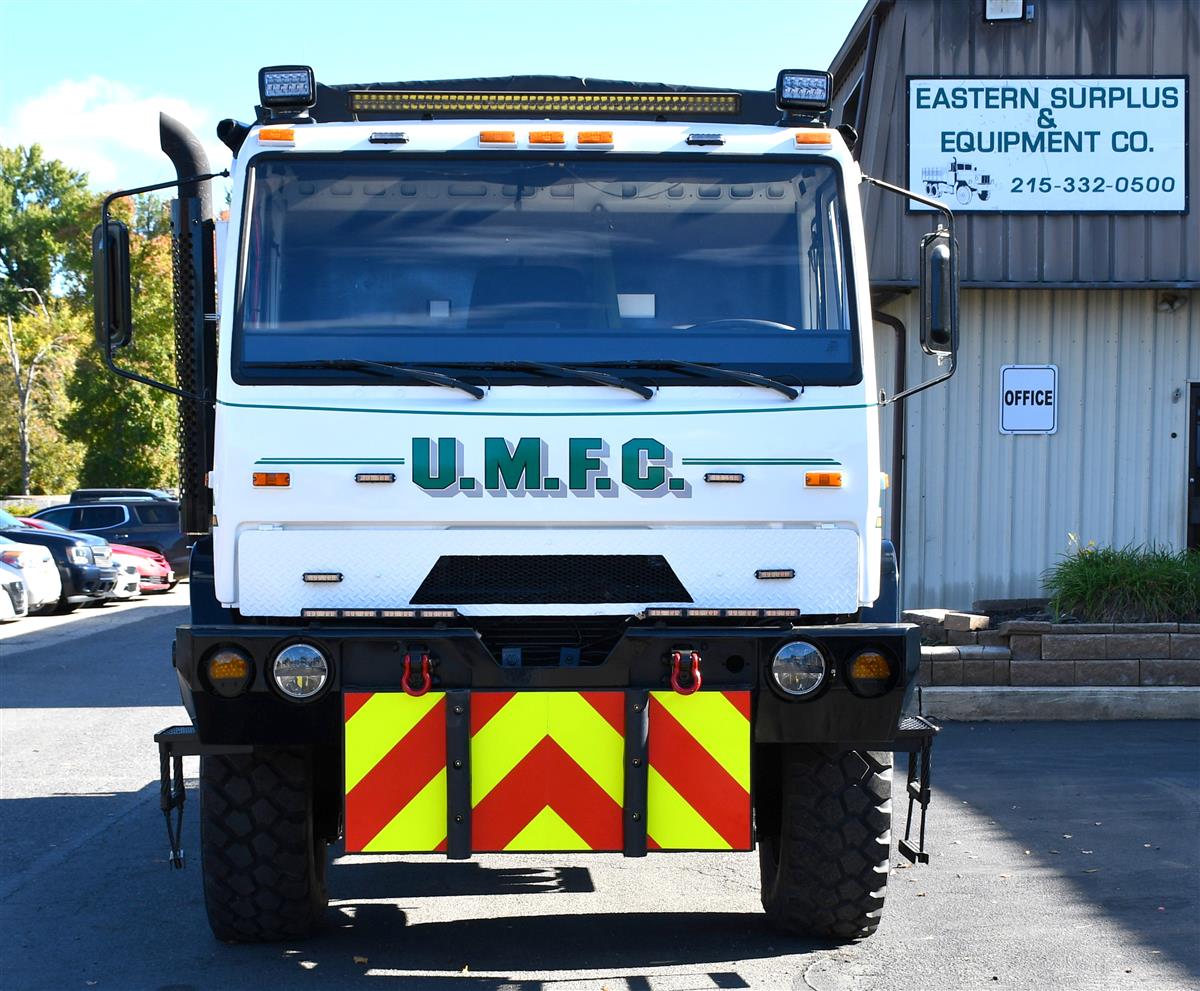

7. Front push bumper under existing bumper.
8. Widen front bumper (left and right) to protect from wheel hit.
9. Breakaway West coast style rear view mirrors on cab.

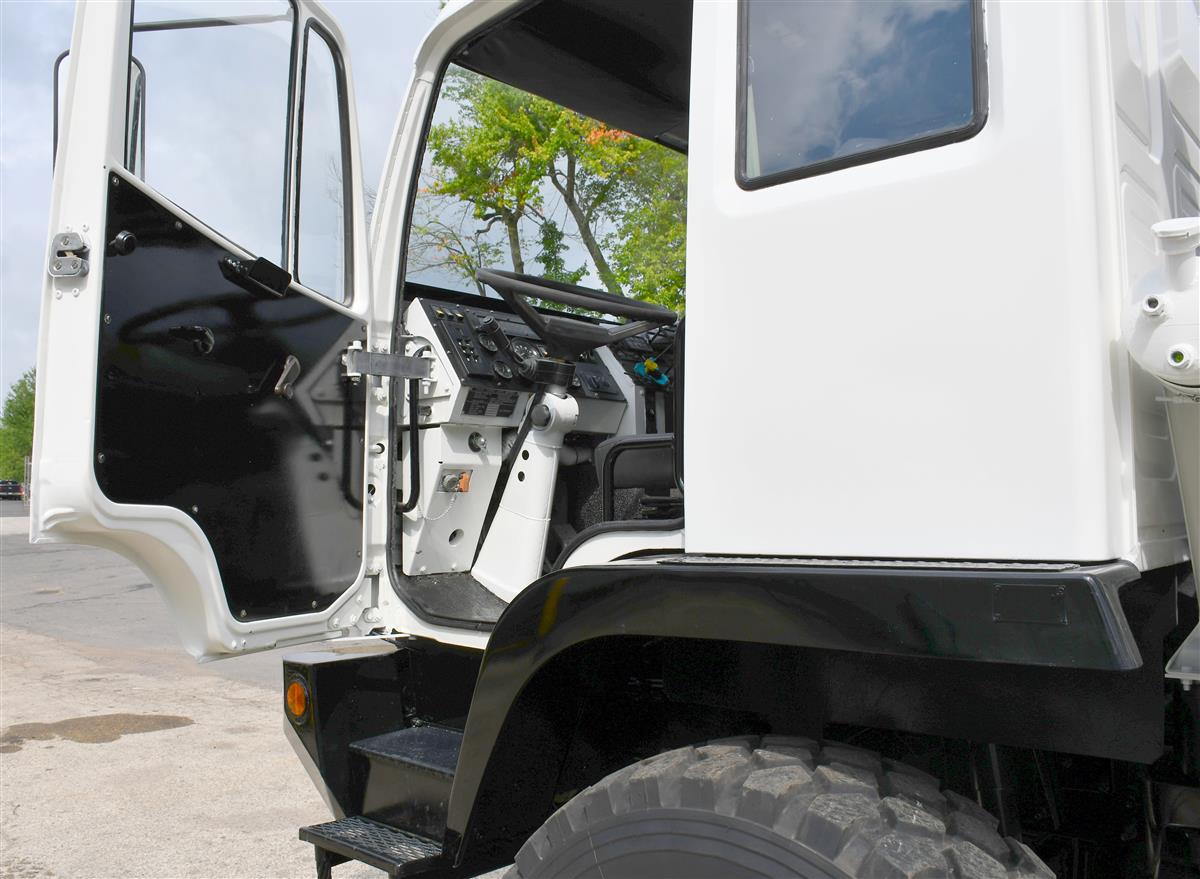

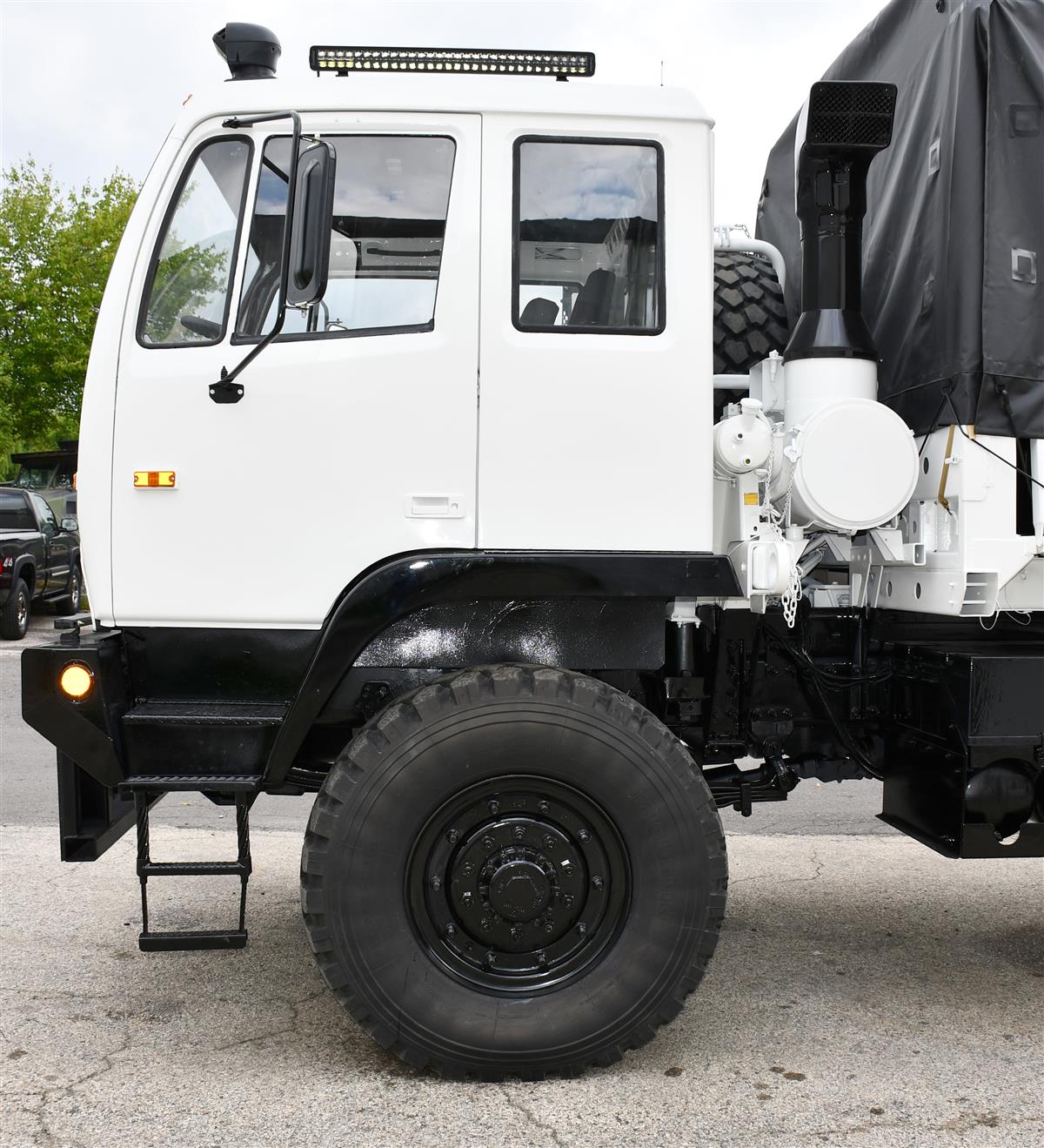

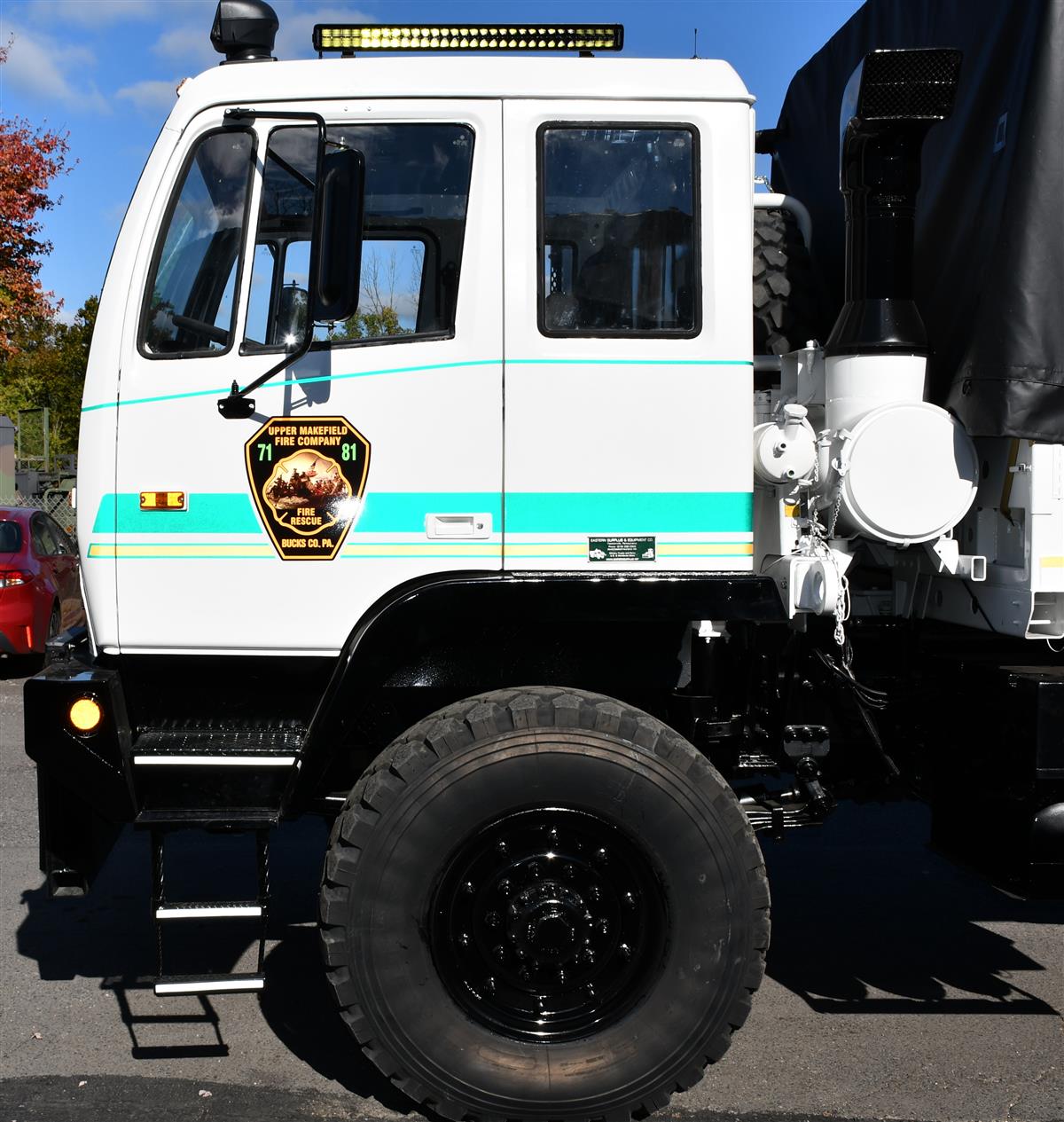

10. Added cab entry step and extensions left and right.

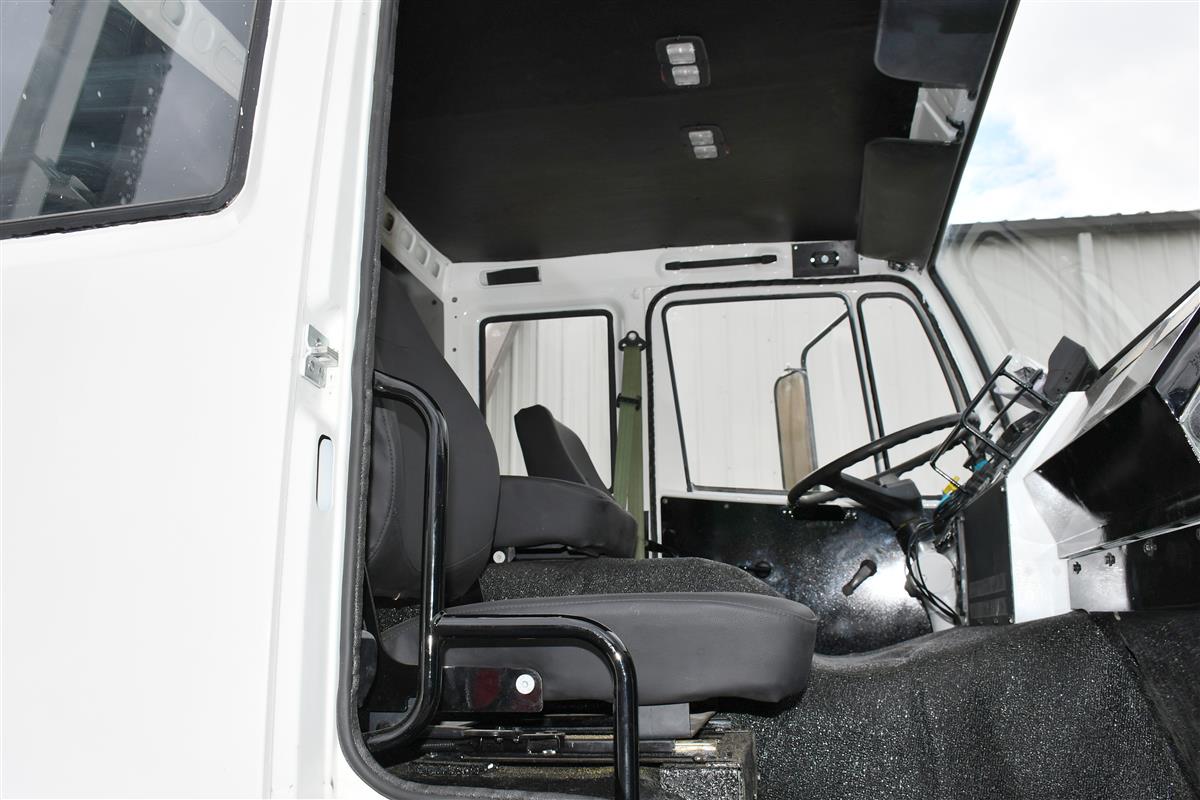

11. Master battery disconnect switch - non-keyed - in cab, easily accessible.

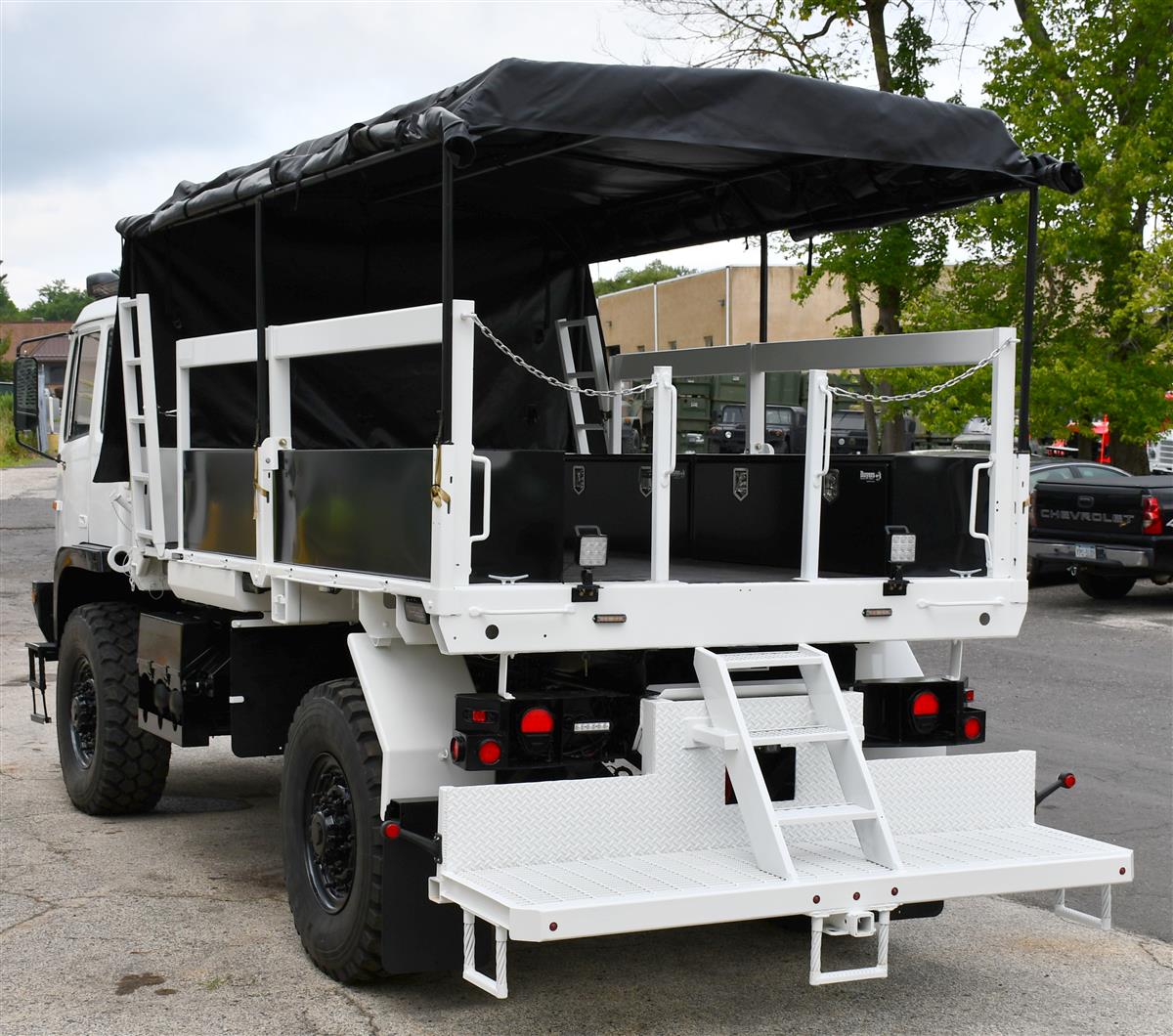

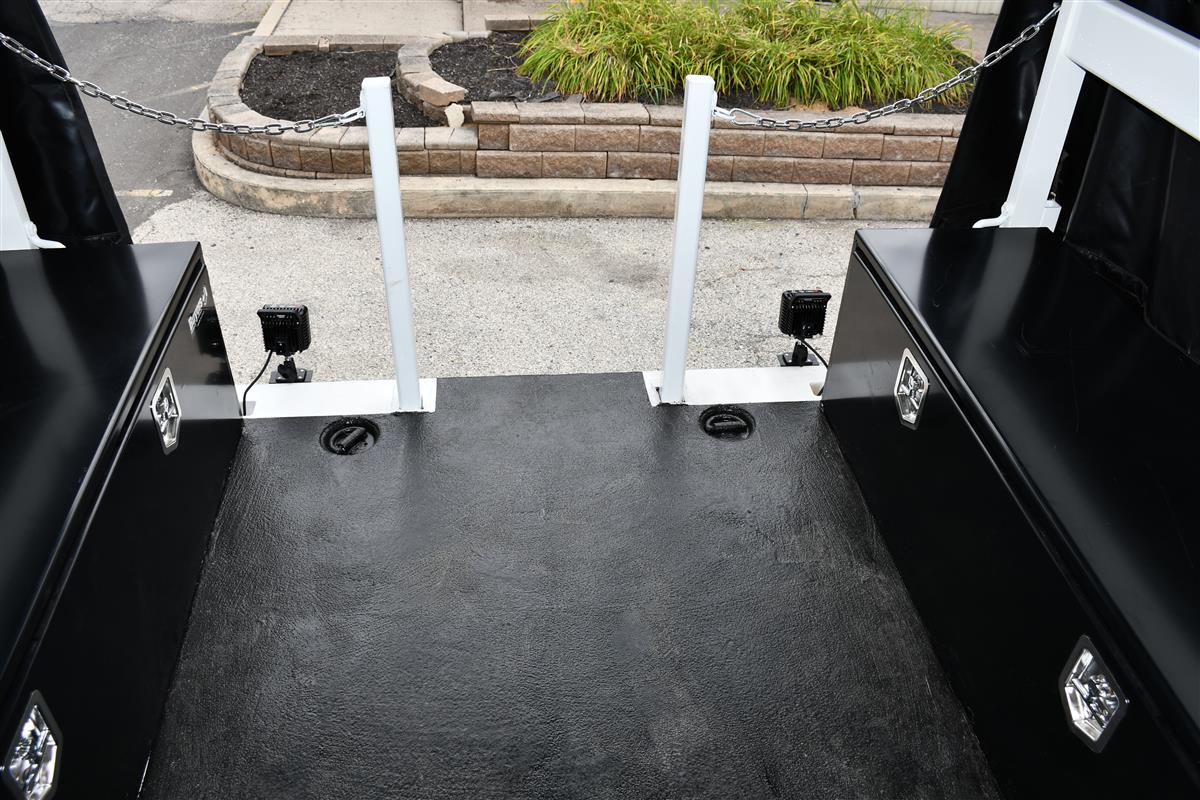

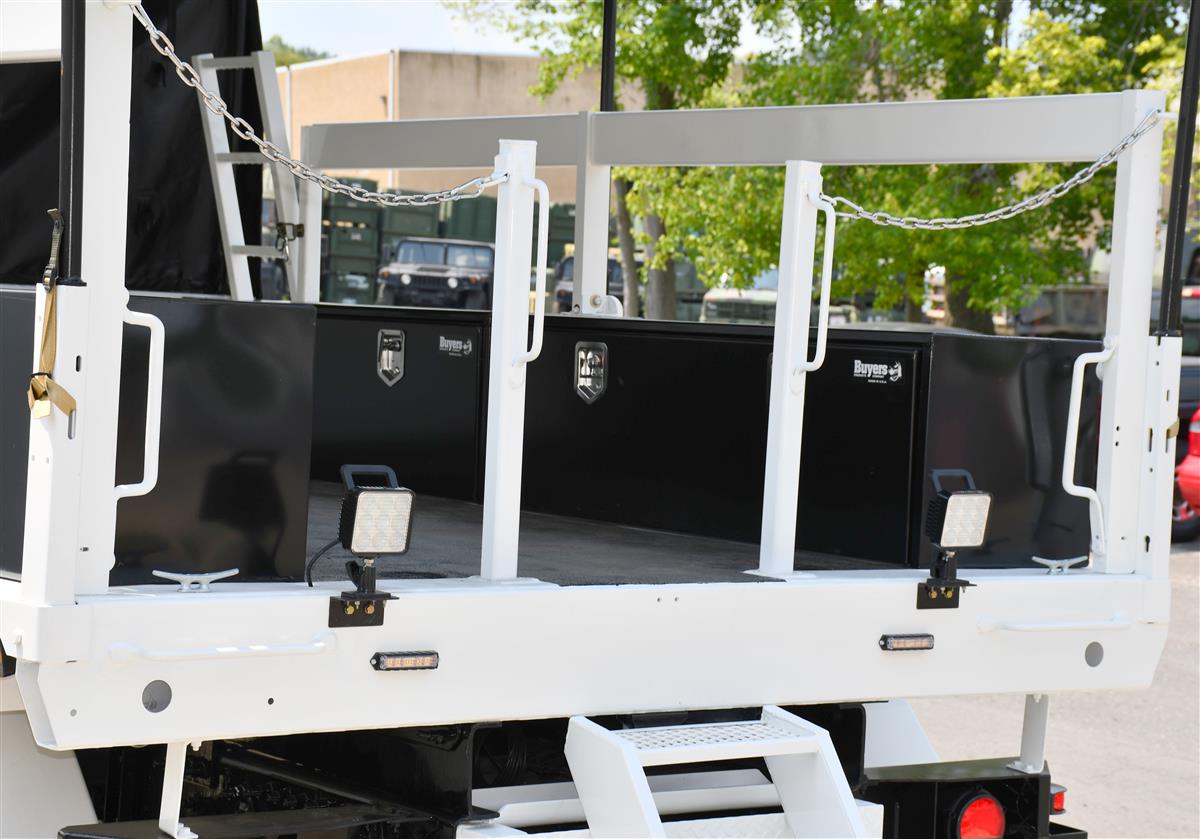

12. Rear Cargo Bed:

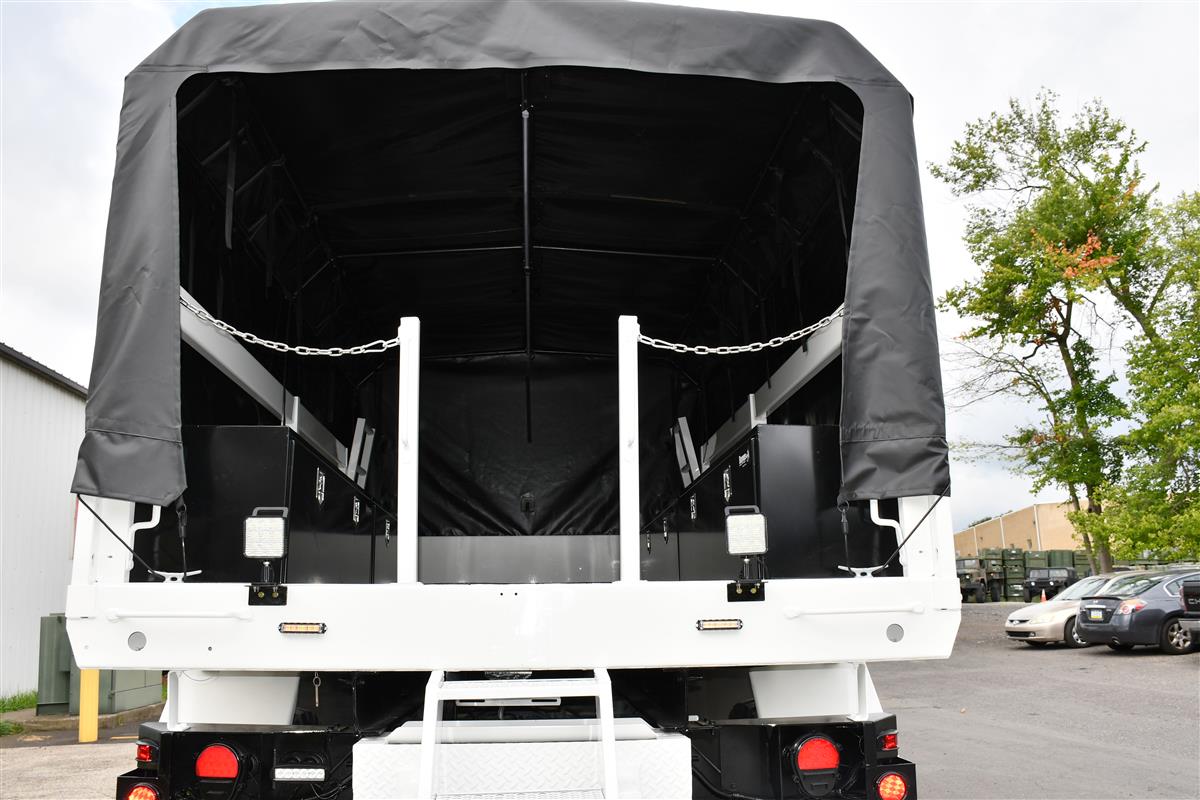

a) Fixed rear side racks with opening reduced to desired spacing.

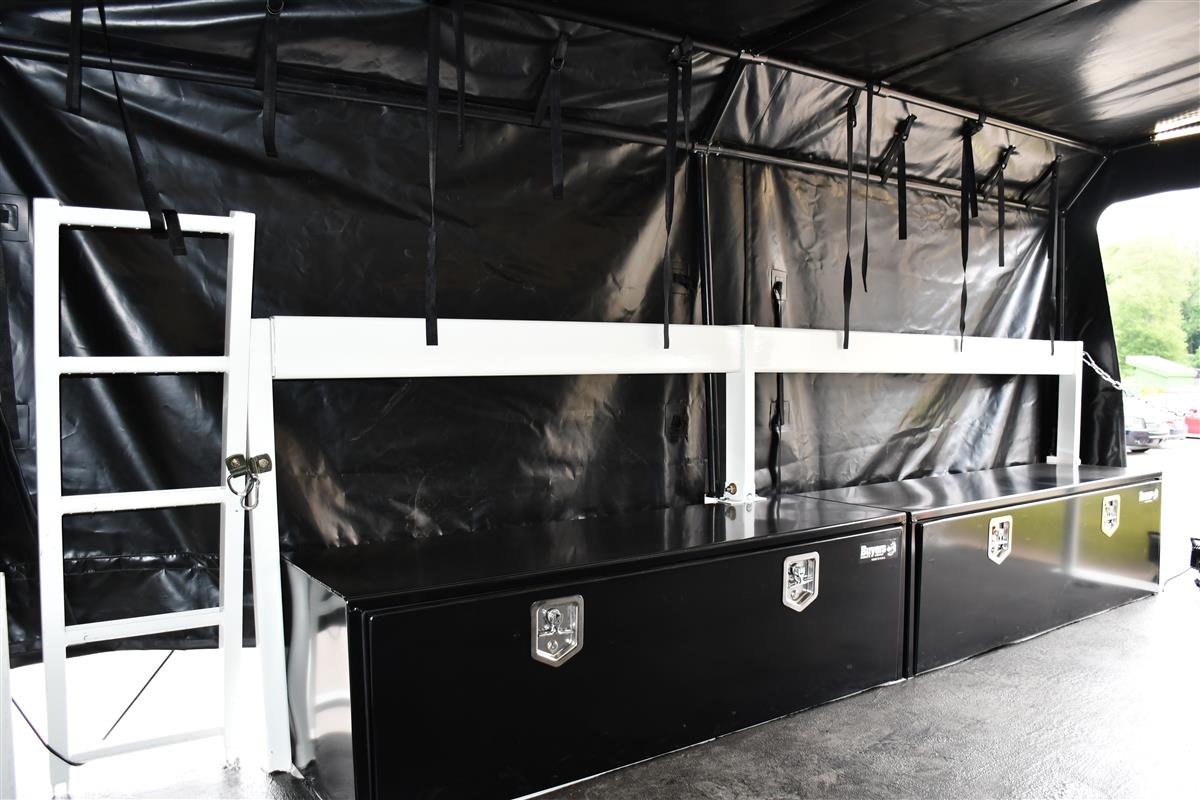

b) Toolboxes with locking lids along left and right sides. Approximately 10 feet total along each side (length adjusted to accommodate access to ladders in g) below).

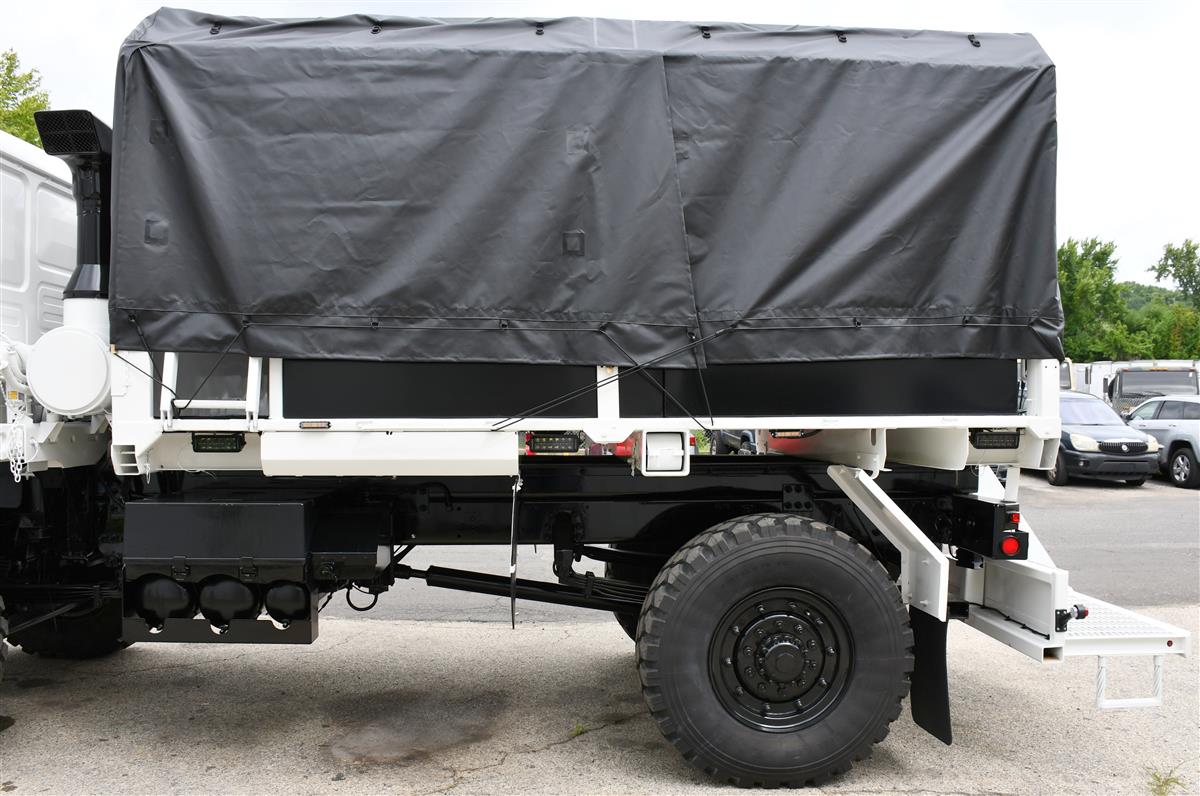

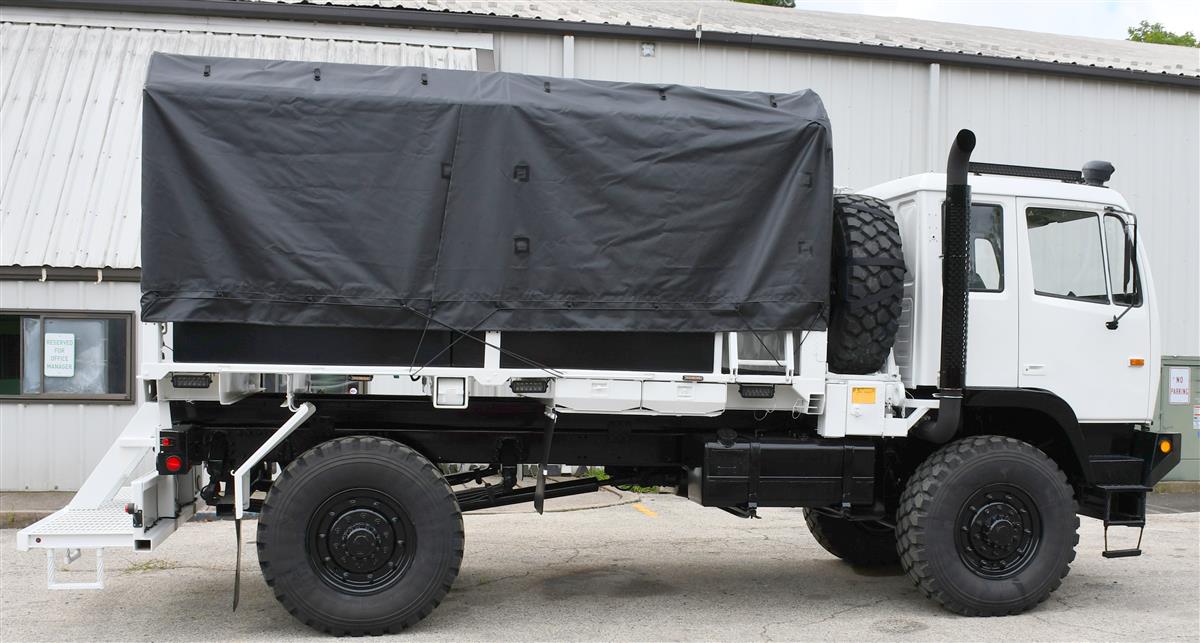

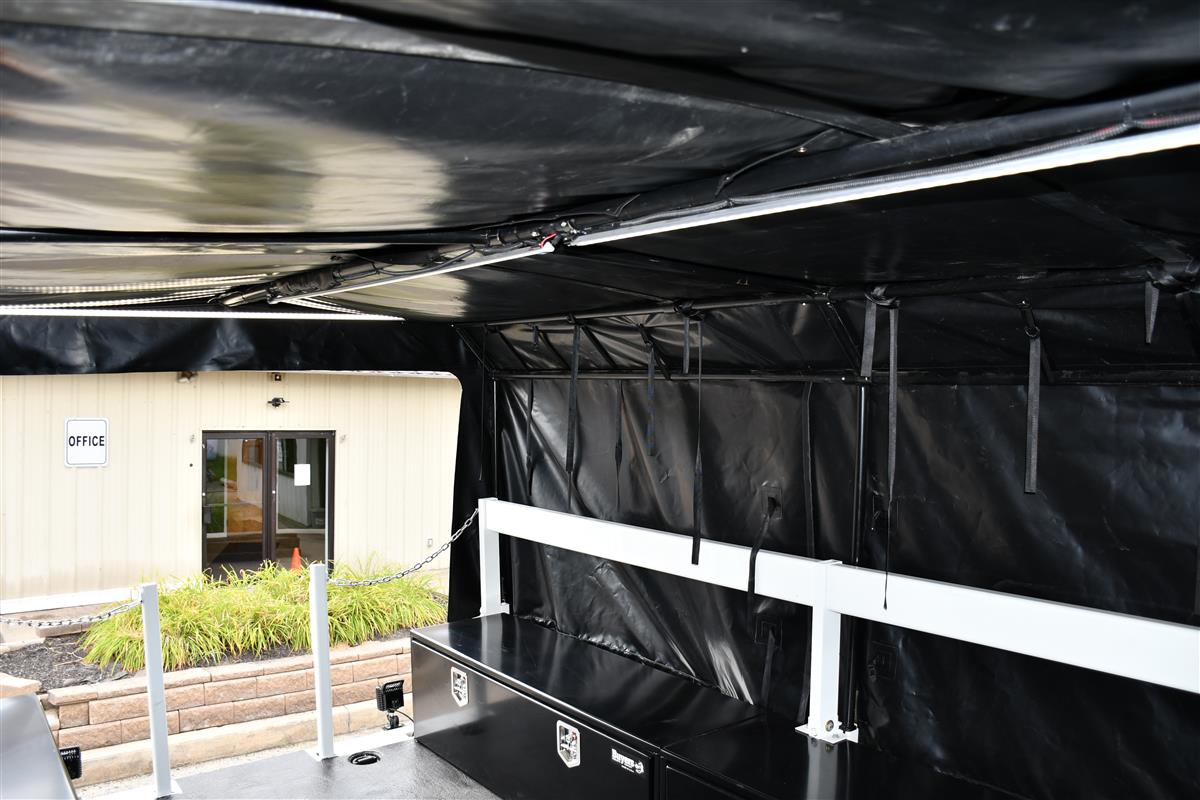

c) Custom black rear canopy cover, extending approximately 6 inches below the top on each side.
d) LED strip lighting, red in color, inside bed at floor level, 3 each Code 3 CW0805 Corner Compartment lights.
e) “D” Rings welded inside head of cargo bed on floor for assistance in loading the bed.
f) Boat tie-offs inside back edge of bed on floor (1 left/1 right).

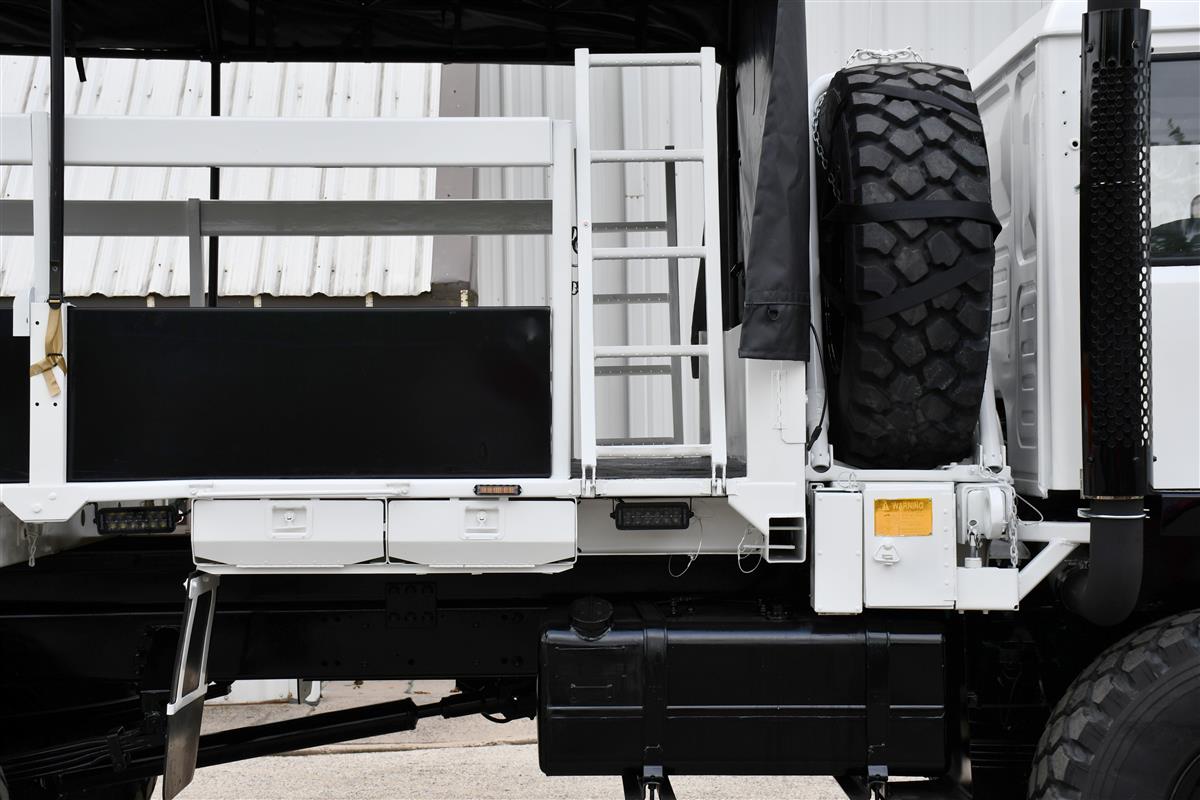

g) Left and right-side fold down ladders. Permanently mounted, hinged at bottom, and stowed vertically.

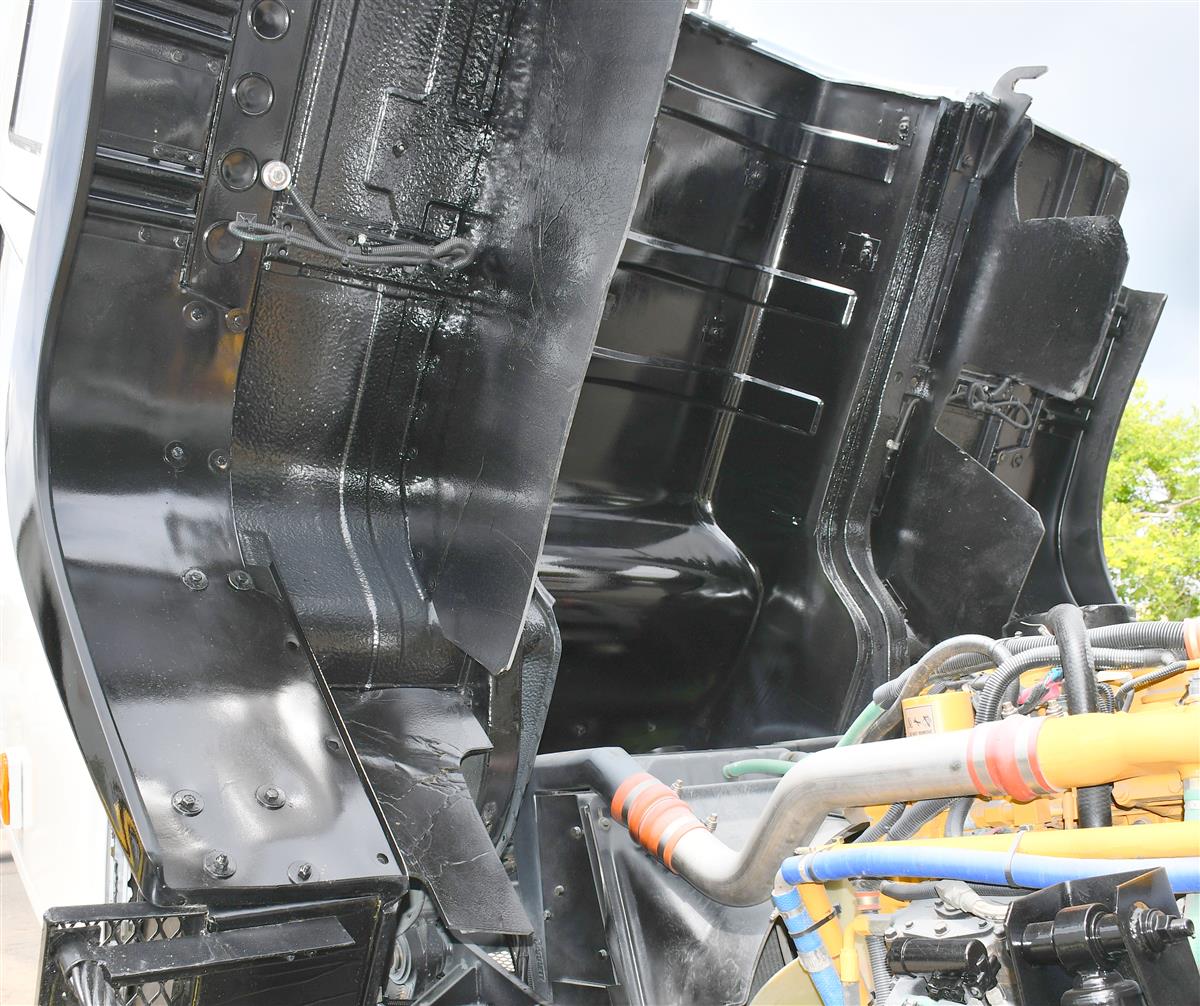

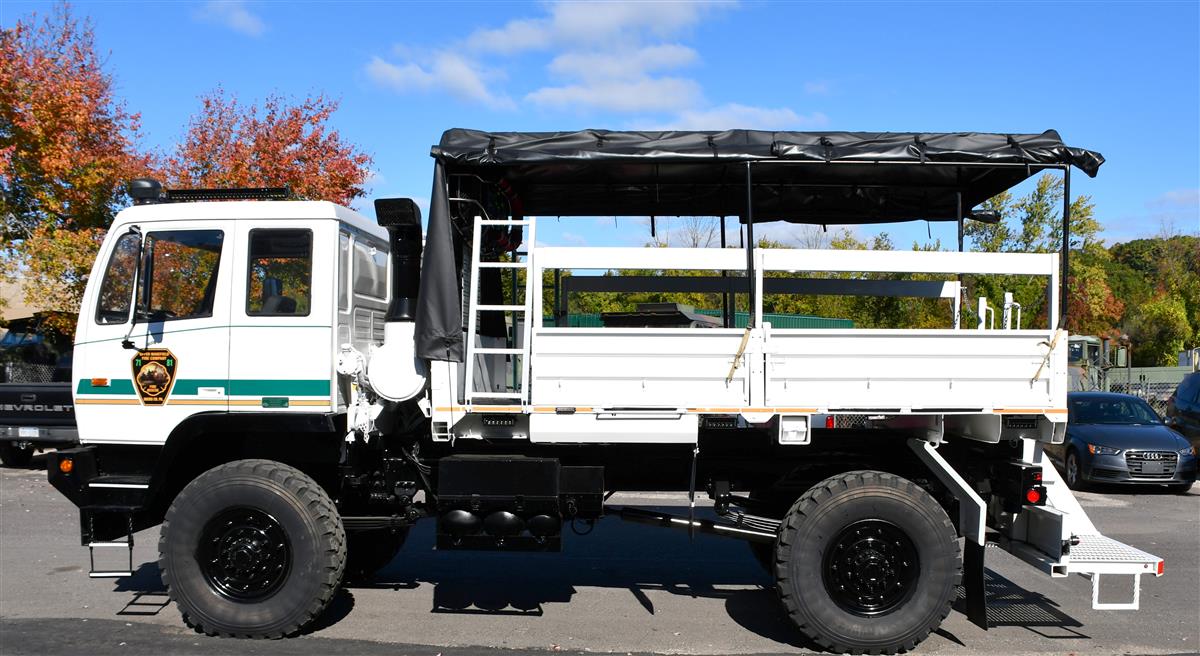

13. Exterior of truck, cleaned, prepared primed and painted.
a) Exterior of truck Upper Makefield Green.
b) Wheels black.
c) Interior original color.
d) All walk on surfaces treated with Textured Rhino style coating in black.
