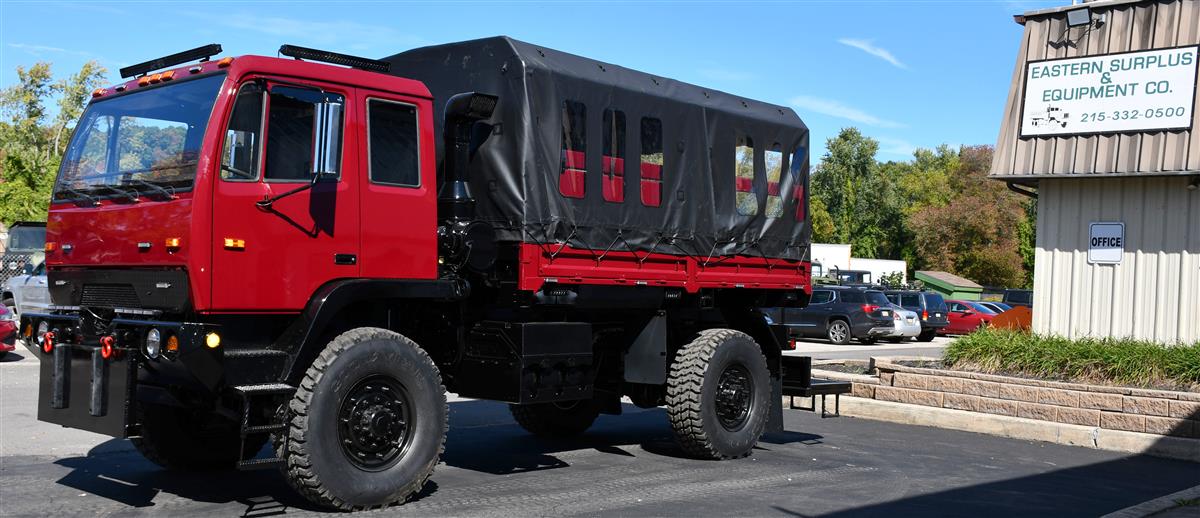

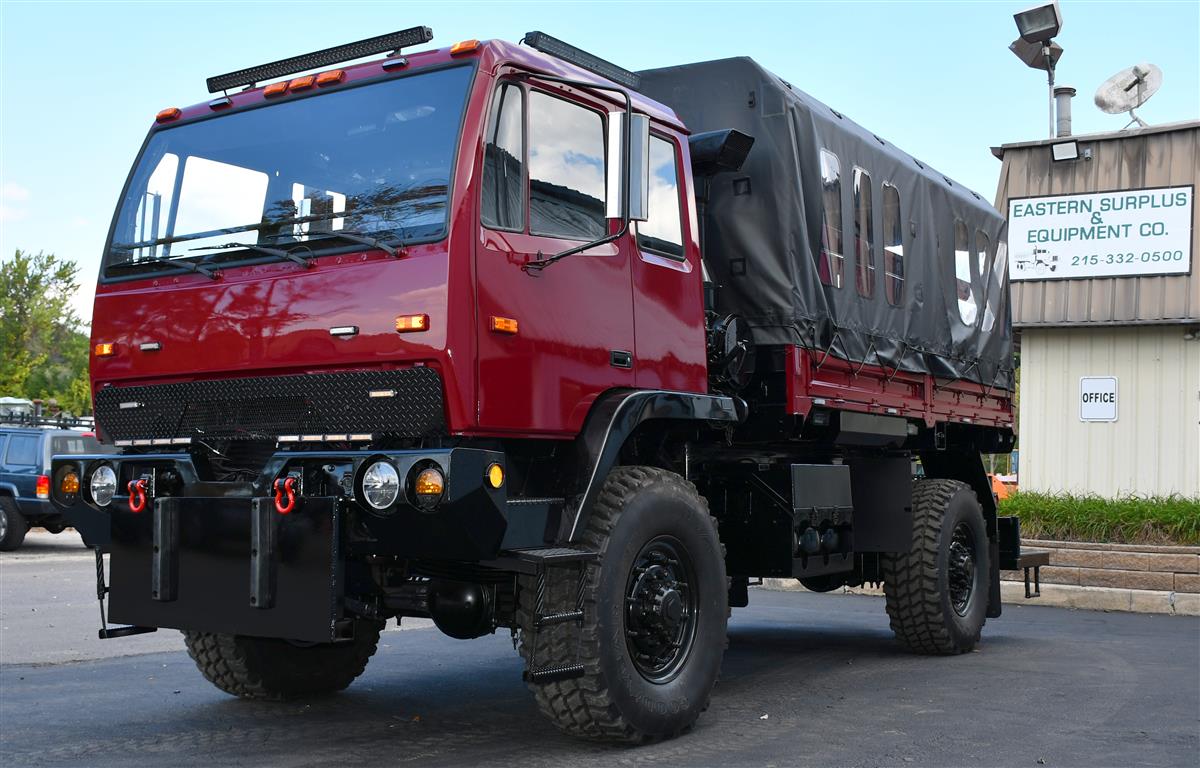

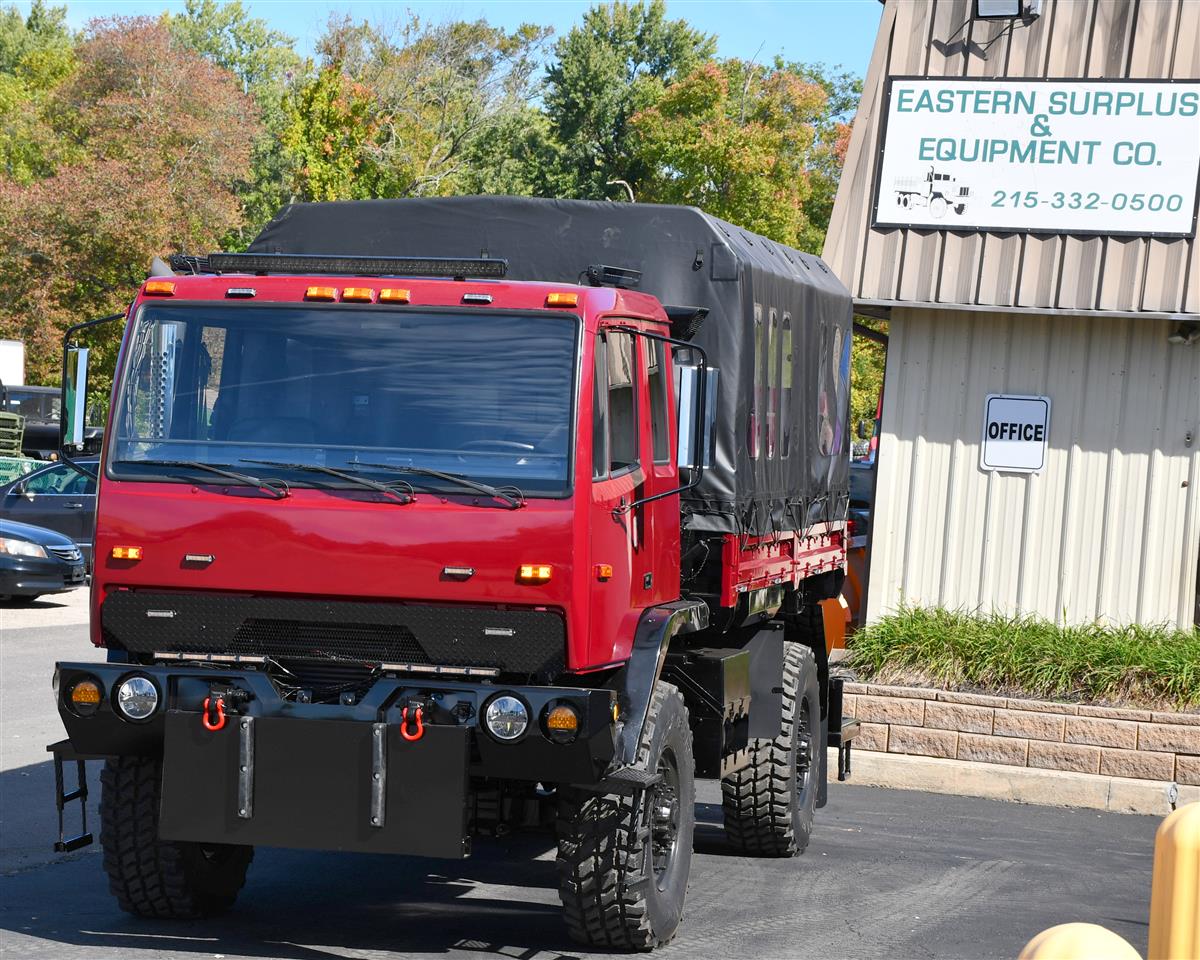

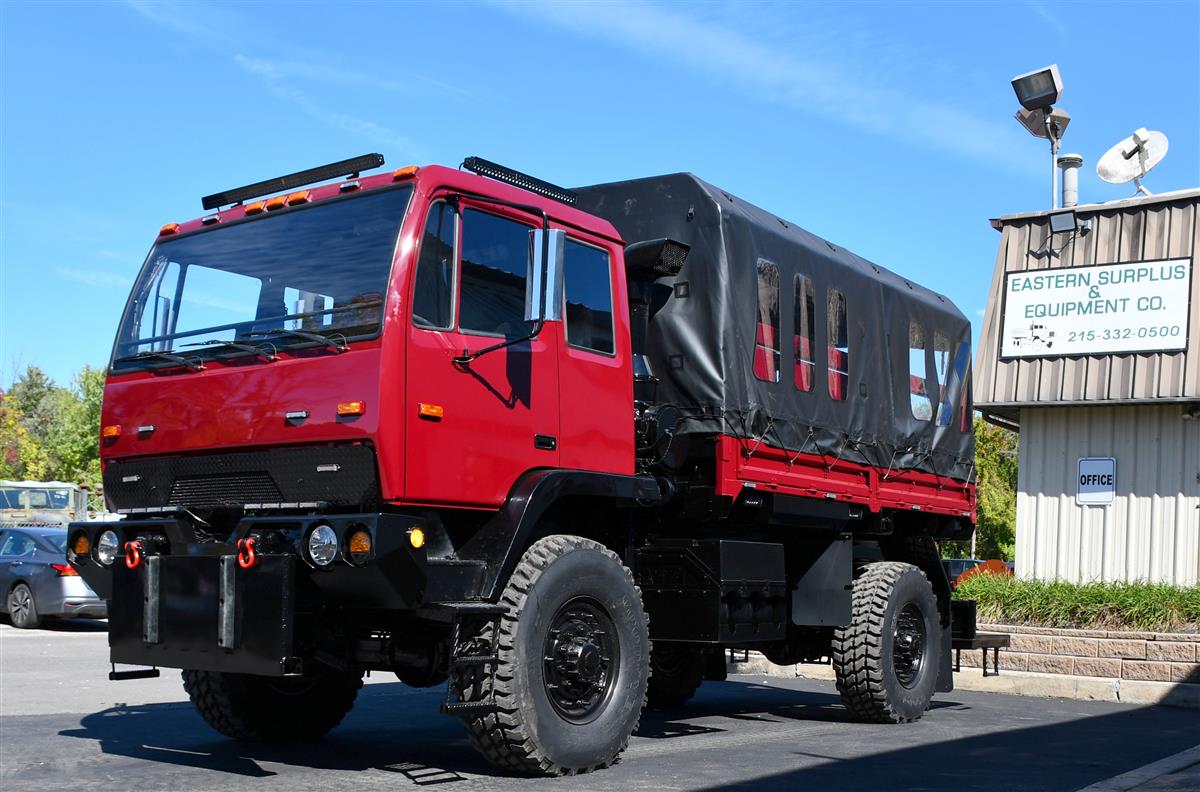

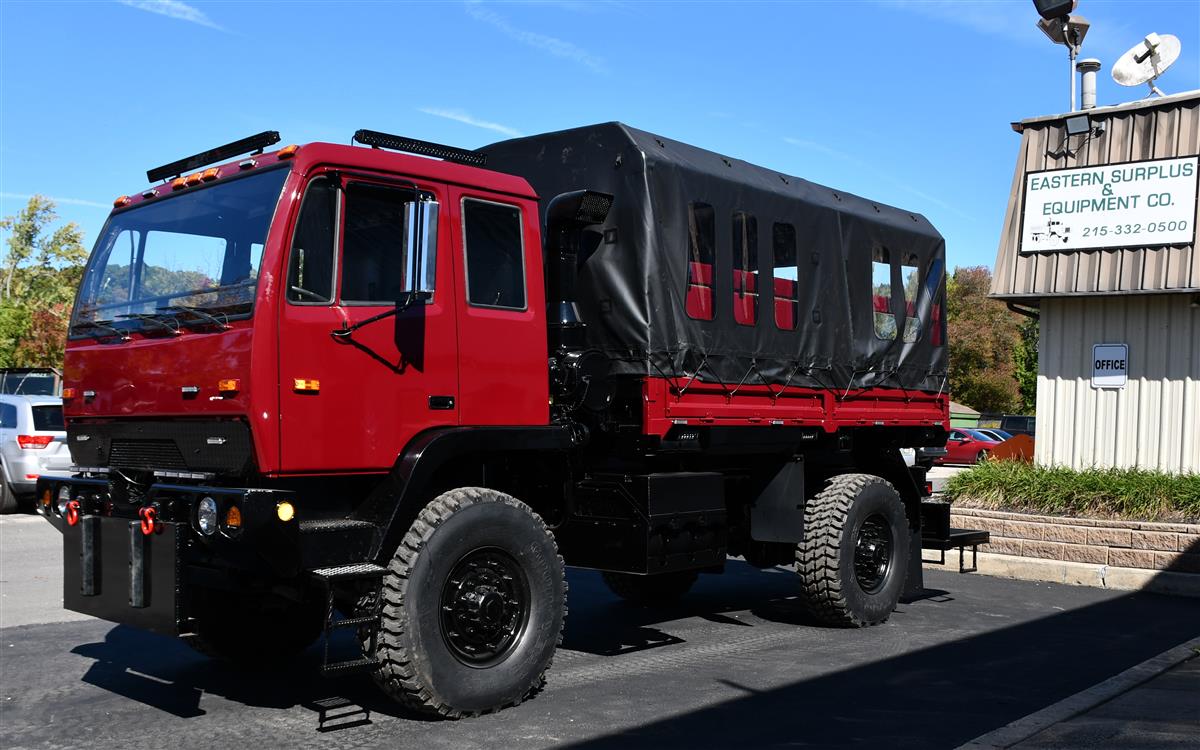

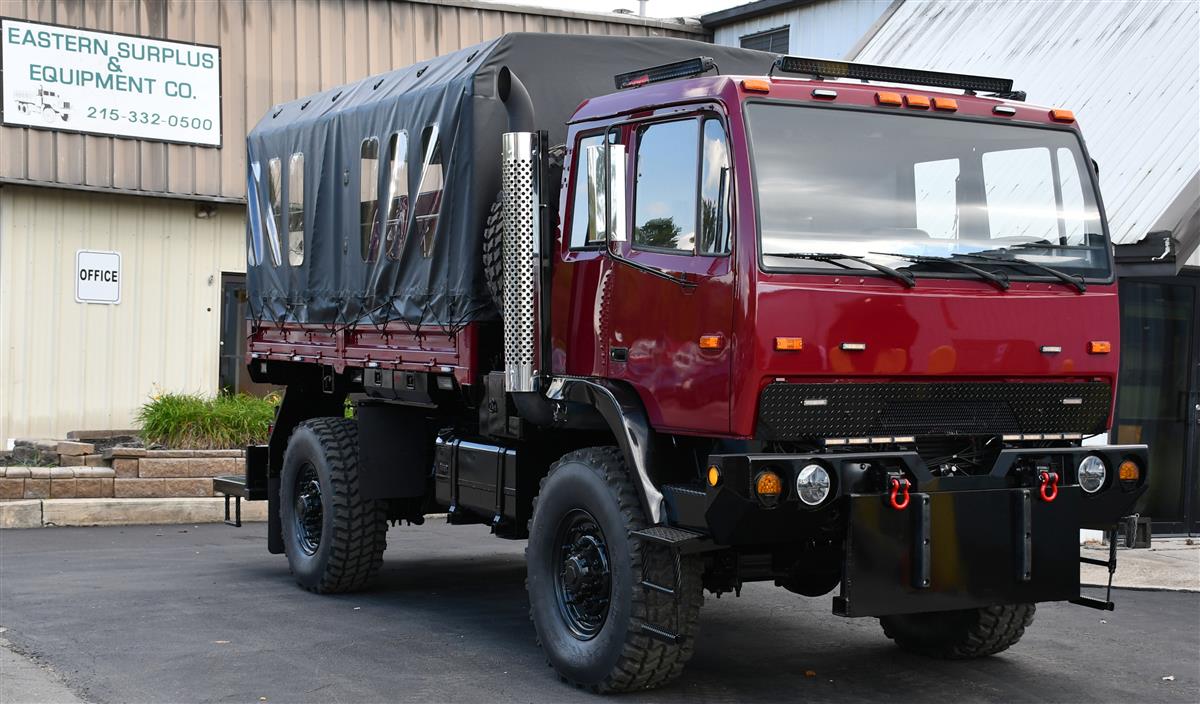

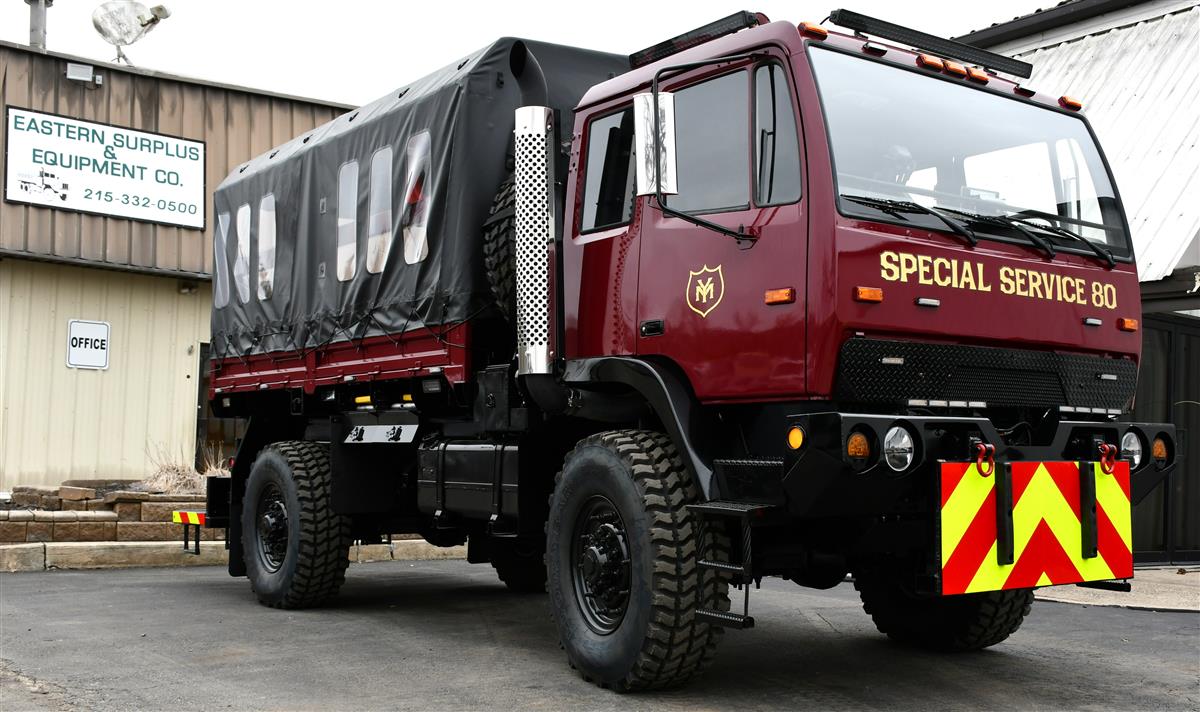

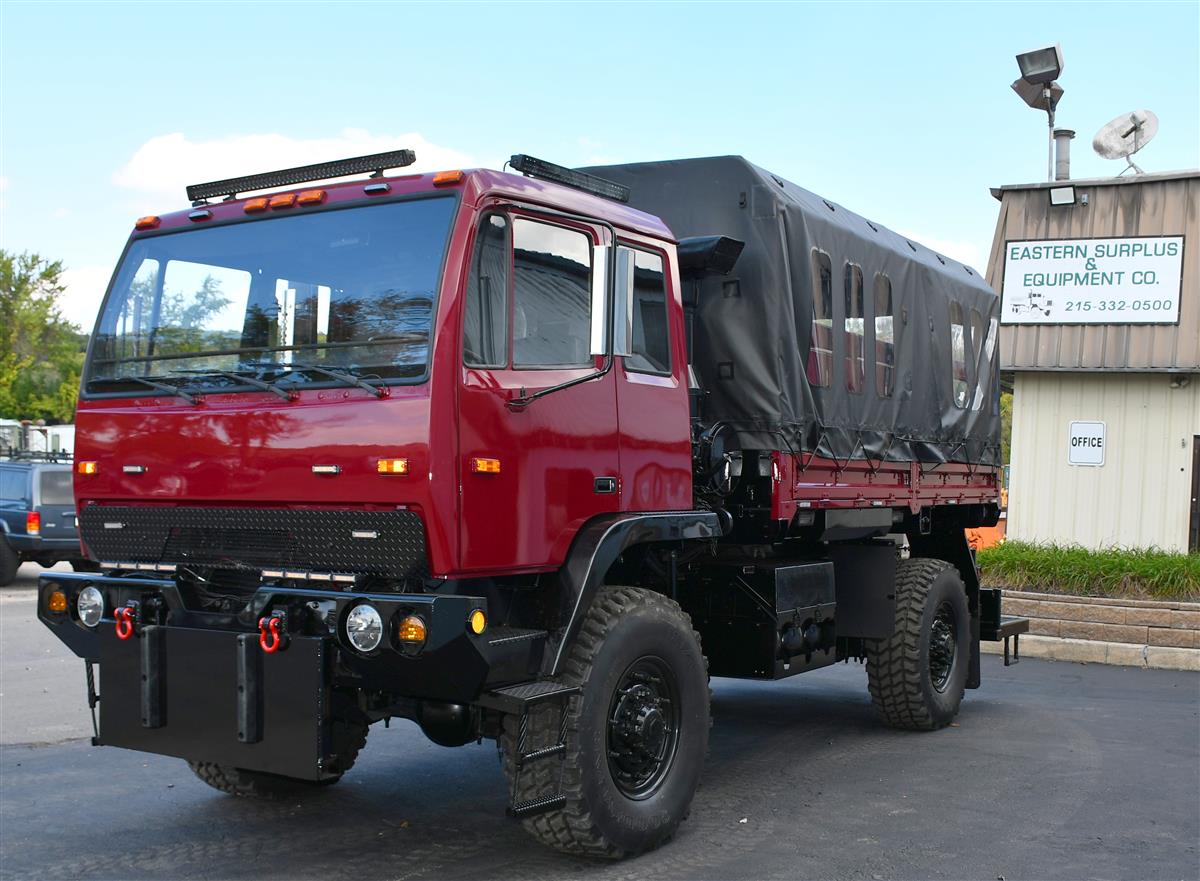

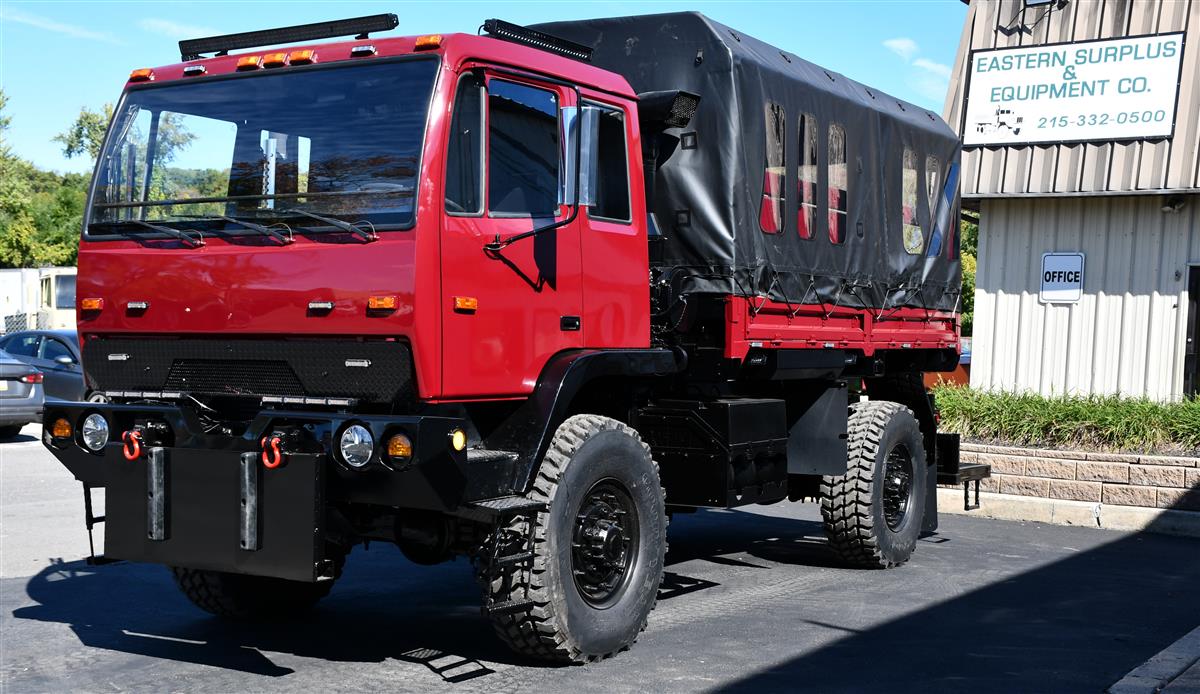

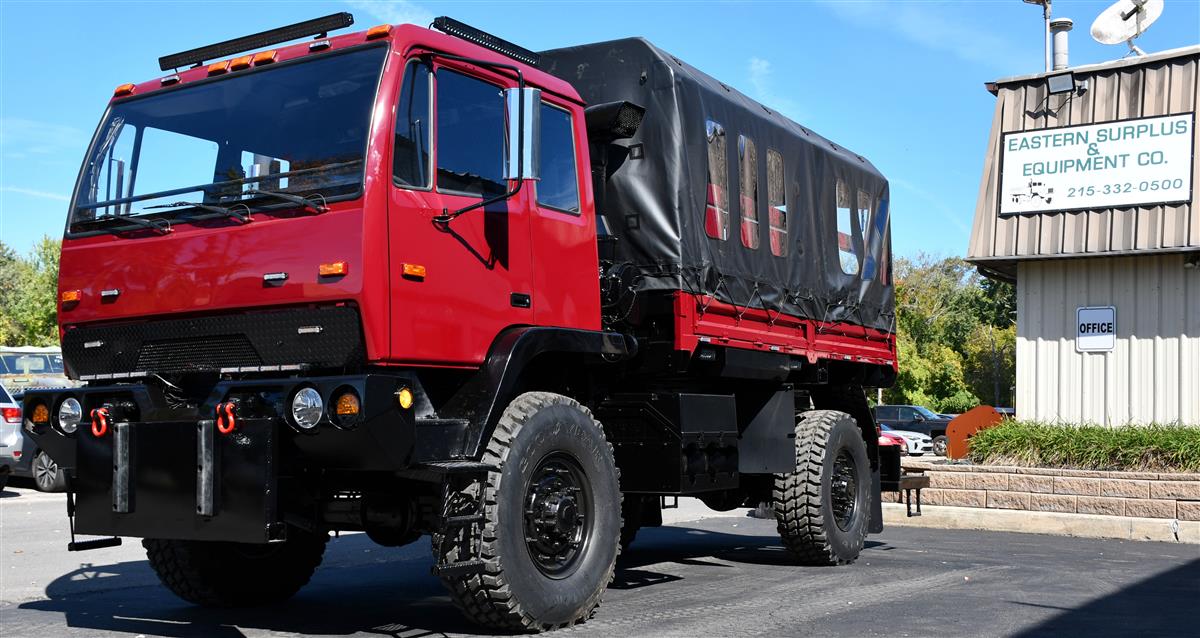

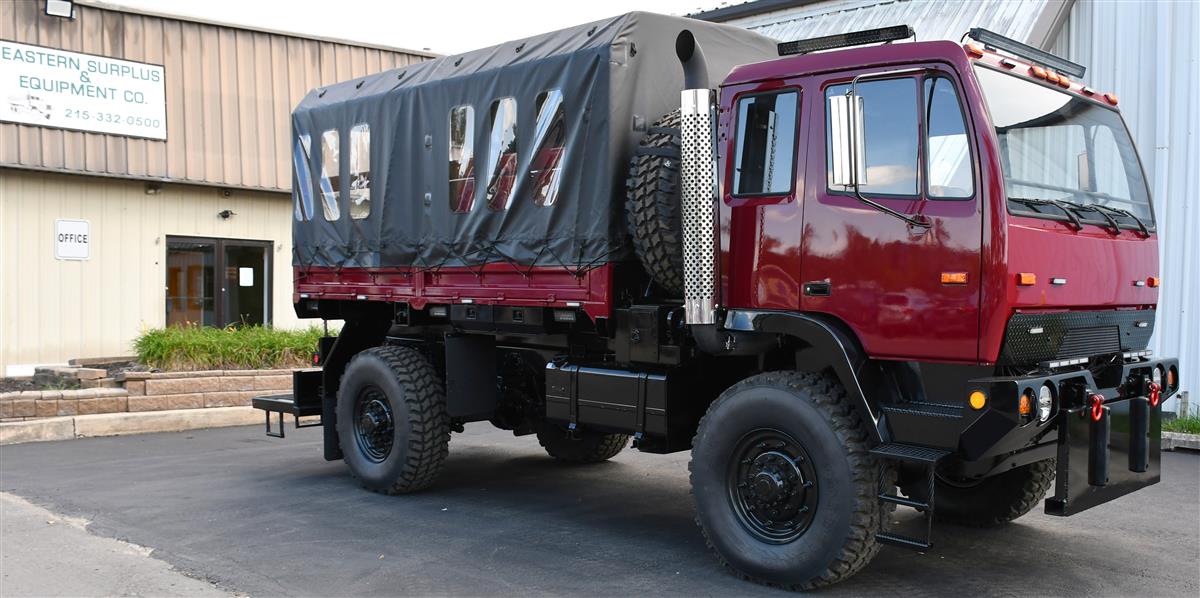

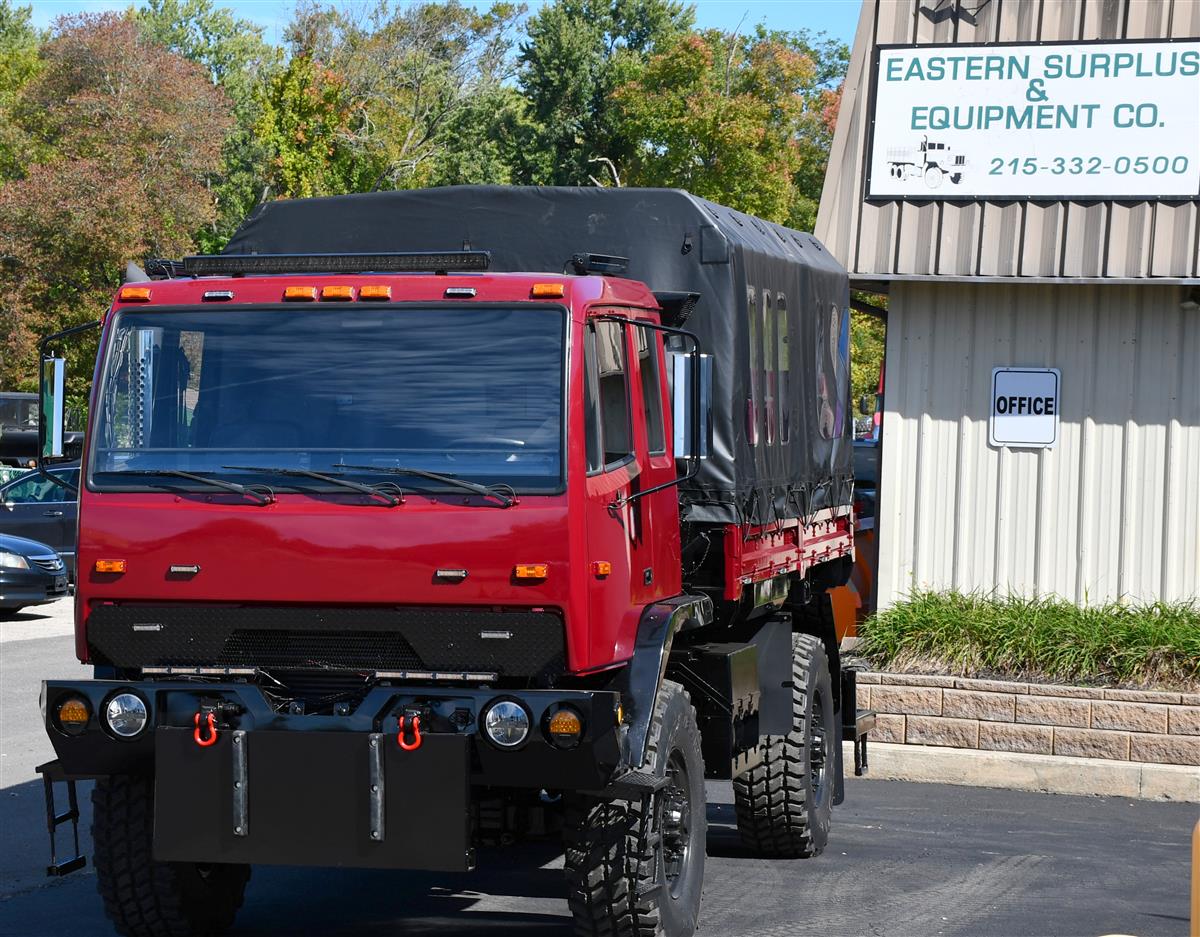

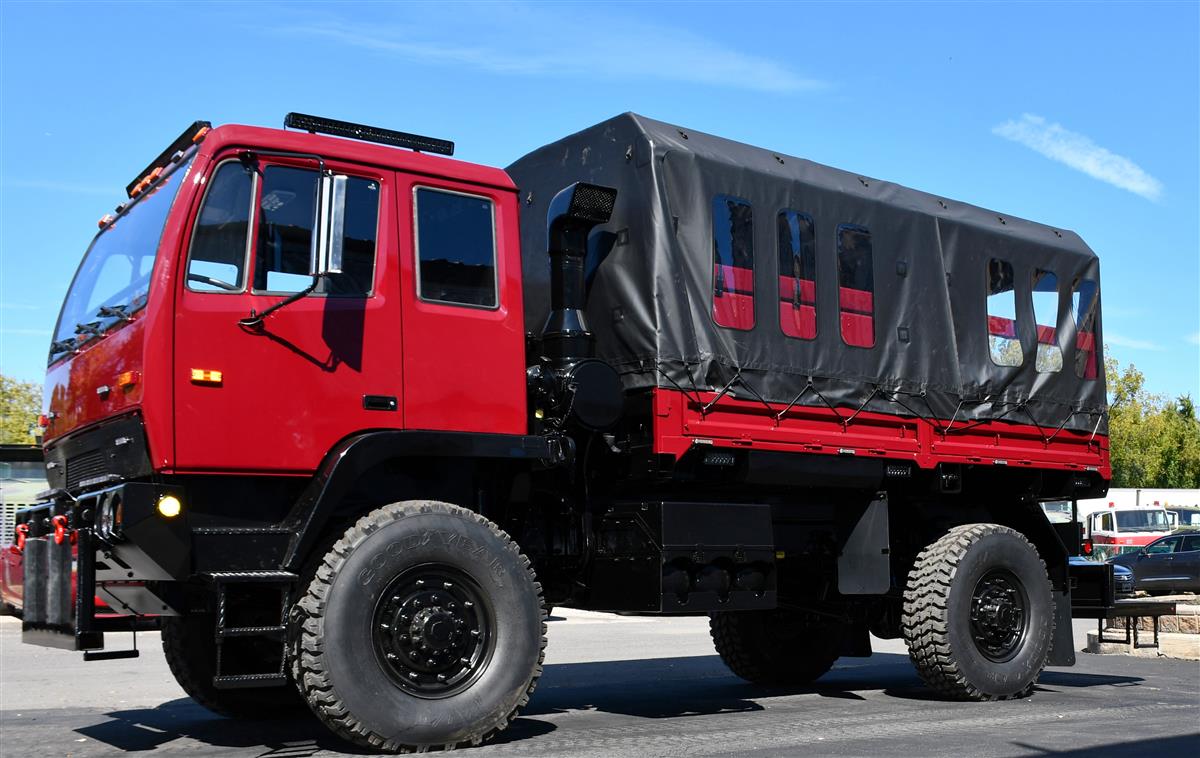

M1078A1 4x4 LMTV High Water Rescue Vehicle Painted to Match Rest of PA Township Fleet

M1078A1 4x4 LMTV High Water Rescue Vehicle Painted to Match Township Fleet

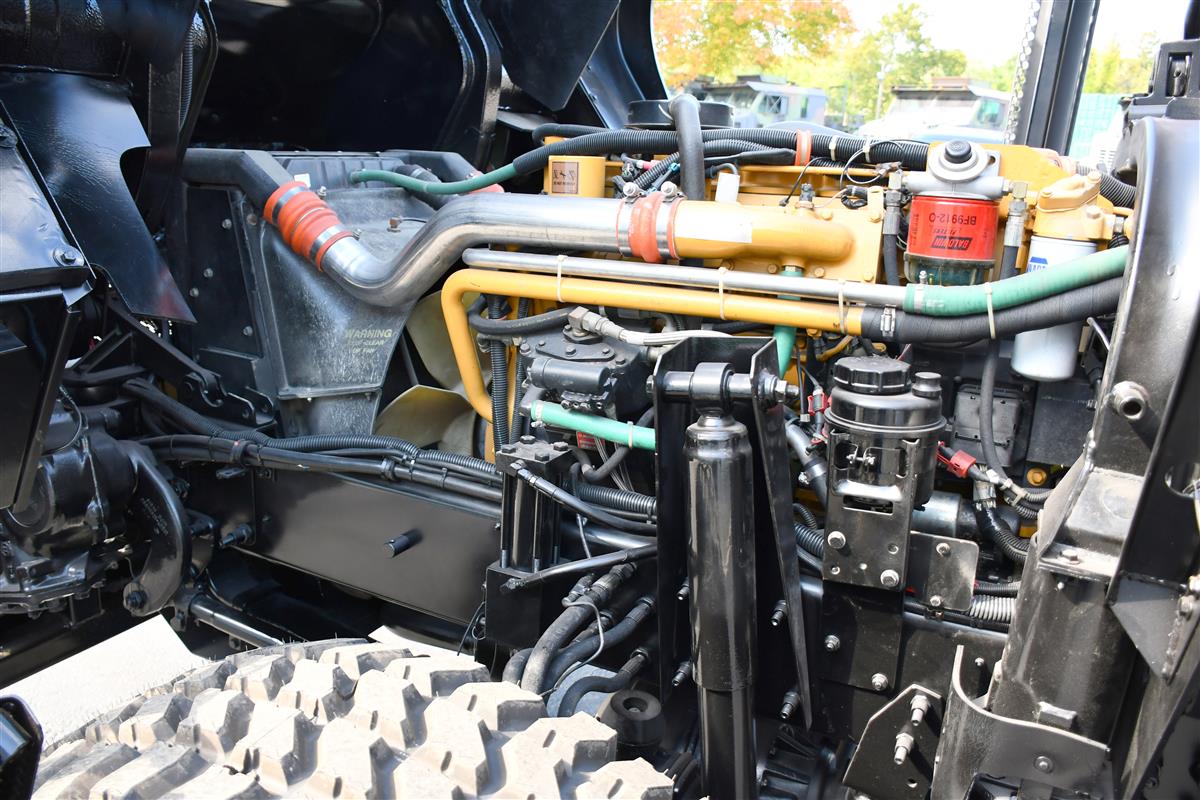

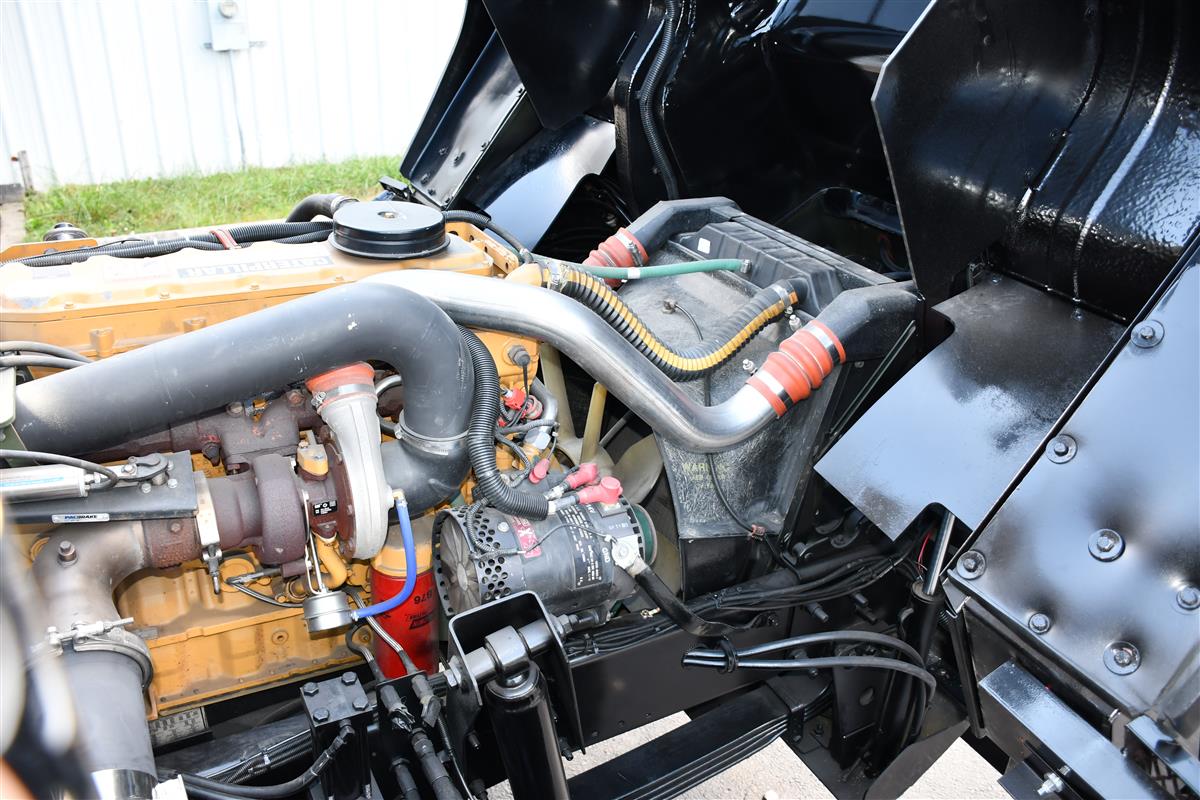

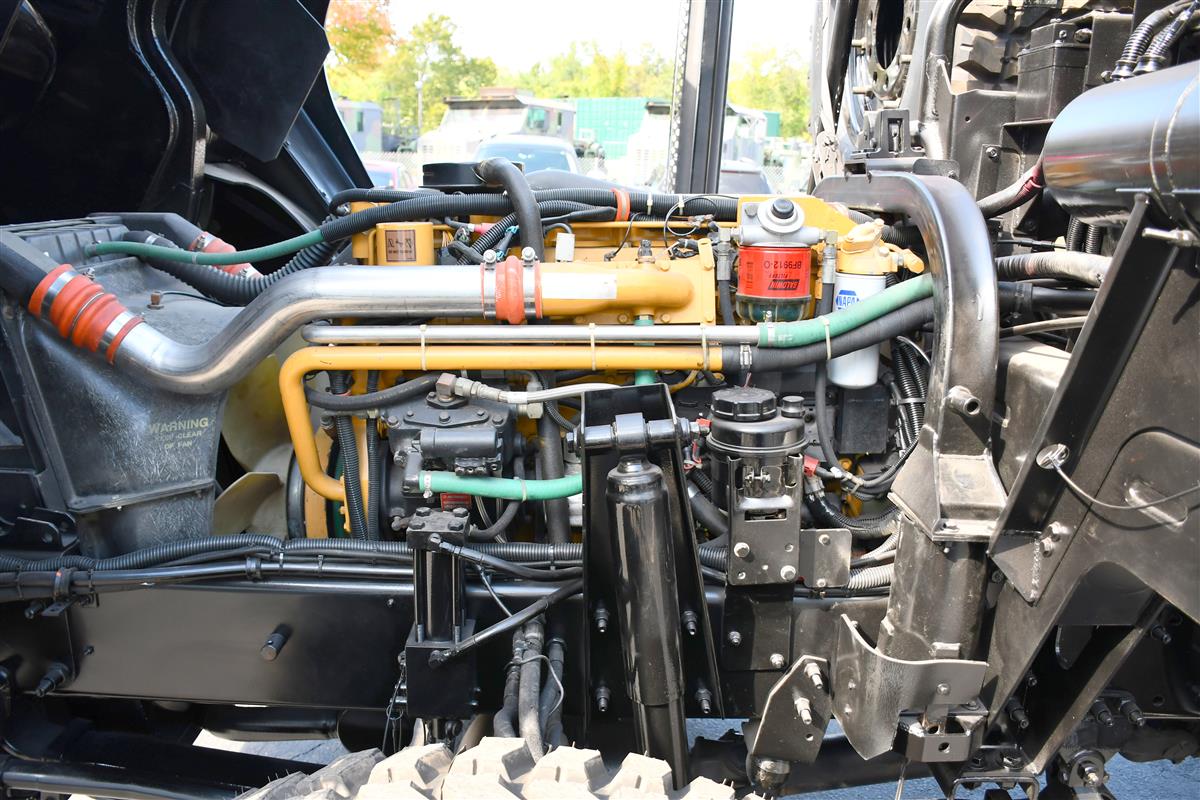

Electronic - Caterpillar Turbo Diesel Engine, 7 Speed Allison Automatic Transmission

Tires 395/85R20 100% Tread - includes mounted spare

• Truck thoroughly checked to make sure all lights, signals, wipers and horn were in good operating condition.
• Engine fluids, belts, hoses and filters were replaced

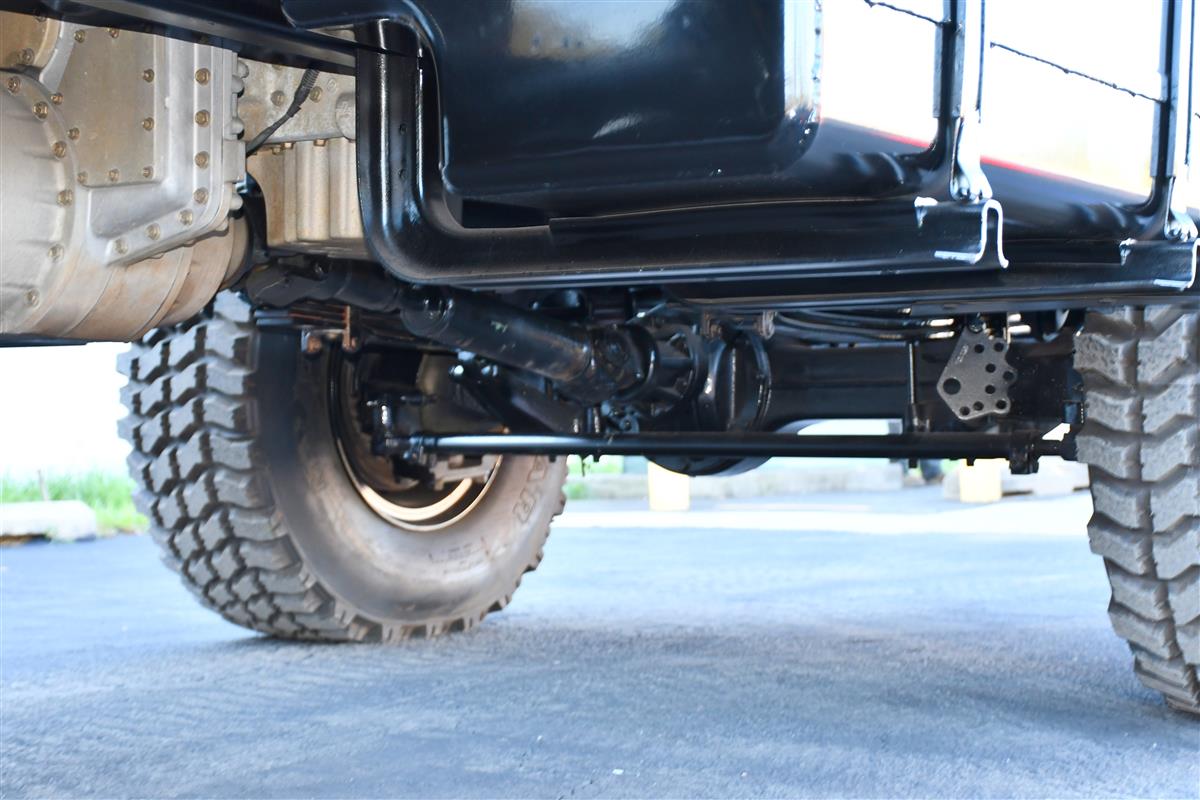

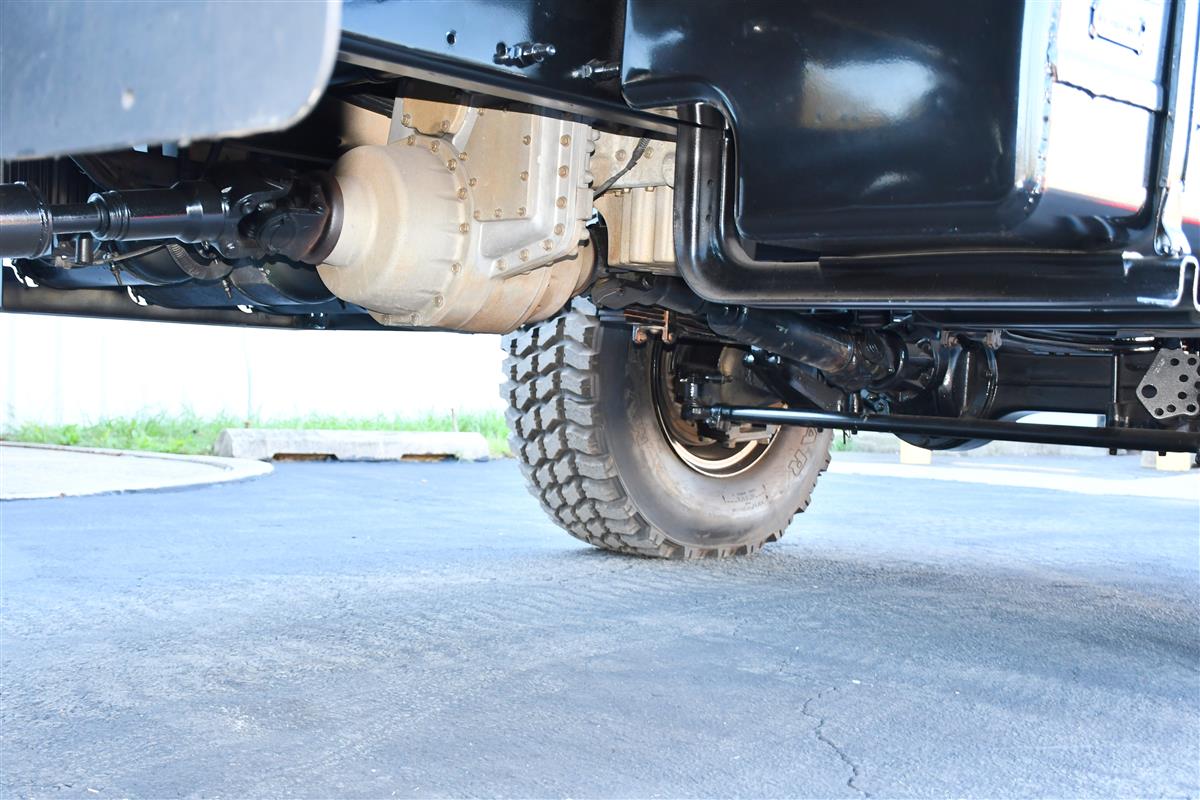

• Axle, transmission, transfer case seals and fluids were checked and serviced
• Service and parking brake systems were checked and serviced including rebuilding or replacing components as required
• Extensively road tested

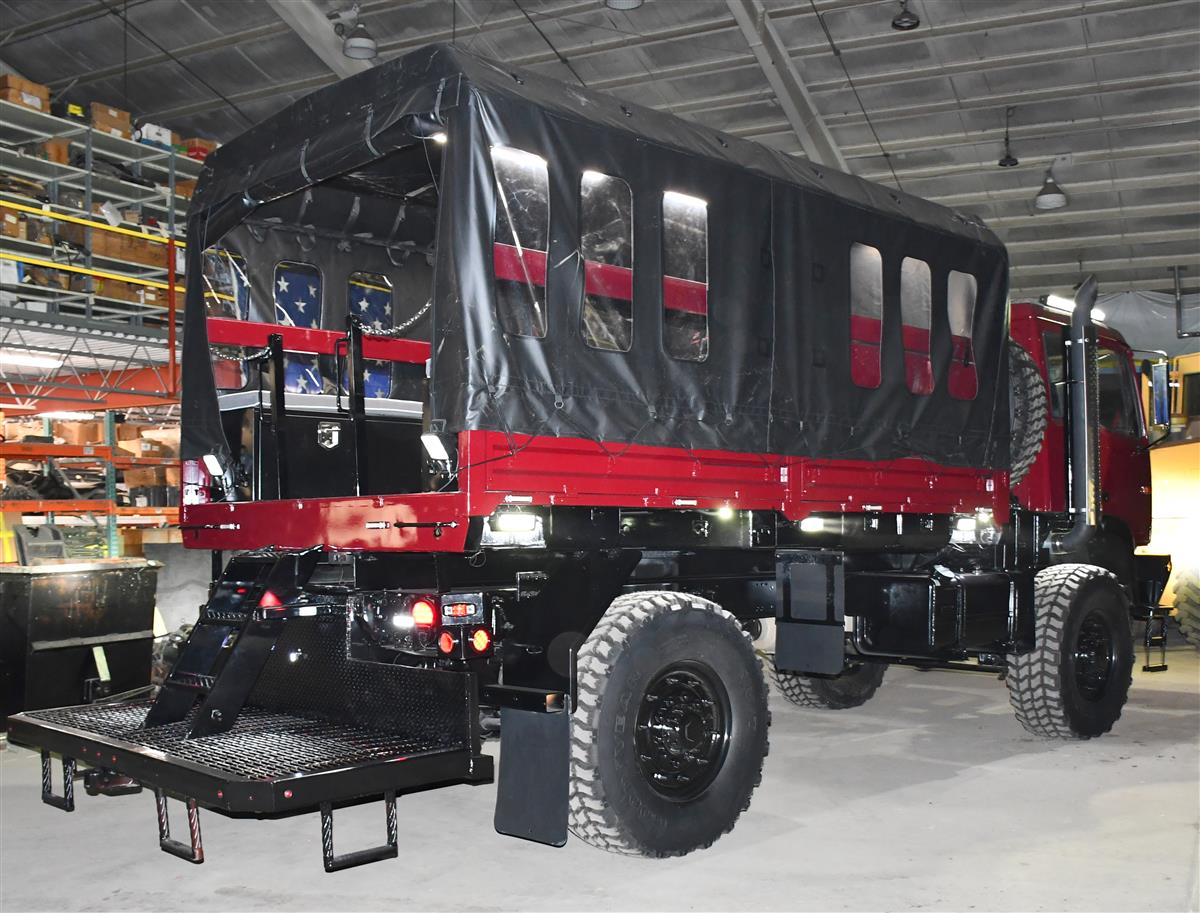

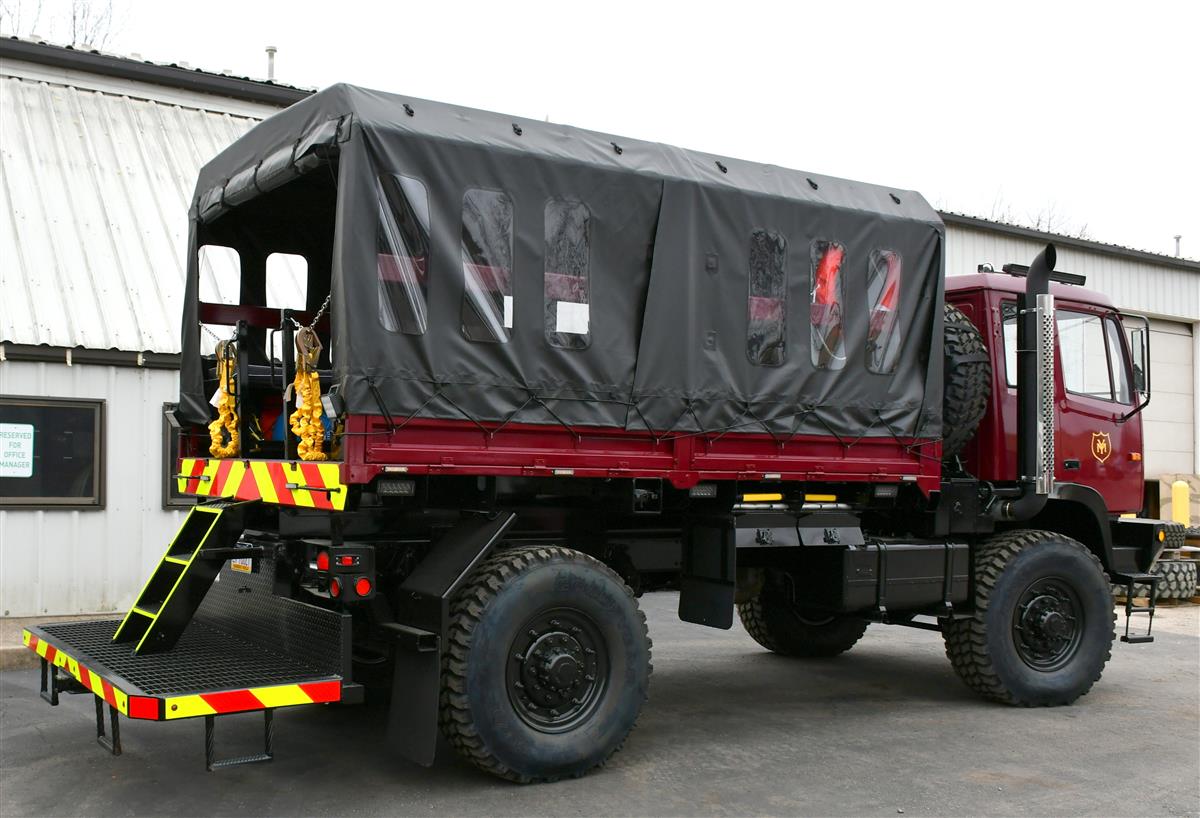

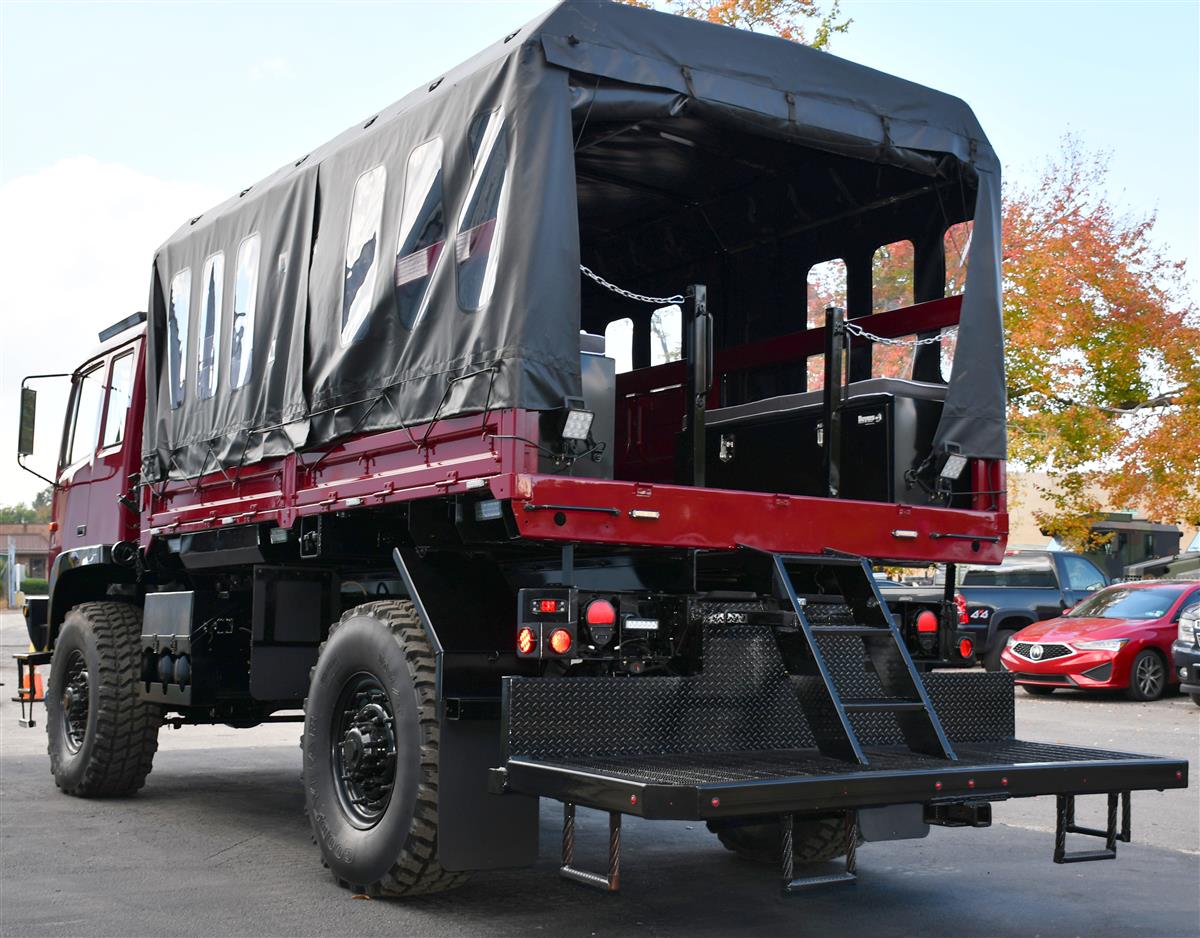

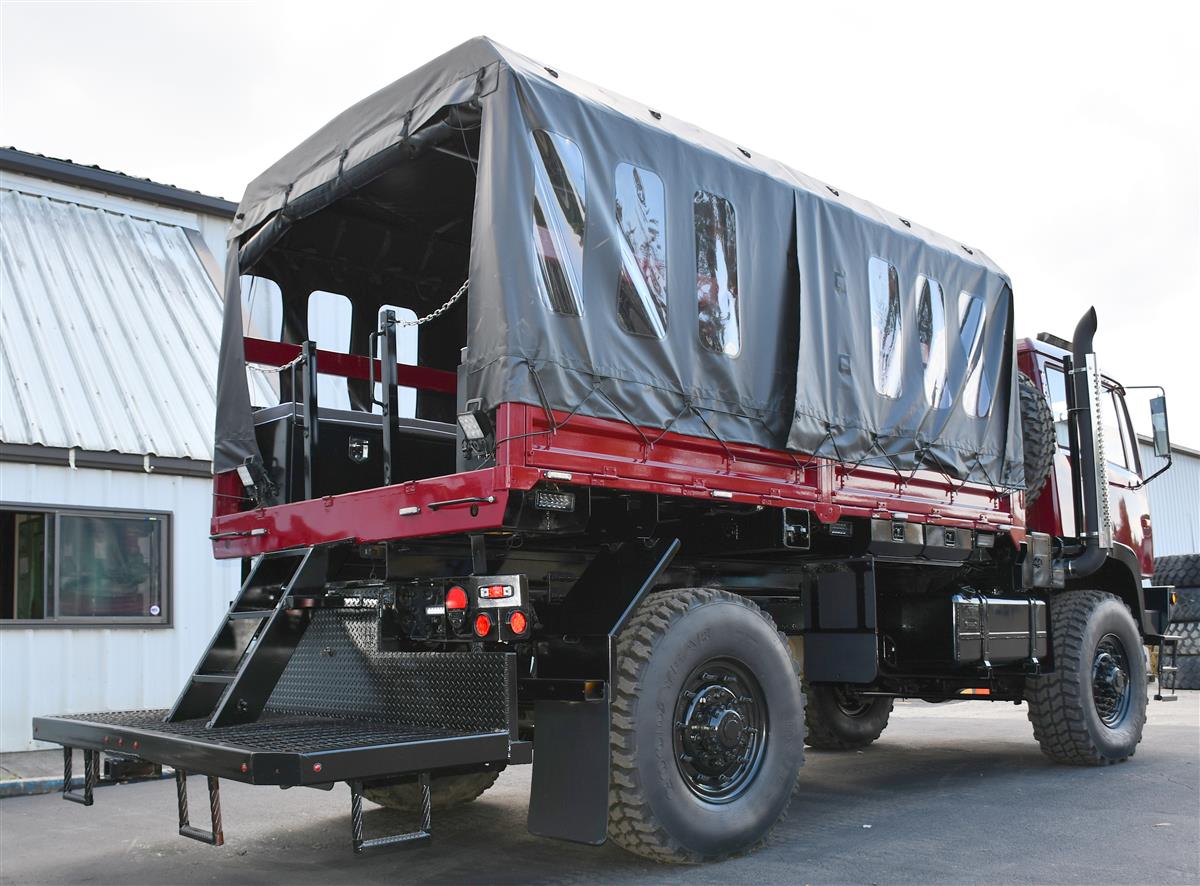

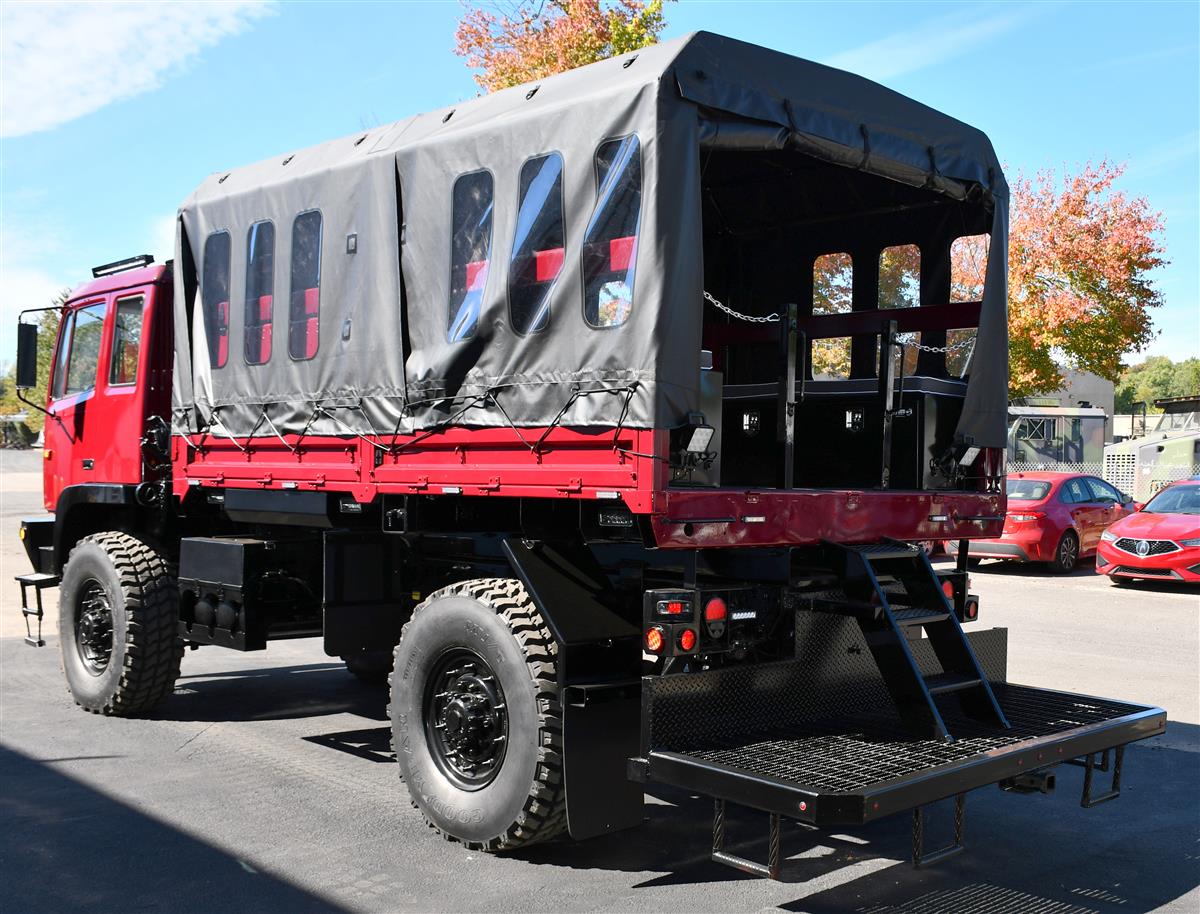

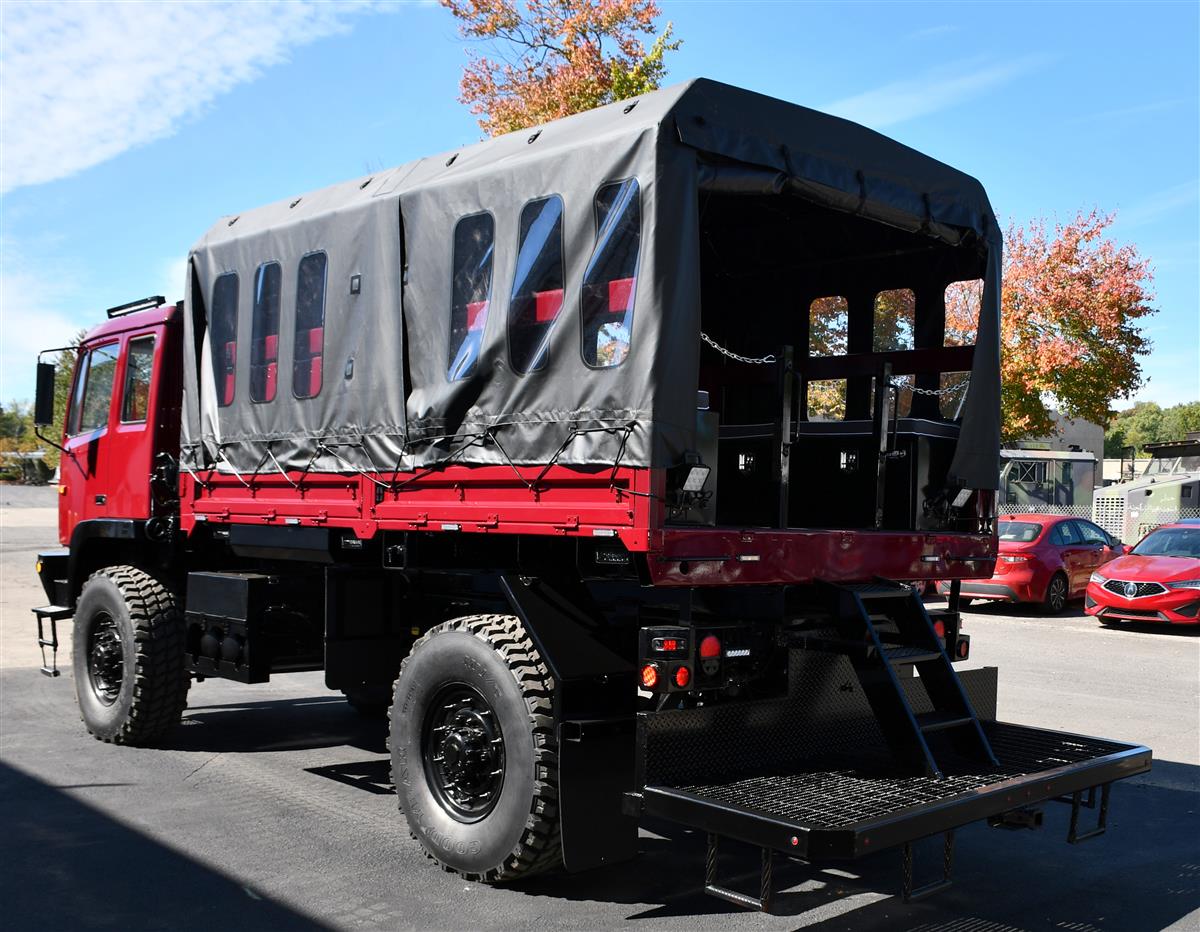

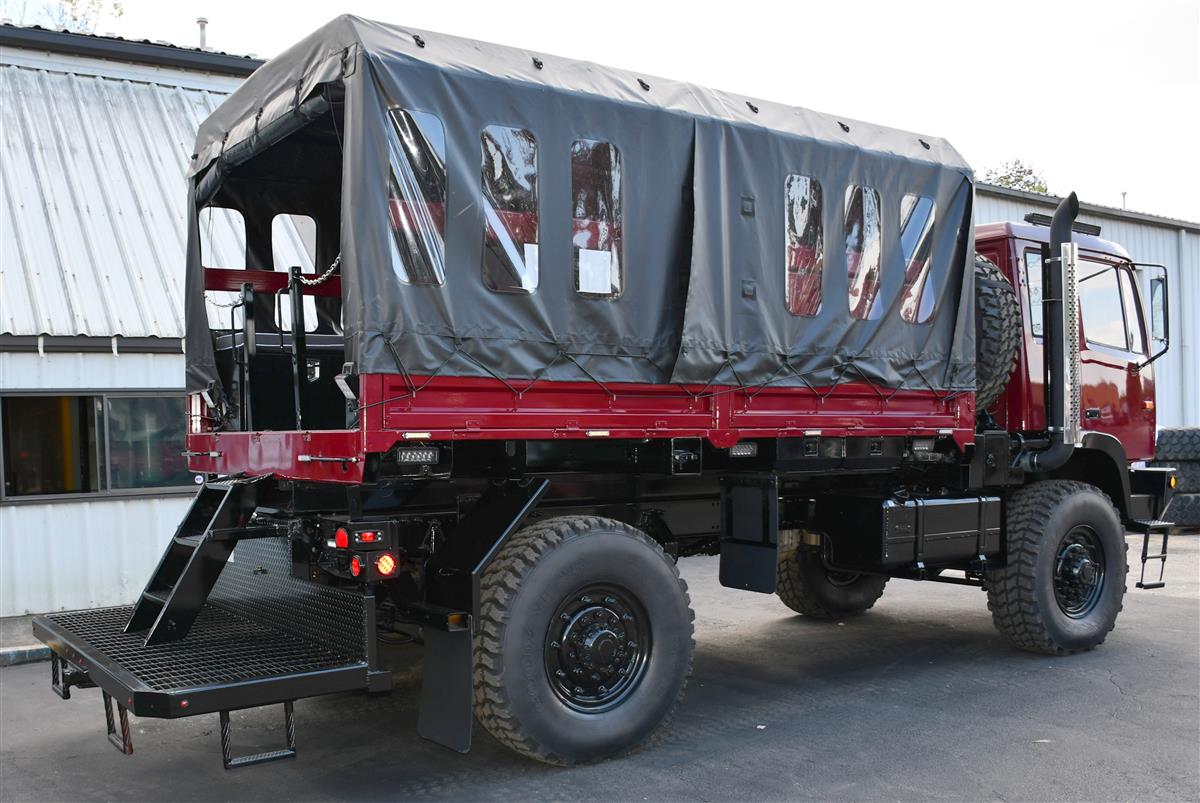

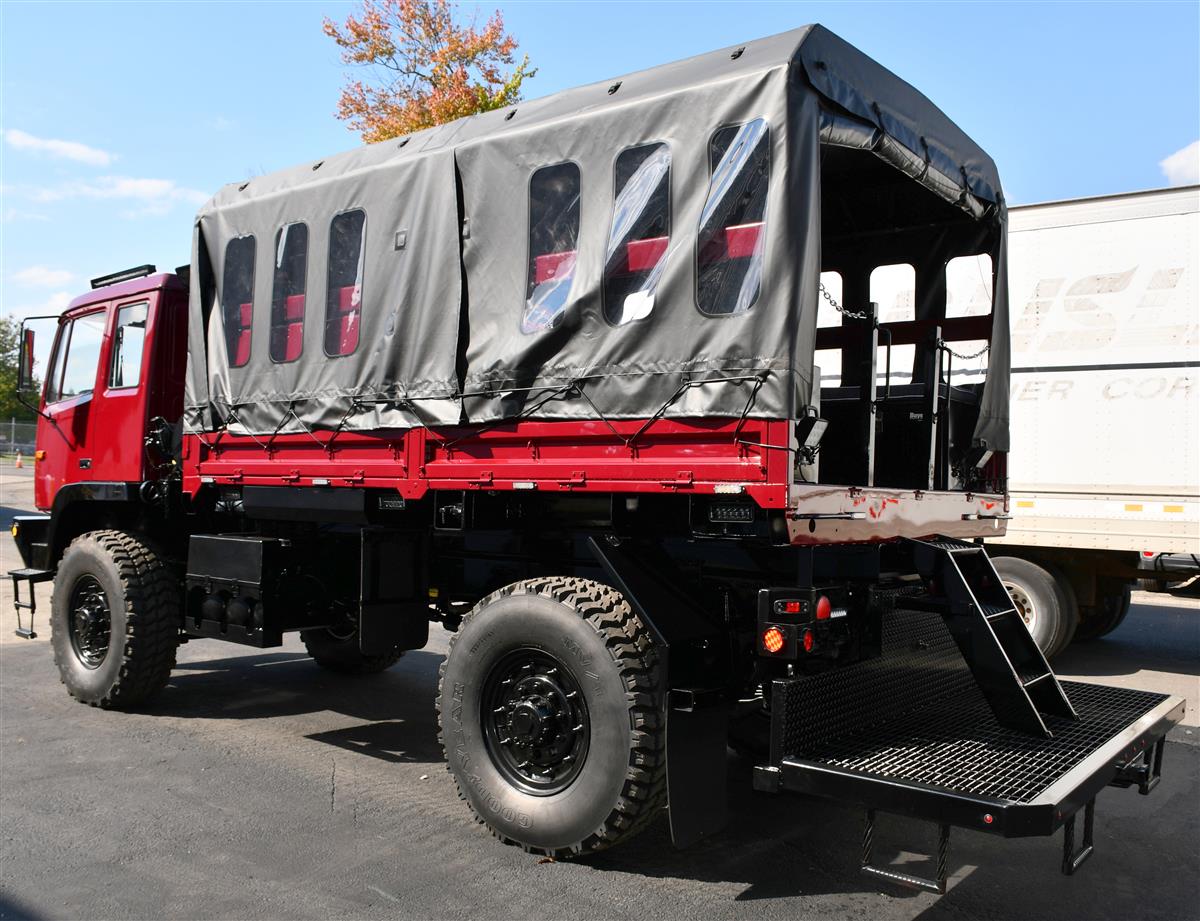

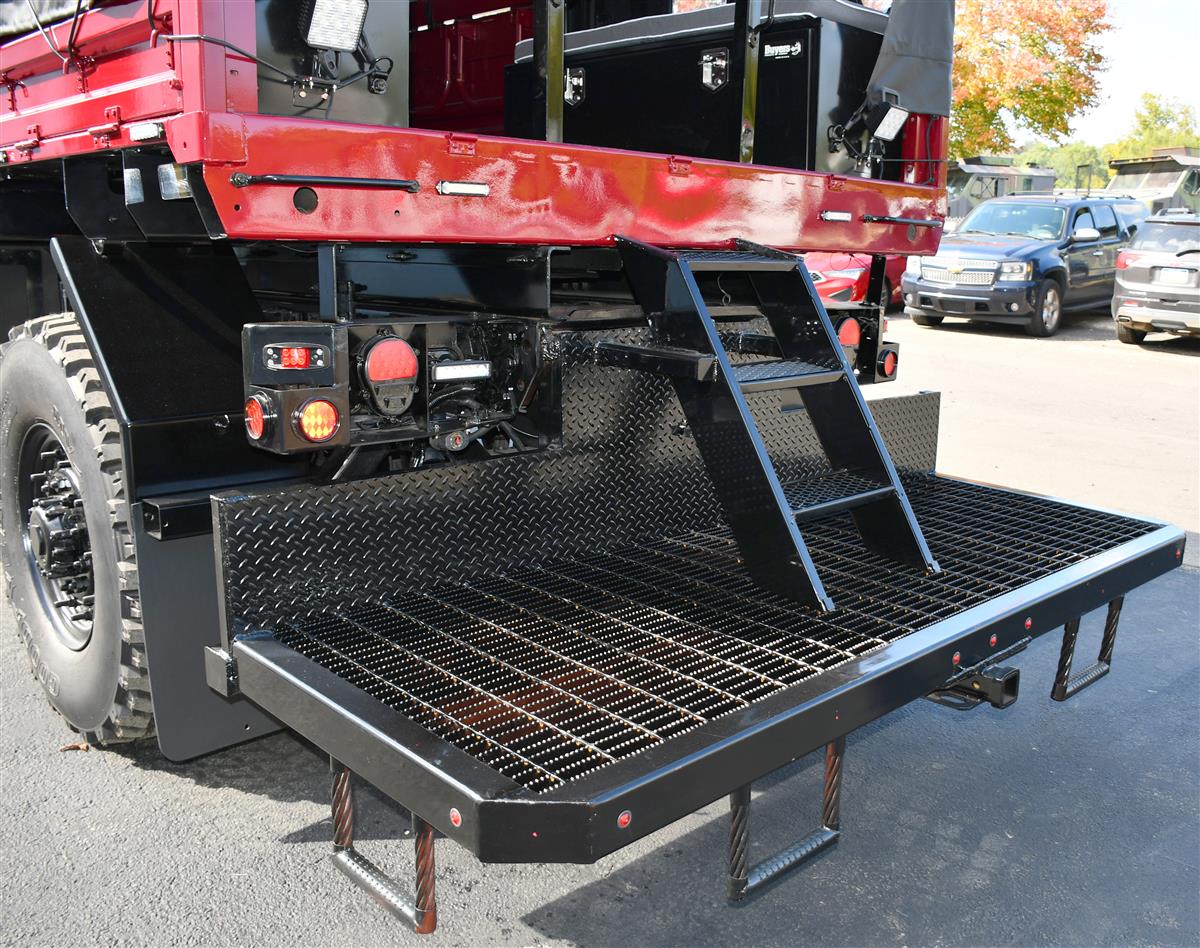

• Platform:

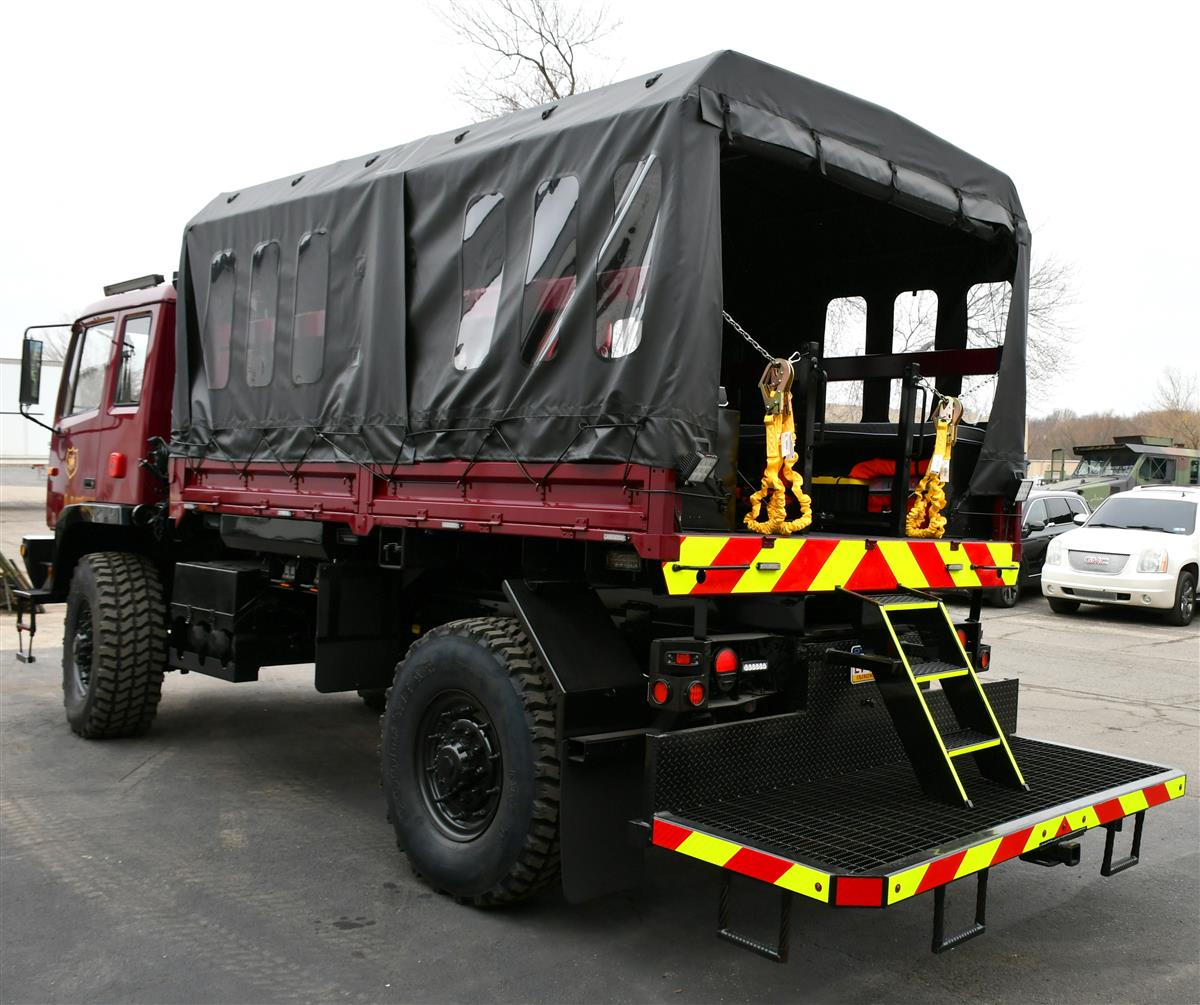

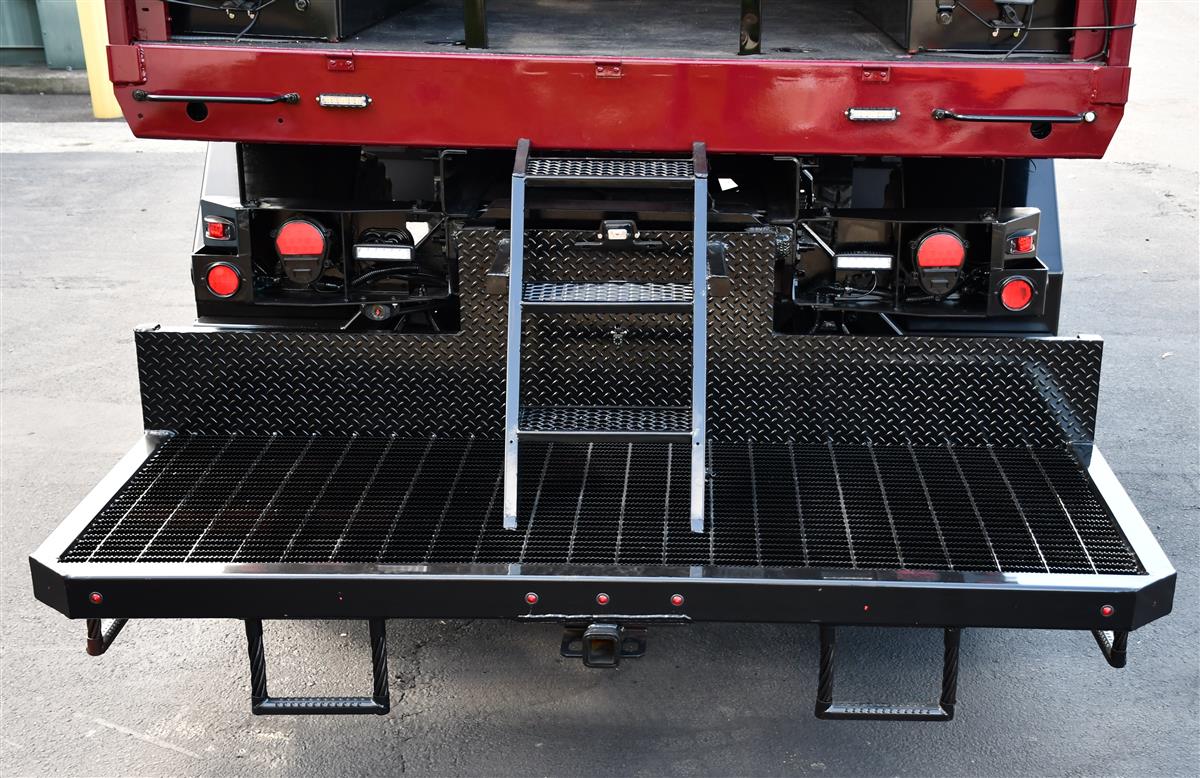

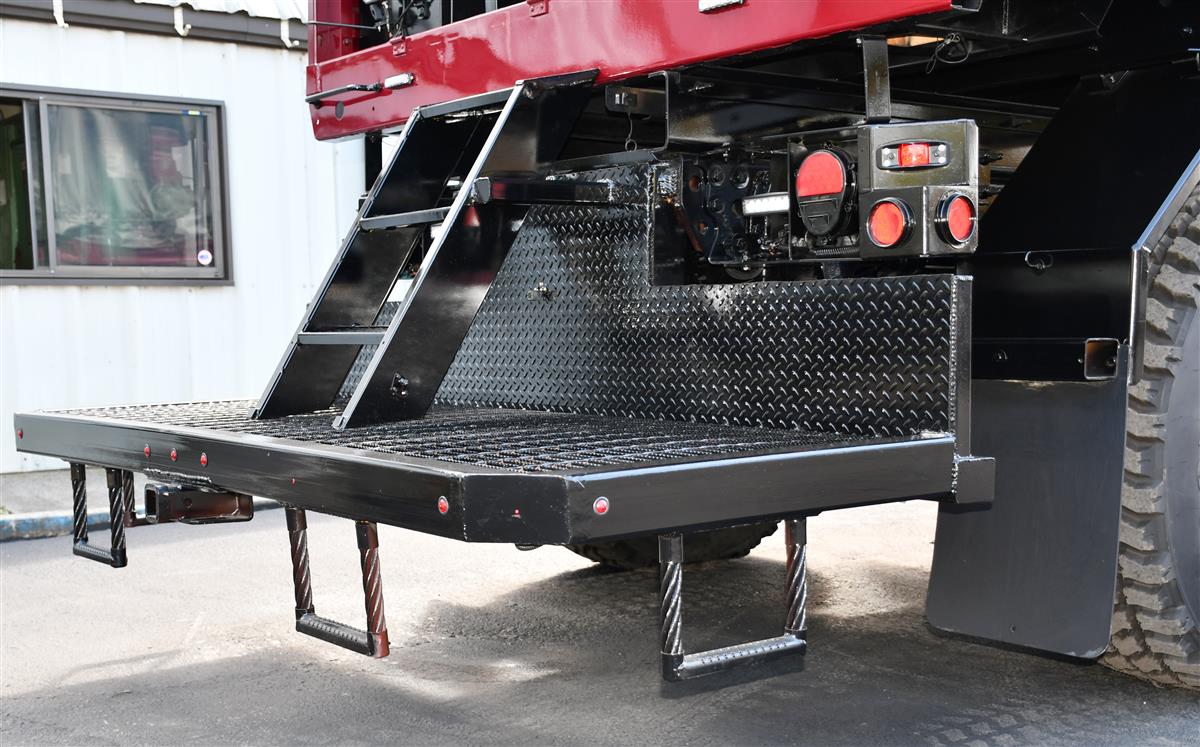

  • Rear Loading Platform custom fabricated (air lines capped off & factory hitch
  • removed) 36 inches Deep by 96 inches wide
  • Rear corners of platform to be 45 degree chamfered

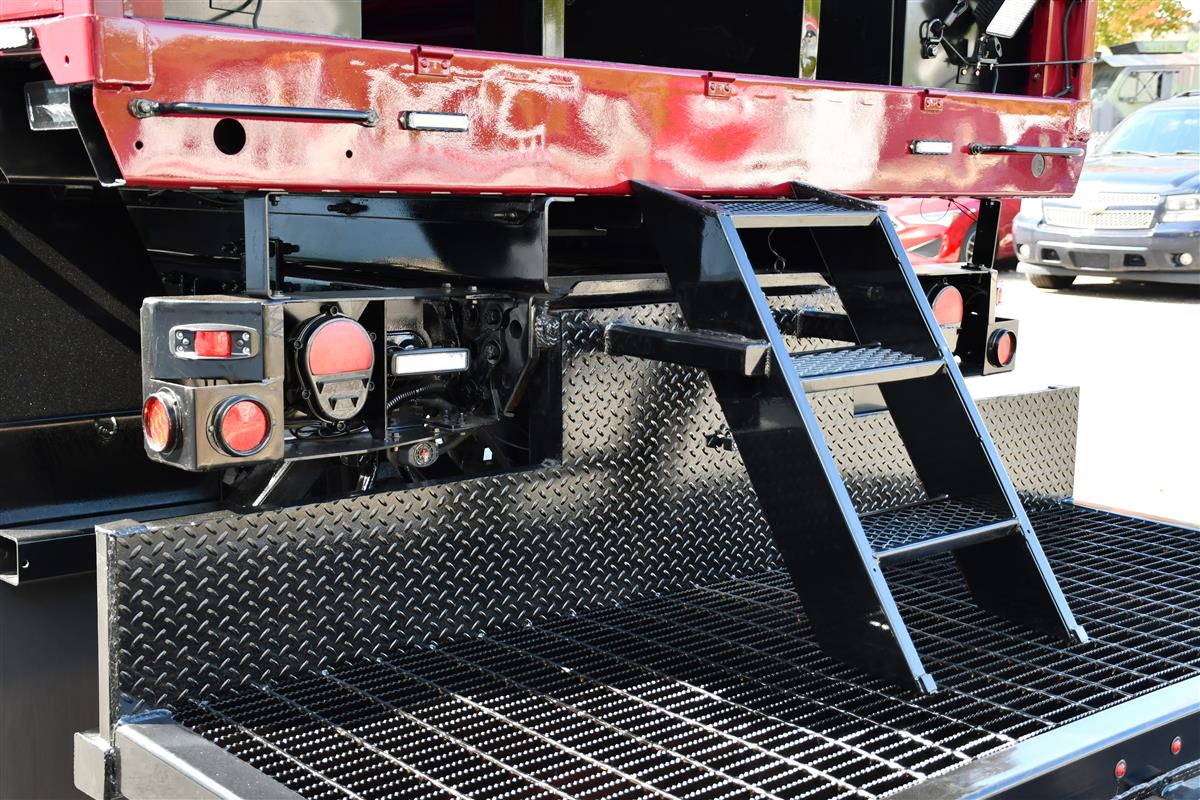

  • Bar Grating decking (not punch plate)
  • Fixed steps that go into the cargo bed, off the rear platform. (no hand rails or corner posts)

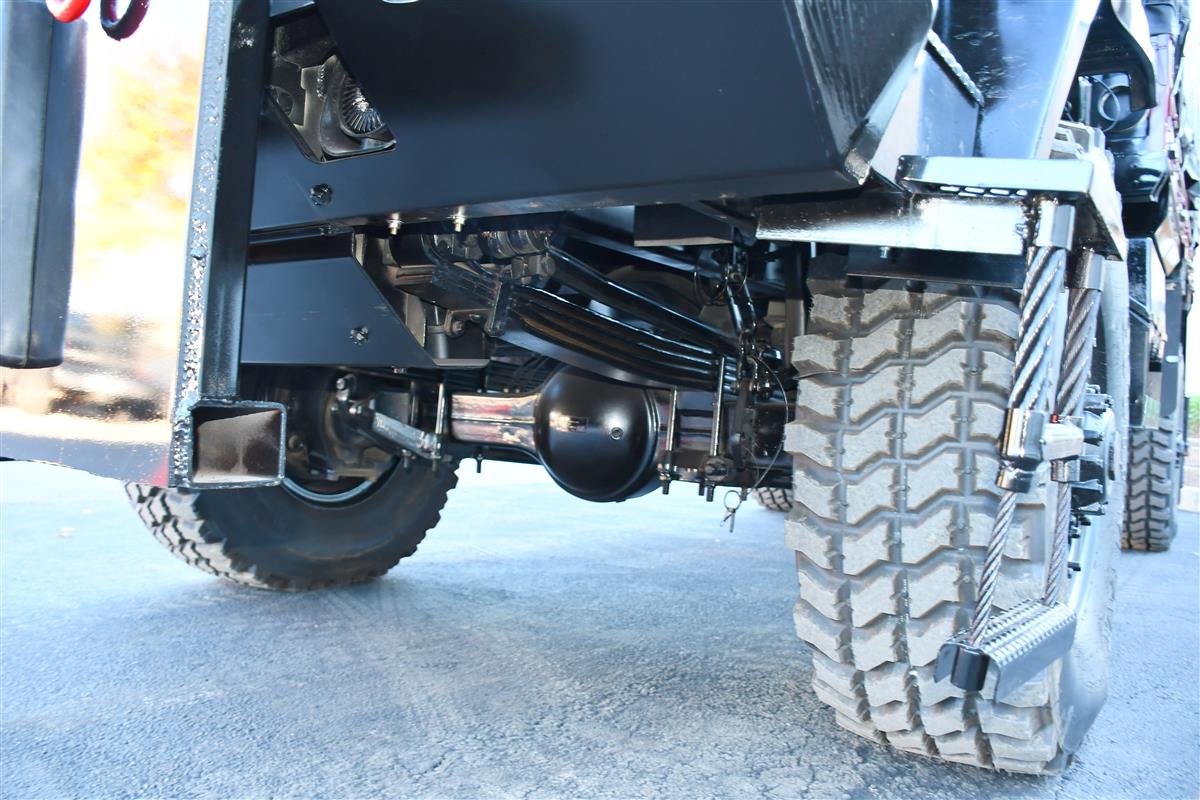

  • Rope step ladders at left and right sides and 3 at center rear- from ground to platform (5 total)
  • Anchor points/grab handles at each station at back of truck bed for personnel tether (1 left/1 right)

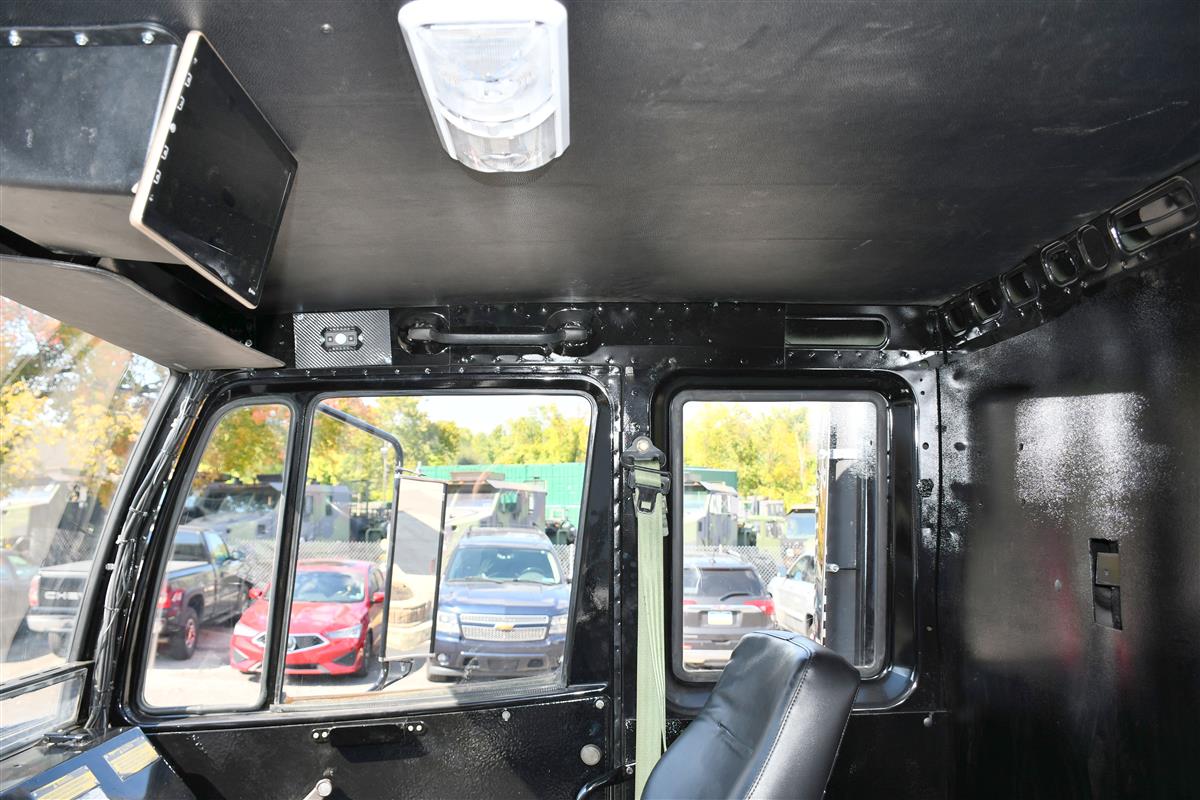

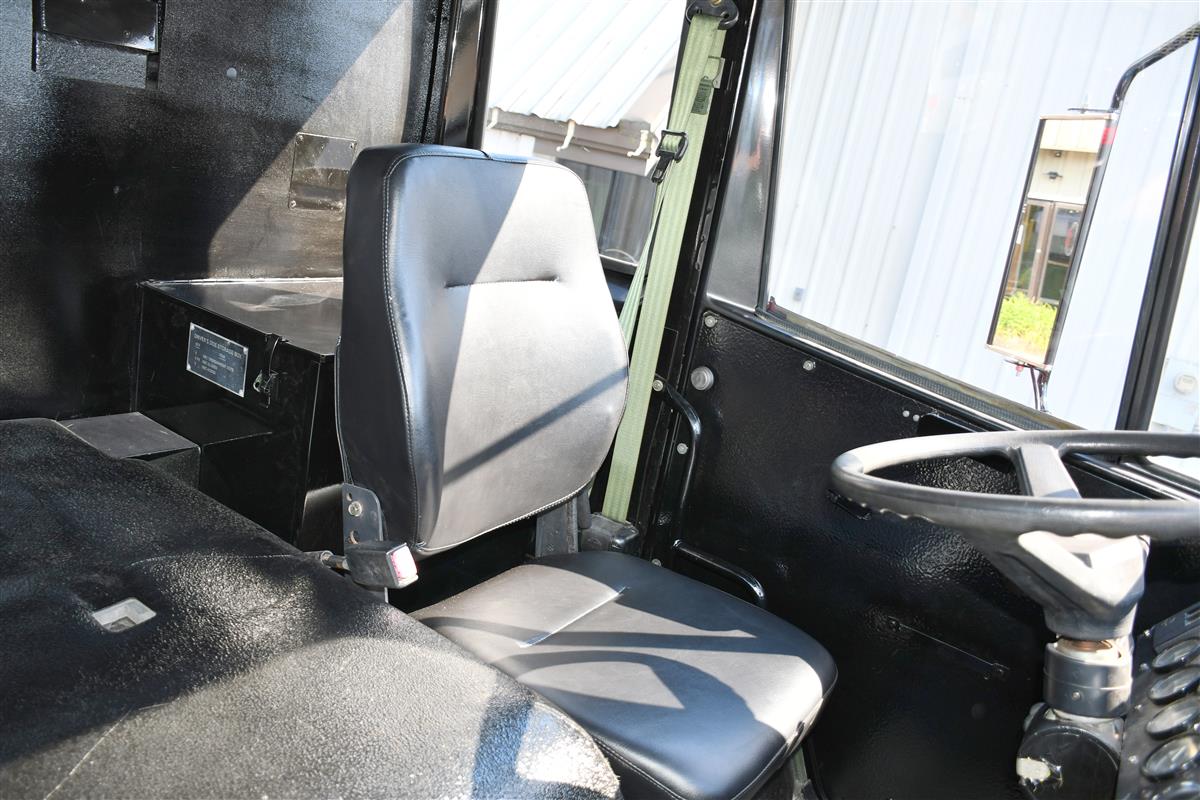

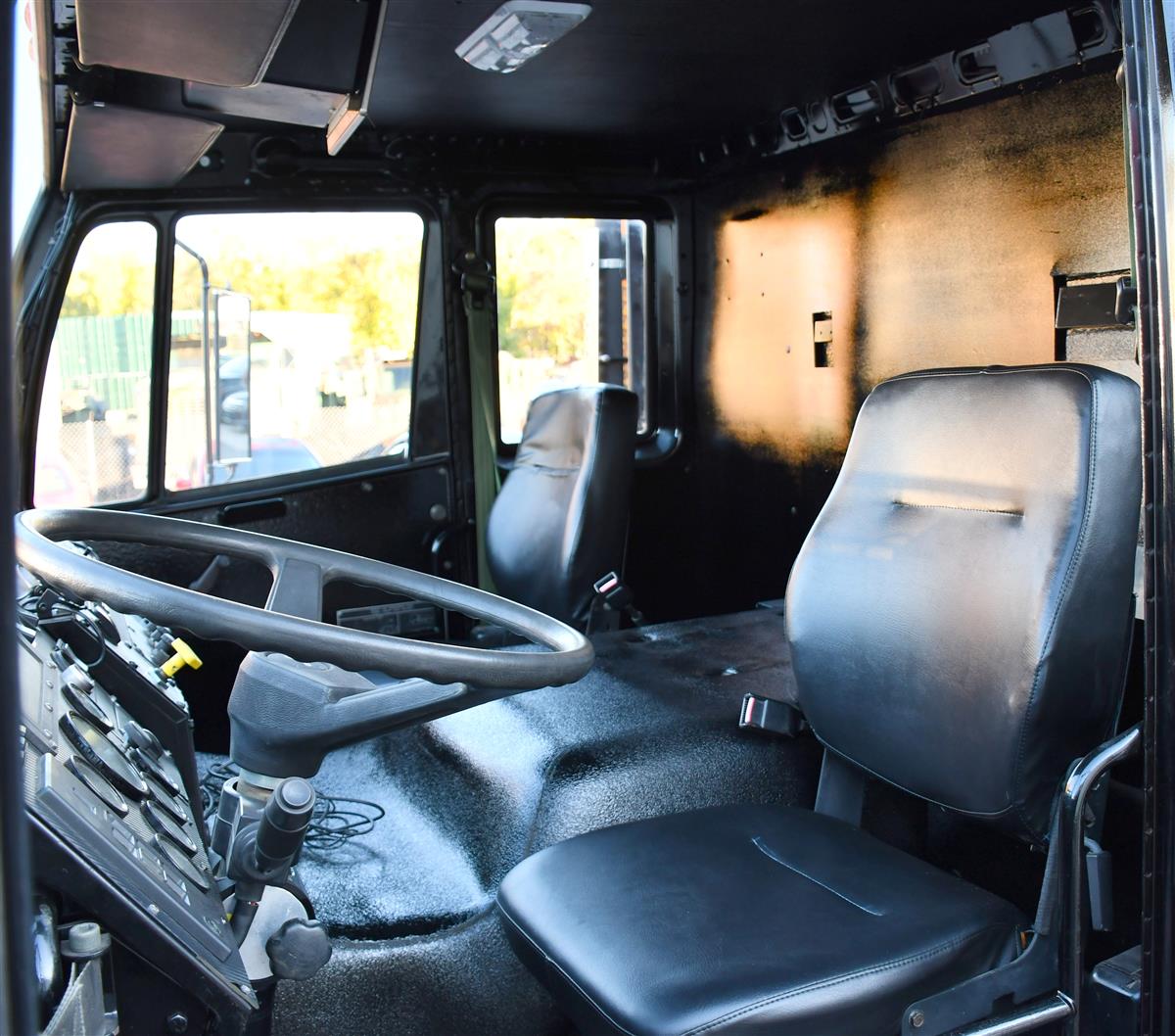

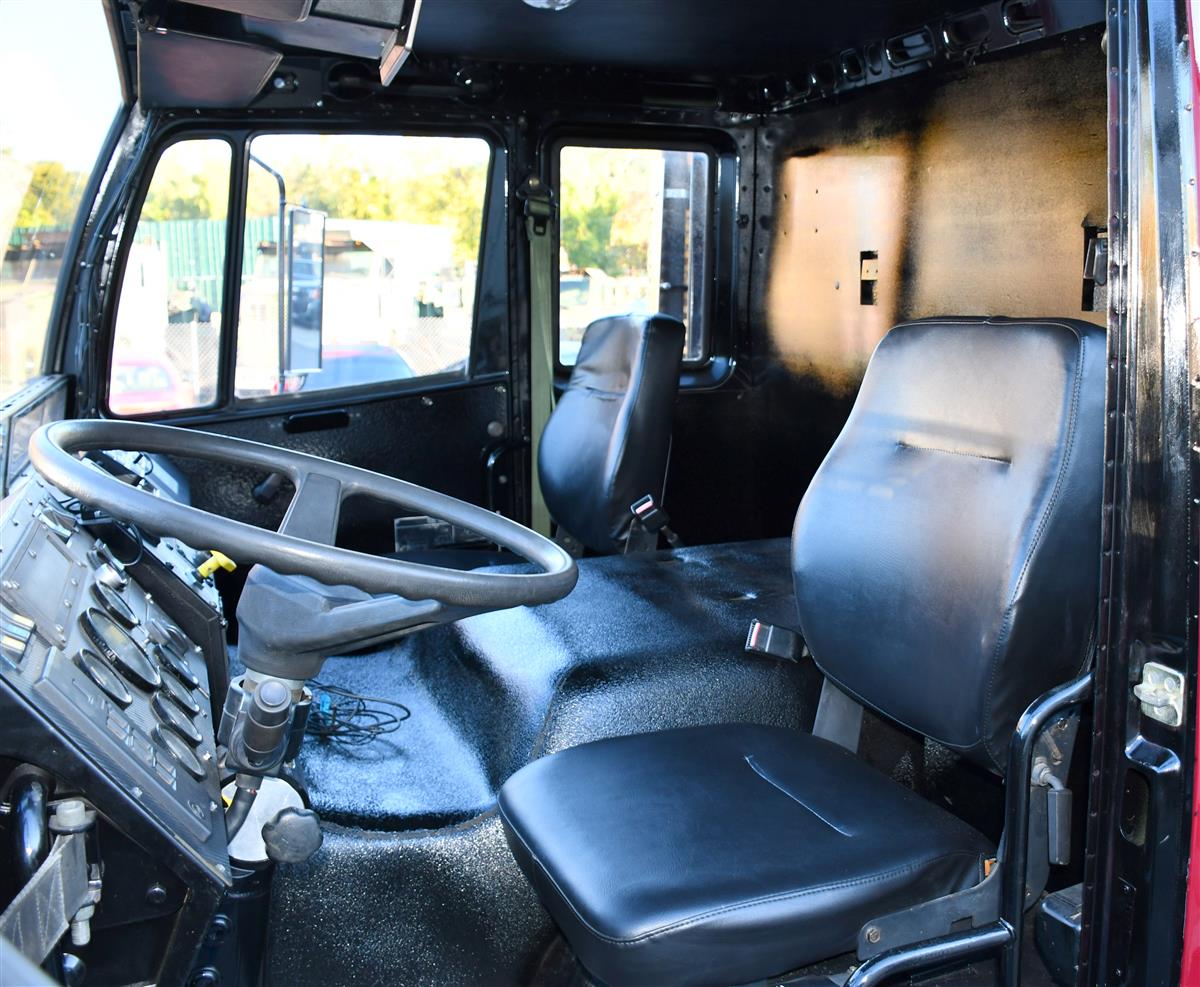

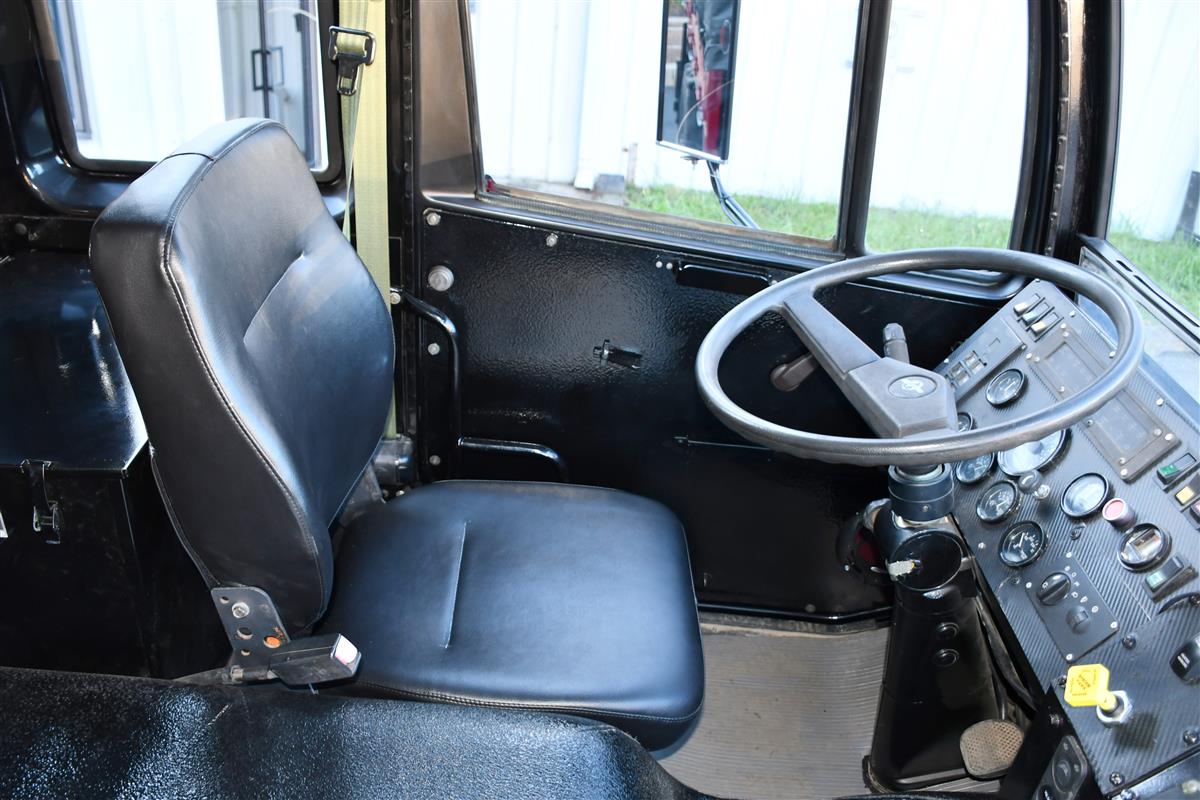

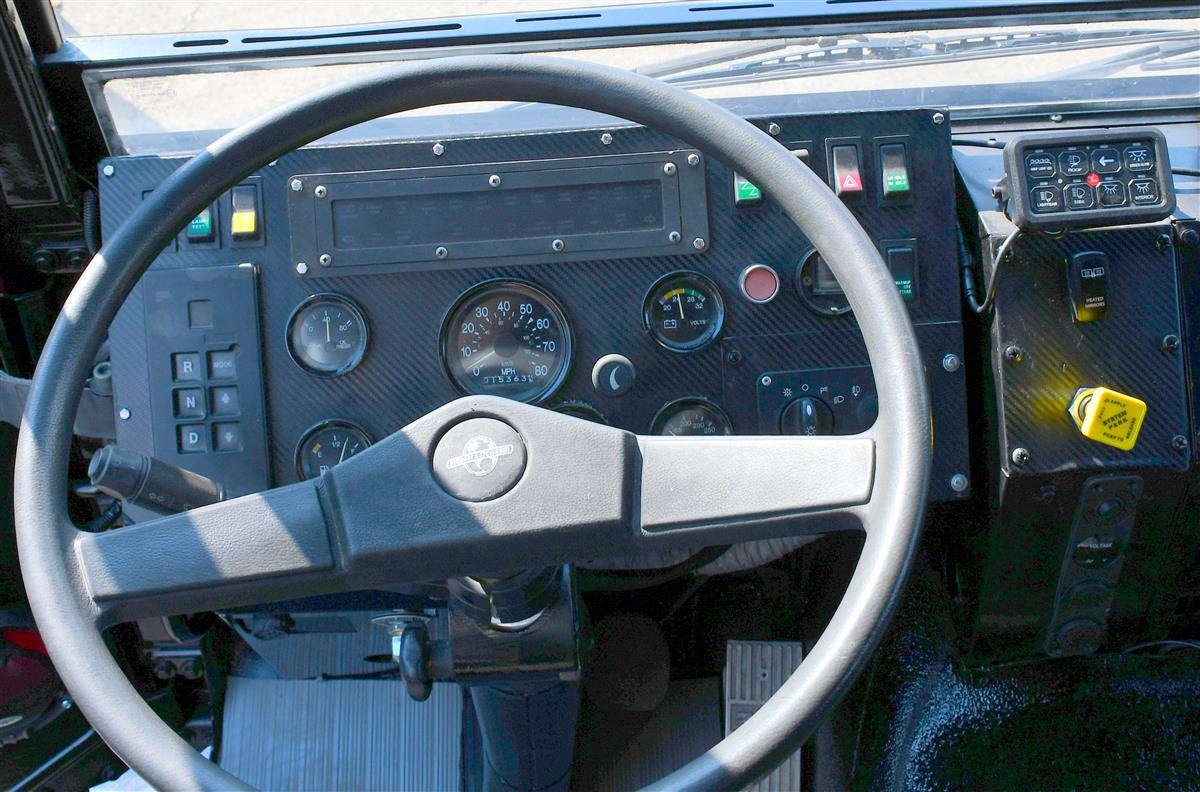

• Cab Interior:
  • Cab headliner

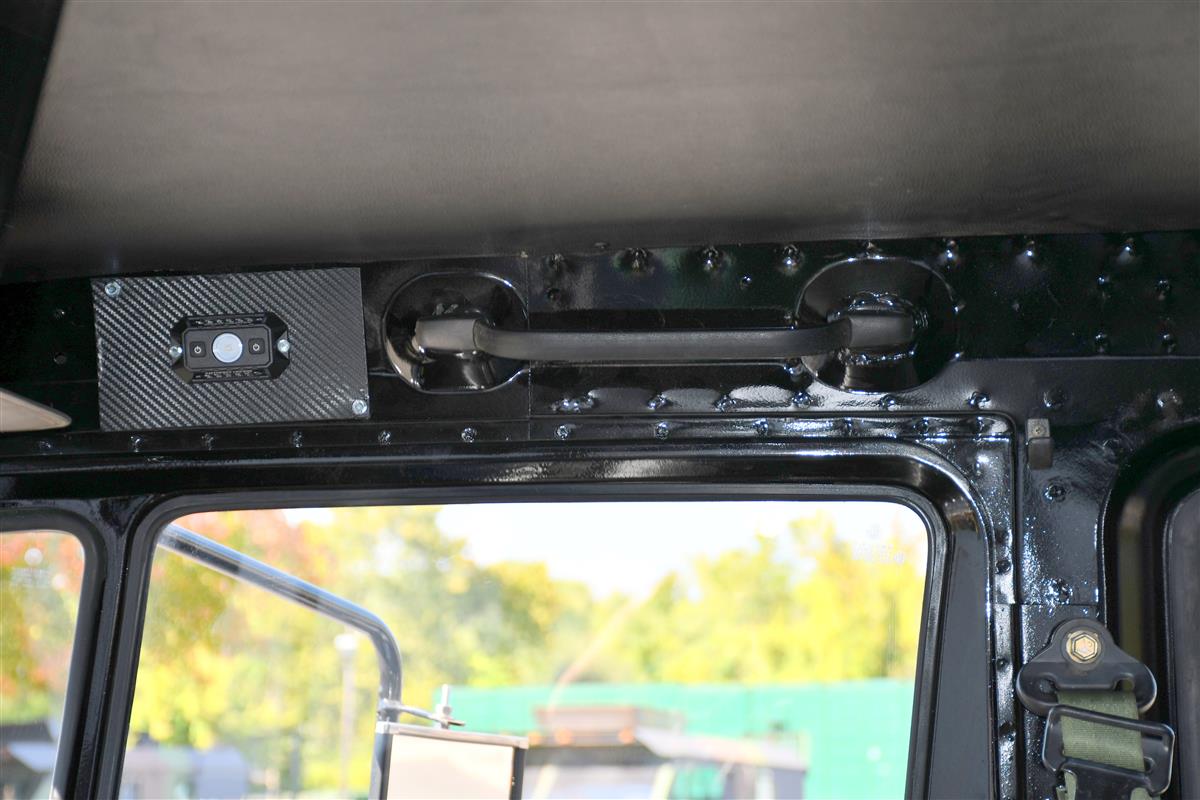

  • 2 dome lights connected to Door function with map light
  • New floor mats and tower mats
  • Recovered 2 seats black (center seat removed)
  • Painted interior gloss black
  • New front glass and gasket
  • Removed toolbox and radio bag inside cab
  • New door and window operators x 2
  • USB Charging station

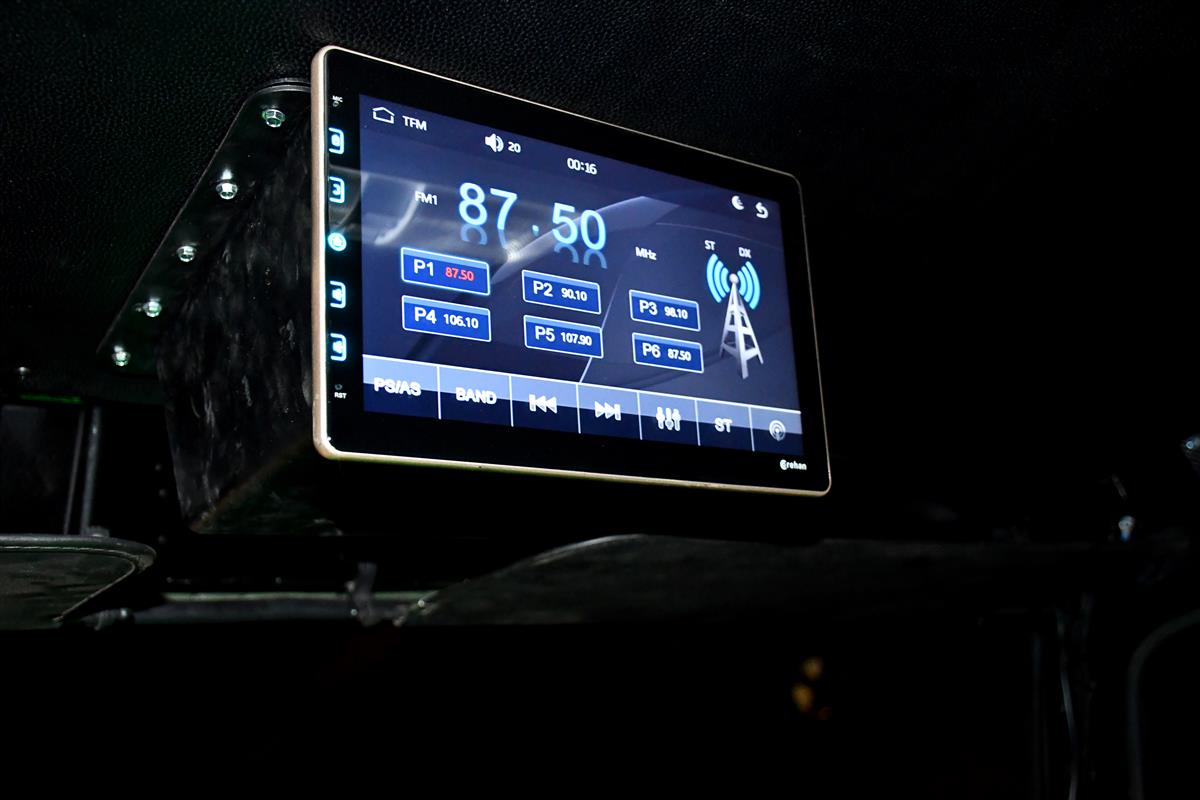

  • Radio- AM/FM
  • Light switch converted to Commercial
  • Master battery disconnect switch - non-keyed - in Cab, easily accessible

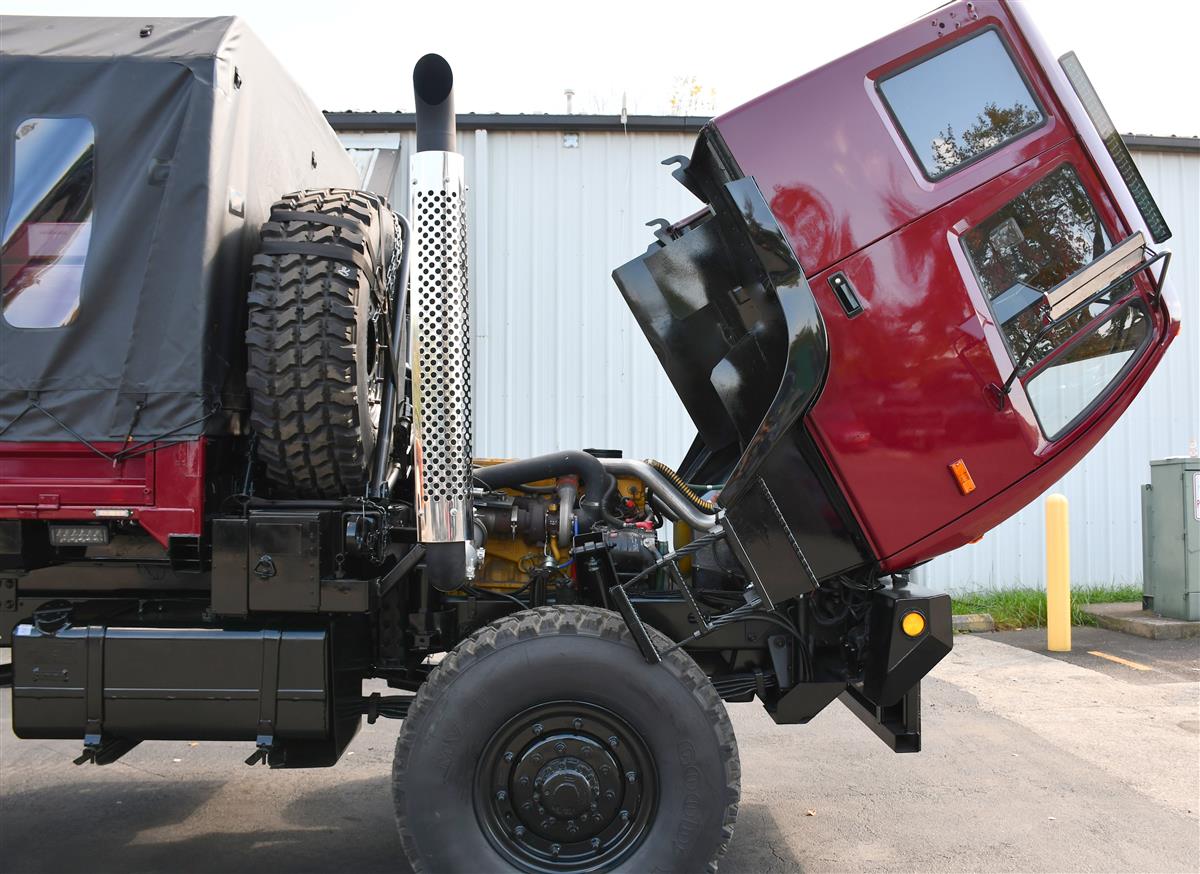

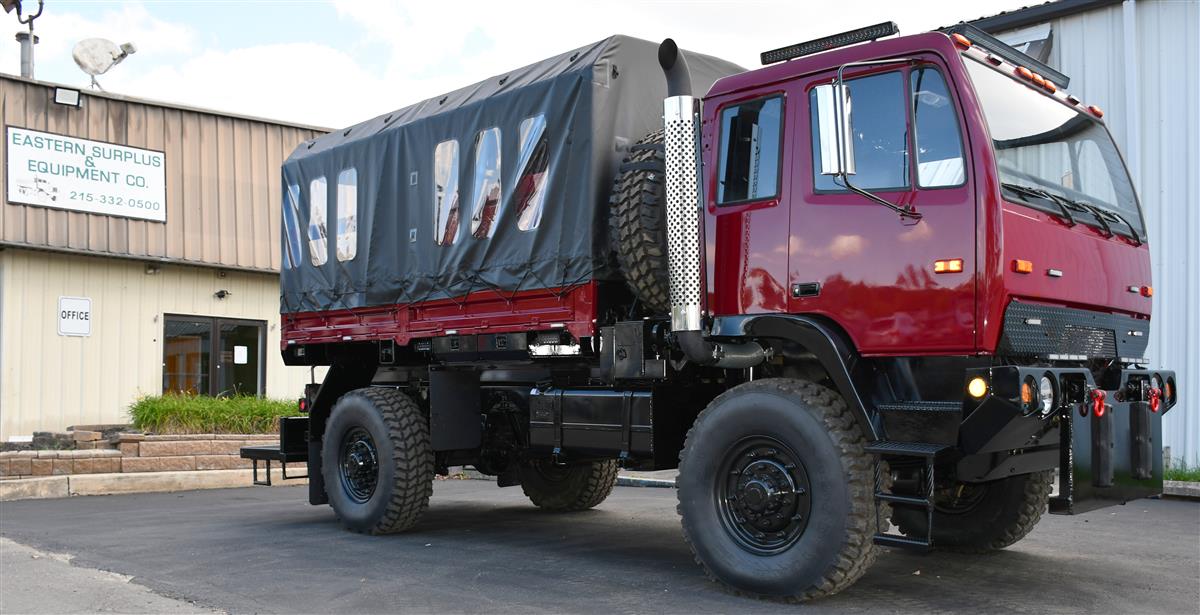

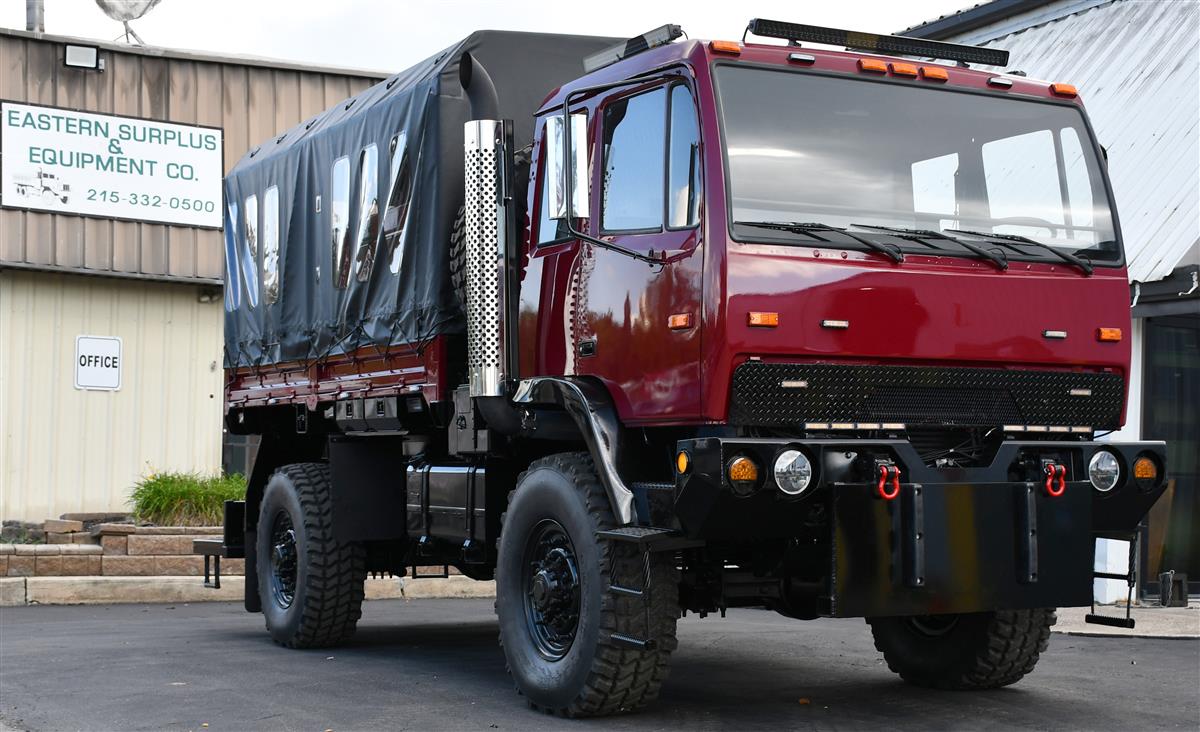

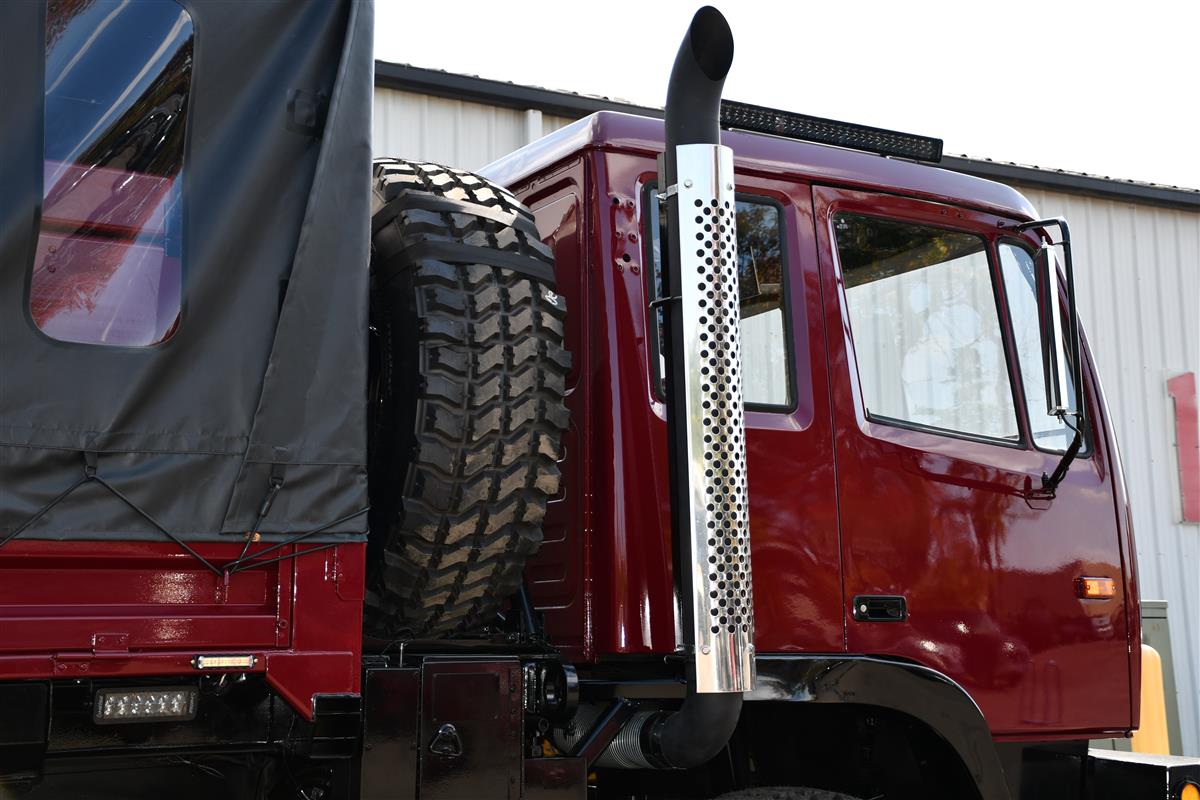

  • Relocated and Elevated exhaust to vertical Position

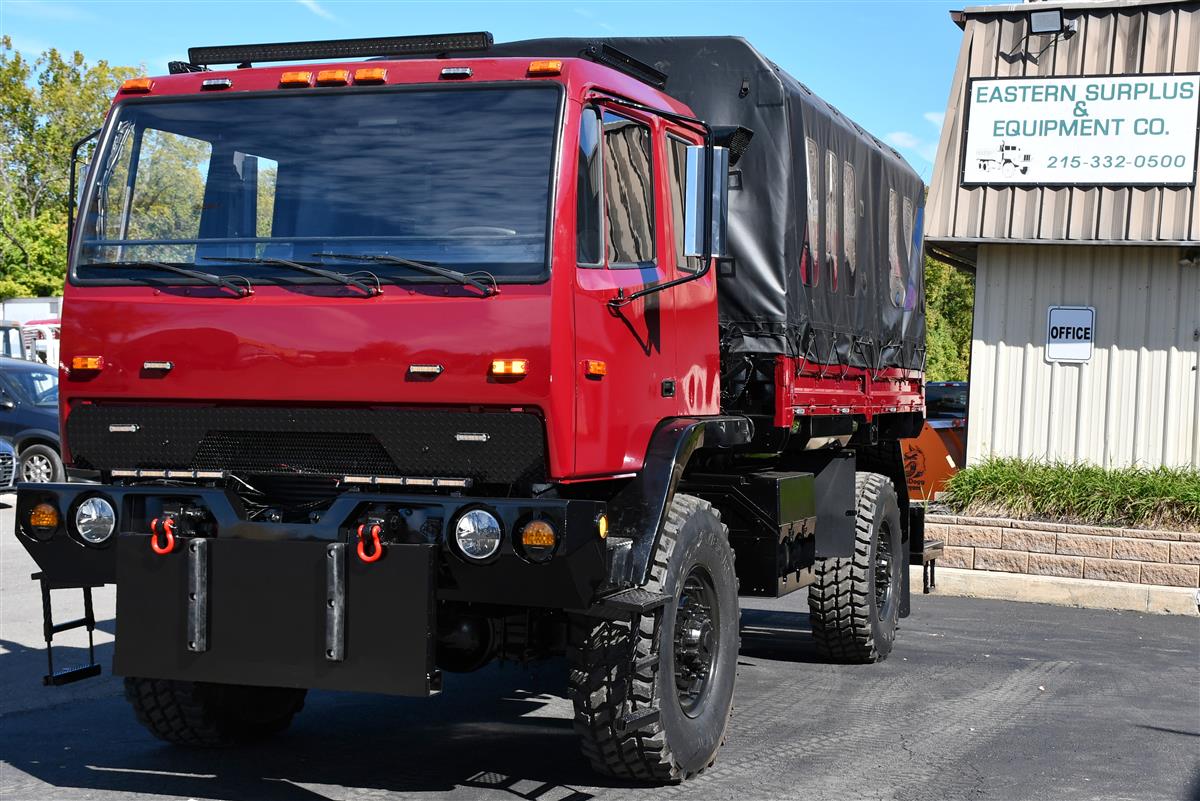

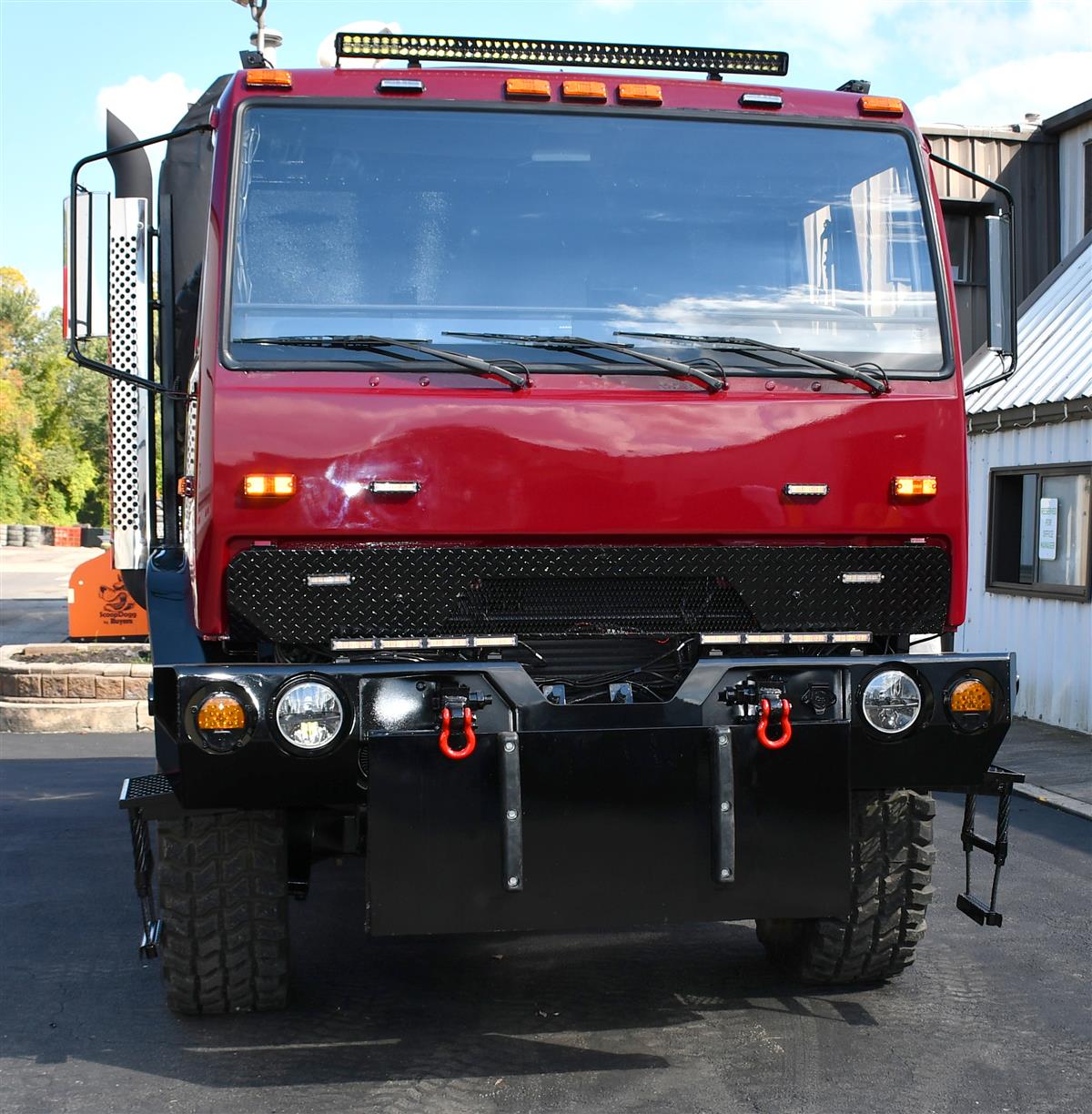

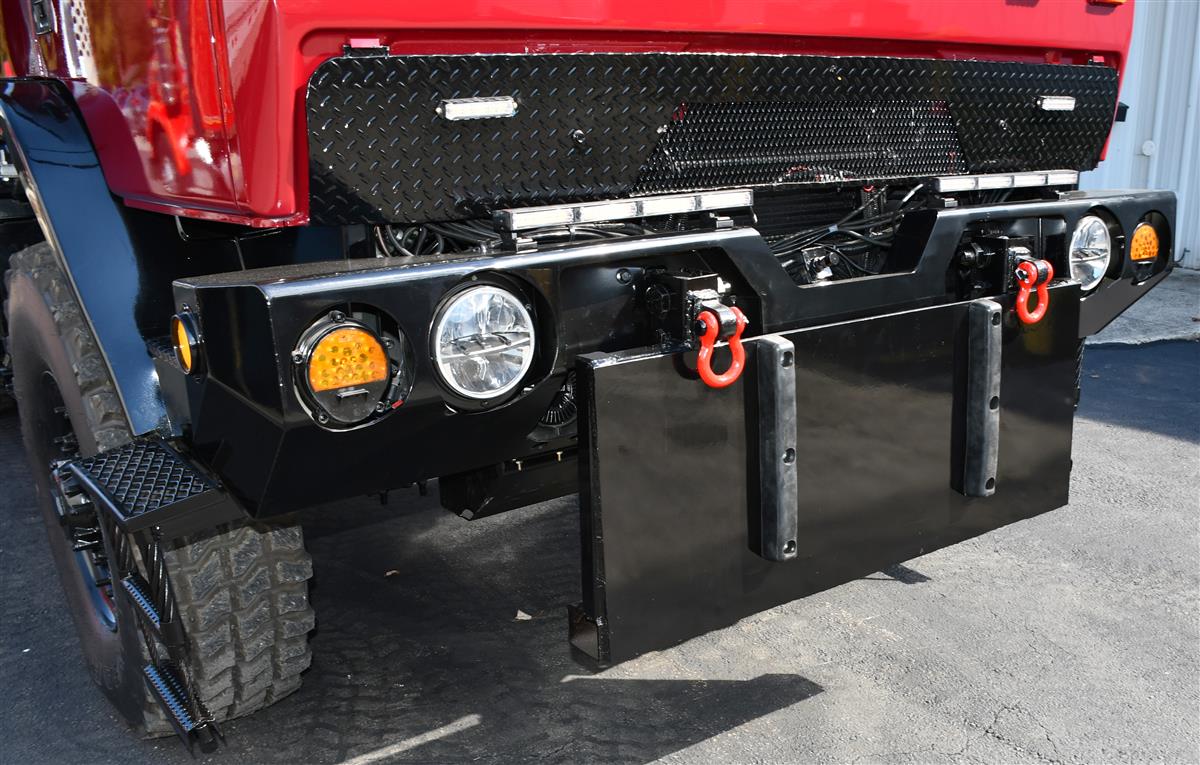

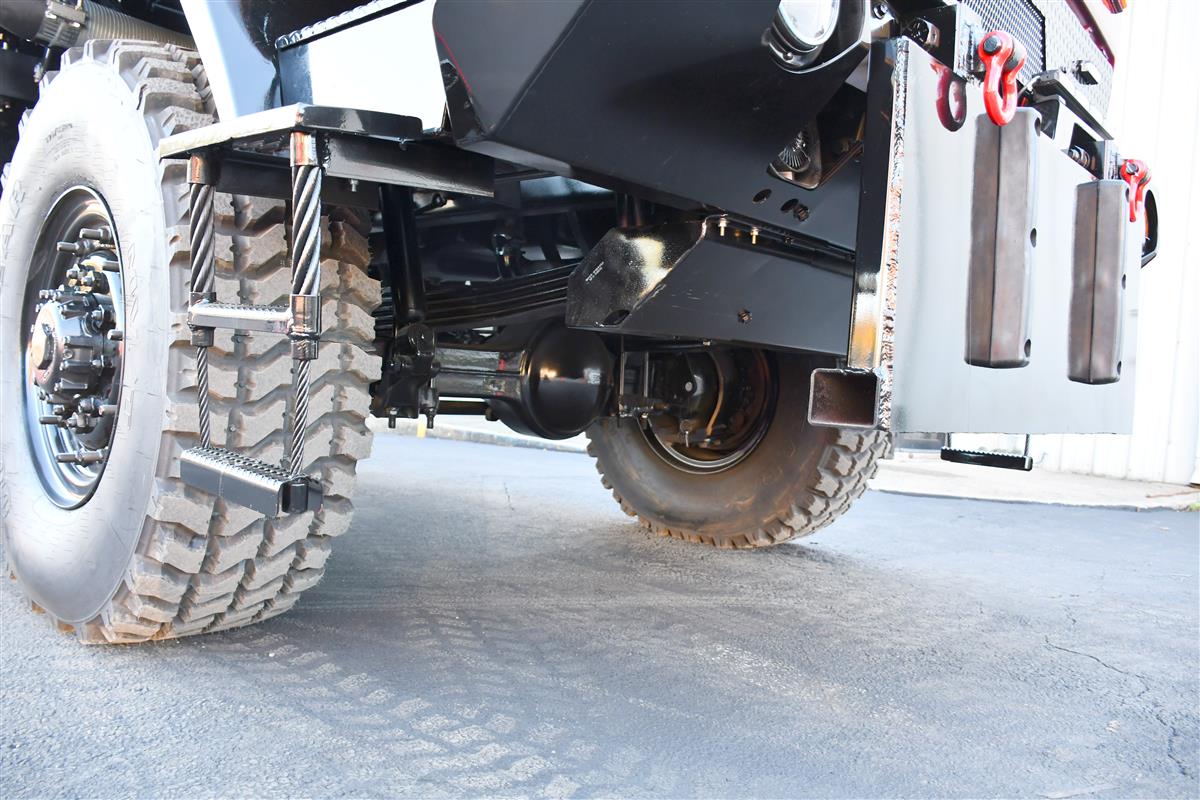

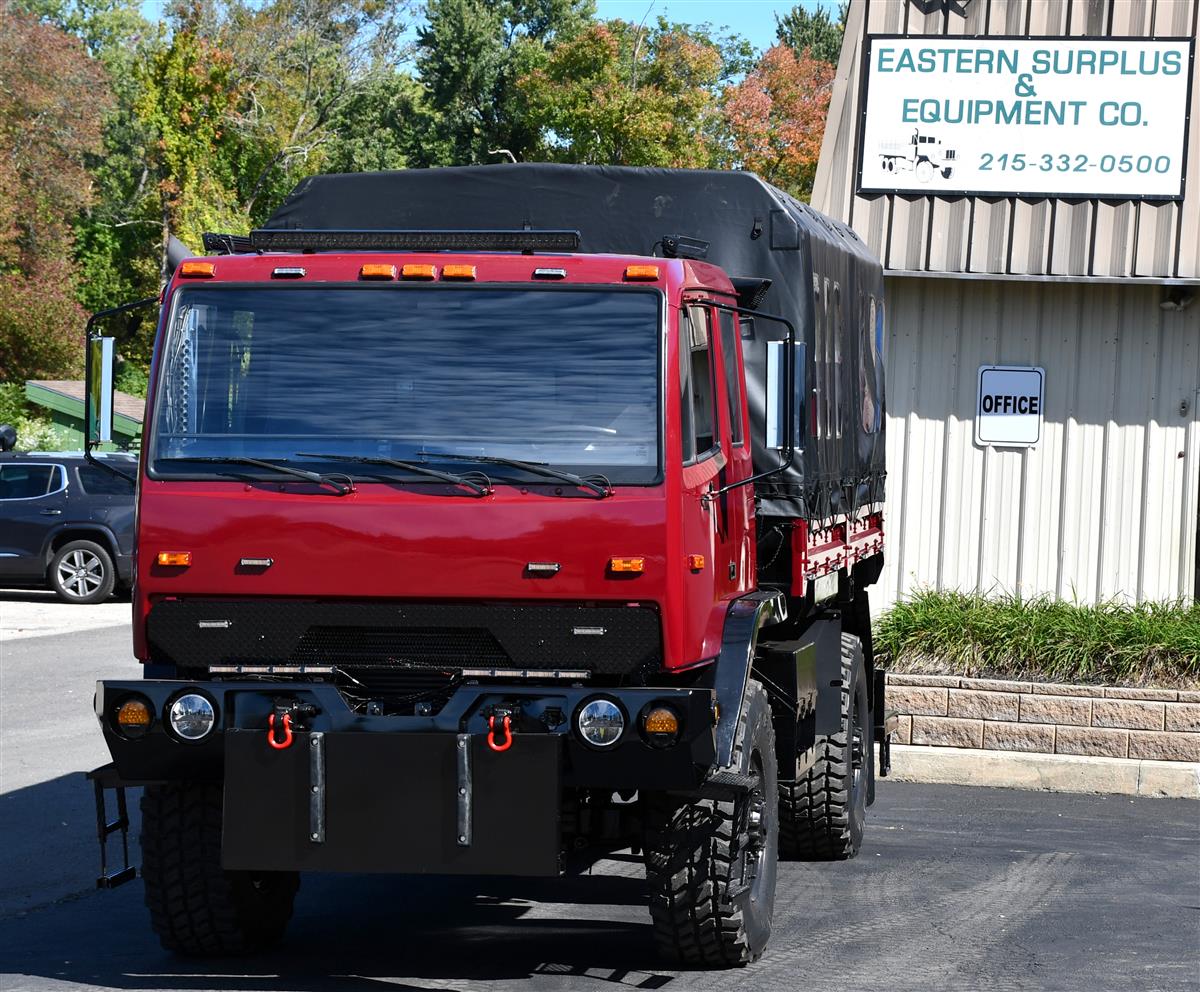

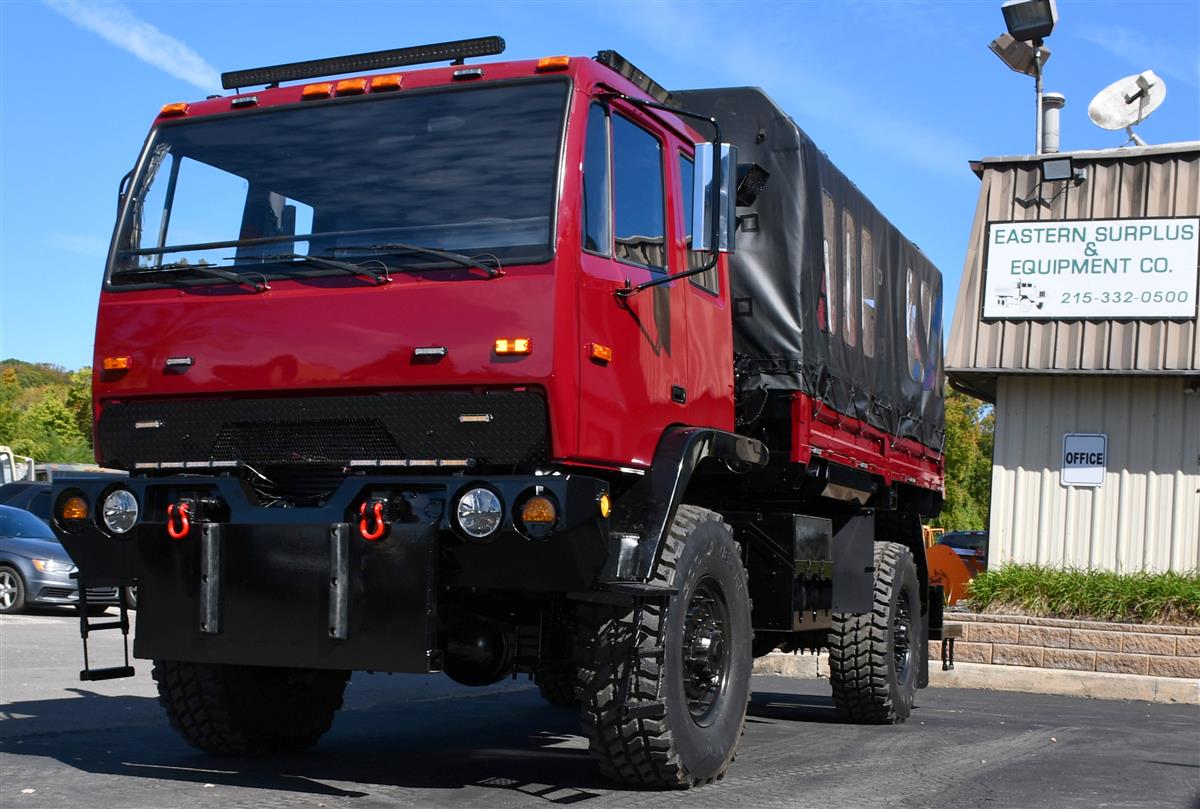

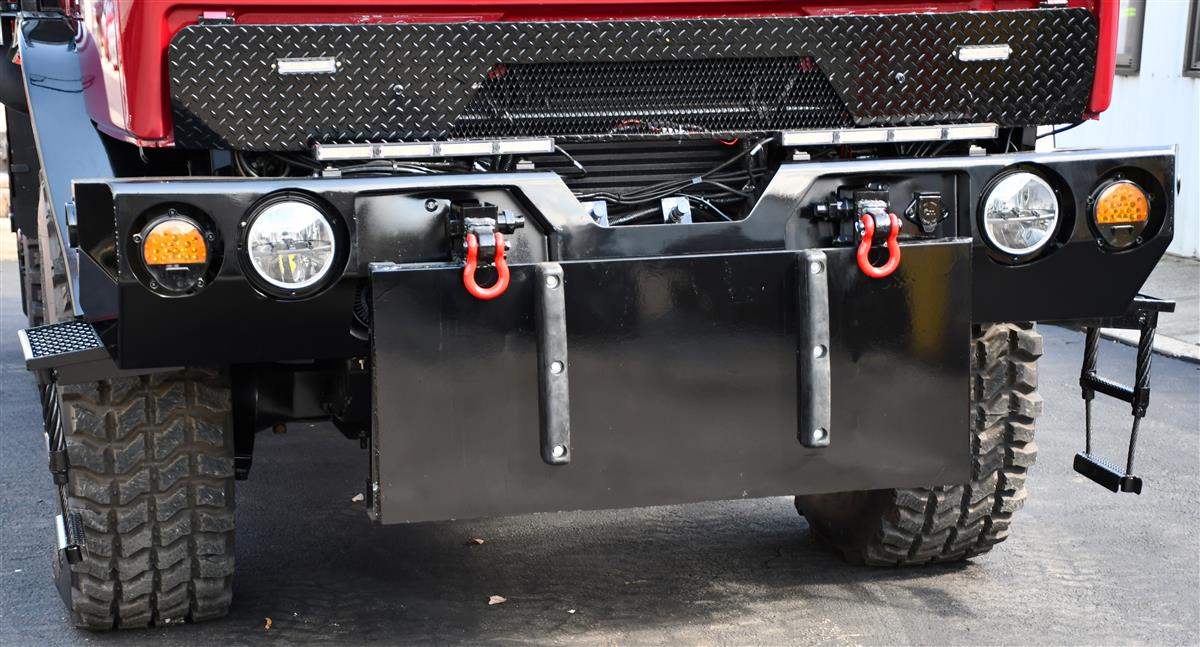

  • Front push bumper with 2 “D” rings and 2 Rubber bumpers
  • Heated Side Mirrors
  • Installed supplied Antennas
  • Cab entry step extensions and ladders
  • Replaced front grille insert with heavy custom option
  • Good Condition Computer scan reports provided for Cat Engine and Allison Automatic Transmission
  • Bypassed CTIS system – capped off all fittings
  • Backup Alarm and light with Display Screen inside cab
  • Installed siren, siren controller, and 2 speakers
  • Added Speaker location on front bumper
  • Added antenna/disc locations on roof of cab
  • Added Rear work lights
  • Rear platform ladder painted same as rest of platform
  • Rear cargo bed outer fold-downside panels (side tail gates)
  • permanently affixed/screwed shut
  • OEM Box behind driver seat was removed and was painted to match and installed
  • Middle jump seat in the cab was removed
  • Pre-wired for the Kussmaul charger and eject. Use 14-gauge wire.
  • 12 volt leads for radio box, 1 positive and 1 negative. Home runs directed from batteries to Box behind driver seat. Used 8 Gauge wire.
  • Added 60 Amp circuit breaker under the dash main electric panel and directed ground at same location (from truck frame to a stud) to be hidden from sight and have positive lug.
  • Added direct ground from truck frame to a stud next to circuit breaker.
  • Cut outside of box on cab side, edge with protective trim.

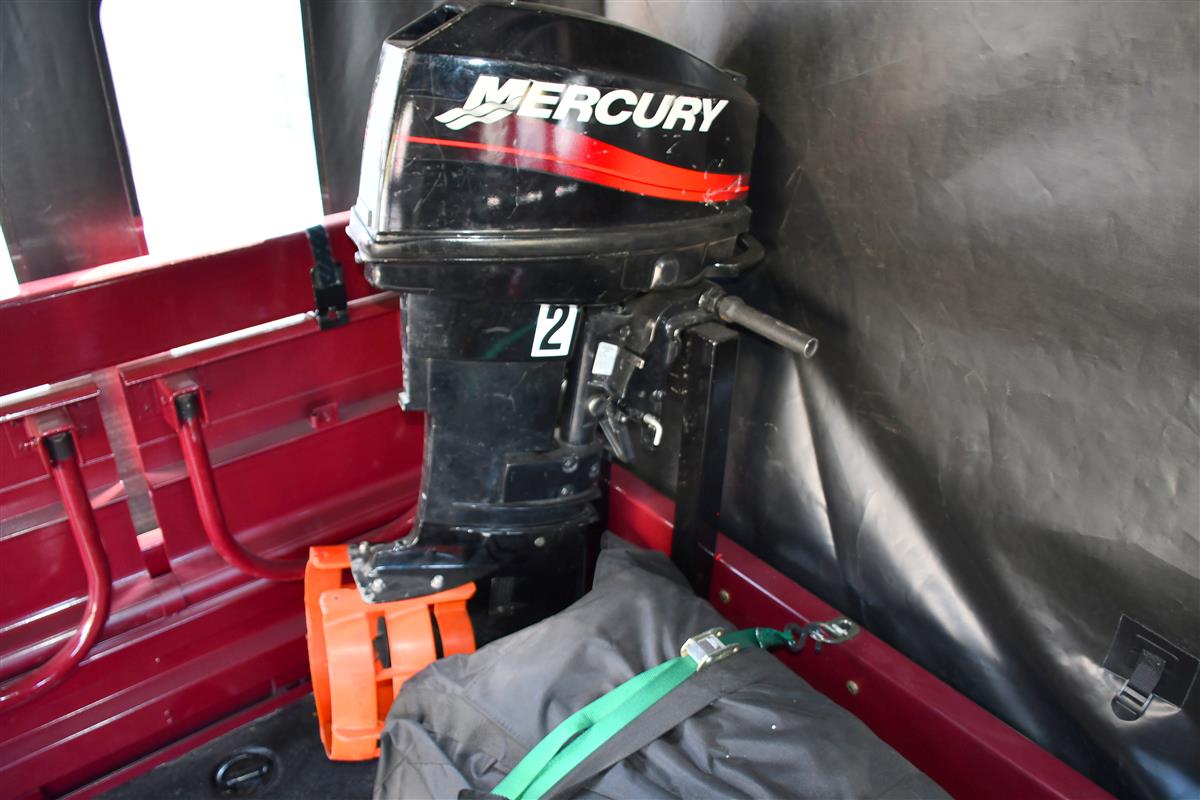

  • Boat Motor mounted on headboard of bed.
    • Painted and installed boat fuel tank bracket
    • Boat Bag strap. 2 ratchet straps and “D” rings on floor and top of bed rail.
    • Air tank bracket – Fabricated base bracket.



• Lighting: -

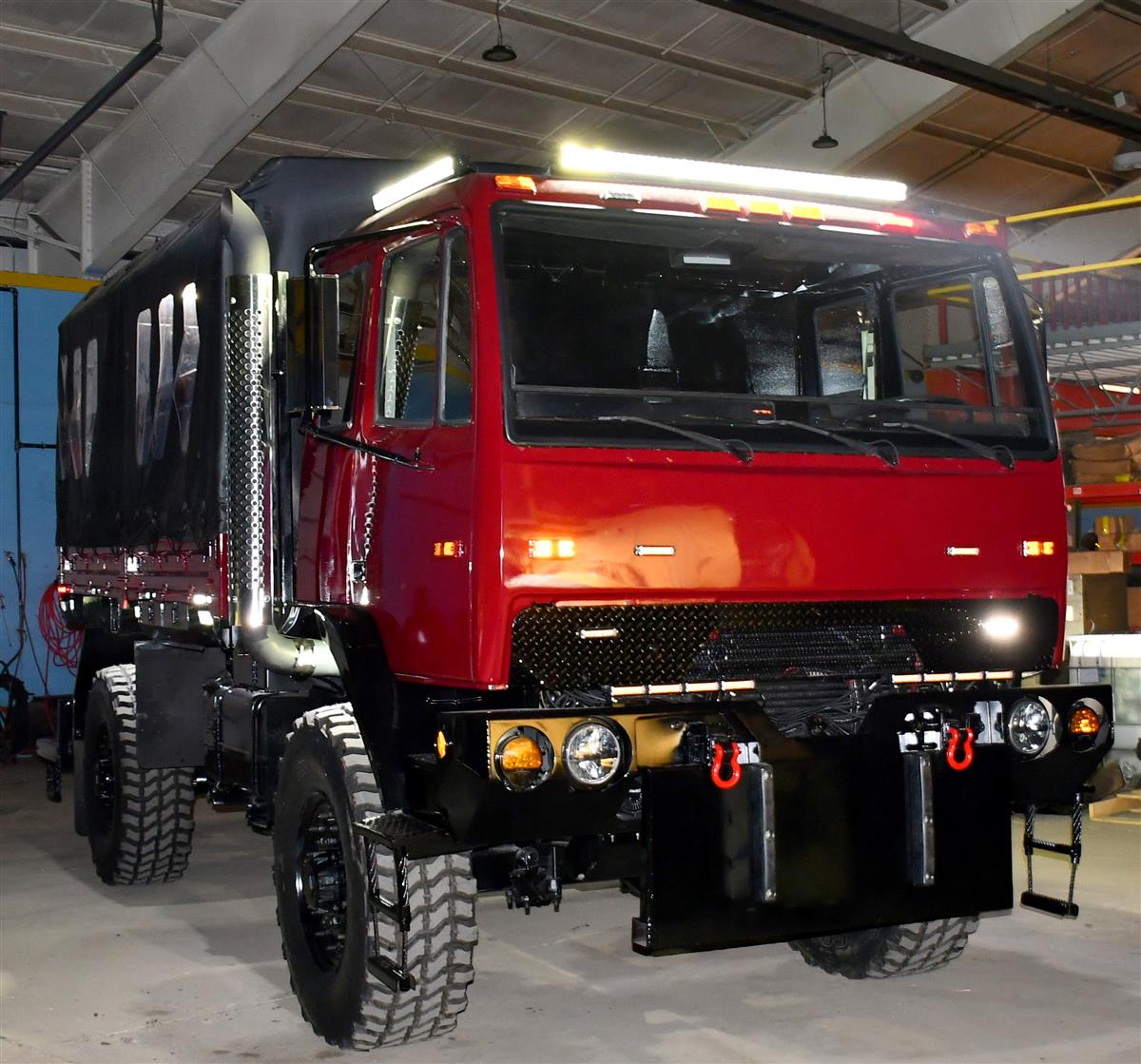

  • All exterior Original Truck lighting upgraded to LED (Headlights, taillights, marker lights, front turn signals)

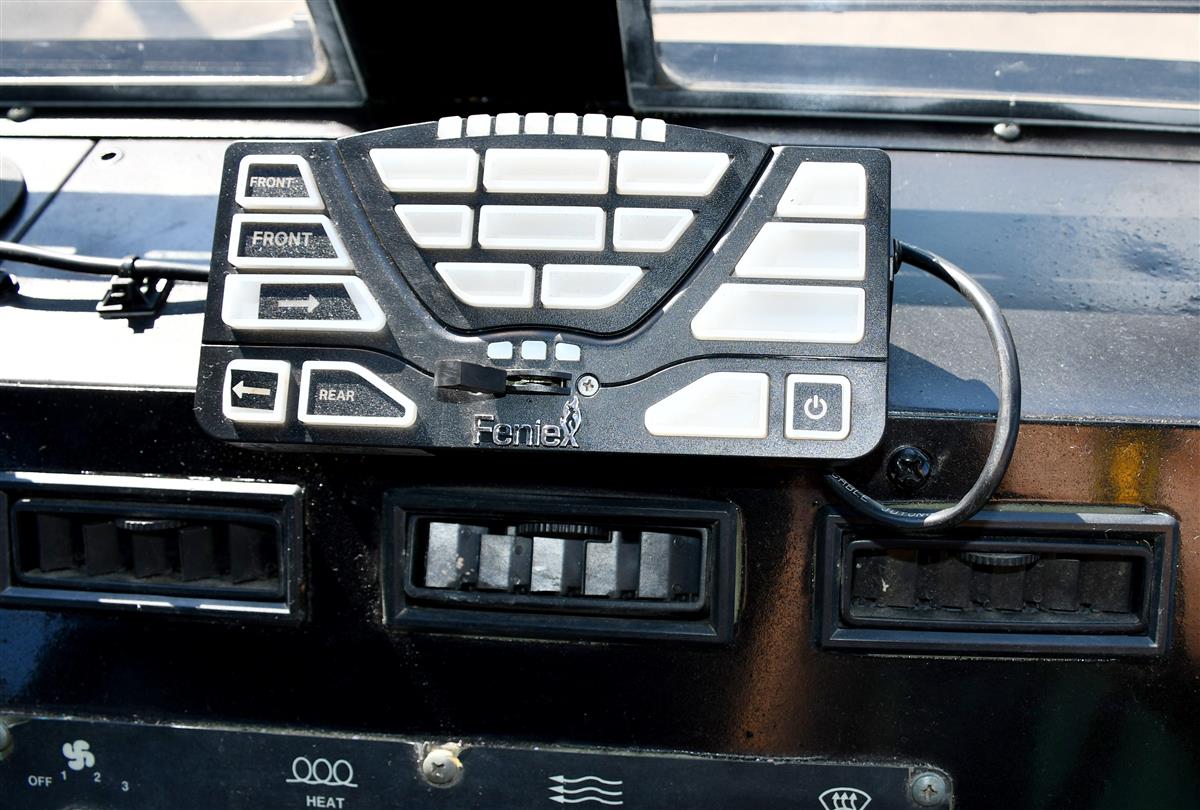

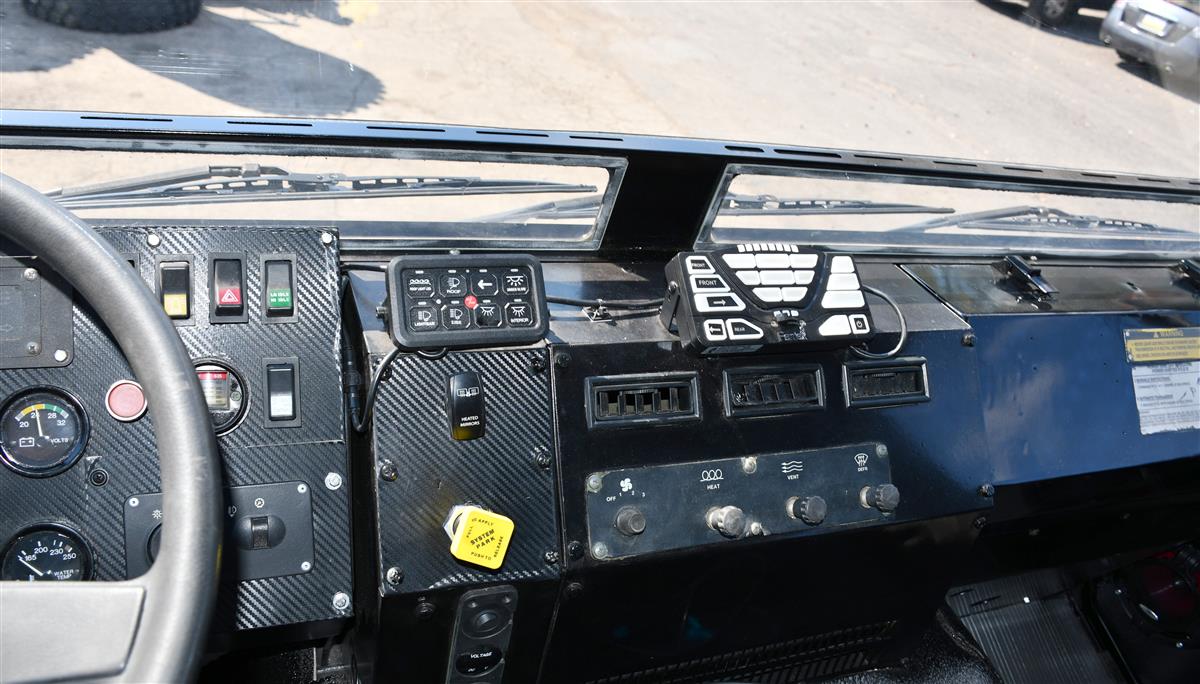

  • Lighting elements, all switched inside of cab through Feniex Controller and work lights on toggle switches for front/side/rear separately

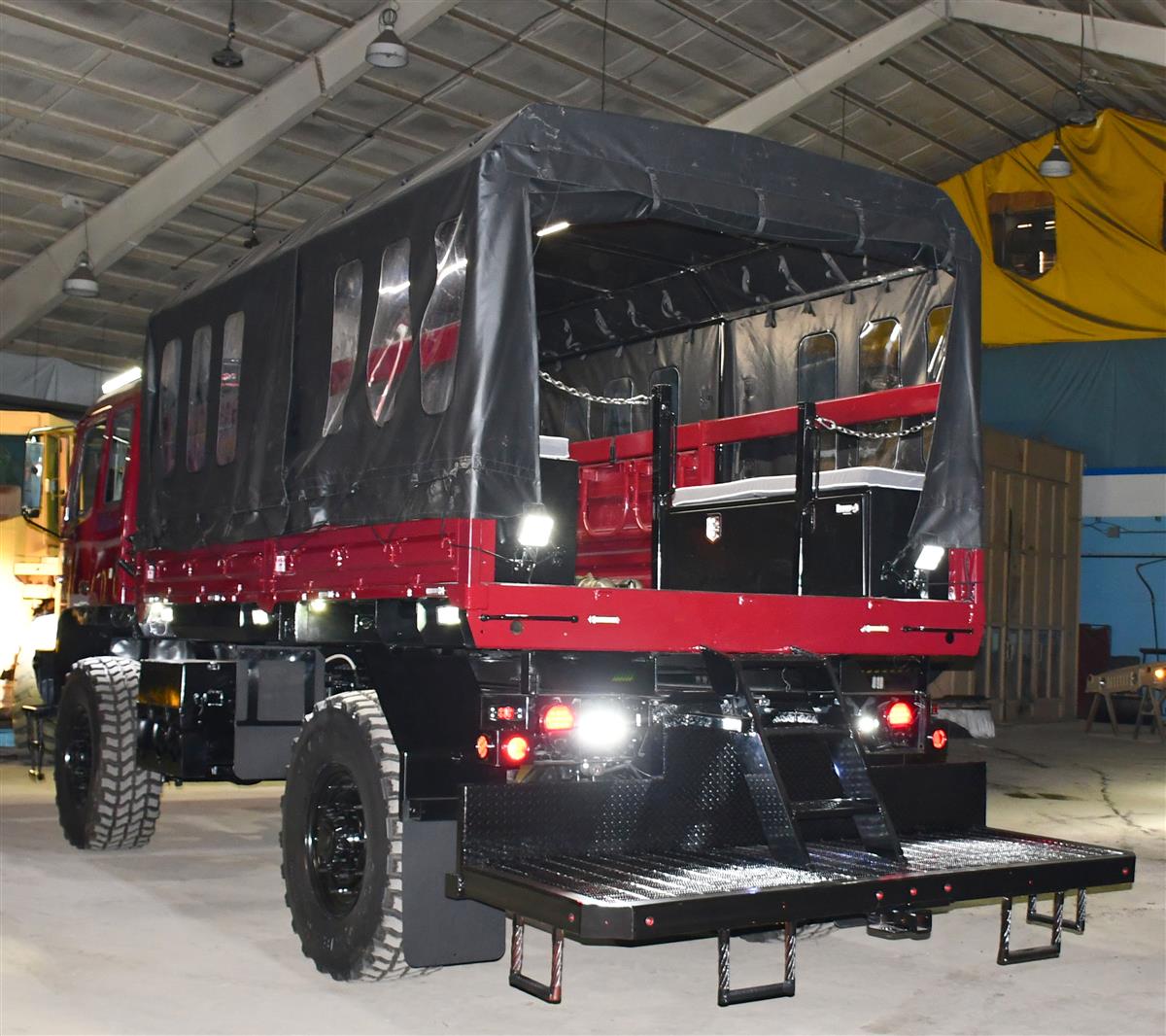

  • Added Scene lighting at rear of cargo bed Corners
  • Added 1 Reverse light, to make 2 total
  • Furnished and Installed 6 each LED lights Feniex PN-Q-2222
  • Furnished and Installed 2 each LED low profile warning light strip Feniex PN-QT-0420-ST (Red, Blue, White Lights)
  • Furnished and Installed 16 total emergency lights around truck, Feniex QQM-8101
  • Furnished and Installed 1 x 50" Forward Facing Brow Light, Heise
  • Furnished and Installed 2 x 32" Side Facing Brow Lights, Heise
  • Furnished and Installed 6 x 8" Side Facing Brown Lights, Side Body Under tucked, Heise
  • Furnished and Installed LED Corner Compartment light for under cargo cover, Code 3
  • Furnished and Installed 2 x Square LED Swivel work lights at rear, Code 3

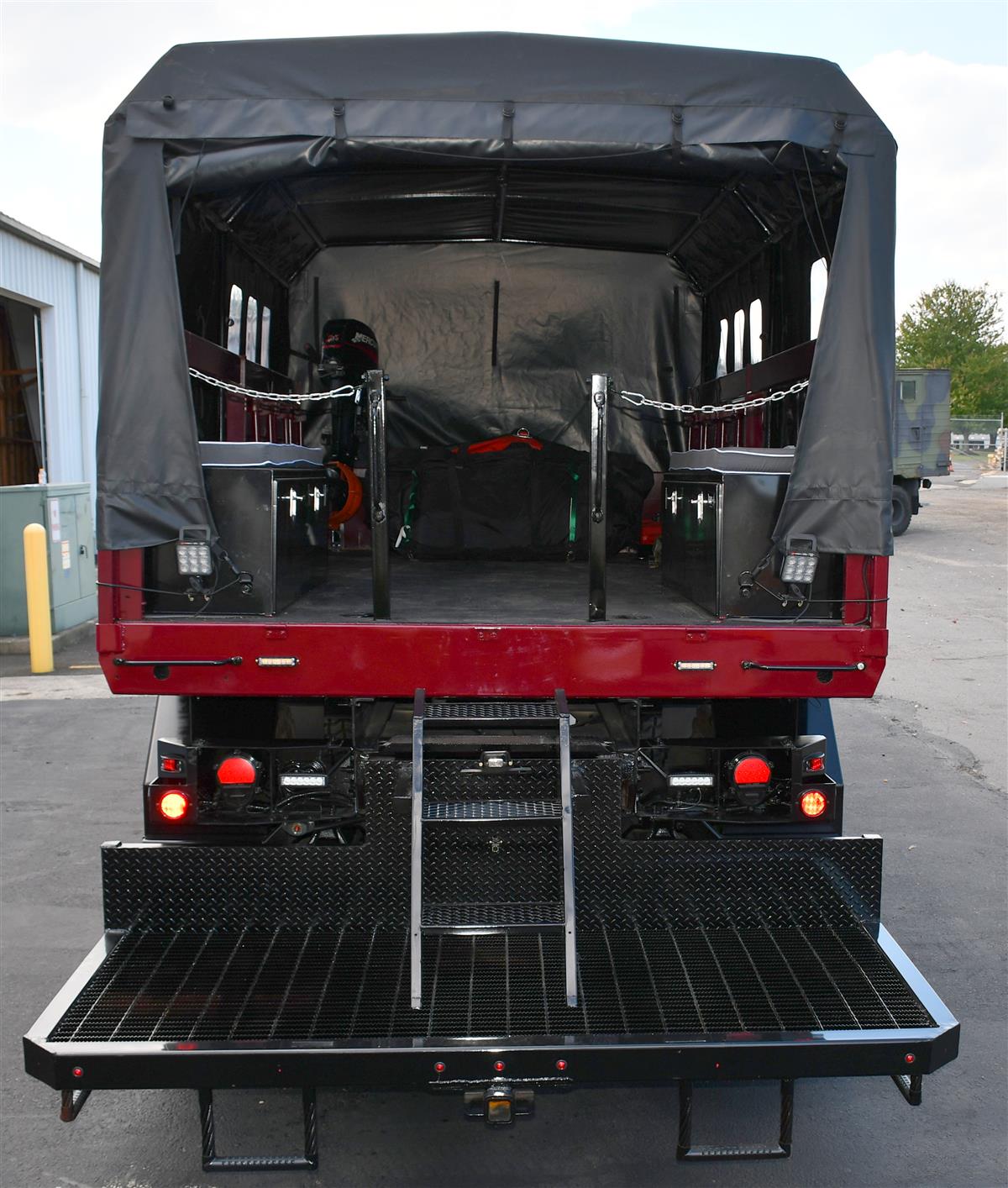

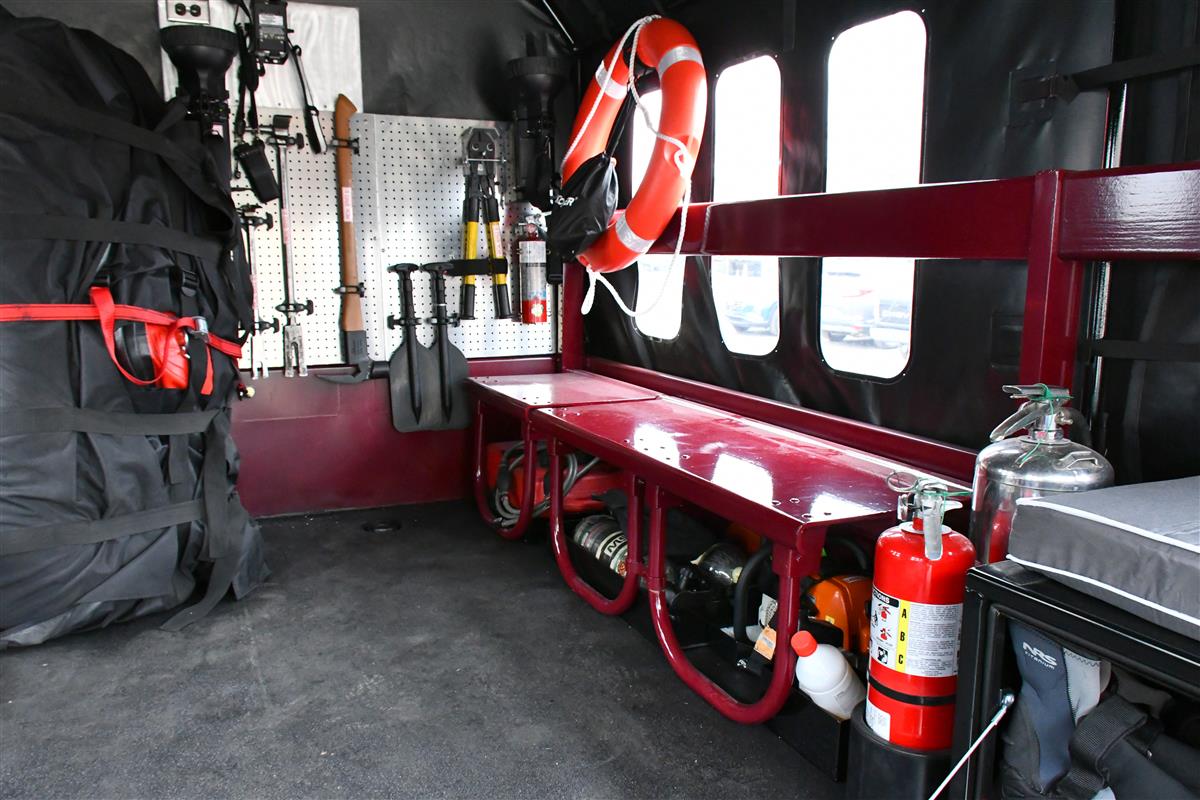

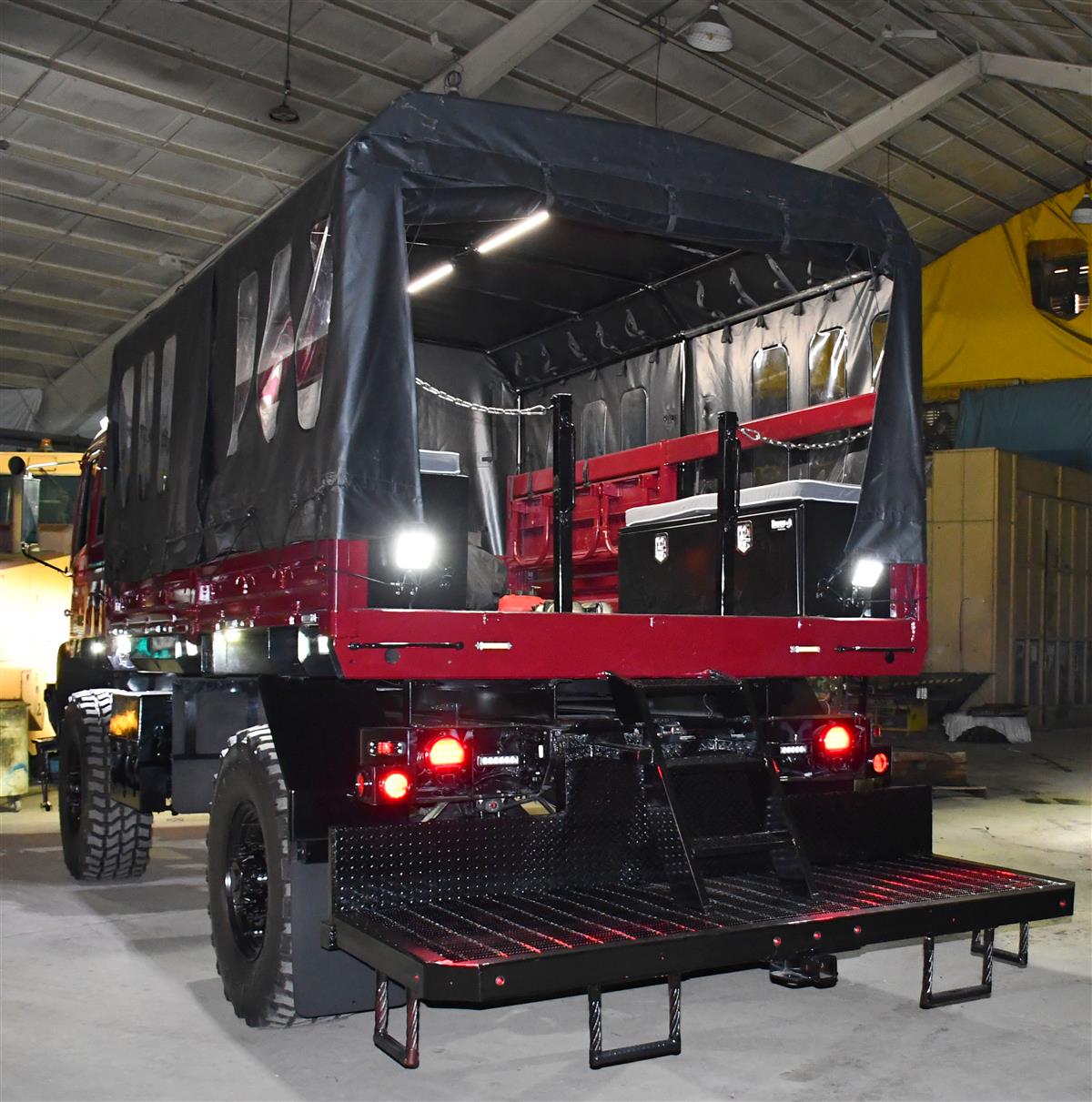

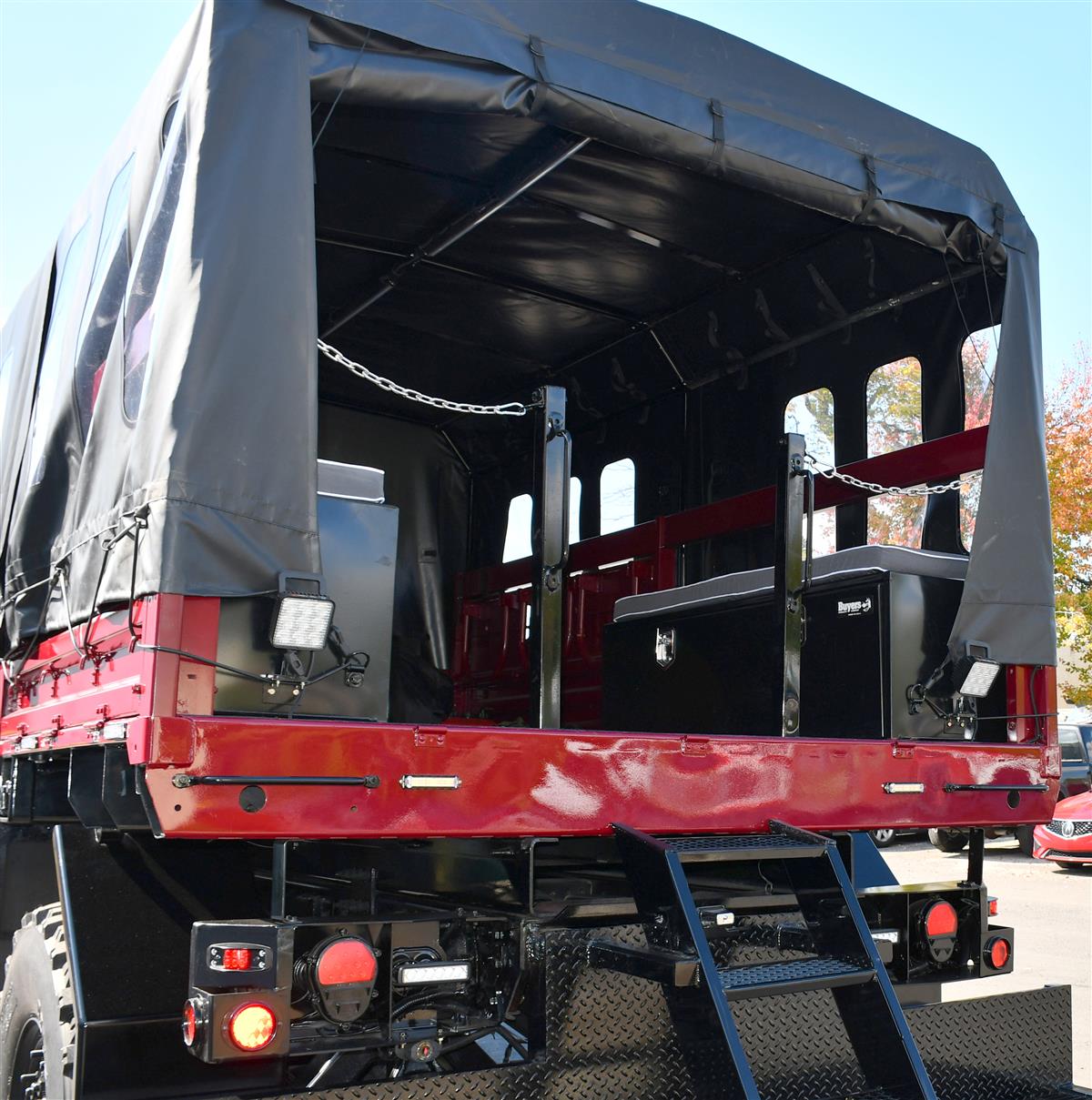

• Cargo Bed:
  • Rear cargo bed
  • Rear side racks

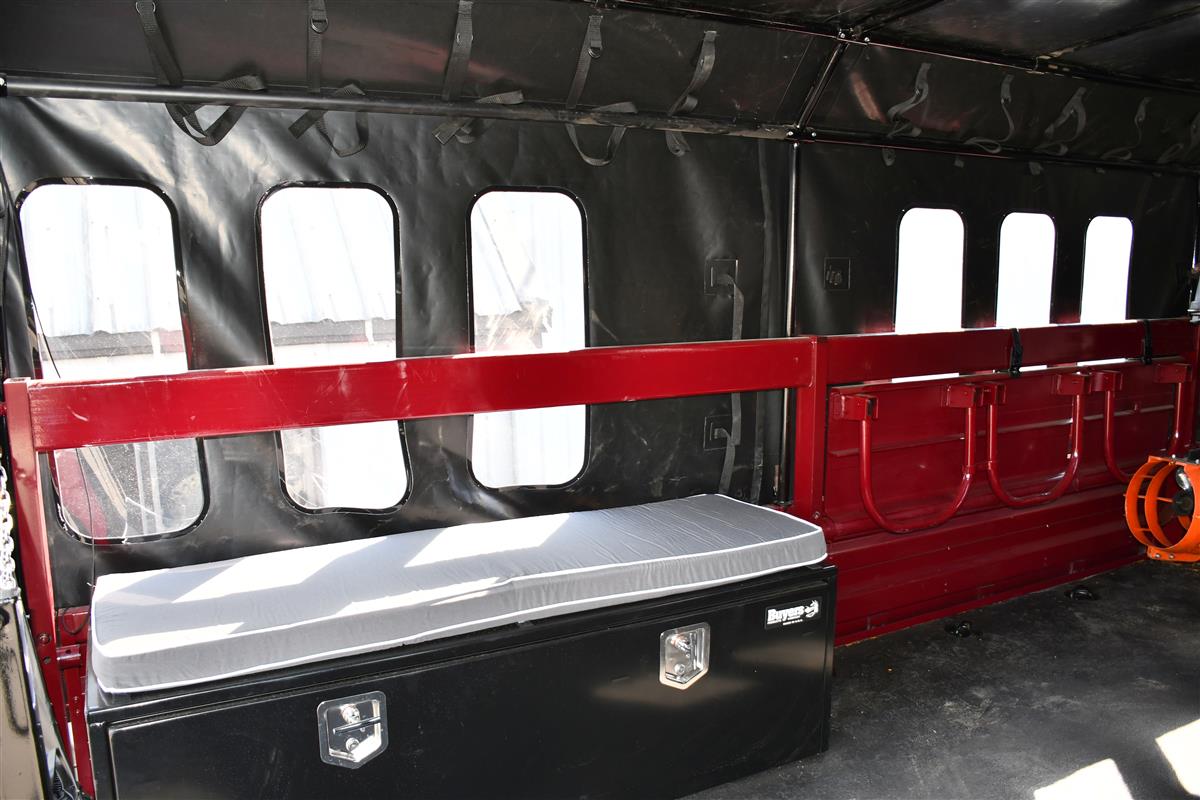

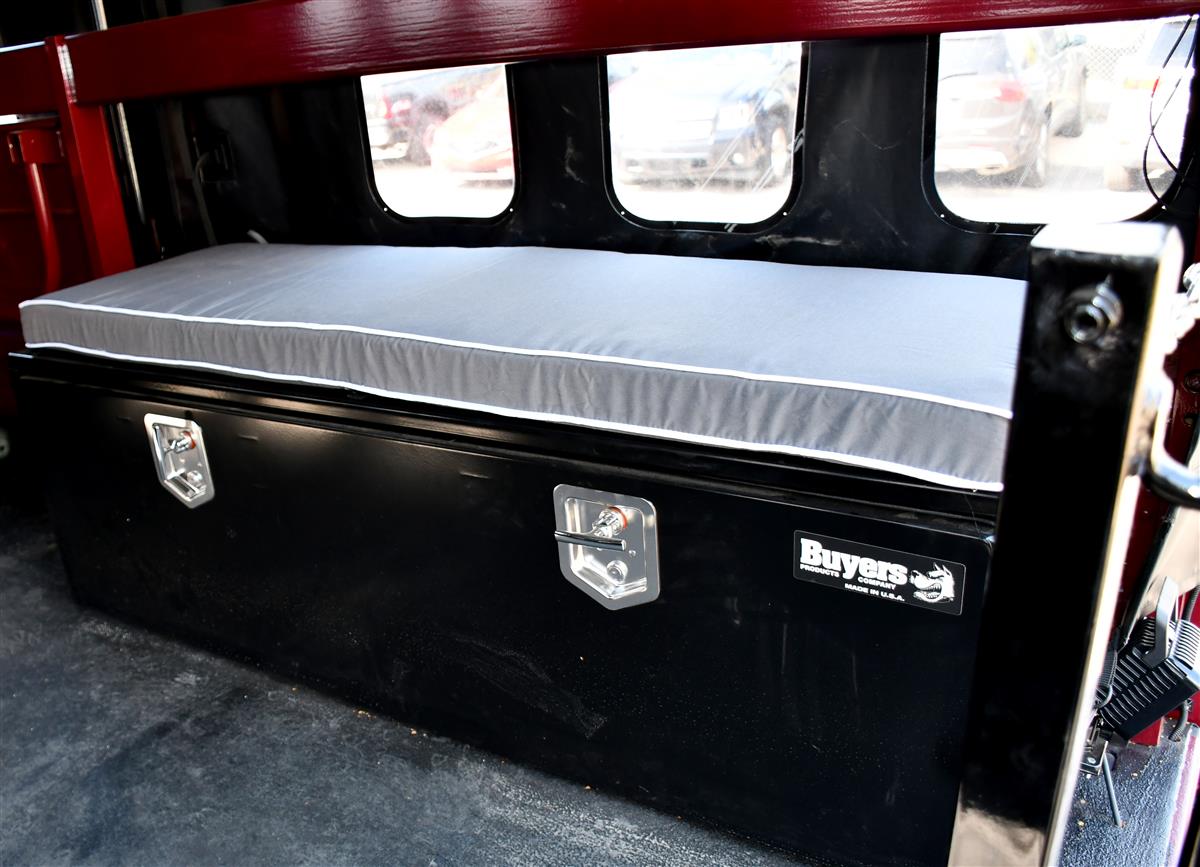

  • Toolbox seating with locking lids along 1 side only. Cushion on top. Approx 10 feet total.
  • Removed seating drop down panel and insert 1x4 strip to reduce fall out risk
  • Cargo Cover support system

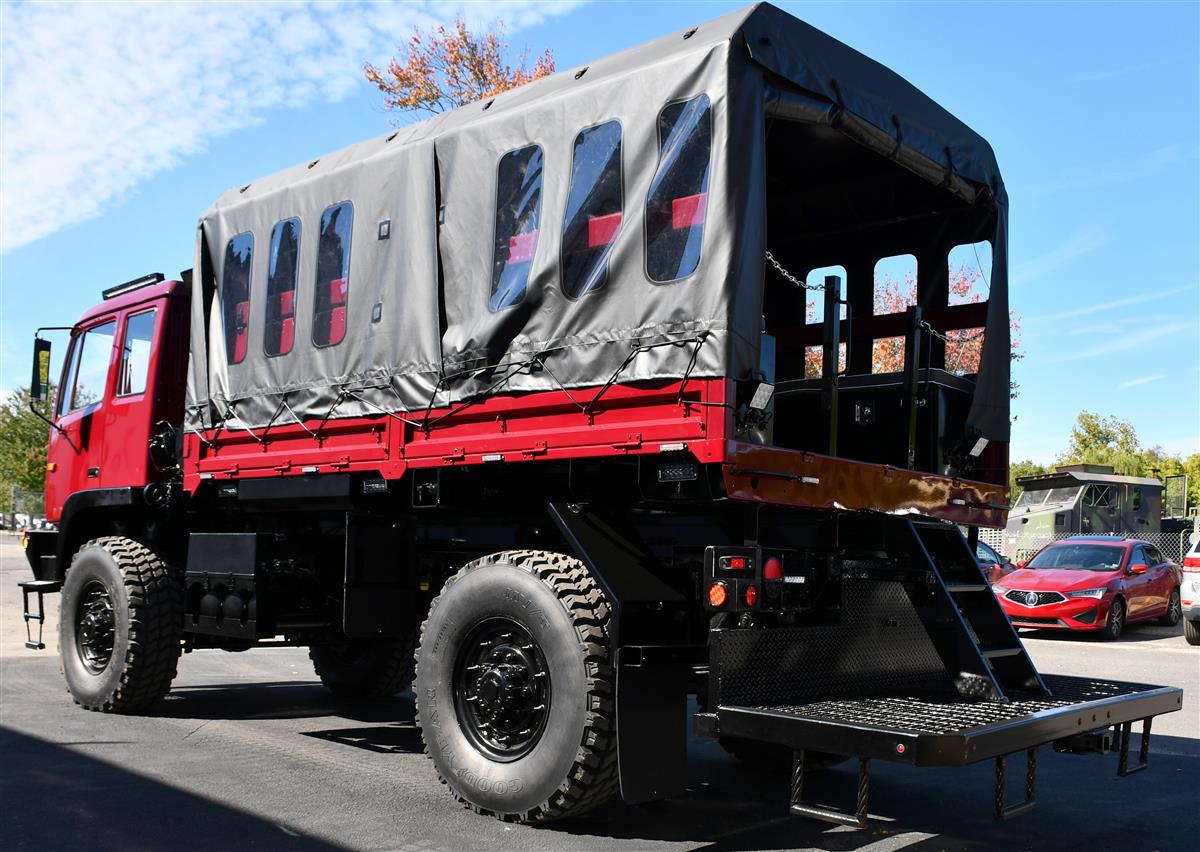

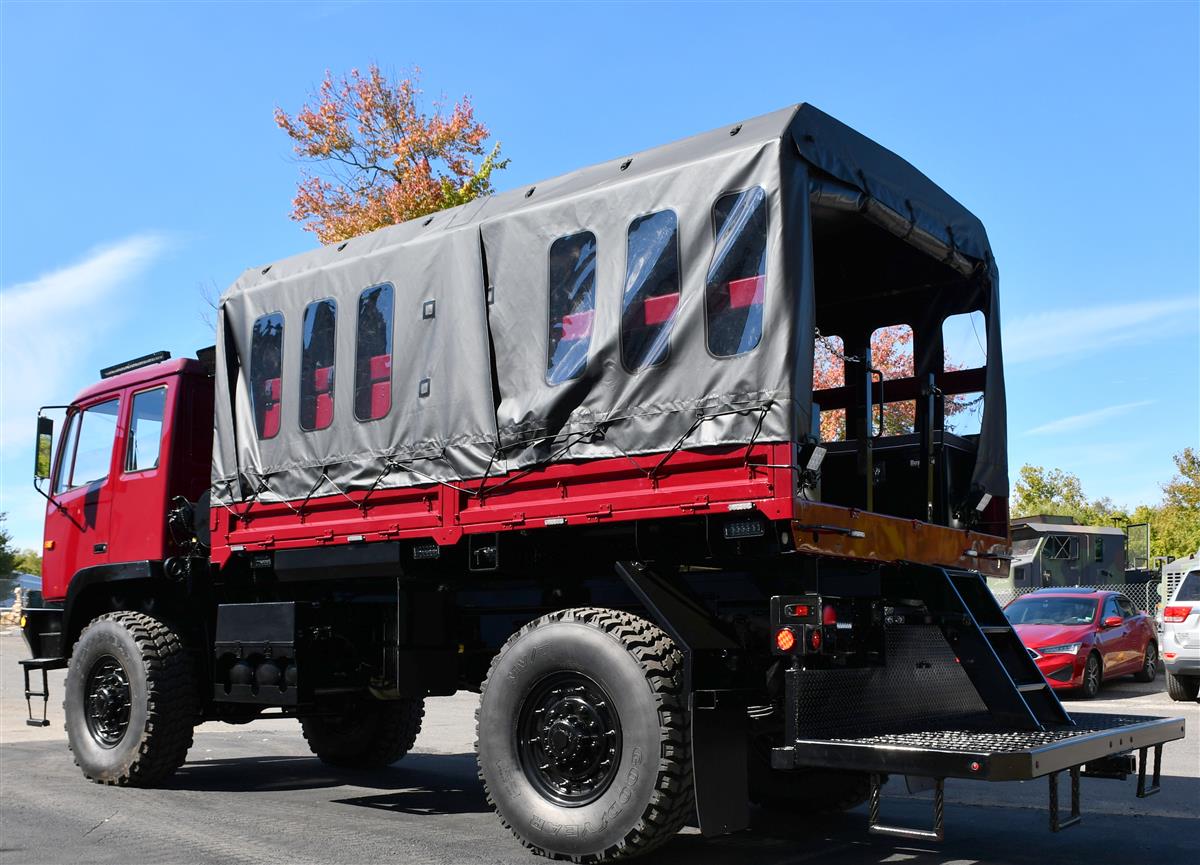

  • Custom rear canopy cover, Black, Clear plastic 3 side windows along each side. Rear panel extending down only approximately 6 inches below the top of rear bow.
  • Added underneath storage trays to Cargo Bed, surface lined with textured bed liner to create closed storage
  • Red LED strip lighting inside cargo bed at floor level
  • D Rings welded inside head of cargo bed on floor – for assistance in loading bed

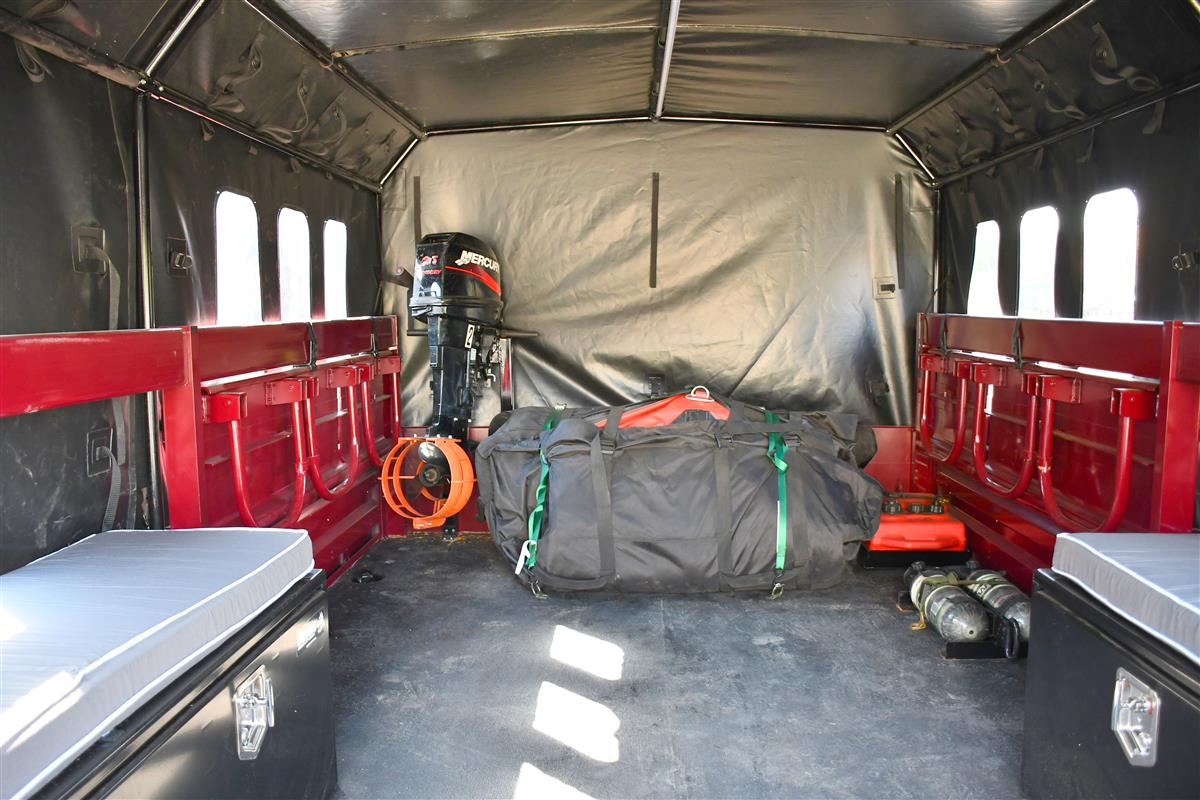

  • Added storage tray/mount system for inflatable boat and motor.
  • Rear work lights- made “L” bracket.

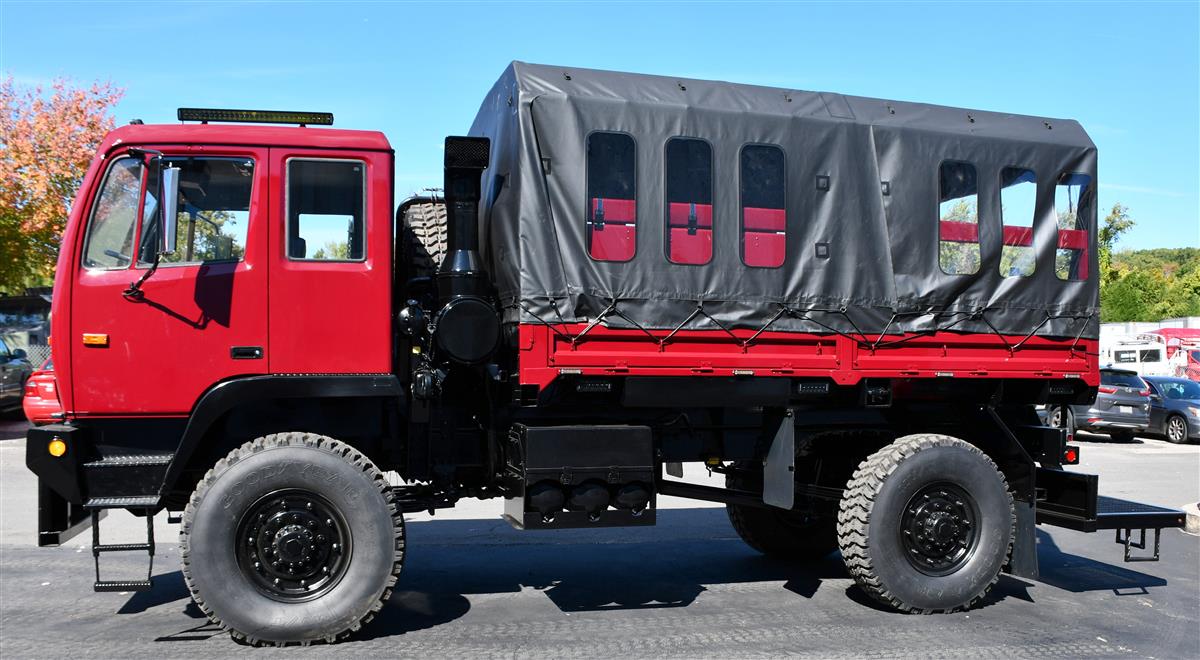

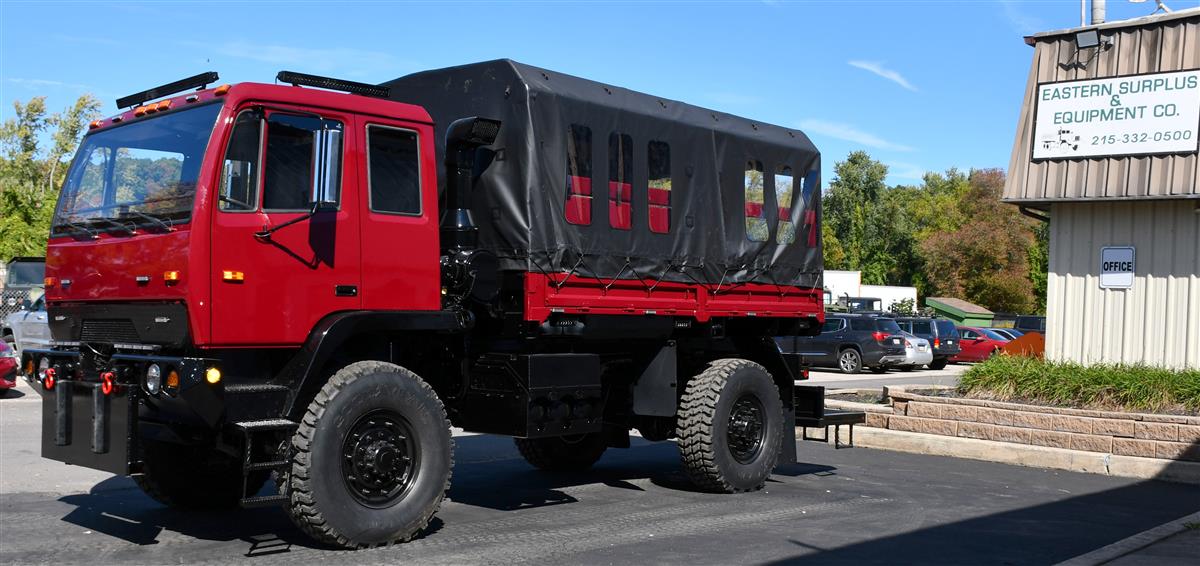

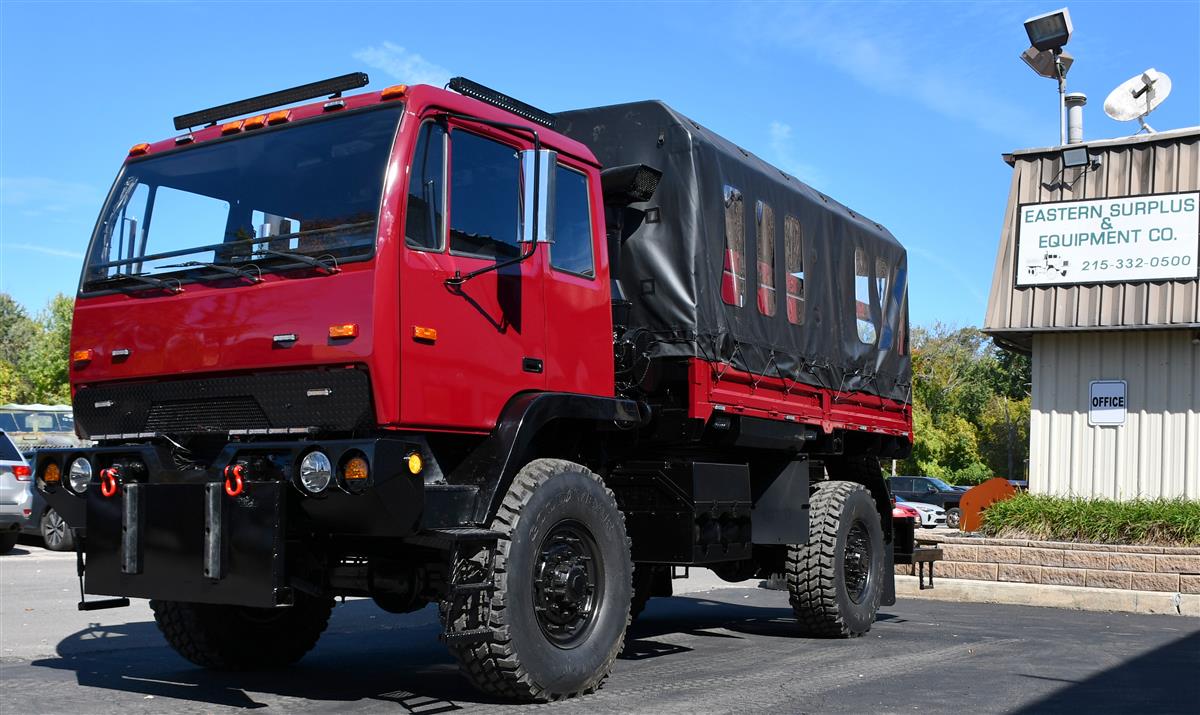

• Exterior:

• Exterior of truck, cleaned, prepared, primed and painted.
• Exterior Upper painted customer's fleet color
• Frame painted Black
• Wheels painted Black
• All walk on surfaces to be treated with Textured Rhino Style coating in Black
