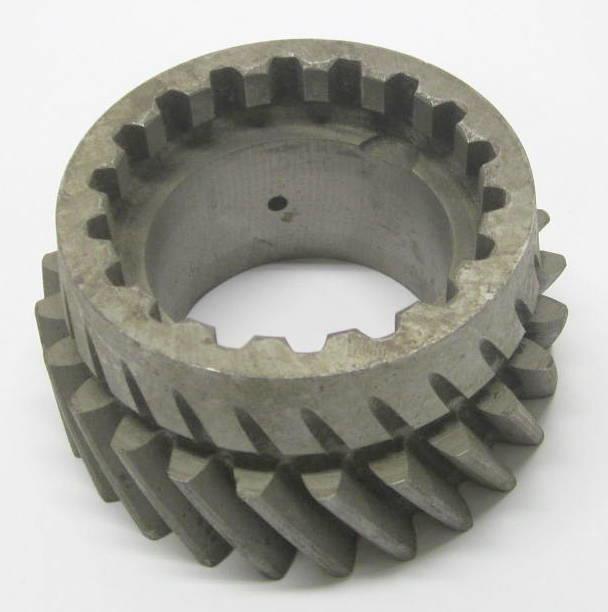

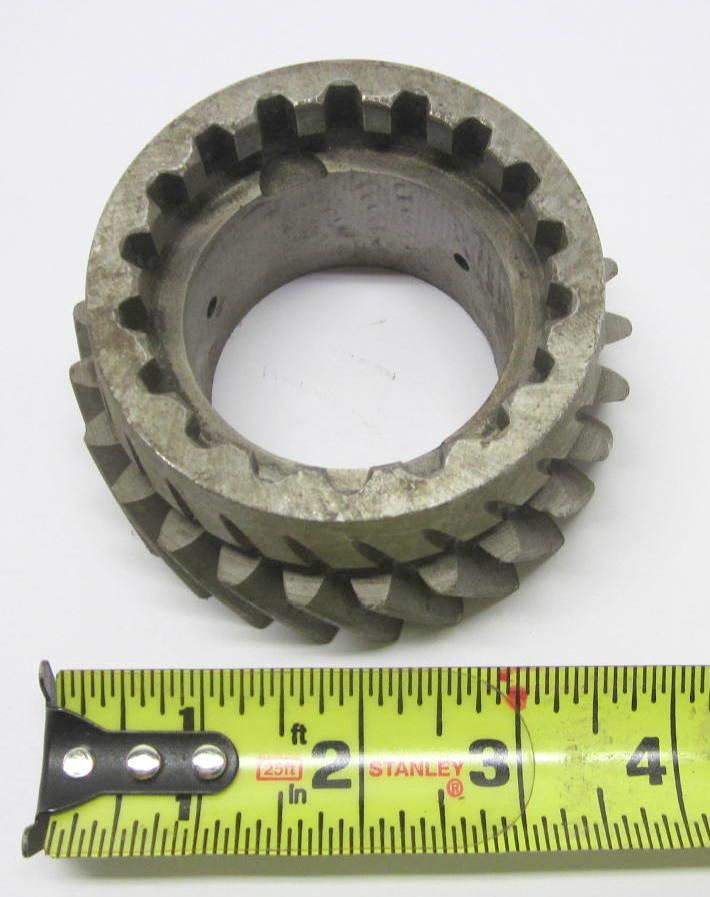

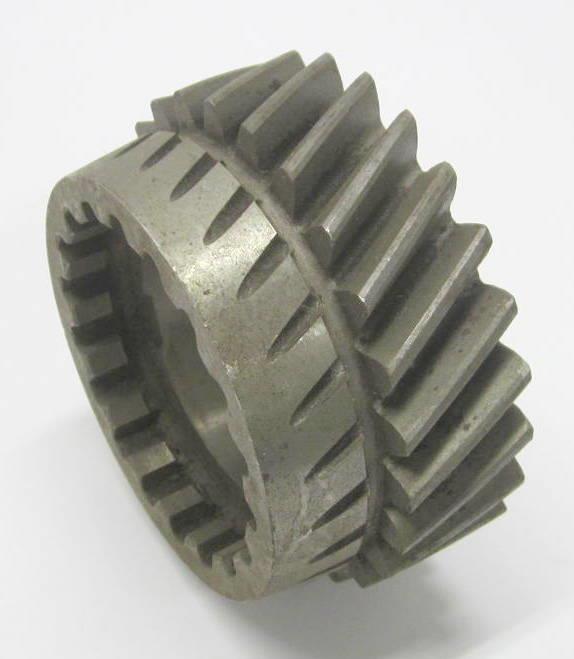

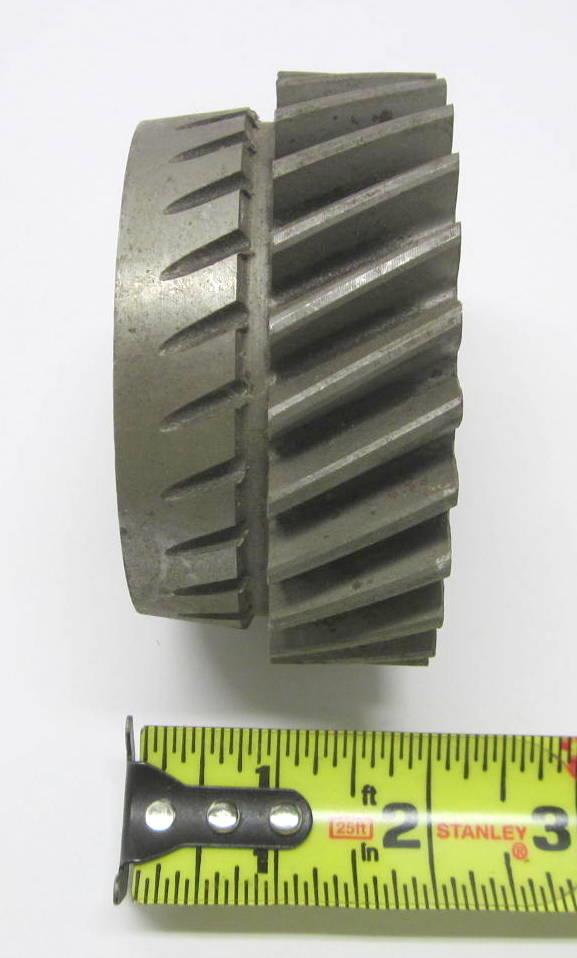

Helical Fifth Gear for 3053a Manual Transmission on 2-1/2 Ton Trucks M35 Series
- Fifth Gear on main shaft of 3053A Transmission used for M44A2 Trucks
- Body Style is Plain
- Spline Quantity is 18
- Pitch Diameter is 3.5119 Inches
- Teeth Quantity is 25
- Bore Style is Involute Spline First End
- Spline Pitch Diameter is 2.5714 Inches
- Teeth Type is Single Helix
- Tooth Form is Stub
- Tooth Direction is Left
- Pressure Angle is 20.000 Degrees
- Hubless Style Designator
Fits: Deuce and a Half 6x6 Military Truck
M35A2 M36A2 M109A3 M275 M45A2 2-1/2 Ton Trucks Equipped with a 3053 variant Manual 5 Speed Transmission
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
