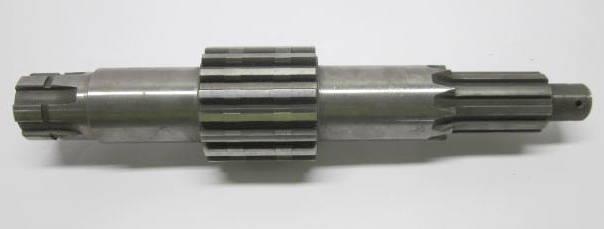

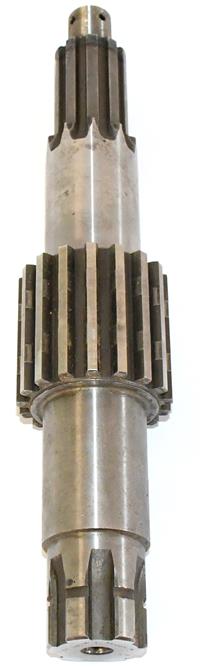

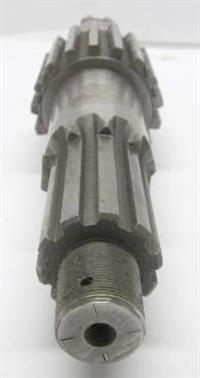

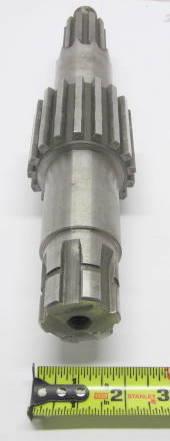

Shouldered Main Shaft Transmission Assembly Spicer 2053 Transmission M35A2
- Length: 14.563 in.
- First End Diameter: 1.7719 in.
- First End Spline Length: 0.969 in.
- First End Spline Minor Diameter: 1.4830 in.
- First End Spline Major Diameter: 1.7719 in.
- Largest Step Diameter: 2.994 in.
- Second End Diameter: 1.0000 in.
- Second End Hole Diameter: 0.1563 in.
- Second End Distance from Hole Center to End: 0.344 in.
- Second End External Thread Length: 0.813 in.
- Second End Hole Depth: 1.000 in.
- Step Quantity: 6
- First End Spline Quantity: 17
- Material: Steel
Fits: Deuce and a Half 6x6 Military Truck
M35, M35A1, M35A2, M35A3, M36, M36A1, M36A2, M36A3,M275, M109, M109A1, M109A3, M109A4, M275, 2 ½ Ton Trucks
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
