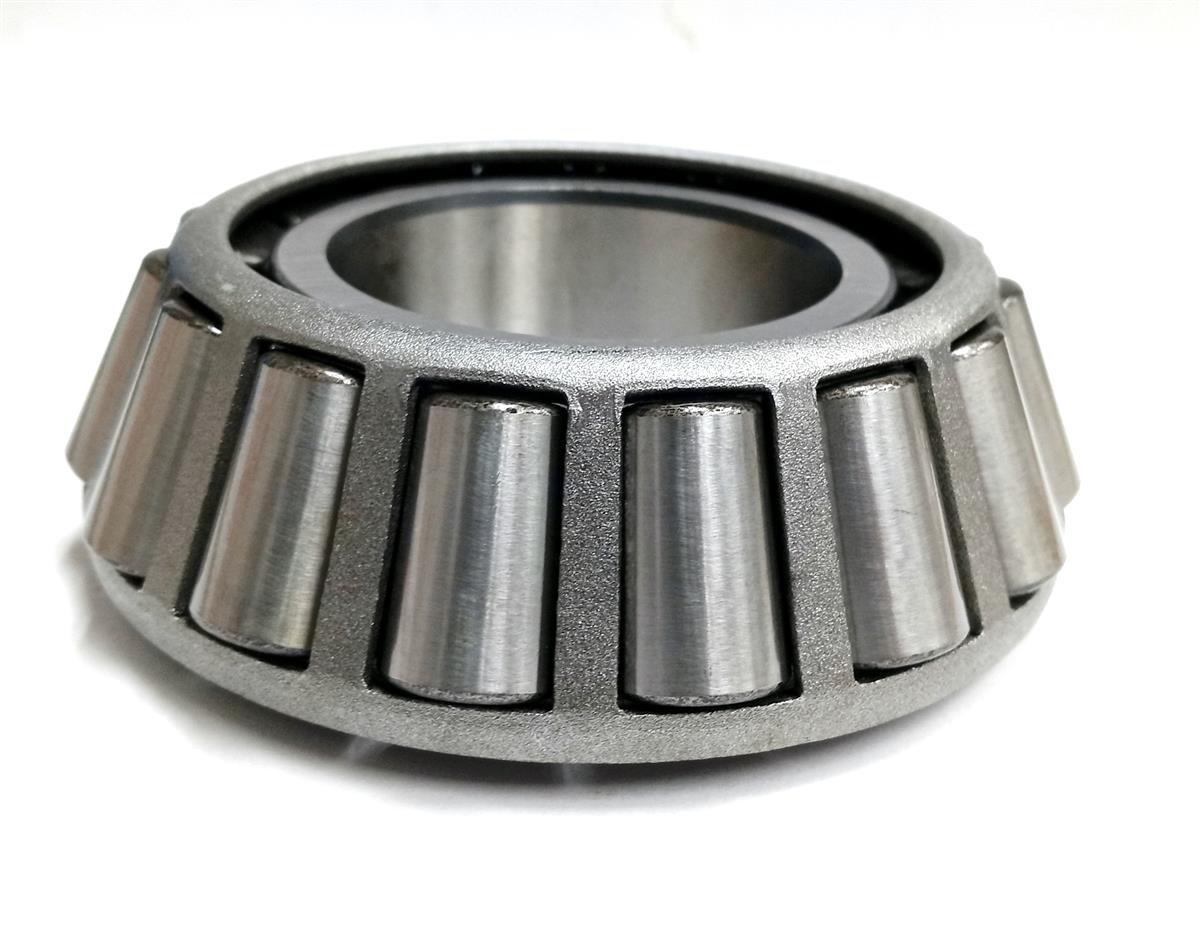

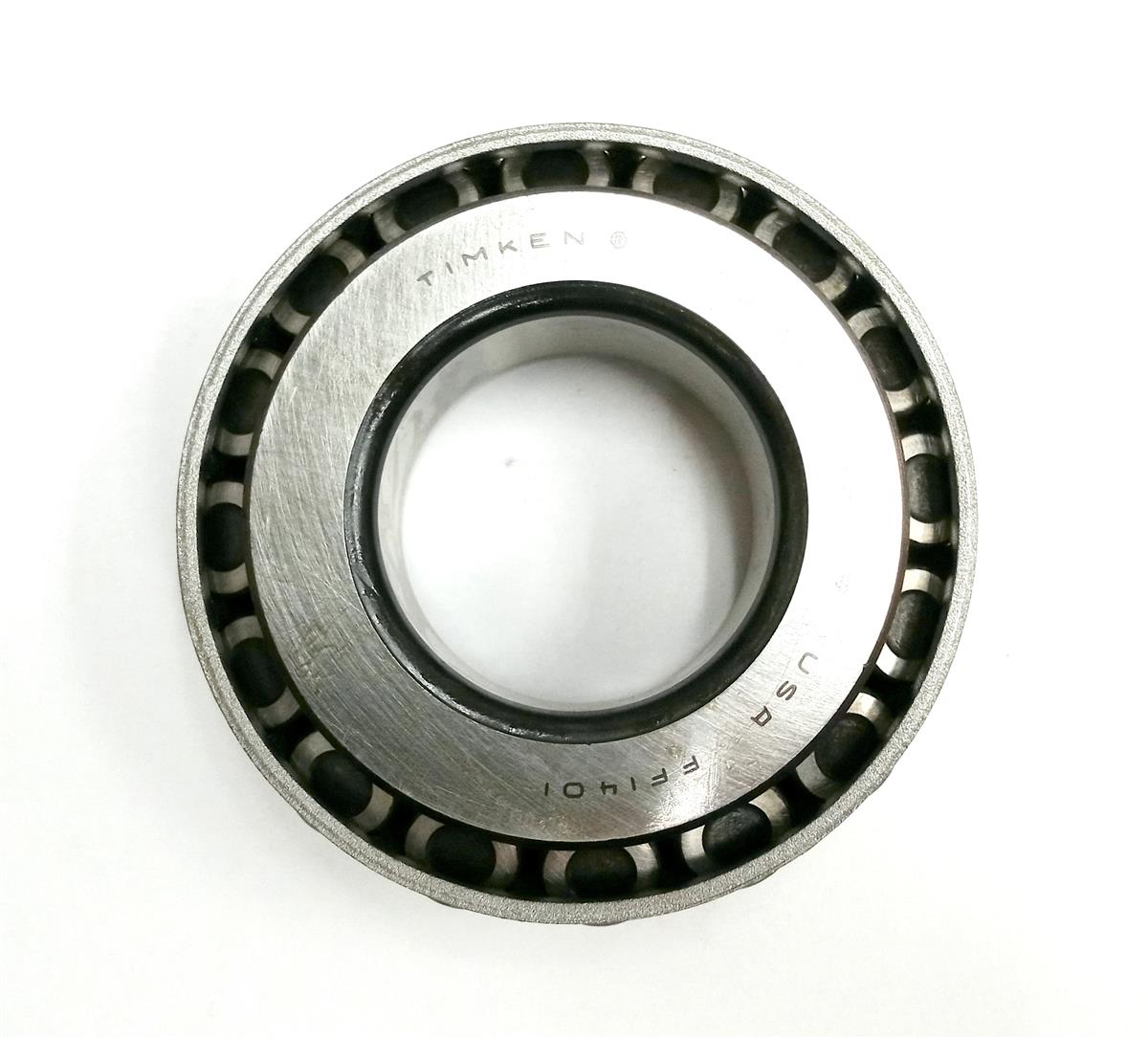

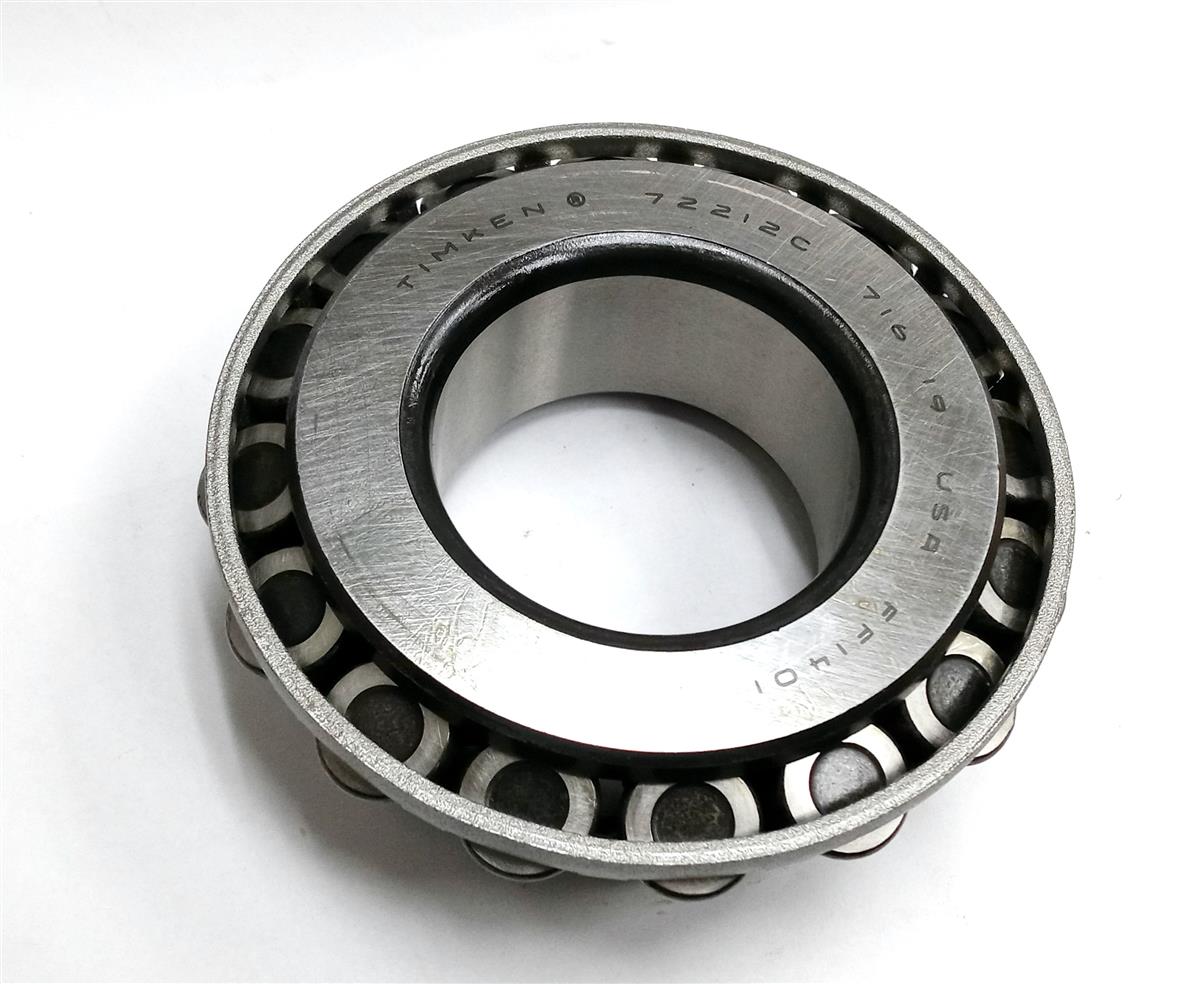

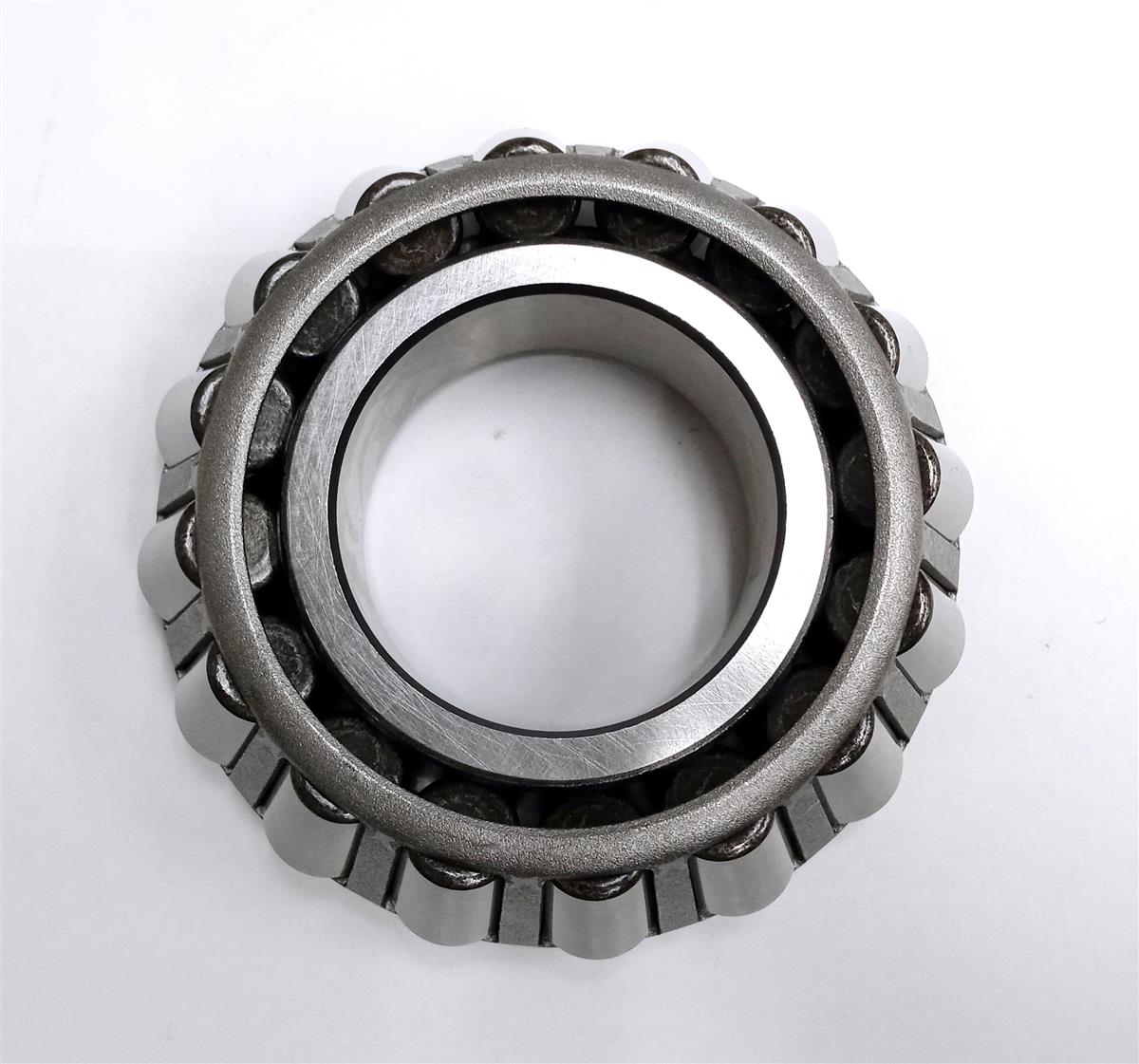

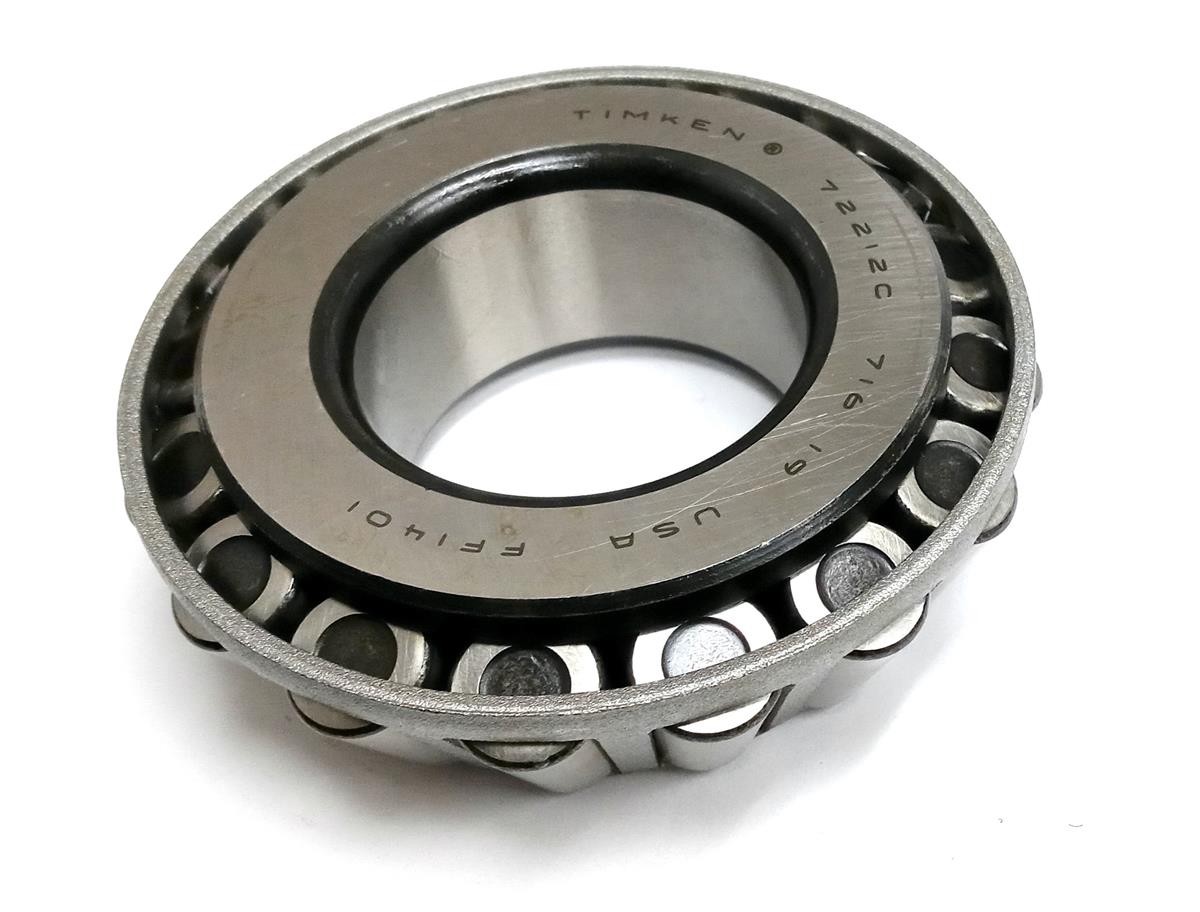

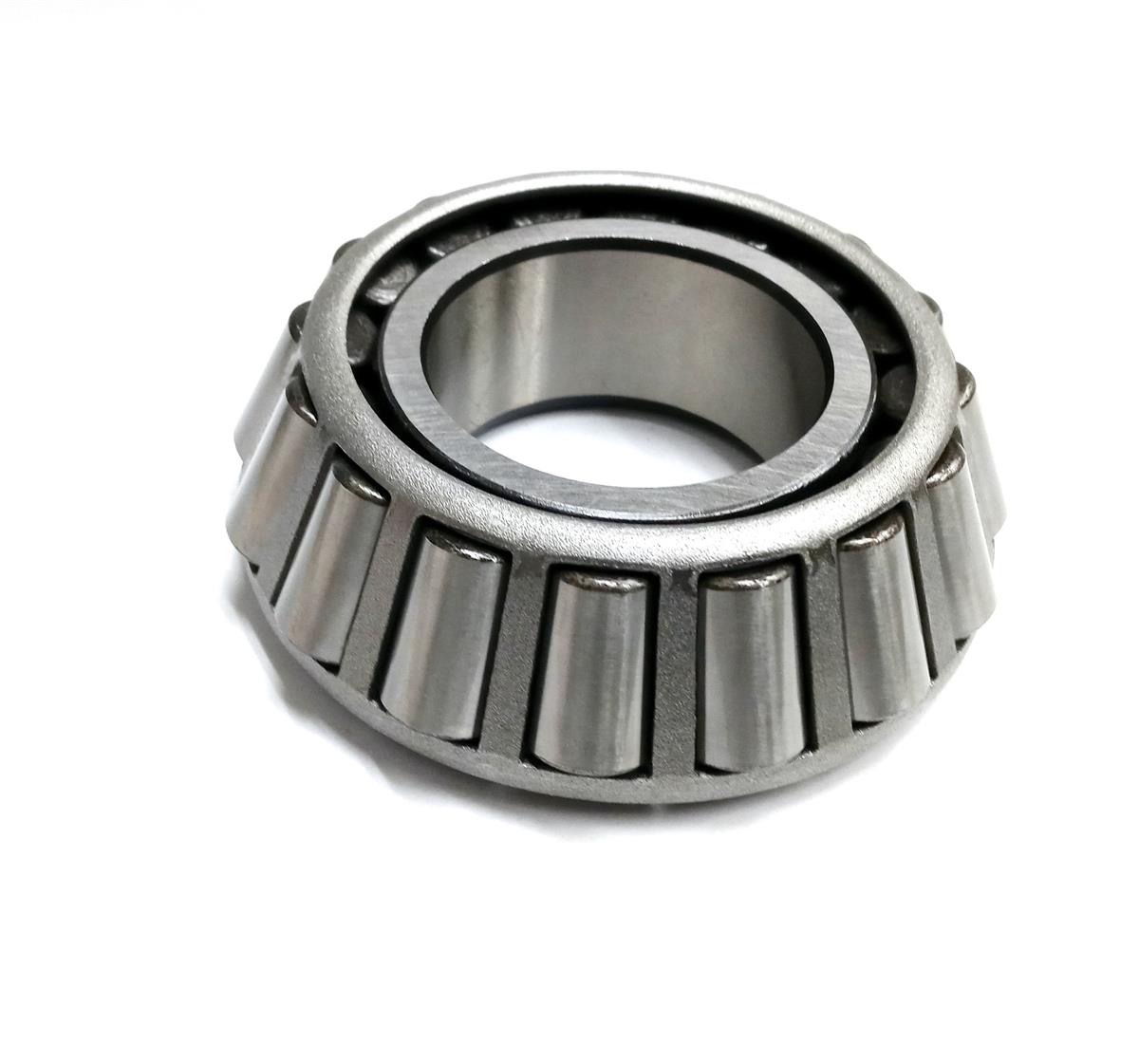

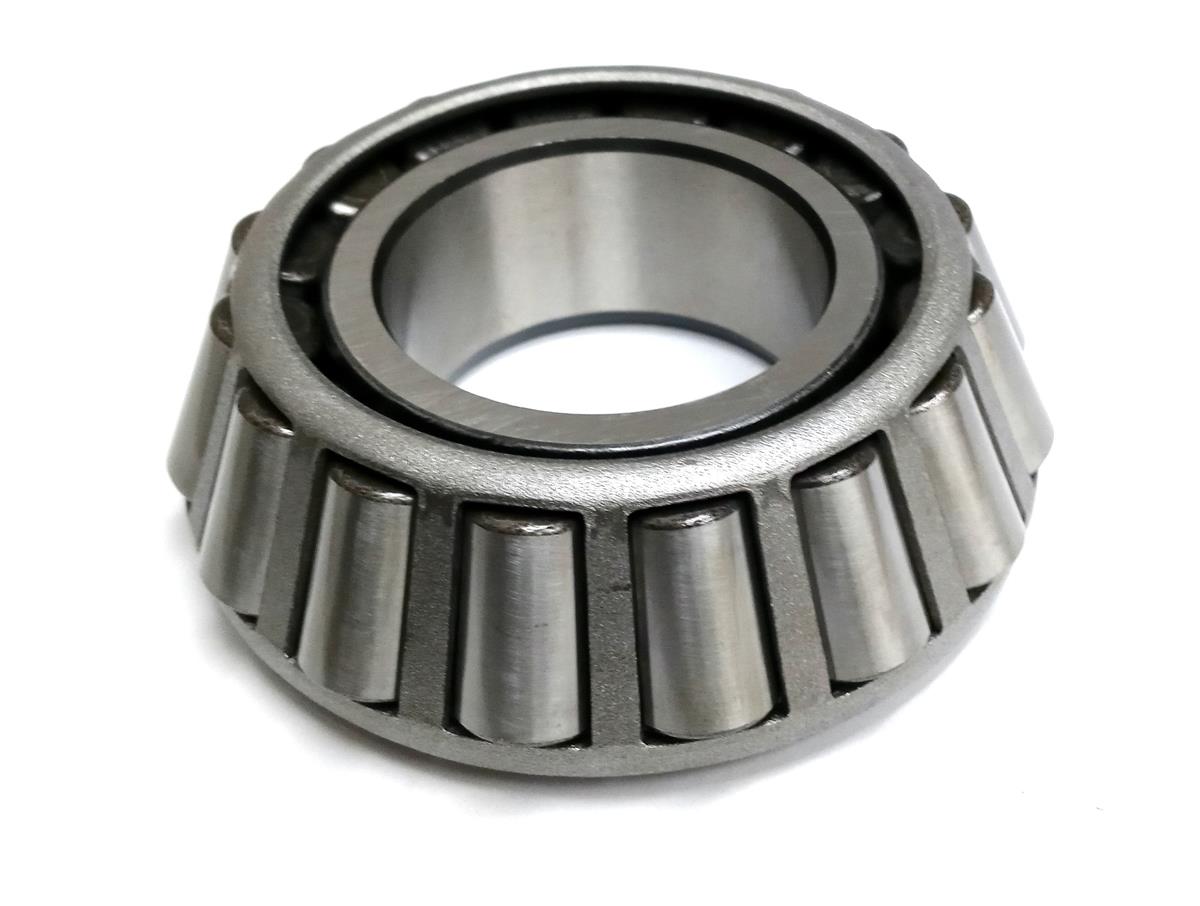

Single Cone Tapered Roller Bearing For Front And Rear Axle Differential Assembly

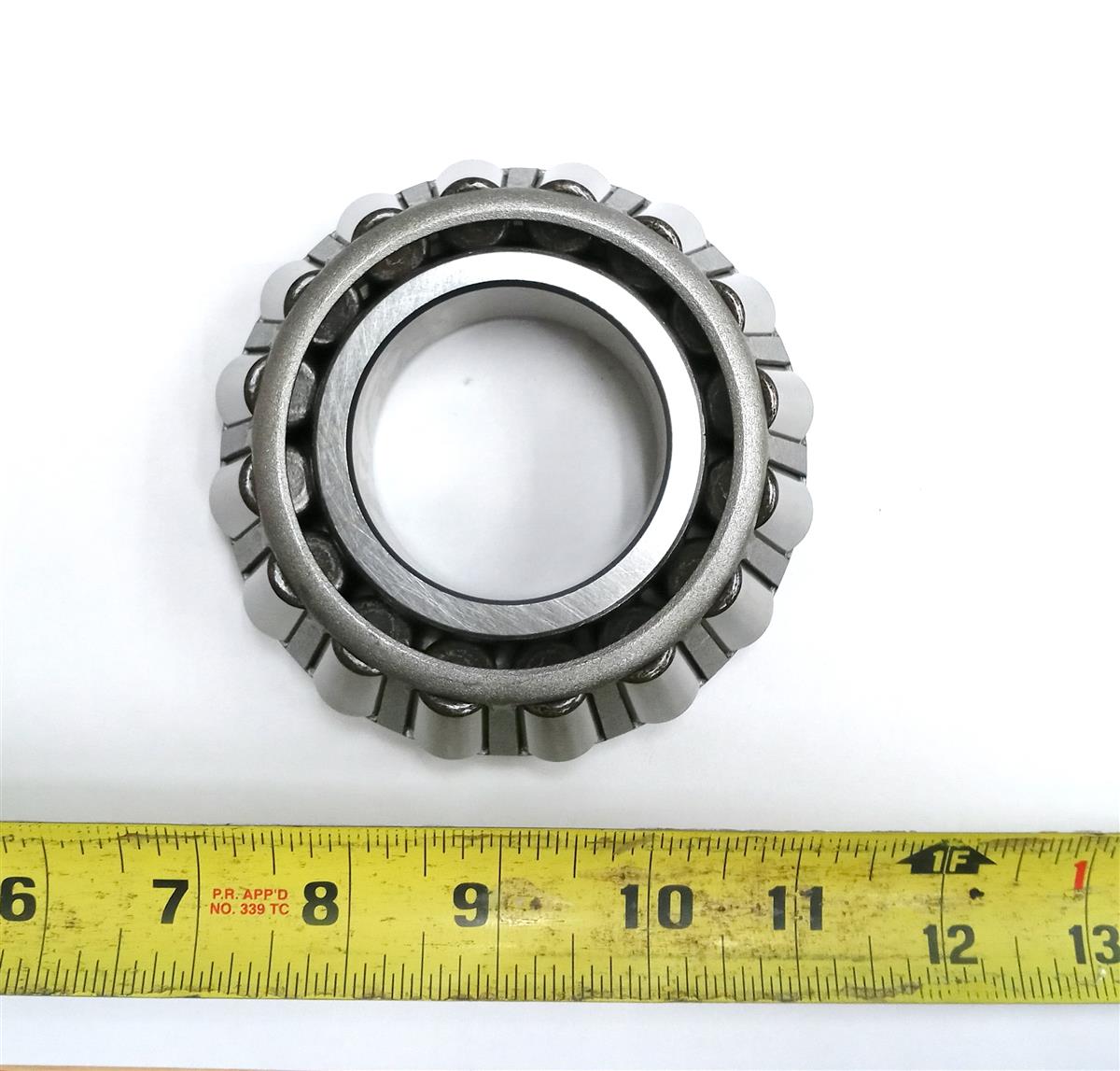

- Length: Approximate: 4 inches
- Height: Approximate 2 inches
- Cone Width: 1.2910 inches
- Bore Diameter: 2.1250 inches
- Material: Steel

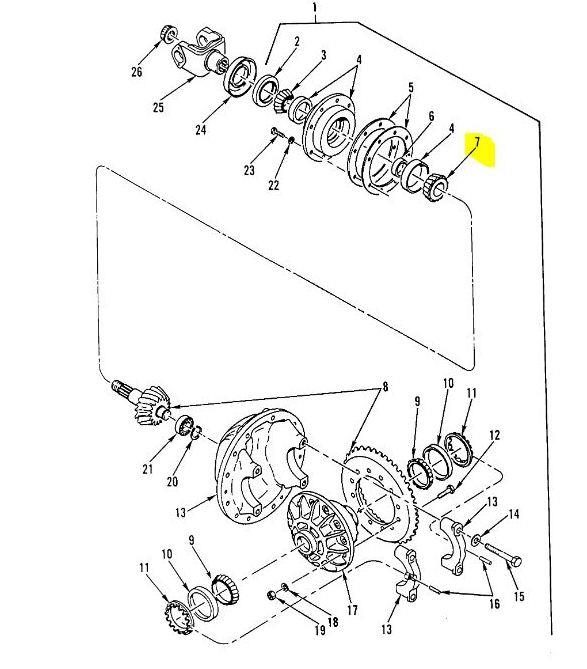

- #7 in Diagram
- Single cone (inner ring) for connecting to compatible cups (outer rings, sold separately) to form a complete single tapered roller bearing
- Supports both radial and axial loads between a rotating and non-rotating member
- Operating temperatures range from -54 to 120 degrees C (-65 to 250 degrees F)
- Stamped steel cage evenly spaces rollers for reduced friction, vibration, and noise
- Open configuration for lubrication applied in place
Fits: FMTV – 5 ton Variants (for all parts that fit any 5 ton FMTV) , HEM – Heavy Expanded Mobility Tactical Truck (HEMTT) , MRAP Military Truck, M915 Series
M1083 M1084 M1085 M1086 M1087 M1088 M1089 M1090 M1091 M1095 M1096 5-Ton Trucks
HEMTT
M977, M978, M984, M985
MRAP
BAE/AH CAT I (MRAP)
BAE/AH CAT 2 (MRAP)
M915
M915, M915A1, M915A2, M915A3, M916, M916A1, M916A2, M916A3, M917, M918, M919, M920 Series
LVS MK48 Trailer Family
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
