Hydraulic Winch Pump PTO M35A3
Originally powered the front winch but can be used to run other custom installed PTO accessories.
Pump mounts on the engine accessory drive at rear of the air compressor.
12 GPM @ 1200 RPM Length 8.400 In
2.46 cu. In. Height 5.500 In
3000 PSI continuous Width 5.100 In
2-bolt flange/ 11 tooth - spline shaft
Max pump RPM - 2500
Side and rear ports

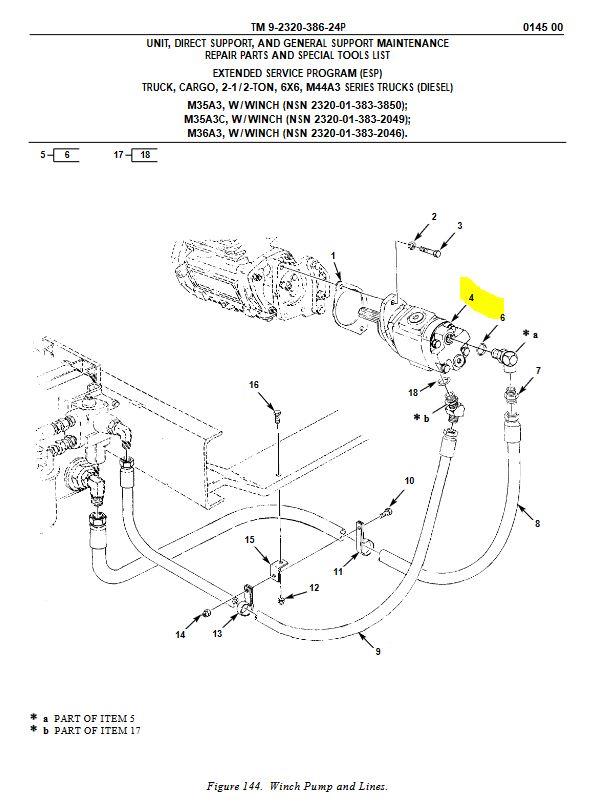

Item No. 4 in Diagram
Fits: Deuce and a Half 6x6 Military Truck
2 ½ ton Caterpillar trucks (CAT engine, Allison Automatic trans) (M35A3 and Variants)
M35A3, M36A3, M109A4 2 ½ Ton Trucks
