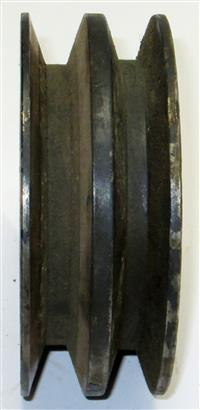

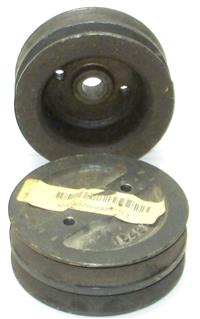

Water Pump Pulley Cummins Small Cam NHC250
V Belt
1 pulley per sale
Groove Depth 0.562 IN Min 0.602 IN Max
Groove Width 0.611 IN Min 0.675 Max
Outside Diameter 4.700 IN Min 4.720 Max
Thread Size 3/8-16
Bore Diameter 0.666 IN Min 0.667 IN Max
Bore Length 0.690 In Min 0.700 In Max
Groove Angle 36.5 Degrees
Pitch Diameter 4.438 IN Min 4.468 IN Max
Securing Hole Qty 2
Face Width 1.740 IN Min 1.770 IN Max
Design Form Webbed
Bore Type Straight
Item 12 in Attached Diagram
Click Here For Water Pump with Pulley Cummins Small Cam NHC250
Fits: 5 Ton Military Truck
M939, M939A1, M923, M923A1, M925, M925A1, M927, M927A1, M929, M929A1, M930, M930A1, M931, M931A1 Military 5 Ton Trucks equipped with NHC250 Cummins diesel engine
