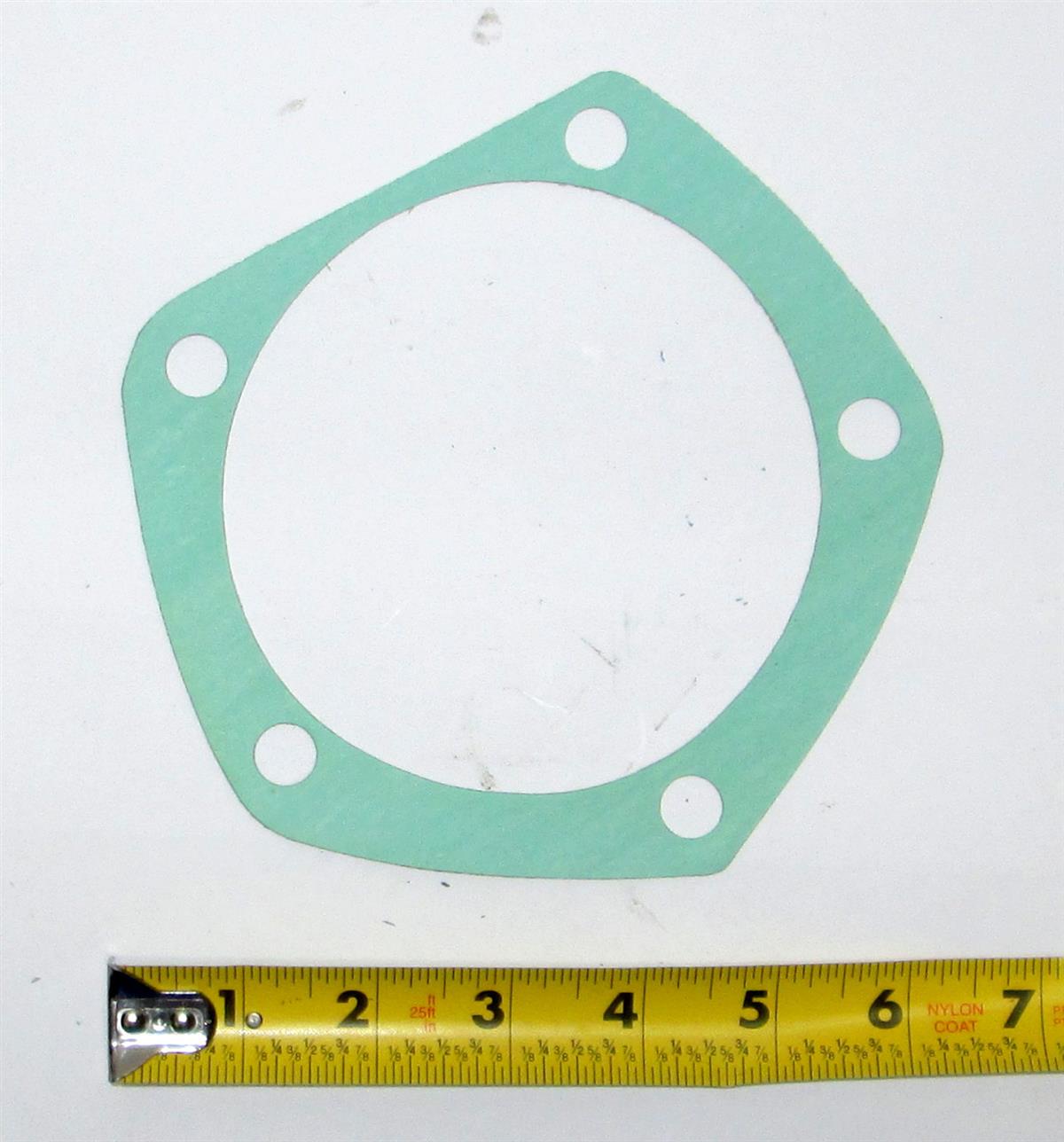

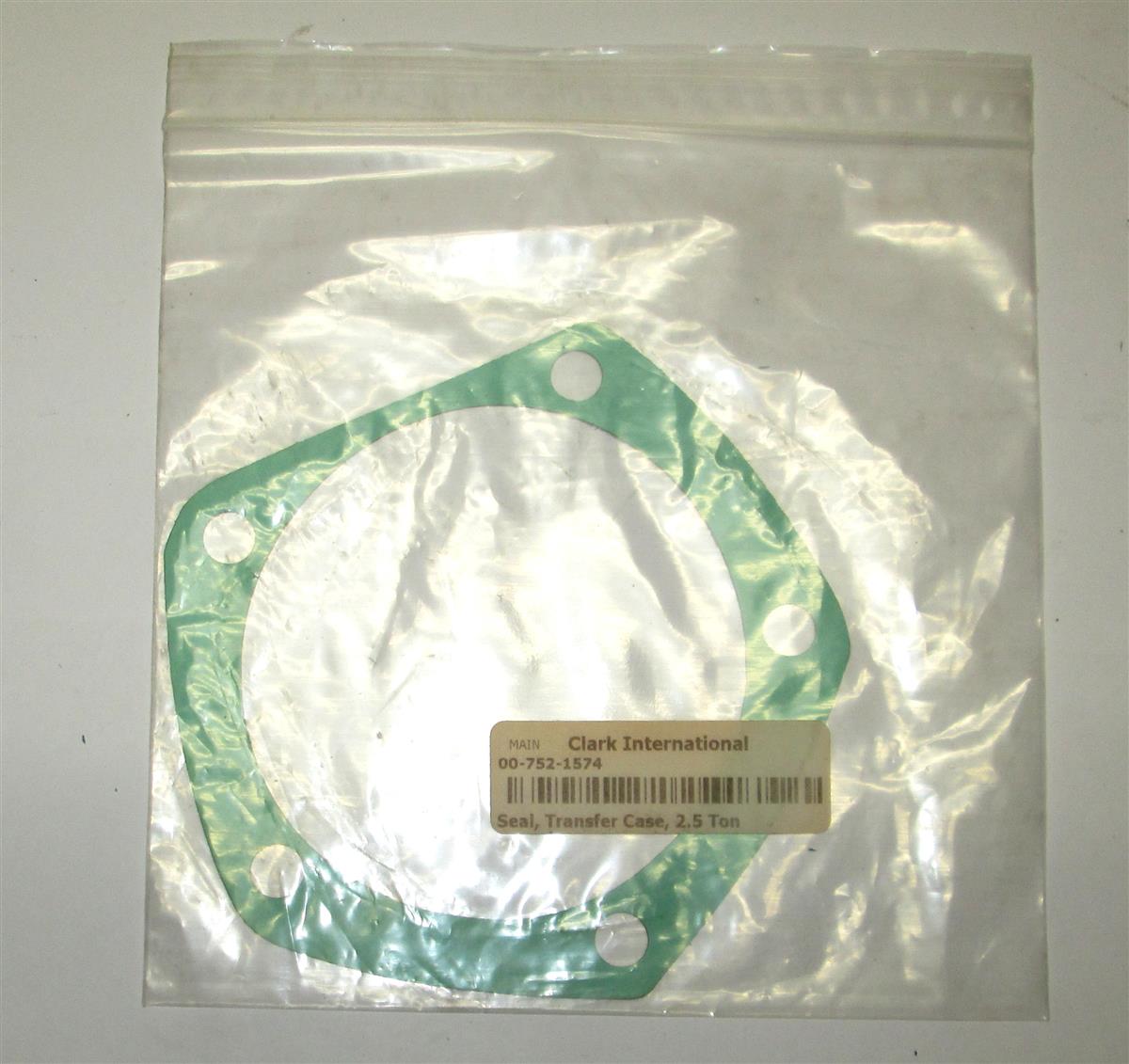

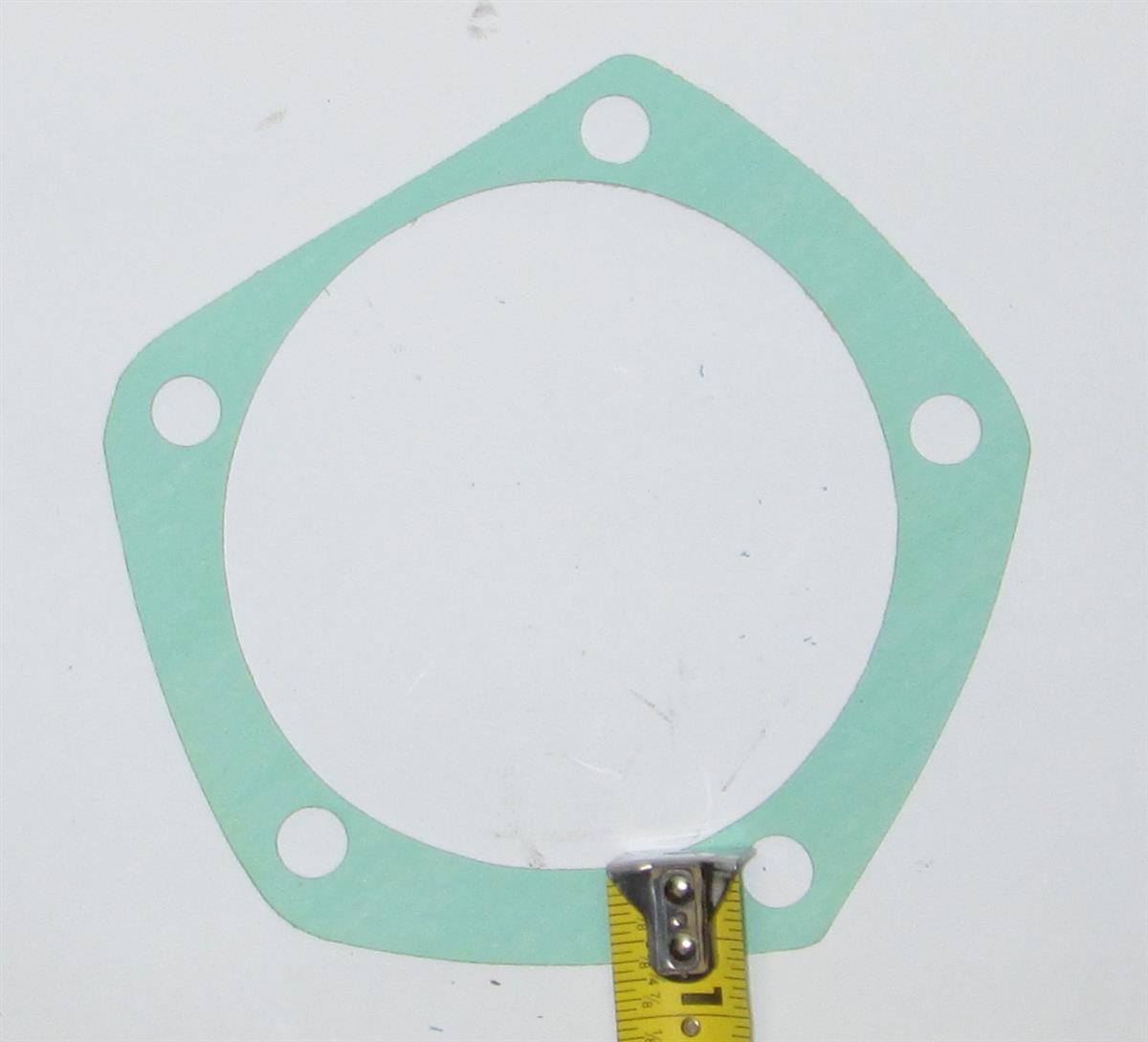

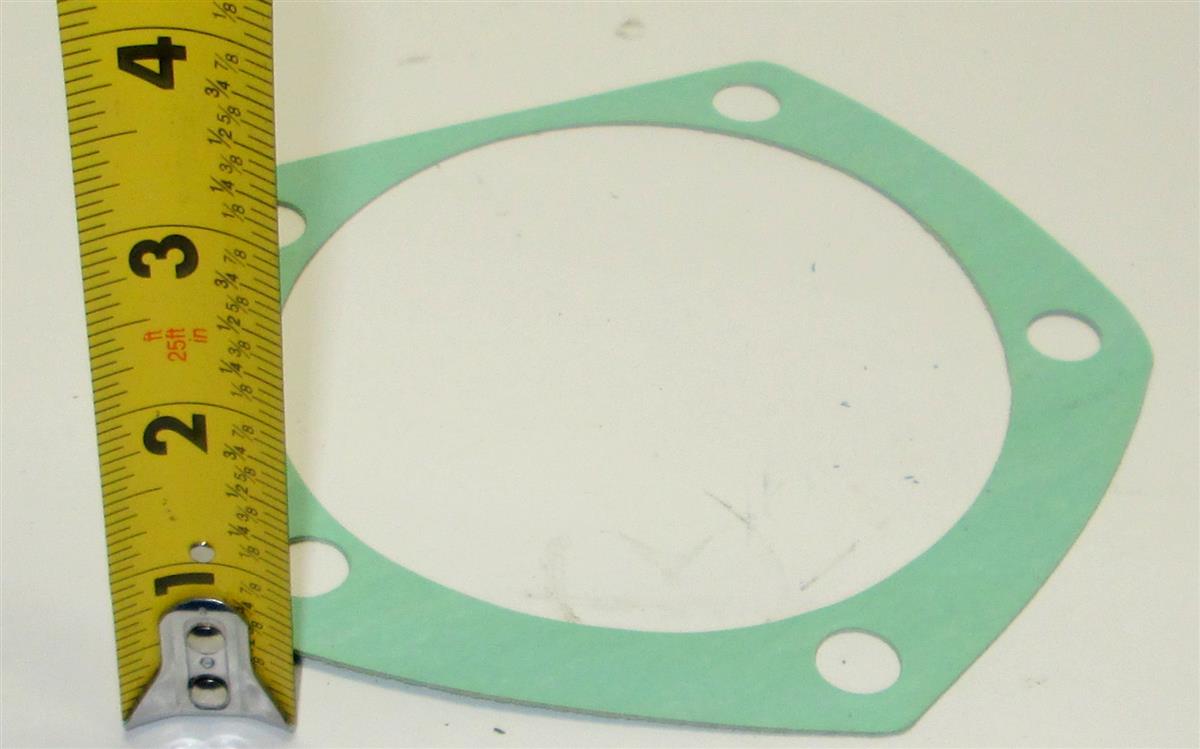

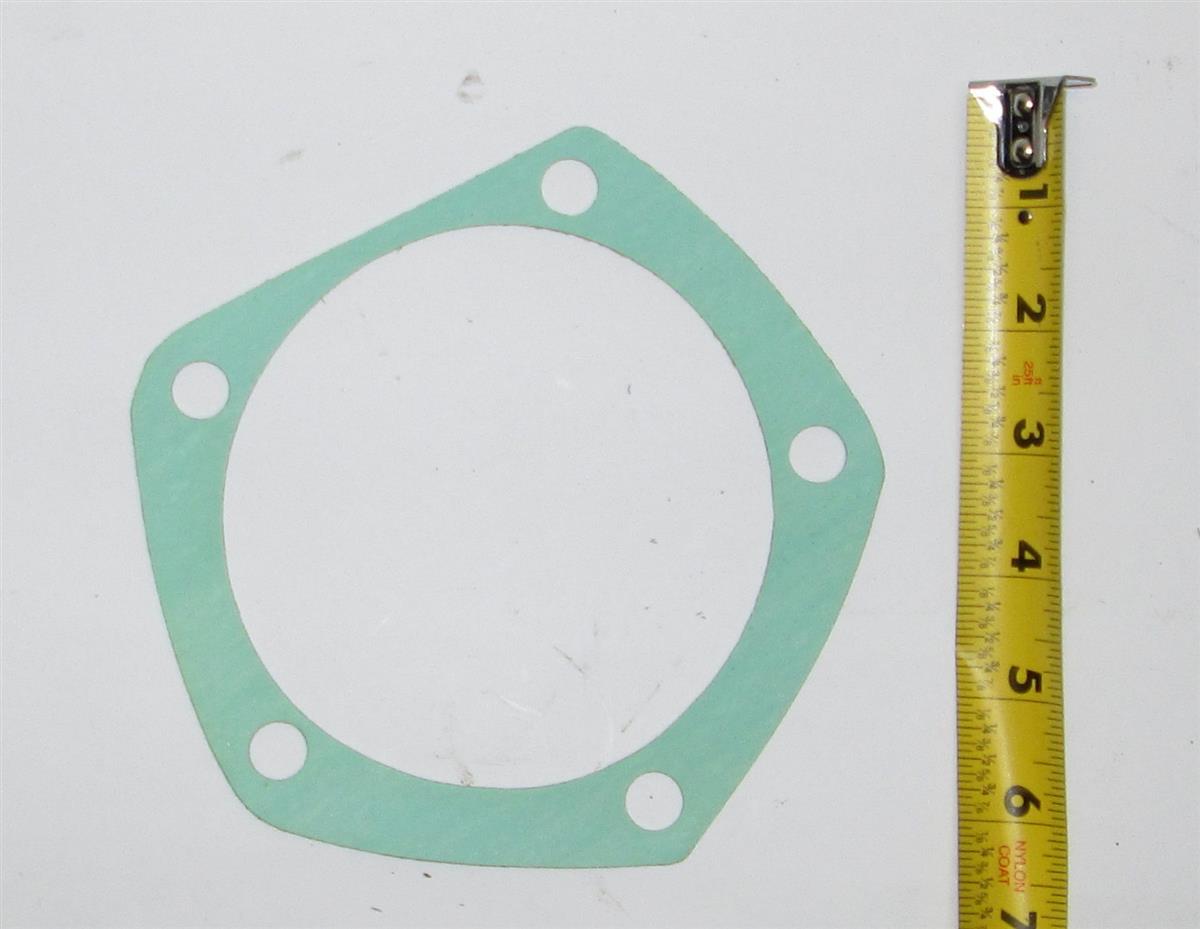

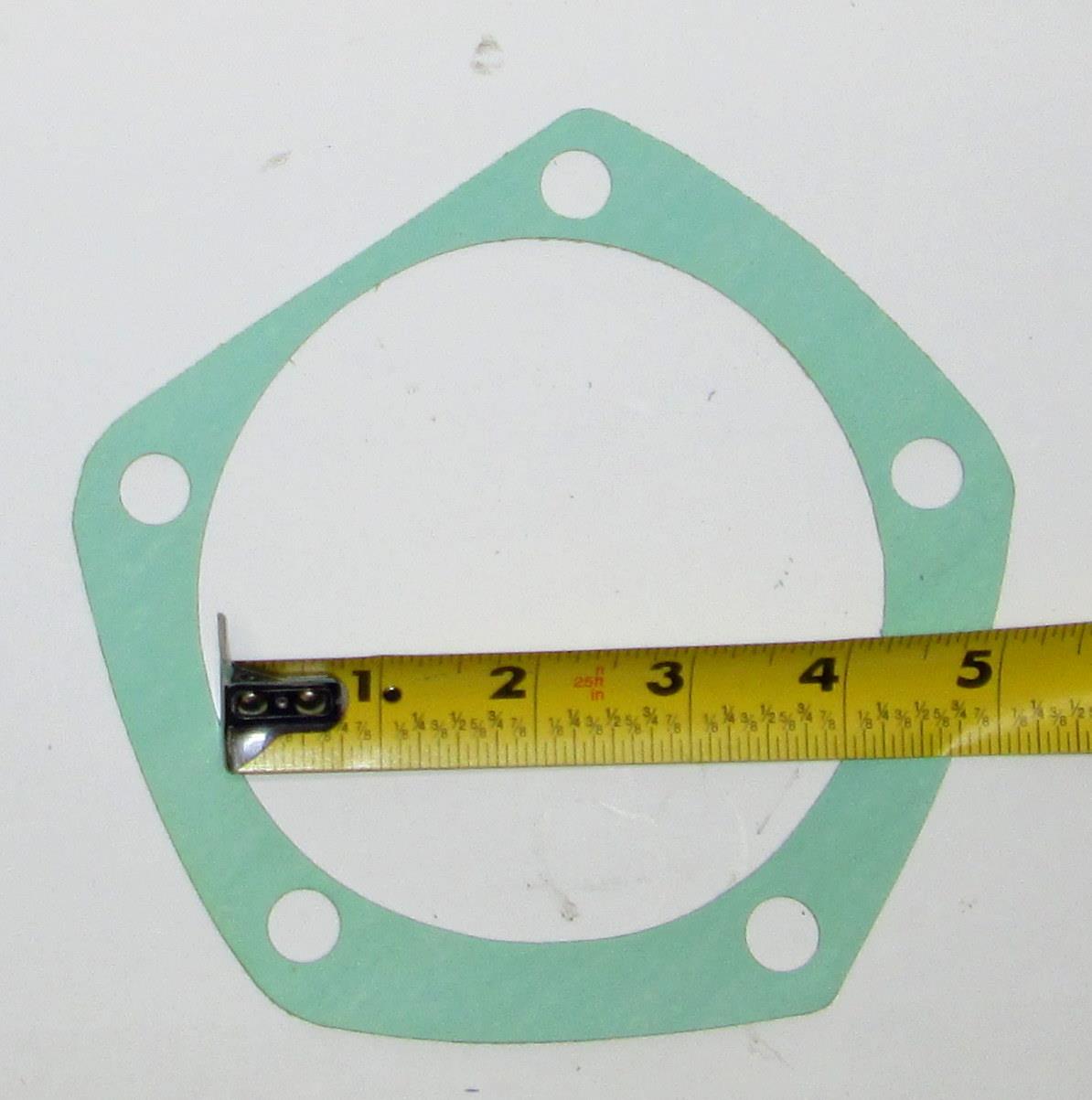

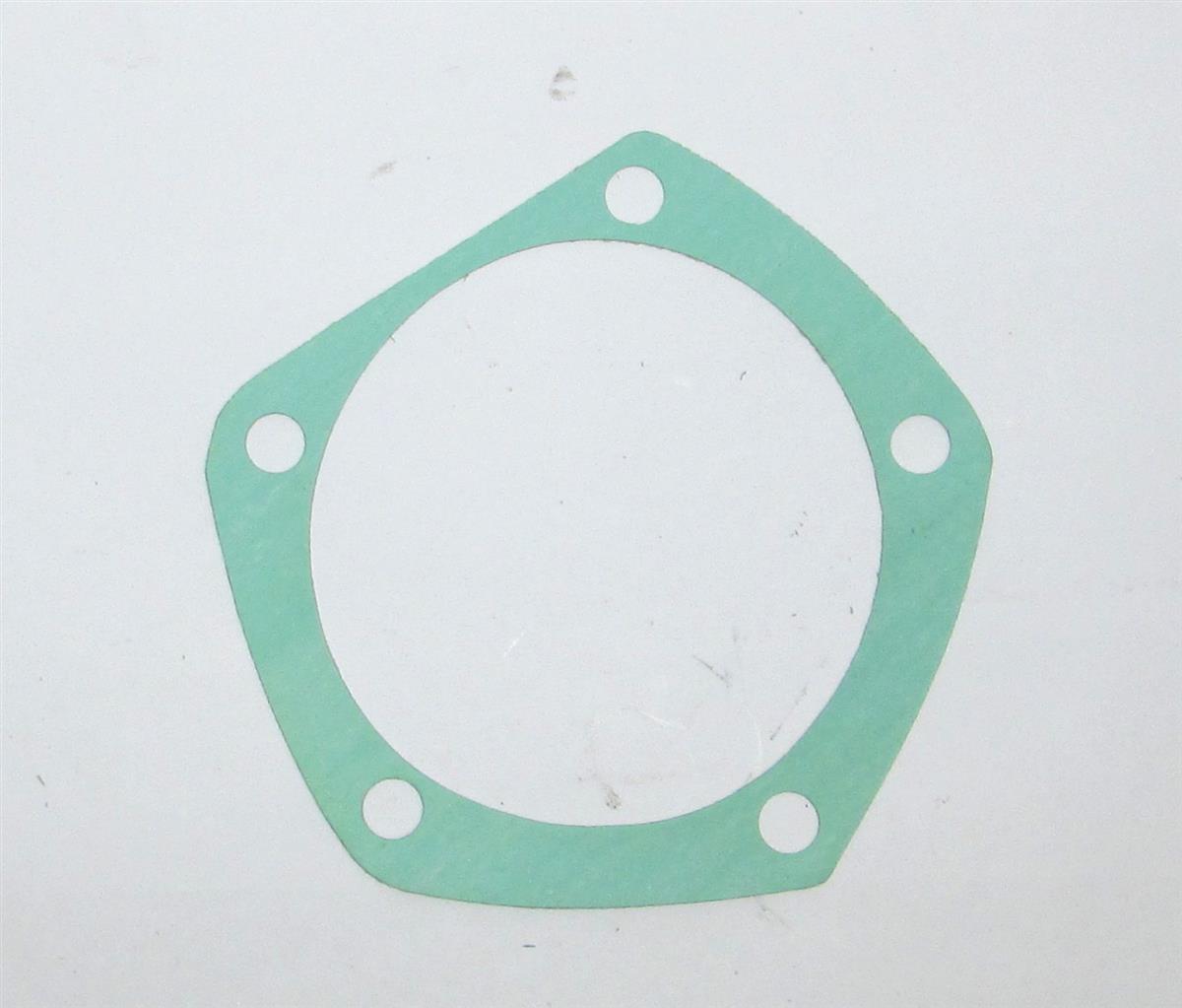

Transfer Case Seal Gasket M35 M35A2 M35A3
Cross-Sectional Shape Style Solid Single or Composition
Hole Diameter 0.468 IN
Bolt Circle Diameter 5.375 IN
Overall Width 6.000 IN
Aperture Diameter 4.656 IN
Gasket Center to Flat Distance 2.531 IN
Cross-Sectional Thickness 0.030 IN
Fits: Deuce and a Half 6x6 Military Truck
2 ½ ton multifuel trucks (M35A2 and Variants)
M35A2, M49A2, M50A2, M36A2, M109A3, M275 2 ½ Ton Trucks
2 ½ ton Caterpillar trucks (CAT engine, Allison Automatic trans) (M35A3 and Variants)
M35A3, M36A3, M109A4 2 ½ Ton Trucks
All 2 ½ ton (except LMTV) (All M35 series and variants)
M35, M35A1, M35A2, M35A3, M36, M36A1, M36A2, M36A3, M275, M109, M109A1, M109A3, M109A4 2 ½ Ton Trucks
