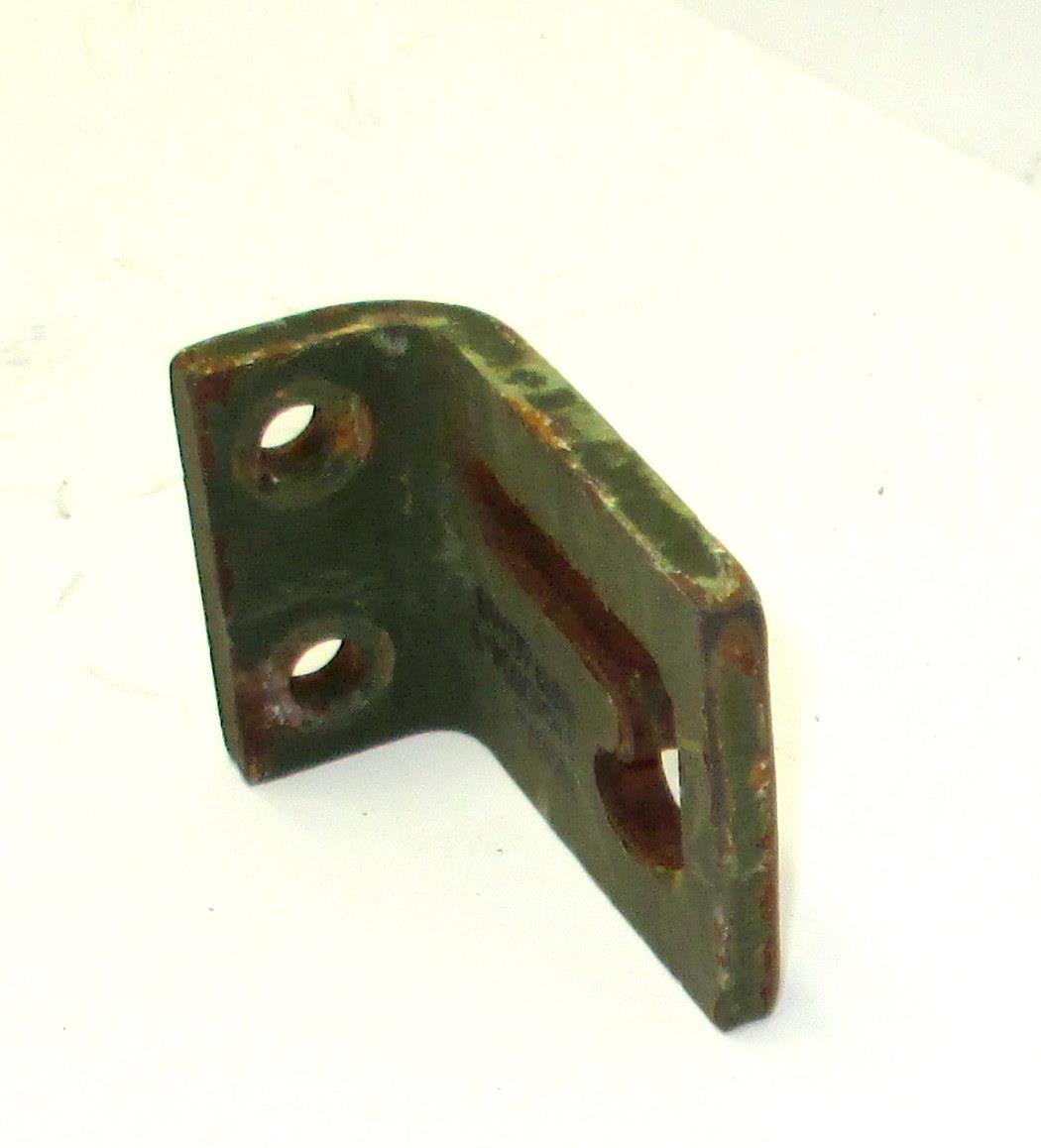

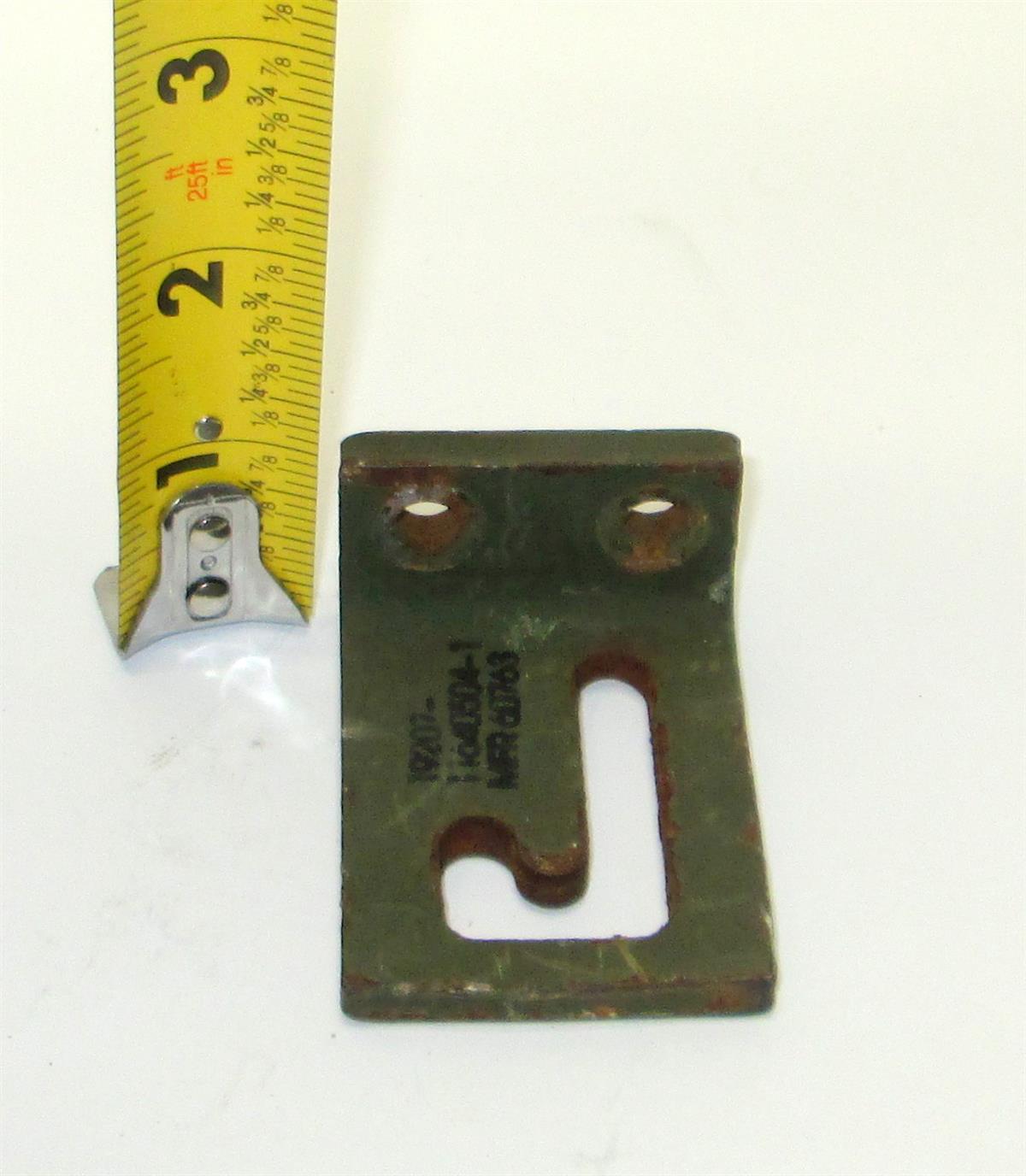

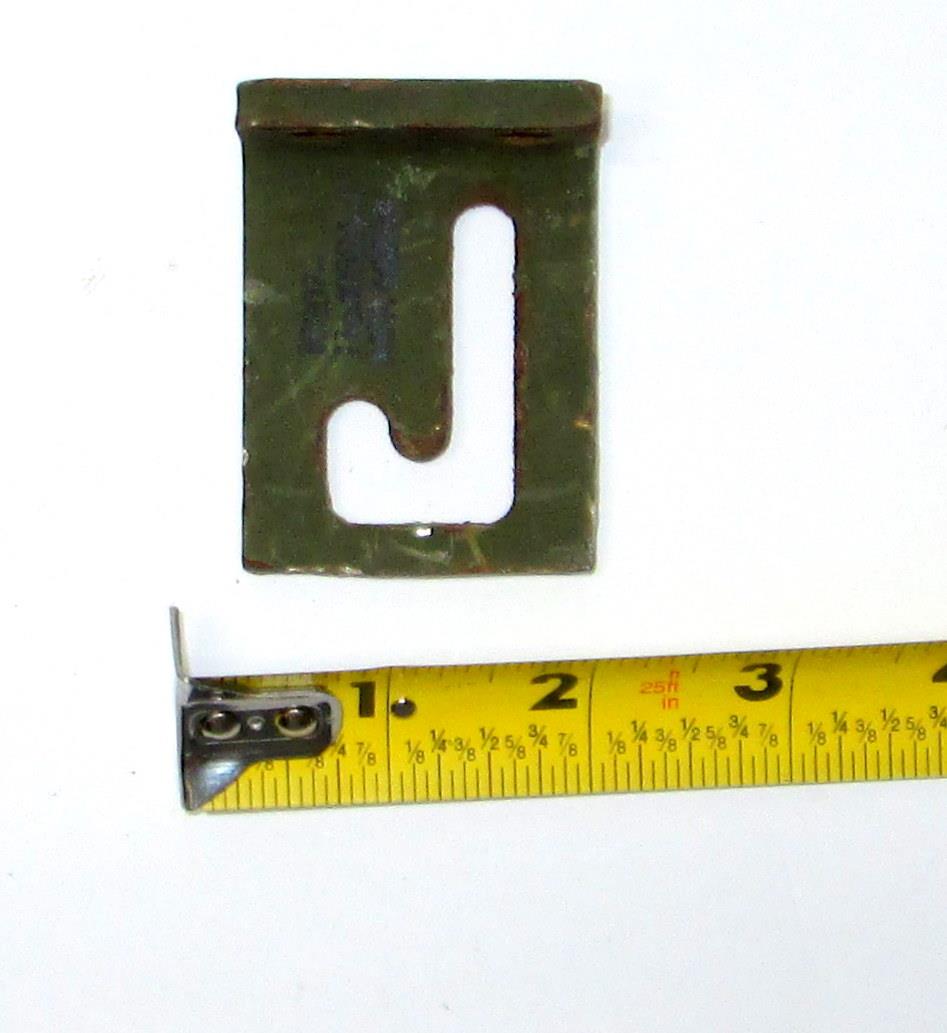

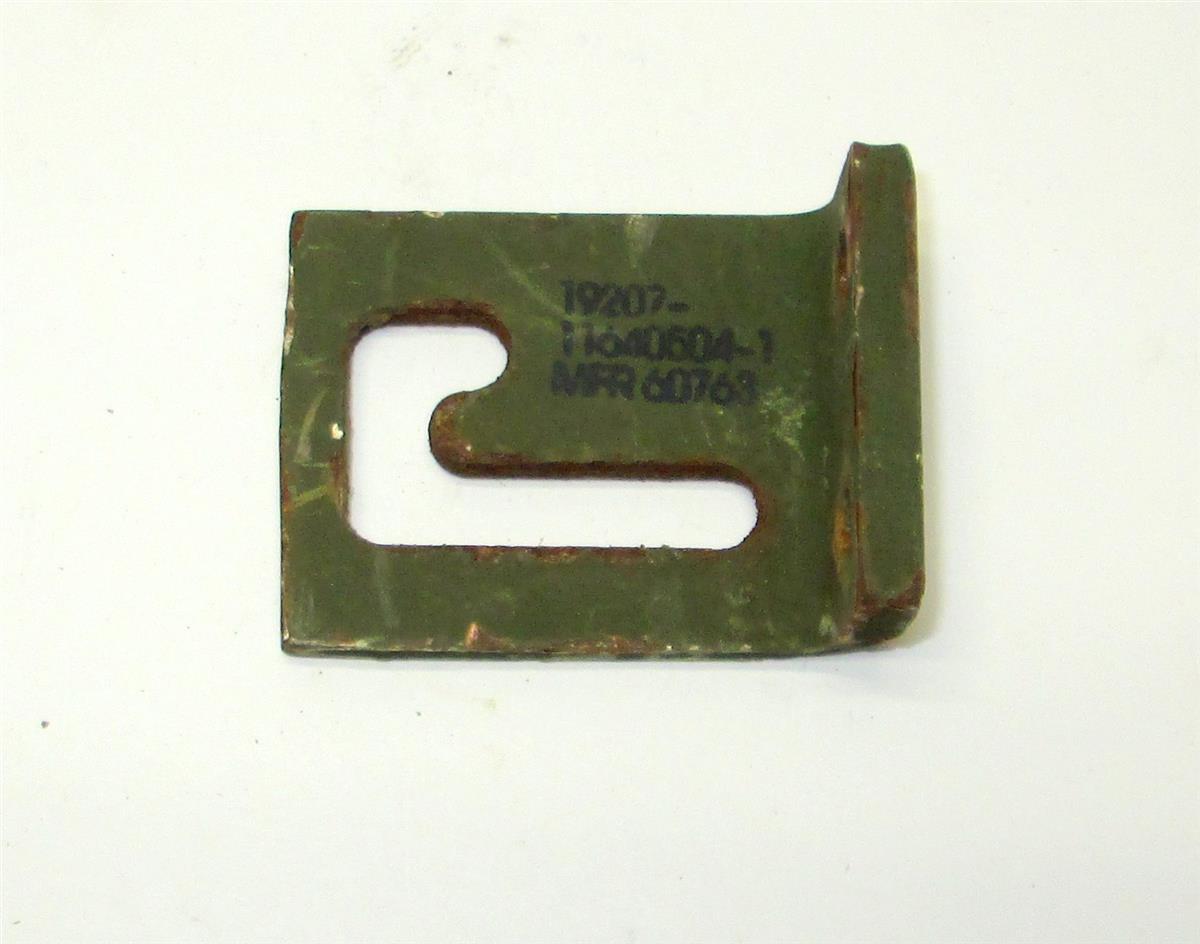

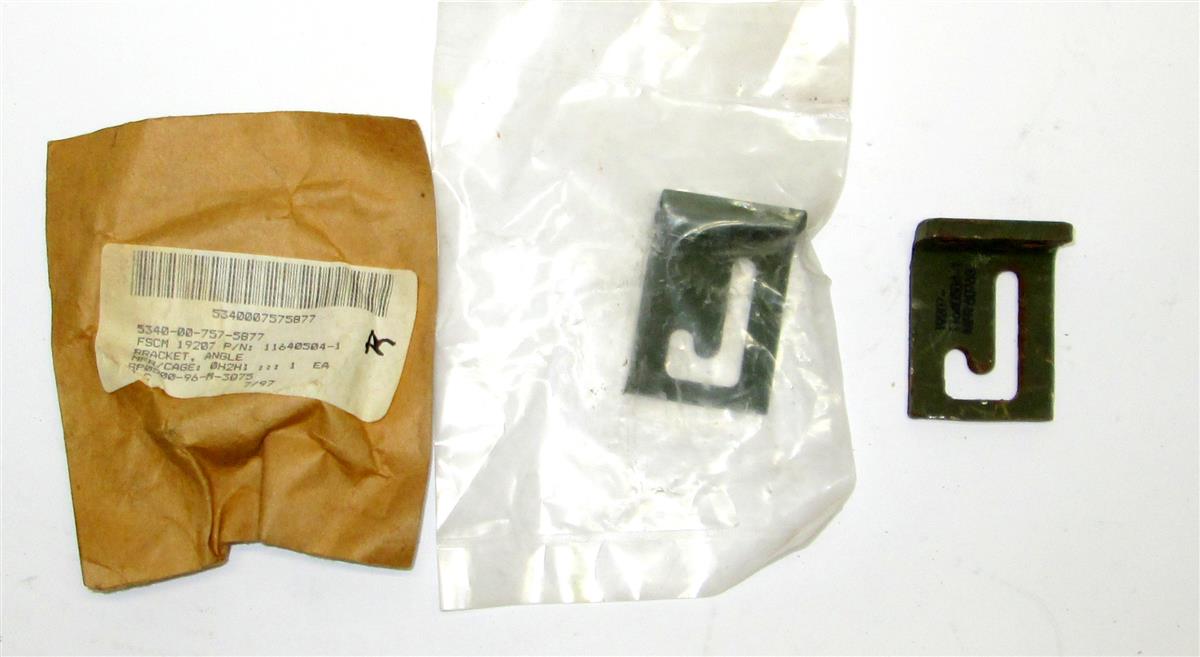

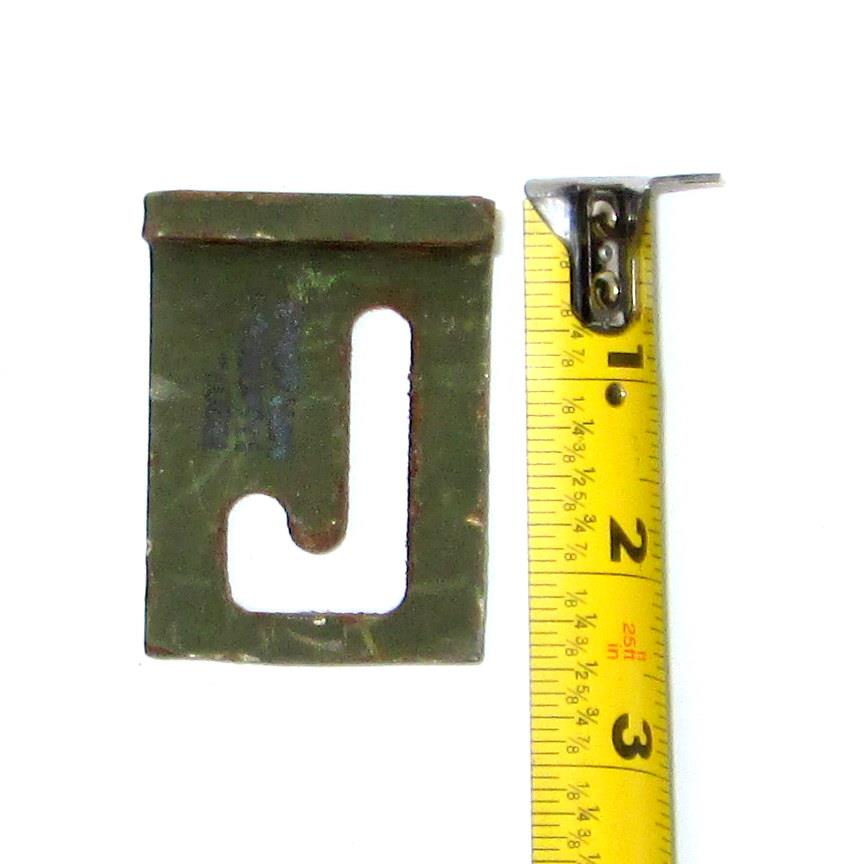

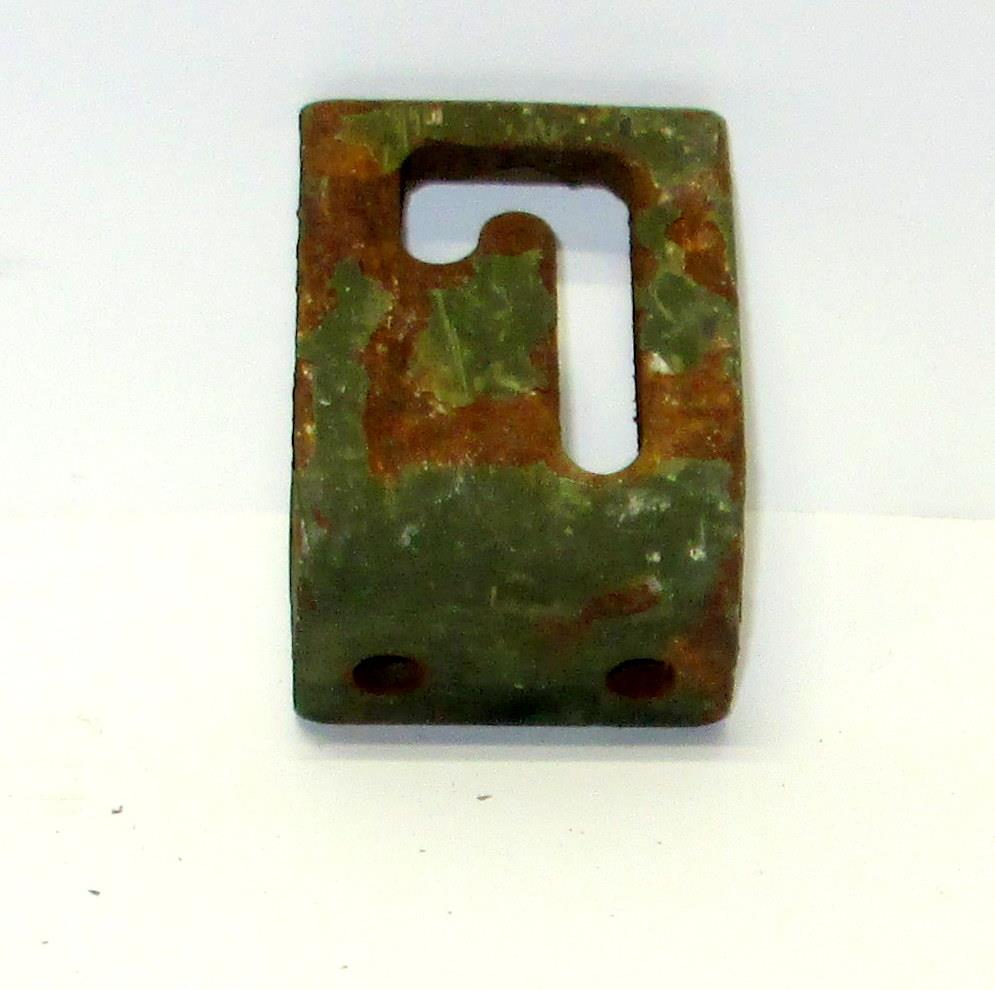

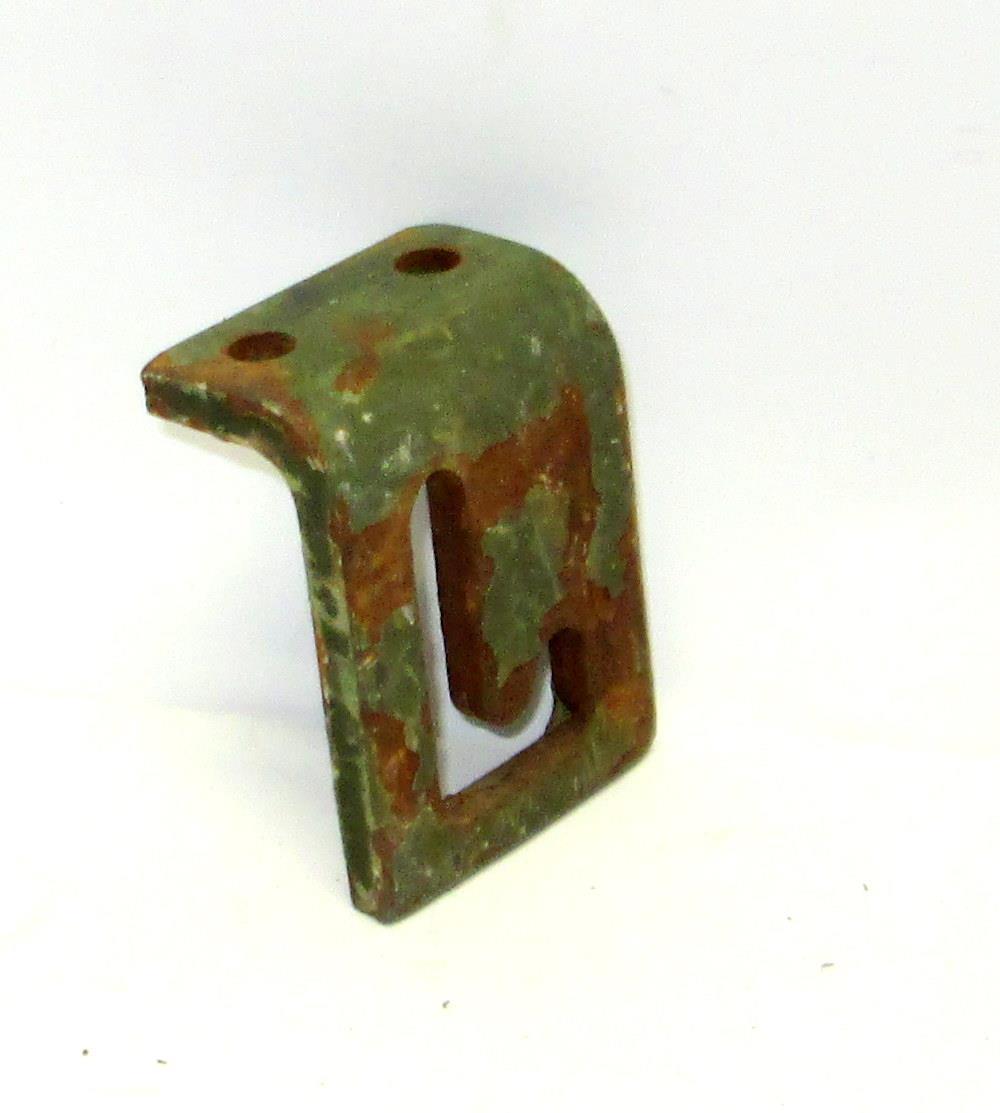

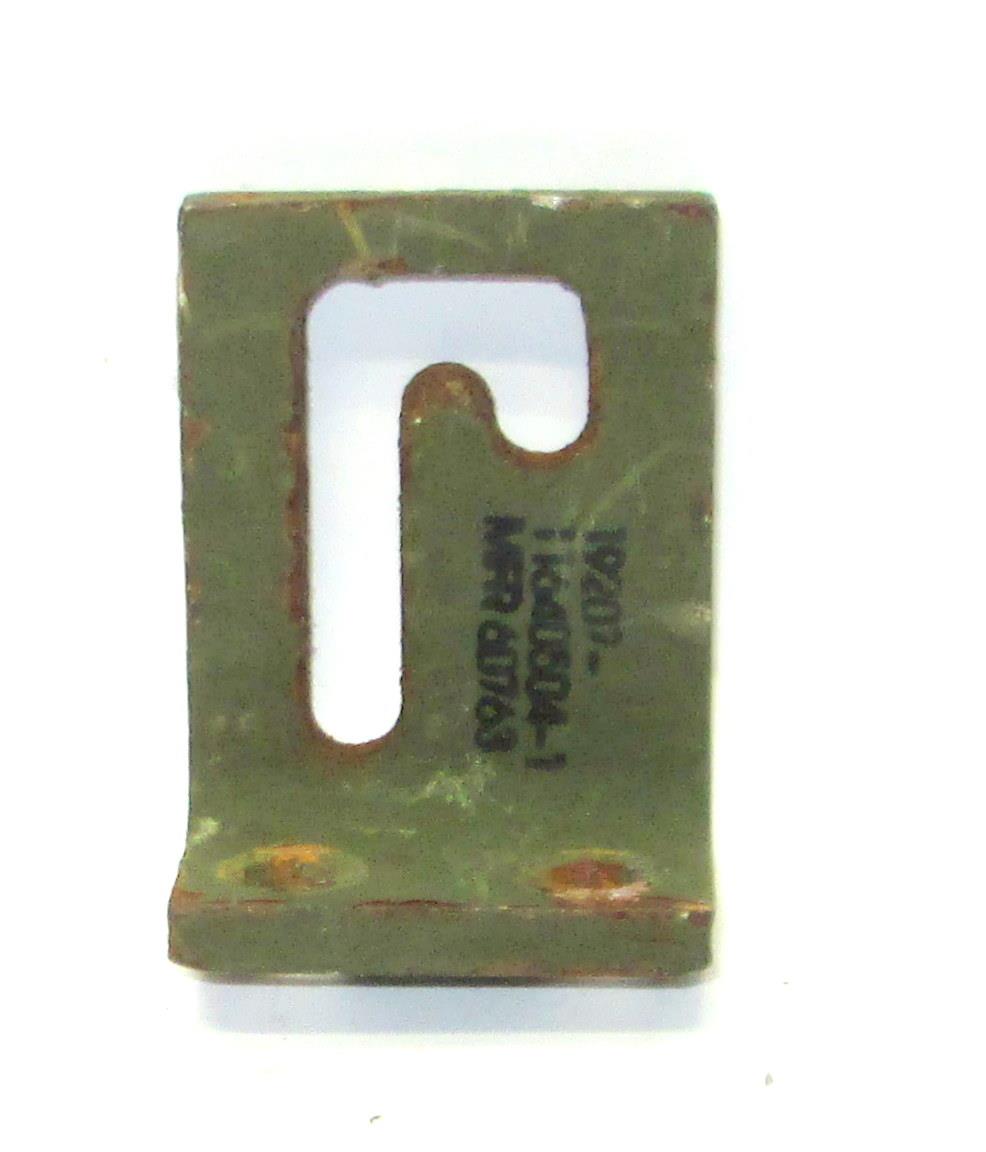

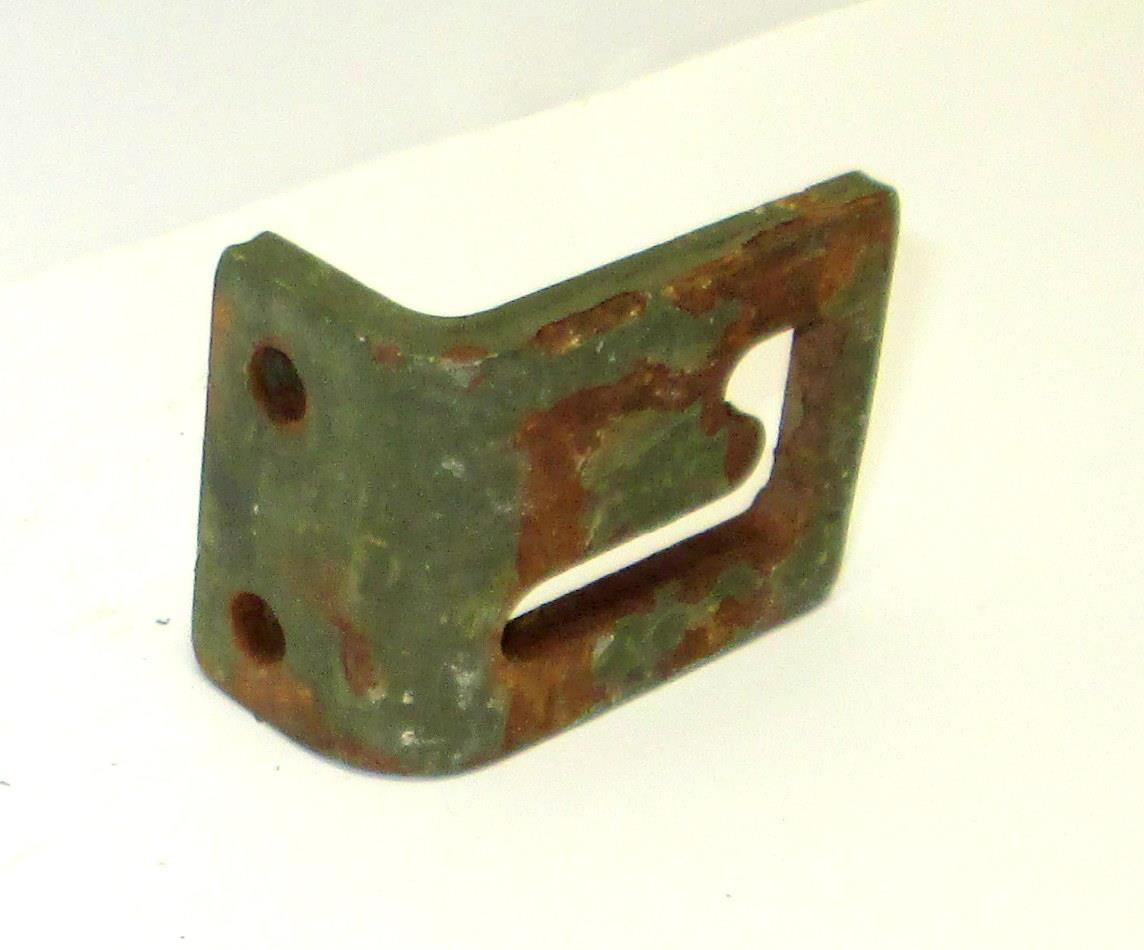

Right Side Front Driver Cushion Seat Height Adjustment Bracket Angle M35 M809 M939A1
Air-ride seat application

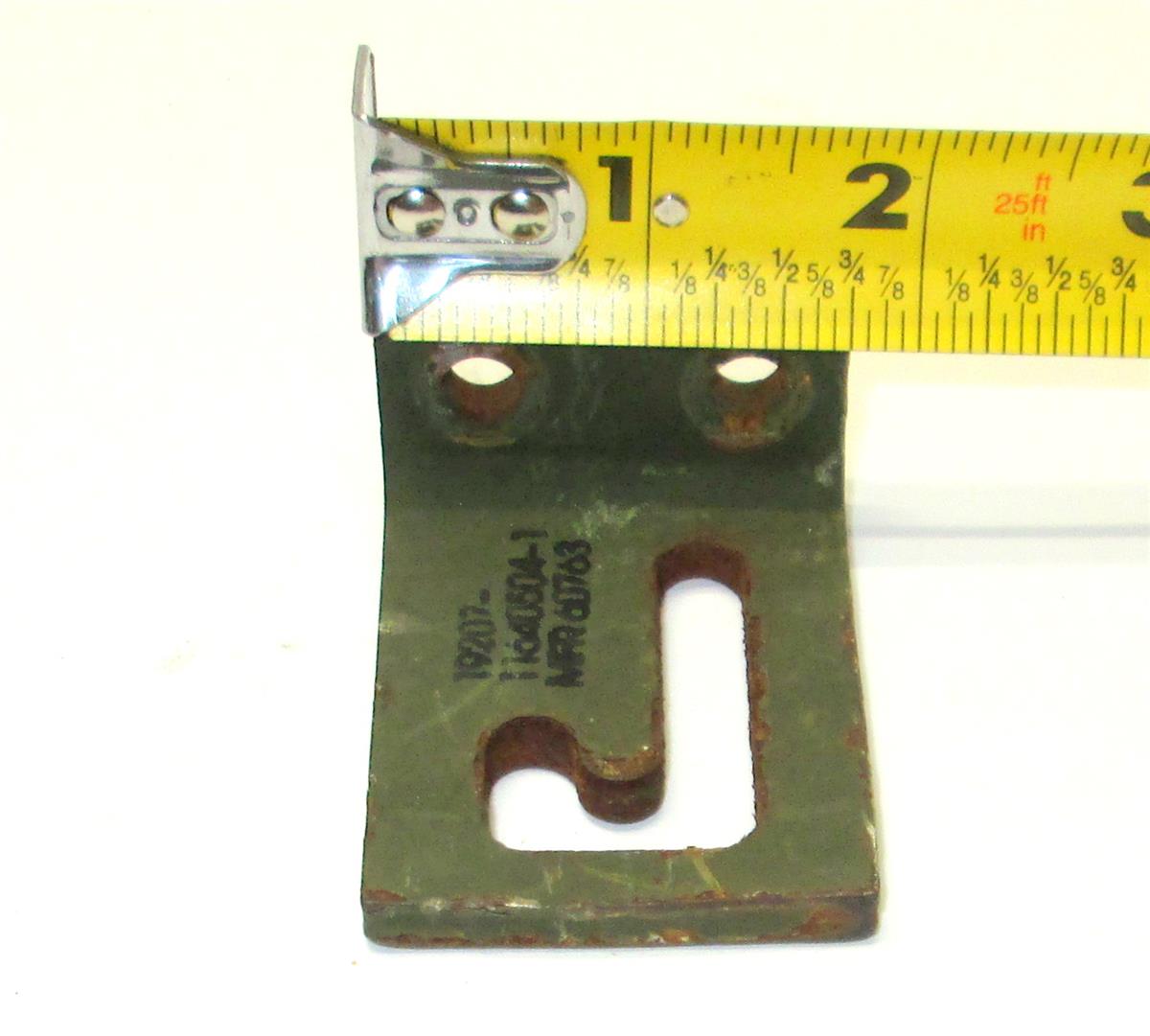

First Leg Length 1.120 IN
First Leg Width 1.750 IN
Second Leg Length 2.380 IN
Second Leg Width 1.750 IN
First Leg Hole Diameter 0.270 IN
First Leg Thickness 0.250 IN
Second Leg Thickness 0.250 IN
First Leg Distance Between Hole Centers Along Width 0.990 IN
First Leg Distance From Edge to Hole Center Along Width 0.370 IN
First Leg Distance From Edge to Hole Centers Along Length 0.370 IN
First and Second Leg Style Square
First Leg Hole Arrangement Style Two Holes
First Leg Angle 90 Degrees
Style Angle

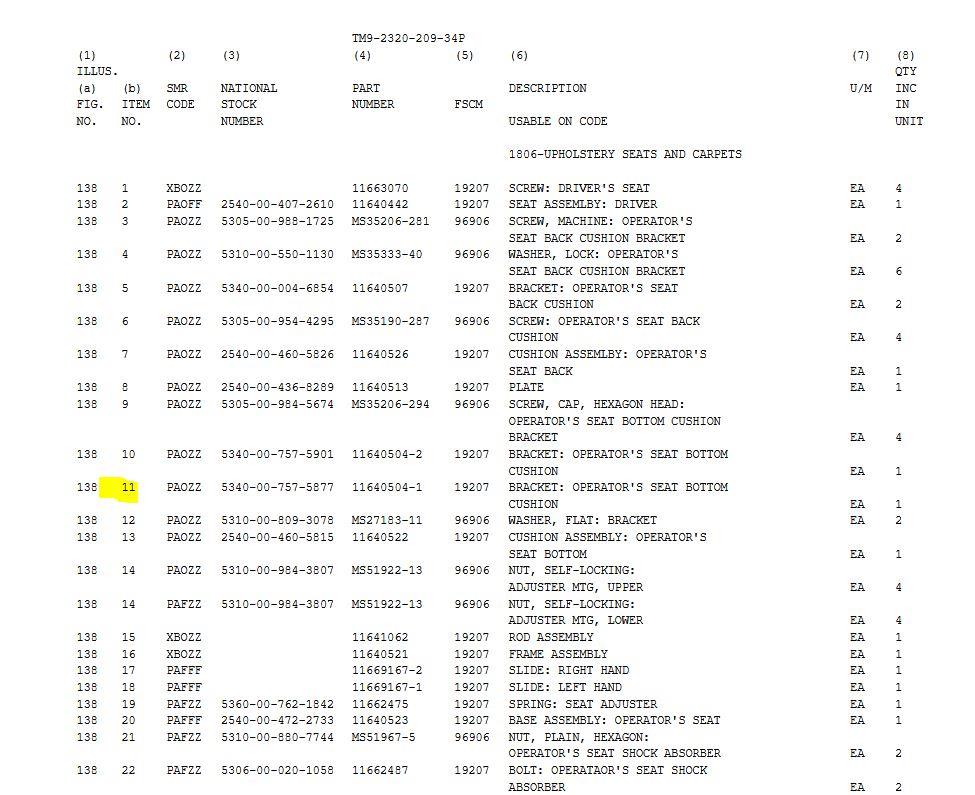

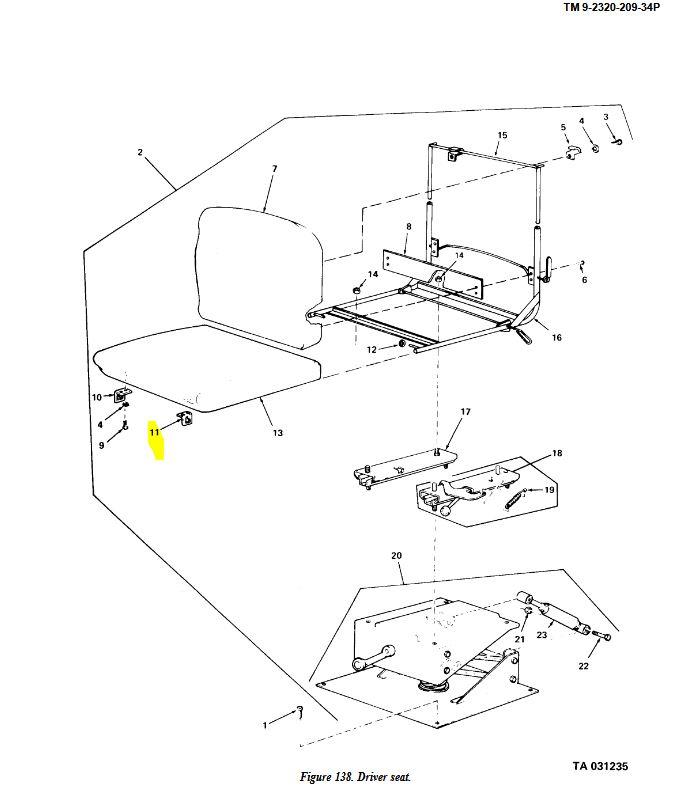

Item No 11 in Diagram
Click Here For Left Side Front Driver Cushion Seat Bracket Angle M35 M809 M939A1
Click Here For Seat Frame ONLY for Air Ride Seat M series Vehicles
Click Here For Seat Base Spring Ride Driver Seat (Air Ride) M35A2 M809 M939A1 M939A2
Click Here For Driver Seat Bottom Cushion Air Ride Spring Seat Bottom Vinyl Cushion
Click Here For Canvas Driver Seat Air Ride Spring Seat Cushion
Fits: Deuce and a Half 6x6 Military Truck, 5 Ton 6x6 Military Truck
M35, M35A1, M35A2, M35A3, M36, M36A1, M36A2, M36A3, M275, M109, M109A1, M109A3, M109A4 2 ½ Ton Trucks
M939, M939A1, M923, M923A1, M925, M925A1, M927, M927A1, M929, M929A1, M930, M930A1, M931, M931A1, M54, M809, M813, M814, M816, M817, M818, M820 5-Ton Trucks
