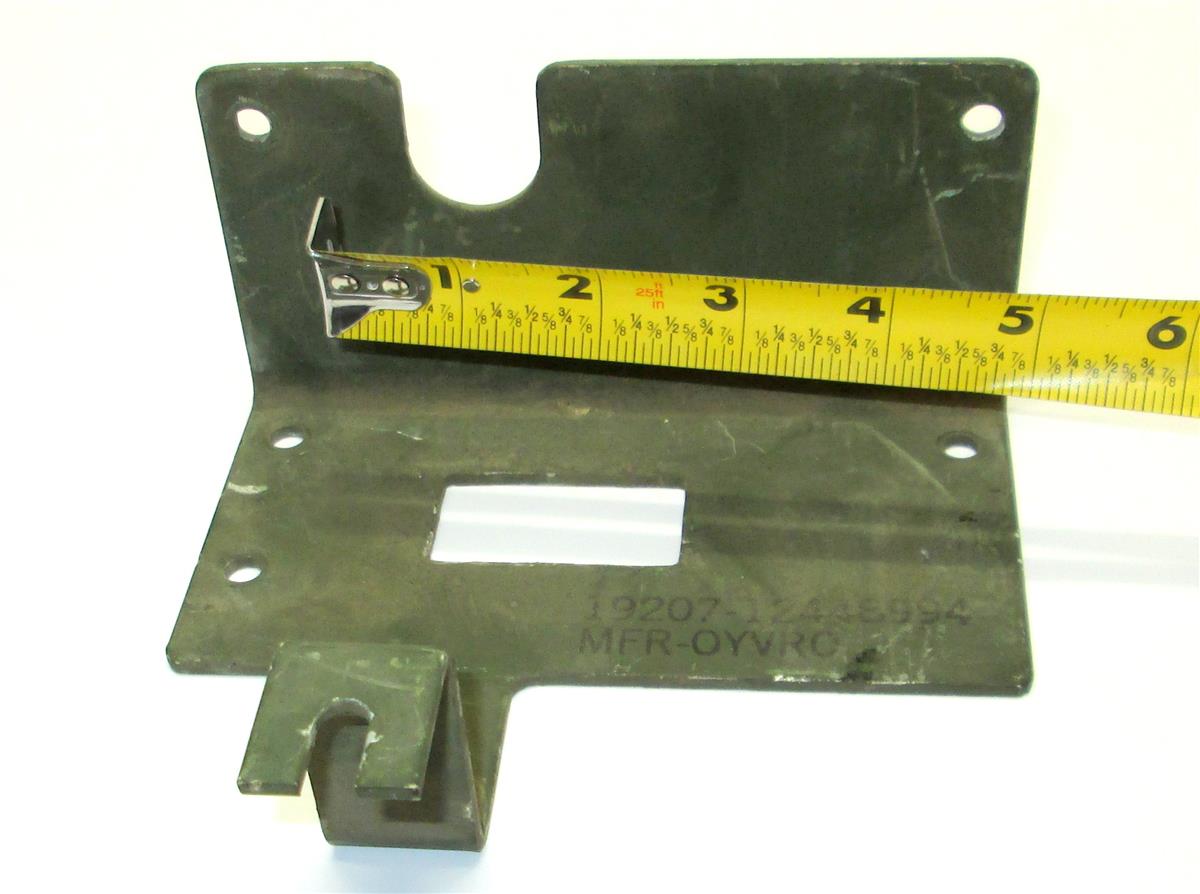

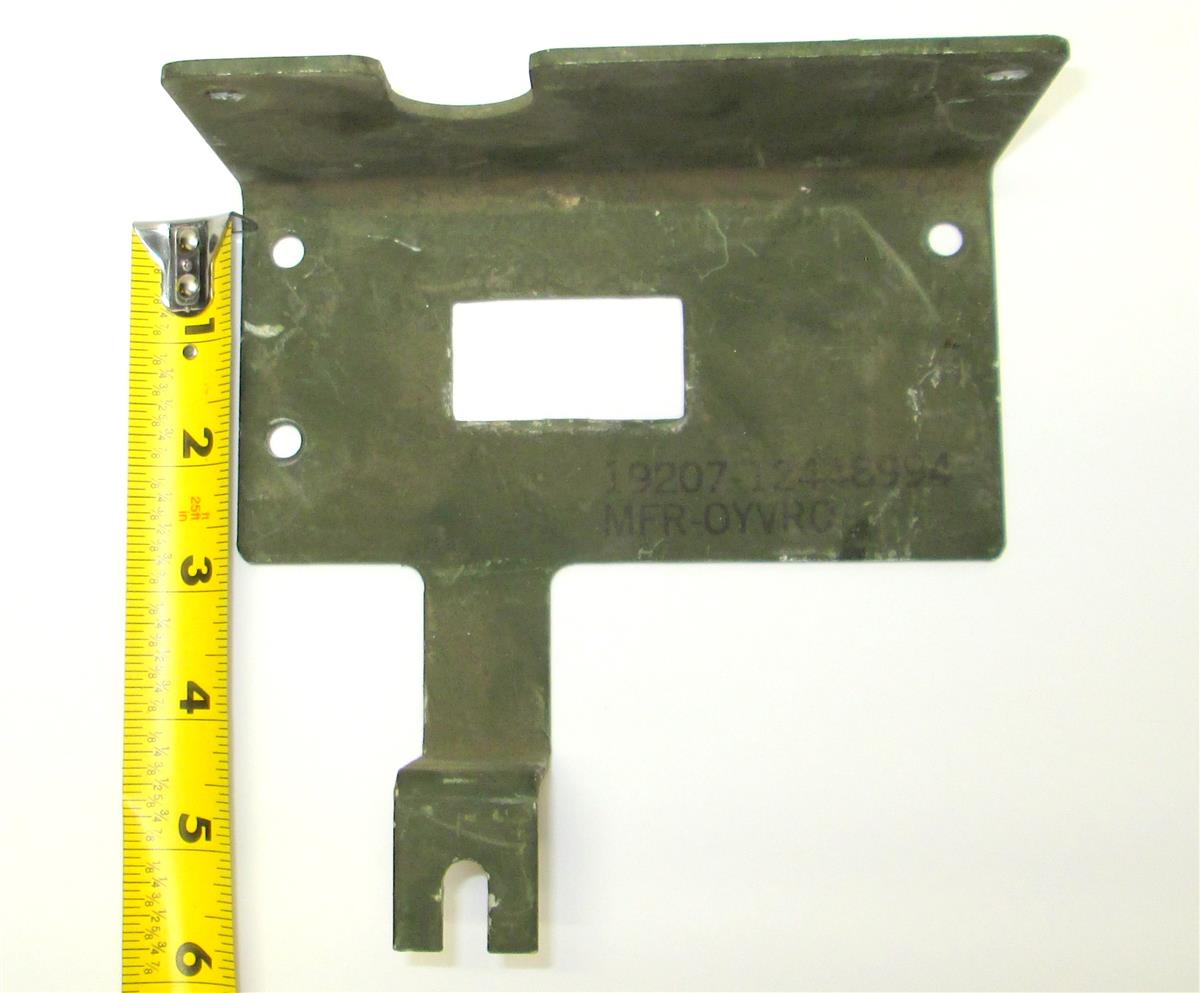

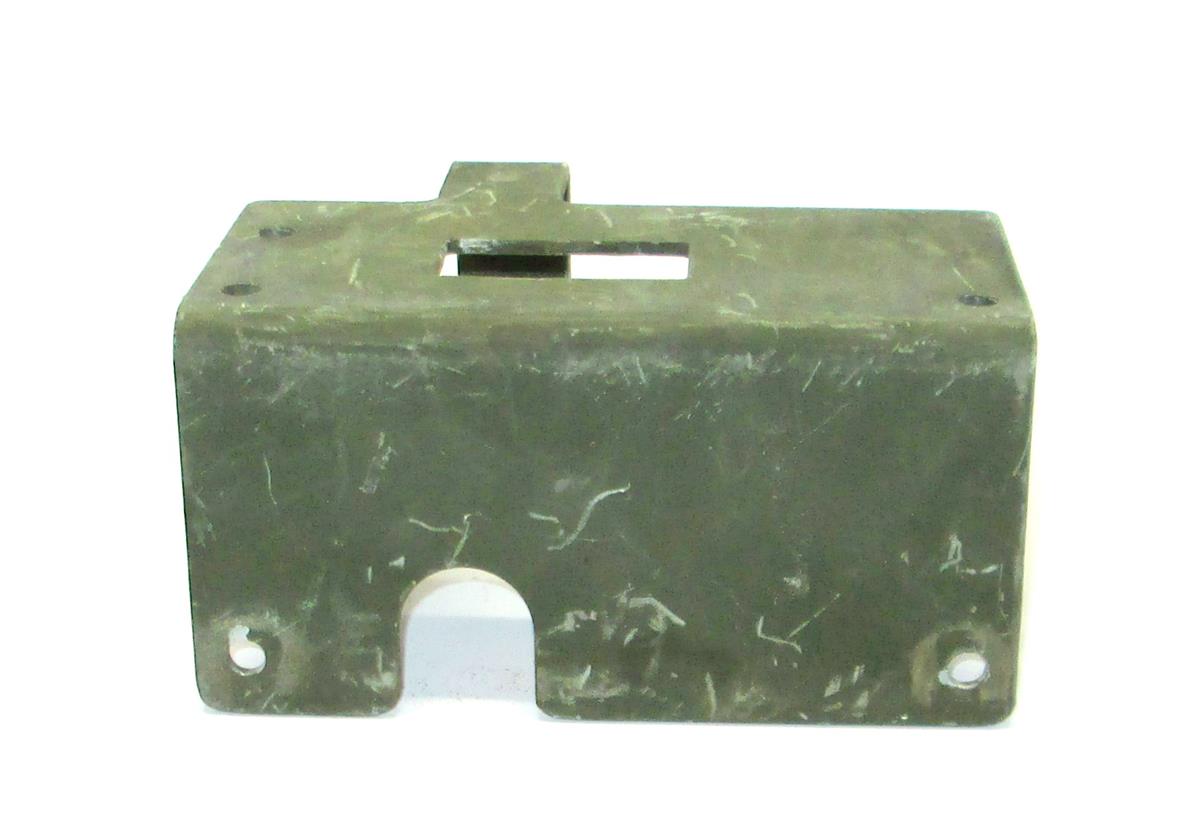

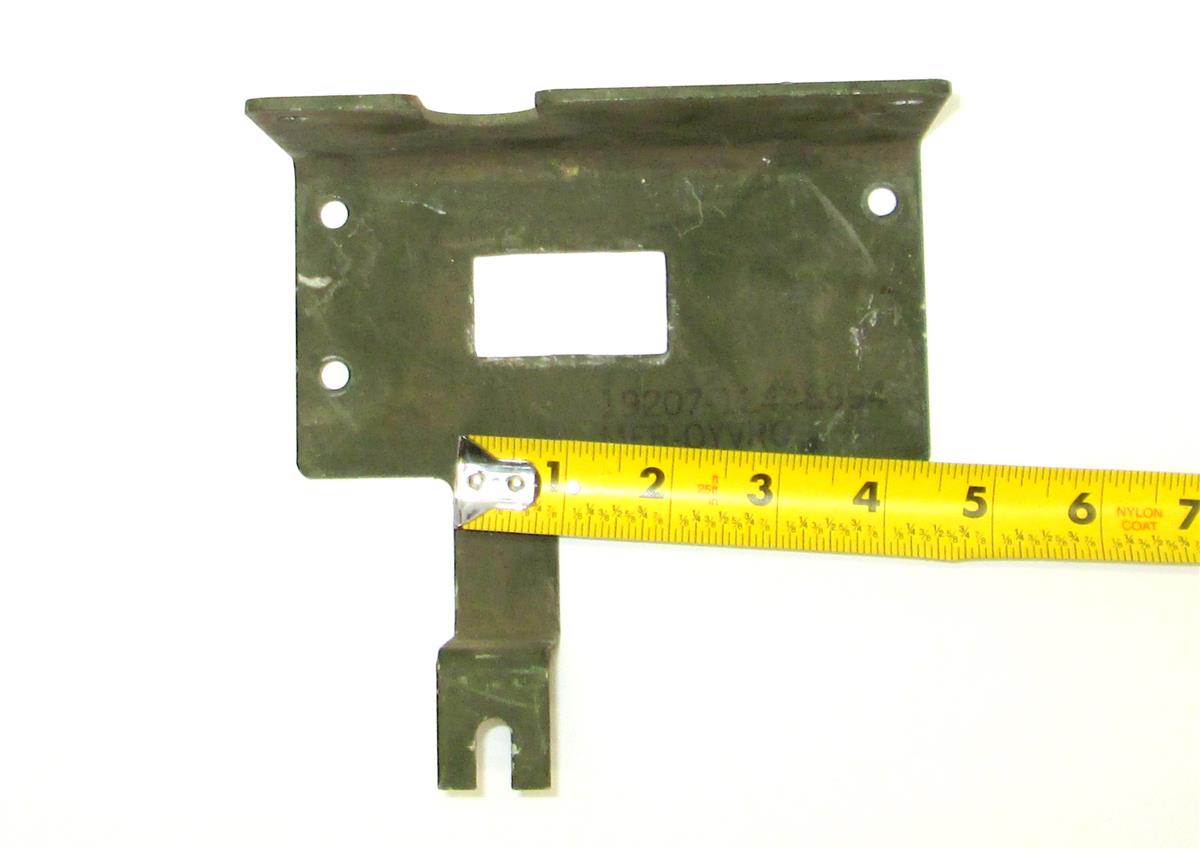

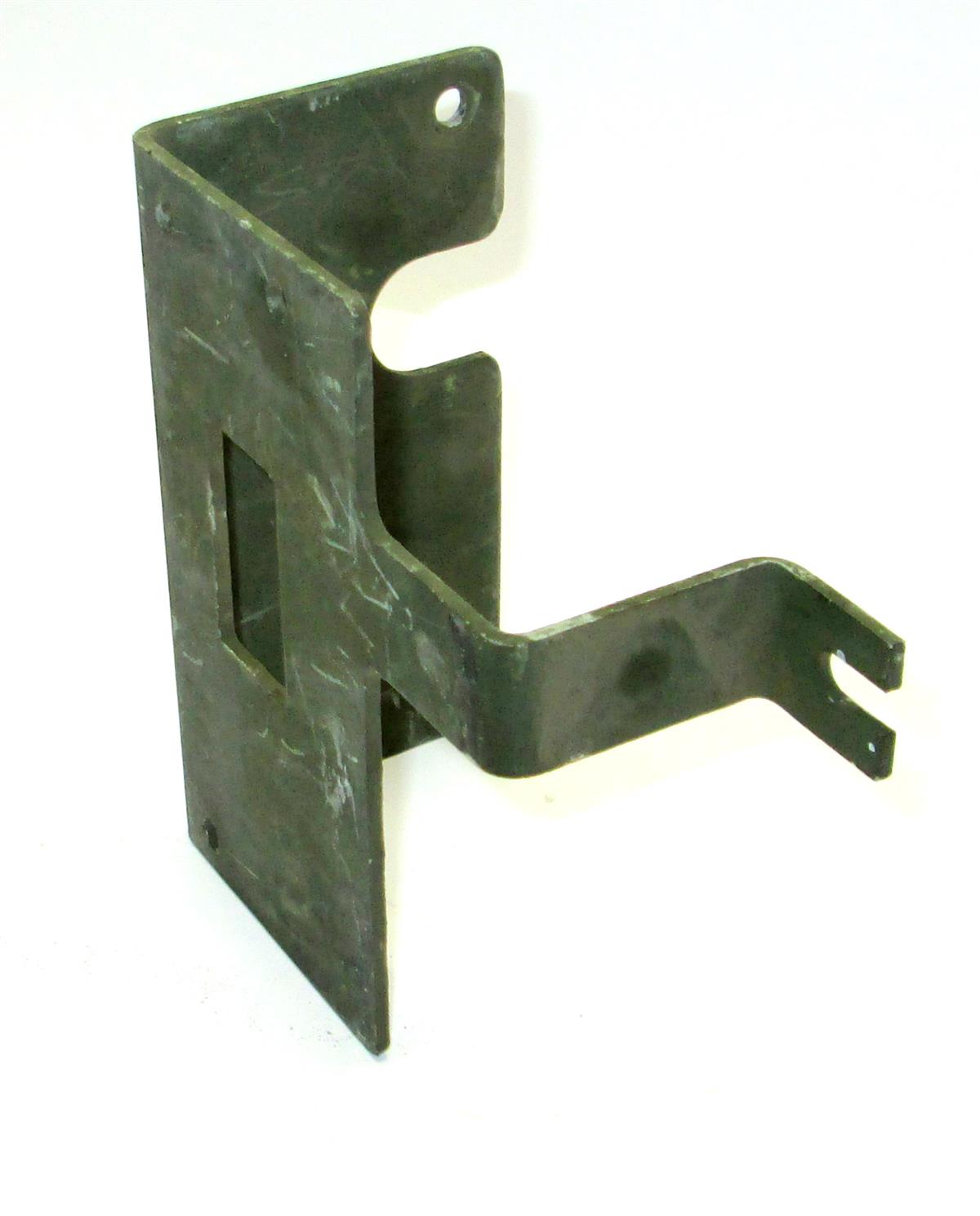

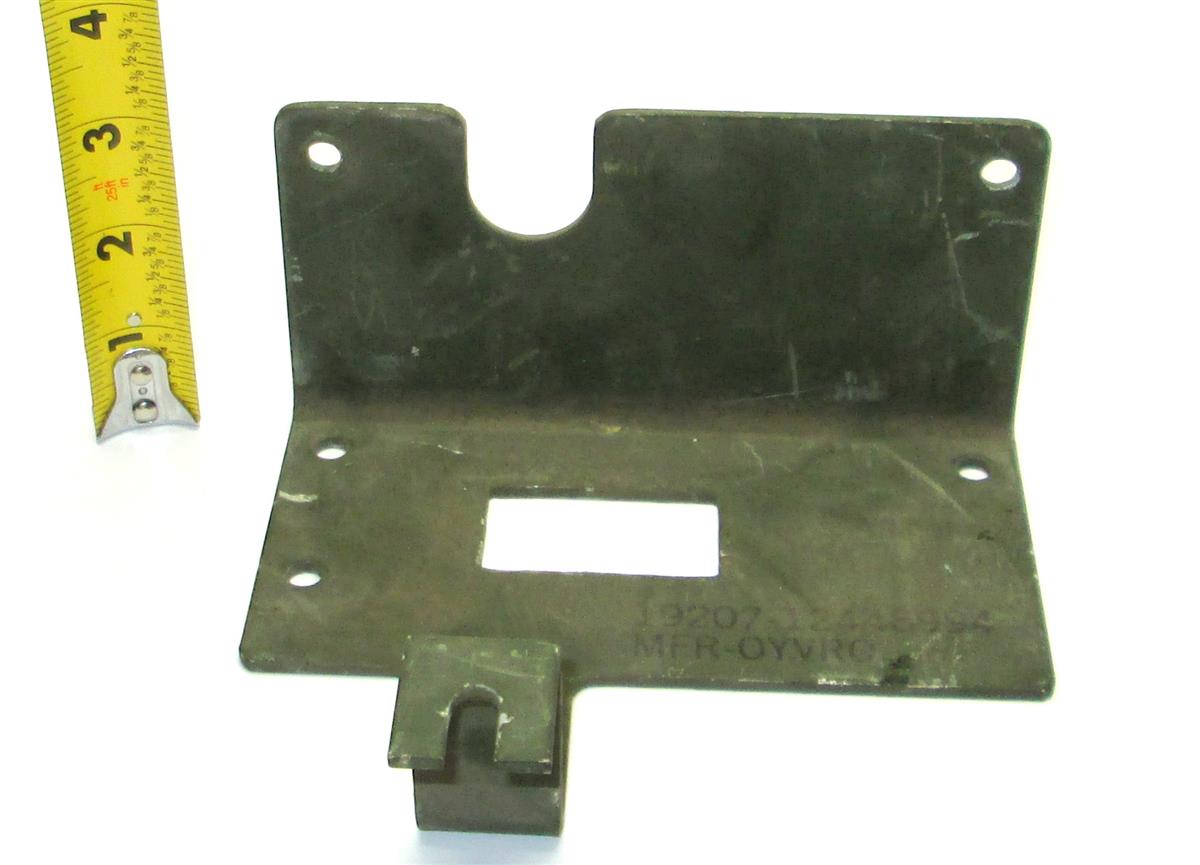

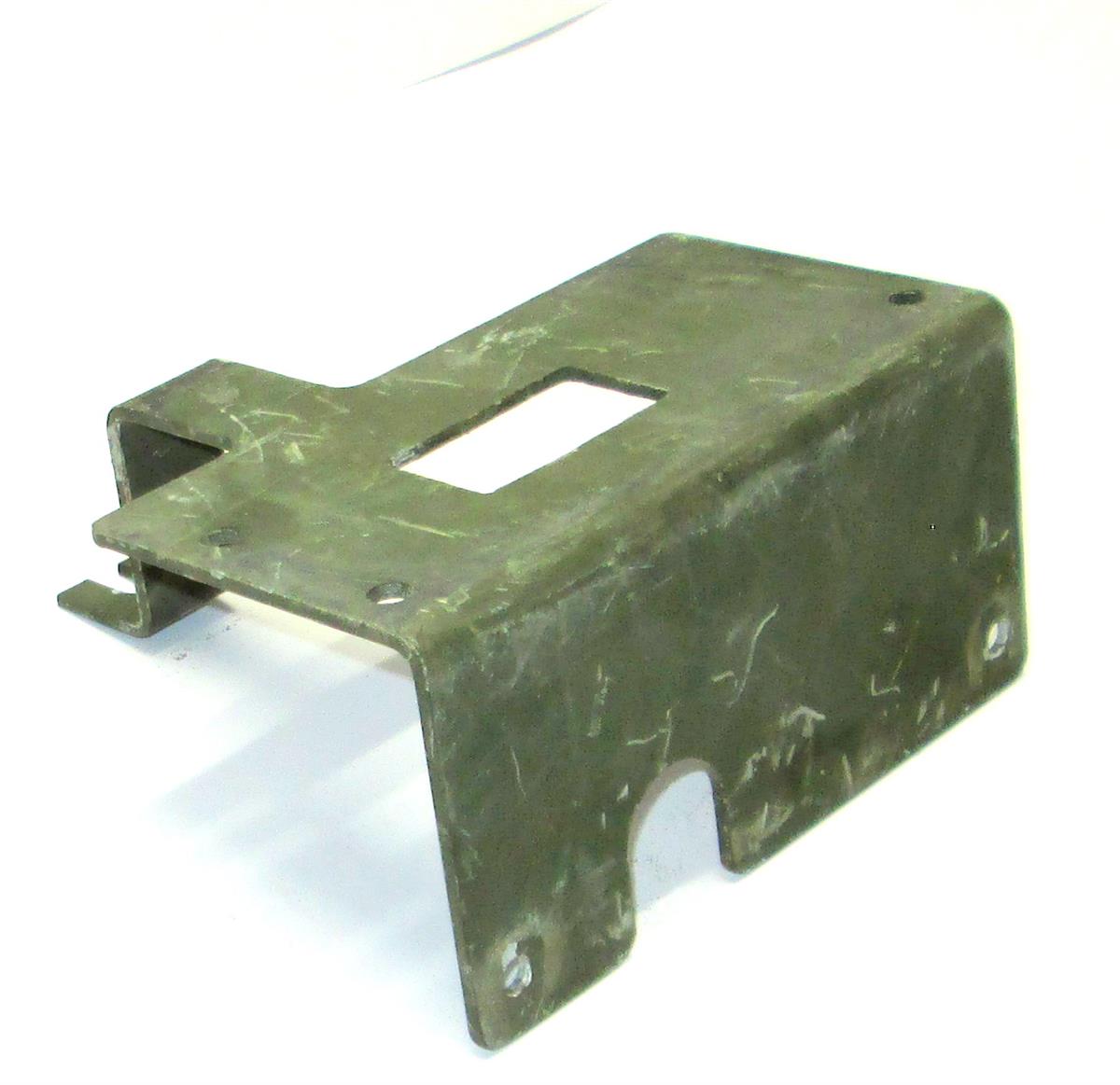

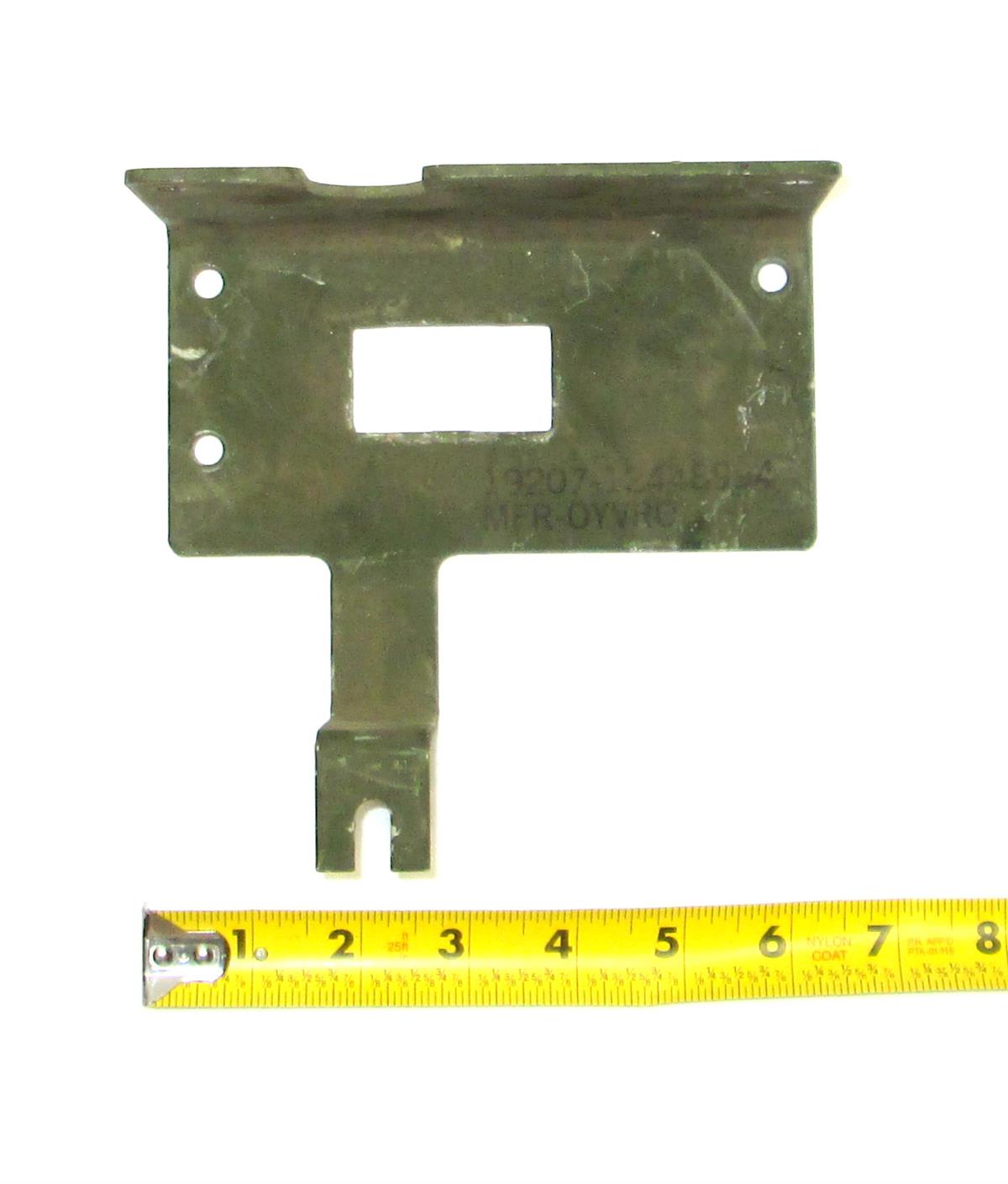

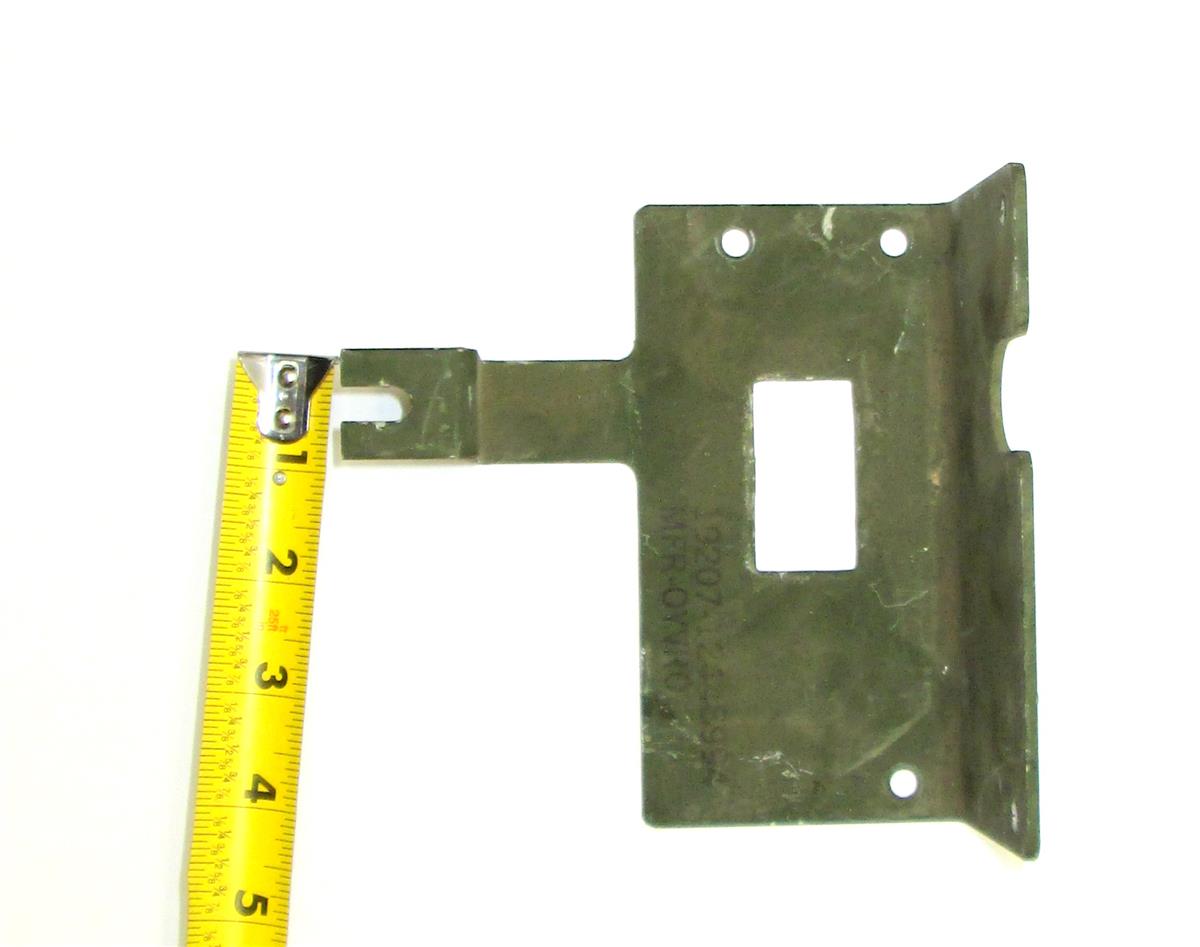

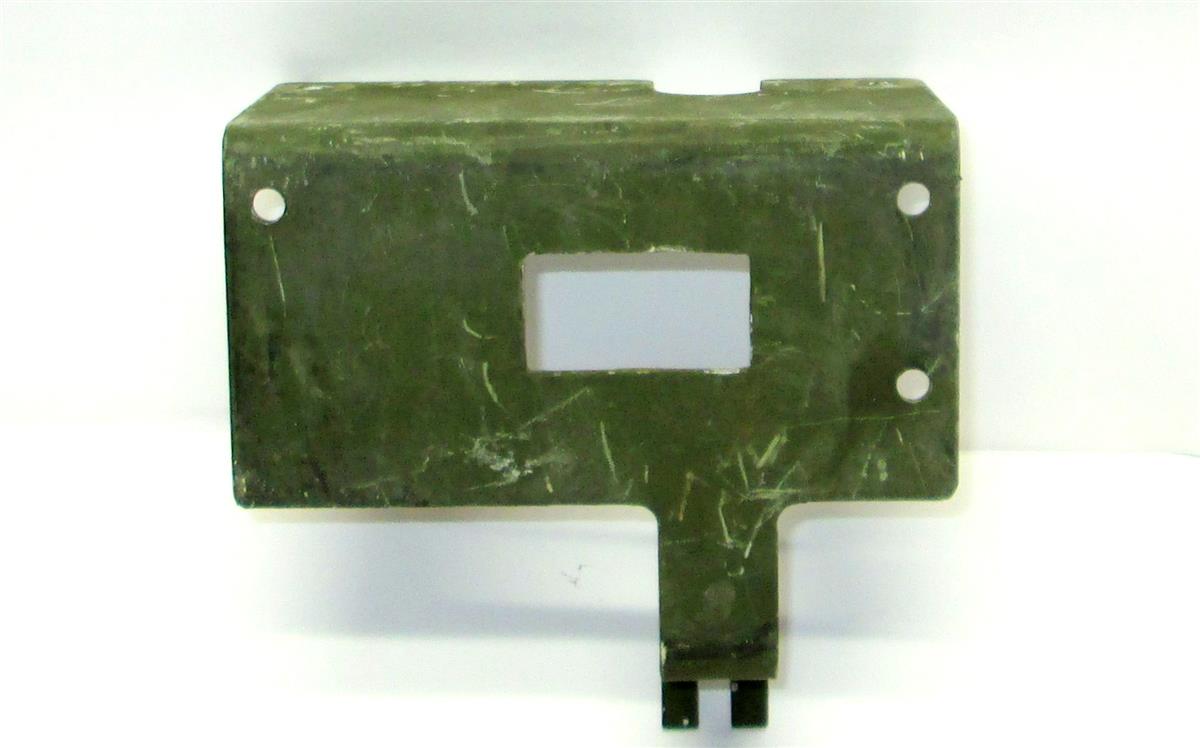

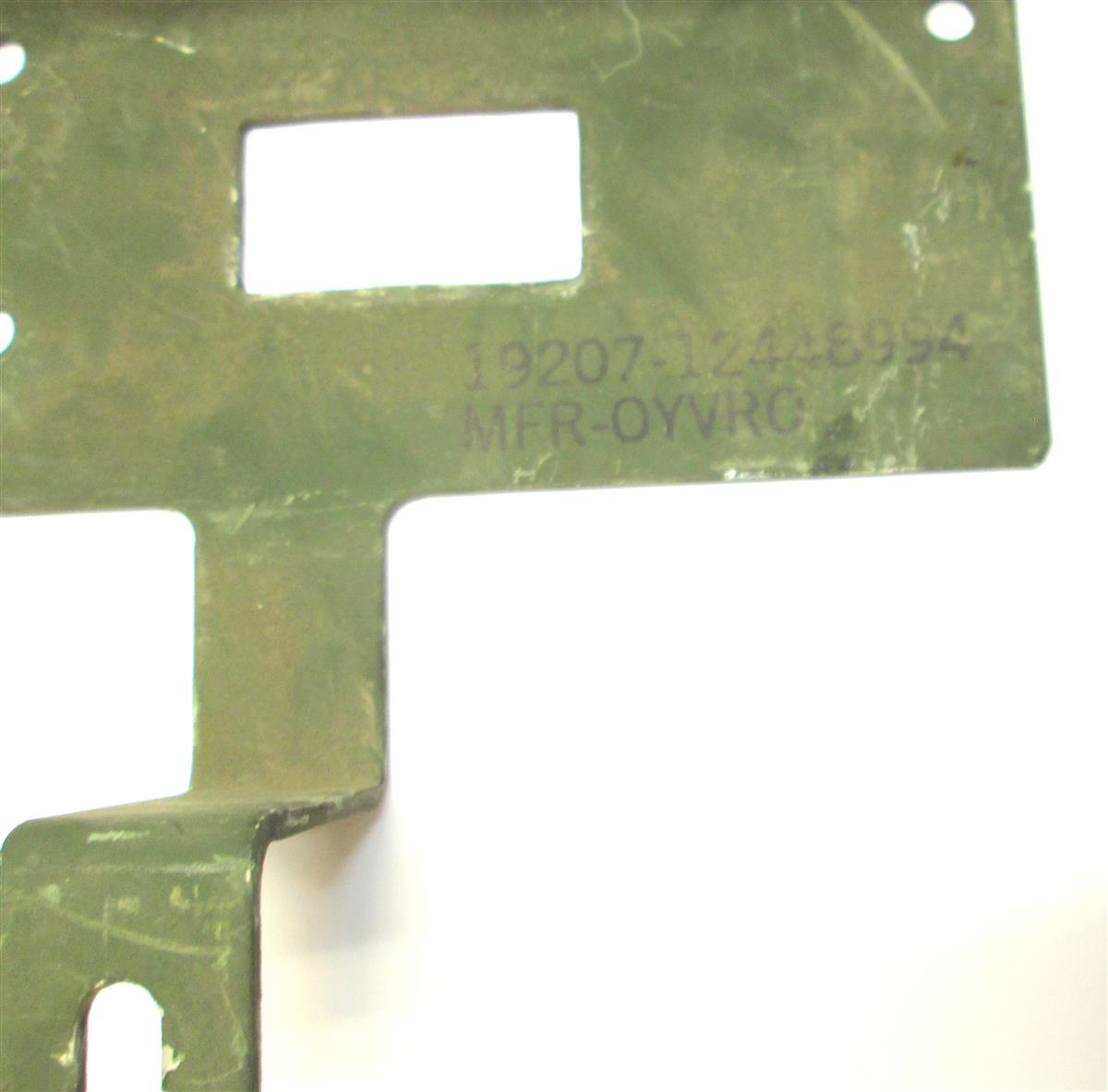

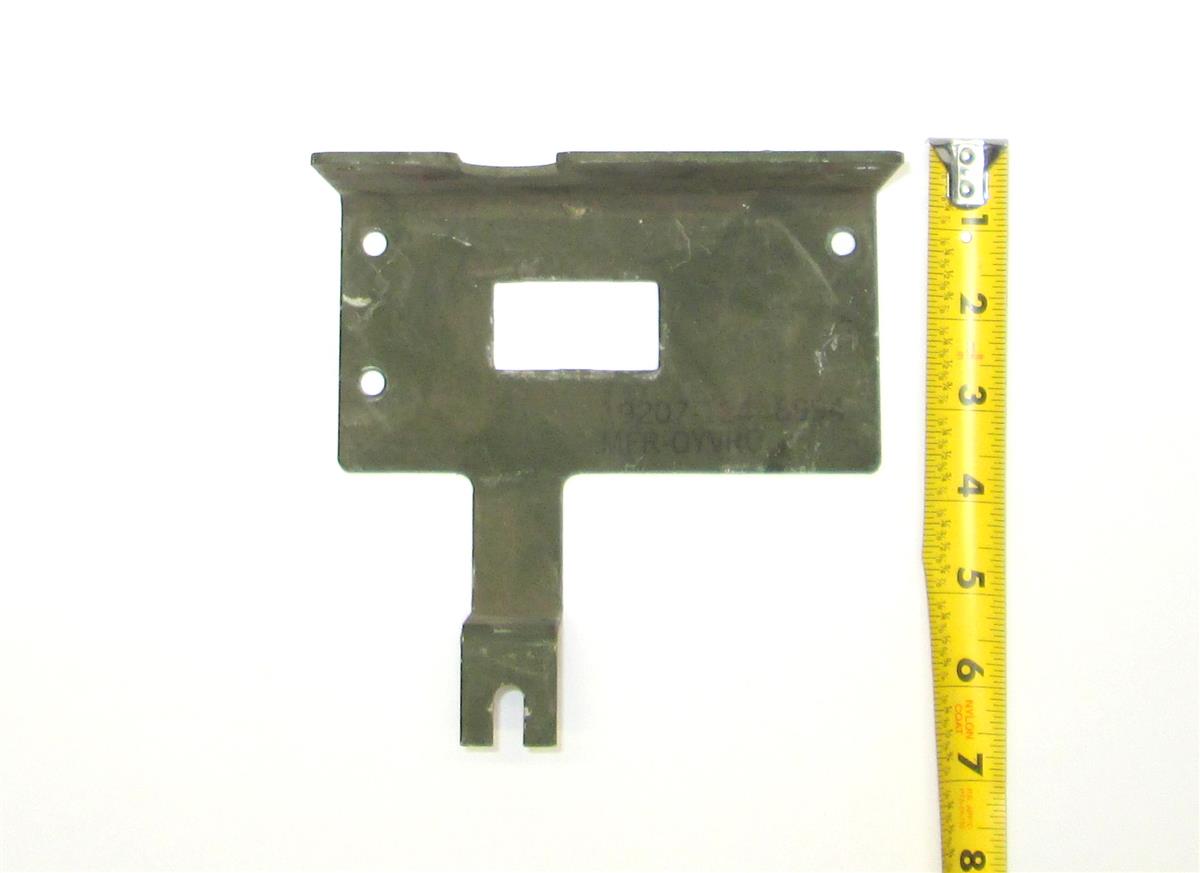

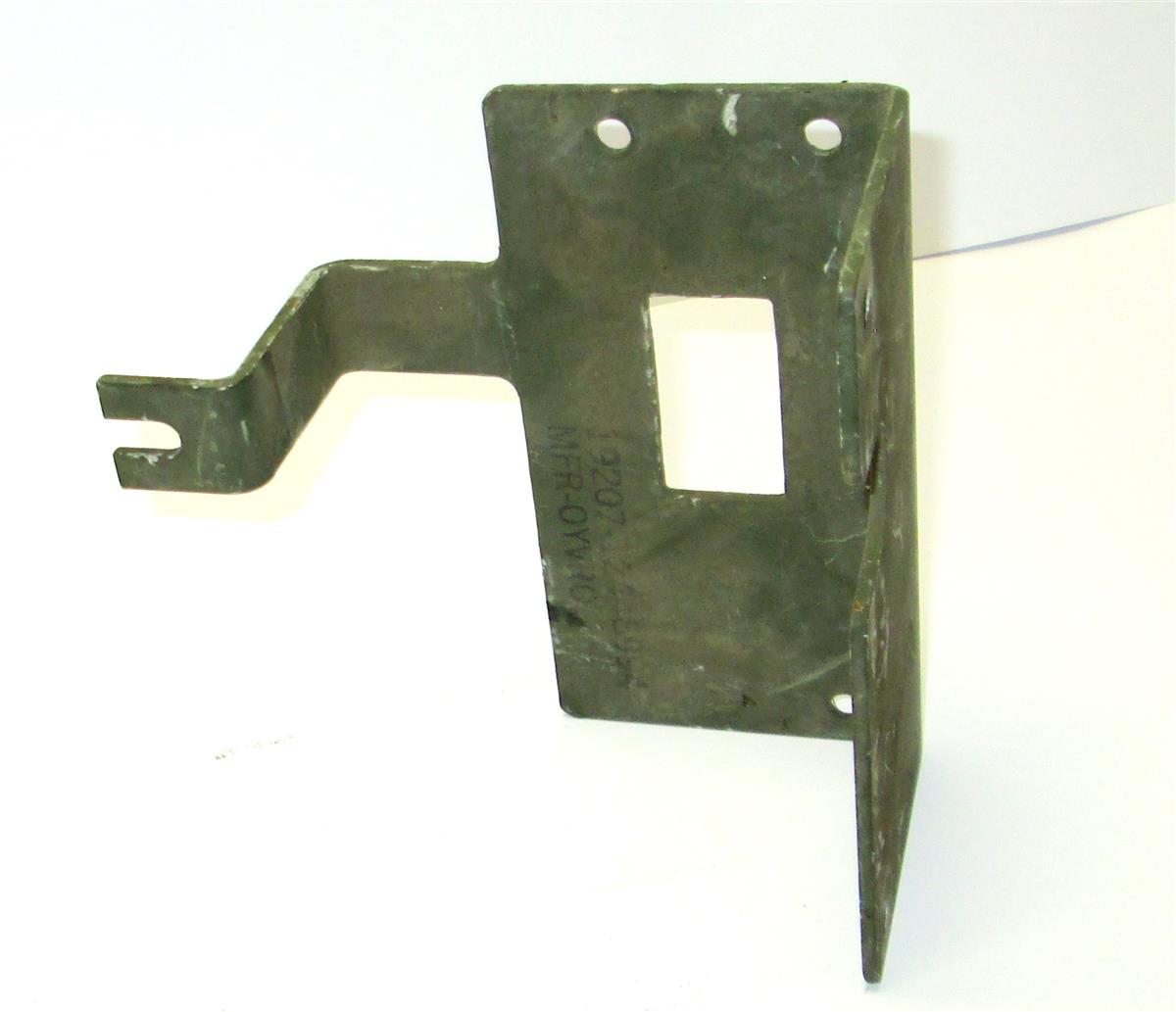

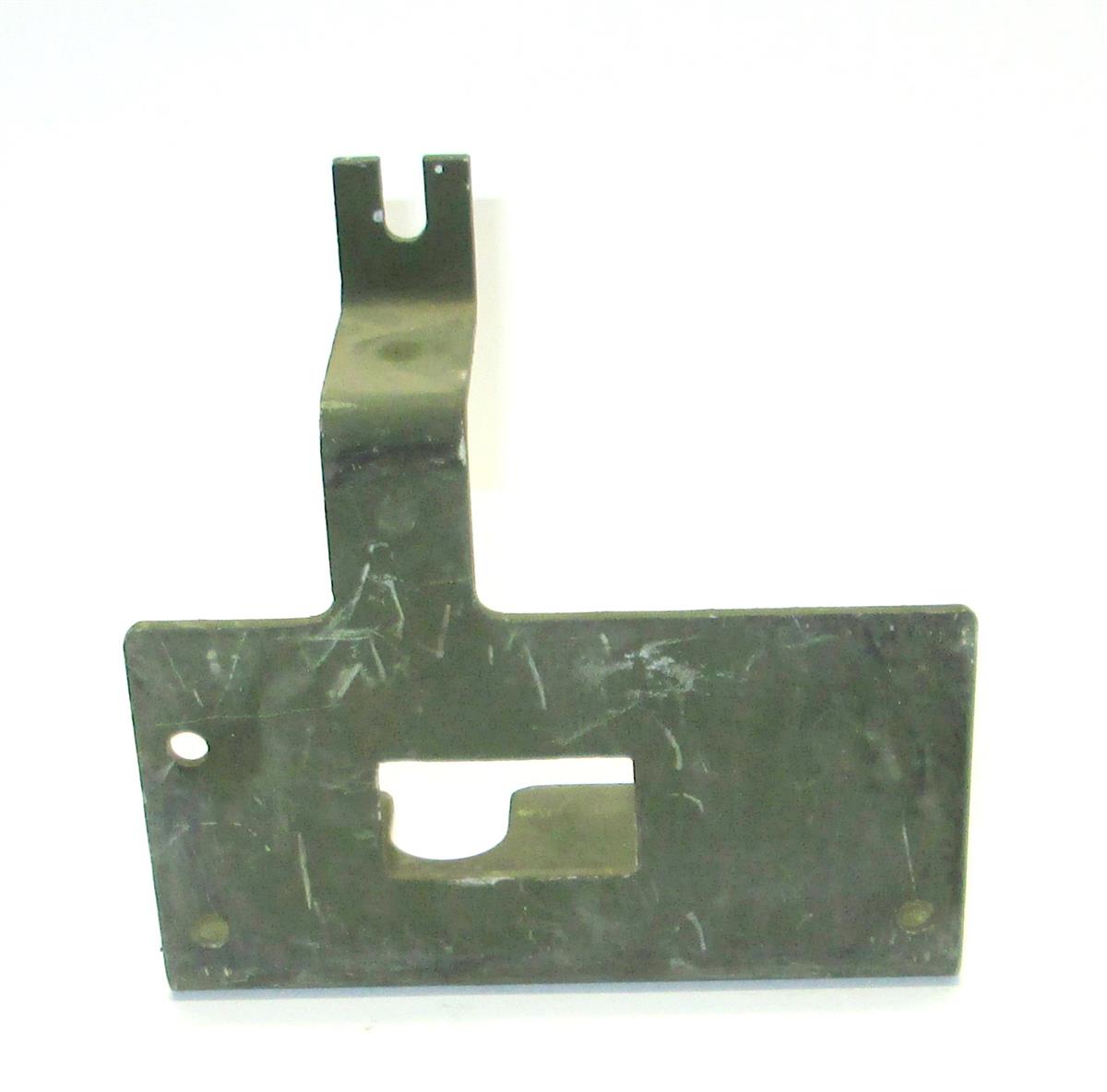

Double Angle Windshield Wiper Motor Mounting Bracket M35A3
Mounting Hole Type Plain
First Leg Length 2.0196 IN
First Leg Width 1.000 In
First Leg Style Cut Out
Second Leg Length 3.0596 IN
Second Leg Width 6.100 IN
Second Leg Hole Diameter 0.281 IN
Second Leg Distance Between Hole Centers along Width 5.340 IN
Second Leg Distance from Edge to Hole Center along Width 0.380 IN
Second Leg Distance from Edge to Hole Center along Length 0.440 IN
First and Second Leg Thickness 0.1196 IN
Center Section Height 4.8592 IN
Center Section Width 6.100 IN
Center Section Thickness 0.1196 IN
First Leg Hole Style NO Hole
Second Leg Hole Style Cut Out
Second Leg Hole Arrangement Style Two Holes
Second Leg Relationship to First Leg Not Identical
First and Second Leg Angle 90.0 Degrees
First and Second Leg Cut Out Width 1.000 IN
Second Leg Cut Out Length 1.150 IN
Material Steel

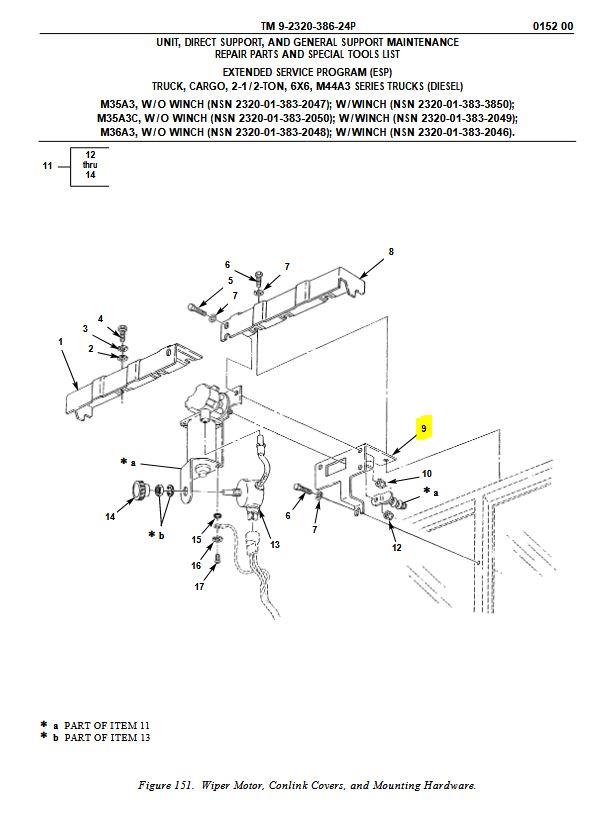

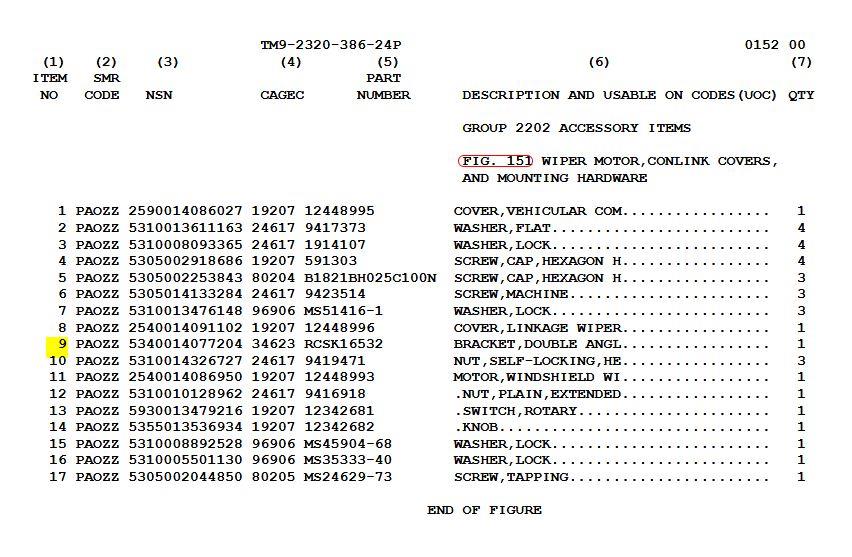

Item NO 9 in Diagram
Click Here For Windshield Wiper Guard M35A3
Fits: 2 ½ ton Caterpillar trucks (CAT engine, Allison Automatic trans) (M35A3 and Variants)
M35A3, M36A3, M109A4 2 ½ Ton Trucks
