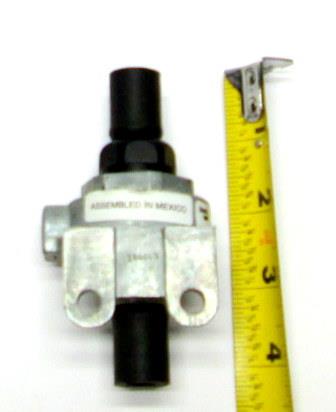

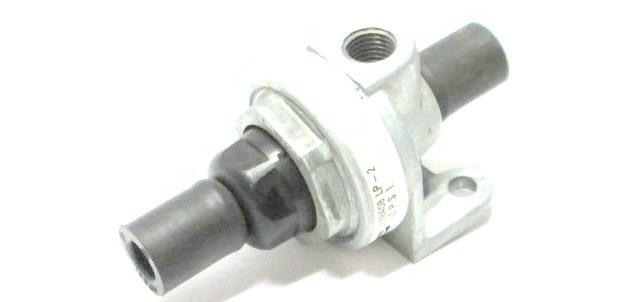

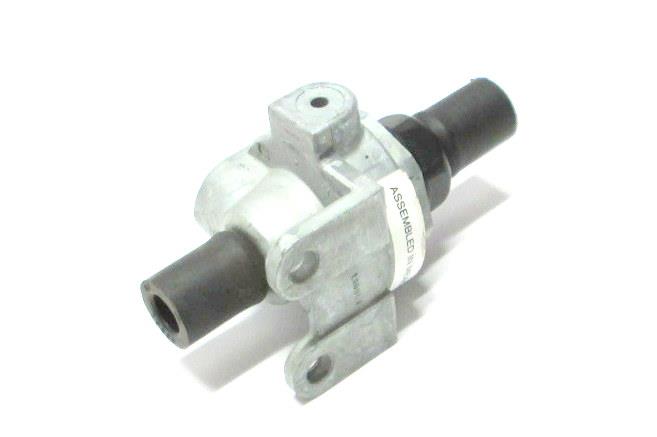

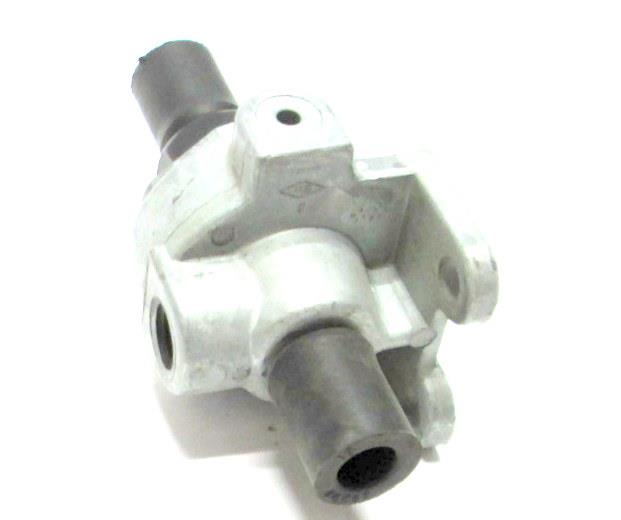

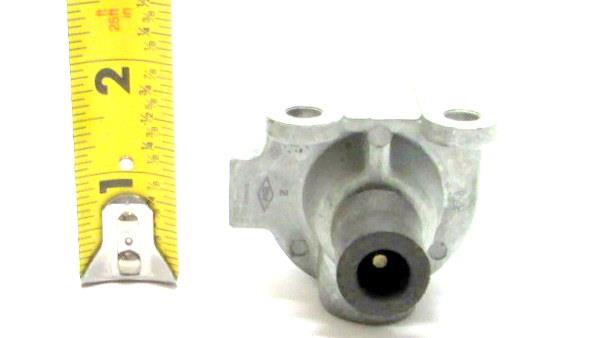

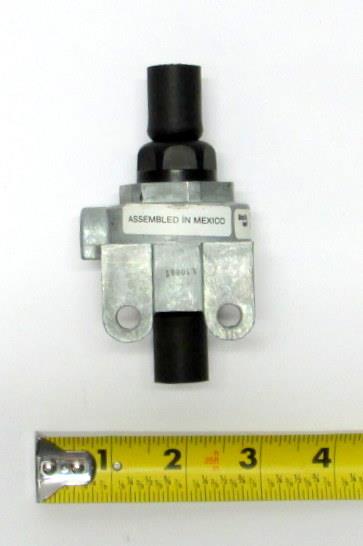

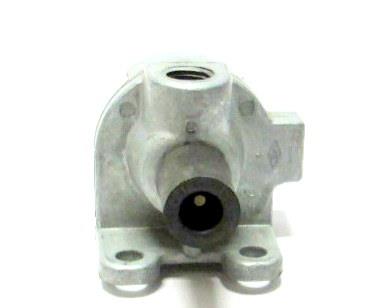

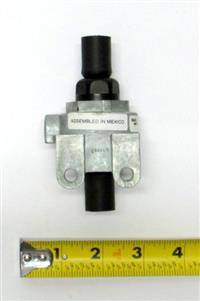

Low Air Pressure Switch M809
Weatherproof
Length 4.188 IN
Diameter 0.250 IN
Height 2.140 IN
Body Diameter 1.875 IN
Unthreaded Mounting Hole Diameter 0.281 IN
Distance between Mounting Facility Centers 1.250 IN
Pressure Switch Type GAGE
Mounting Method Bracket and Unthreaded Hole
Features Provided Hermetically Sealed Case
Thread QTY Per IN 18 Single Pressure Connection
Contact Action Stimulus Decrease
Thread Size 0.250 IN Single Pressure Connection
Mounting Facility Pattern Two Position In Line
Non Pile Up Contact Arrangement 1 Pole Single Throw Normally Open Momentary Action
Terminal Type Connector Plug
Pressure Connector Type Plain Threaded External Single Connection
Thread Series NPT Single Pressure Connection

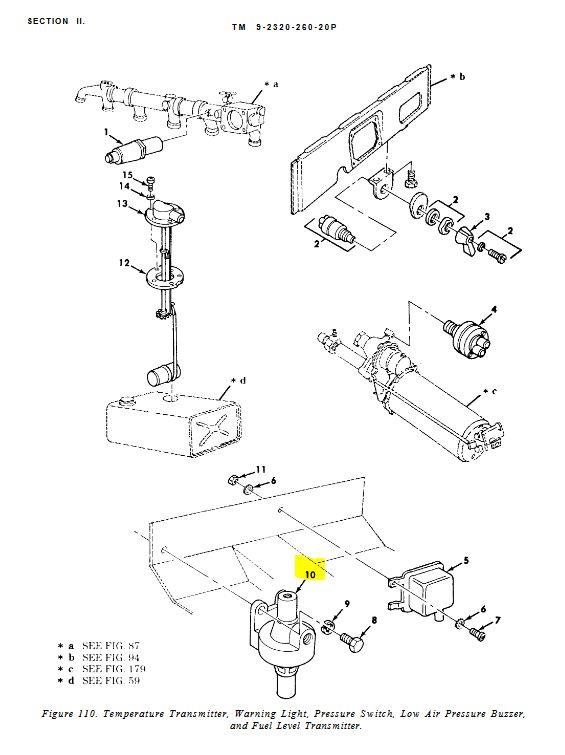

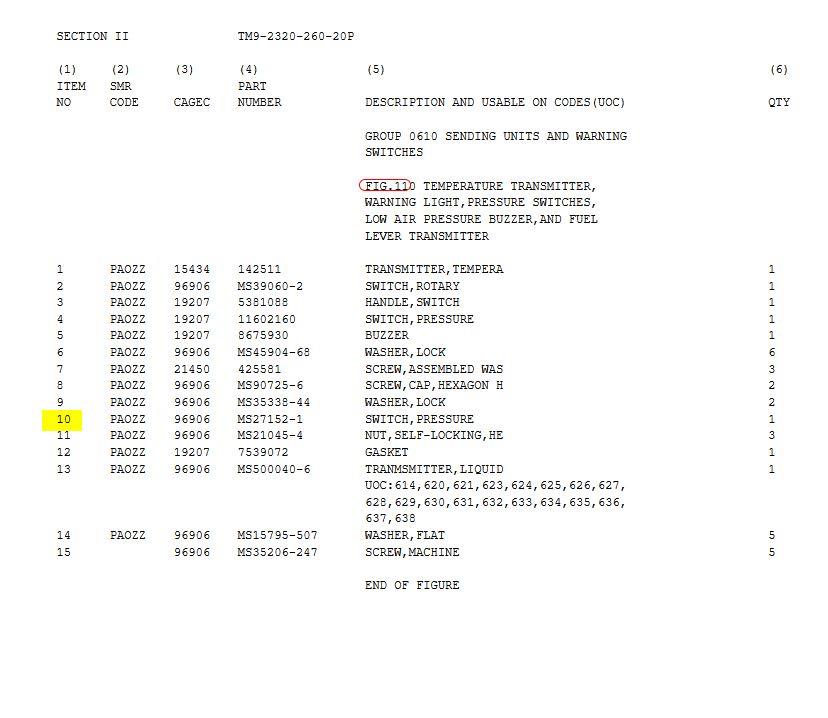

Item No 10 in Diagram
Fits: 5 Ton 6x6 Military Truck
M809, M813, M814, M816, M817, M818, M820 5-Ton Trucks
