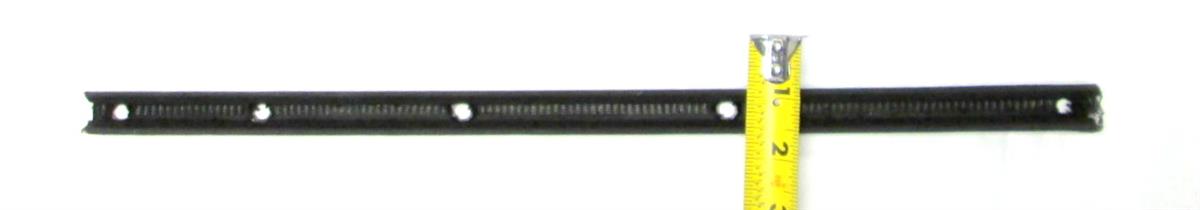

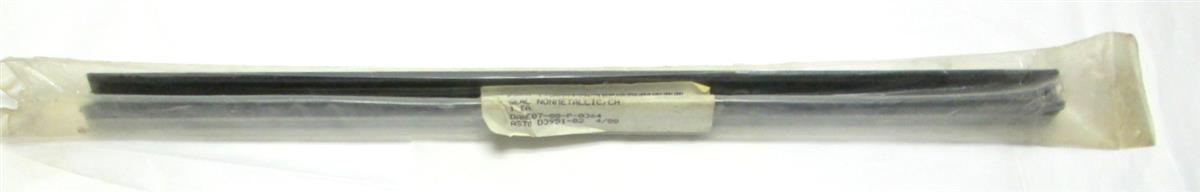

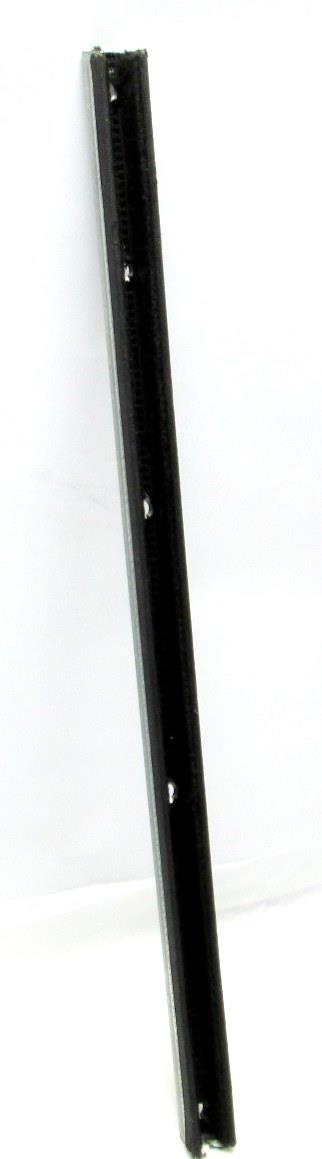

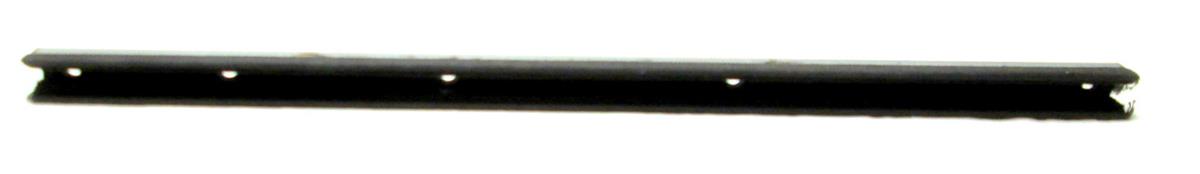

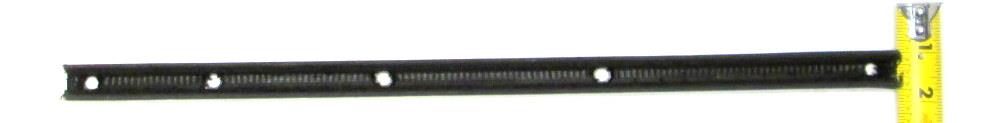

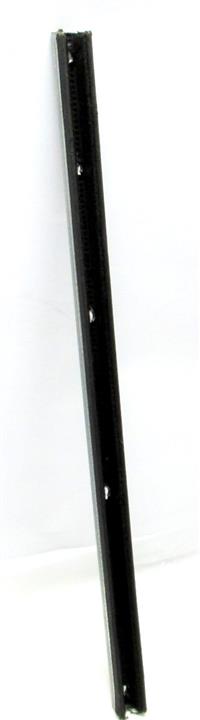

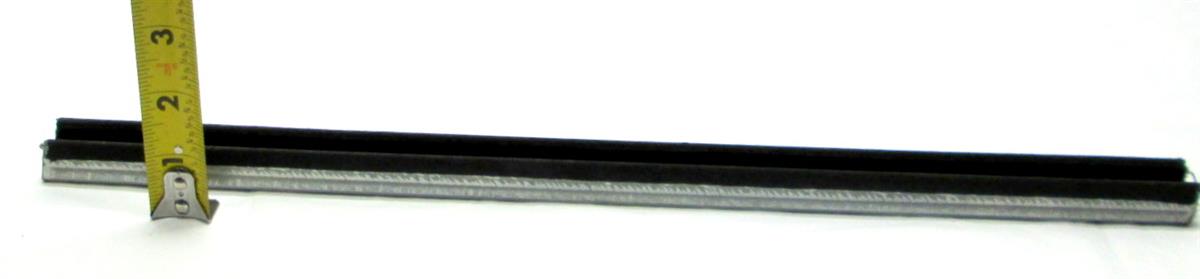

Compartment Window NonMetallic Channel Seal M548A1 M548A3

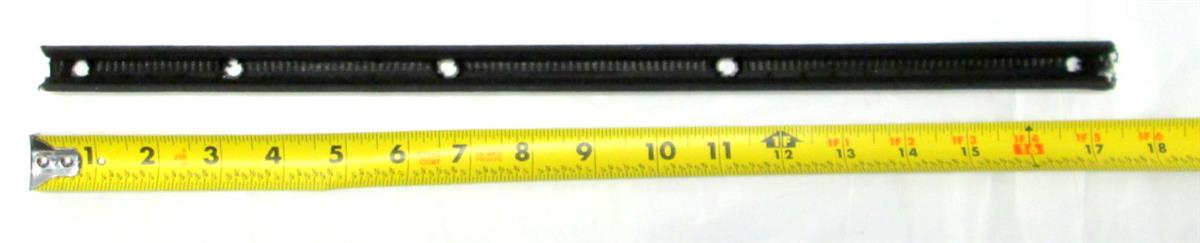

Length 17.188 IN

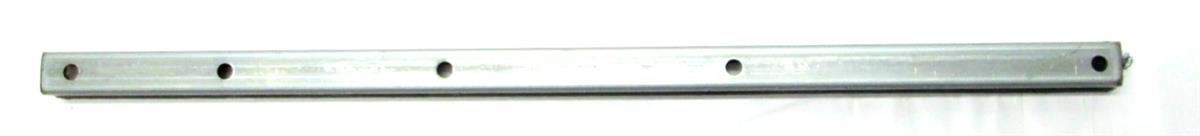

Attachment Method Round Hole
Attachment Feature QTY 5
Attachment Hole Diameter 0.125 IN

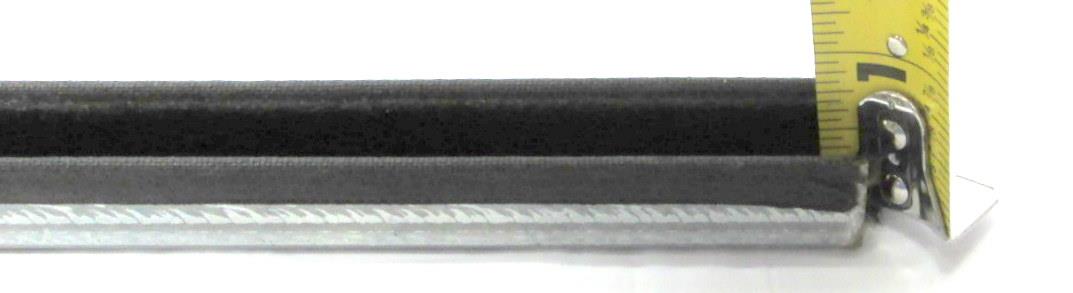

Web Width 0.672 IN
Left and Right Side Flange Height 0.688 IN
Left and Right Side Flange Thickness 0.102 IN
Web Thickness 0.102 IN
Left and Right Side Flange Thickness at Web 0.102 IN
SOLID
Left Right Inside Outside Angle 90.0 Degrees
End Cut Angle 10.0 Degrees

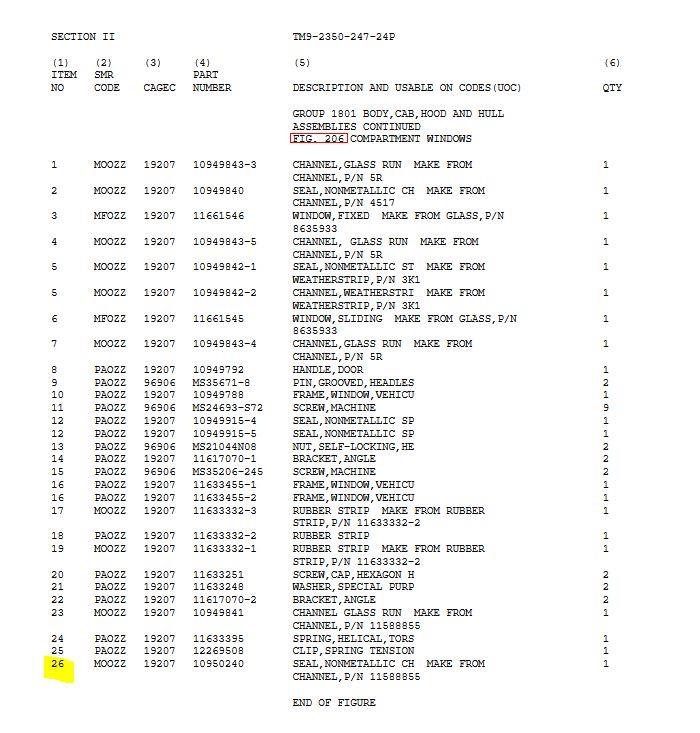

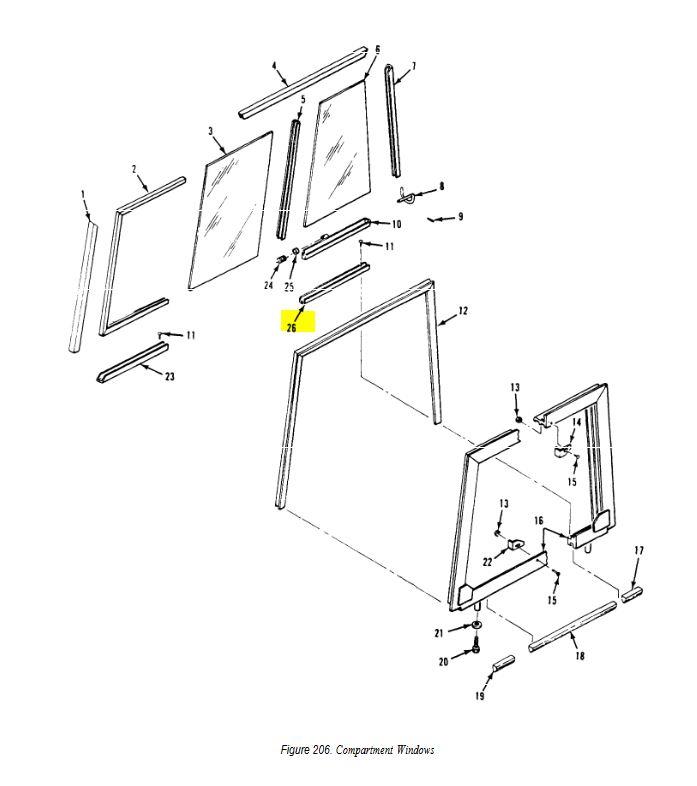

Item NO 26 in Diagram
Fits: 6 Ton Military Truck
M548A1, M548A3 Cargo Tracked Carrier
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
