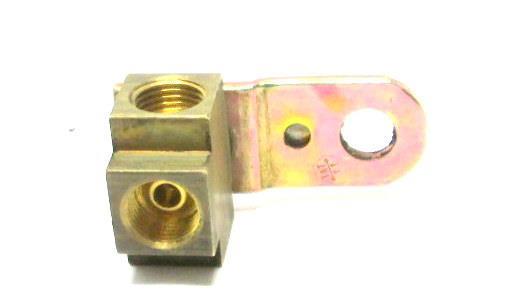

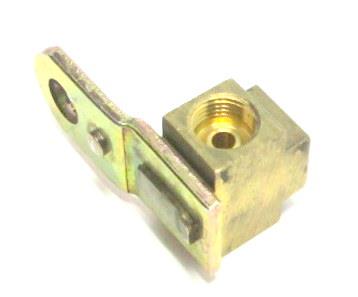

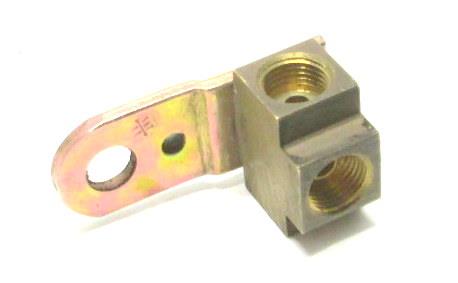

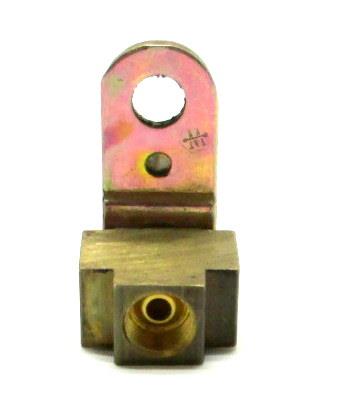

Front Rear Axle Hydraulic Brake Line Connector Tee M809 M54 M35A2
Thread Class 2B
Thread Direction Right Hand

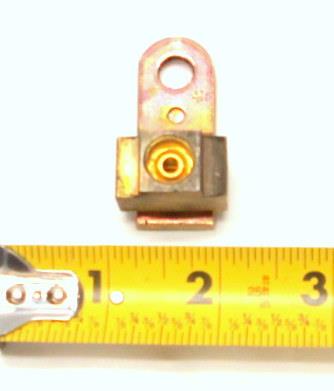

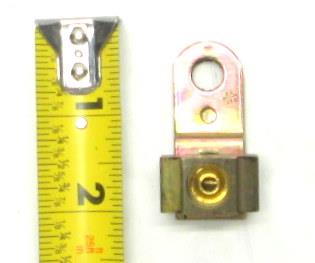

Length 1.630 IN
Width 1.000 IN

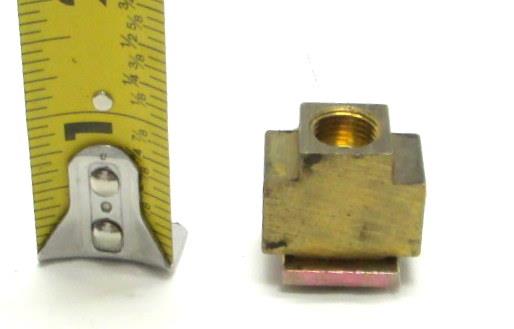

Thickness 1.030 IN
Mounting Hole Diameter 0.340 IN
Thread Size First Connection 0.438-24
Thread Size Second Connection 0.500-20
Connection Style Inverted Flare
Seat Angle in Degrees 42.0
Screw Thread Series First Connection UNS
Screw Thread Series Second Connection UNF
Seat Included
Fluid Connection QTY 2 Both Connection
Fluid Conveyance Type and Size 0.250 OD Tube: 0.312 OD Tube
3 Fluid Connection with Mounting Plate
Copper Alloy

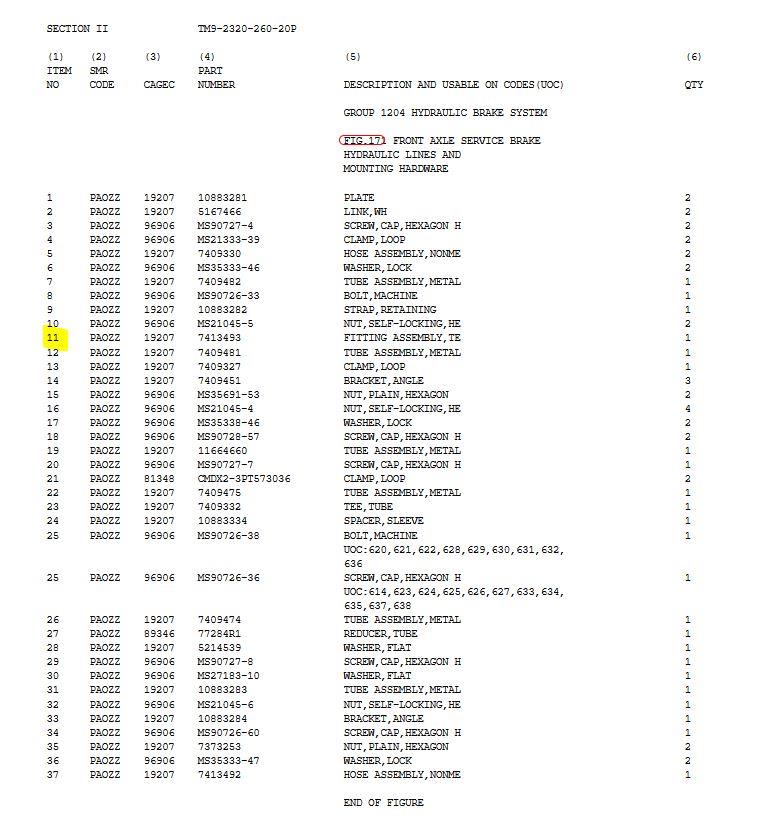

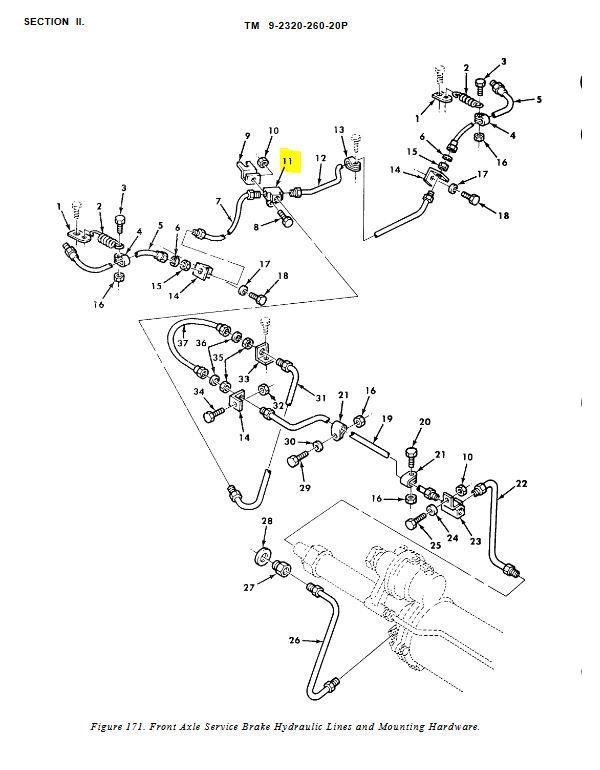

Item No 11 In Diagram TM9-2320-260-20P (M809)

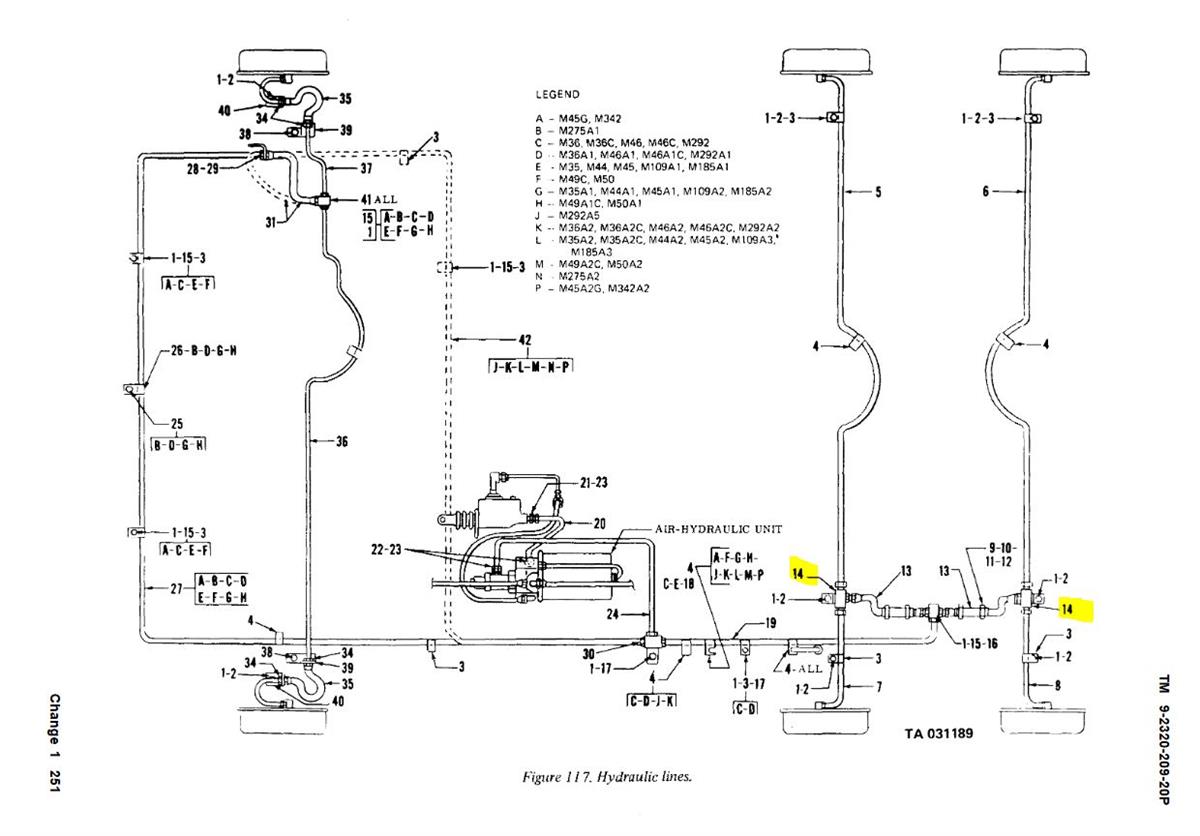

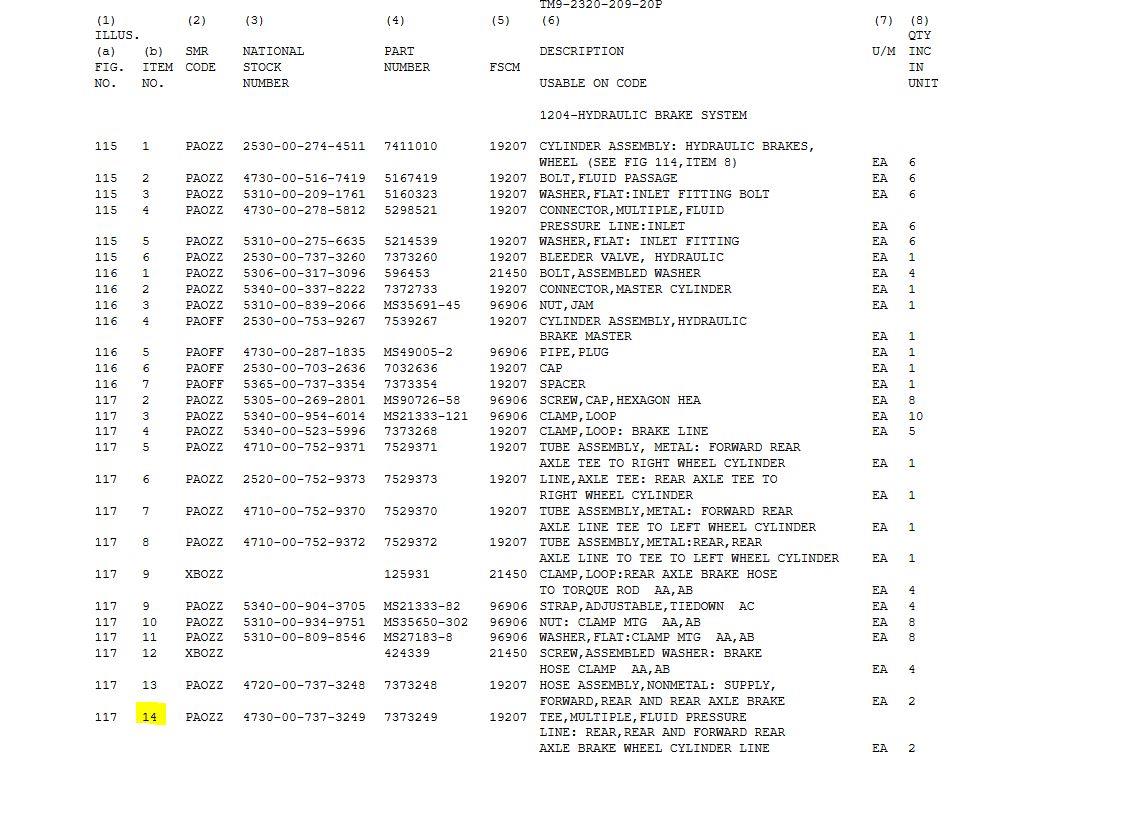

Item No 14 in Diagram TM9-2320-209-20P (M35)
Fits: 5 Ton 6x6 Military Truck, Deuce and a Half 6x6 Military Truck
M809, M813, M814, M816, M817, M818, M820 5-Ton Trucks
M54 and variants 5-Ton Trucks
M35, M35A1, M35A2, M35A3, M36, M36A1, M36A2, M36A3, M275, M109, M109A1, M109A3, M109A4 2 ½ Ton Trucks
