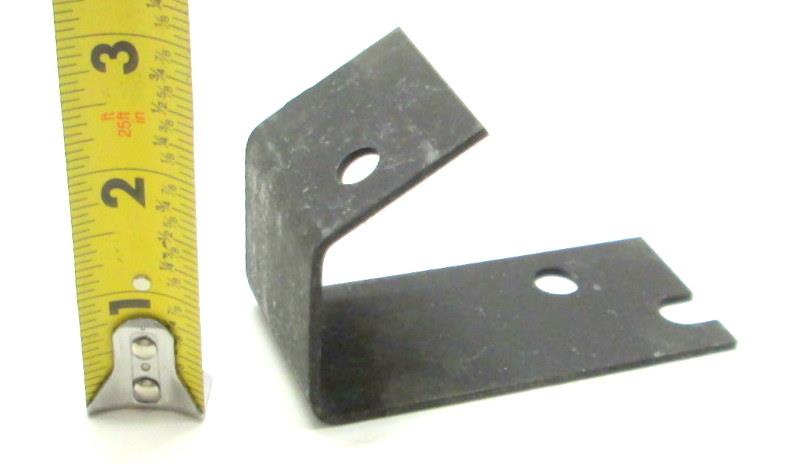

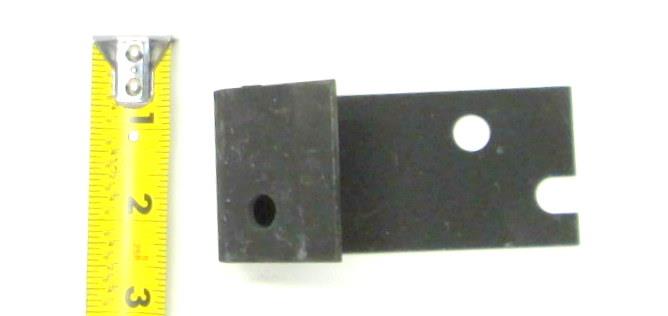

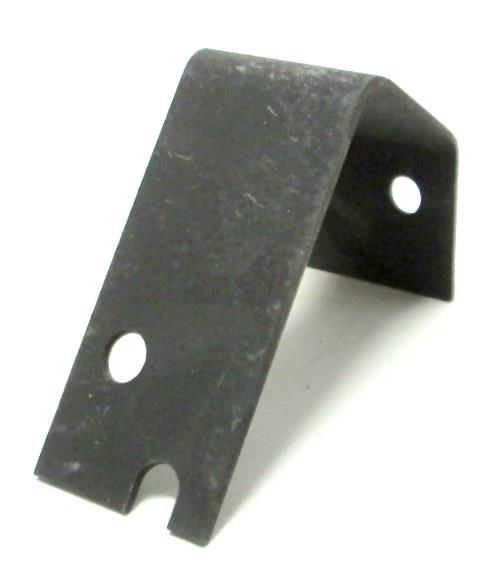

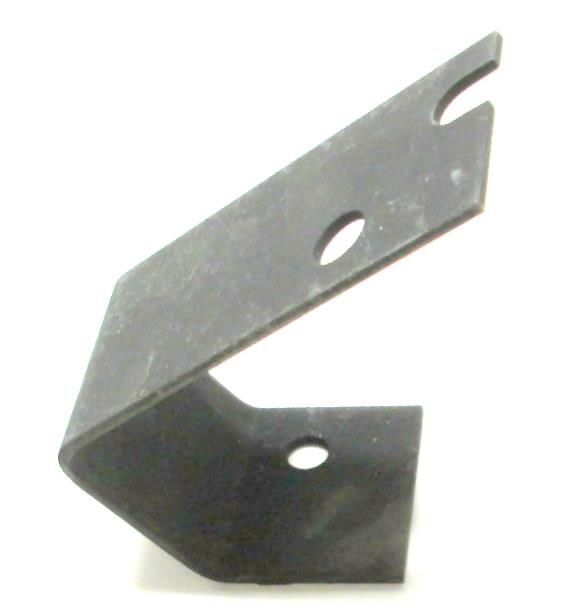

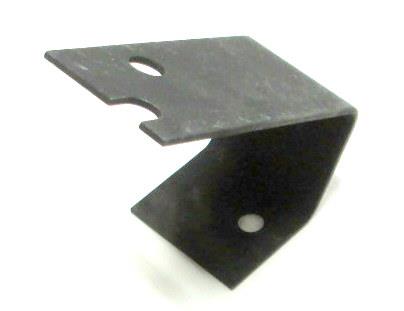

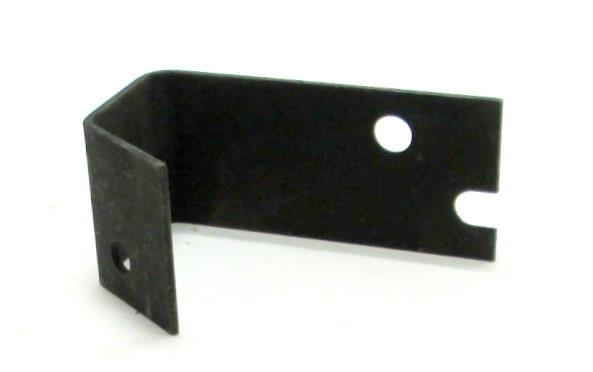

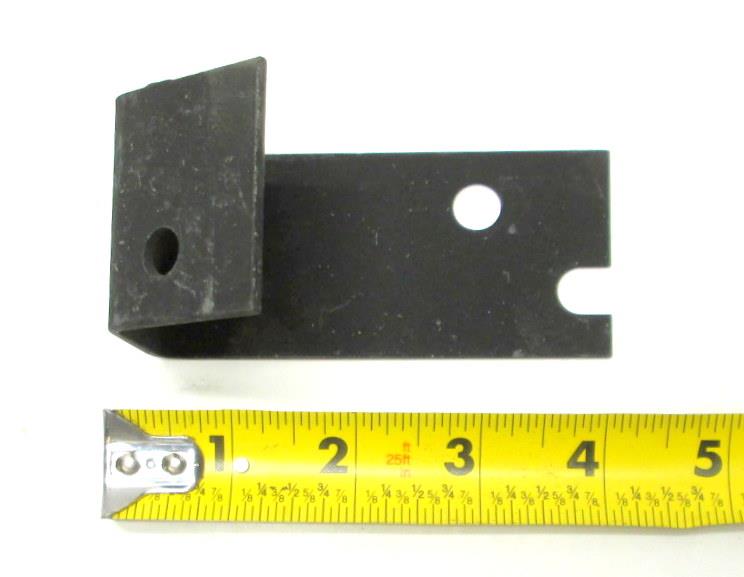

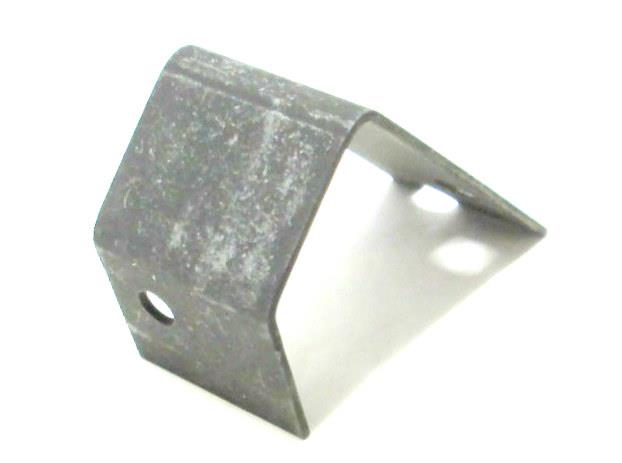

Parking Brake Cable Double Angle Mounting Bracket HMMWV
- Mounting Hole Type Plain
- Second Leg Length 3.810 IN
- Second Leg Width 1.750 IN
- First Leg Hole Diameter 0.339 IN
- Second Leg Hole Diameter 0.406 IN
- Second Leg Distance From Edge to Hole Center Along Width 0.470 IN
- Second Leg Distance From Edge to Hole Center Along Length 1.110 IN
- First and Second Leg Thickness 0.090 IN
- Center Section Thickness 0.090 IN
- Center Section Width 1.750 IN
- First Leg Width 1.750 IN
- First Leg Distance From Edge to Hole Center Along Width 0.500 IN
- First Leg Distance From Edge to Hole Center Along Length 0.880 IN
- First Leg Style Square
- First and Second Leg Hole Arrangement Style One Hole
- Second Leg Style Cut Out
- Second Leg Angle 90.0 Degrees
- Second Leg Cut Out Length 0.450 IN
- Second Leg Cut Out Width 0.400 IN
- Steel Comp
- PACS

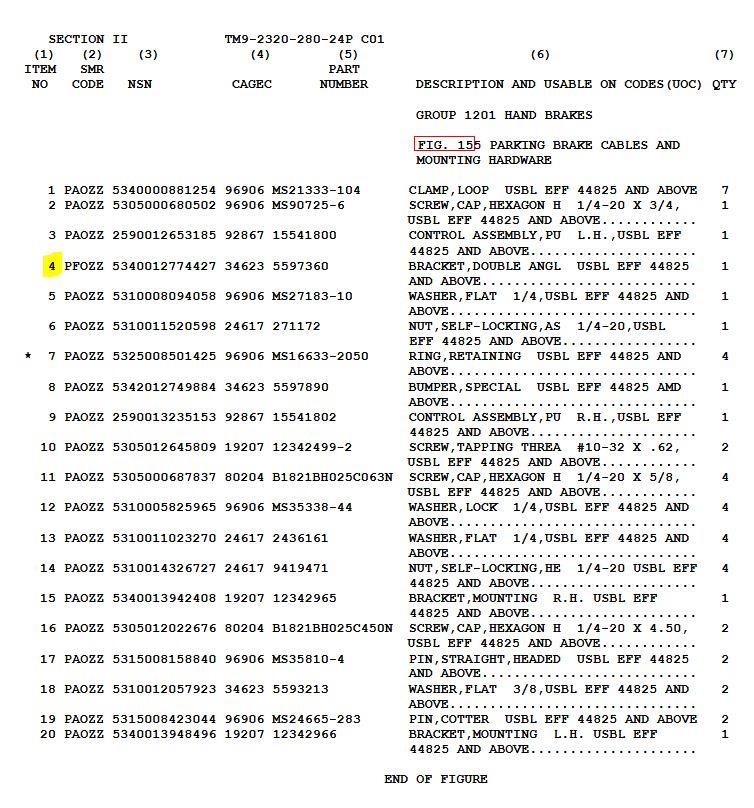

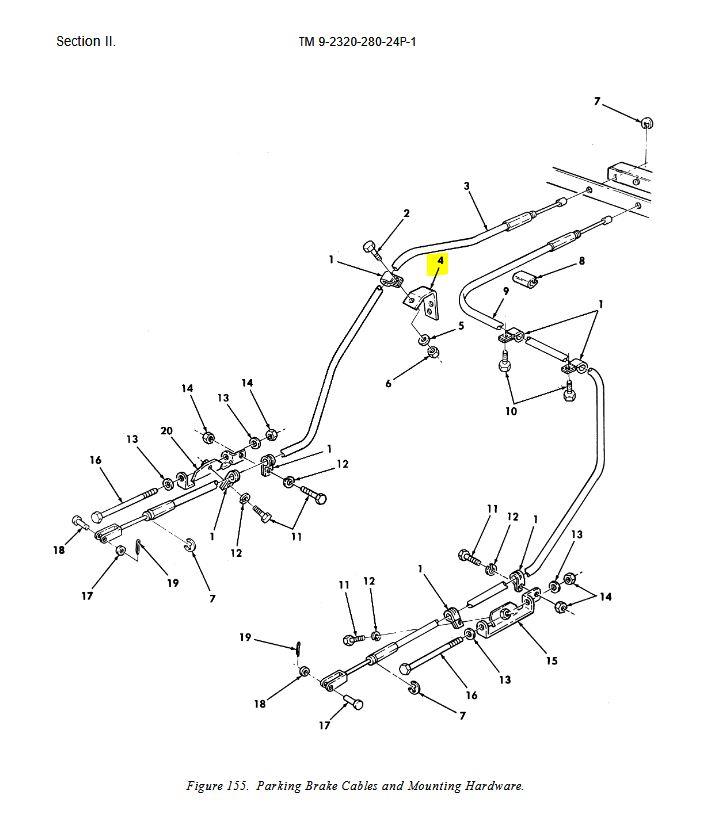

- Item NO 4 in Diagram
Fits: HMMWV Models
M1025 M1025A1 M1025A2 M1026 M1026A1 M1035 M1035A1 M1035A2 M1037 M1038 M1038A1 M1042 M1043 M1043A1 M1043A2 M1044 M1044A1 M1045 M1045A1 M1045A2 M1046 M1046A1 M1097 M1097A1 M1097A2 M1121 M1123 M966 M966A1 M996 M996A1 M997 M997A1 M997A2 M998 M998A1 M1151 M1151A1 M1167
Hummer, Humvee hmmwv, hummer, hummvee, H1, AM General
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
