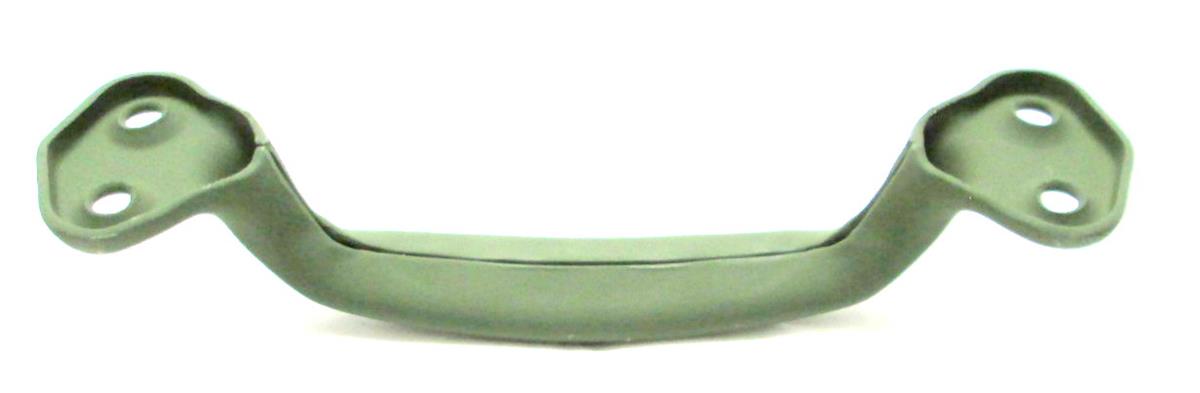

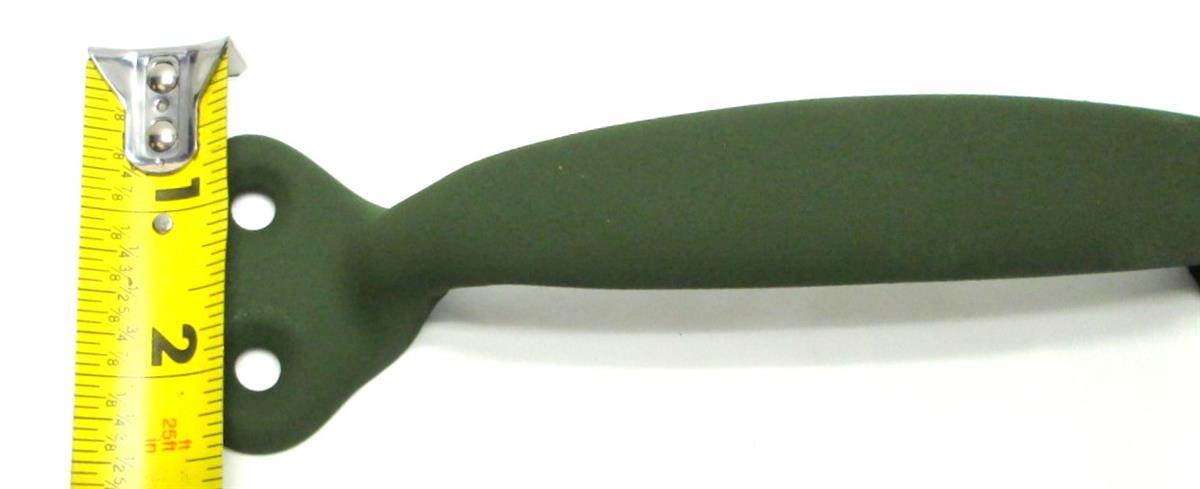

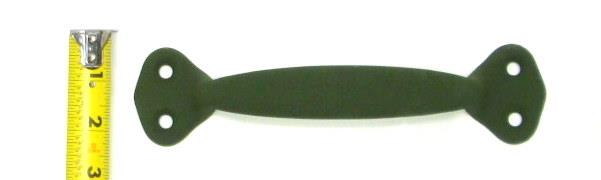

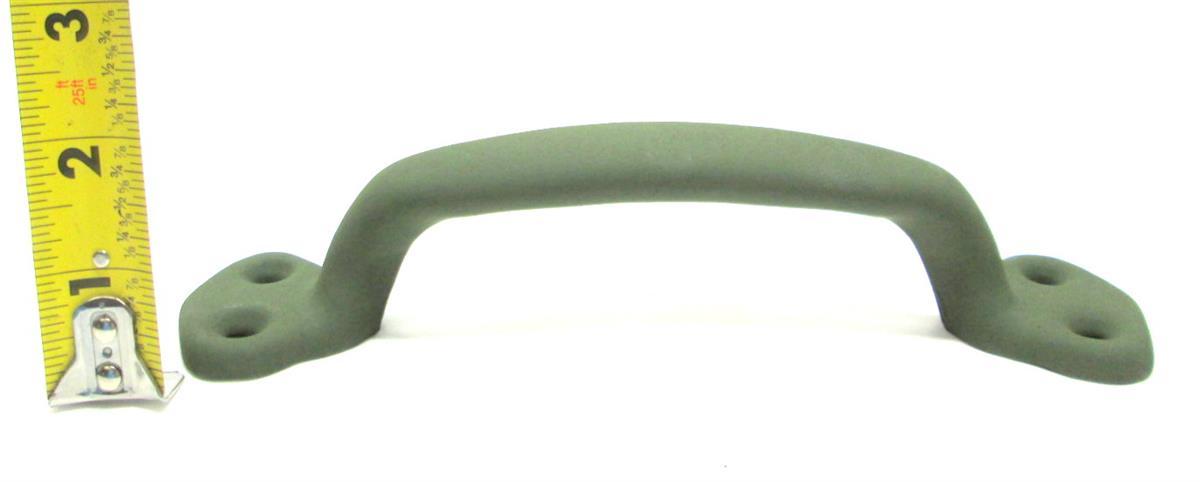

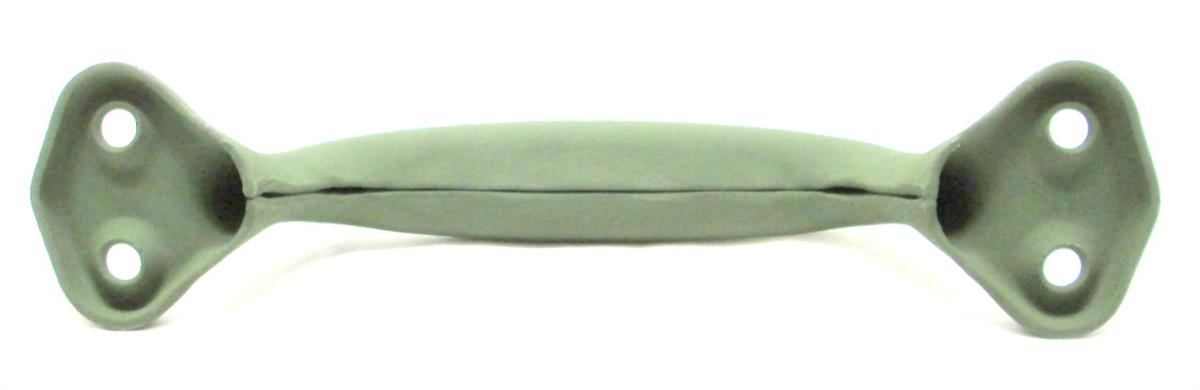

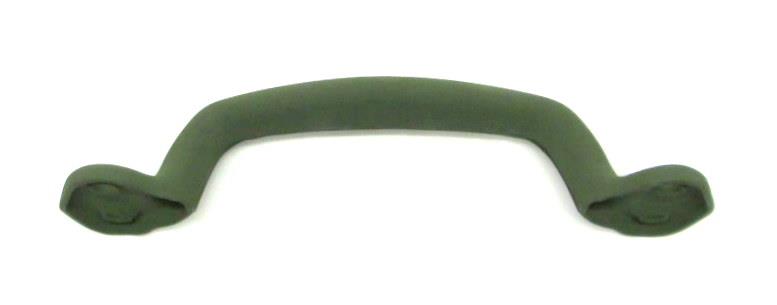

Grab Handle Truck Cab M54A2 M35A2 M809 M939A1 M939A2

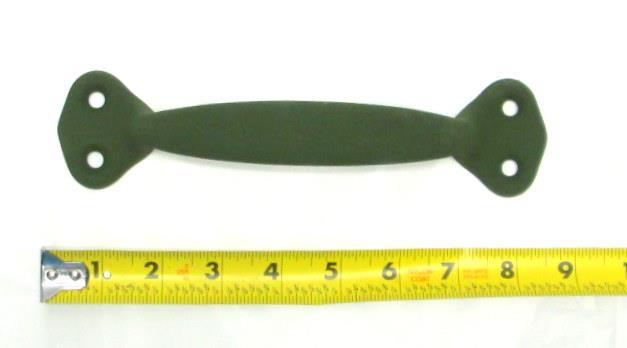

Length 8.312 IN
Center to Center Distance Between Mounting Facilities Parallel to Length 7.000 IN
Center to Center Distance Between Mounting Facilities Parallel to Width 1.000 IN
Mounting Facility QTY 4
Handle Clearance 1.312 IN
The Four Drilled Holes are Countersunk 0.520 IN DIA 85 DEG
Steel COMP

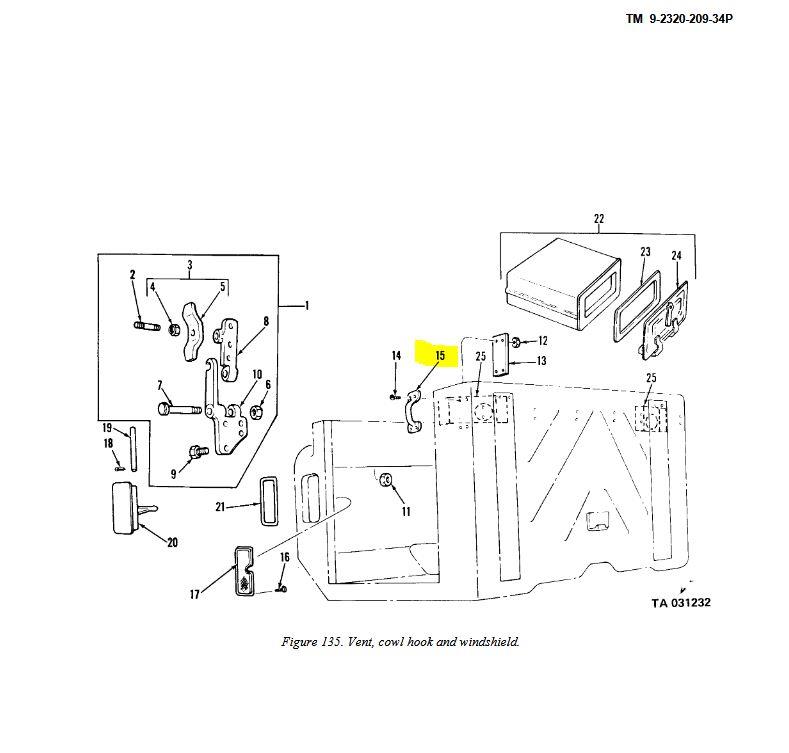

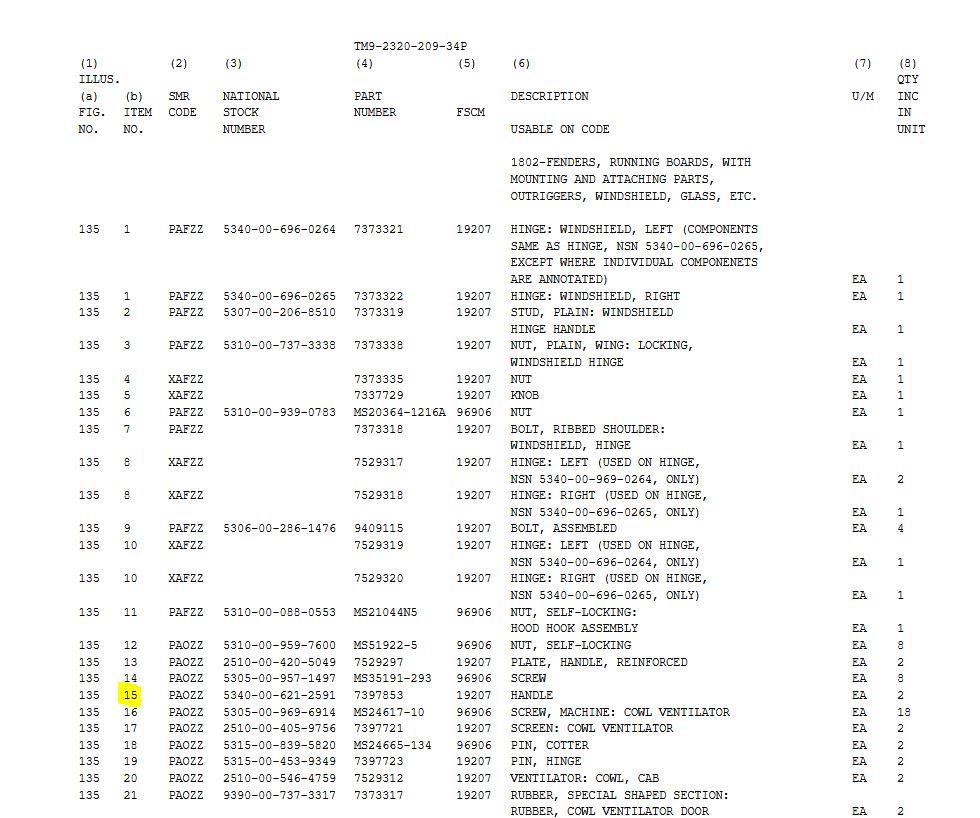

Item NO 15 in Diagram
Fits: 5 Ton 6x6 Military Truck
M35A2, M939, M939A1, M939A2, M923, M923A1, M923A2, M925, M925A1, M925A2, M927, M927A1, M927A2, M929, M929A1, M929A2, M930, M930A1, M930A2, M931, M931A1, M931A2, M54, M809, M813, M814, M816, M817, M818, M820 5-Ton Trucks
