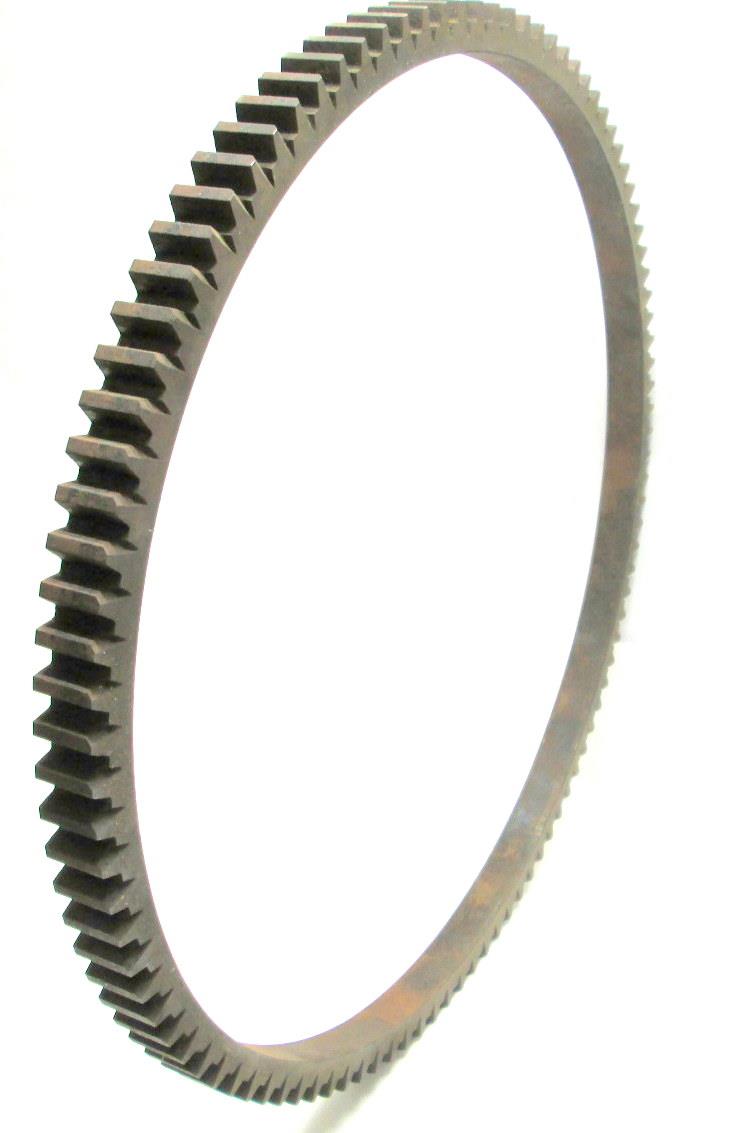

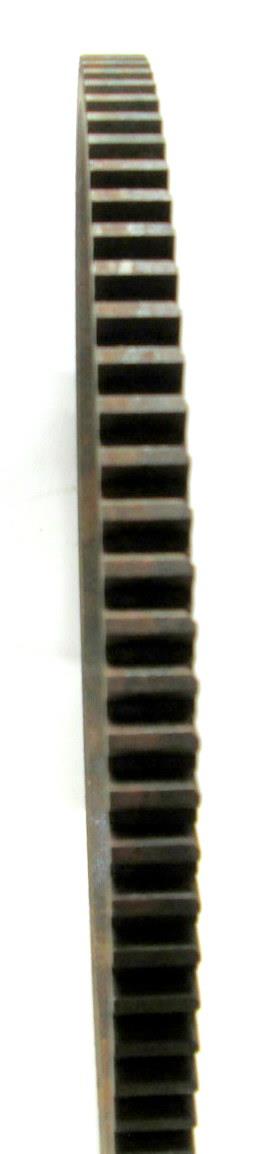

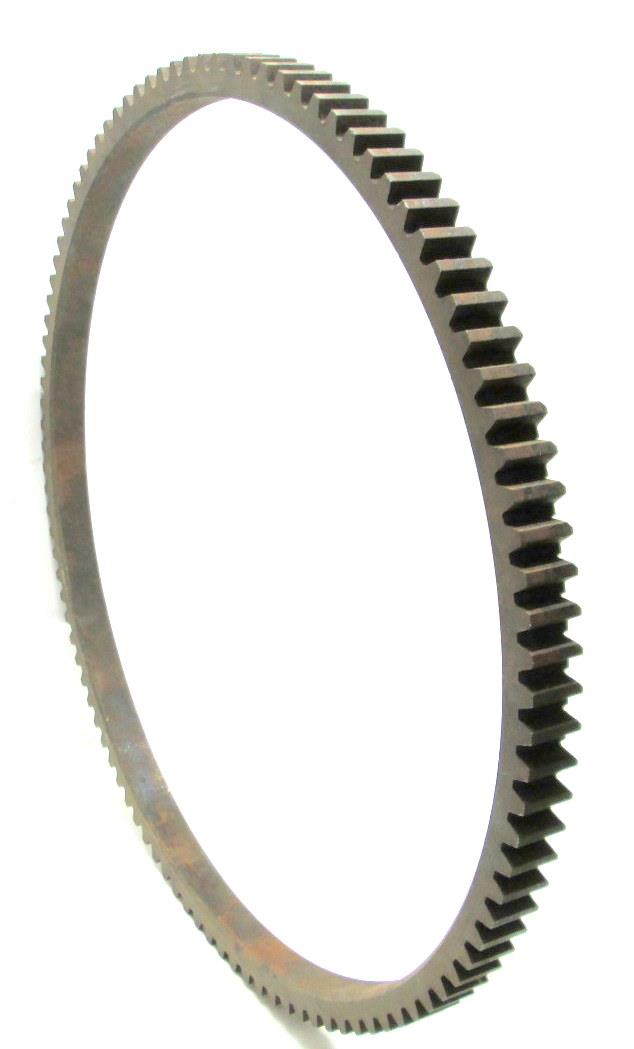

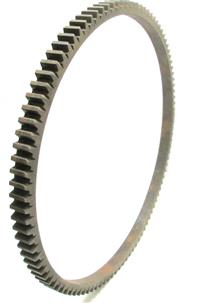

Ring Gear for Flywheel - Starter - Cummins NHC 250 Engine M809
Plain Solid
Pitch Diameter 17.1667 IN
Teeth QTY 103
Bore Style Plain
Tooth Form Standard

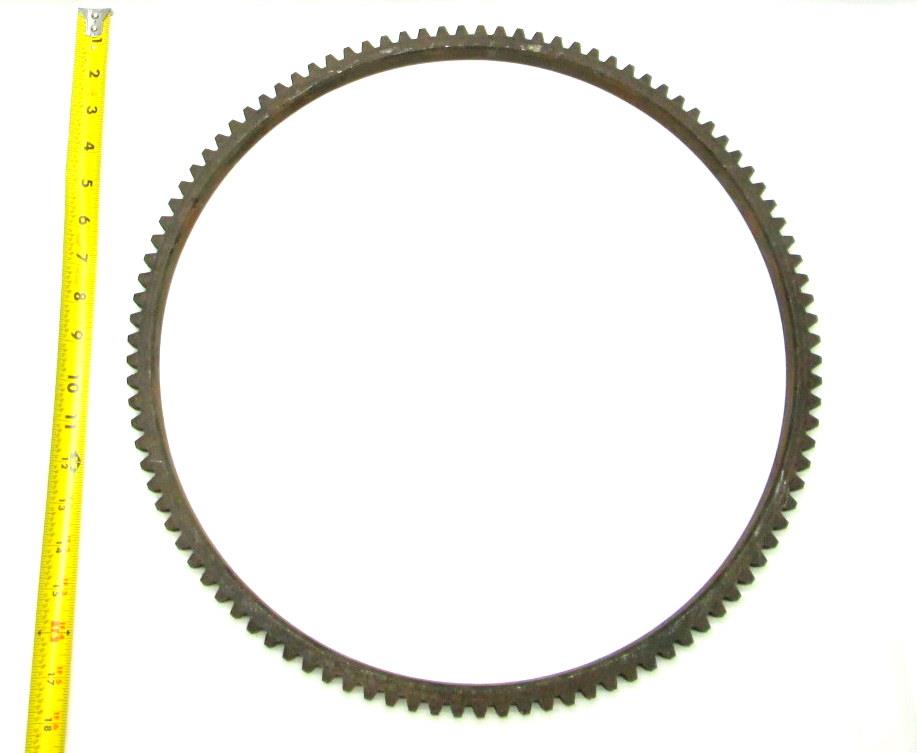

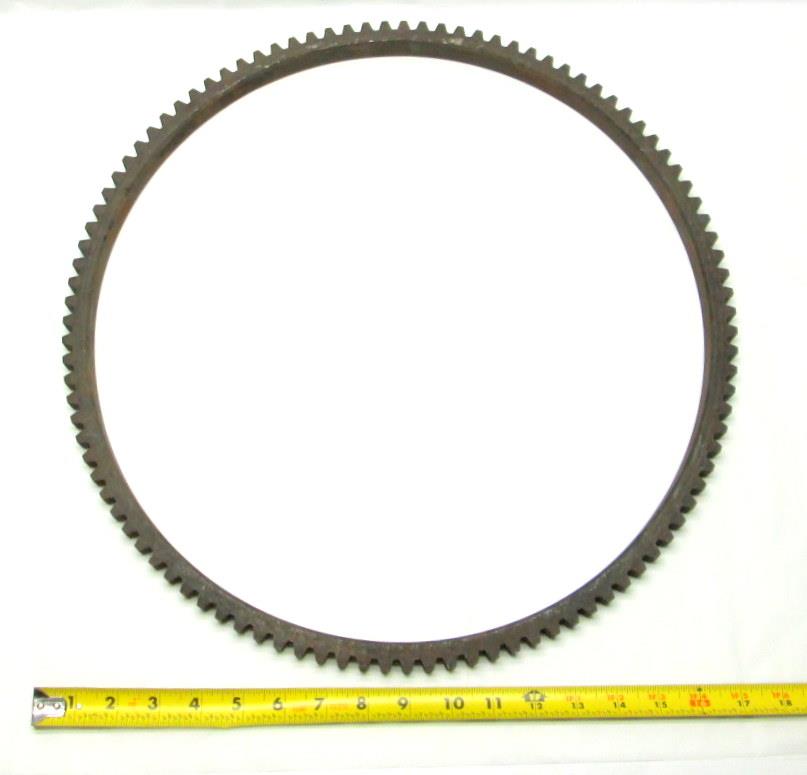

Outside Diameter 17.381 IN
Pressure Angle 20.0000 Degrees

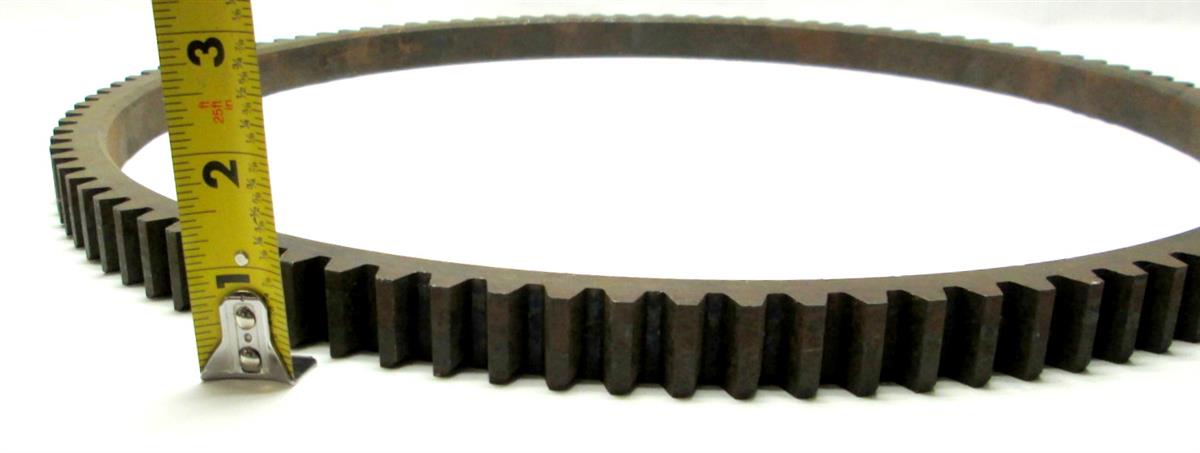

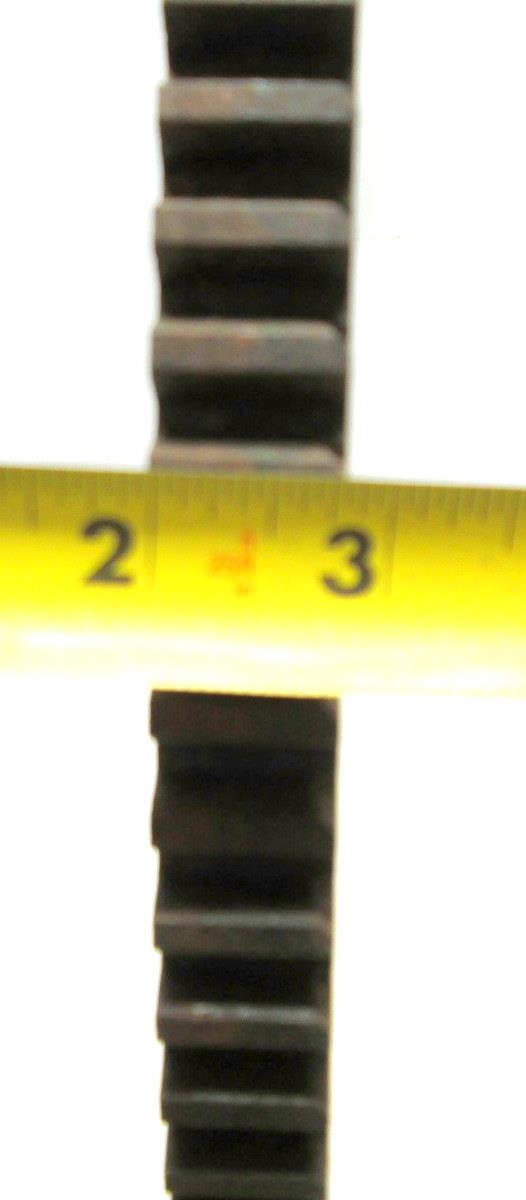

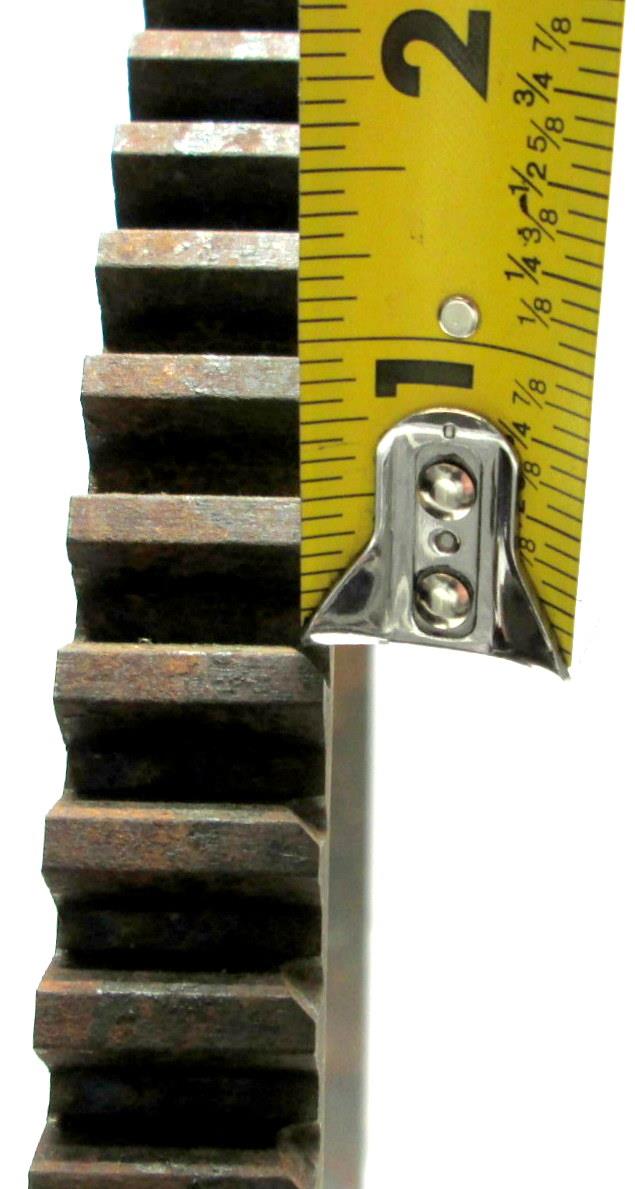

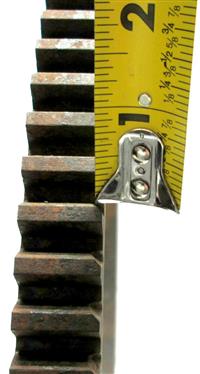

Face Width 0.985 IN

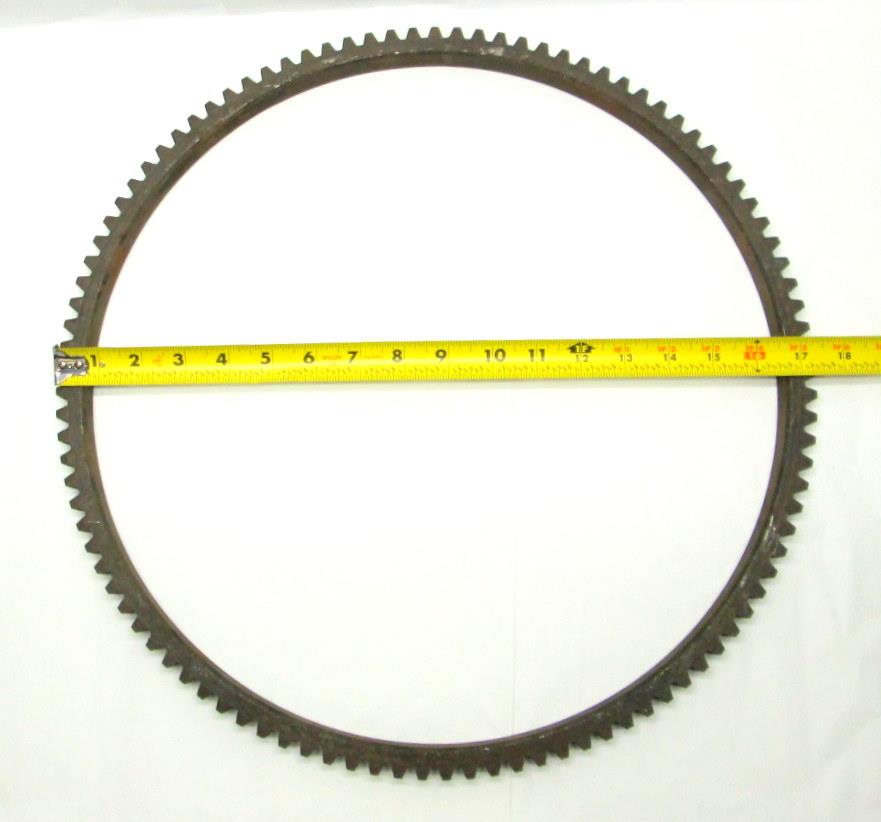

Bore Diameter 15.997 IN
Steel

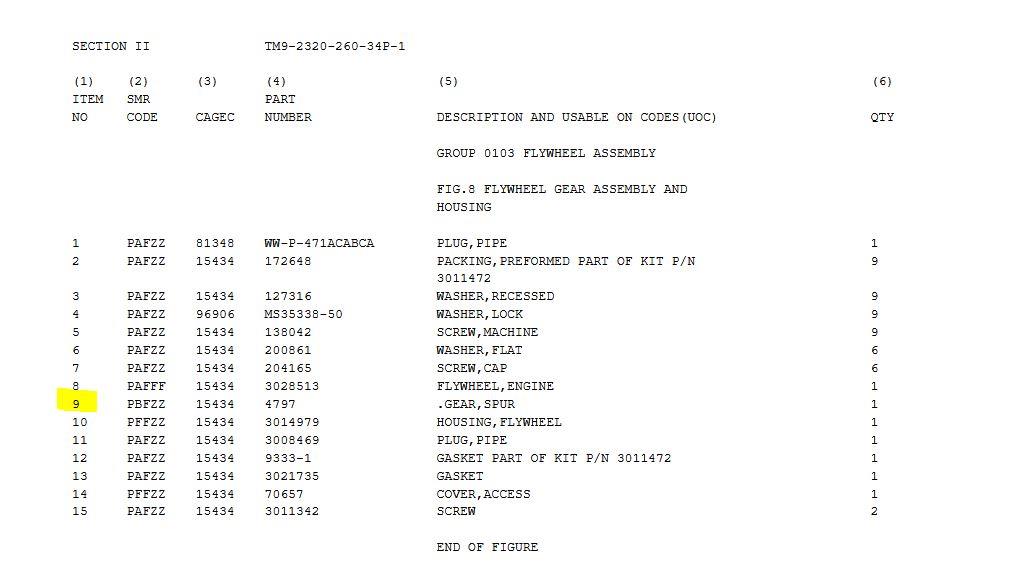

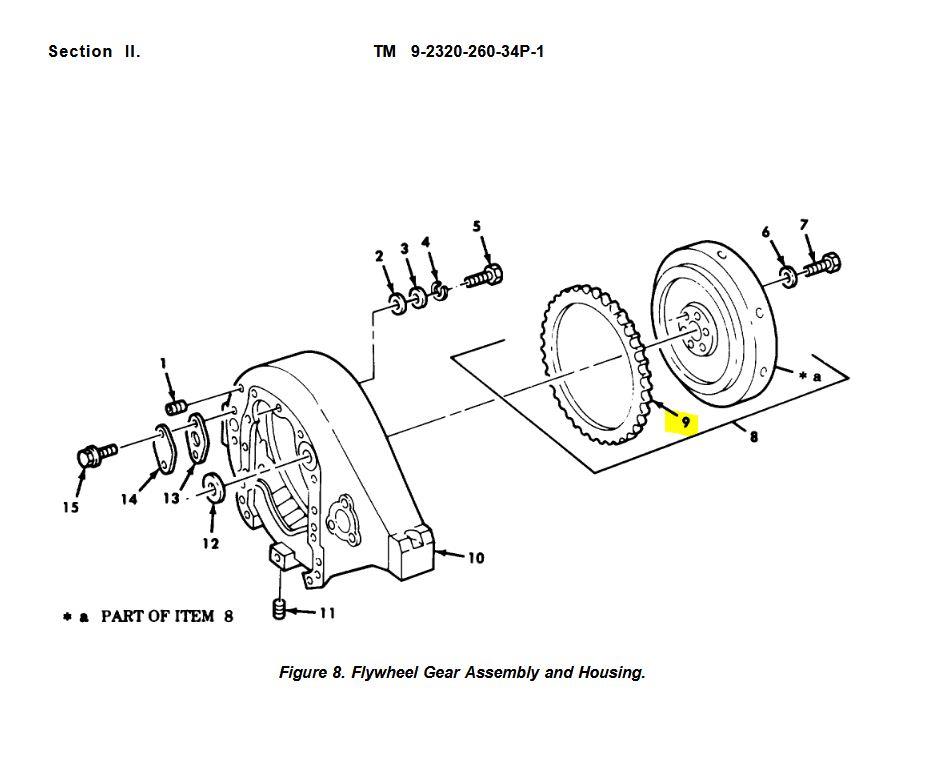

Item No 9 in Diagram
Fits: 5 Ton 6x6 Military Truck
M809, M813, M814, M816, M817, M818, M820 5-Ton Trucks
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
