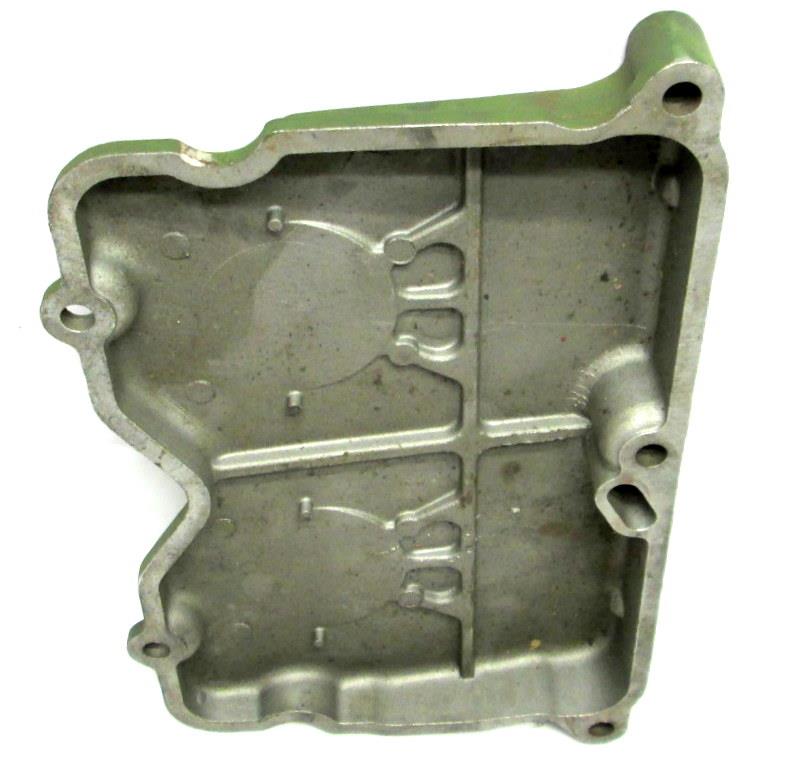

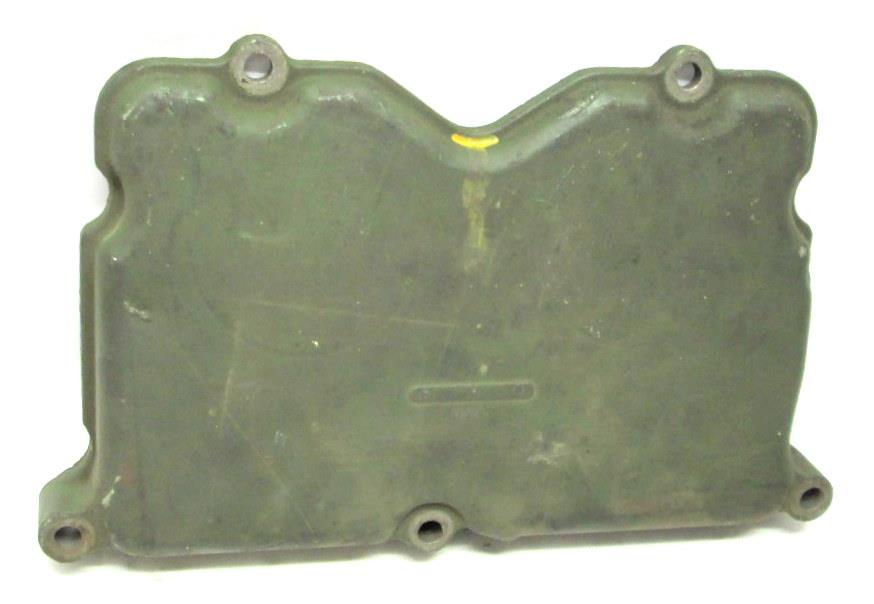

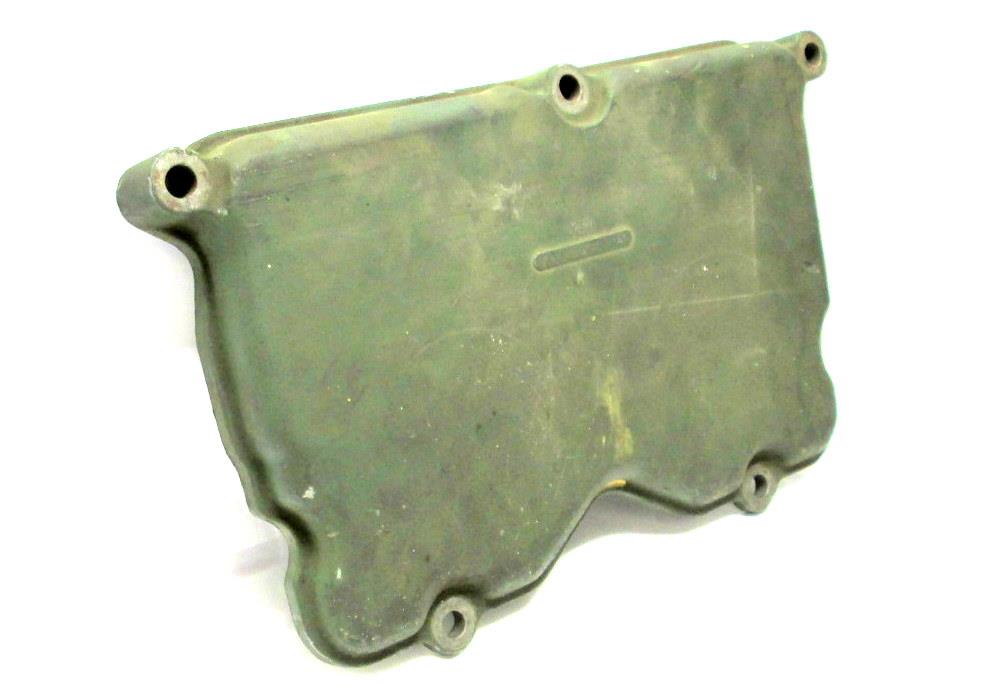

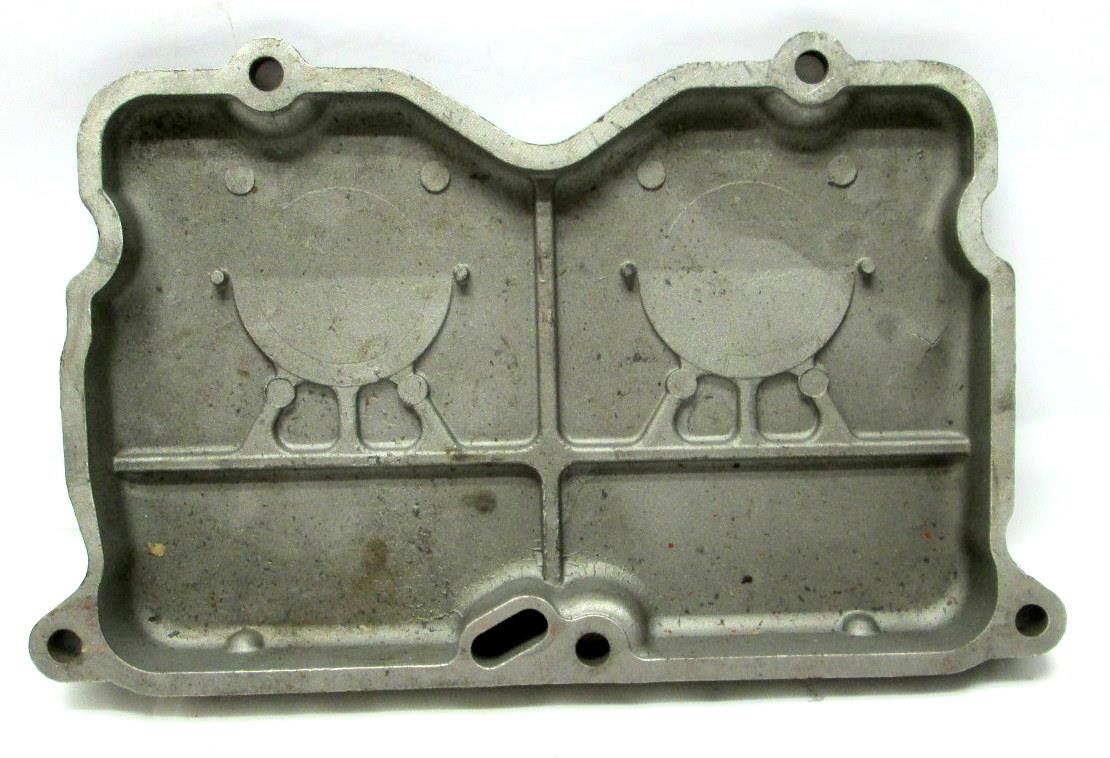

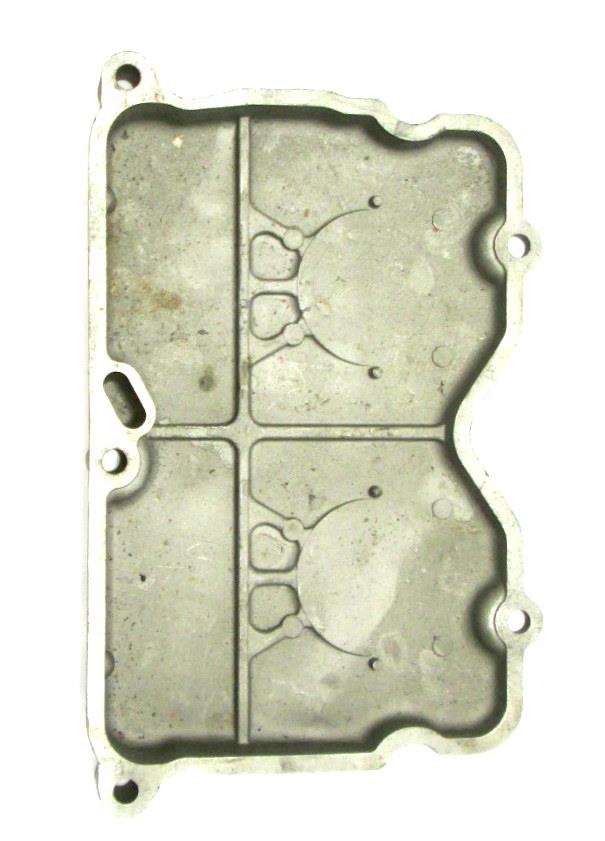

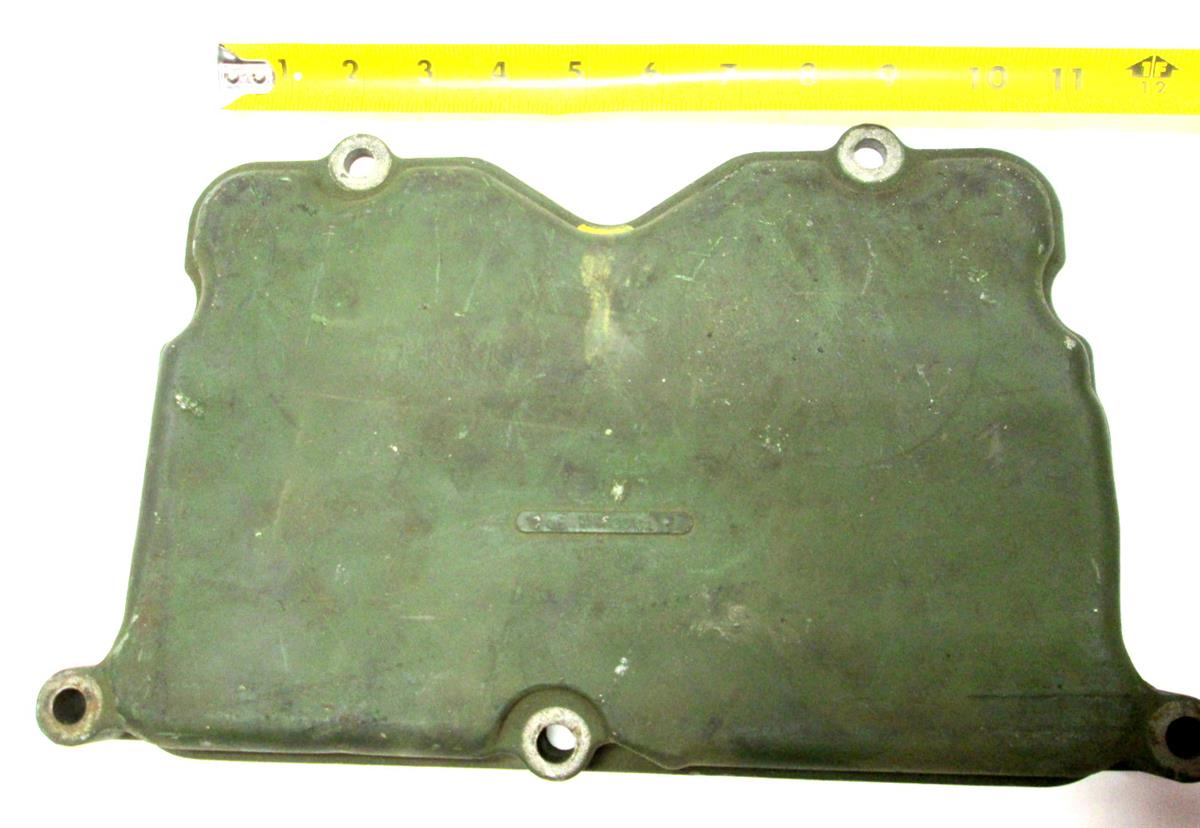

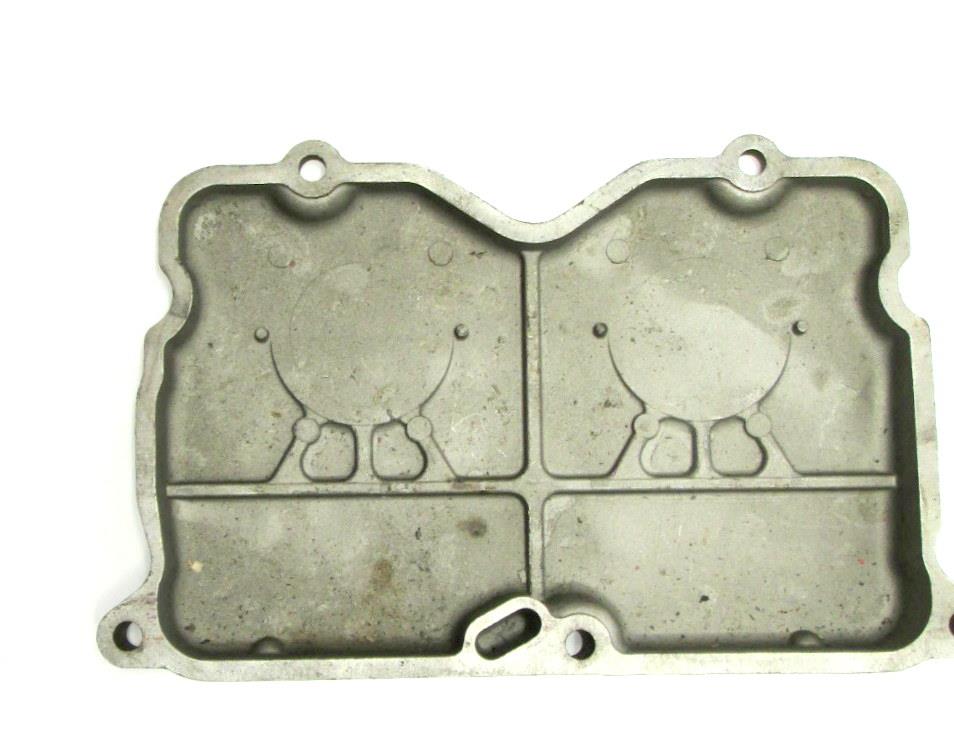

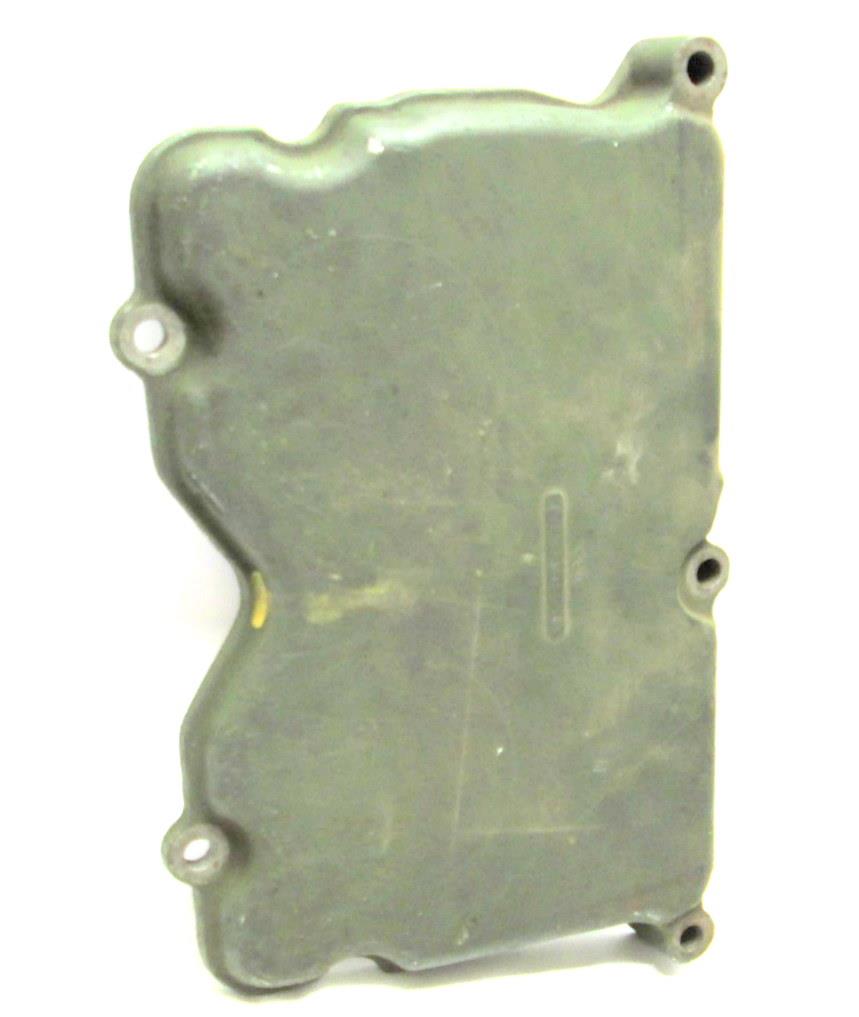

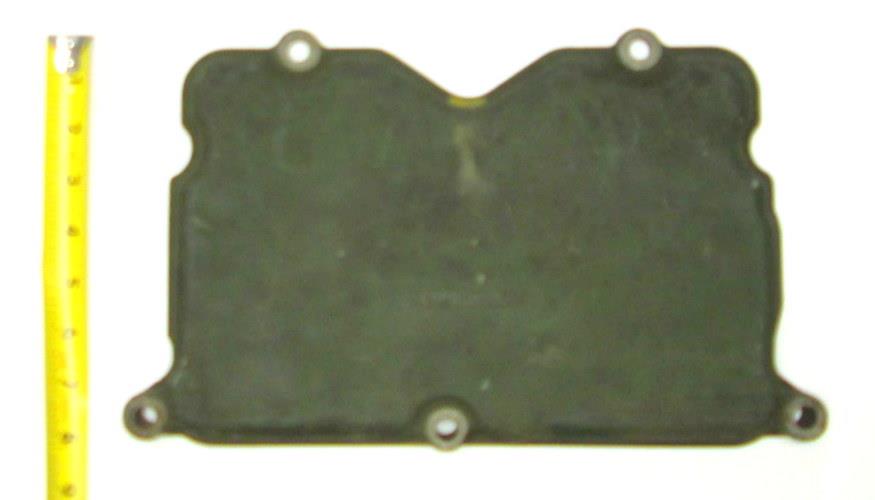

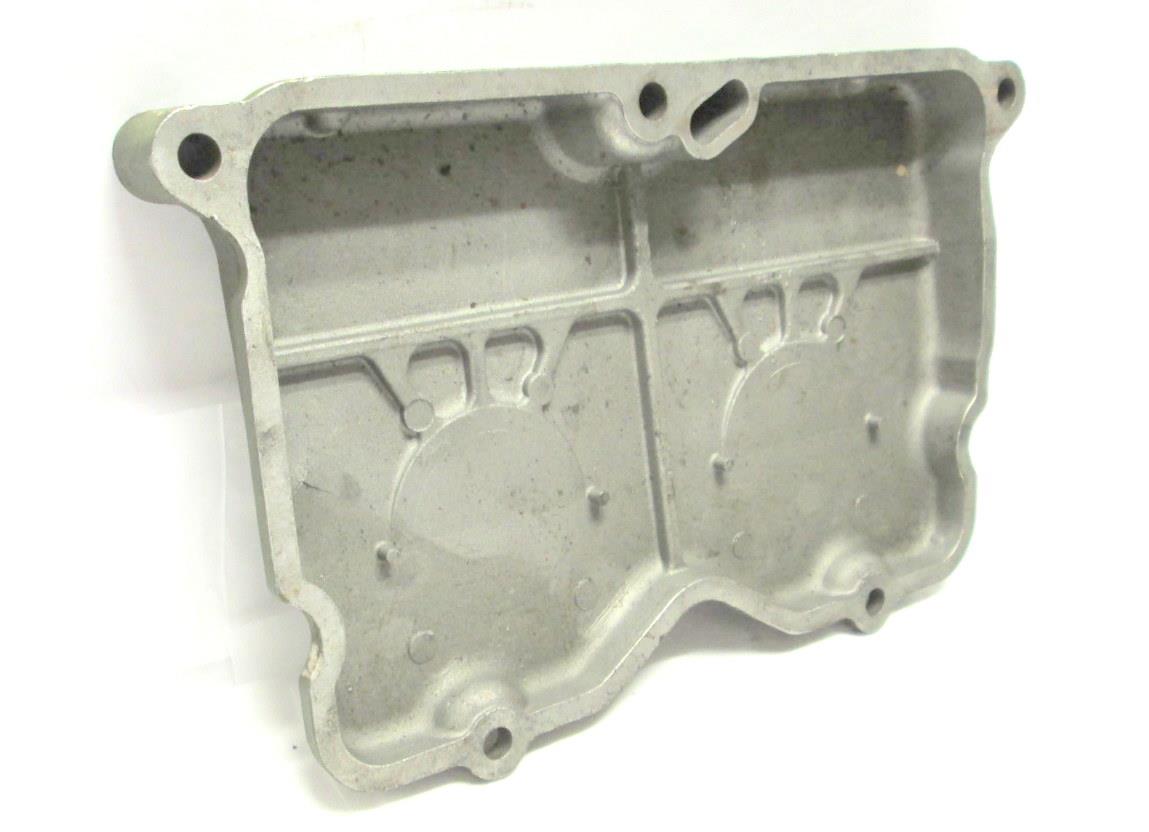

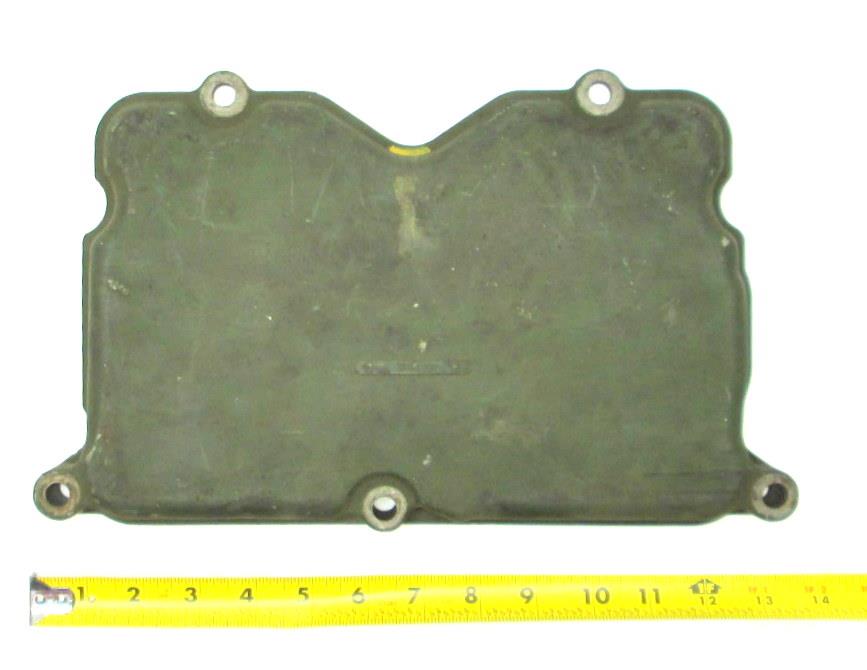

Rocker Valve Middle Cover NHC250 Cummins M809 M939A1 M915
Diesel Engine
Rectangular Shape with 5 Attachment Holes
Width 8.801 IN

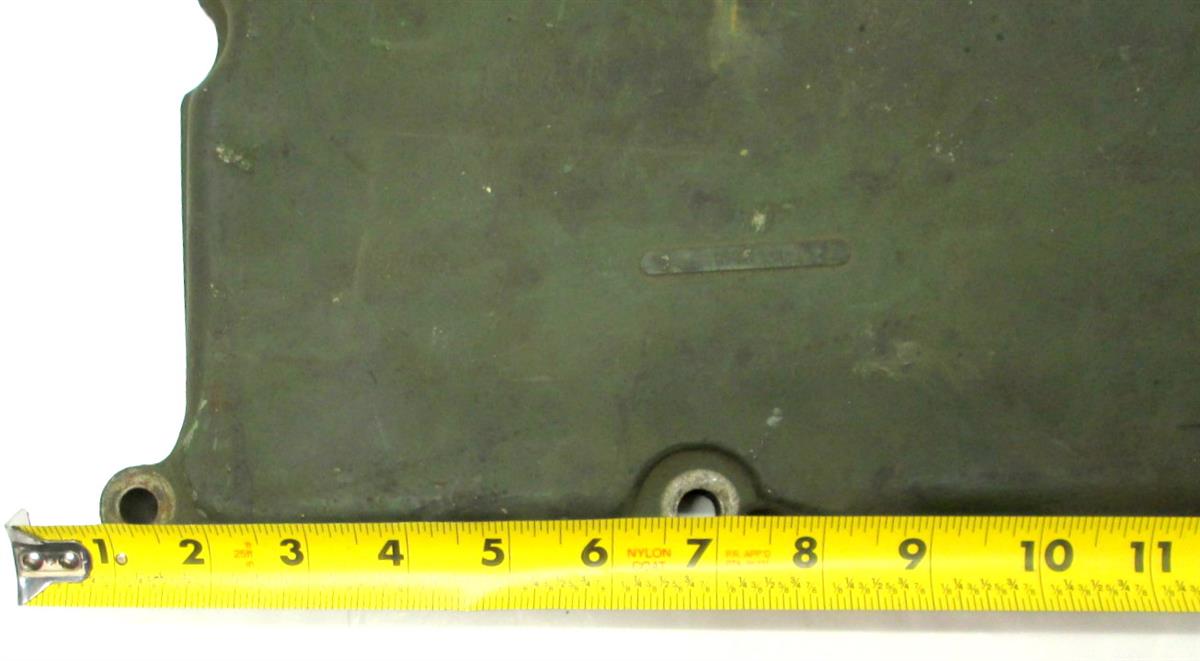

Length 13.000 IN
Corner Radius 0.875 IN
Distance Between Holes Along Length 5.875 IN MIN 6.875 IN MAX
Distance Between Holes Along Width 7.875 IN
Distance from First Hole Centerline to END Along Length 2.275 IN
Distance from First Hole Centerline to END Along Width 0.463 IN
Inverted Radius 0.250 IN
Ear Radius 0.437 IN
PACS

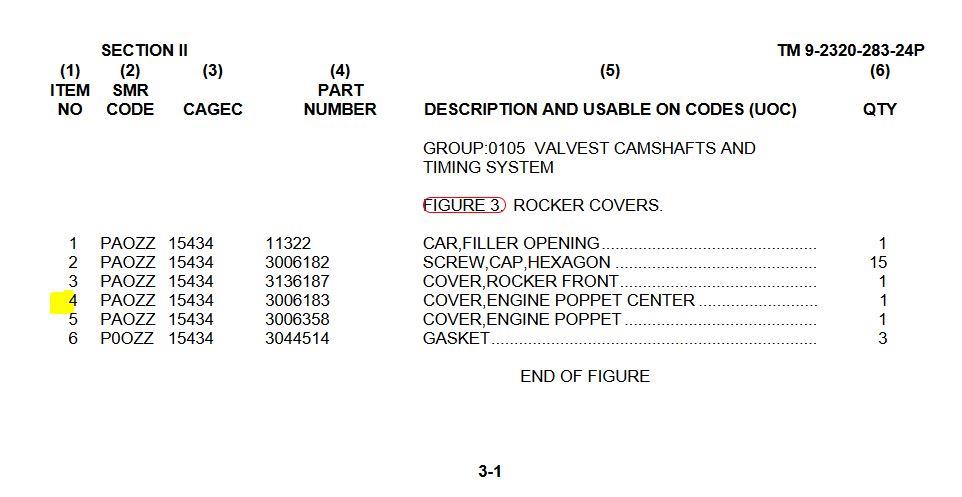

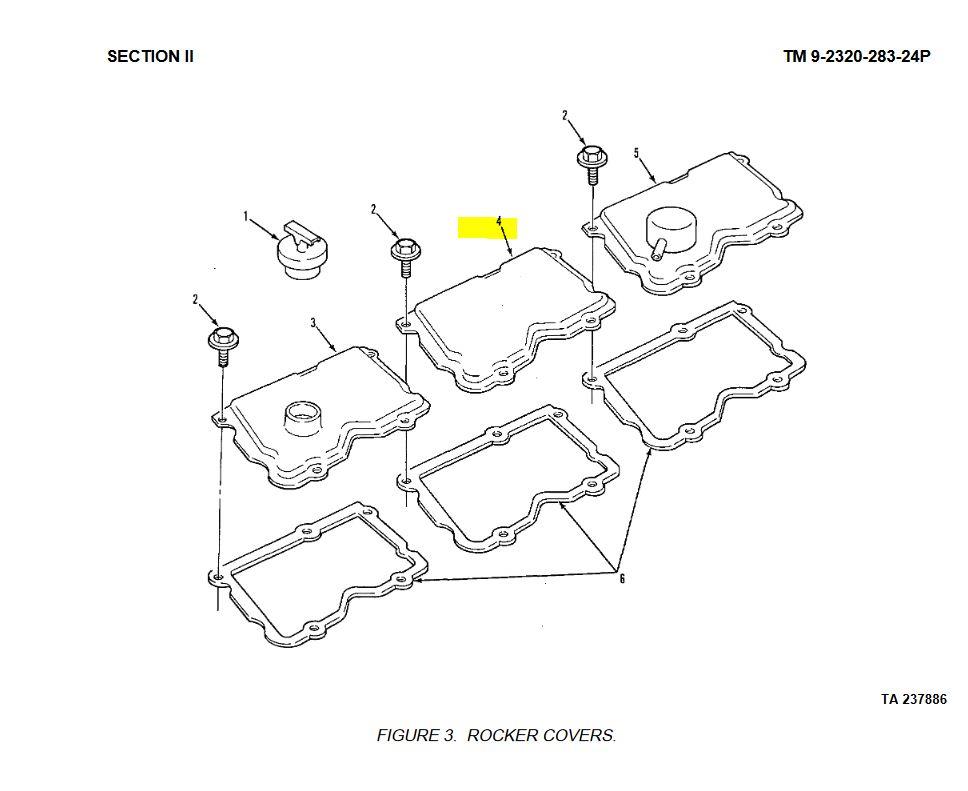

Item No 4 in Diagram
Click Here For Rocker Valve Cover with Oil Fill Opening NHC250 Cummins M809 M939A1 M915
Click Here For Left Front Breather Rocker Valve Cover NHC250 Cummins M809 M939A1 M915
Fits: 5 Ton 6x6 Military Truck, M915 Series
M809, M813, M814, M816, M817, M818, M820 5-Ton Trucks
M939A1
M915, M915A1, M915A2, M915A3, M916, M916A1, M916A2, M916A3, M917, M918, M919, M920 Series
