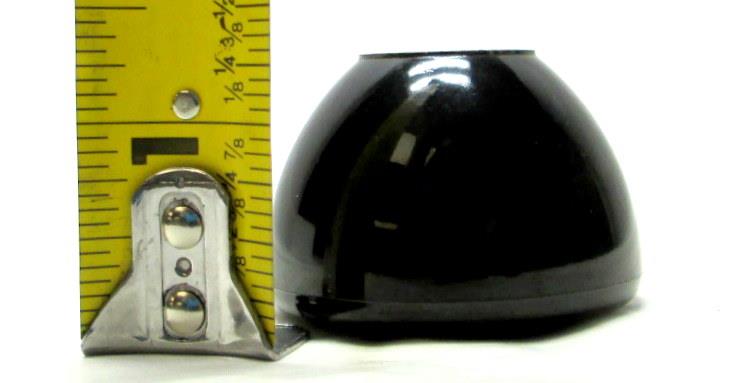

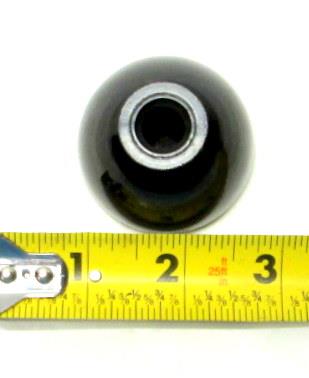

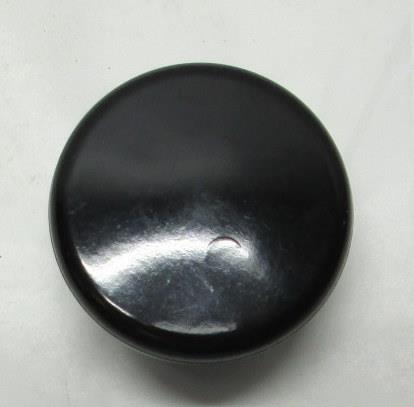

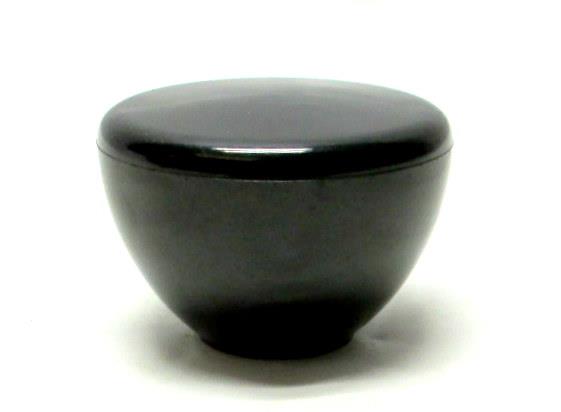

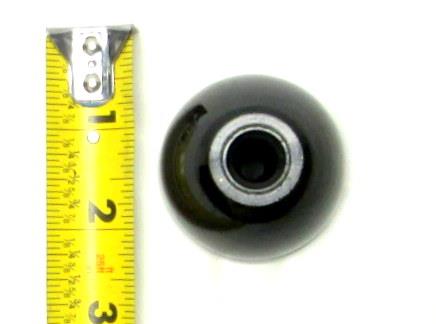

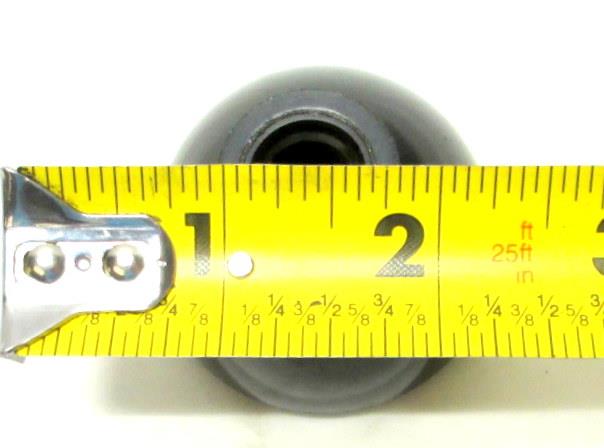

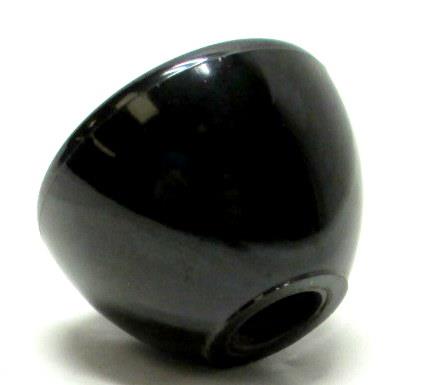

Transmission Gear Shift Knob M809
Inside Diameter 0.500 IN
Outside Diameter 1.969 IN
Shank Length 0.219 IN
Shank Diameter 0.875 IN
Shank Style Concave
Depth 1.062 IN
Shaft Accommodation Style Round
Screw On
Thread QTY Per IN 13 Receptacle
Thread Size 0.500 IN
Thread Series UNC Receptacle

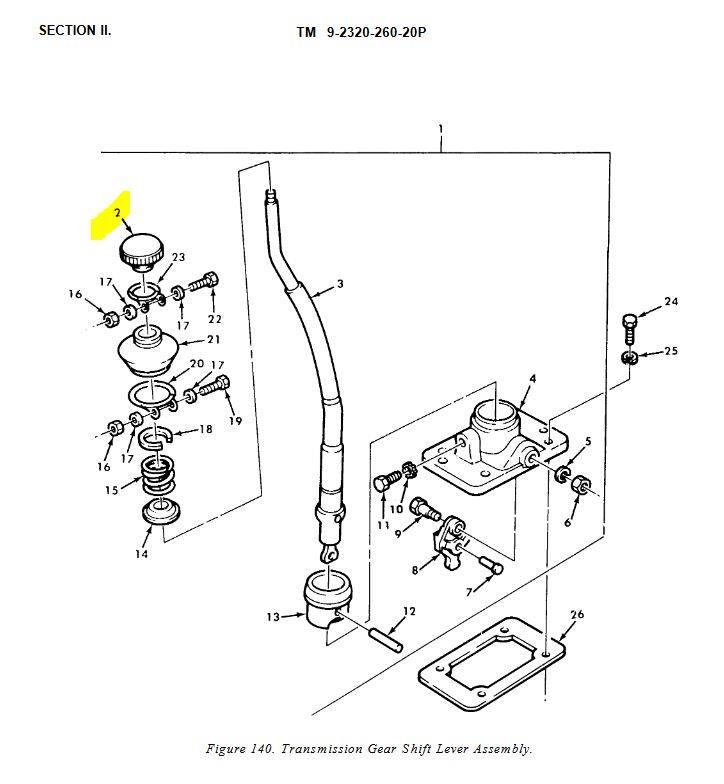

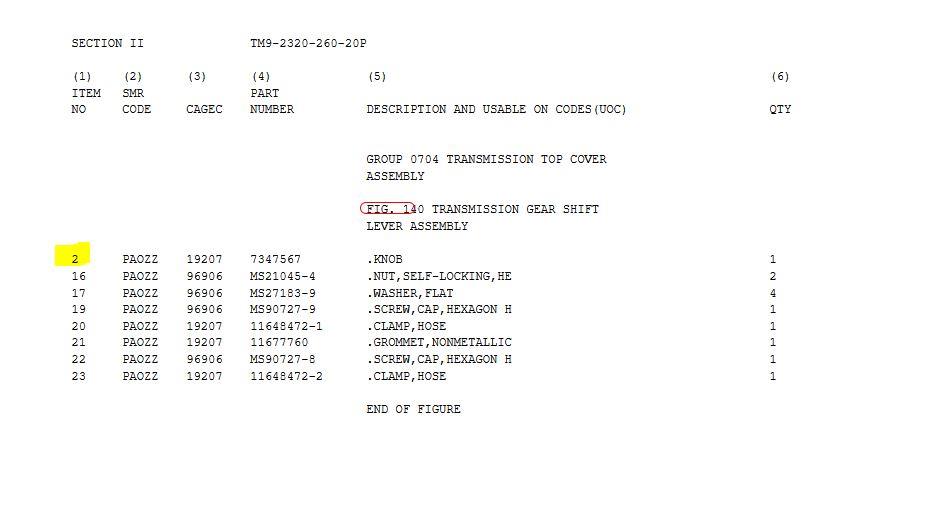

Item NO 2 in Diagram
Fits: 5 Ton 6x6 Military Truck
M809, M813, M814, M816, M817, M818, M820 5-Ton Trucks
M54A2
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
