Arctic Winter Radiator Cover Spring Mounting Hardware M35A1 M35A2 M809 M939A1 M939A2

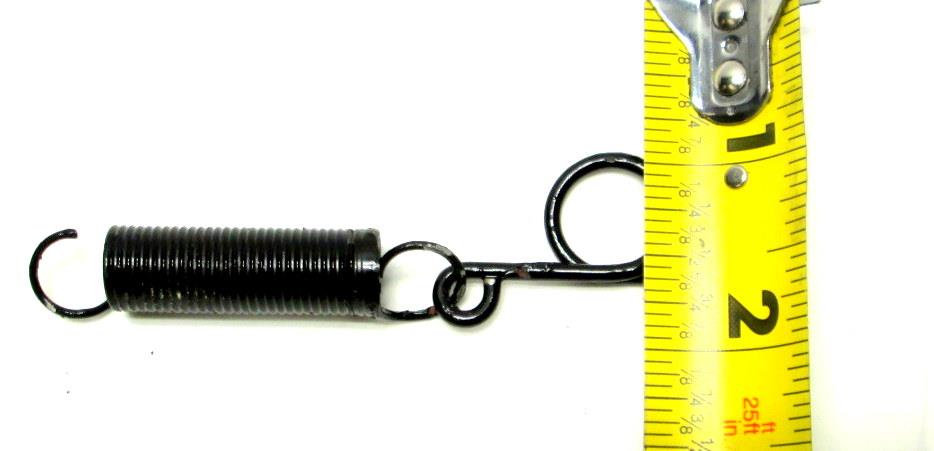

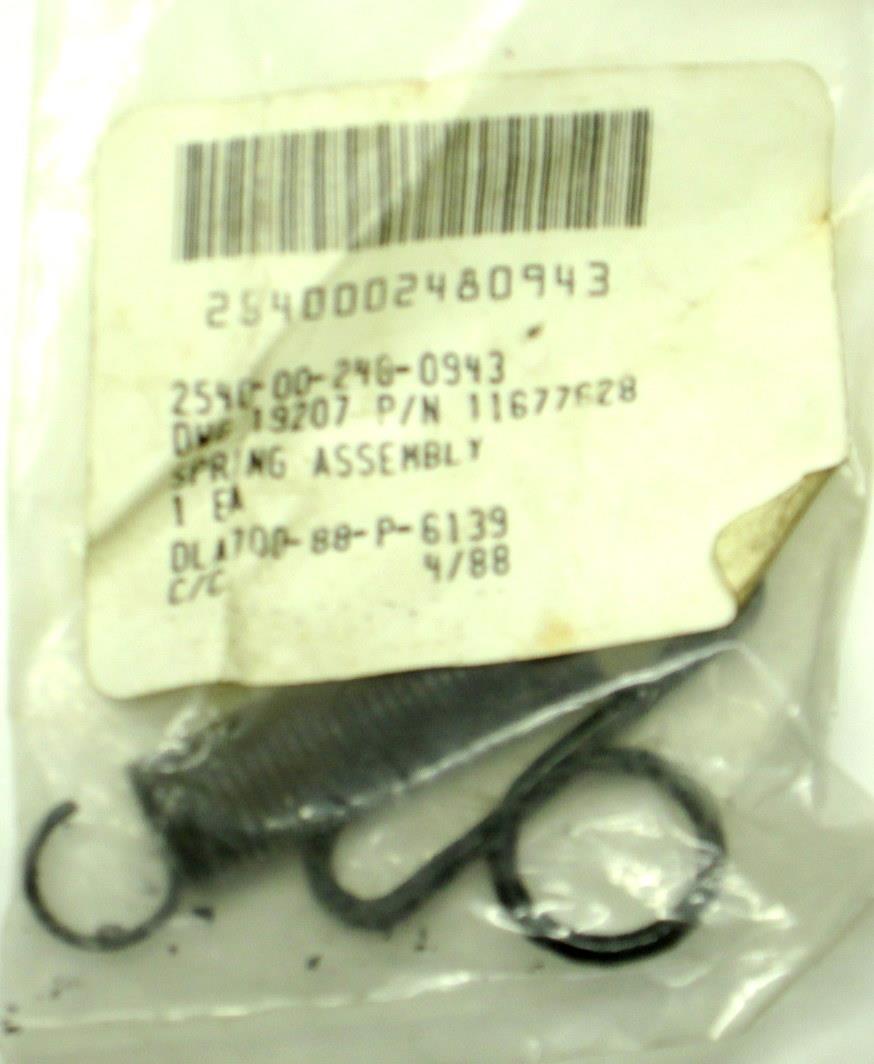

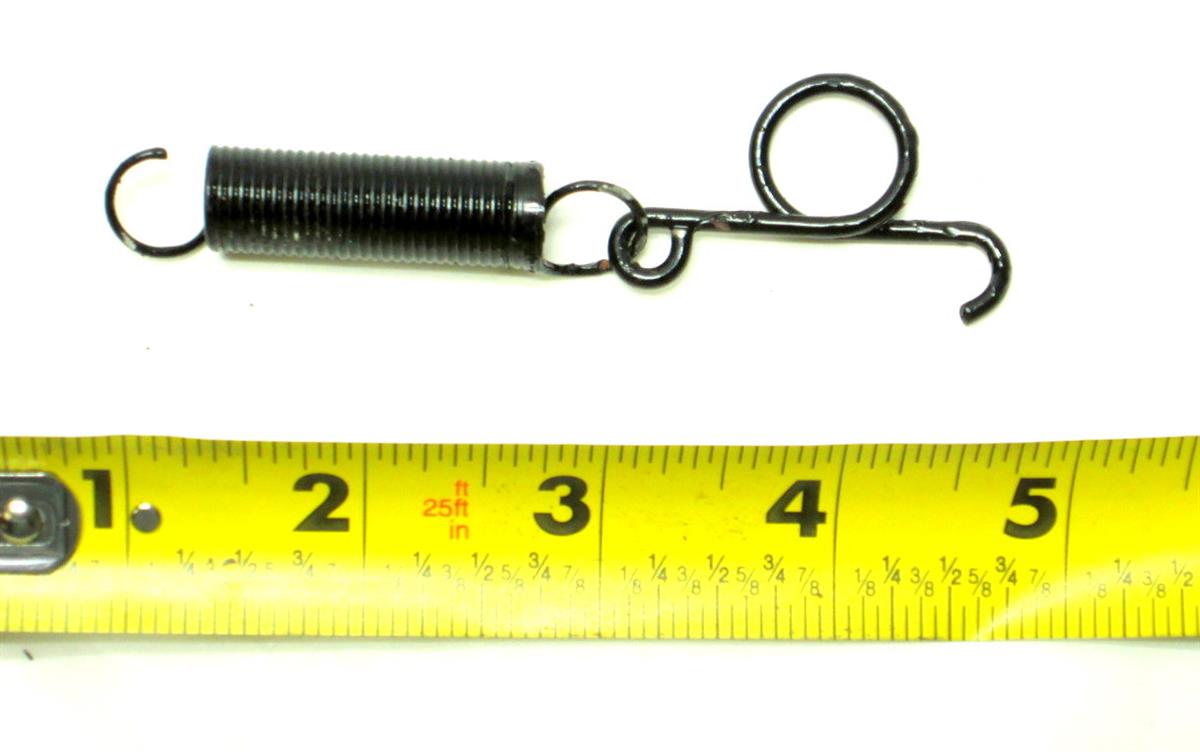

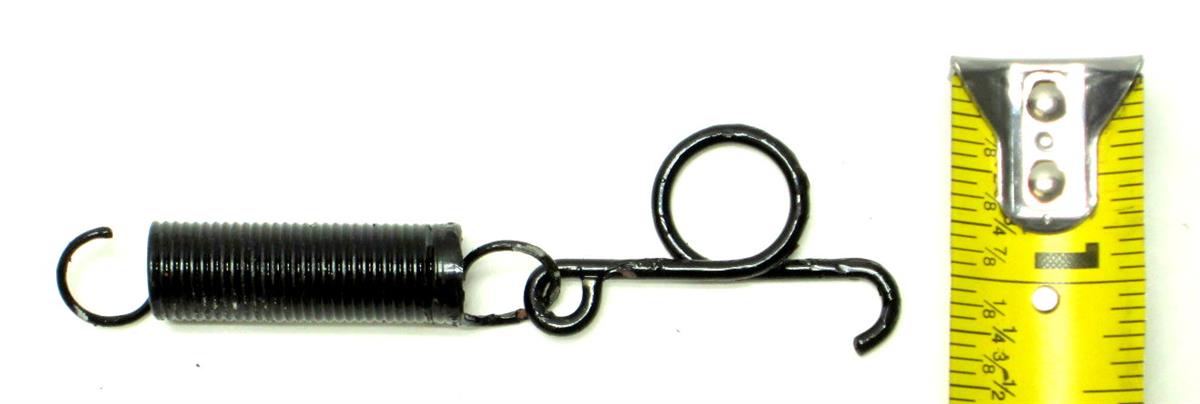

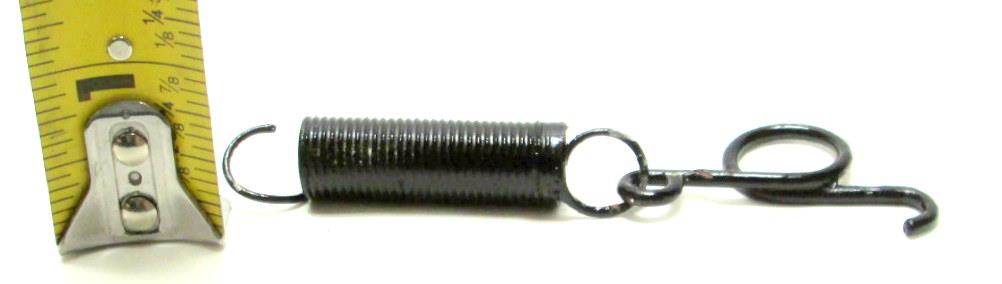

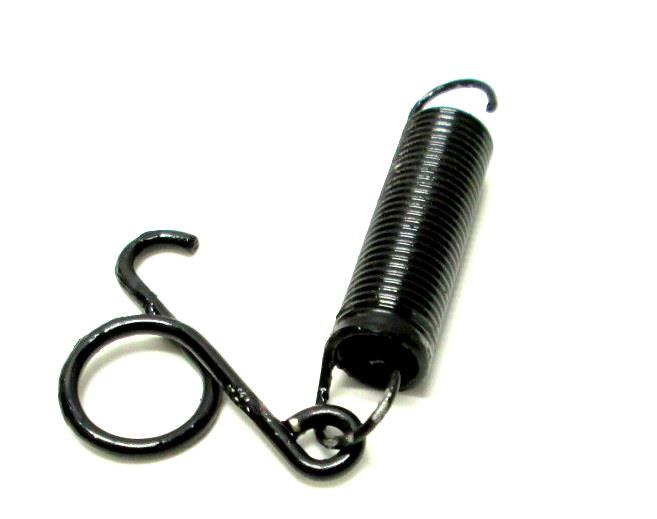

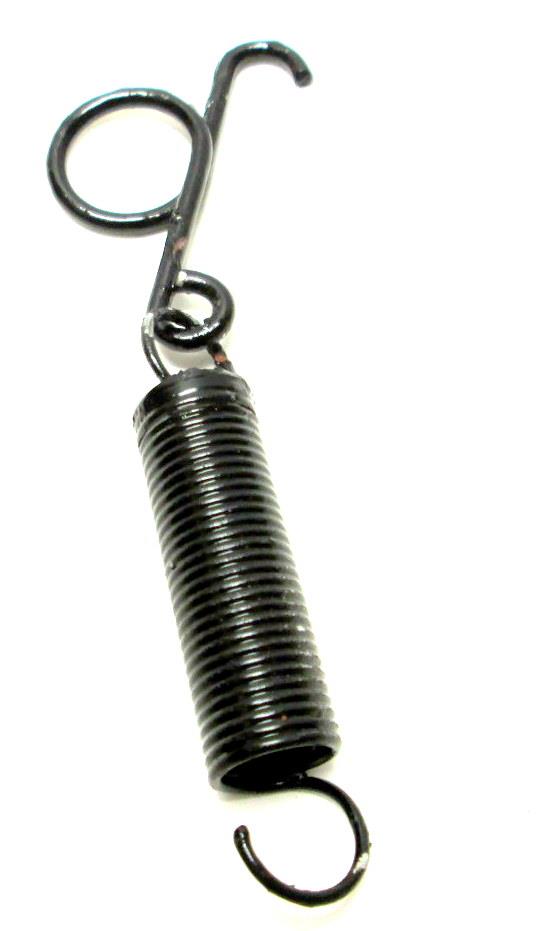

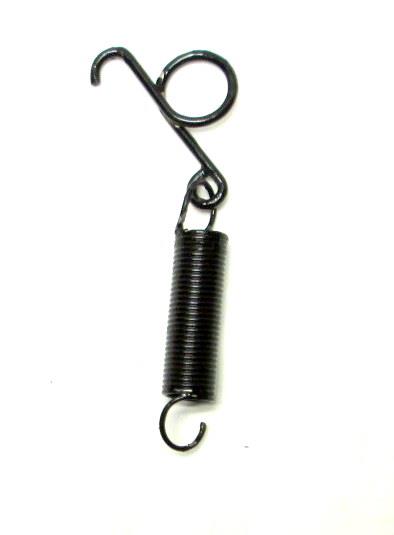

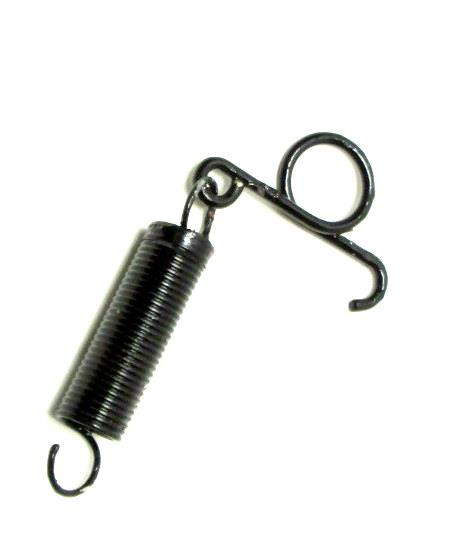

Spring Assembly P/N 11677628
Steel Cylindrical Style
0.380 IN ID
0.474 IN OD
2.344 IN Spring Free Length
1.370 IN Coil Free Length
2.250 IN Hook Free Inside Length
Hook Closed 1ST End
0.440 IN Coil to Hook Inside Length on 2ND Hook
0.190 IN Hook Radius on 2ND End
Right Hand Coil Helix Direction
Approx. 30 Coils
One Clip Attached to 1St End
1.776 IN Clip Length
Click Here For Arctic Winter Radiator Cover Strap Fastener Loop Mounting Hardware M35A2 M809 M939A1 M939A2
Click Here For 9M-688 | Cold Weather Winter Radiator Cover M939A1 M939A2
Click Here For Arctic Winter Grille Radiator Cover Insulated - Heater Grille Bra
Fits: Deuce and a Half 6x6 Military Truck, 5 Ton 6x6 Military Truck
M35, M35A1, M35A2, M35A3, M36, M36A1, M36A2, M36A3, M275, M109, M109A1, M109A3, M109A4 2 ½ Ton Trucks
M939, M939A1, M939A2, M923, M923A1, M923A2, M925, M925A1, M925A2, M927, M927A1, M927A2, M929, M929A1, M929A2, M930, M930A1, M930A2, M931, M931A1, M931A2, M54, M809, M813, M814, M816, M817, M818, M820 5-Ton Trucks
