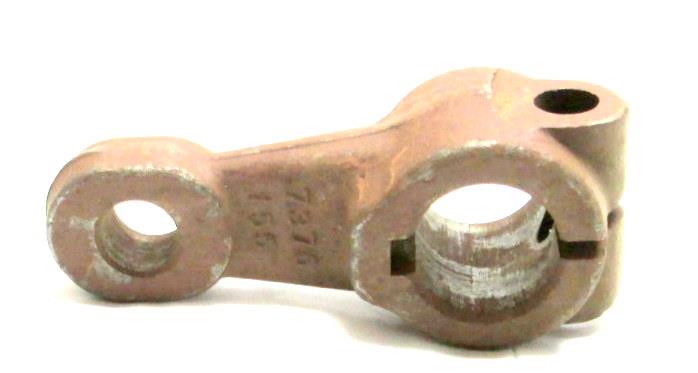

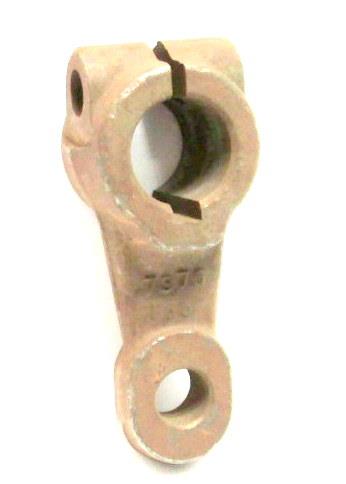

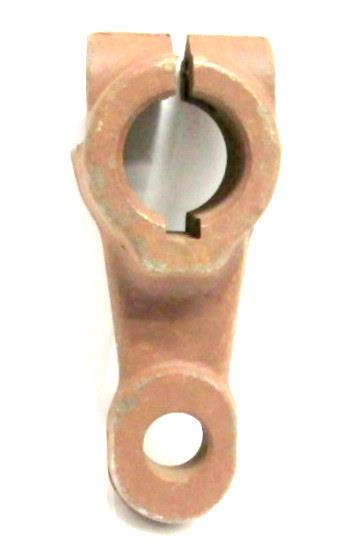

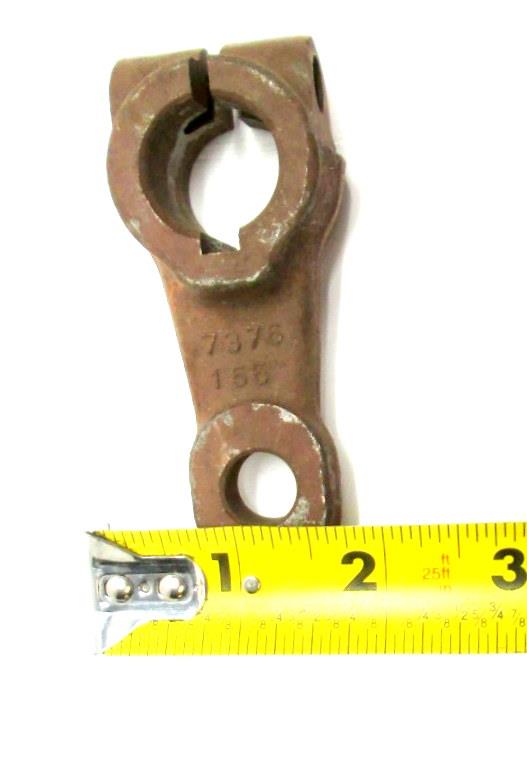

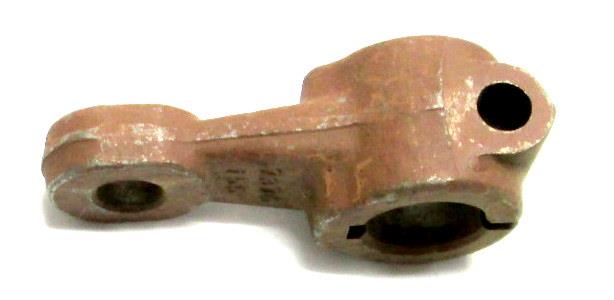

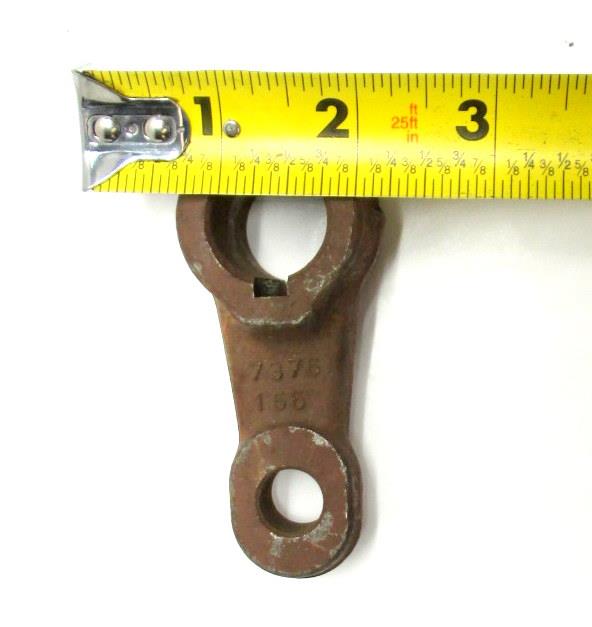

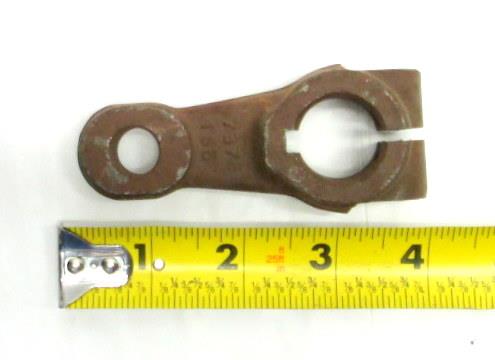

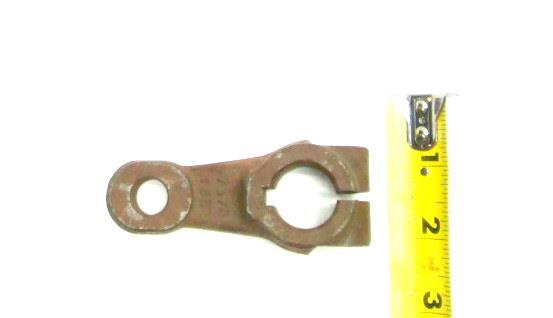

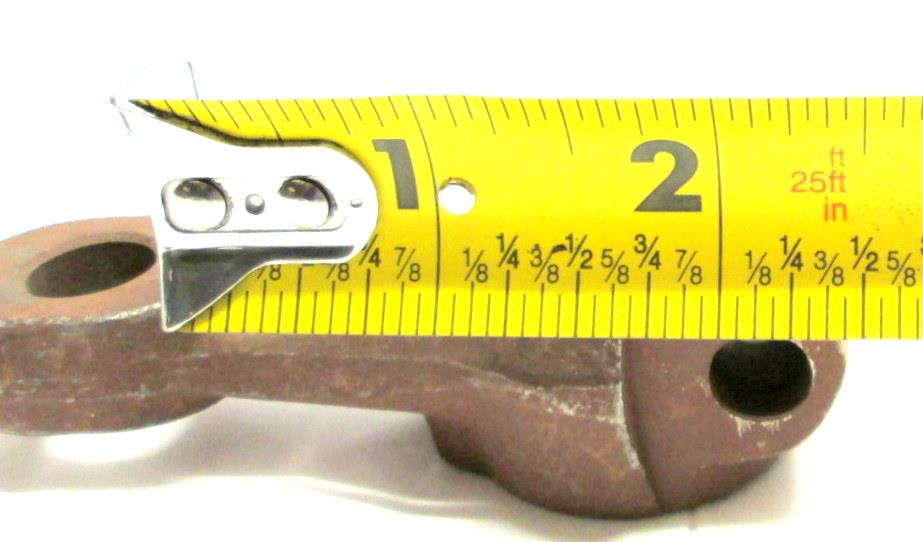

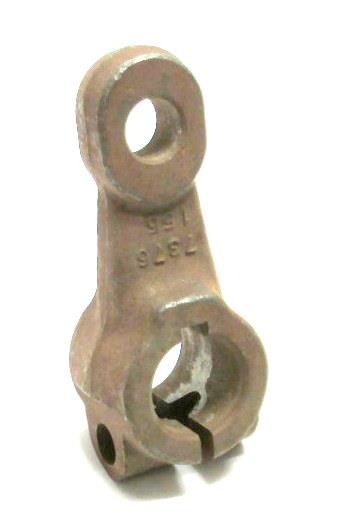

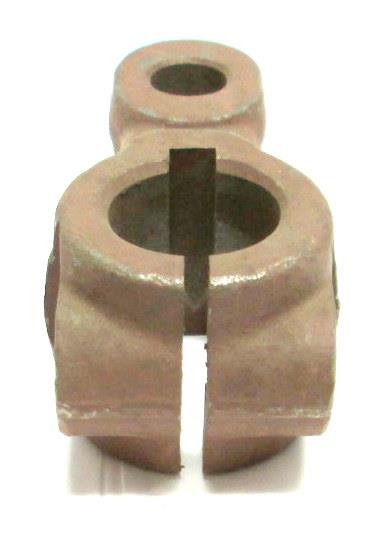

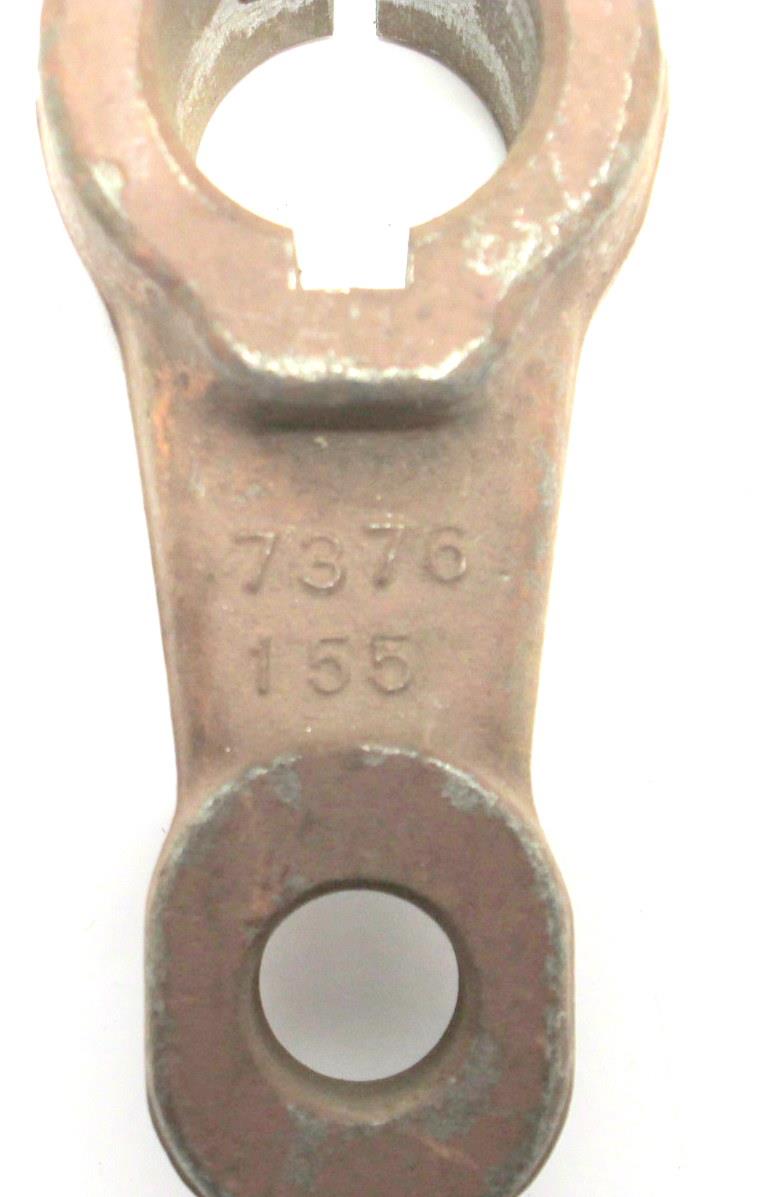

Clutch Lever Release M809
Clutch Assemblies
Width 1.375 IN
Keyway Width 0.252 IN
Bore Diameter 0.875 IN
Bore Length 1.250 IN
Bore Type Plain Straight
Center to Center Distance Between Link and Shaft Holes 2.156 IN
Shaft End Thickness 1.250 IN
Link End Thickness 0.531 IN
Link End Hole Diameter 0.500 IN
Shaft Securing Method Keyway
OFFSET Height 0.360 IN
Steel

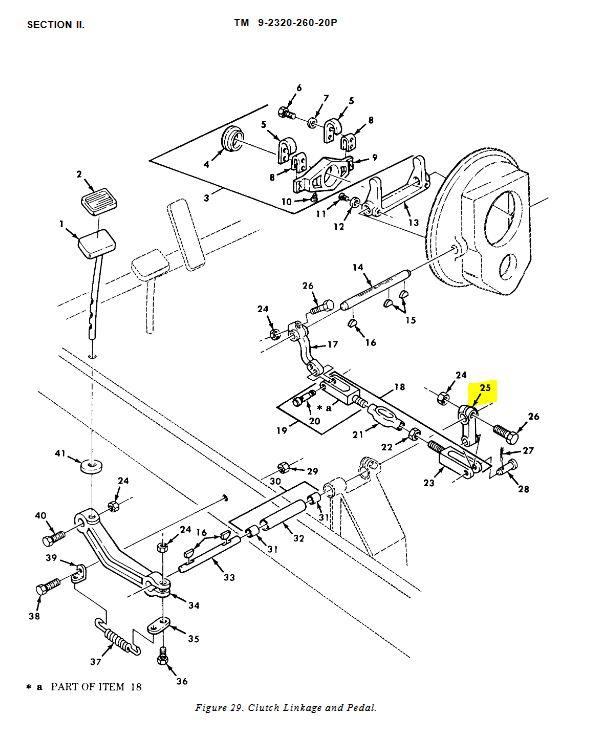

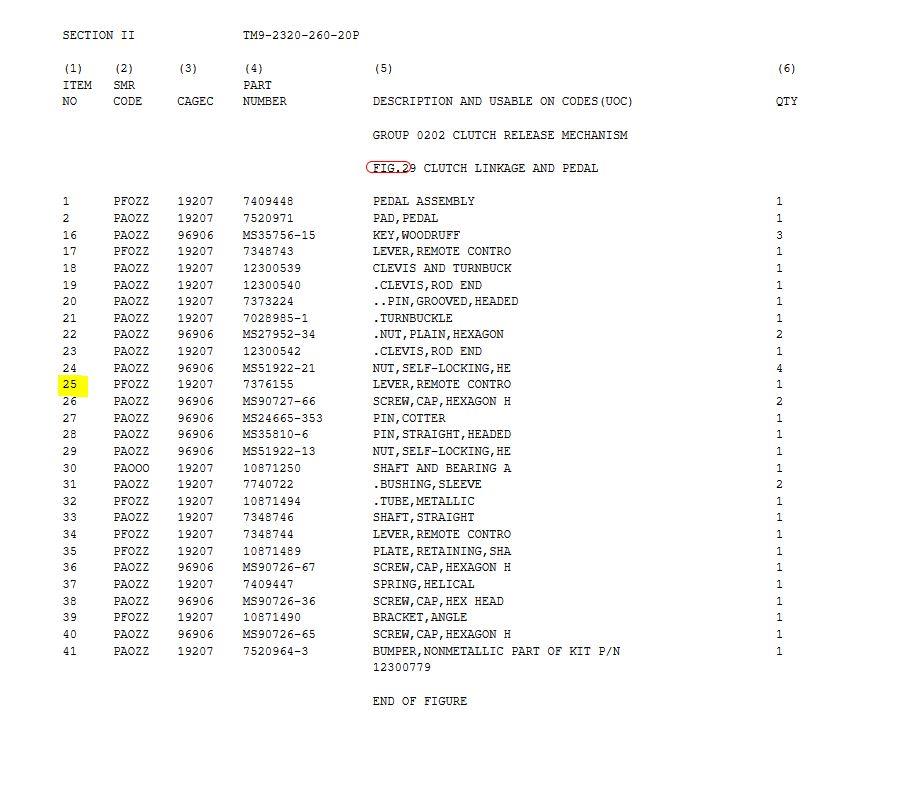

Item No 25 in Diagram
Fits: 5 Ton 6x6 Military Truck
M809, M813, M814, M816, M817, M818, M820 5-Ton Trucks
