Front Knuckle and Geared Hub Assembly Flat Washer HMMWV
Kit includes 4 Washers
Cross Sectional Shape Style Rectangular
Hole Diameter 0.406 IN
Peripheral and Center Hole Shape Round
Thickness 0.300 IN
Diameter 1.265 In MIN 1.272 IN MAX
Outside Left and Right Chamfer Angle 45.0 Degrees
Steel Comp

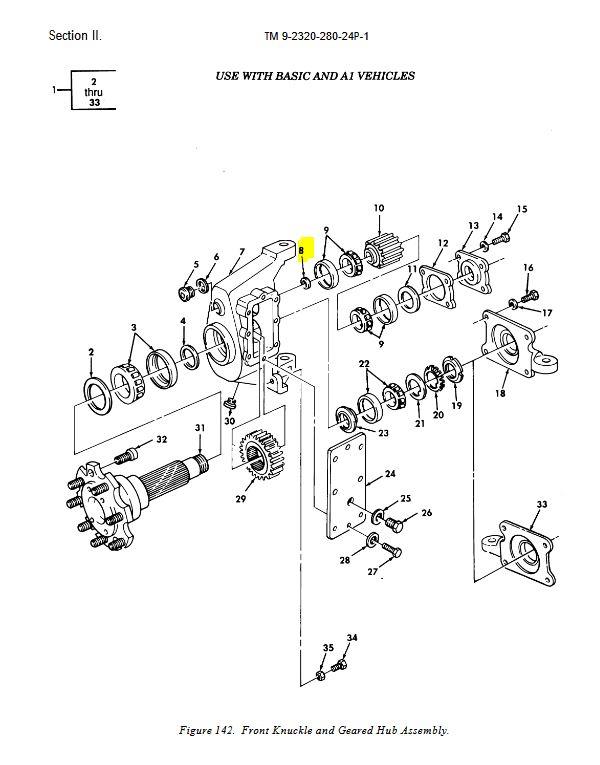

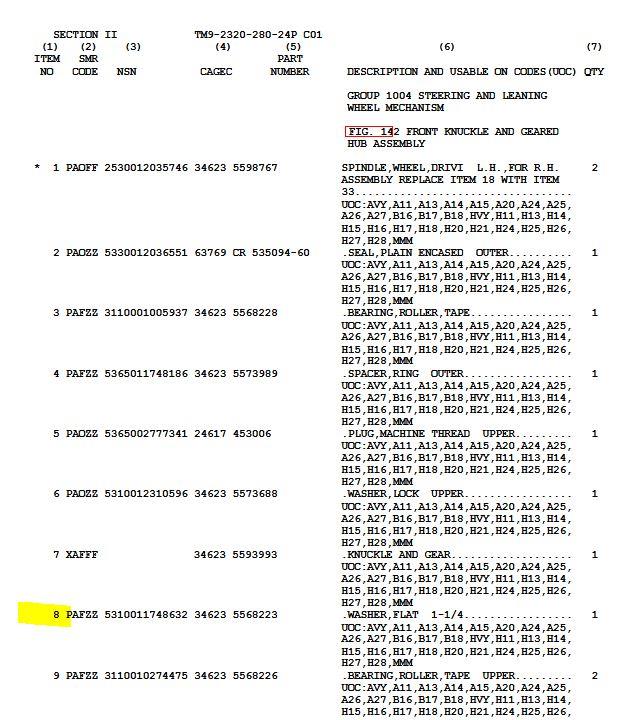

Item No 8 in Diagram
Fits: HMMWV Models
M1025 M1025A1 M1026 M1026A1 M1035 M1035A1 M1037 M1038 M1038A1 M1042 M1043 M1043A1 M1044 M1044A1 M1045 M1045A1 M1046 M1046A1 M1097 M1097A1 M1121 M1123 M966 M966A1 M996 M996A1 M997 M997A1 M998 M998A1 M1151 M1151A1 M1167
Hummer, Humvee hmmwv, hummer, hummvee, H1, AM General
