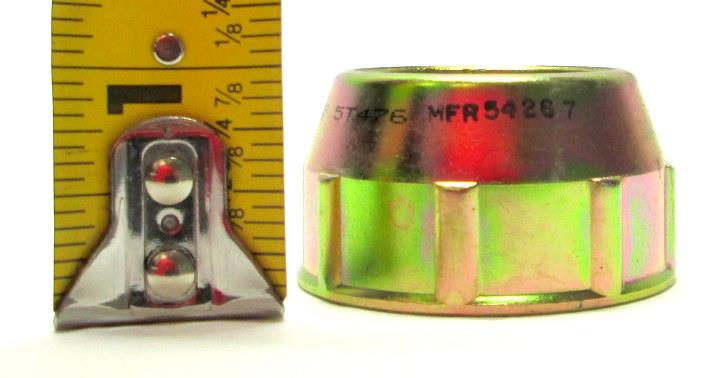

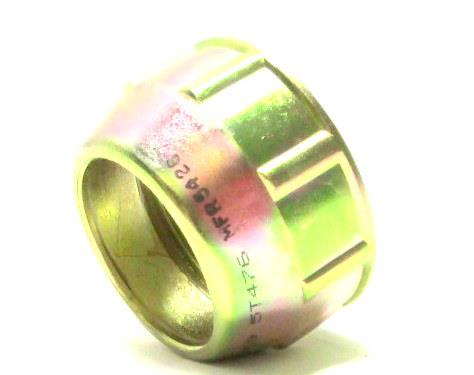

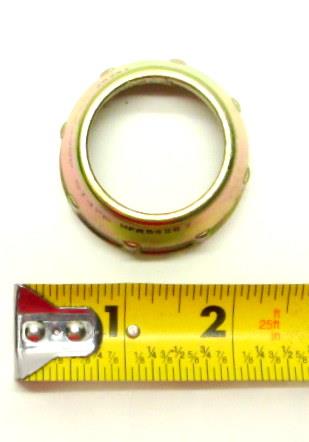

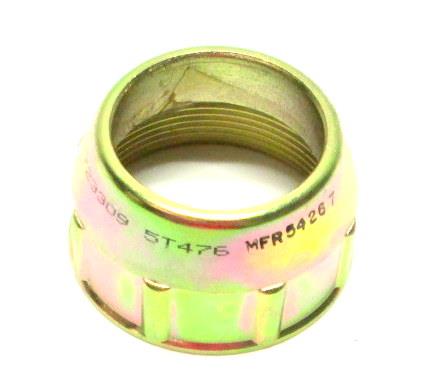

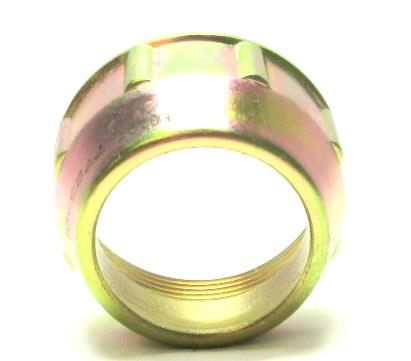

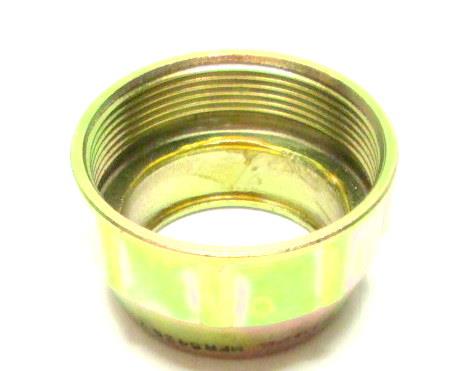

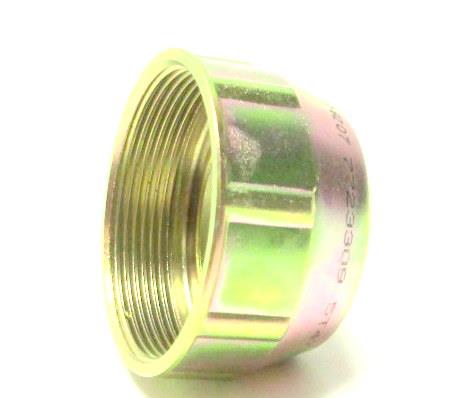

Plain Knurled Nut For Cab Wiring Harness Common Application
Thread Direction Right Hand

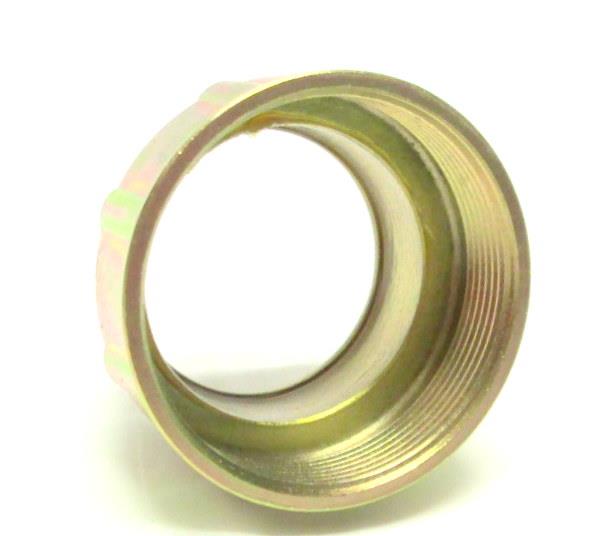

CounterBore Diameter 1.276 IN MIN Nut and 1.286 IN Max Nut
Small End Diameter 1.406 IN
Nut Style Knurled

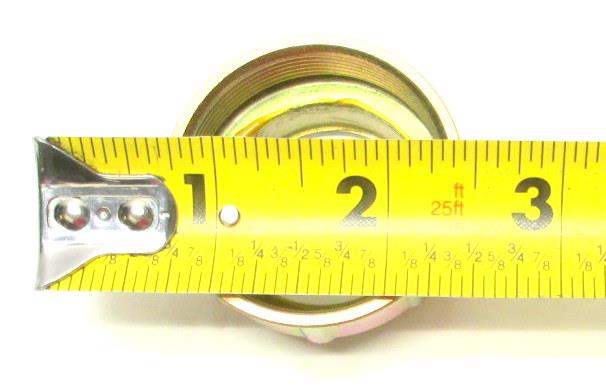

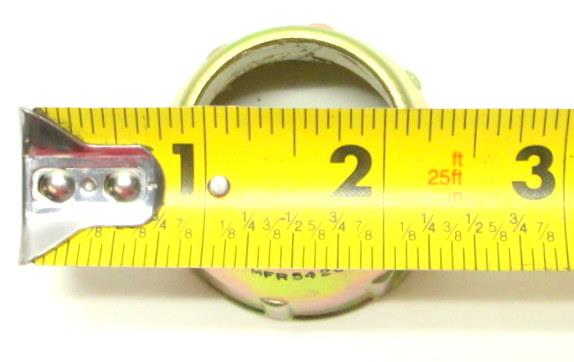

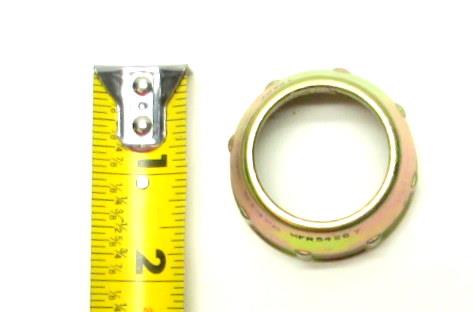

Nut Diameter 1.764 IN MIN 1.773 IN MAX
Nut Thickness 1.000 IN
Knurl Width 0.526 IN MIN and 0.536 IN MAX
Nut Counterbore Depth 0.385 IN
Thread Series UNEF
Thread QTY Per IN 18
Thread Size 1.625 IN
CounterSink Angle 90.0 Degrees
Aluminum Alloy

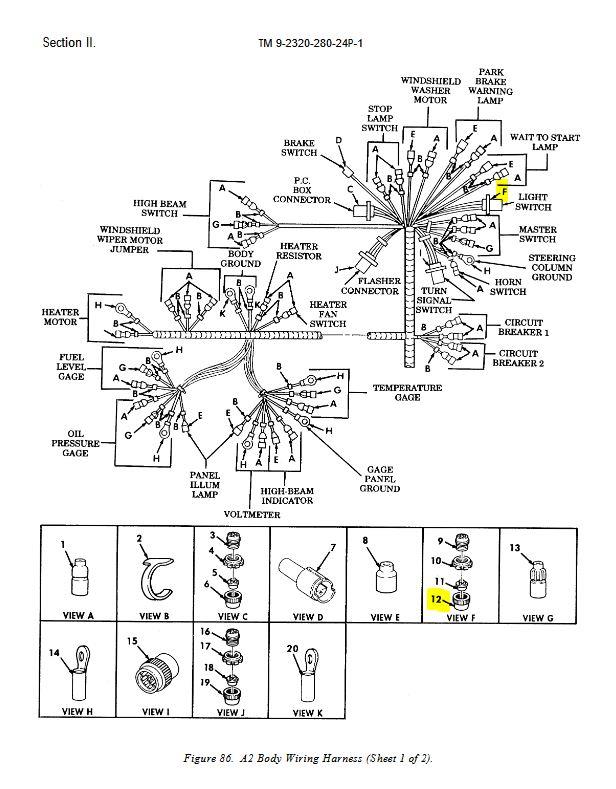

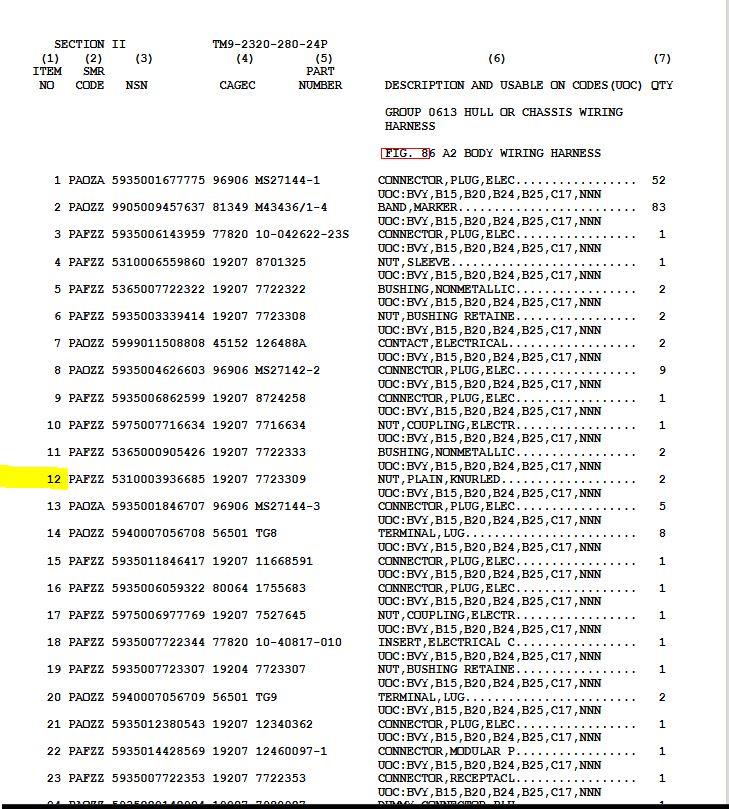

Item NO 12 in Diagram
Fits: Common Application
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
