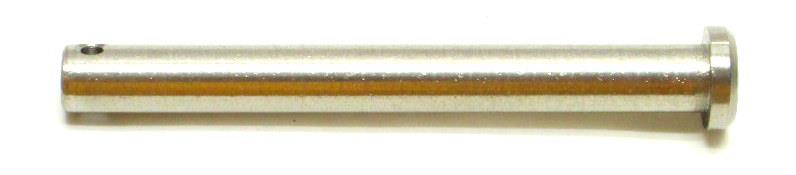

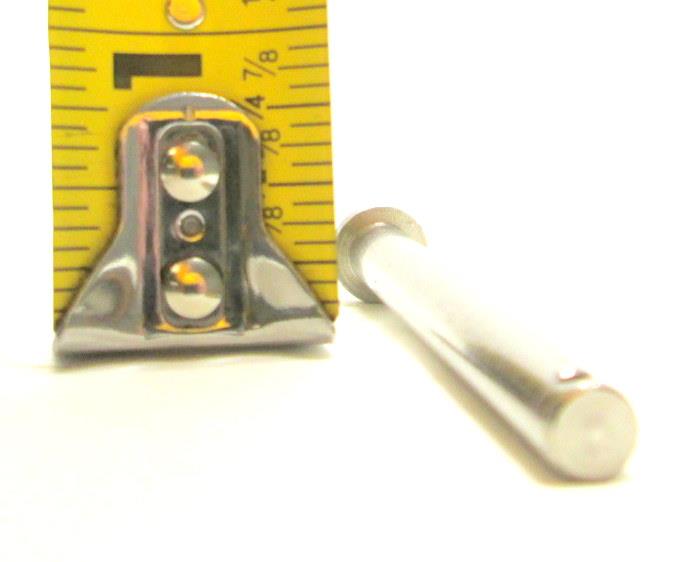

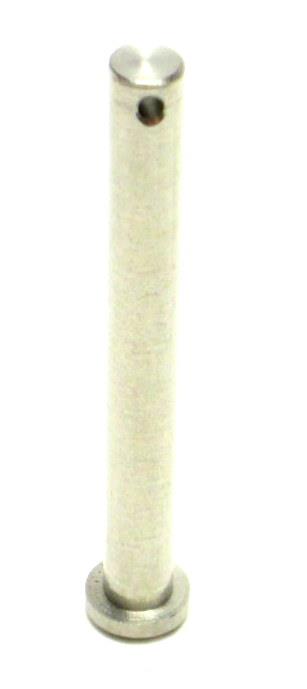

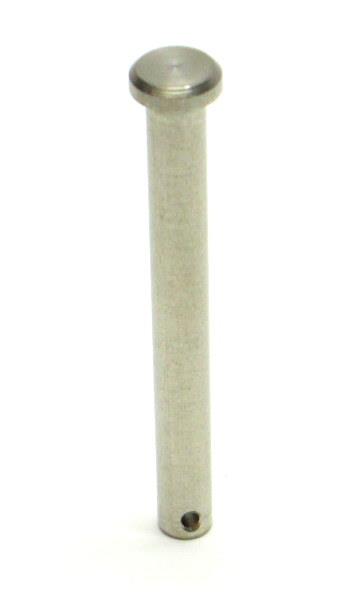

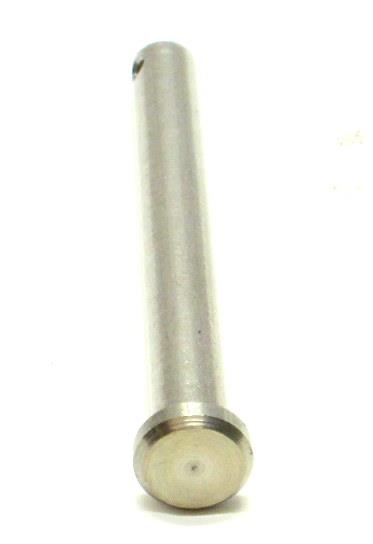

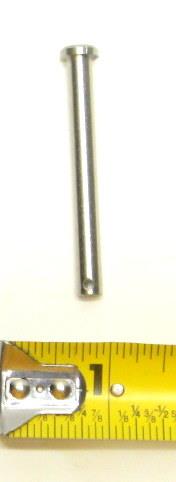

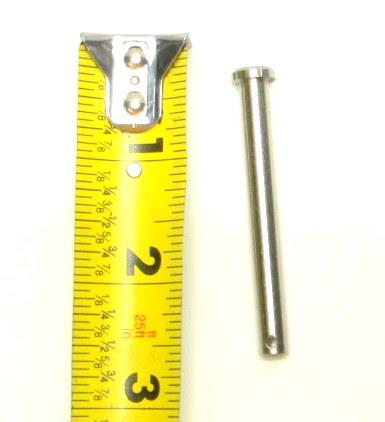

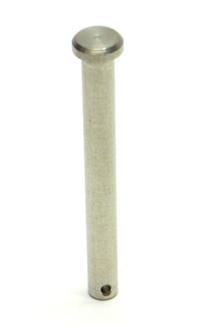

1/4 Inch Straight Headed Pin Upper and Lower Litter Skids Ambulance HMMWV
Head Style 16 Flat
Chamfer Length 0.094 IN
Diameter 0.243 IN MIN 0.248 IN MAX
Under Head Length 2.266 IN MIN 2.286 IN MAX
Hole Arrangement Style One End Drilled
First Hole Diameter 0.073 IN
Distance from Center Line of Hole to End of Pin 0.094 IN
Pin Chamfer Angle 40.0 Degrees MIN 45.0 Degrees Max
Pin Head Diameter 0.315 IN
Height 0.094 IN
Steel
PACS

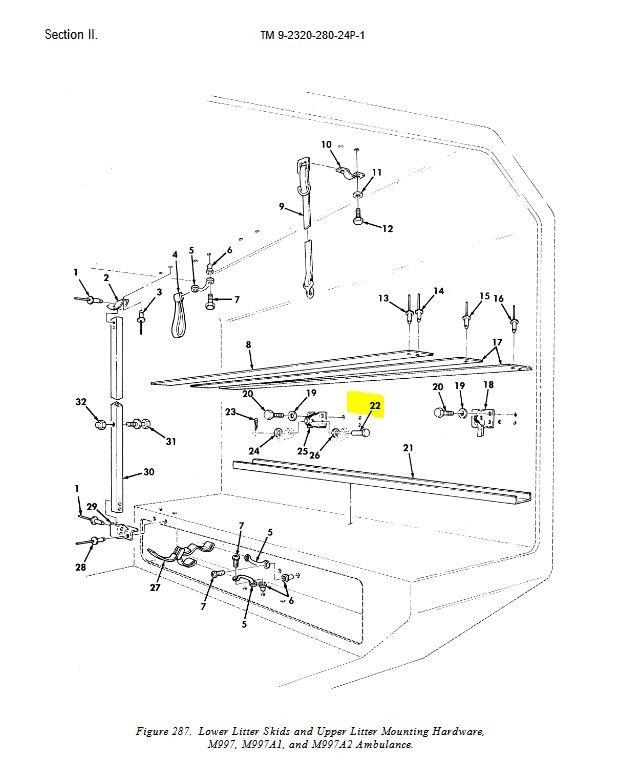

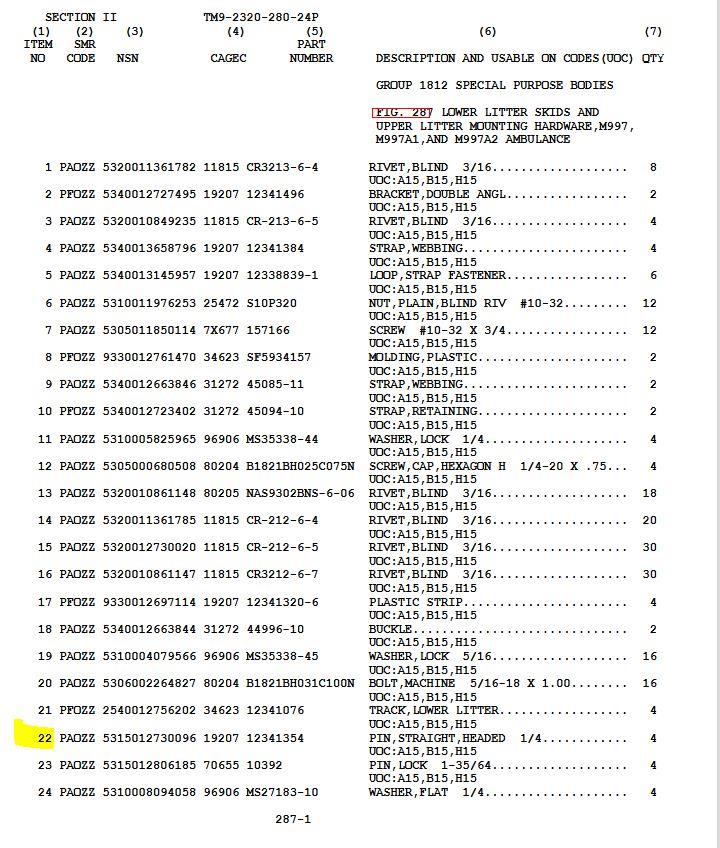

Item NO 22 in Diagram
Fits: HMMWV Models
M997, M997A1, M997A2
