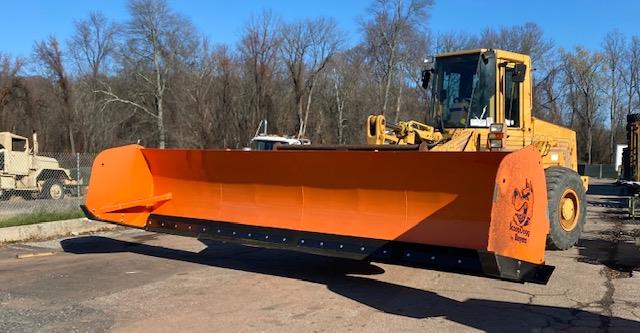

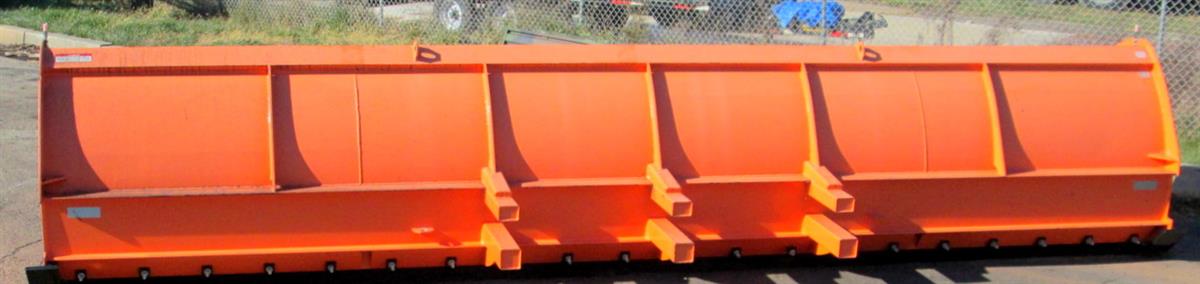

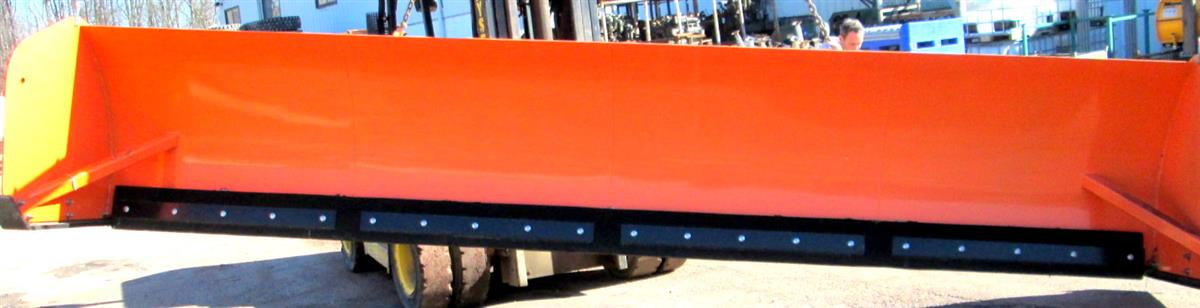

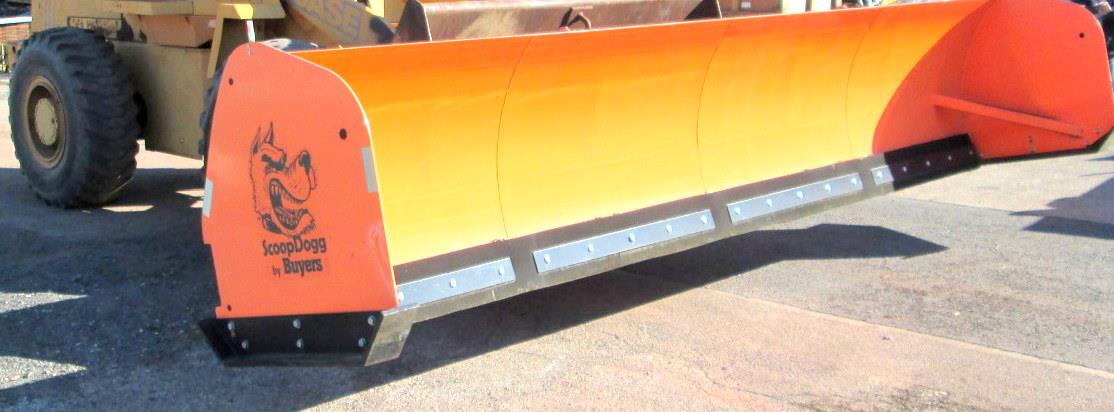

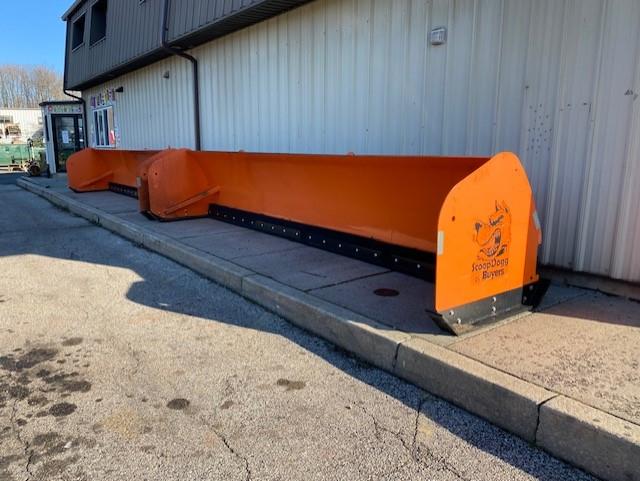

Snow Pusher Box Blade Airport Parking Lot Buyers Scoop Dogg Front End Loader 20 Foot Wide Pusher Box Blade Snow Removal Plow
Cutting Edge Material High Tensile Strength Rubber
Finish Powder Coat with Primer
Minimum Required Horsepower 170 HP
Minimum Required Machine Weight 40000 lb
Moldboard Material Carbon Steel
Shoe Material AR400 Steel
Trip Protection None
Width 20 '
Height (bottom of shoe to top of side plate) 47 "
Depth (front of shoe to back of pusher) 63 "
Moldboard Gauge 7 Ga
Side Plate Thickness 0.375 "
Side Plate Support Dimensions 4.00 x 4.00 x .375 "
Included Reflective Decals Yes
Upper Post Dimensions 3.00 x 4.00 x .188 "
Lower Post Dimensions 4.00 x 4.00 x .188 "
Friction Surface Thickness 1.00 "
Cutting Edge Dimensions 1.5 x 10.0 "
For Use With (Equipment Type) Loader
Friction Surface Width 6 "
Fits: Meyer - Diamond Snow Plows
Front Loaders
Note- front end loader is not included in this sale
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
