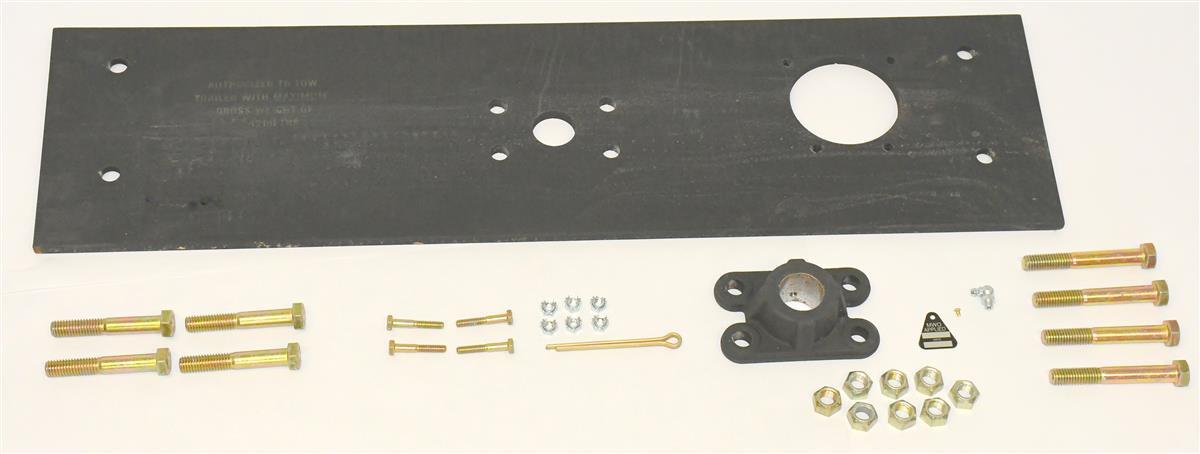

Airlift Bumper Reinforcement Kit HMMWV
application: Drop Down Spare Tire Carrier Assembly

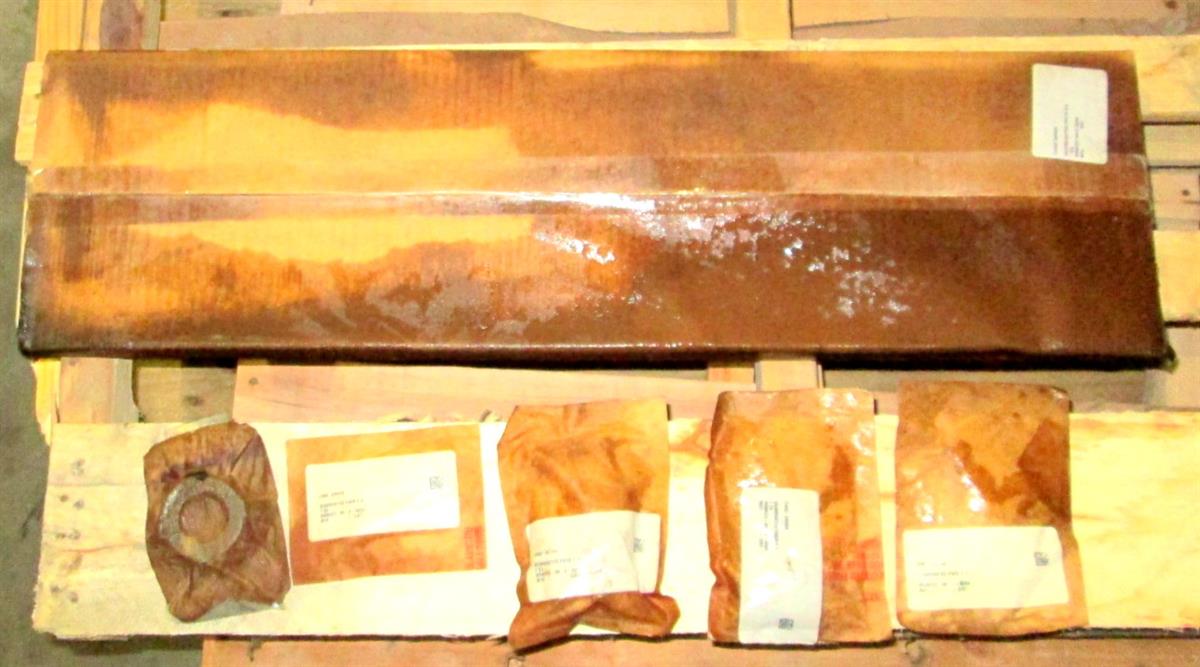

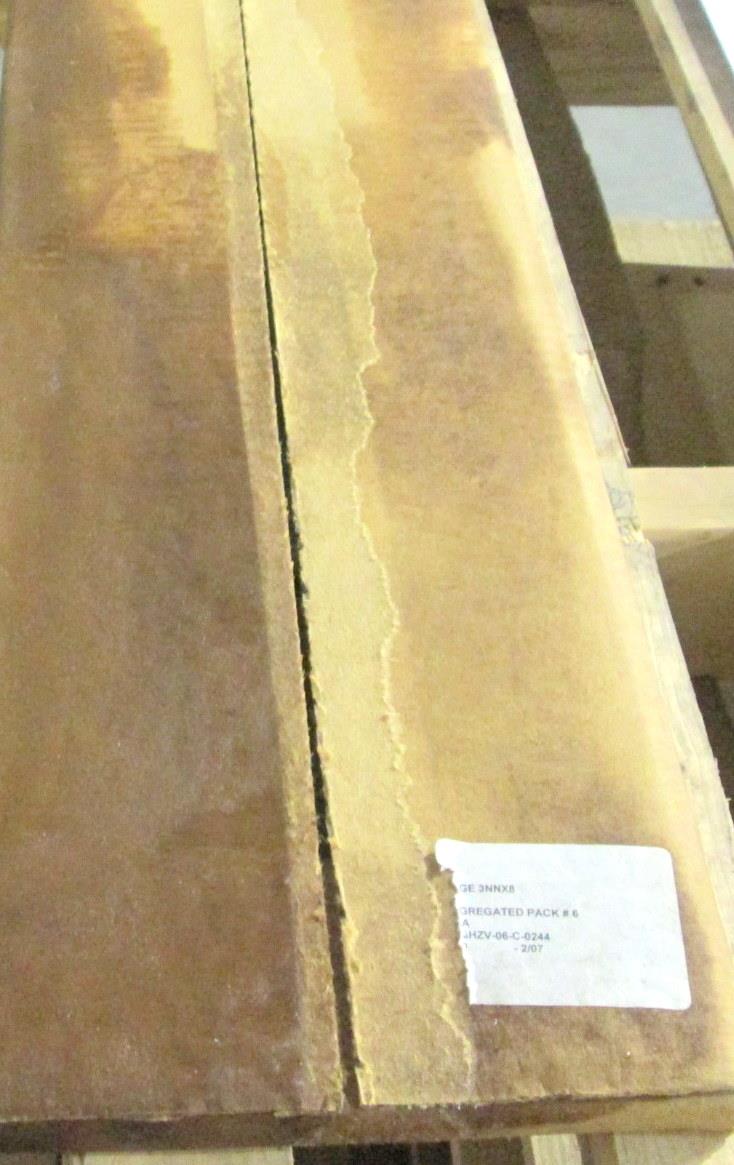

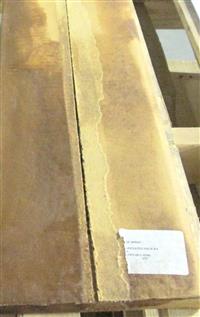

Note- the boxes are weathered and parts have surface rust
Kits Includes 6 Packages

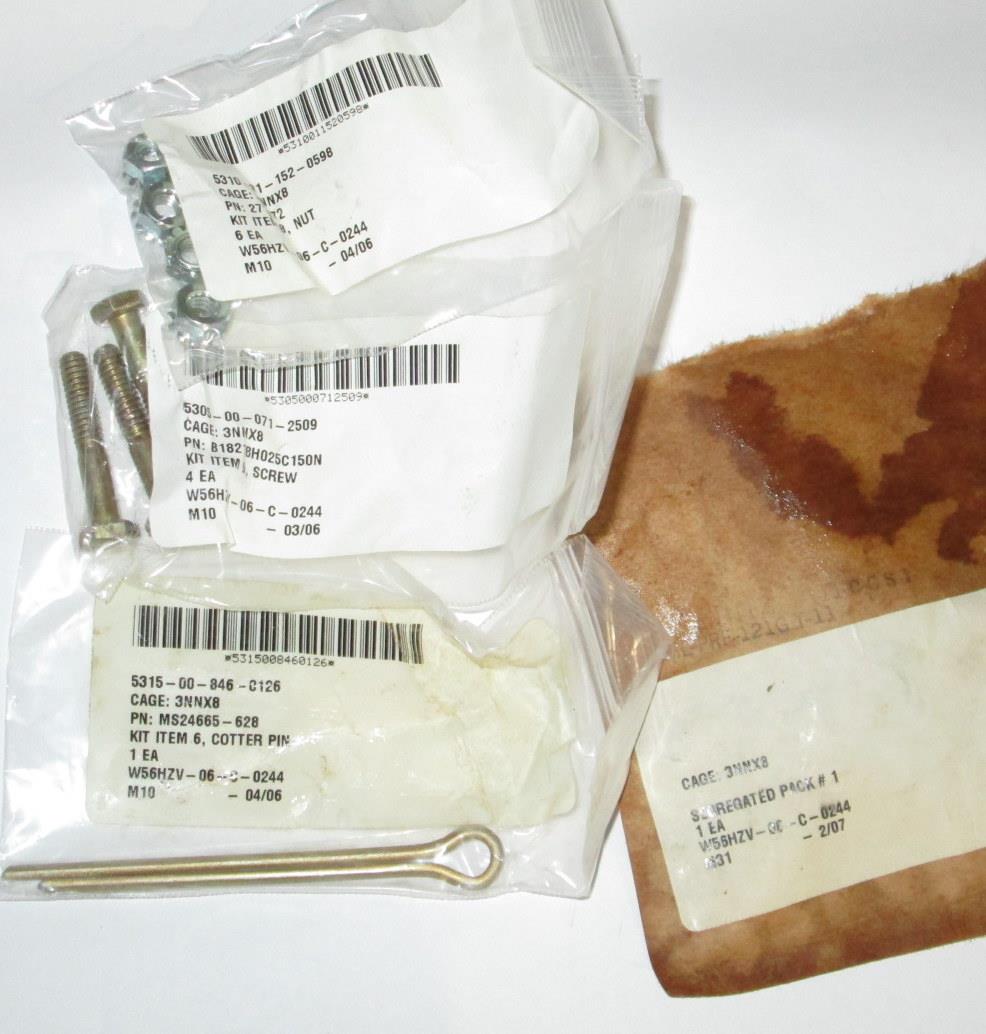

Pack 1

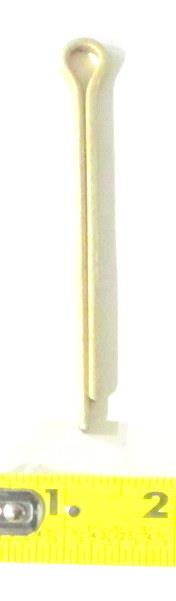

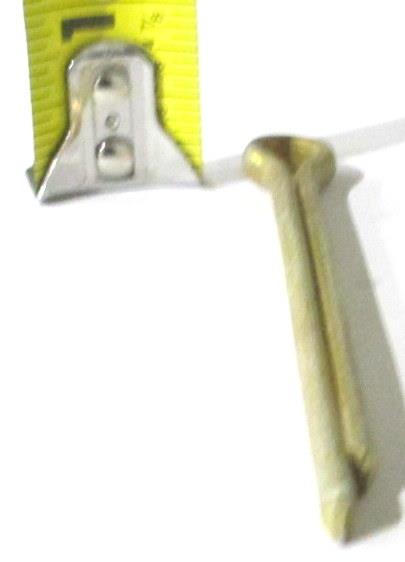

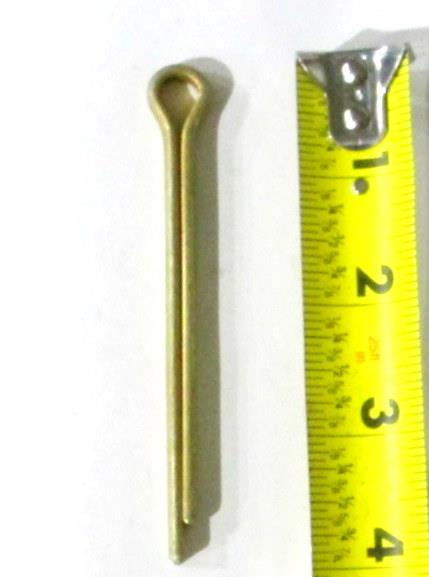

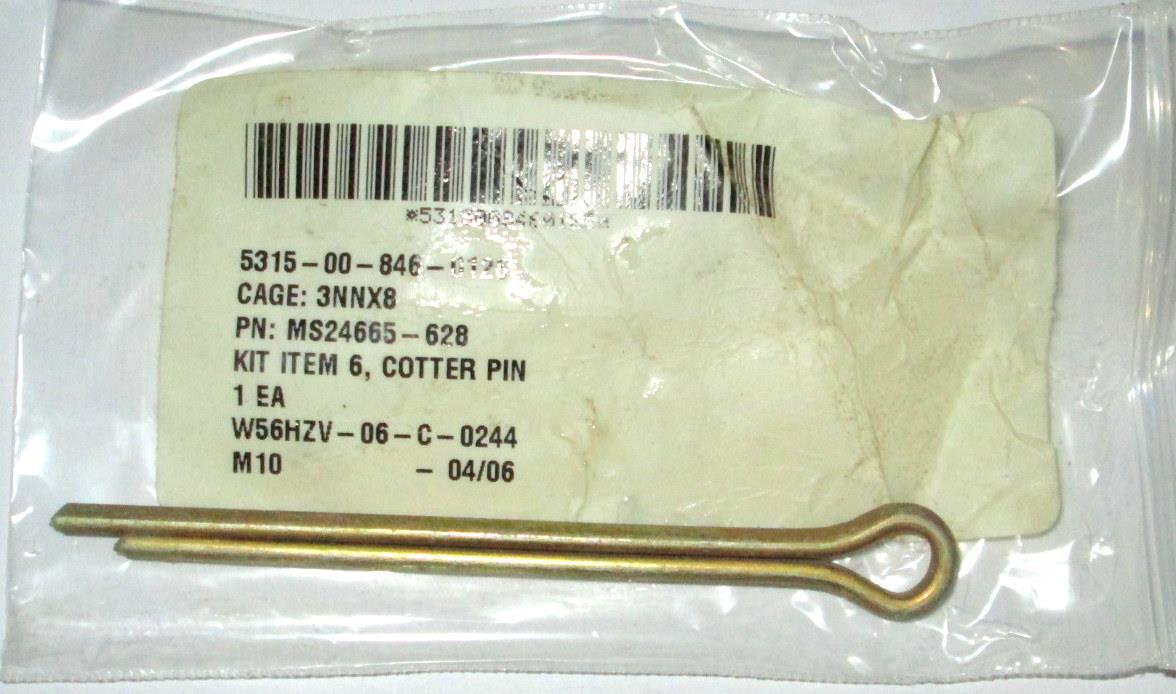

1 Cotter Pin 5315-00-846-0126 P/N MS24665-628

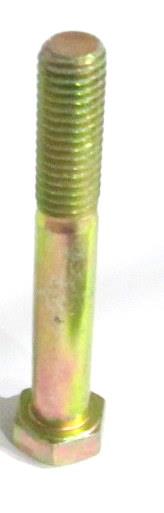

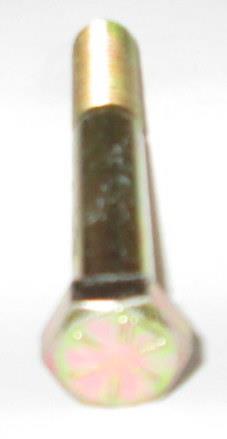

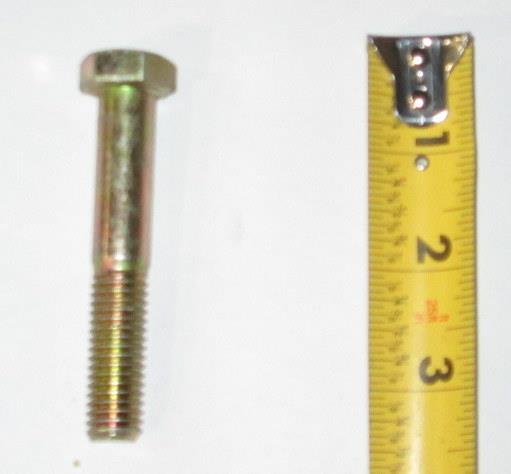

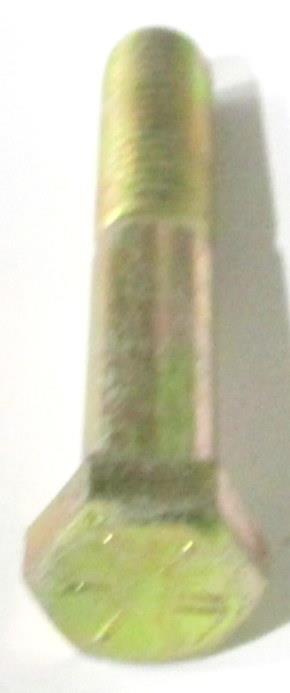

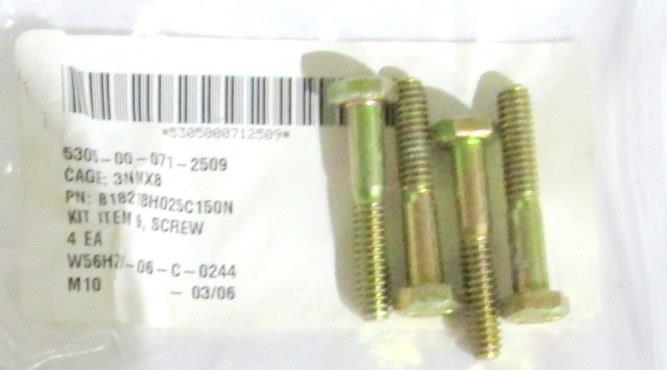

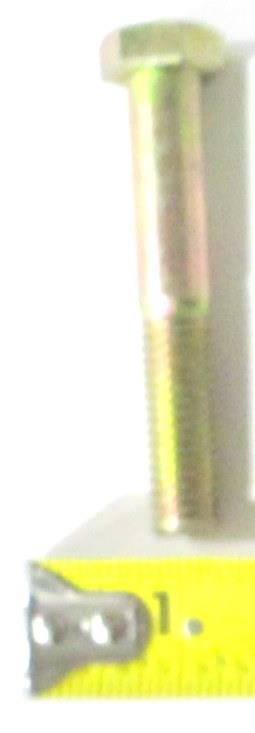

4 Screw 5305-00-071-2509 P/N B1821BH025C150N

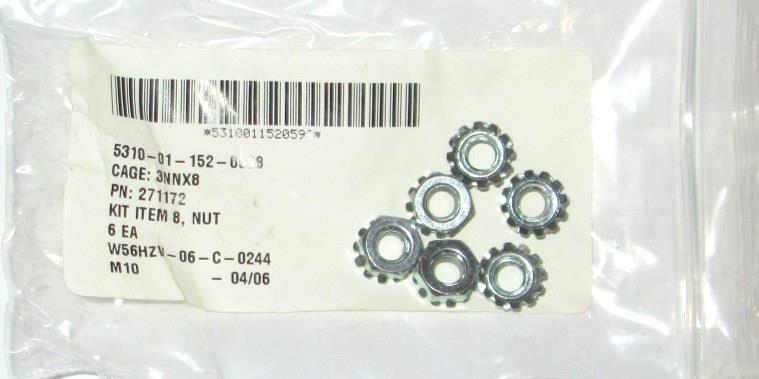

6 Nut 5310-01-152-0598 P/N 271172

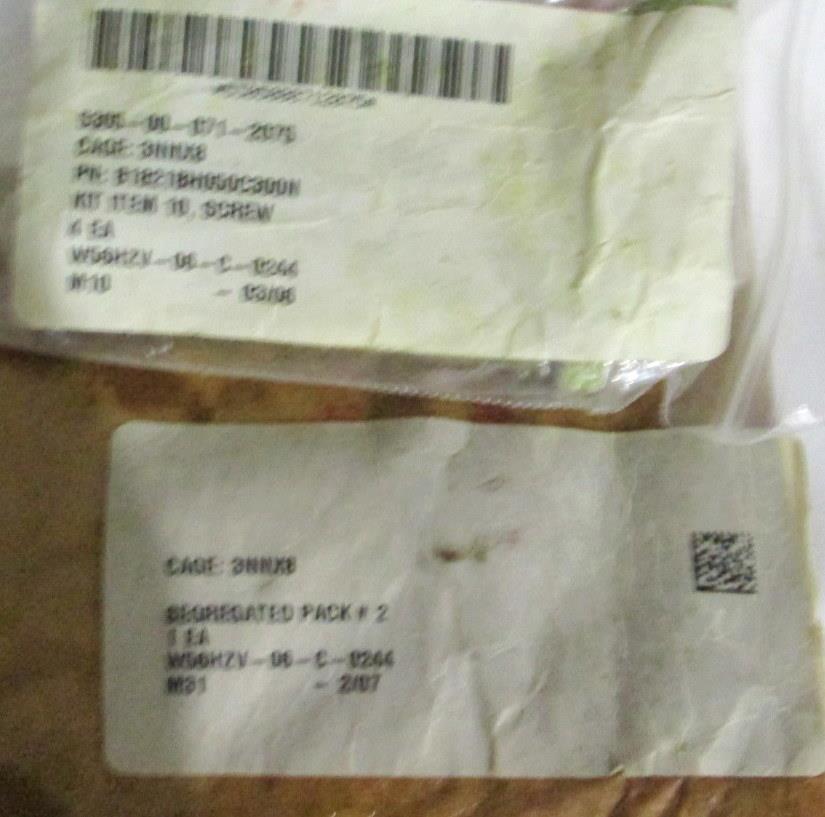

Pack 2

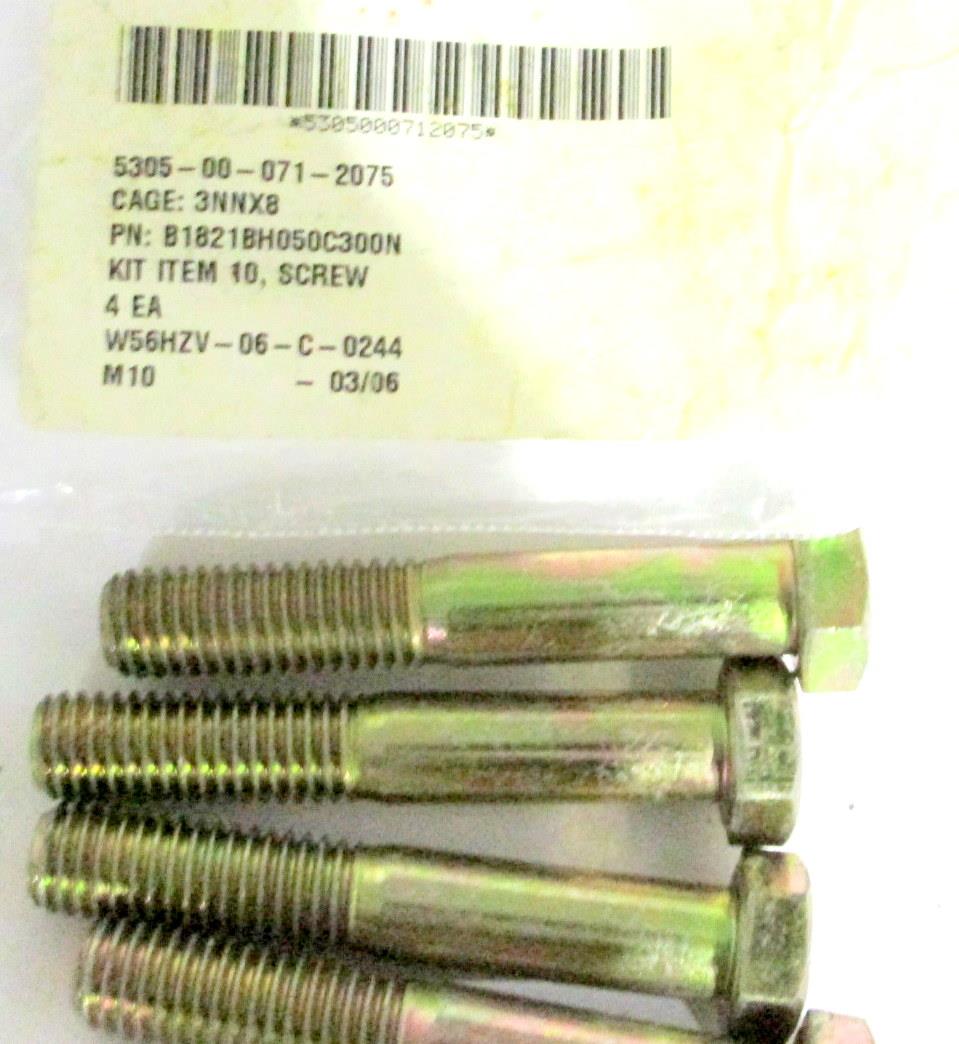

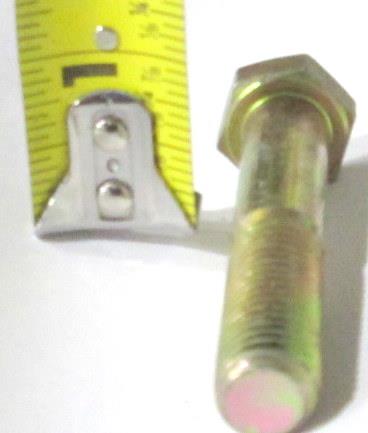

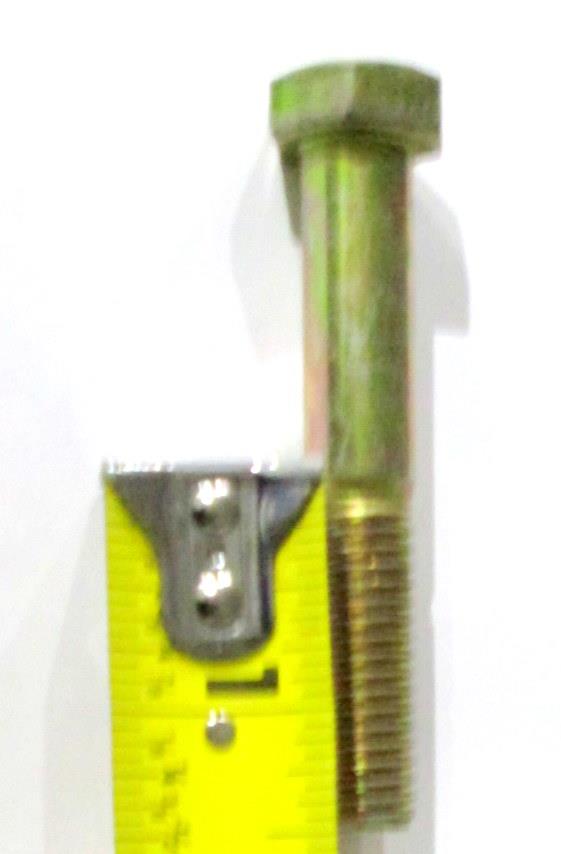

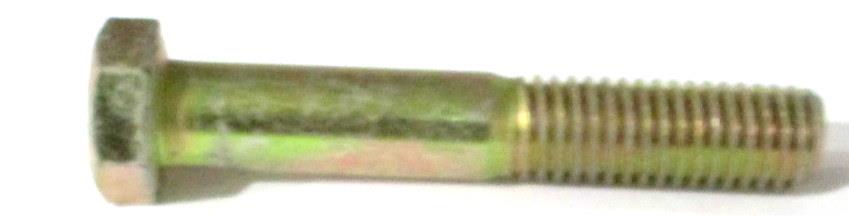

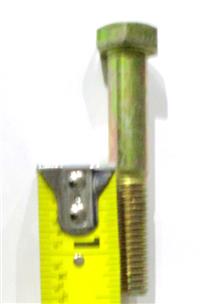

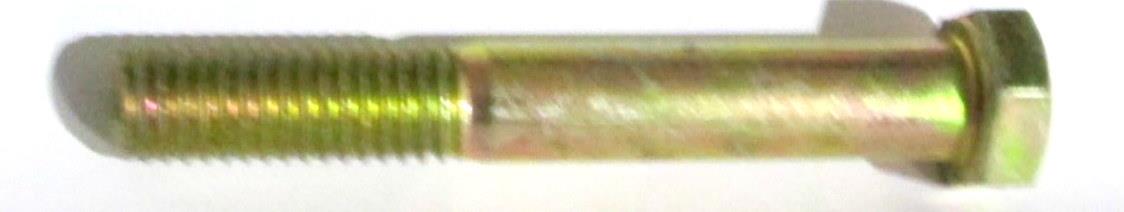

4 Screw 5305-00-071-2075 P/N B1821BH050C300N

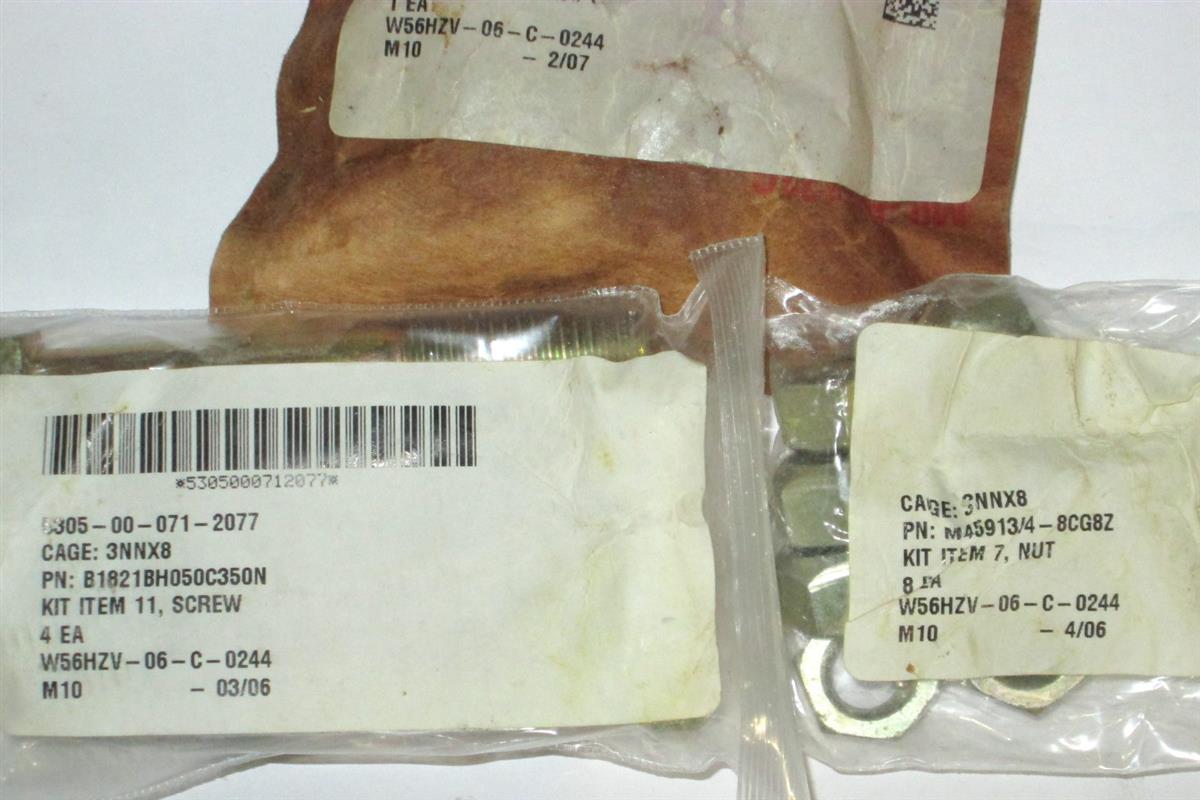

Pack 3

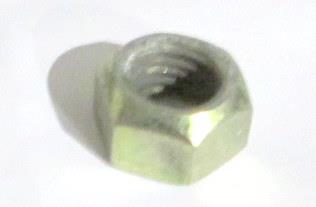

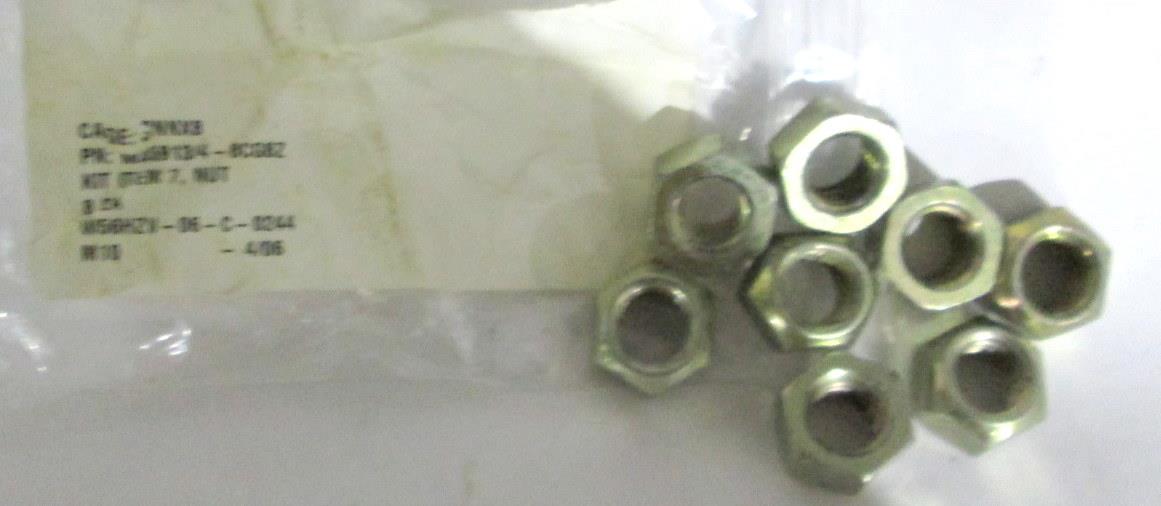

8 Nut P/N M45913/4-8CG8Z

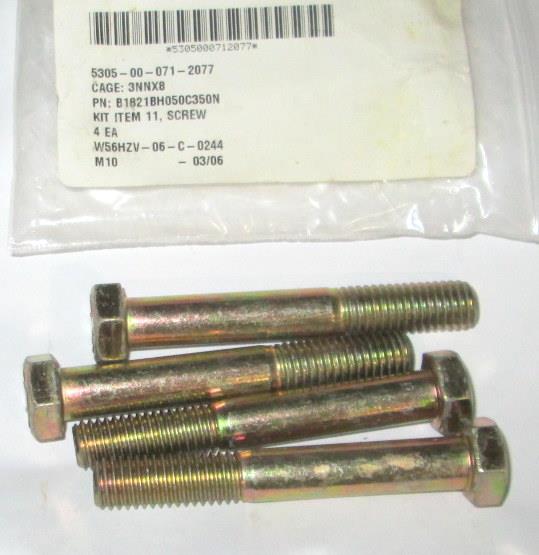

4 Screw 5305-00-071-2077 P/N B1821BH050C350N

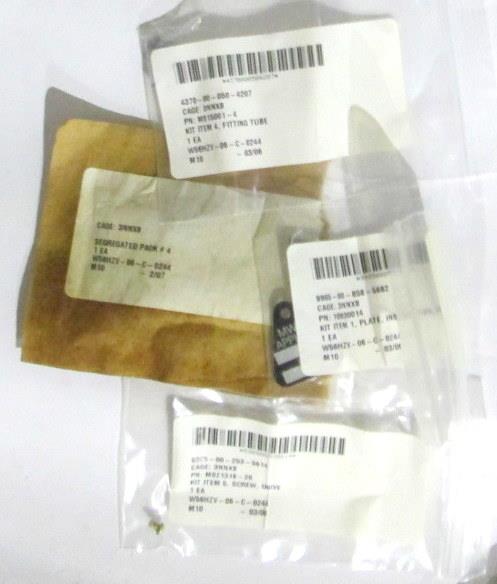

Pack 4

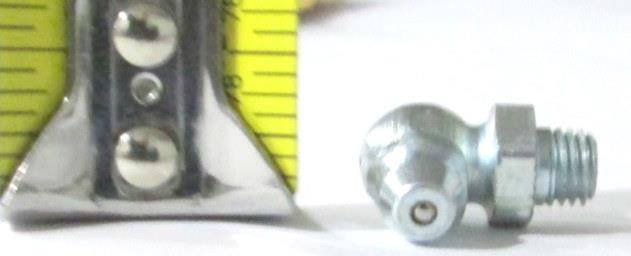

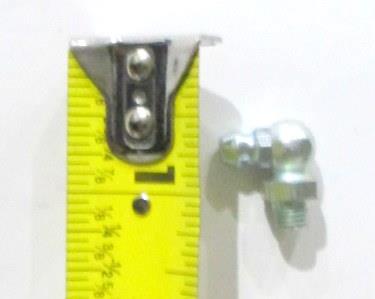

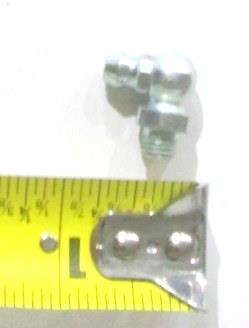

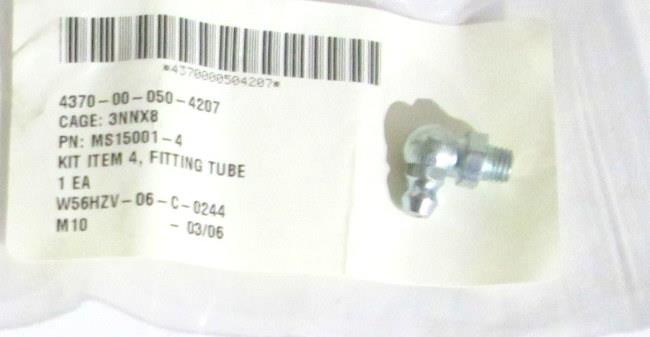

1 Fitting Tube 4370-00-050-4207 P/N MS15001-4

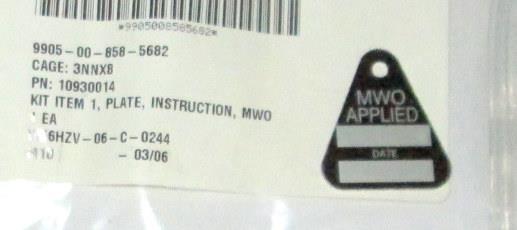

1 Instruction Plate 9905-00-858-5682 P/N 10930014

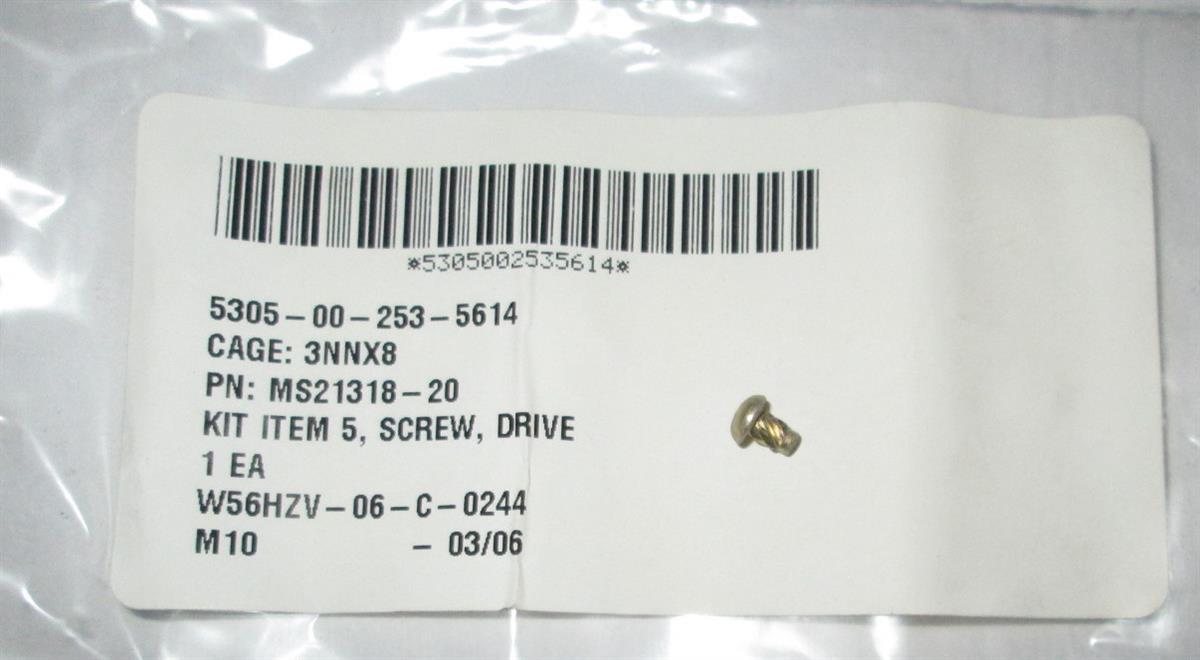

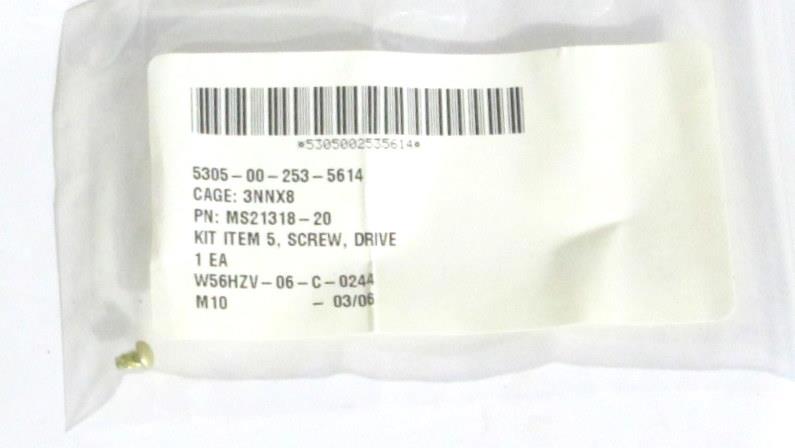

1 Drive Screw 5305-00-253-5614 P/N MS21318-20

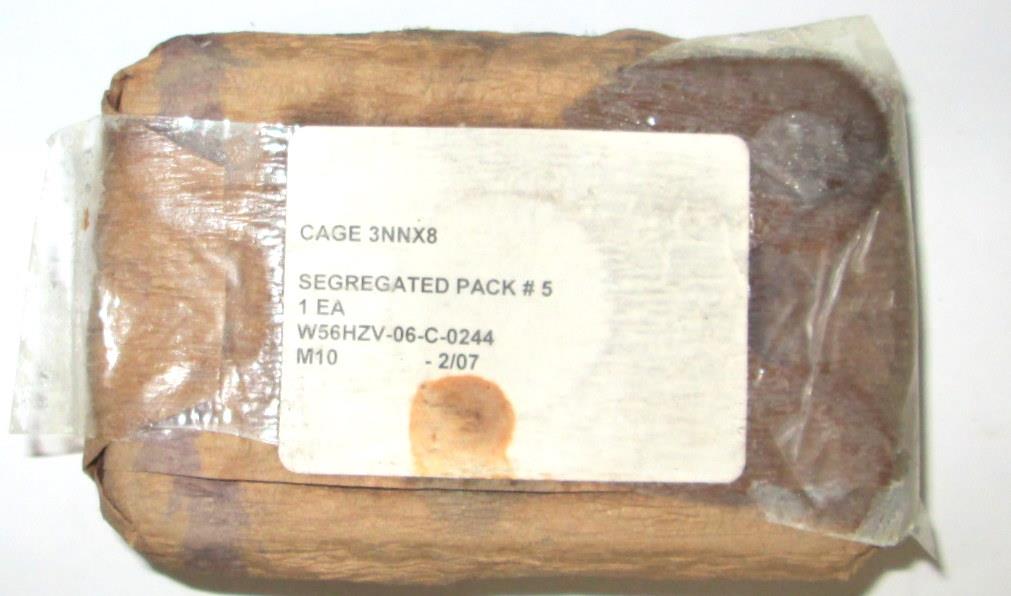

Pack 5

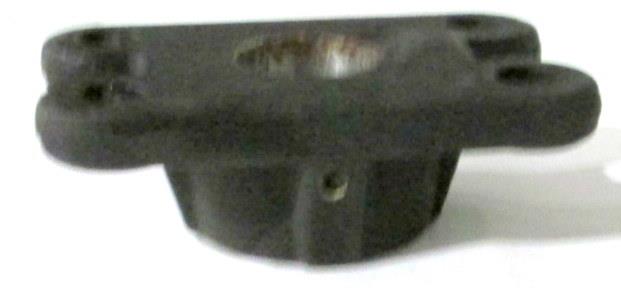

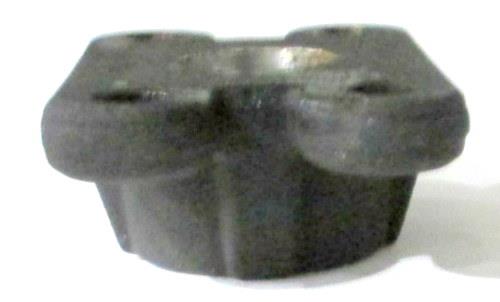

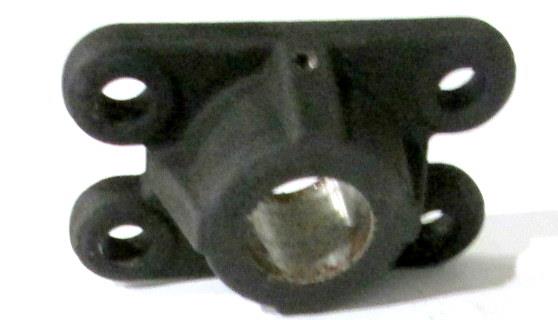

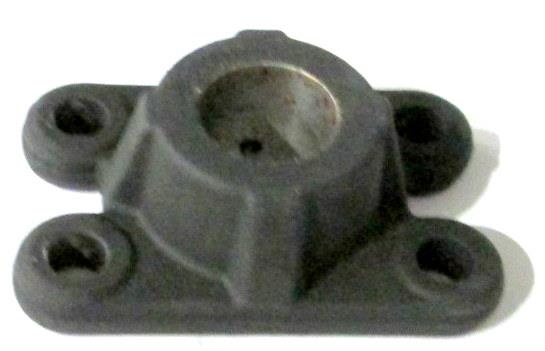

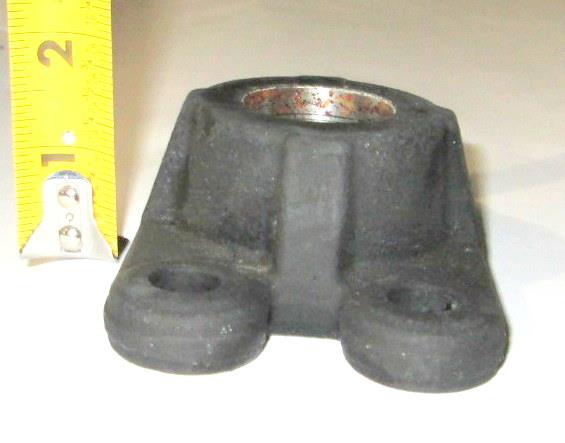

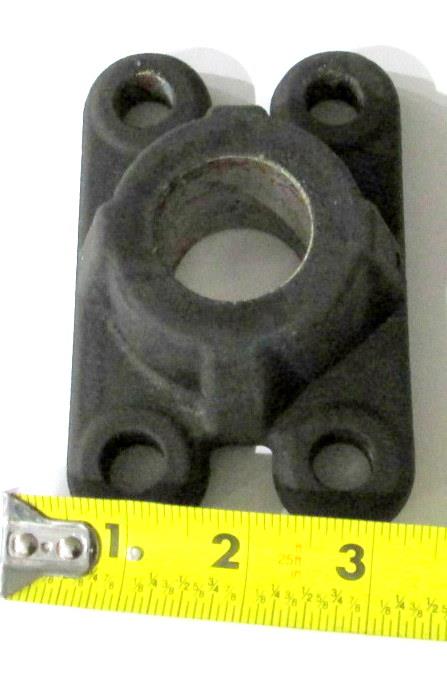

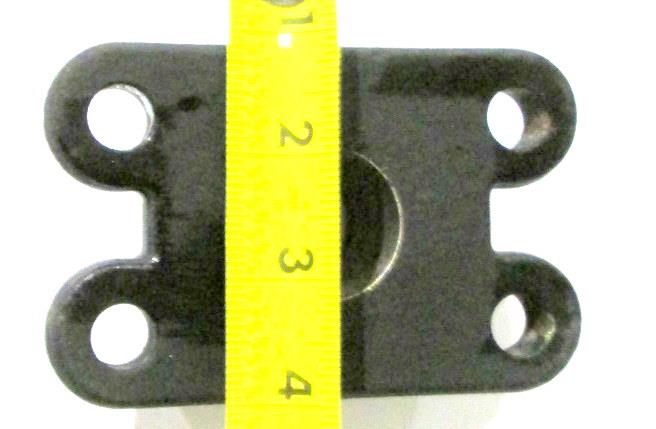

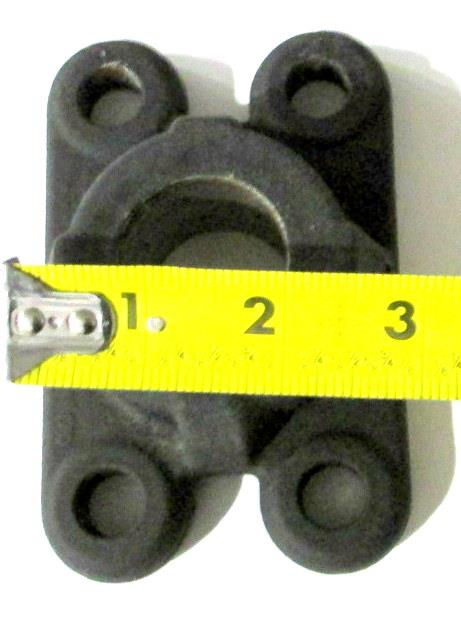

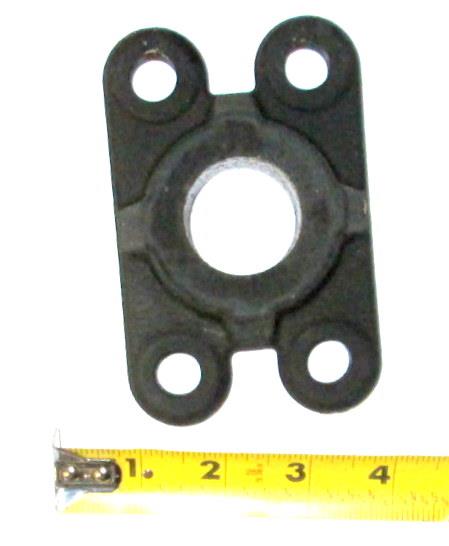

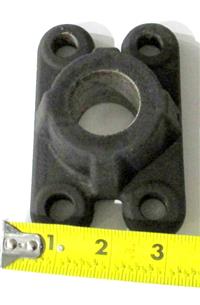

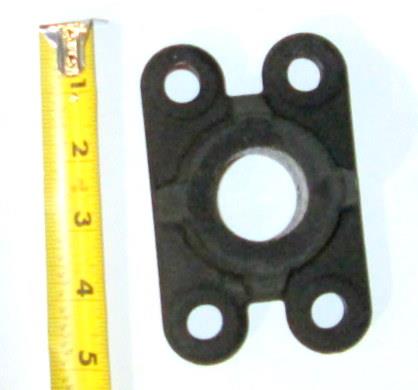

Mounting Bracket P/N 12469170
Pack 6

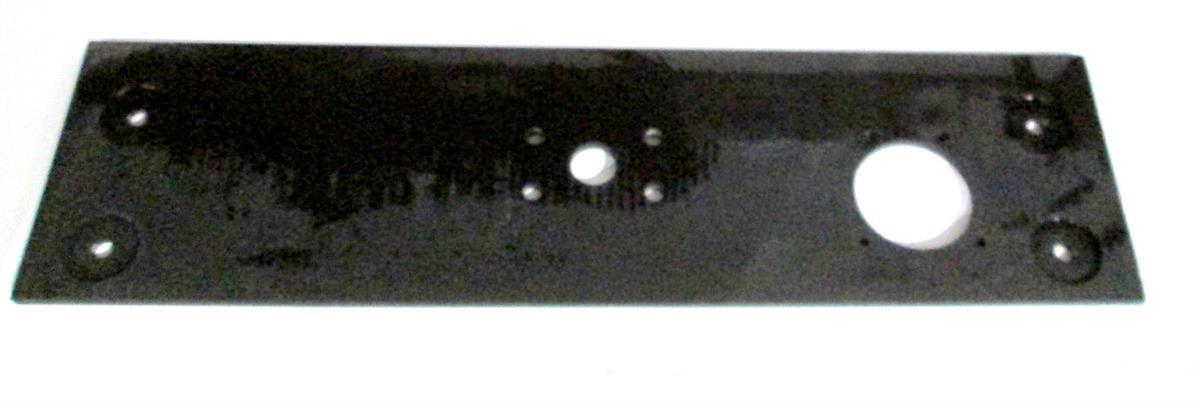

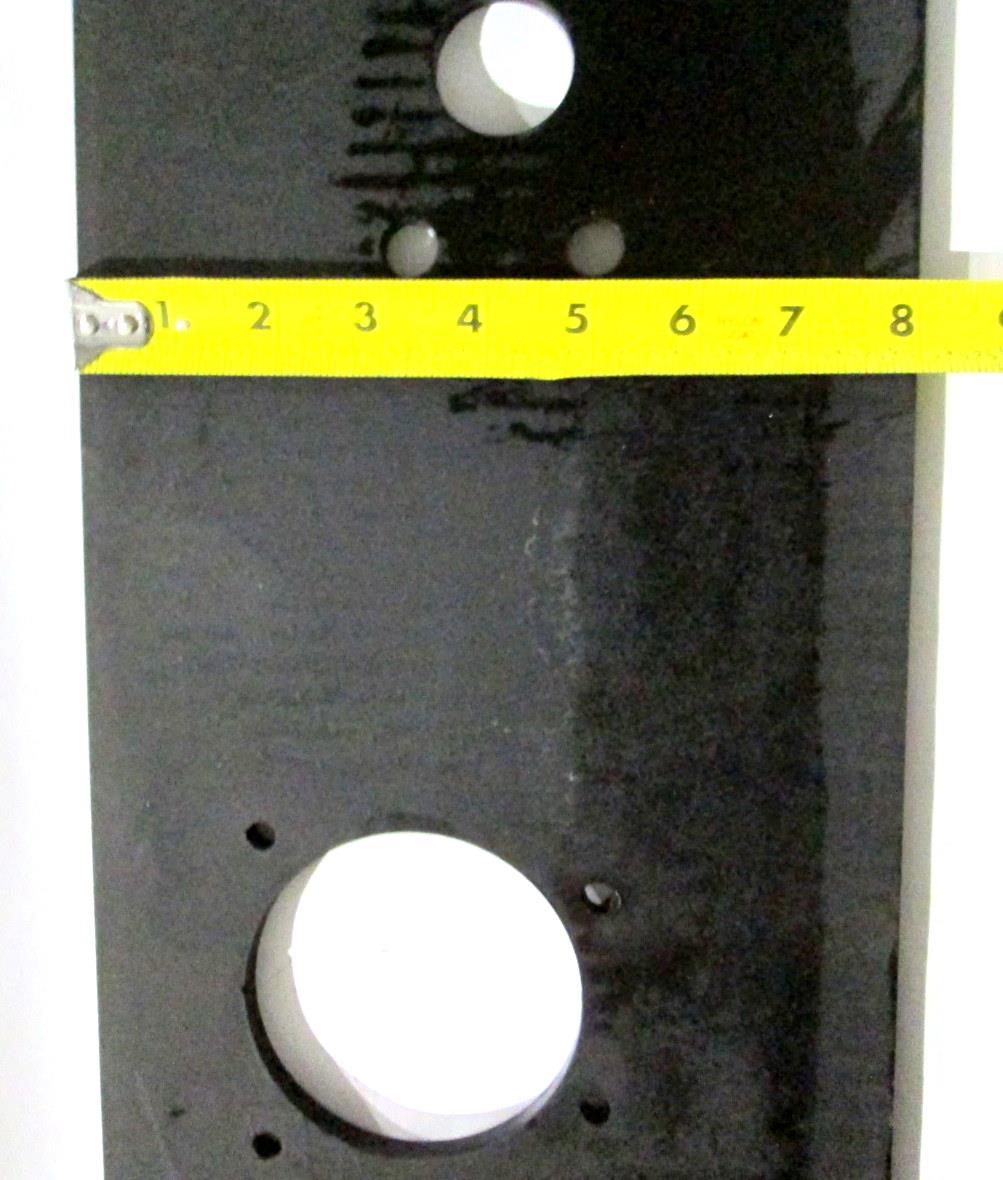

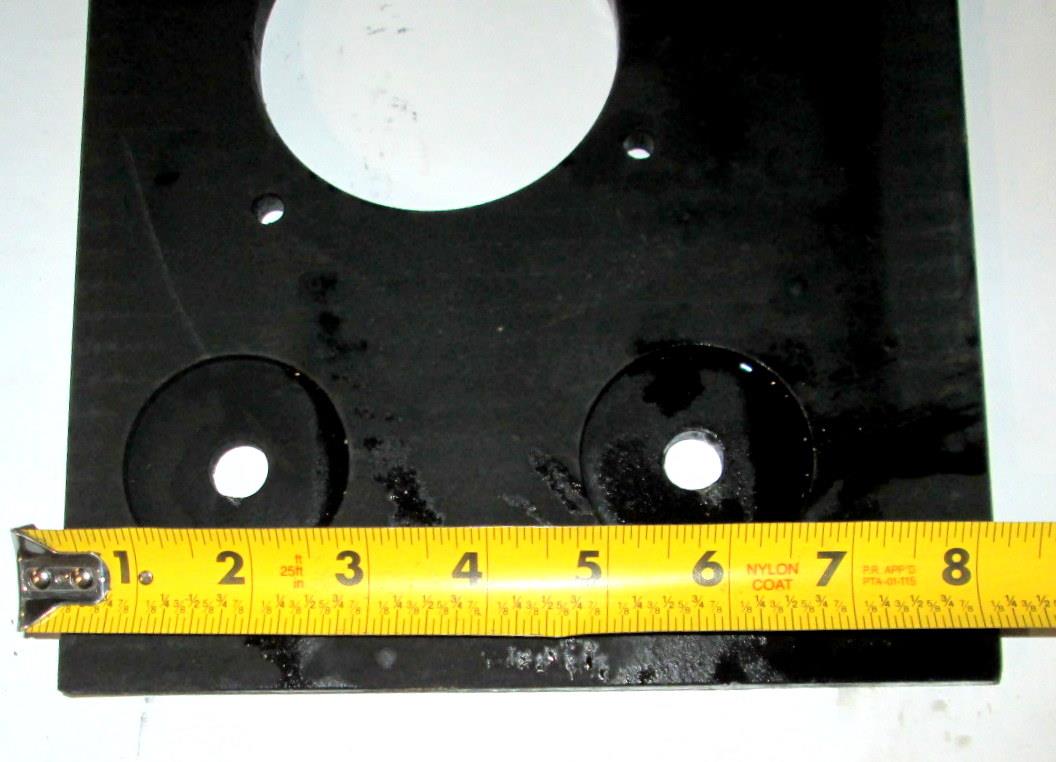

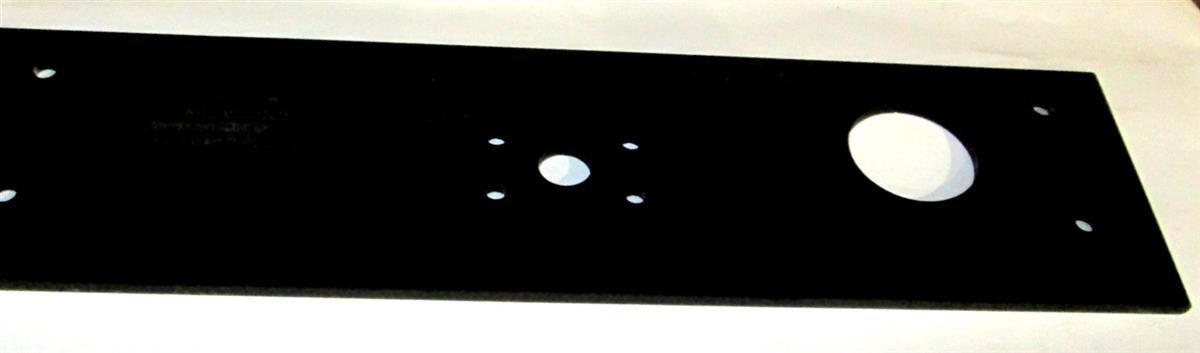

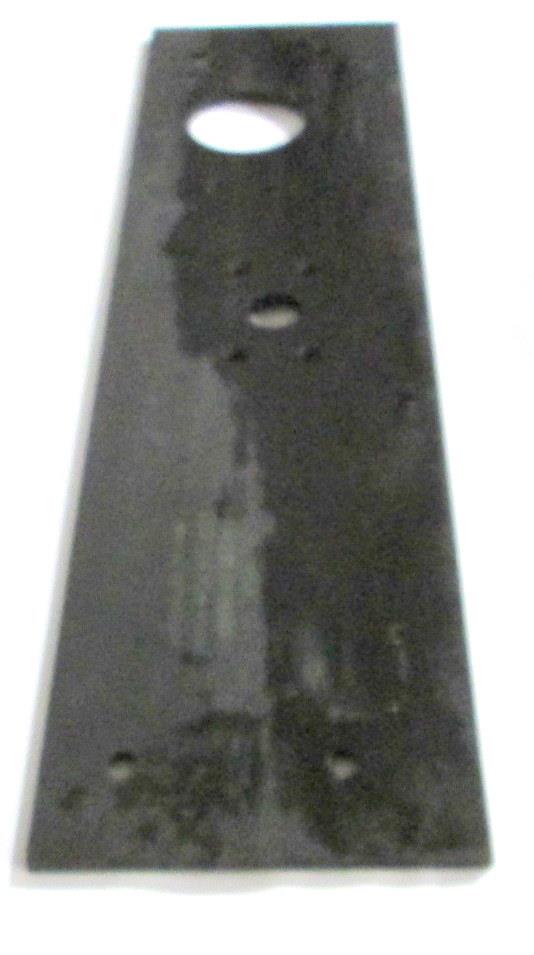

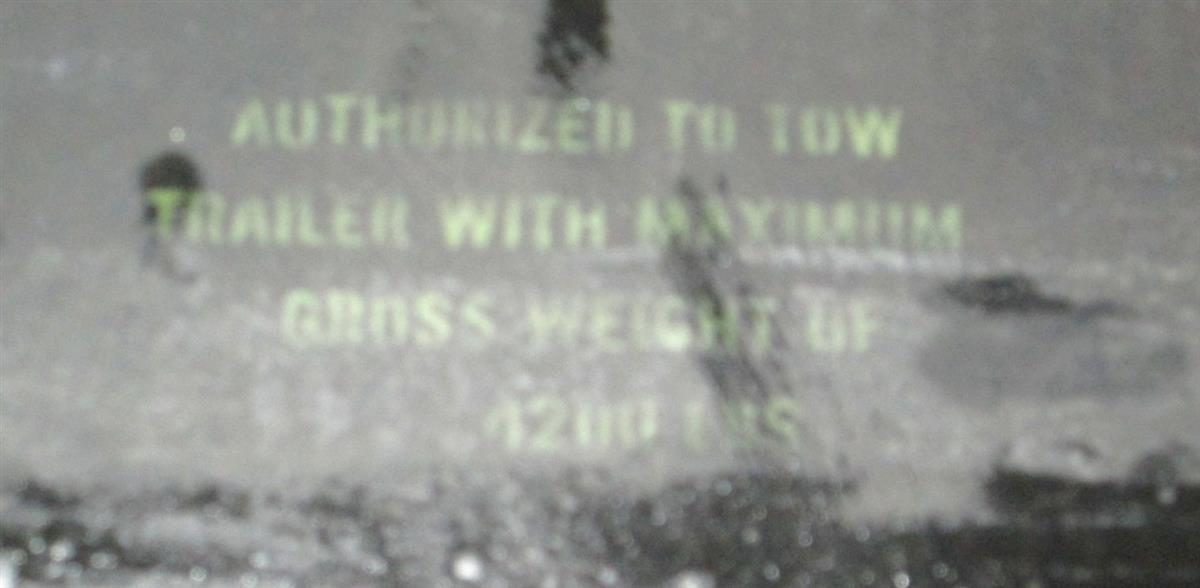

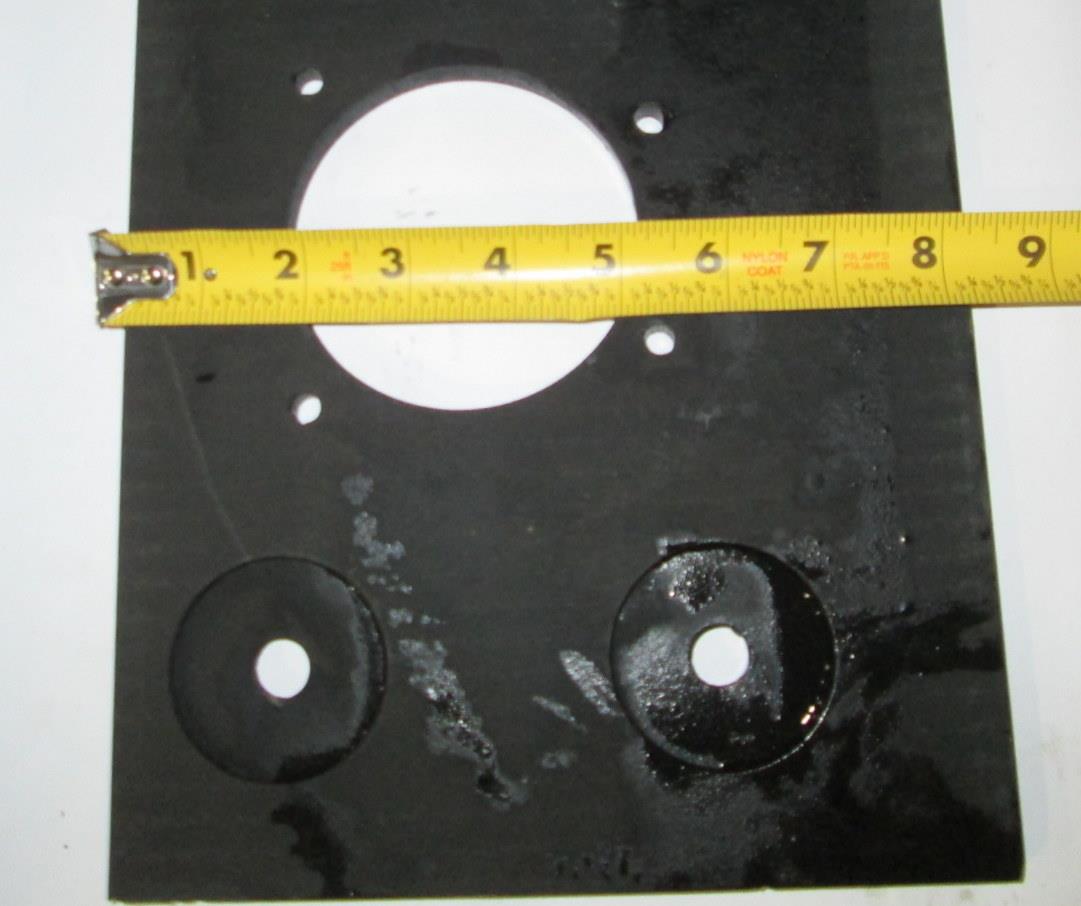

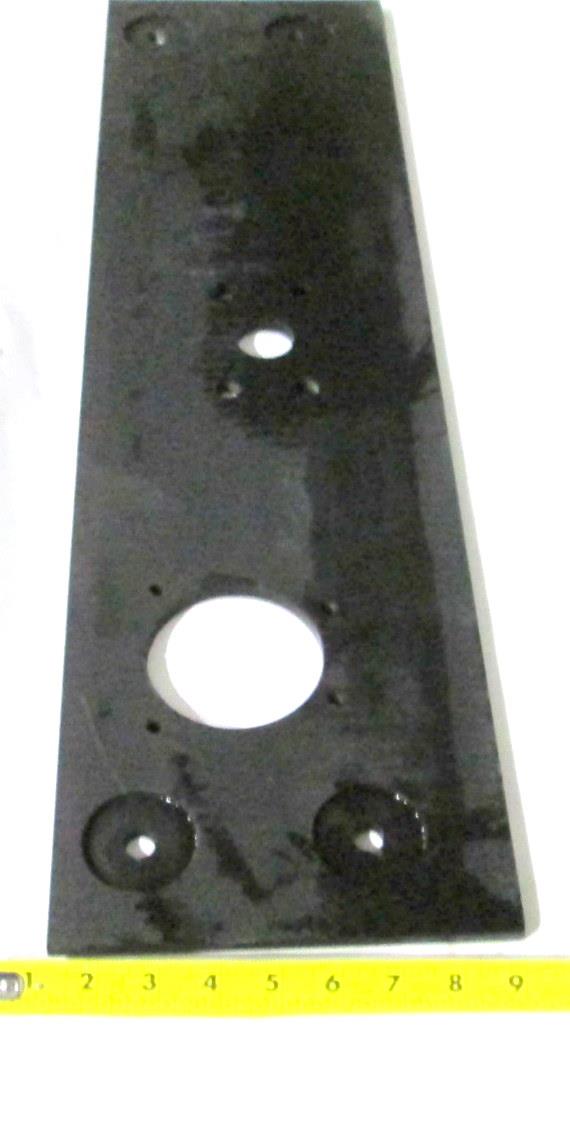

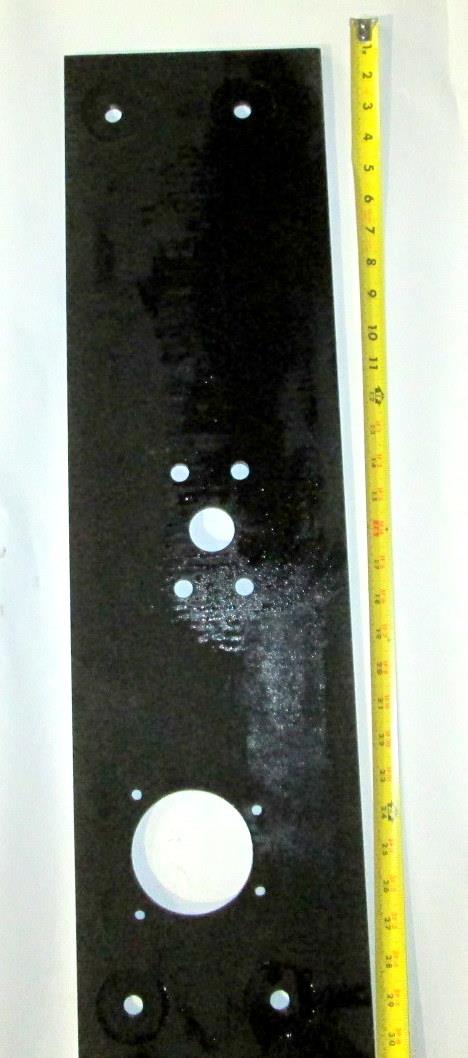

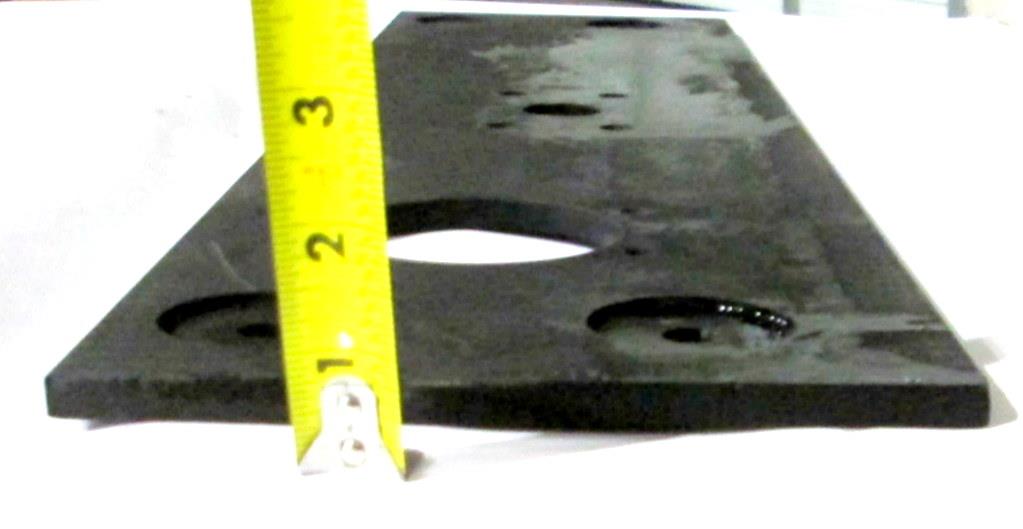

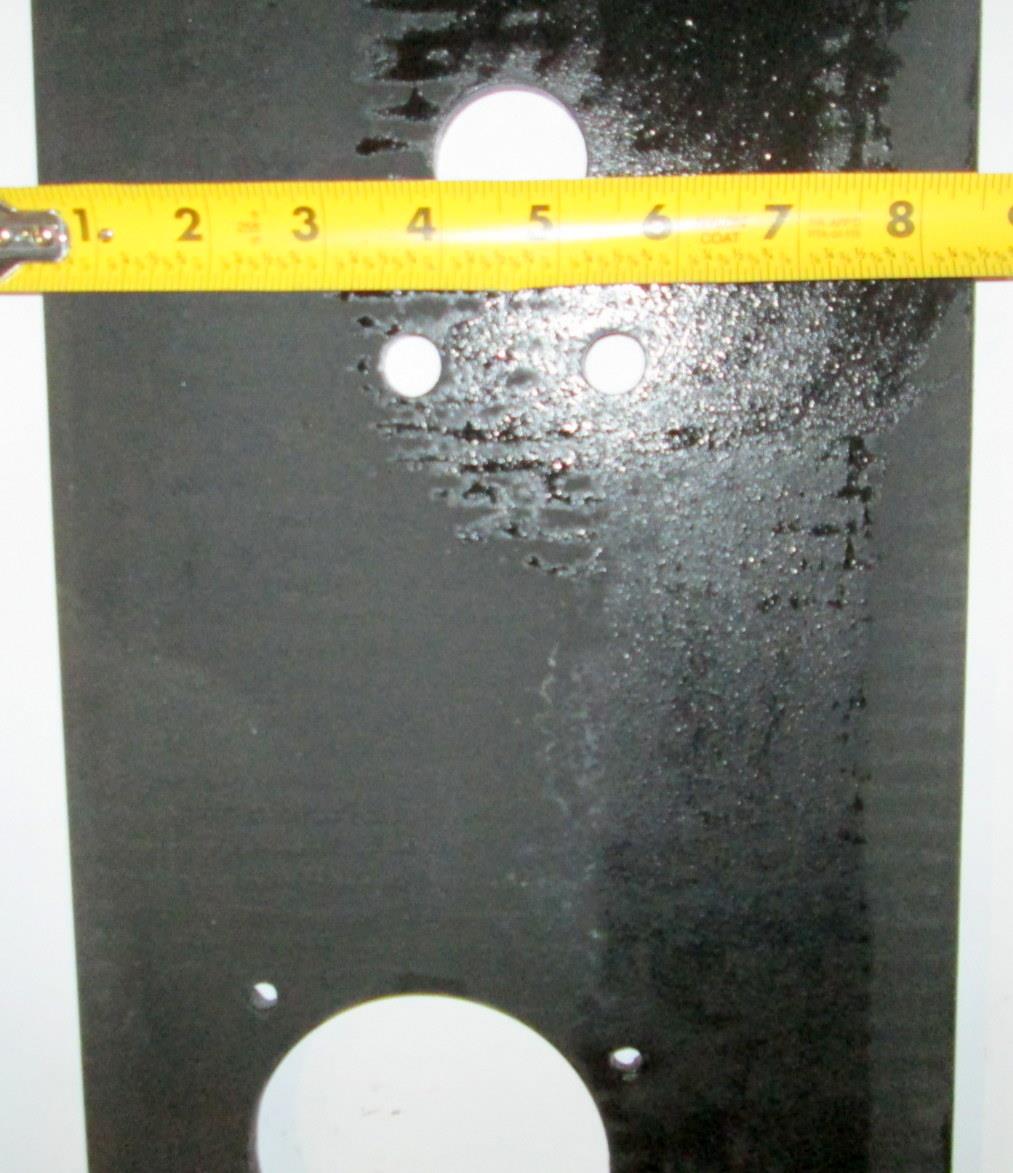

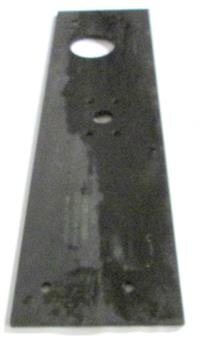

Bumper Plate 5340-01-498-7964 P/N 12469169
For Reference Refer to MWO 9-2320-280-20-6
Fits: HMMWV Models
M1025 M1025A1 M1025A2 M1026 M1026A1 M1035 M1035A1 M1035A2 M1037 M1038 M1038A1 M1042 M1043 M1043A1 M1043A2 M1044 M1044A1 M1045 M1045A1 M1045A2 M1046 M1046A1 M1097 M1097A1 M1097A2 M1121 M1123 M966 M966A1 M996 M996A1 M997 M997A1 M997A2 M998 M998A1 M1151 M1151A1 M1167
Hummer, Humvee hmmwv, hummer, hummvee, H1, AM General
