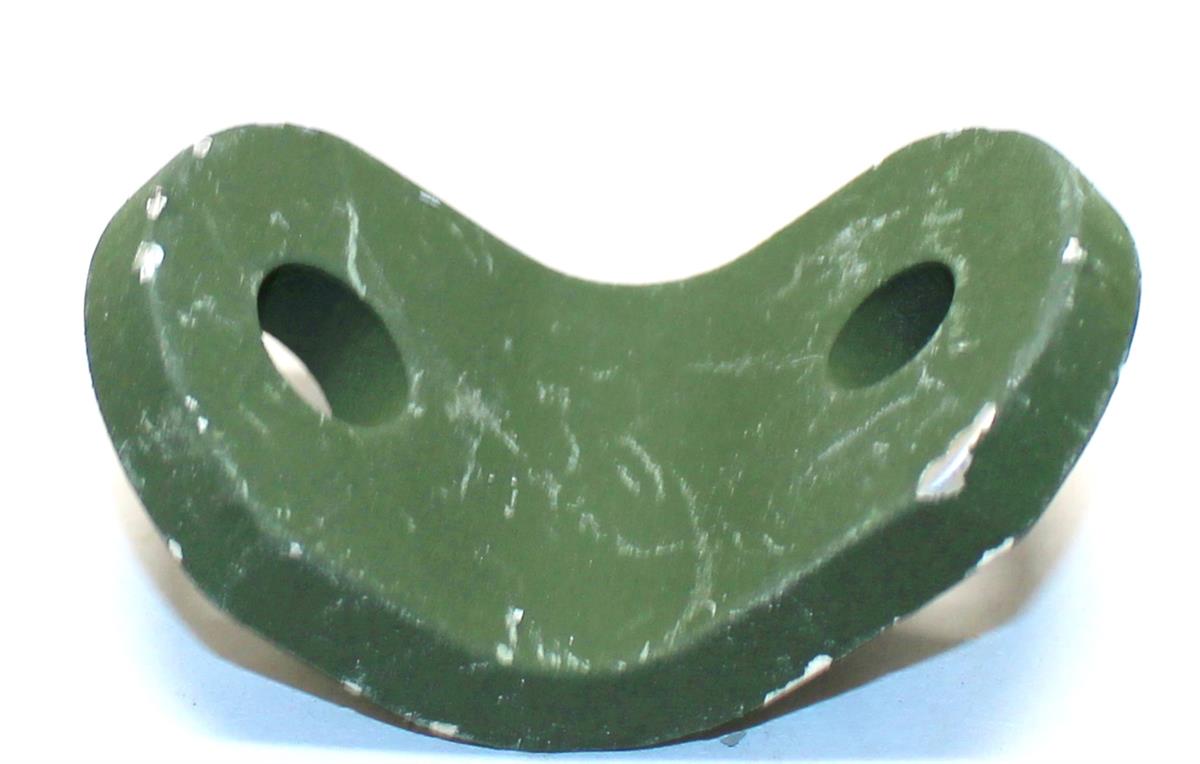

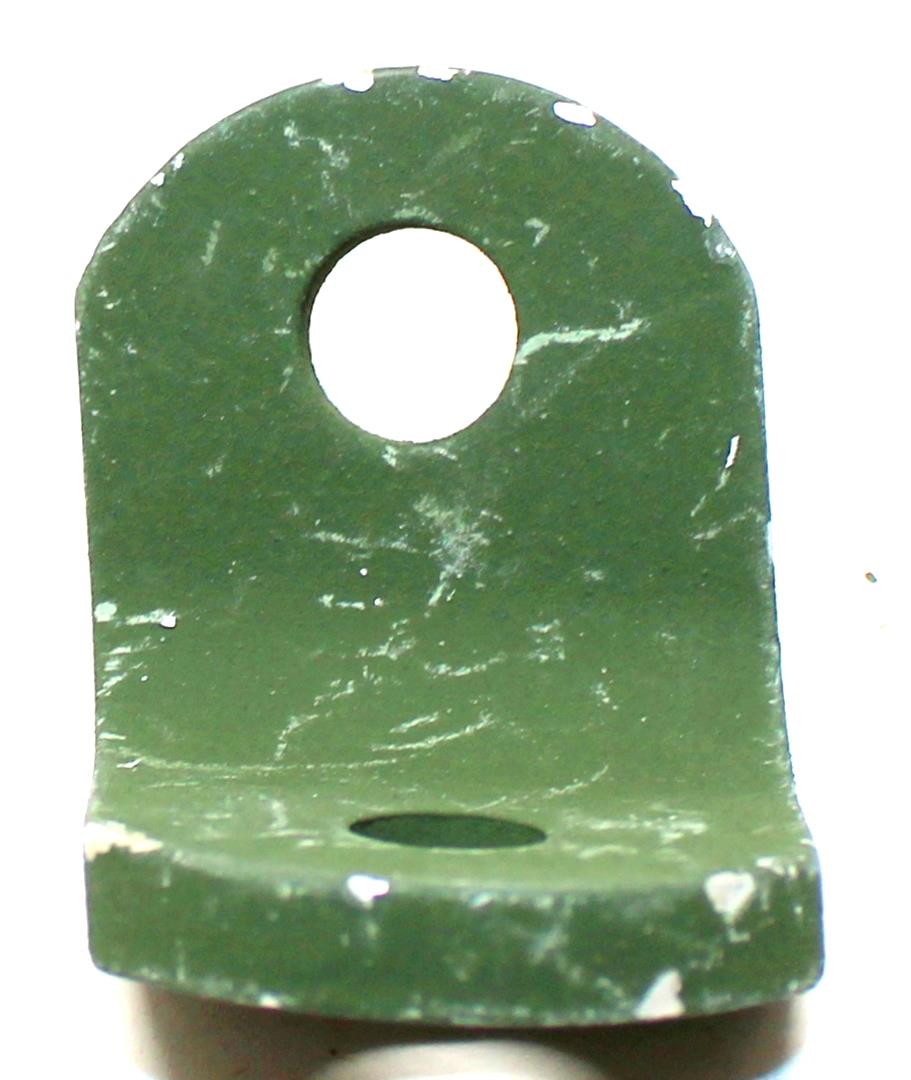

Split Rearview Mirror Lower Right Hand Angle Bracket HMMWV
- First and Second Leg Length 1.520 IN
- Second Leg Width 1.250 IN
- First Leg Hole Diameter 0.406 IN
- Second Leg Hole Diameter 0.344 IN
- First and Second Leg Distance from Edge to Hole Center Along Width 0.620 IN
- First and Second Leg Distance from Edge to Hole Center Along Length 0.500 IN
- First and Second Leg Thickness 0.250 IN
- First and Second Leg End Radius 0.690 IN
- Item No 15 in Diagram
Click Here For Rearview Mirror Lower Left Hand Angle Bracket HMMWV
Click Here For Upper and Lower Left Hand Mirror Mounting Bracket HMMWV
Click Here For Upper and Lower Right Hand Mirror Mounting Bracket HMMWV
Fits: HMMWV Models
M1025 M1025A1 M1025A2 M1026 M1026A1 M1035 M1035A1 M1035A2 M1037 M1038 M1038A1 M1042 M1043 M1043A1 M1043A2 M1044 M1044A1 M1045 M1045A1 M1045A2 M1046 M1046A1 M1097 M1097A1 M1097A2 M1121 M1123 M966 M966A1 M996 M996A1 M997 M997A1 M997A2 M998 M998A1 M1151 M1151A1 M1167
Hummer, Humvee hmmwv, hummer, hummvee, H1, AM General
