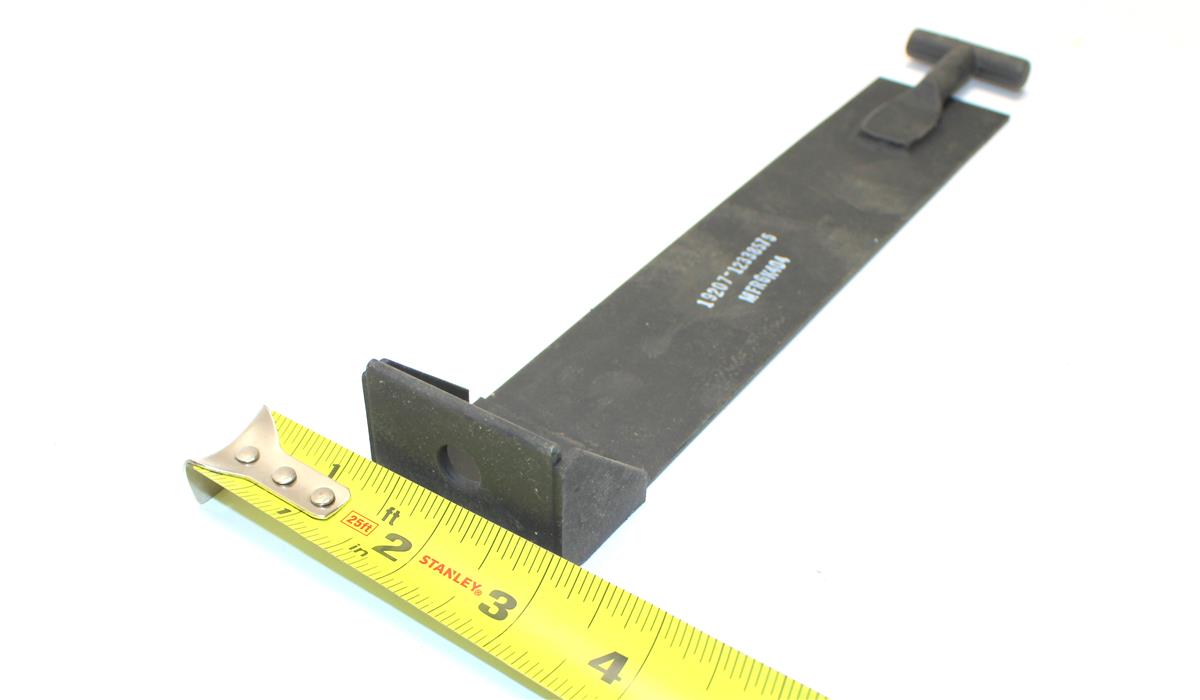

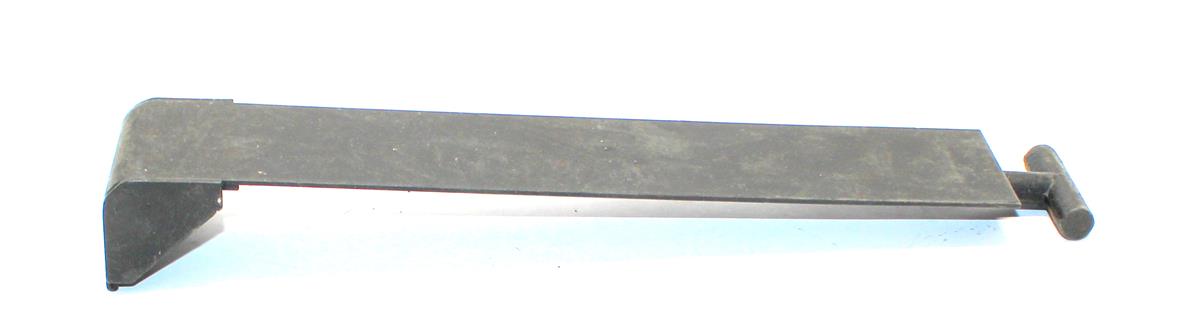

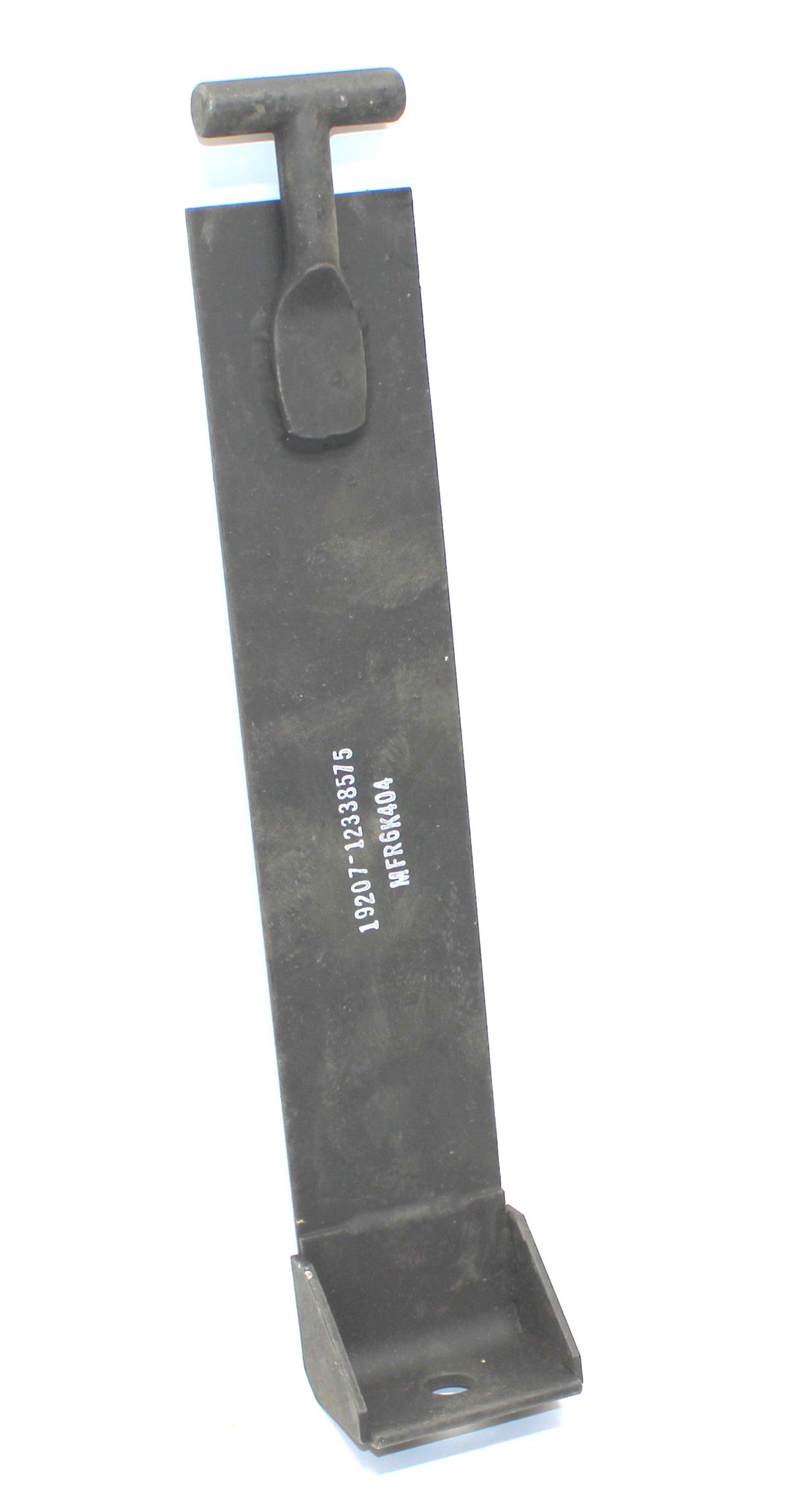

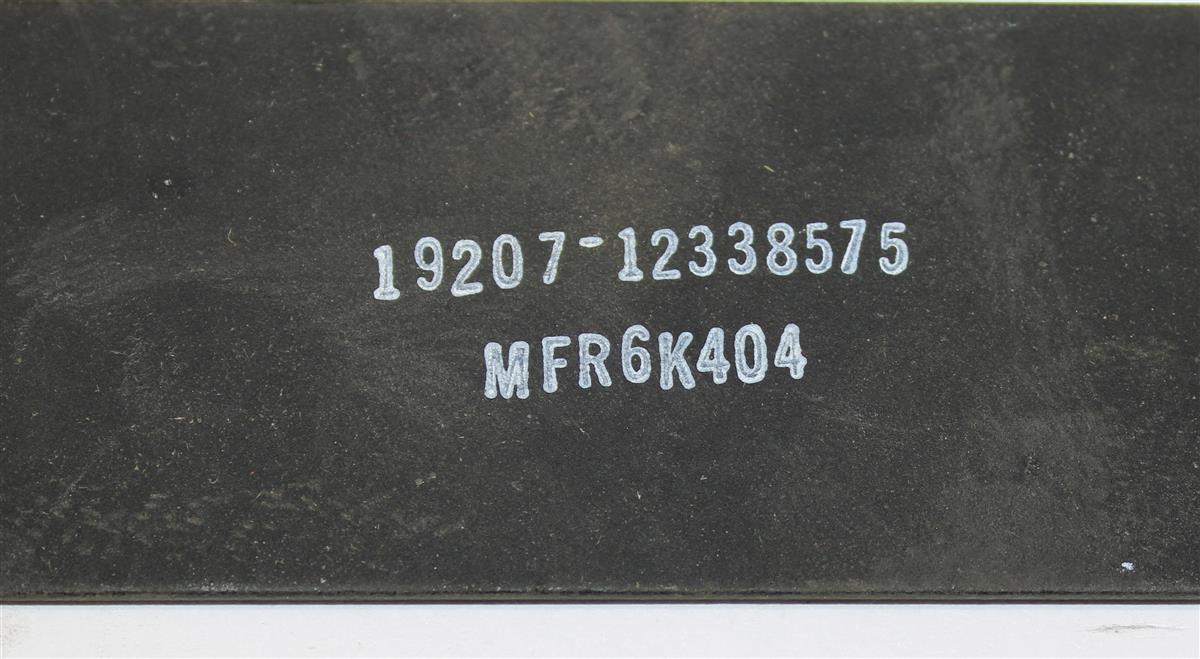

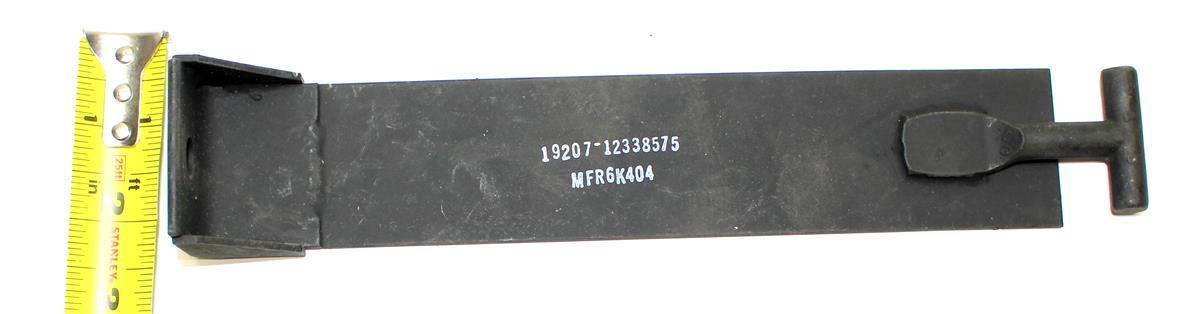

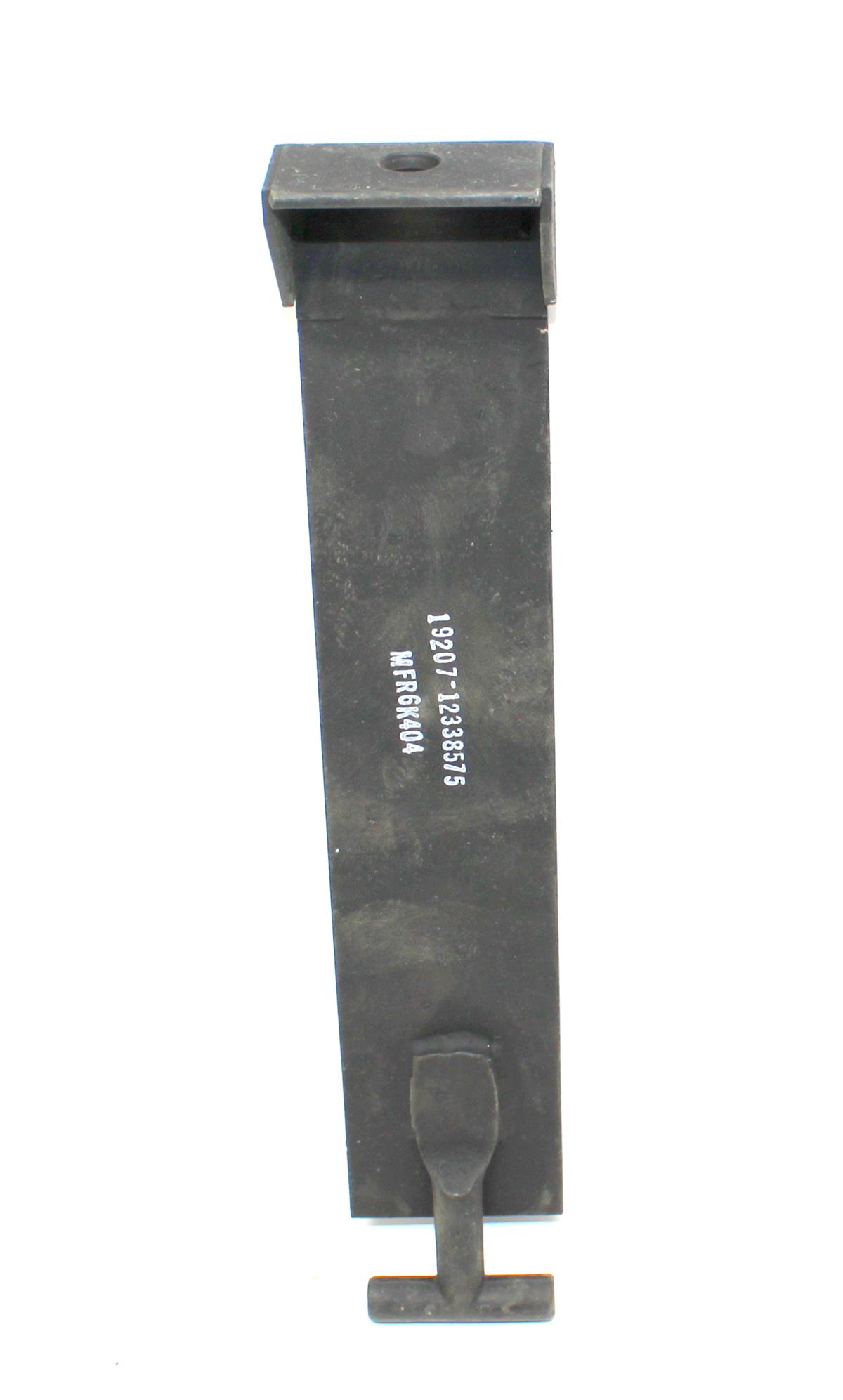

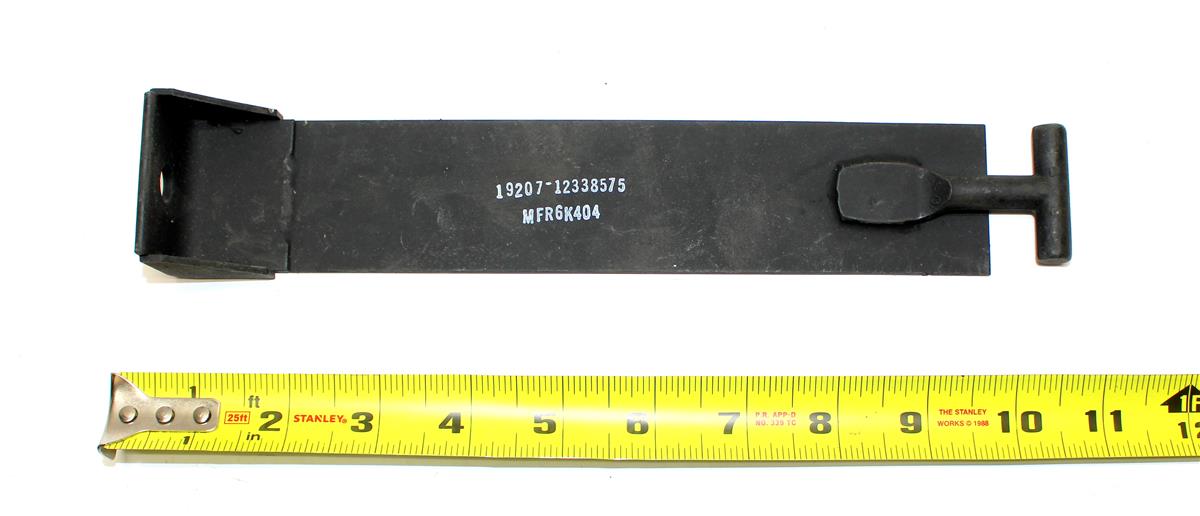

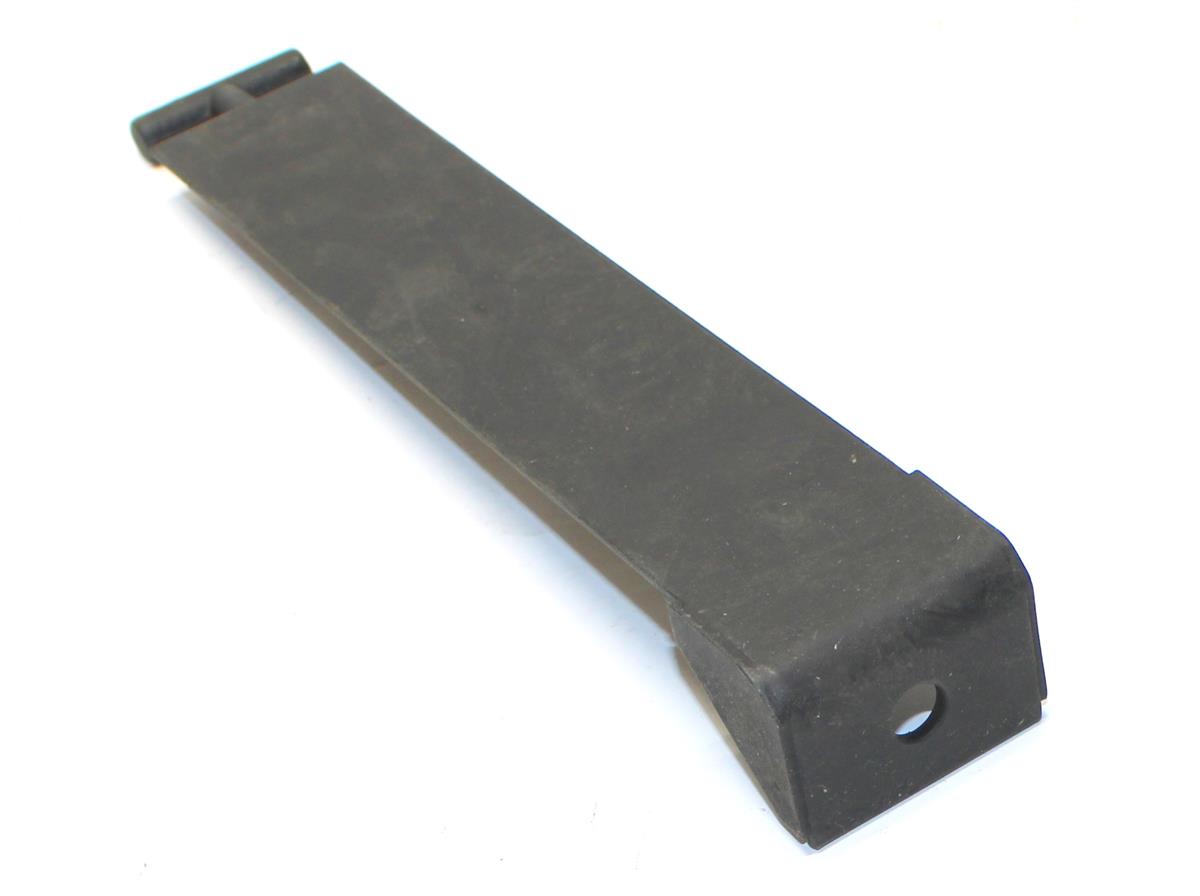

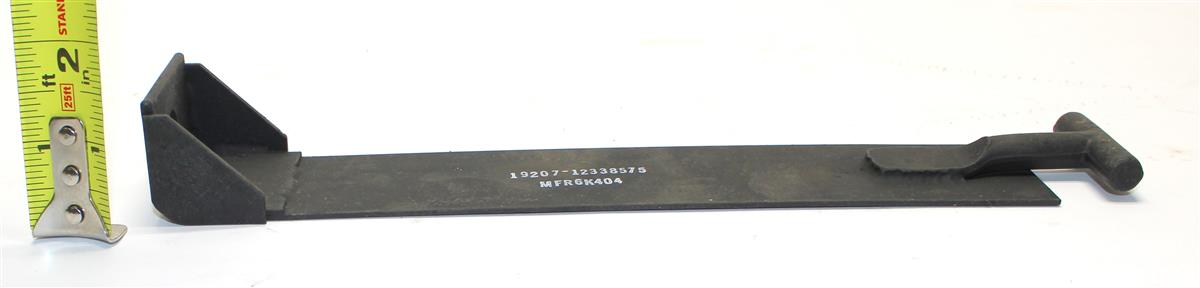

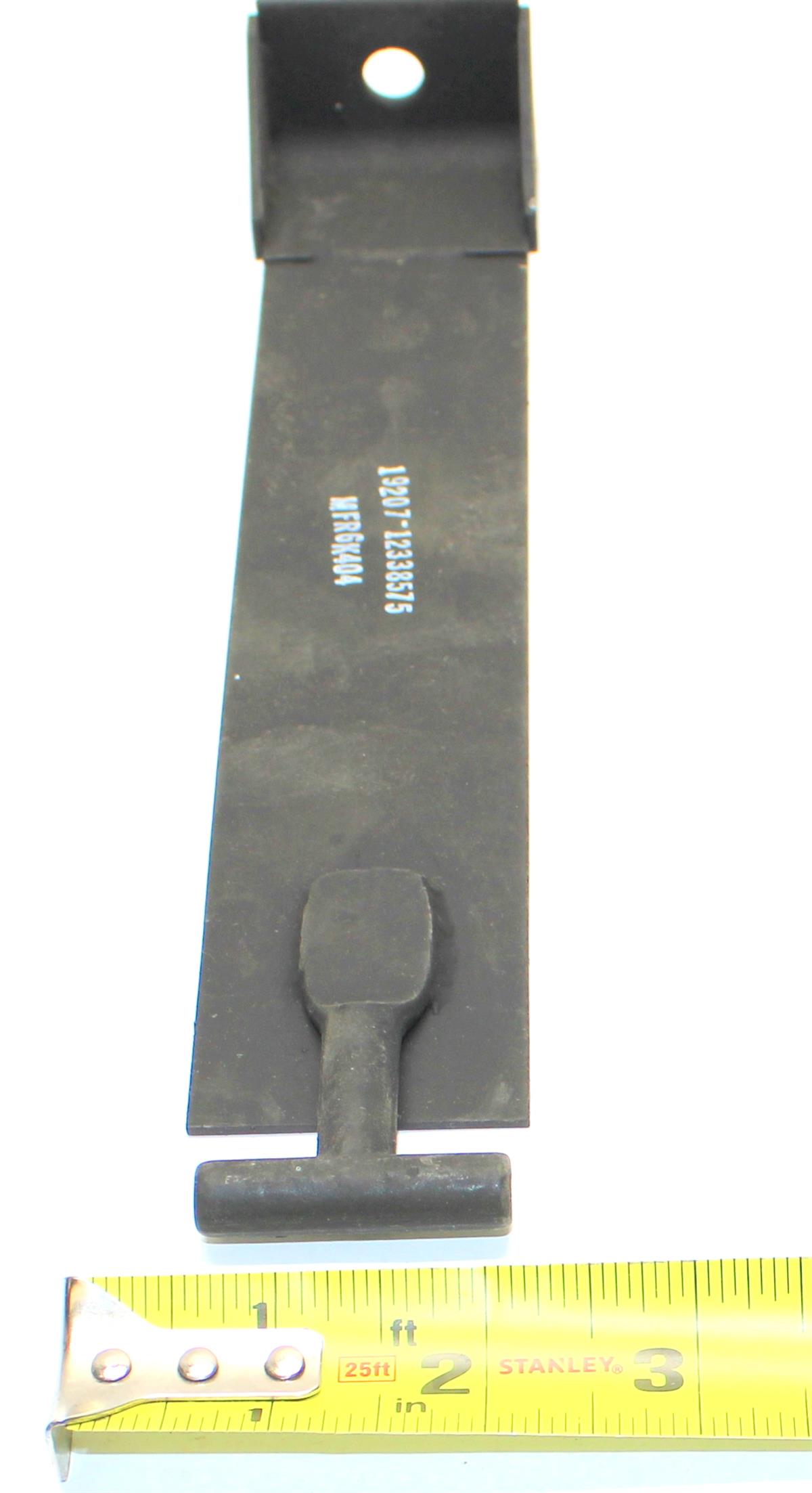

Right Top Rear Fuel Tank Mounting Angle Bracket HMMWV
- Mounting Hole Type Plain
- First Leg Length 1.320 IN
- Second Leg Length 9.300 IN
- First and Second Leg Width 1.750 IN
- First Leg Hole Diameter 0.406 IN
- First and Second Leg Thickness 0.0598 IN
- First Leg Distance from Edge to Hole Center Along Width 0.880 IN
- First Leg Distance from Edge to Hole Center Along Length 0.600 IN
- First Leg Style Square One Hole
- Second Leg Style Square No Hole
- First Leg Angle 90.0 Degrees
- PACS

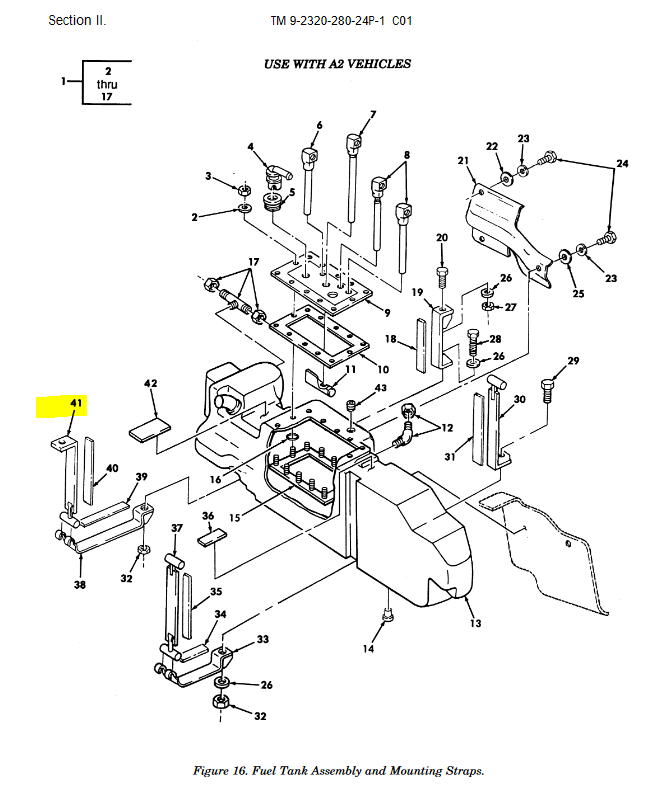

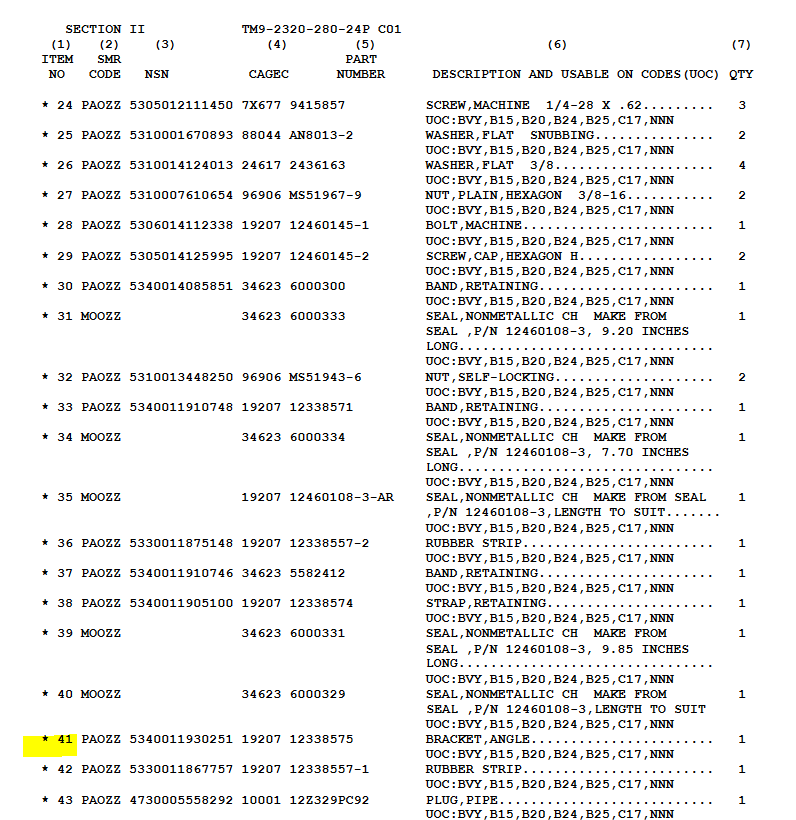

- Item NO 41 in Diagram
Click Here For Front Lower Fuel Tank Retaining Strap HMMWV
Click Here For Strap Fuel tank Rear Lower Fuel Tank Retaining Strap HMMWV
Click Here For Fuel Tank Strap HMMWV
Click Here For Fuel Tank Retaining Band Strap HMMWV
Fits: HMMWV Models
M1025 M1025A1 M1025A2 M1026 M1026A1 M1035 M1035A1 M1035A2 M1037 M1038 M1038A1 M1042 M1043 M1043A1 M1043A2 M1044 M1044A1 M1045 M1045A1 M1045A2 M1046 M1046A1 M1097 M1097A1 M1097A2 M1121 M1123 M966 M966A1 M996 M996A1 M997 M997A1 M997A2 M998 M998A1 M1151 M1151A1 M1167
Hummer, Humvee hmmwv, hummer, hummvee, H1, AM General
