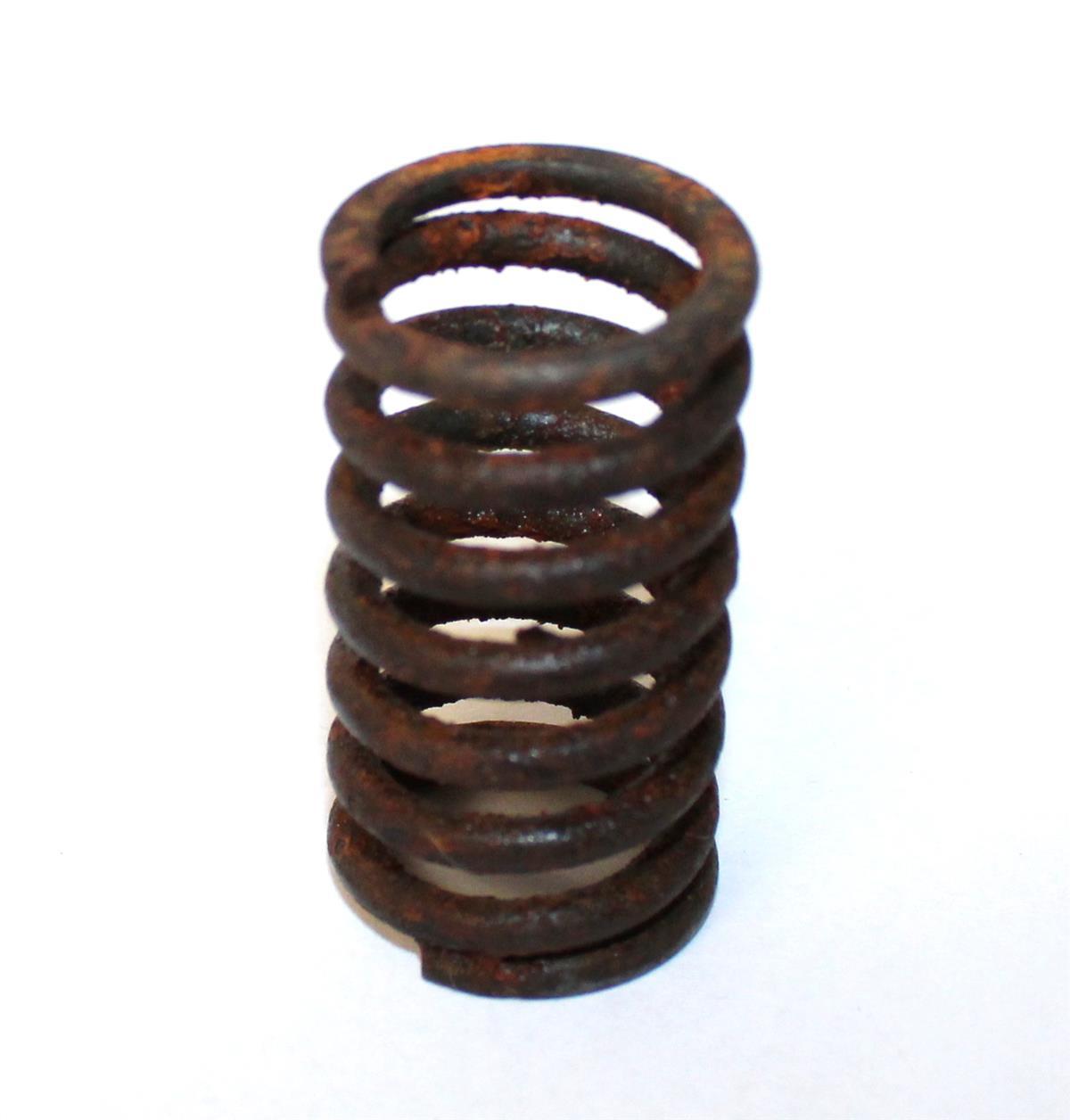

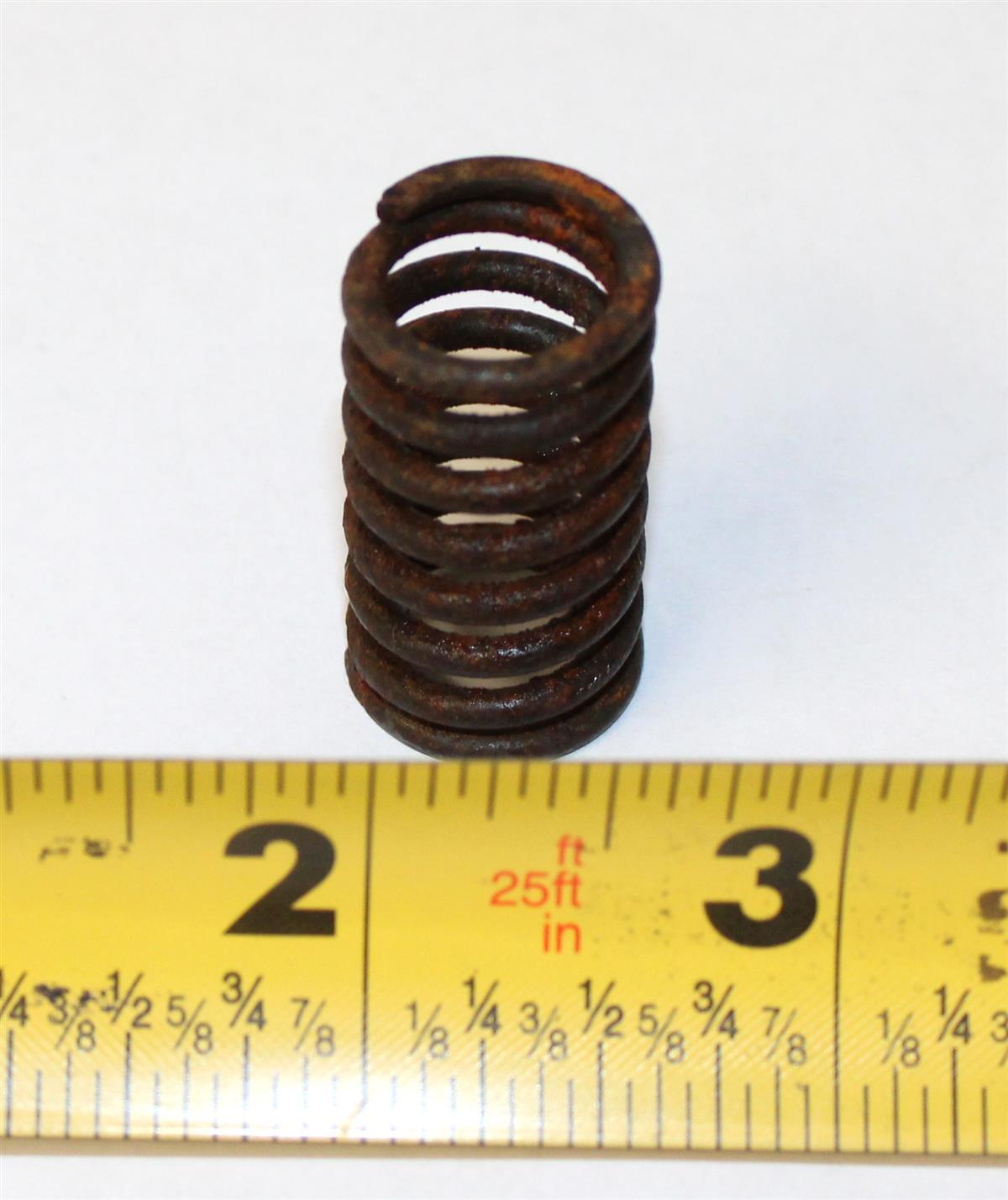

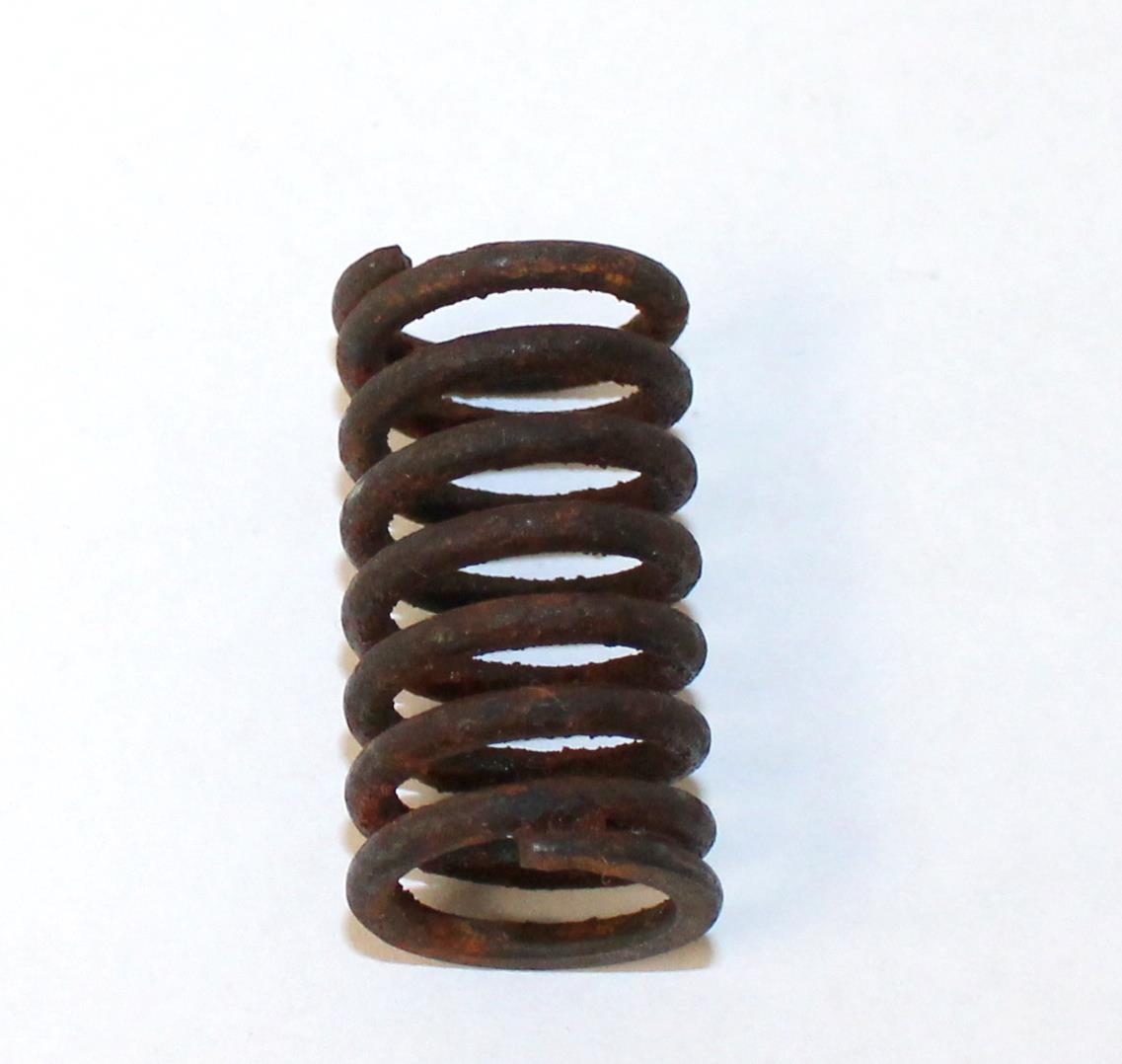

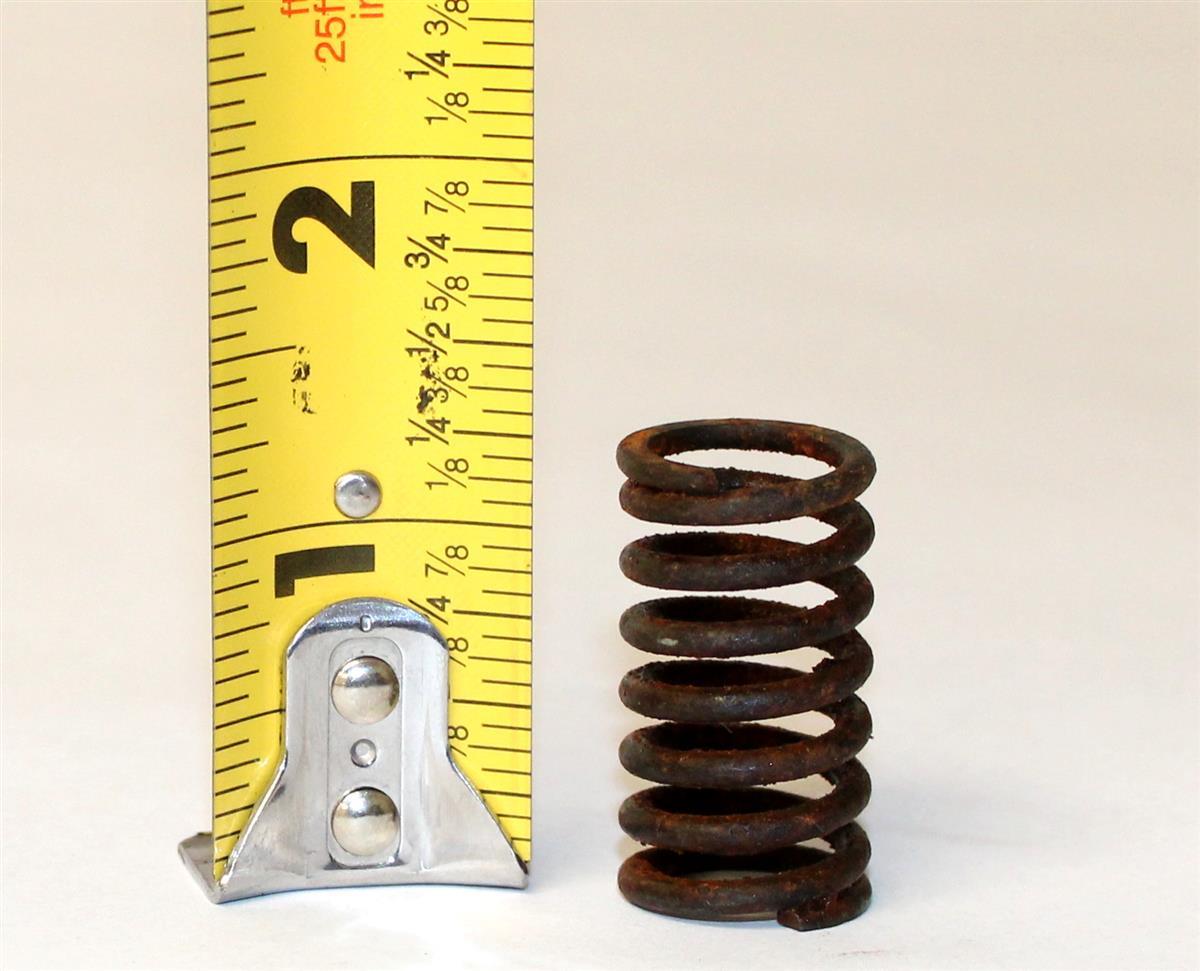

Brake Shoe Spring M54A2 M809 M939A1
- Inside Diameter is 0.567 inches
- Spring Free Length is 0.900 inches
- Coil Quantity is 5.3
- Spring Solid Length is 0.442 inches
- Coil Helix Direction is Right or Left Hand
- Spring Free Outside Diameter is 0.812 inches
- Material is Steel
- Style Designator is Cylindrical

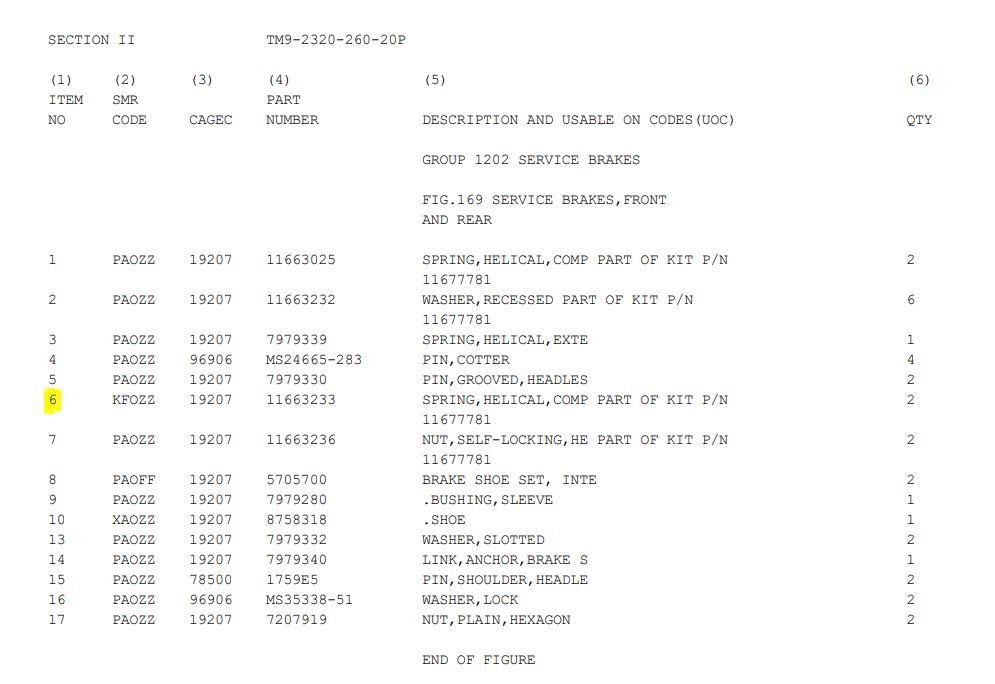

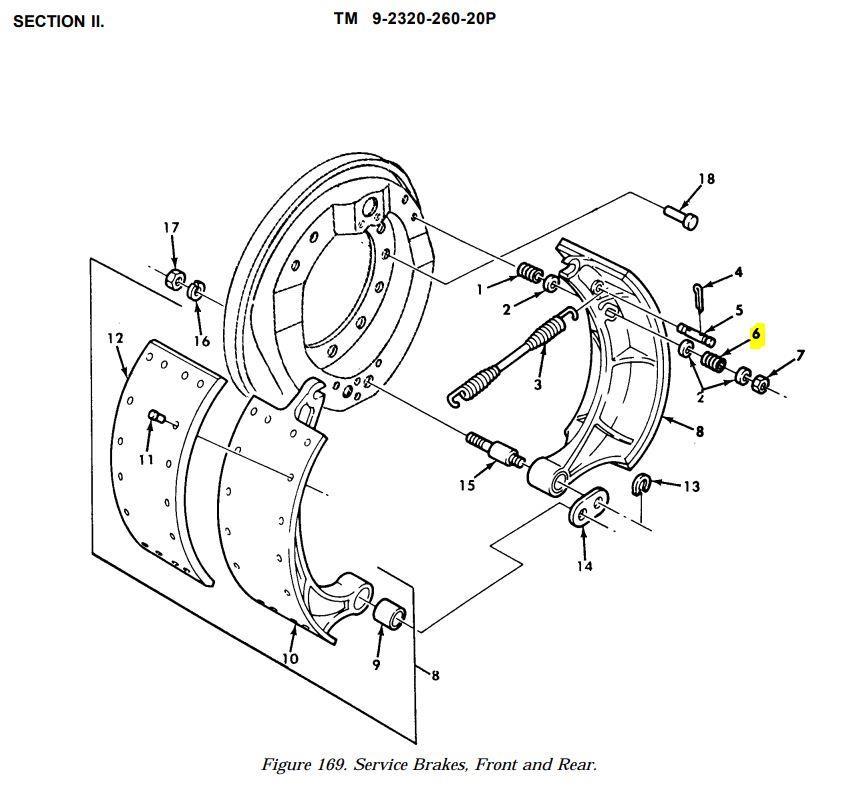

- Item Number 6 in Diagram
- Surface Rust from long term storage
FITS: 5 Ton 6 x 6 Military Truck
M54 and variants 5-Ton Trucks
M809, M813, M814, M816, M817, M818, M820 5-Ton Trucks
M939, M939A1, M923, M923A1,M925, M925A1, M927, M927A1, M929, M929A1,M930, M930A1,M931, M931A1, 5-Ton Trucks
