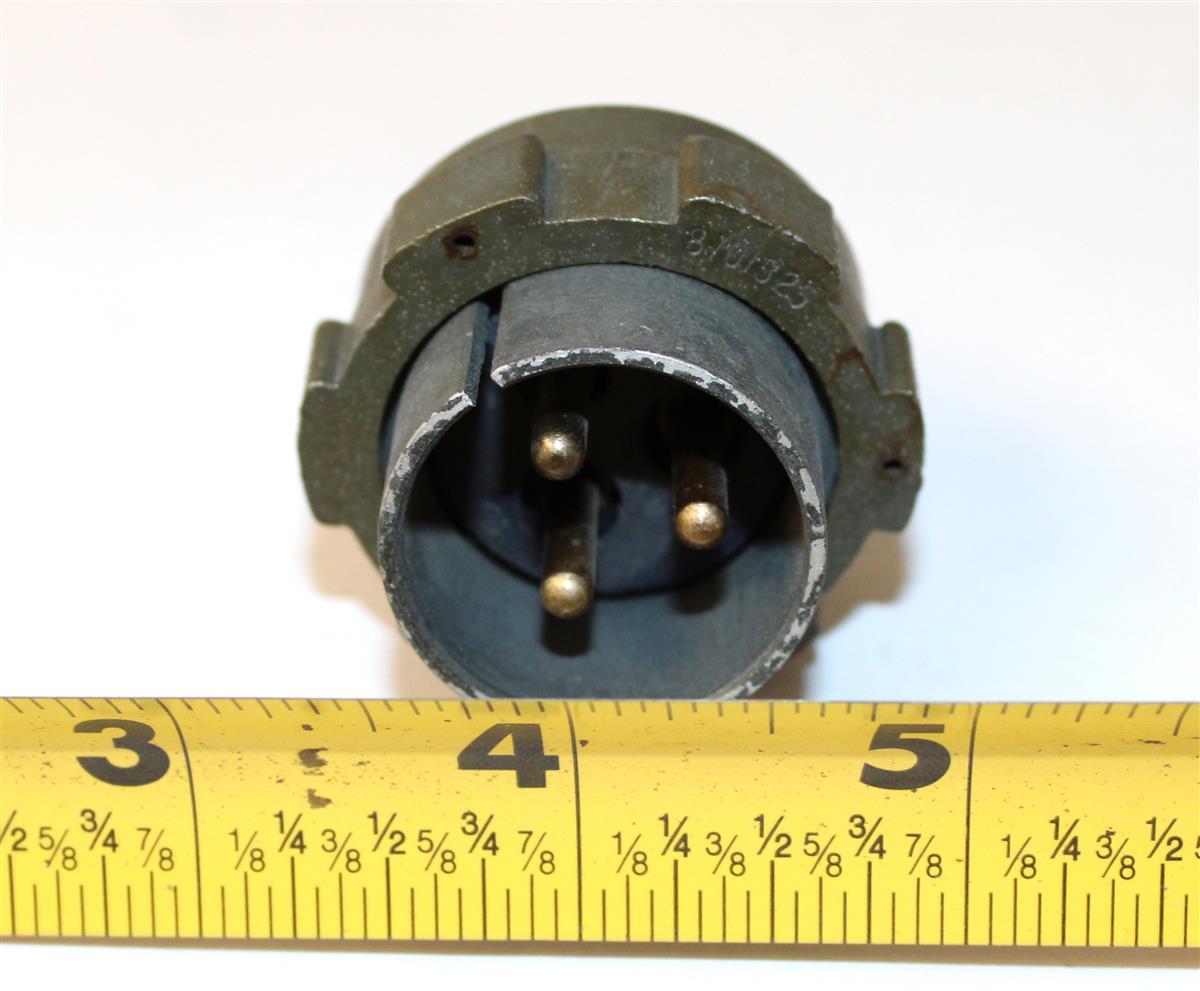

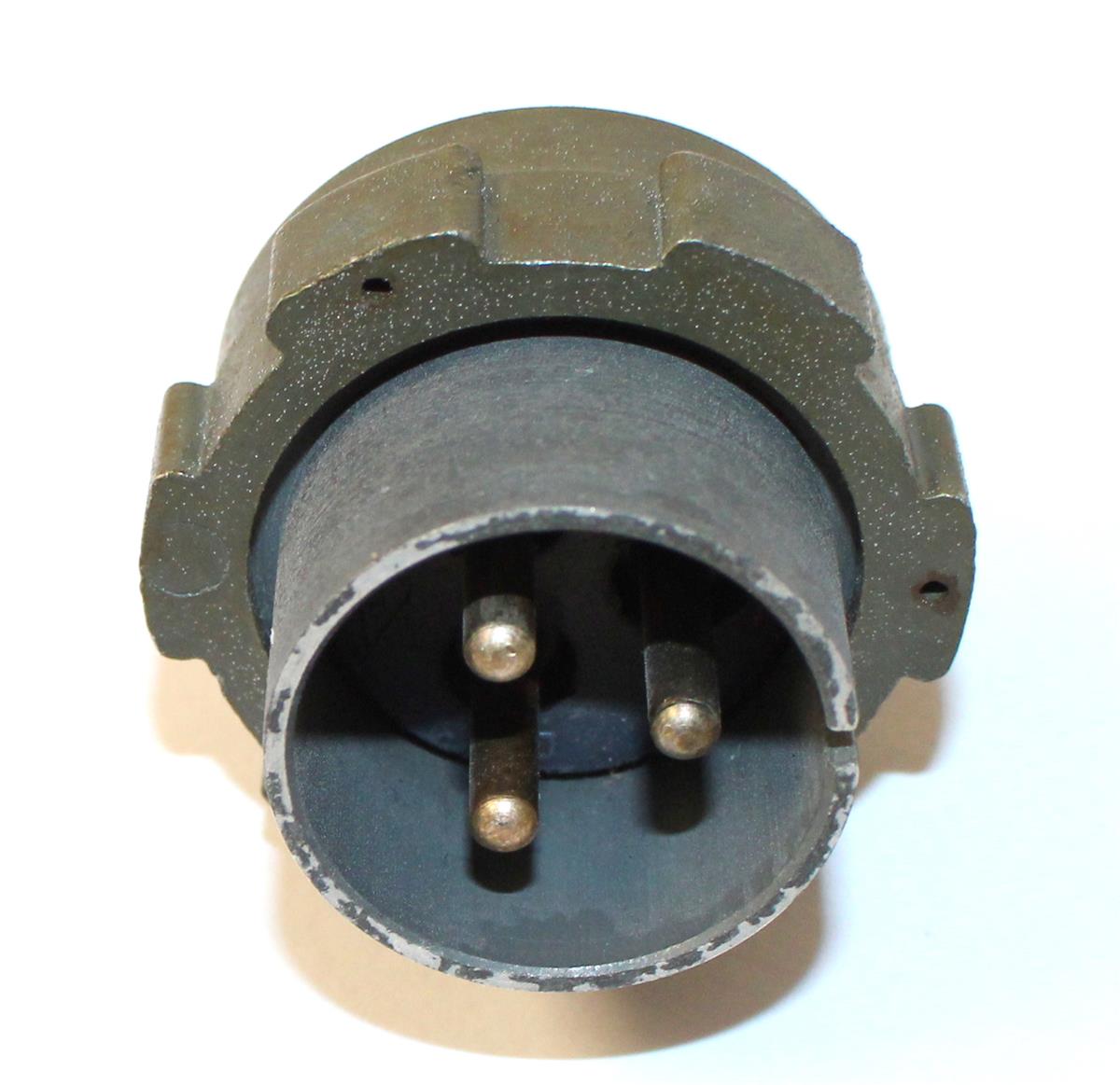

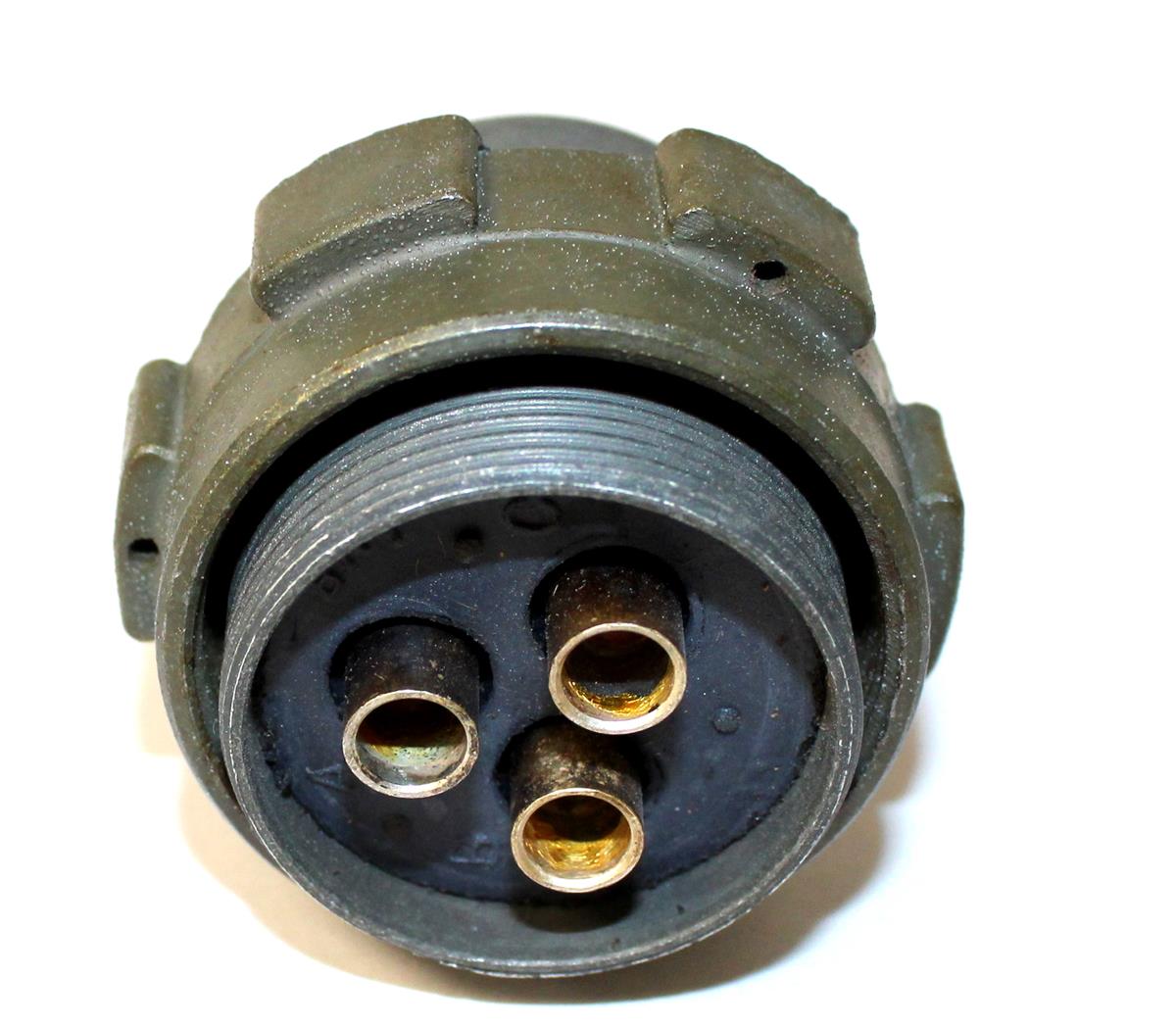

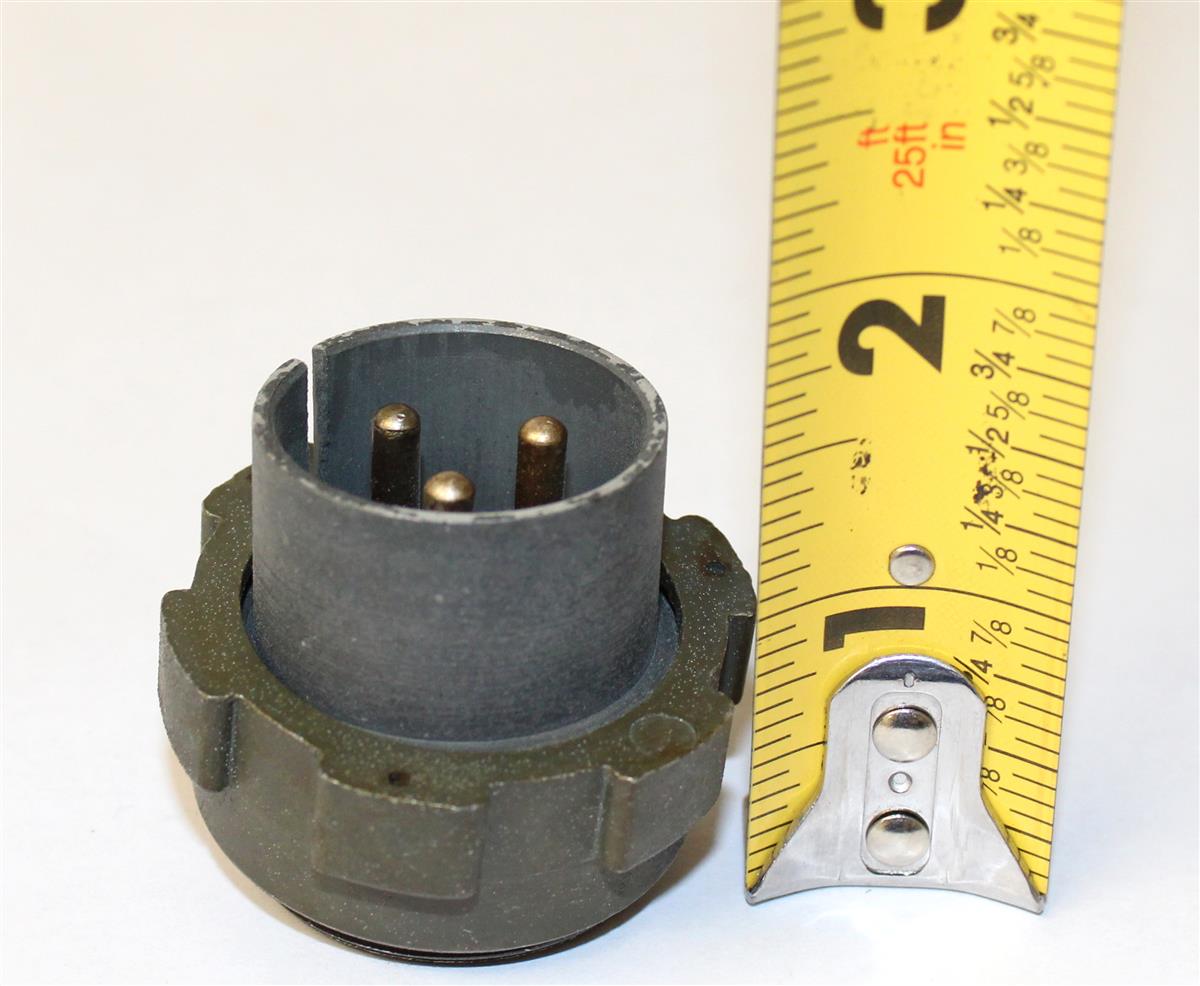

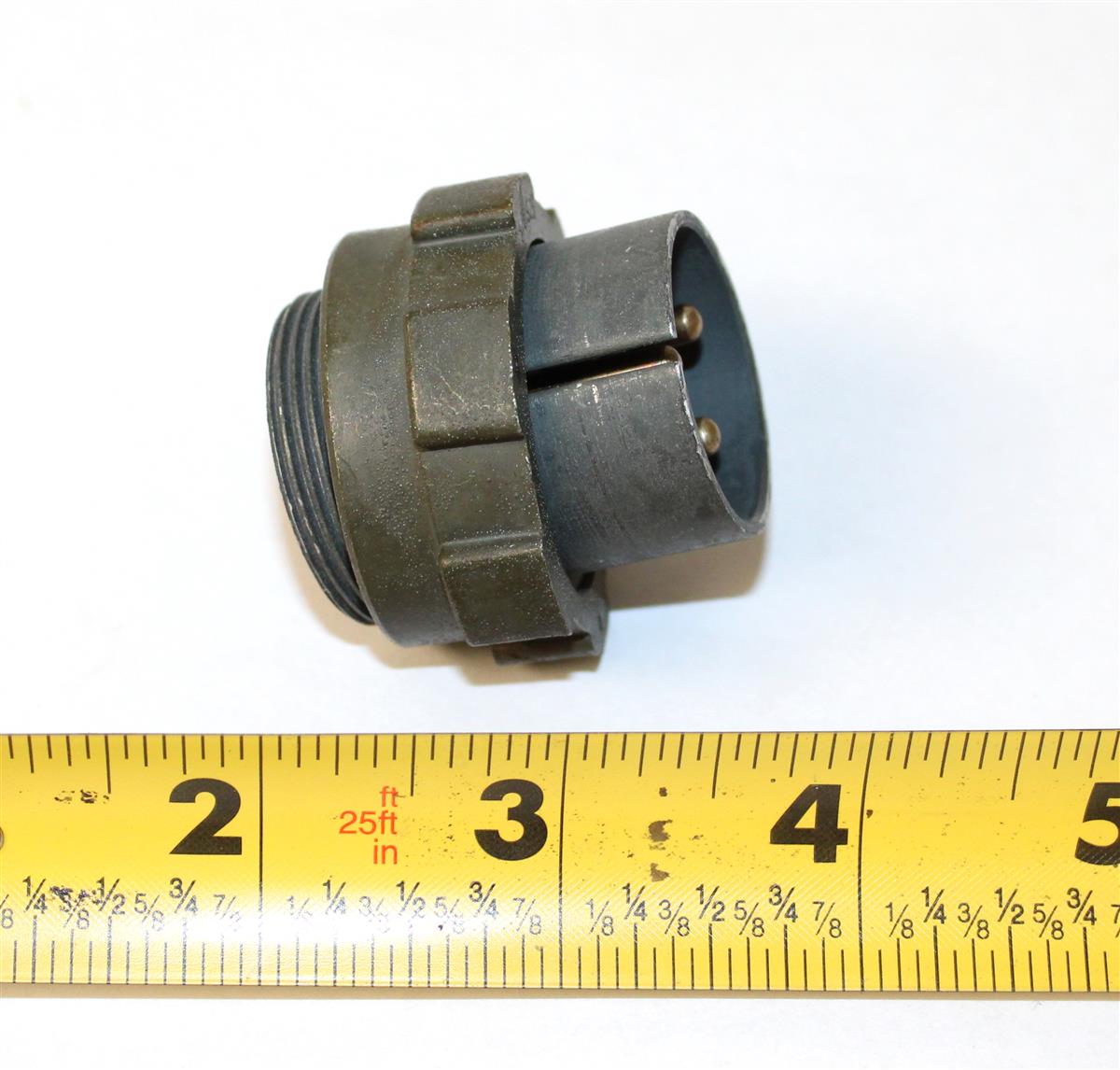

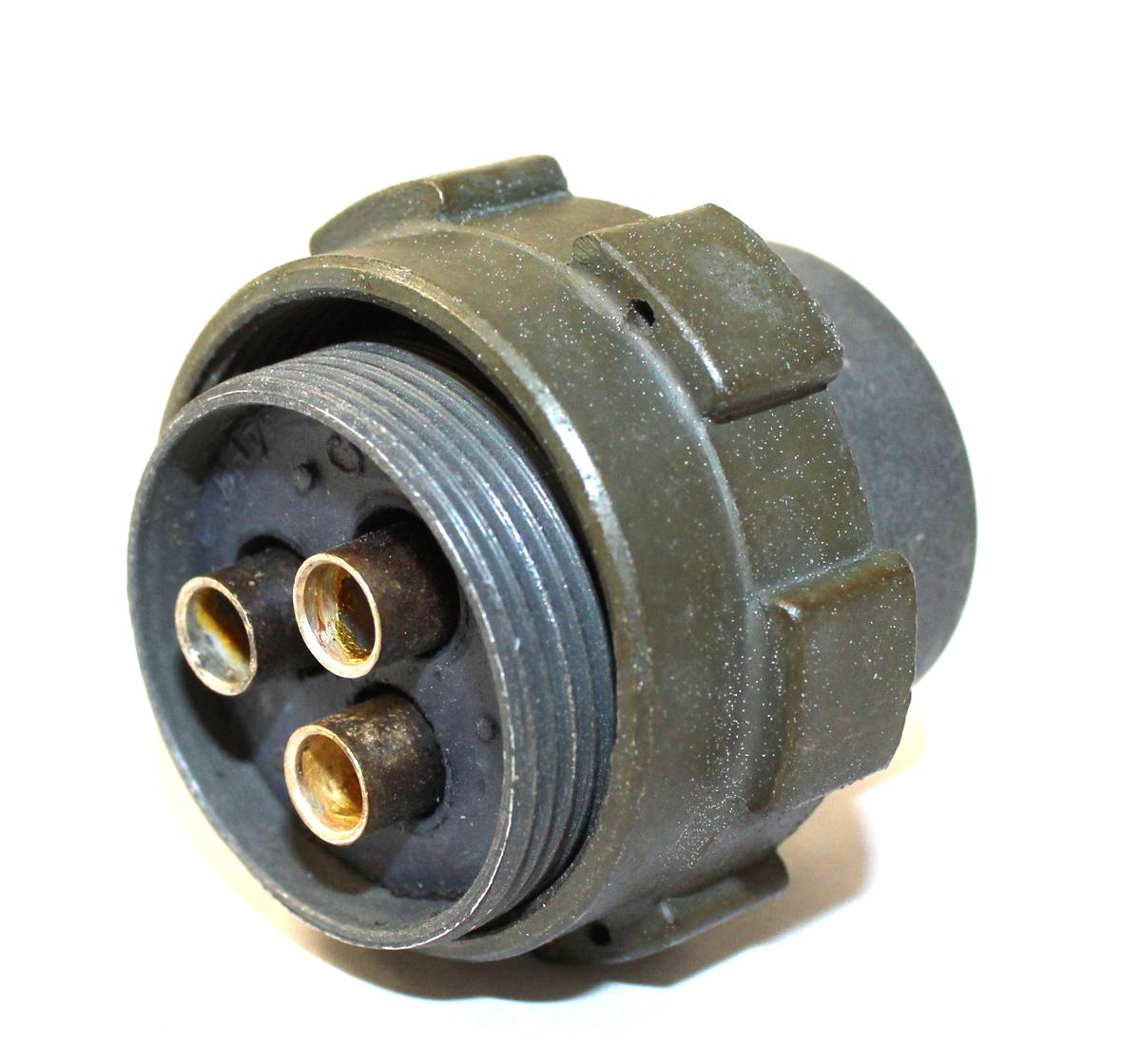

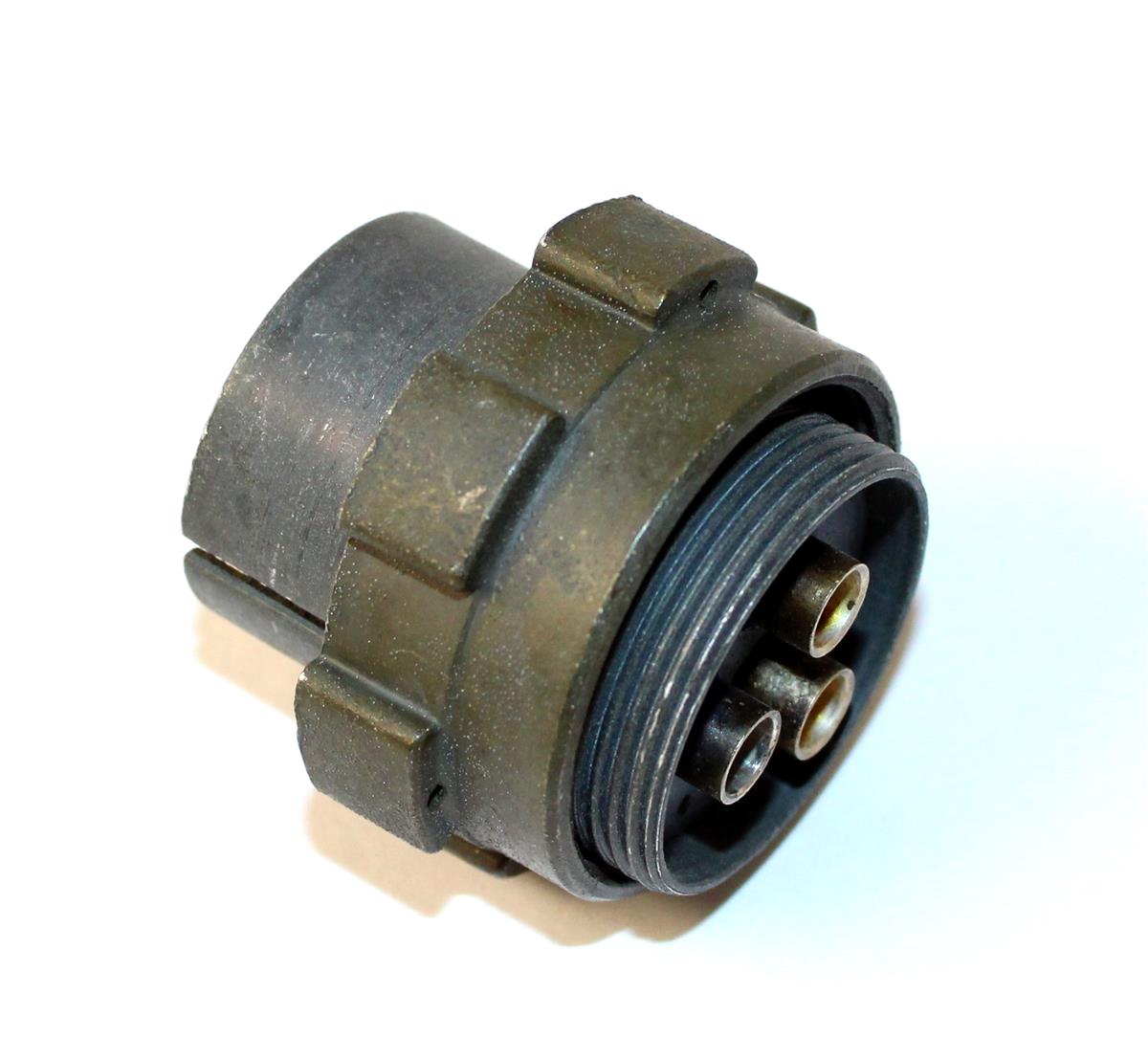

Connector Receptacle Plug Electrical M113
- Thread Class is 2A and 2B
- Thread Direction is Right Hand
- Body Style is Straight Shape, Internal Coupling
- Overall Length is 1.532 inches
- Overall Diameter is 1.737 inches
- Back Shell and Coupling facility is Device type
- Mating End Quantity is 1
- Contact Position Arrangement Style is 22-2 Single Mating End
- Contact Max Amp Rating is 73
- Contact Max AC Voltage is 900
- Contact Max DC Voltage is 1250
- Solid Shell Type
- Thread Length is 0.578 inches
- Thread Size is 1.250 inches and 1.375 inches
- Shell Material is Aluminum
- Shell Surface Treatment is Cadmium and Nickel
- Gold and Silver Material
- Round Pin Single Mating End

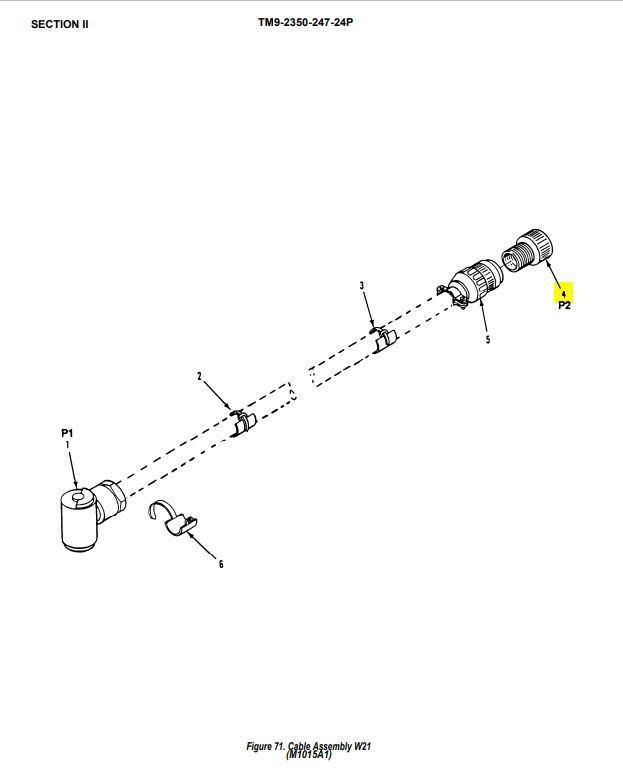

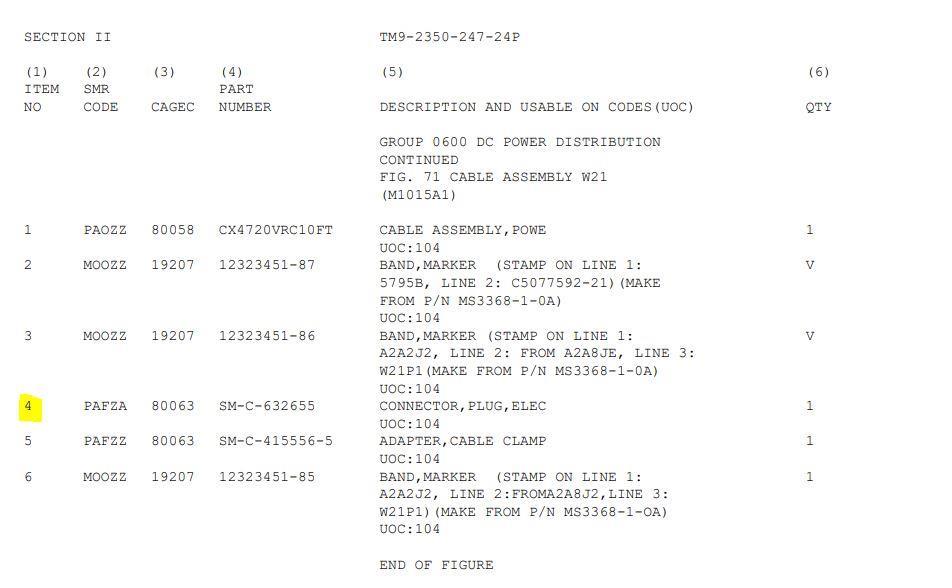

- Item Number 4 in Diagram
FITS: M113 Armored Personal Carrier
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
