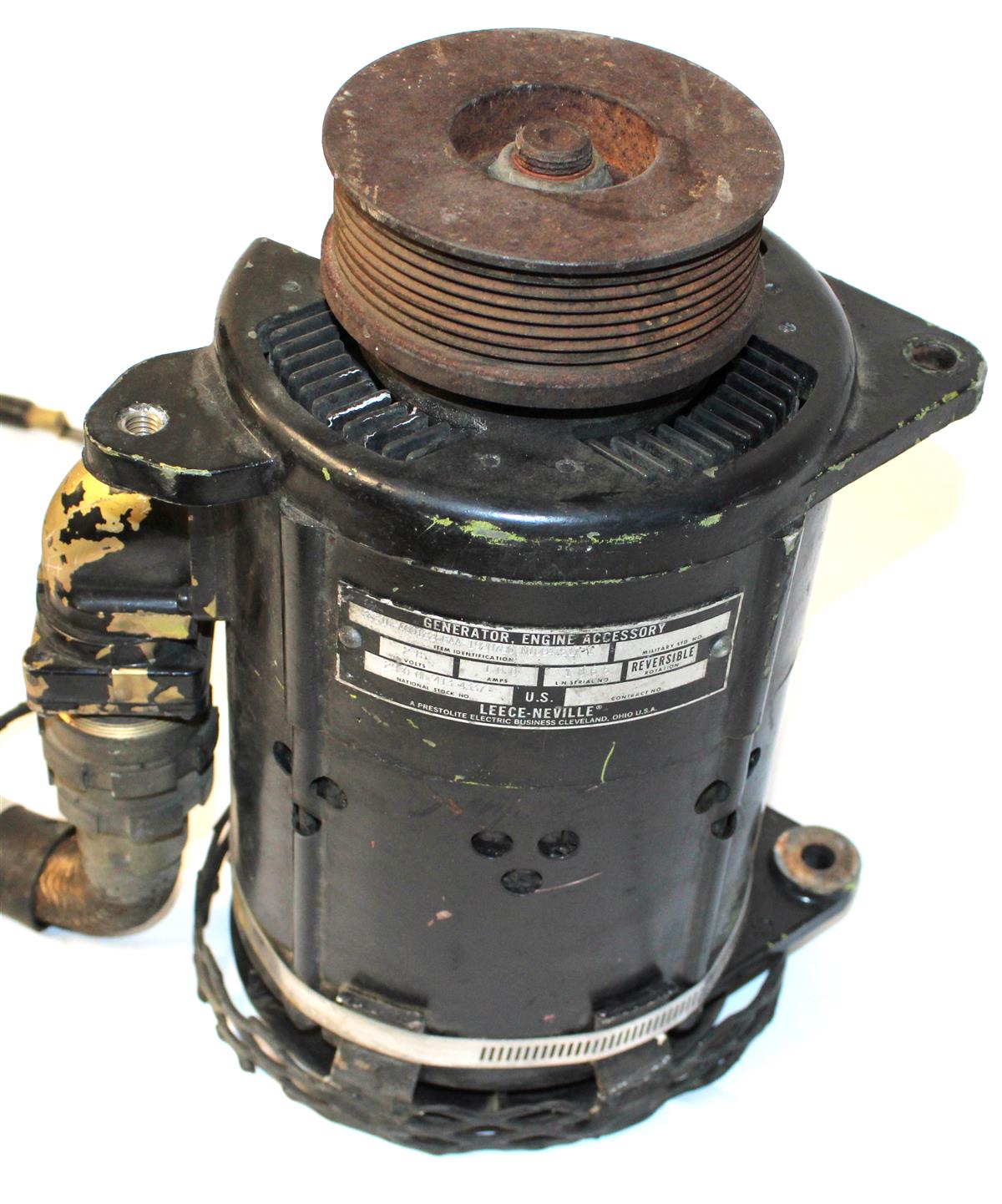

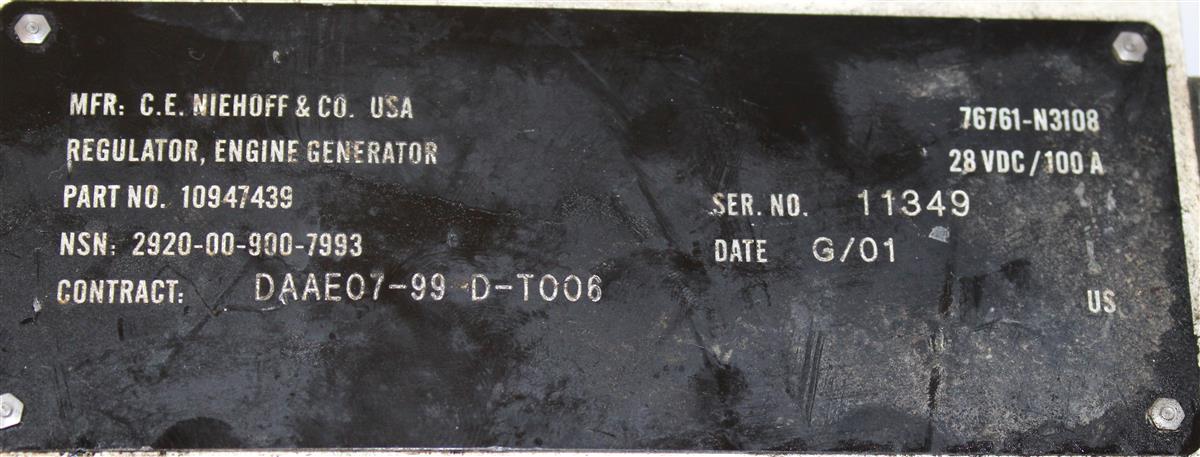

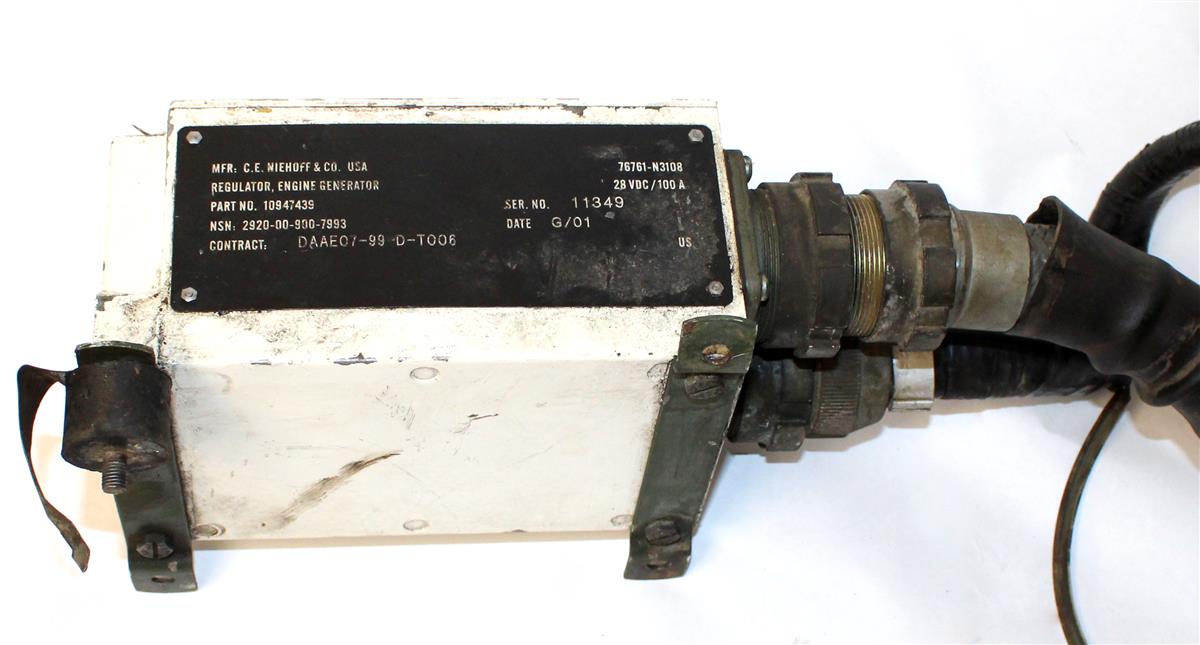

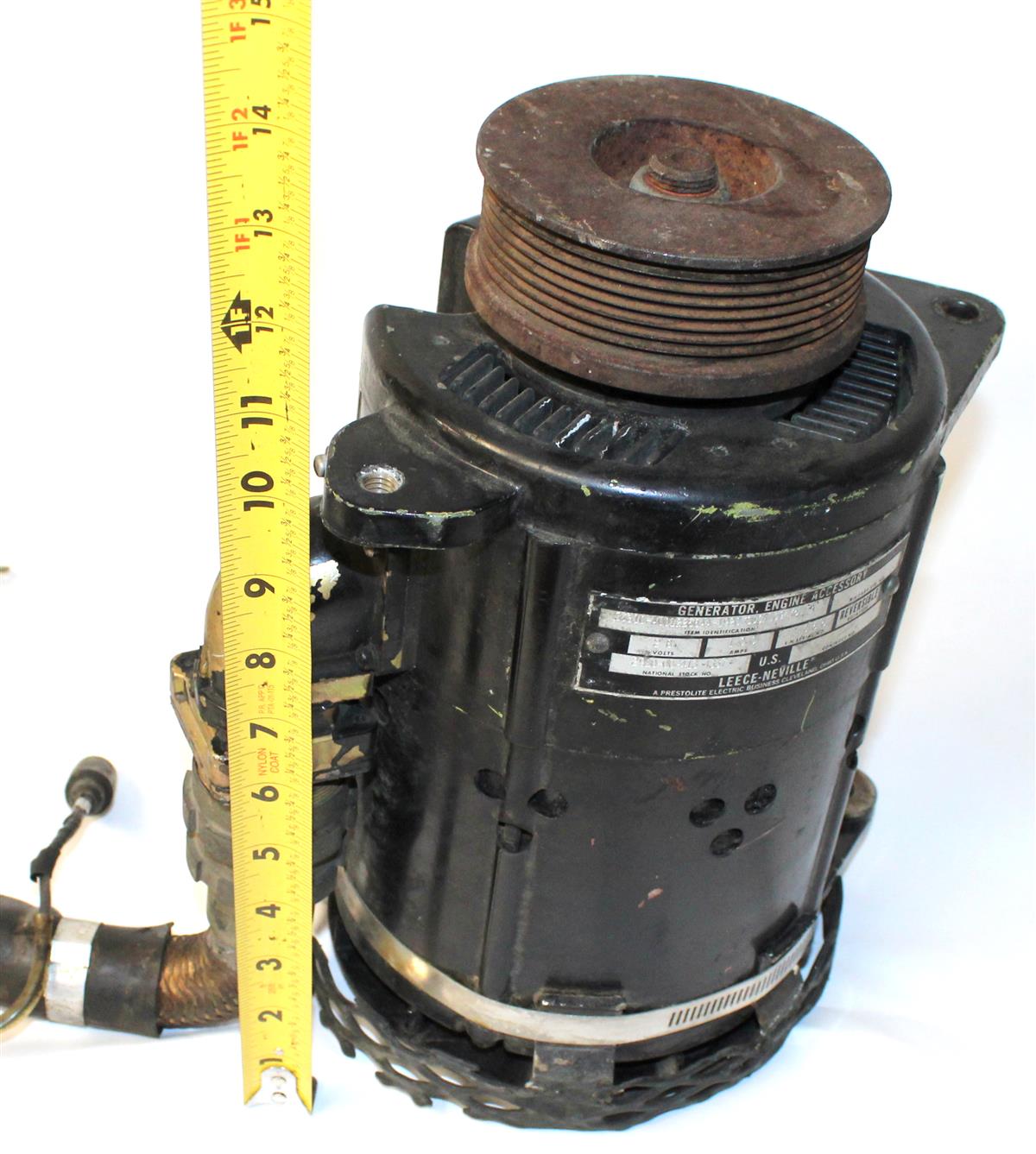

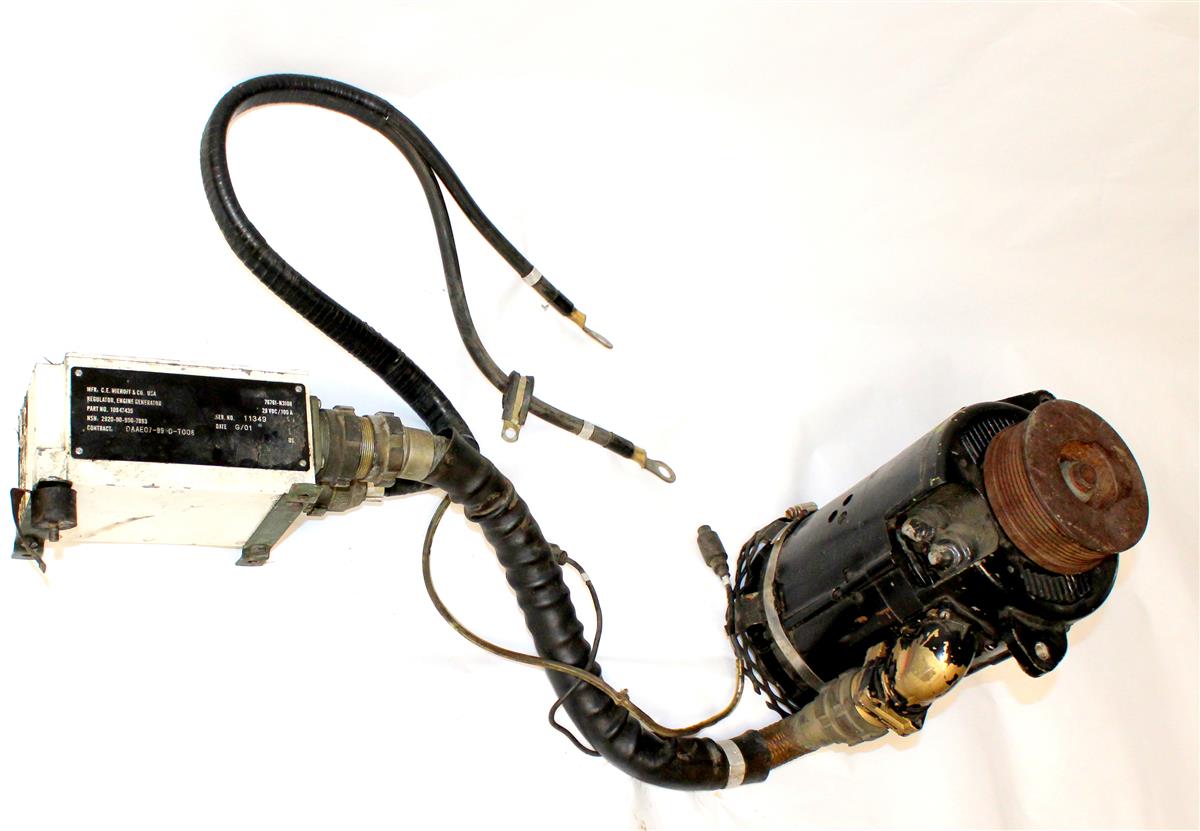

Leece Neville Alternator 28 Volt 100 AMP with C.E. Niehoff 28 Volt Regulator M939A2
-
Thread Direction is Right Hand
-
Thread Length is 0.750 inches
-
Second Step Diameter is 0.874 inches
-
Keyway Width is 0.125 inches
-
Unthreaded Portion length is 1.125 inches
-
Keyway Length is 0.625 inches
-
Distance from end to keyway center is 1.375 inches
-
Thread Diameter is 0.750 inches
-
RPM Minimum Speed is 2,000
-
Max Output is 100 Amps
-
Angular Deviation of First Hole is 201.0 inches
-
Bottom Mounting Hole Diameter is 0.453 inches
-
Maximum Rated Armature Speed is 8000 RPM
-
Mounting Hole Thread Diameter is 0.375 inches
-
Mounting Hole Thread Quantity is 16 per inch
-
Thread Quantity is 16 per inch
-
28 Voltage
-

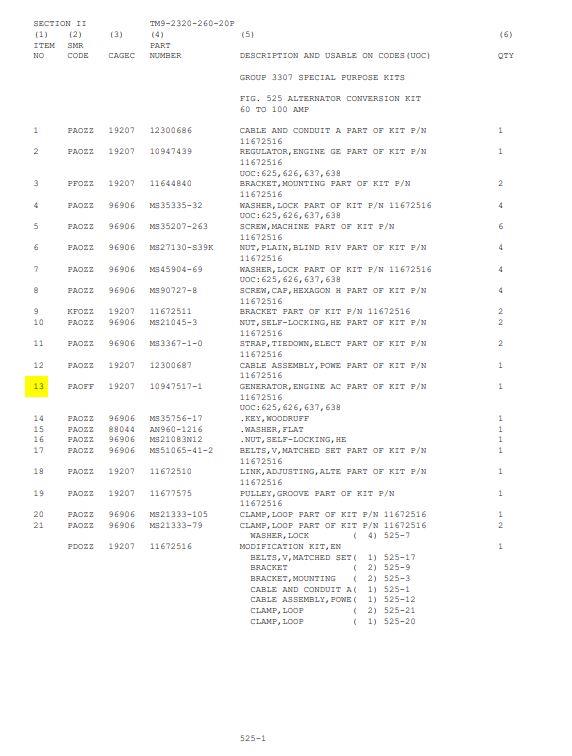

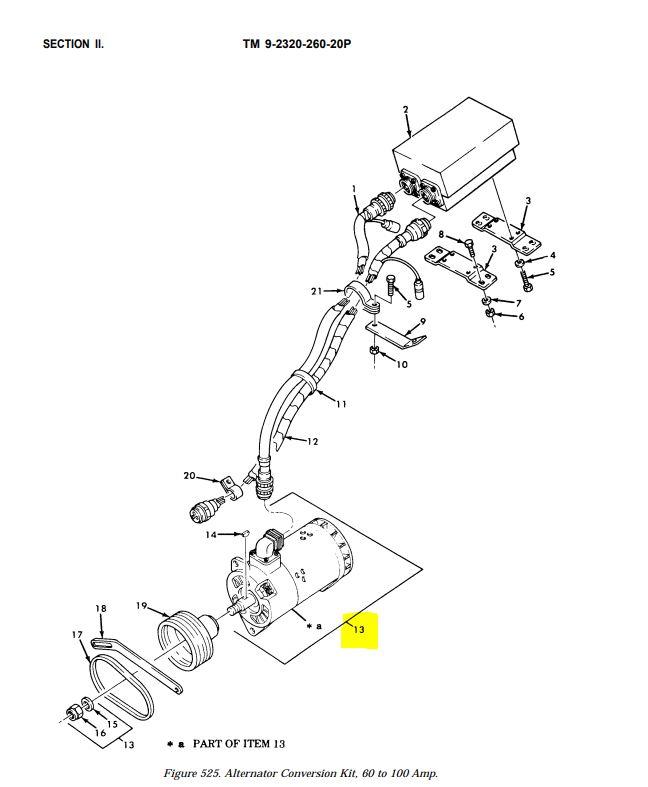

Item number 13 in Diagram
Executed End User Certification is required prior to shipping or picking up this item.
This item cannot be exported outside of the United States.
FITS: 5 Ton 6 x 6 Military Truck
M939A2, M923A2, M925A2, M927A2, M929A2, M930A2, M931A2 5-Ton Trucks
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
