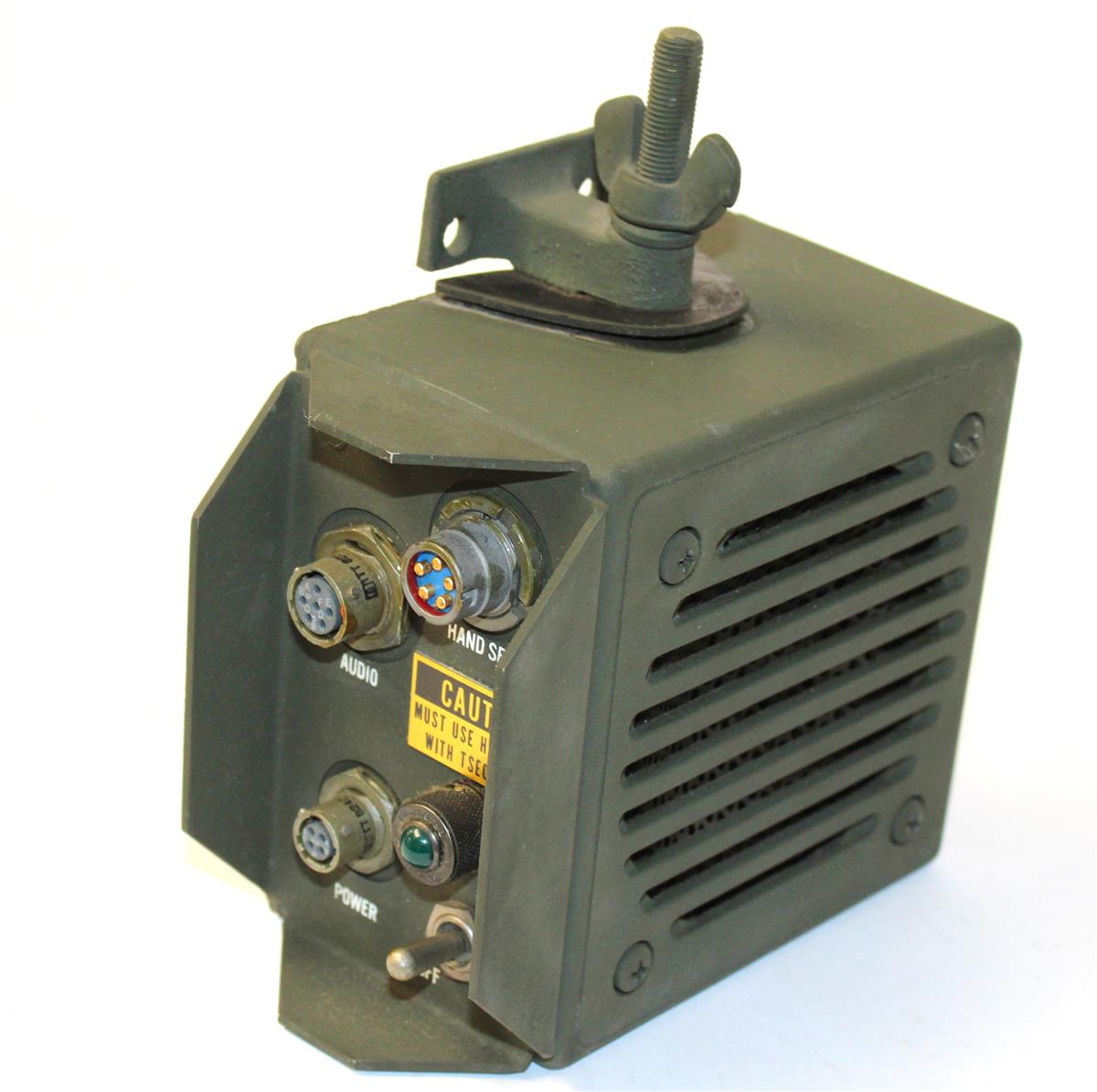

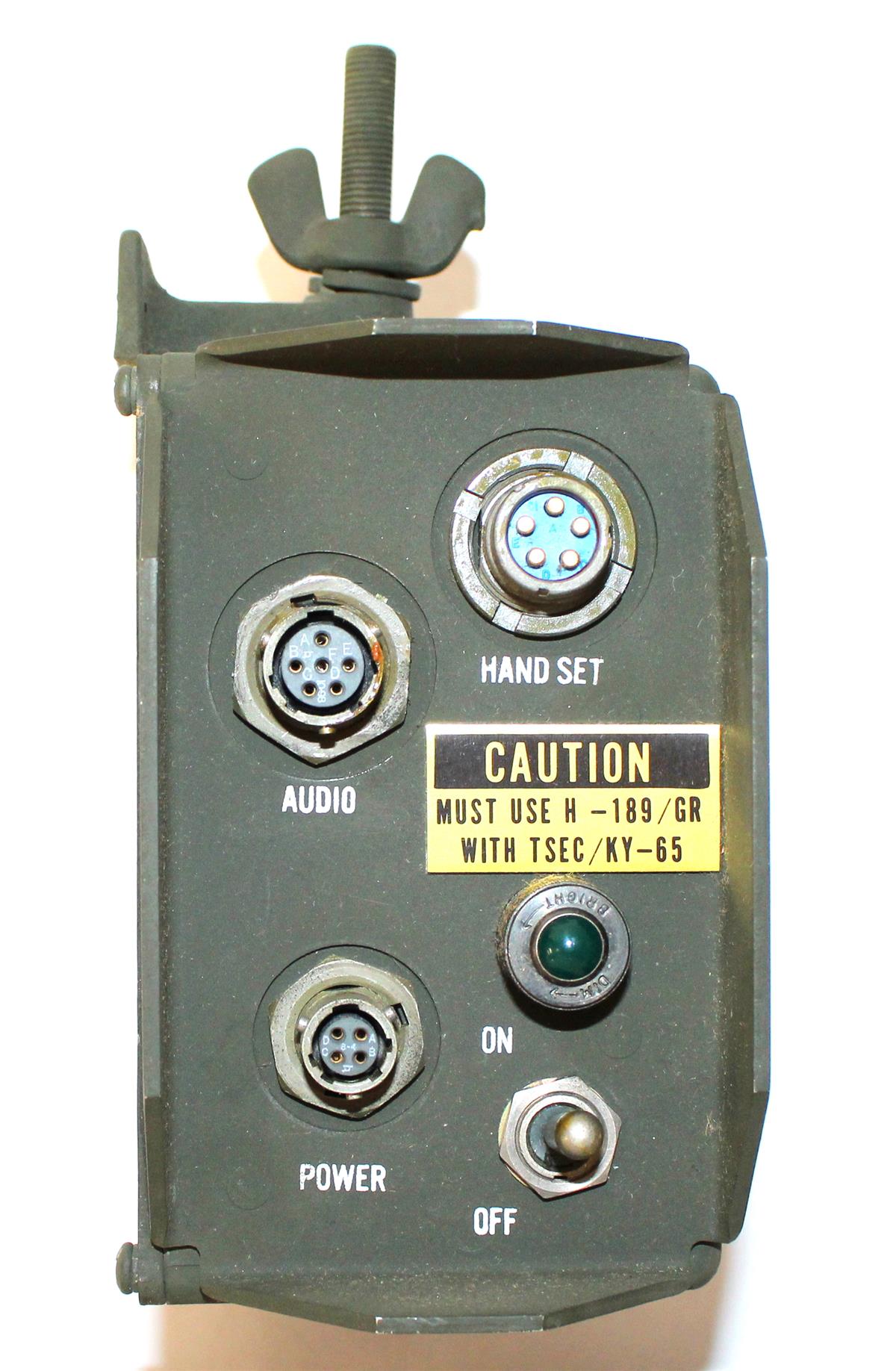

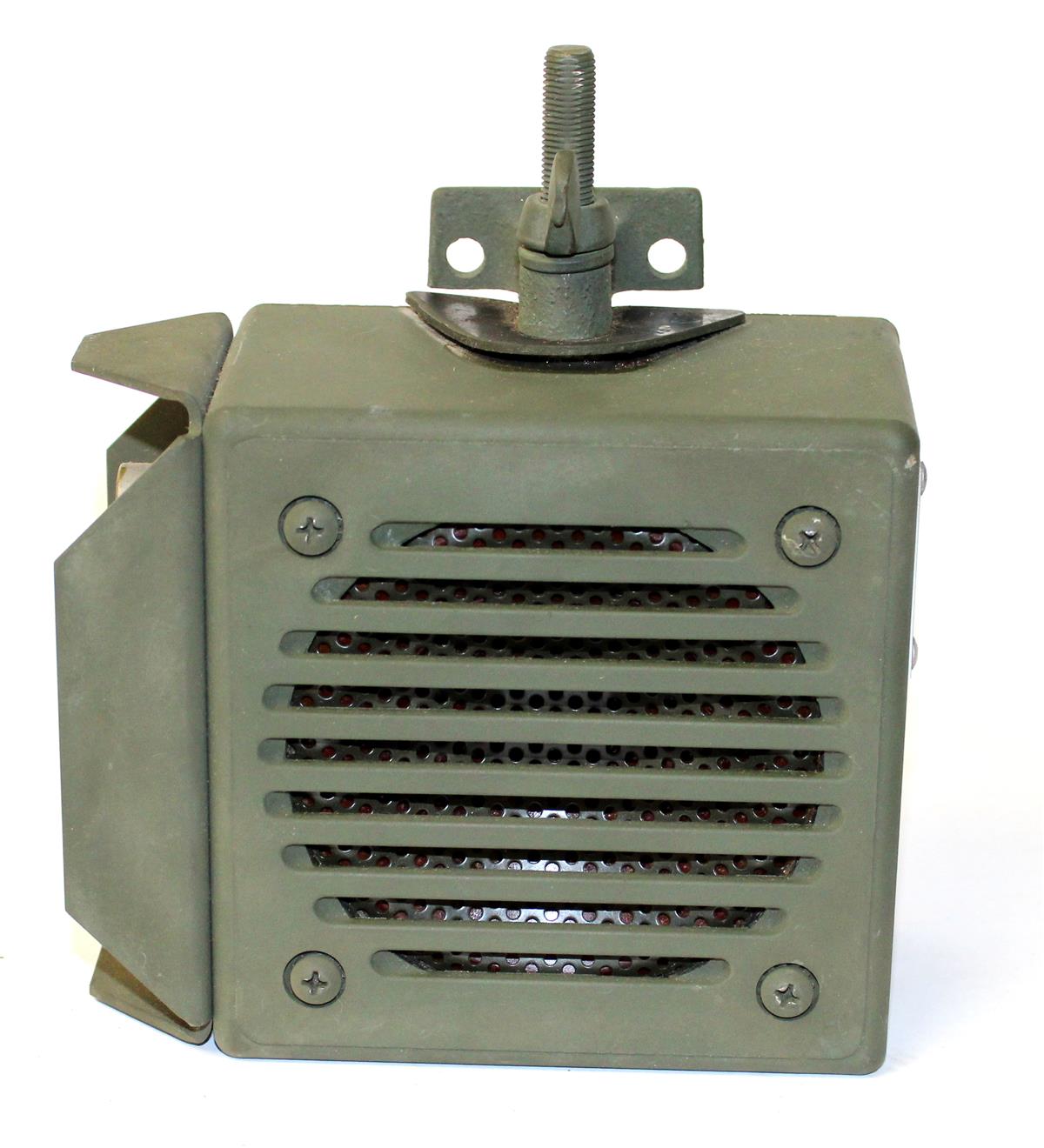

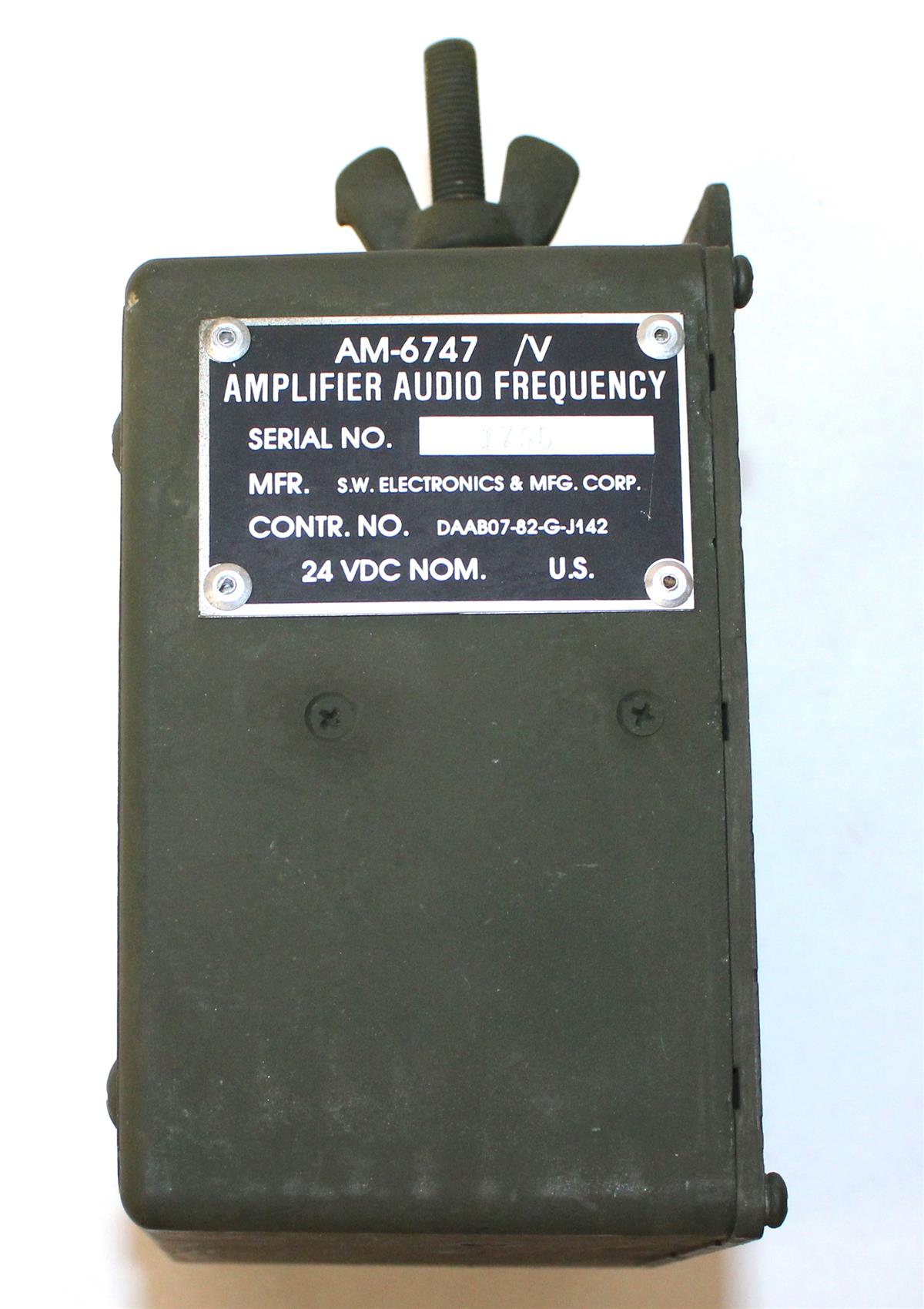

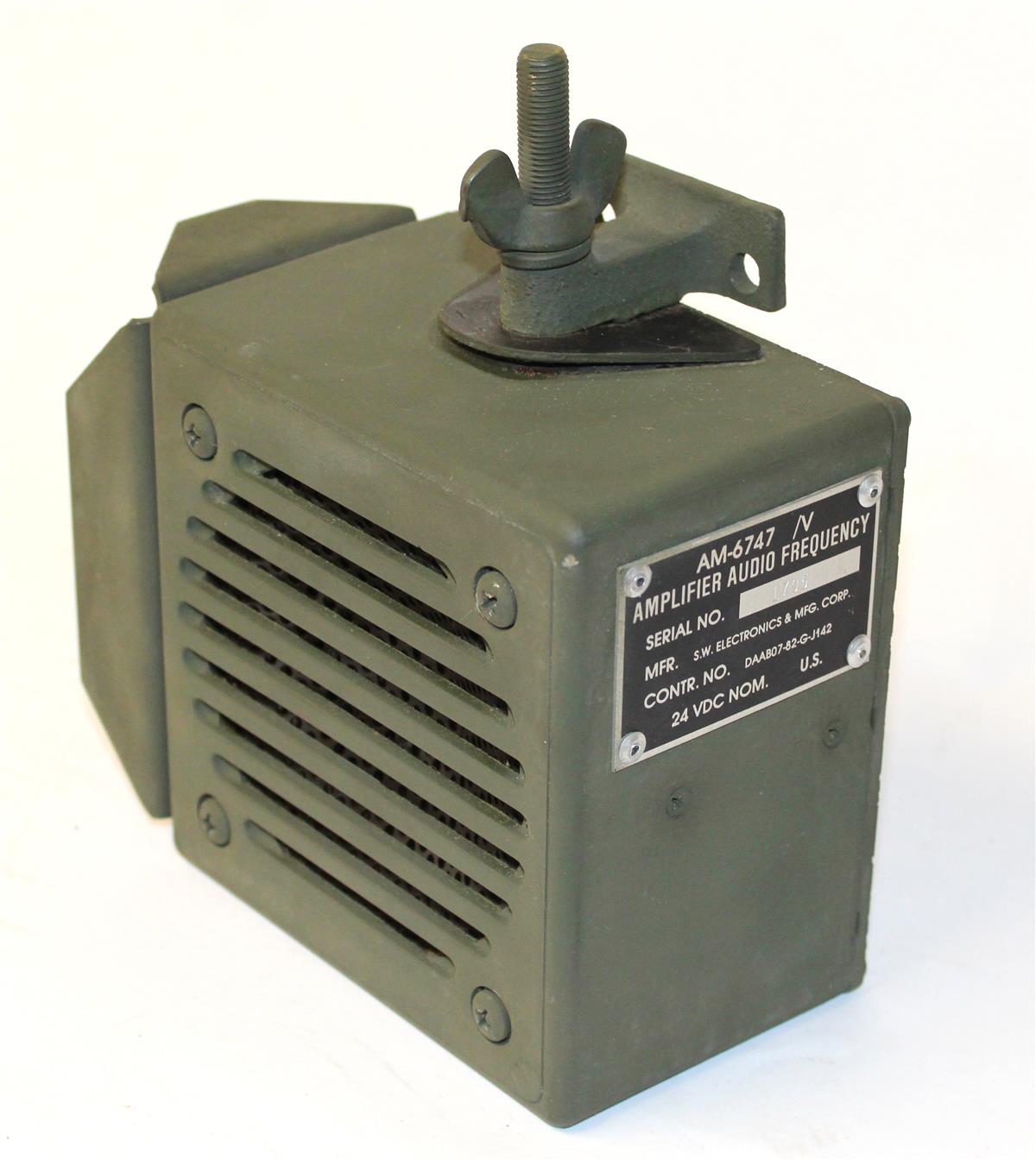

Audio Frequency Amplifier Radio AM-6747/V
-
Inputs signal control power from a source independent of the input signal and delivers Audio Frequency Output Signals of greater Amplitude with respect to Current and Voltage
-

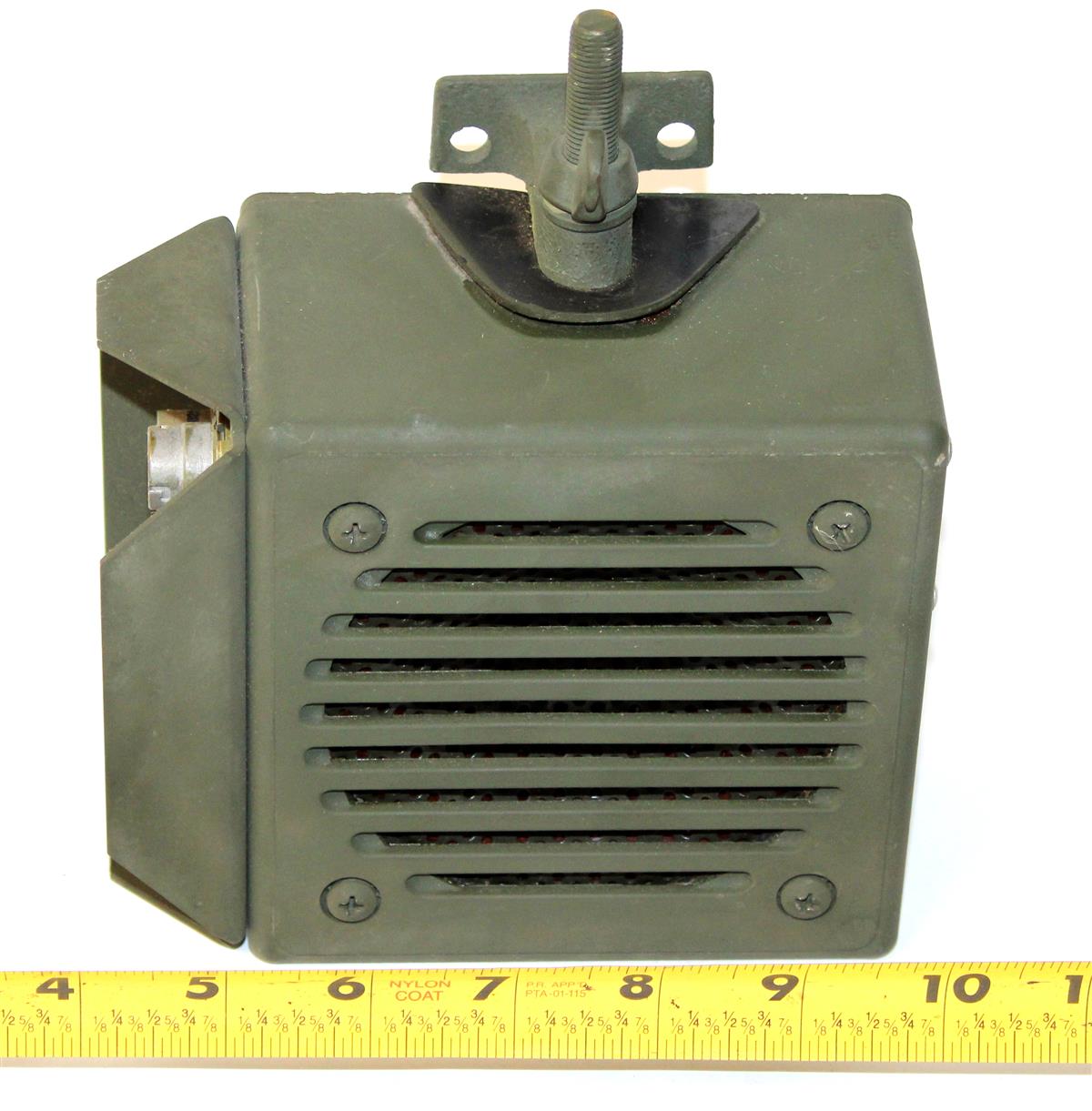

Overall Length is 6.963 inches
-

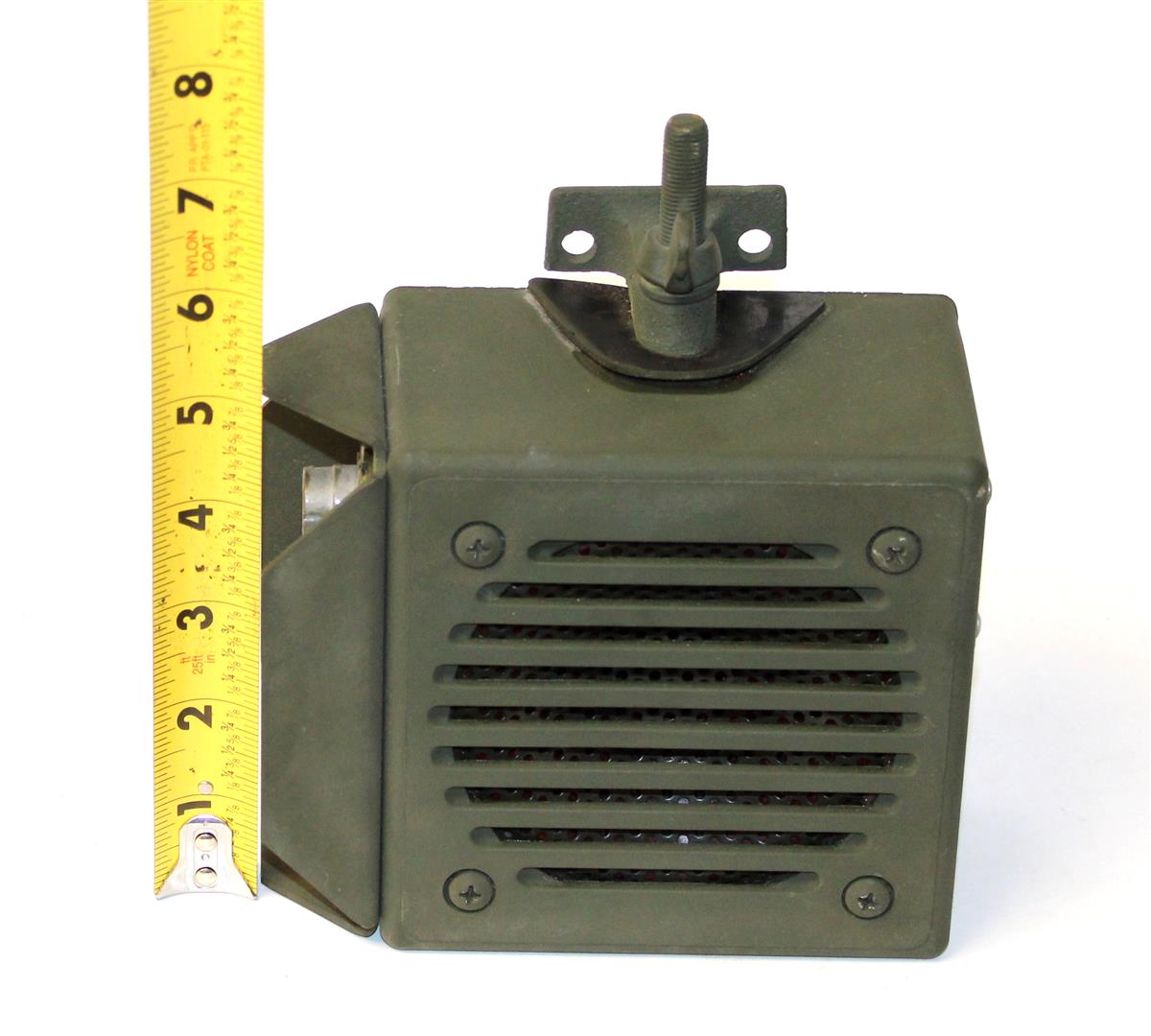

Overall Height is 3.375 inches
-

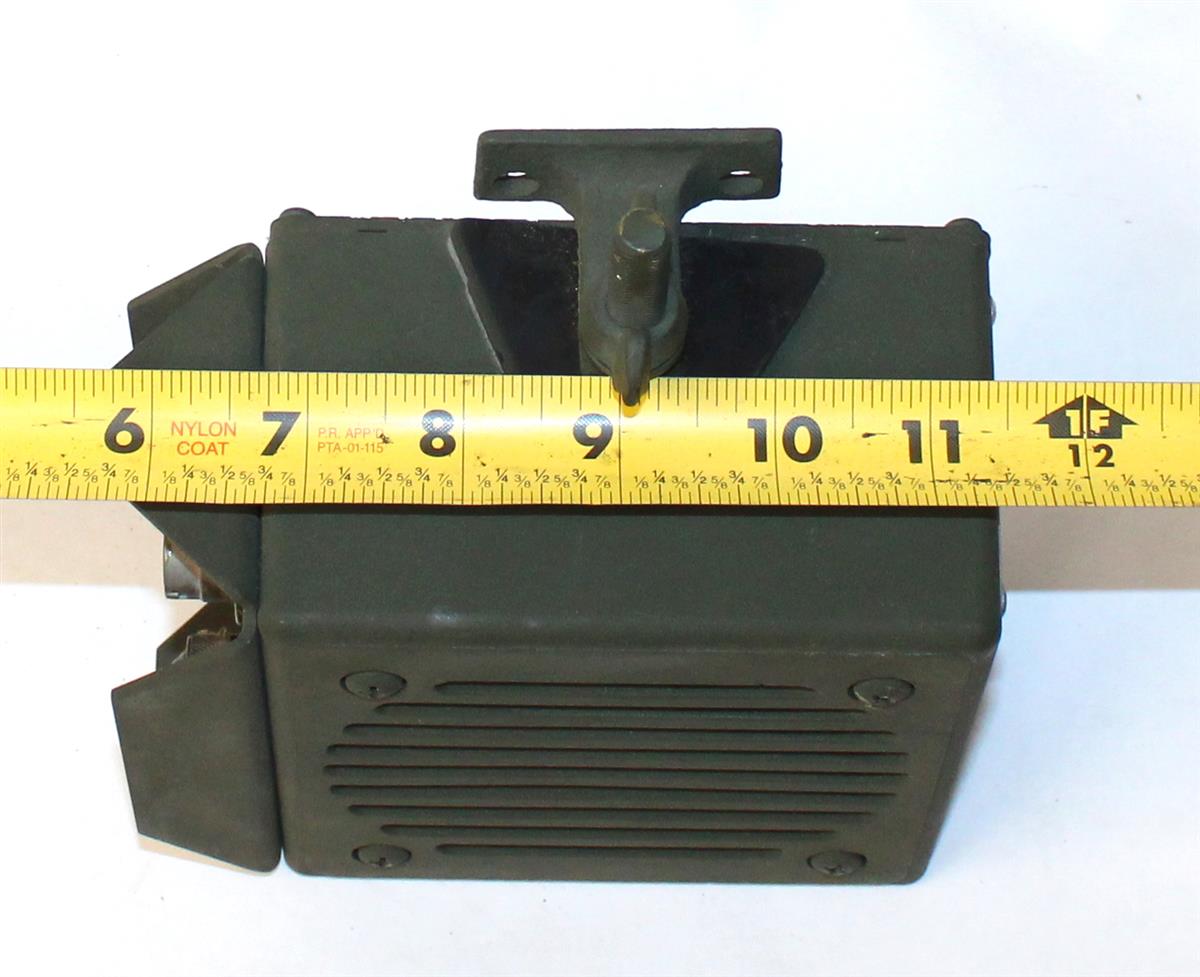

Overall Width is 5.813 inches
-
Square Shape Style
-
300.0 Hertz Minimum frequency per Channel
-
3.5 Kilohertz Maximum operating Channel
-
2.0 Vibration Frequency Rating in Decibels
-
Average Power Rating Per Channel 5.0 Milliwatts Output
-
Overall Gain 1.2 Decibels
-
External DC Operating Voltage in Volts 25.5 Single Voltage
Executed End User Certification is required prior to shipping or picking up this item.
This item cannot be exported outside of the United States.
FITS: Special Item
