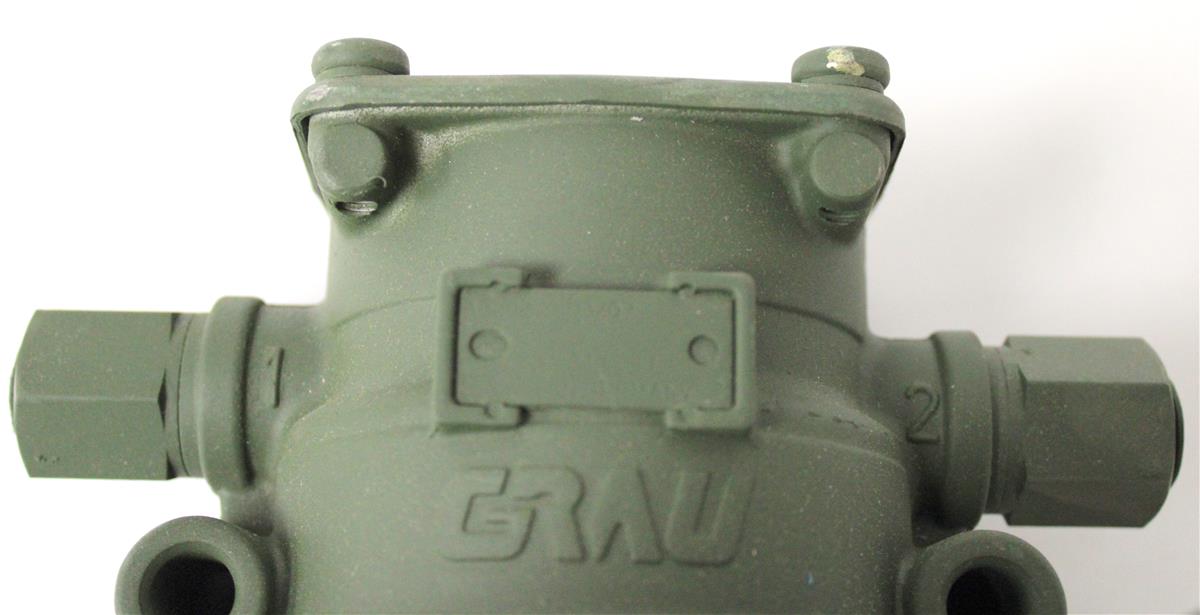

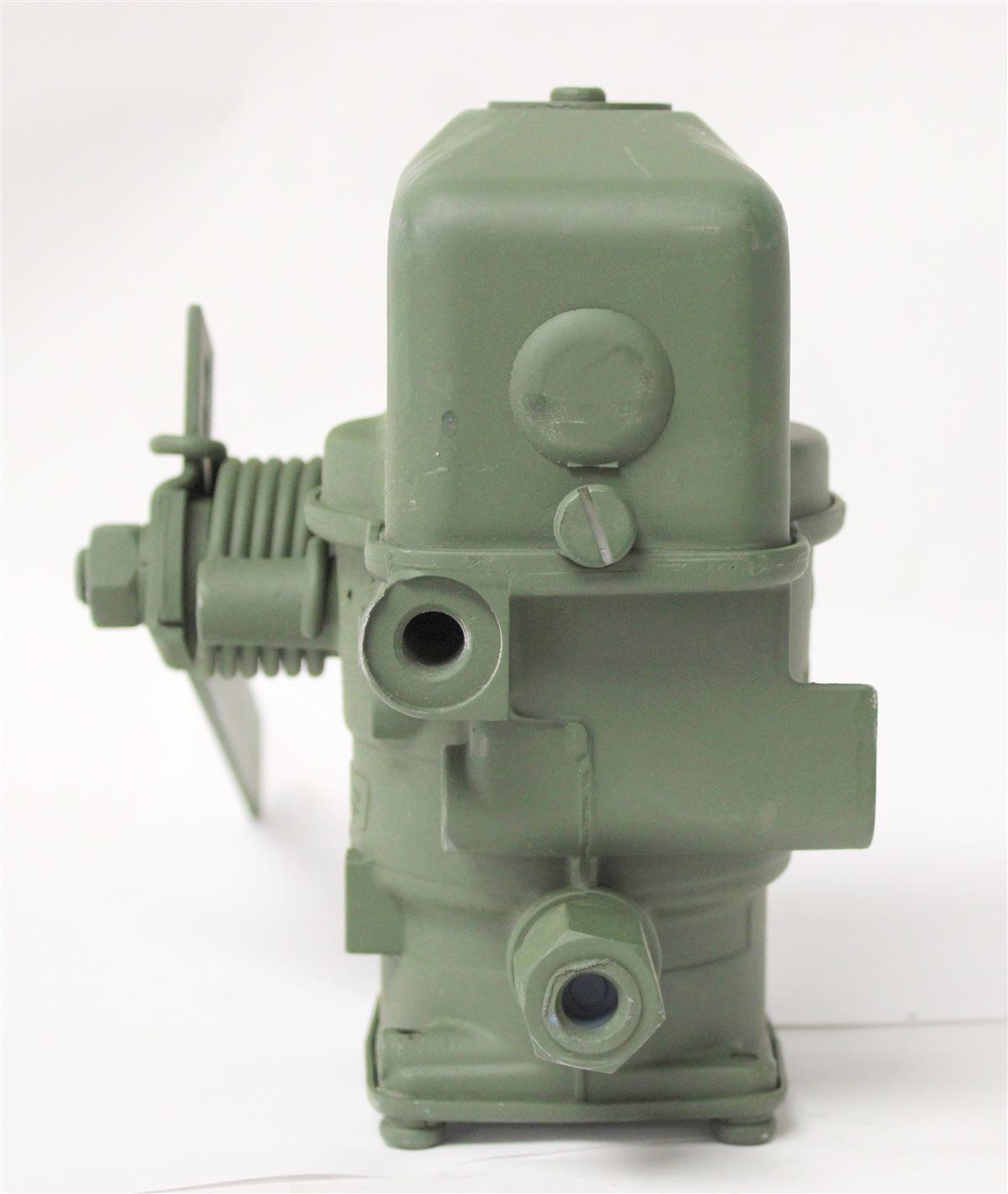

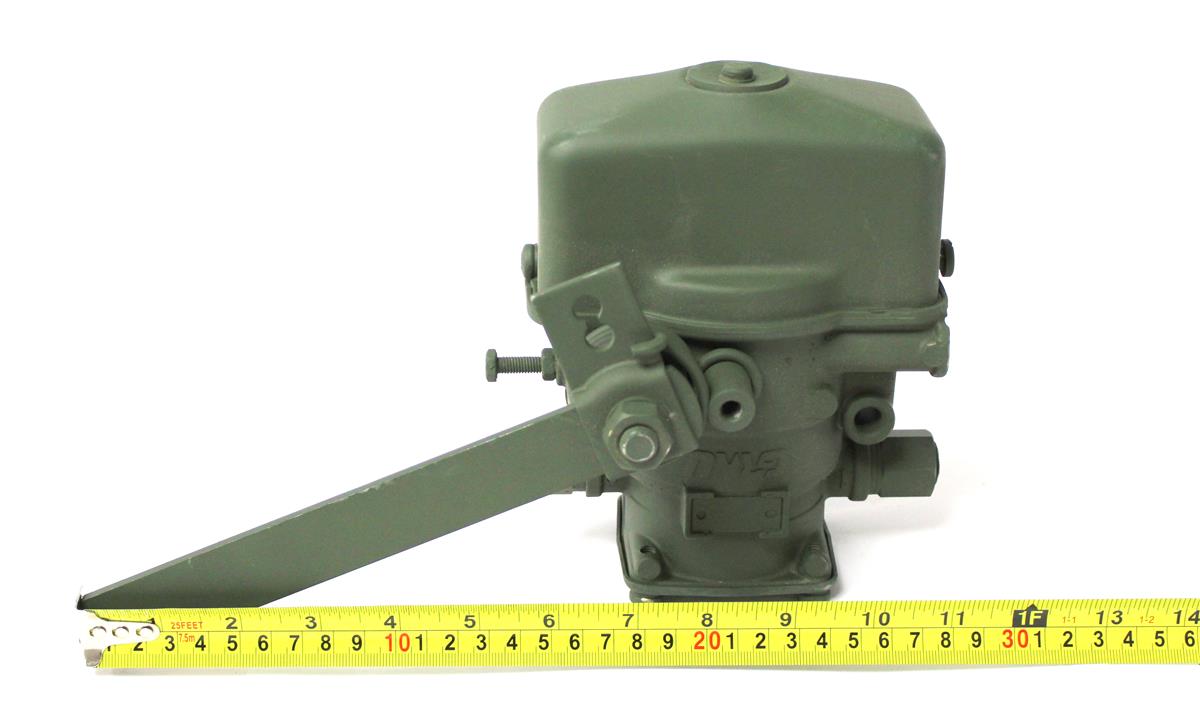

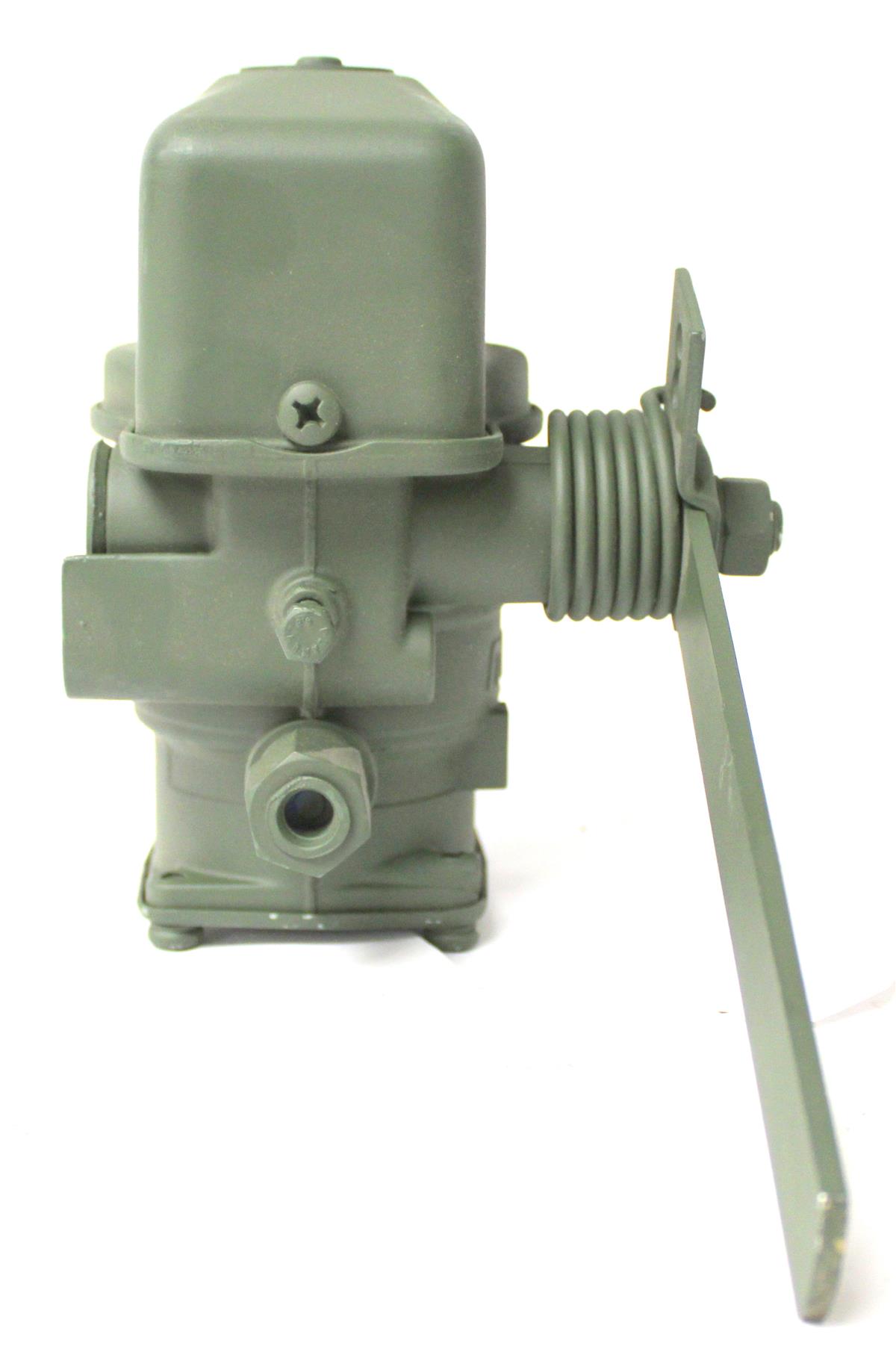

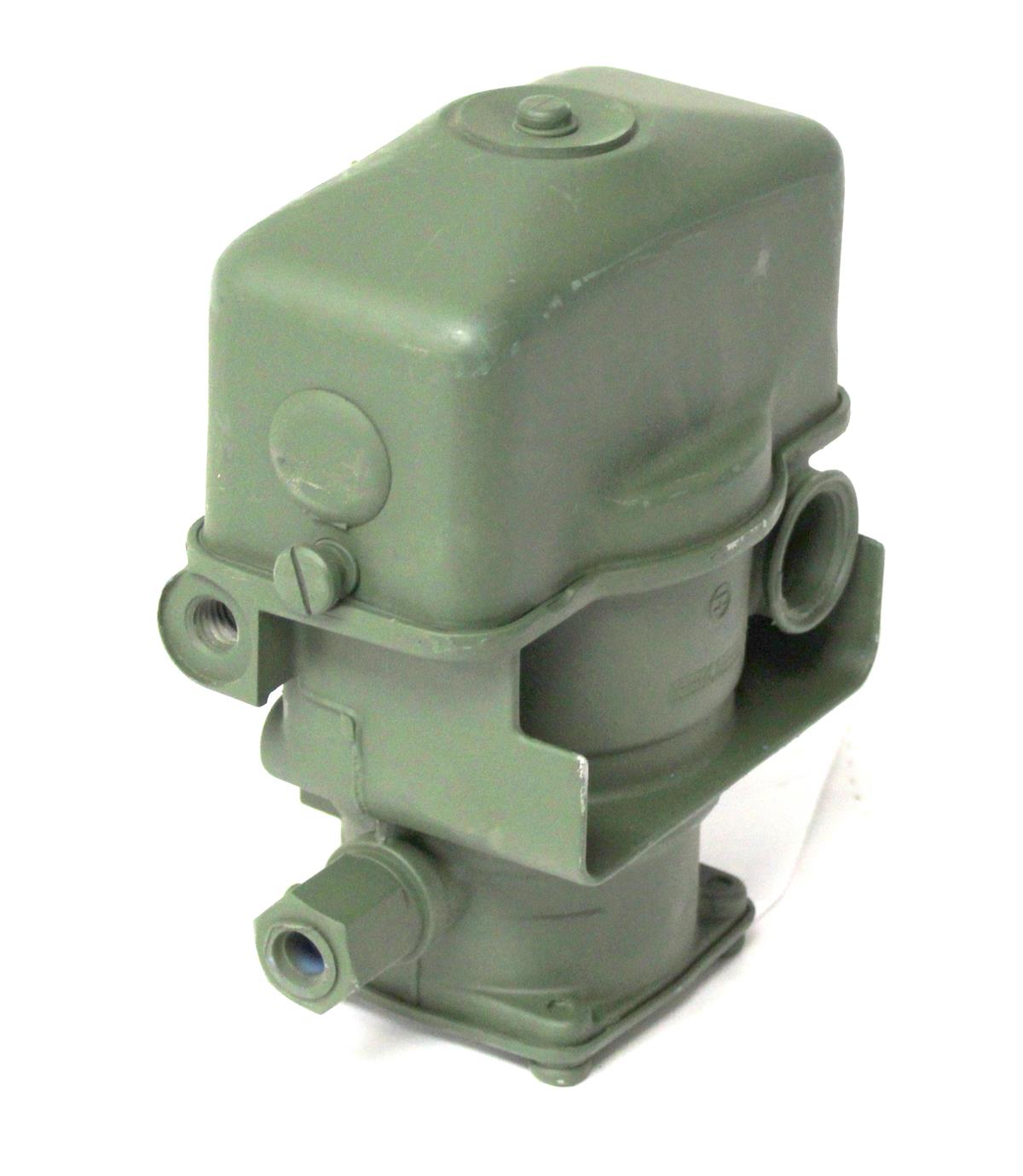

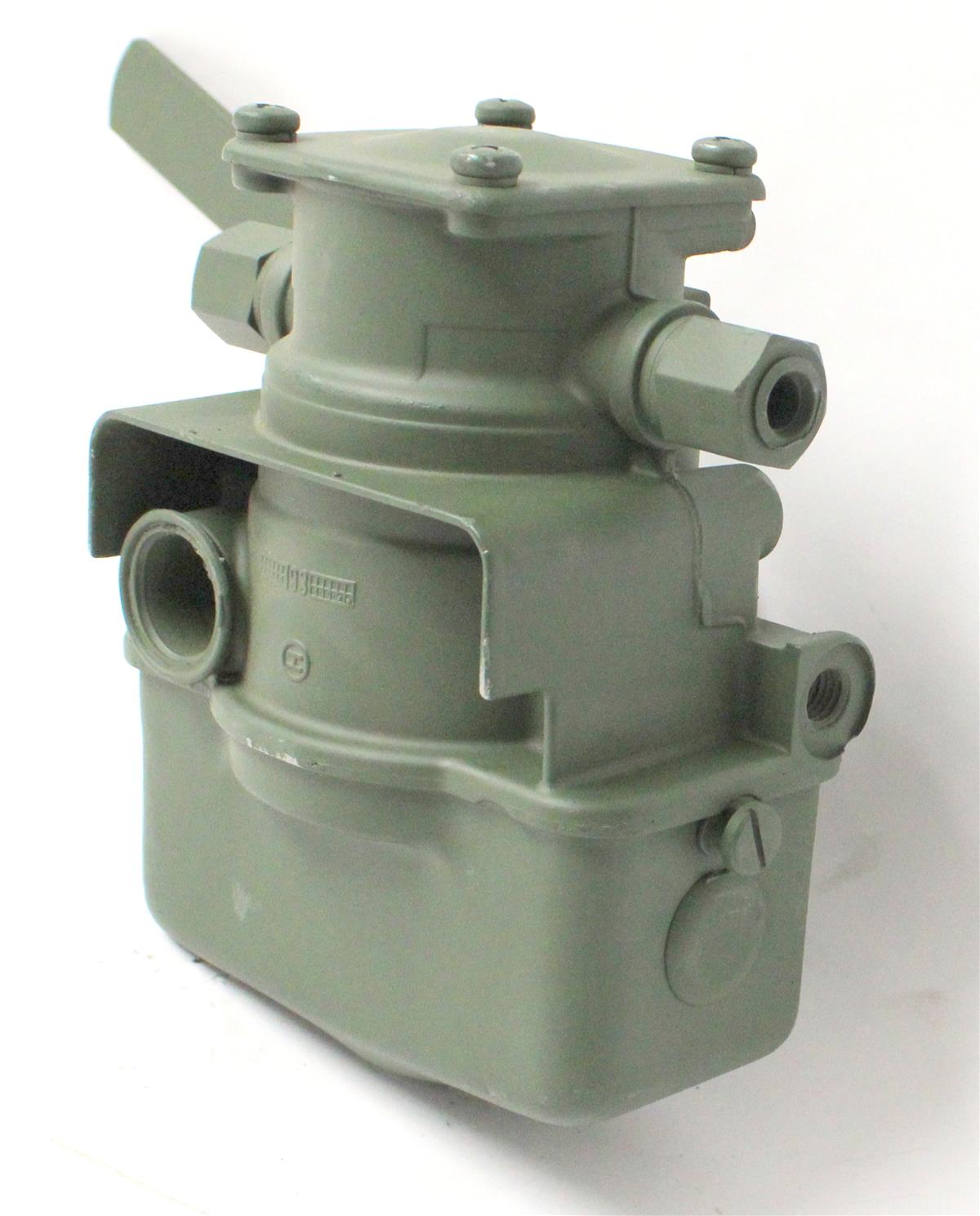

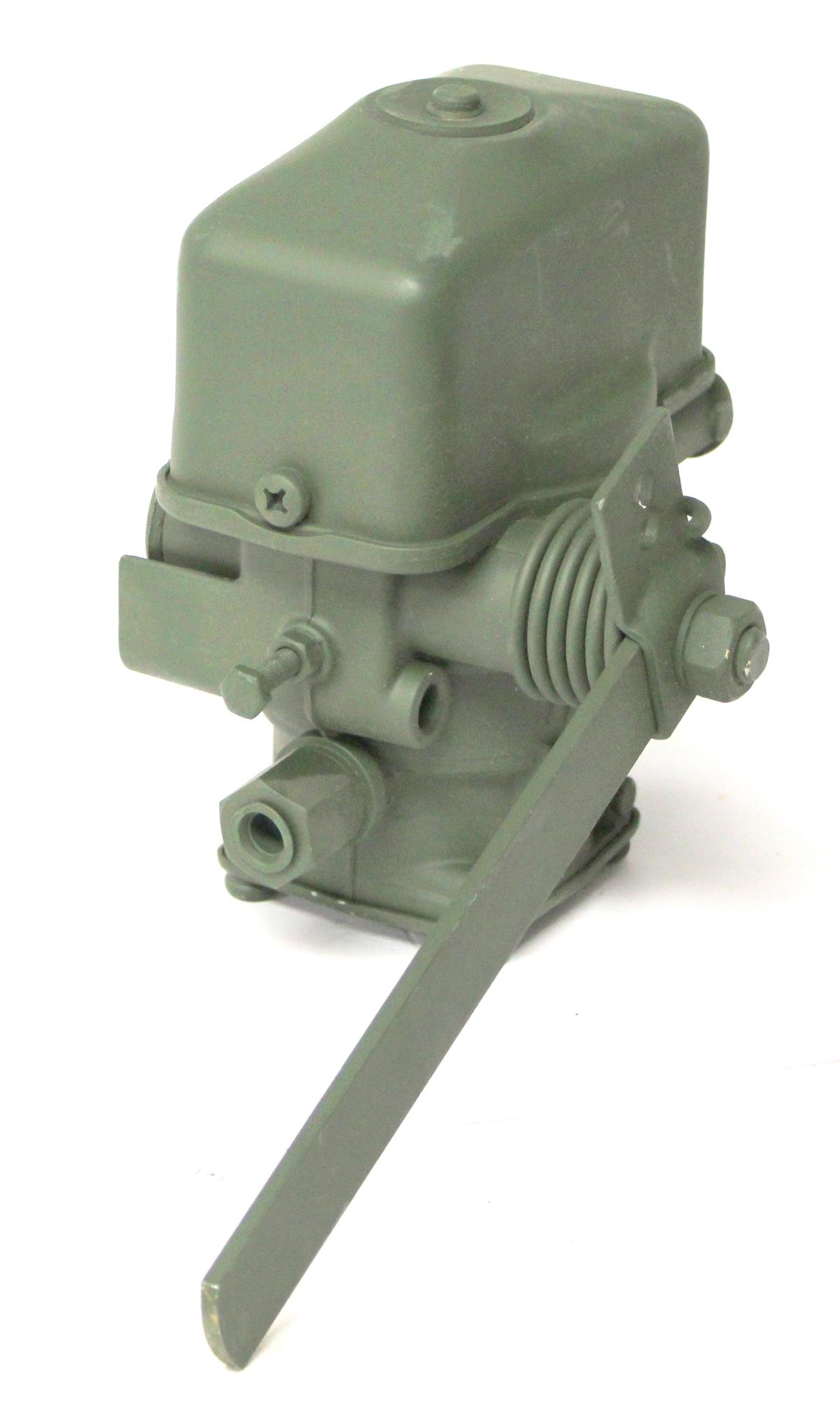

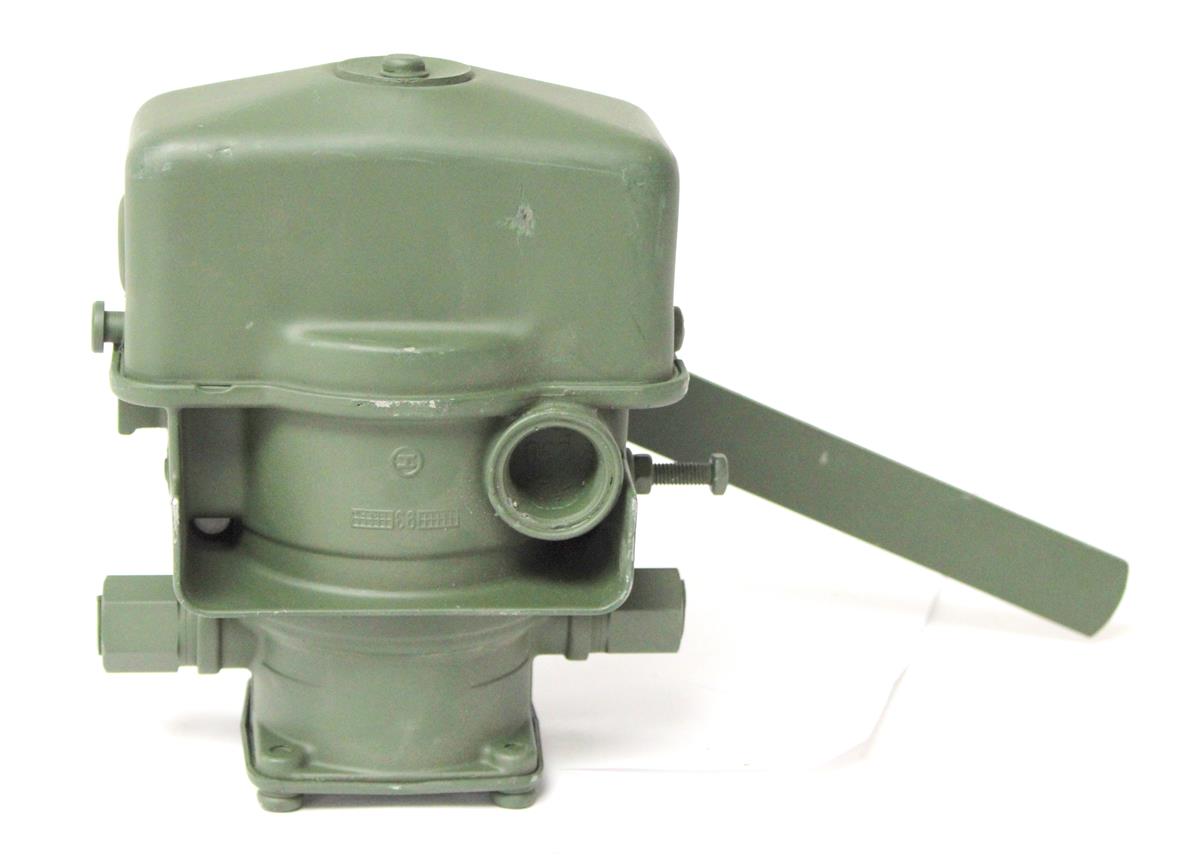

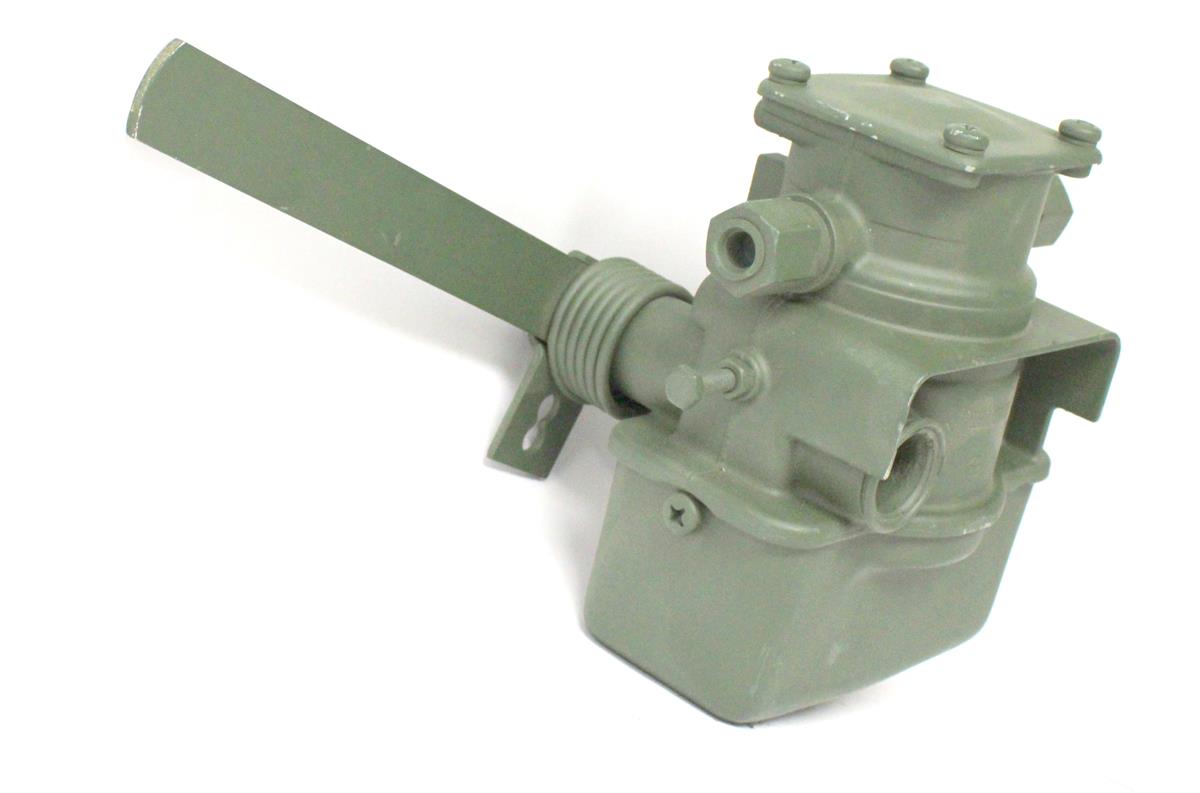

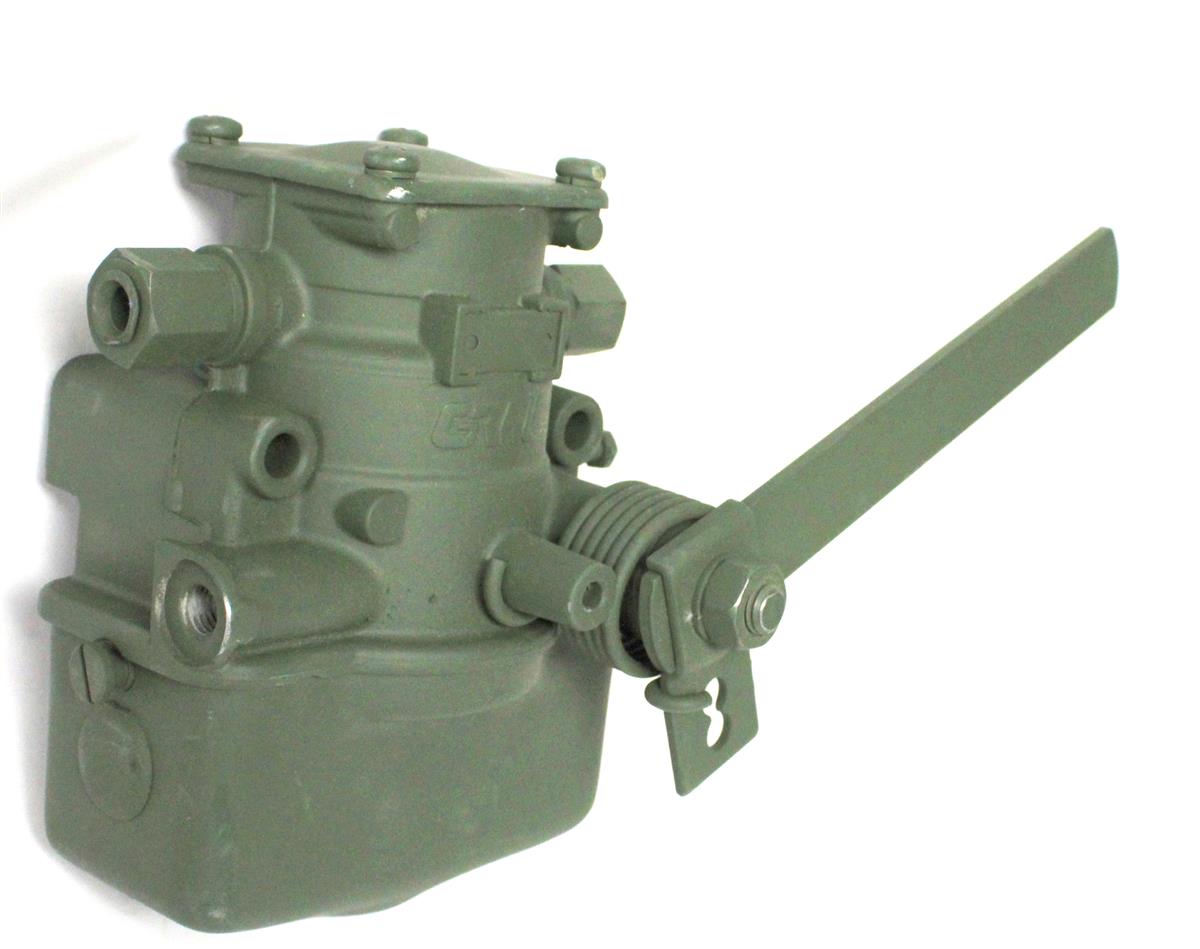

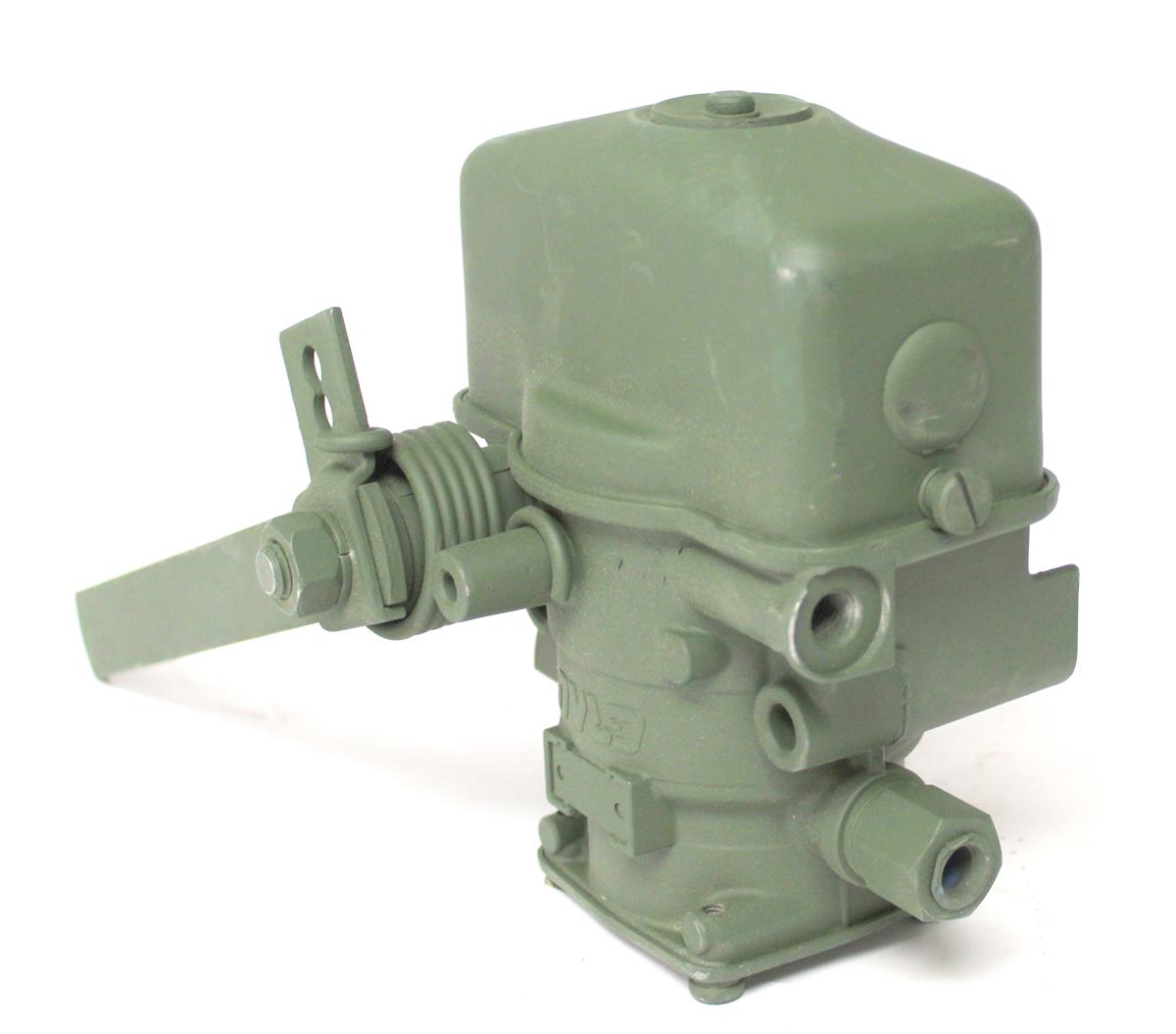

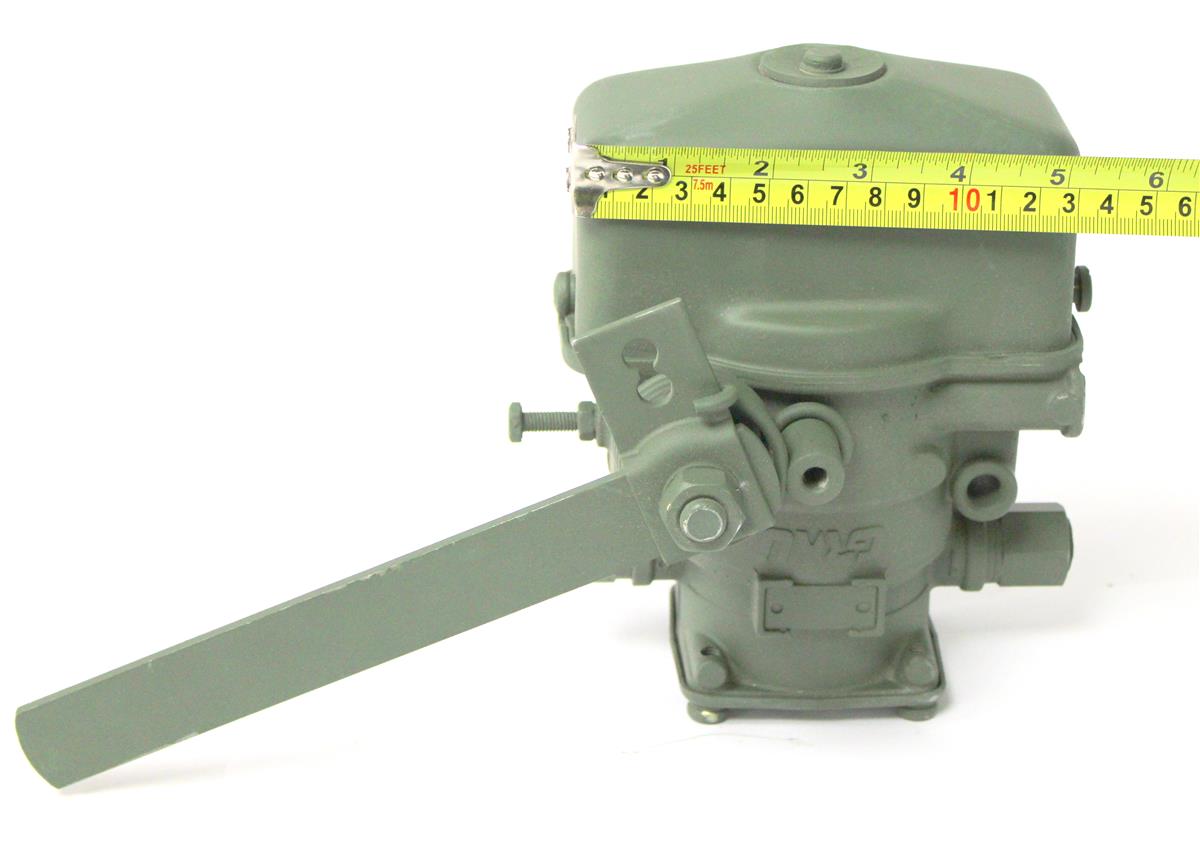

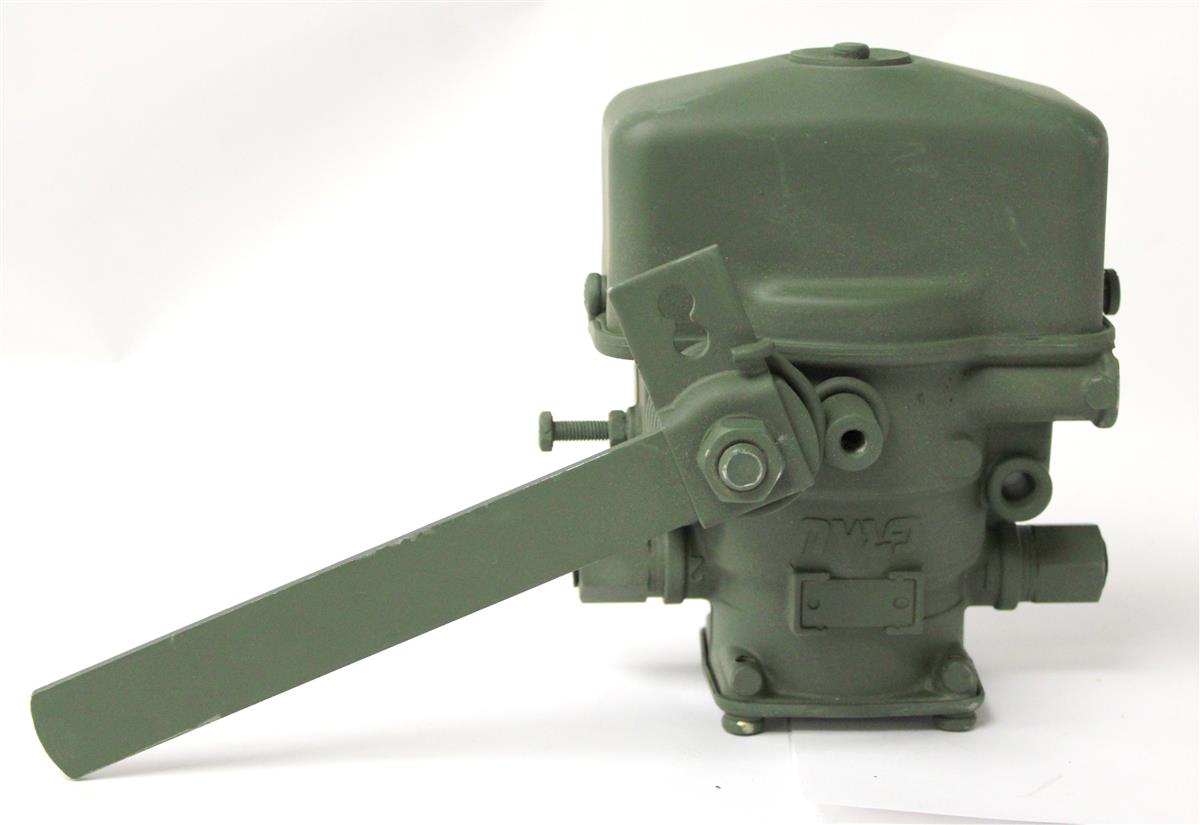

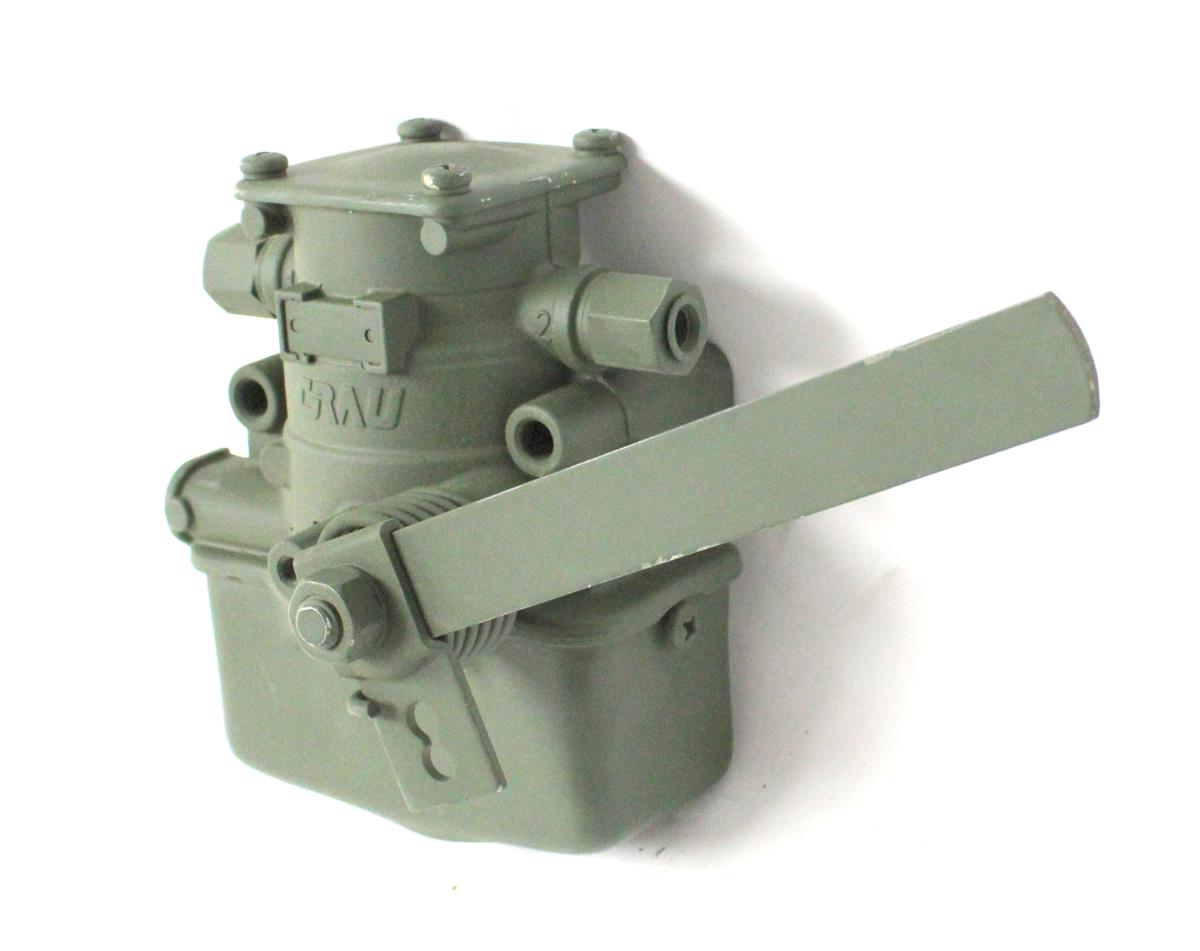

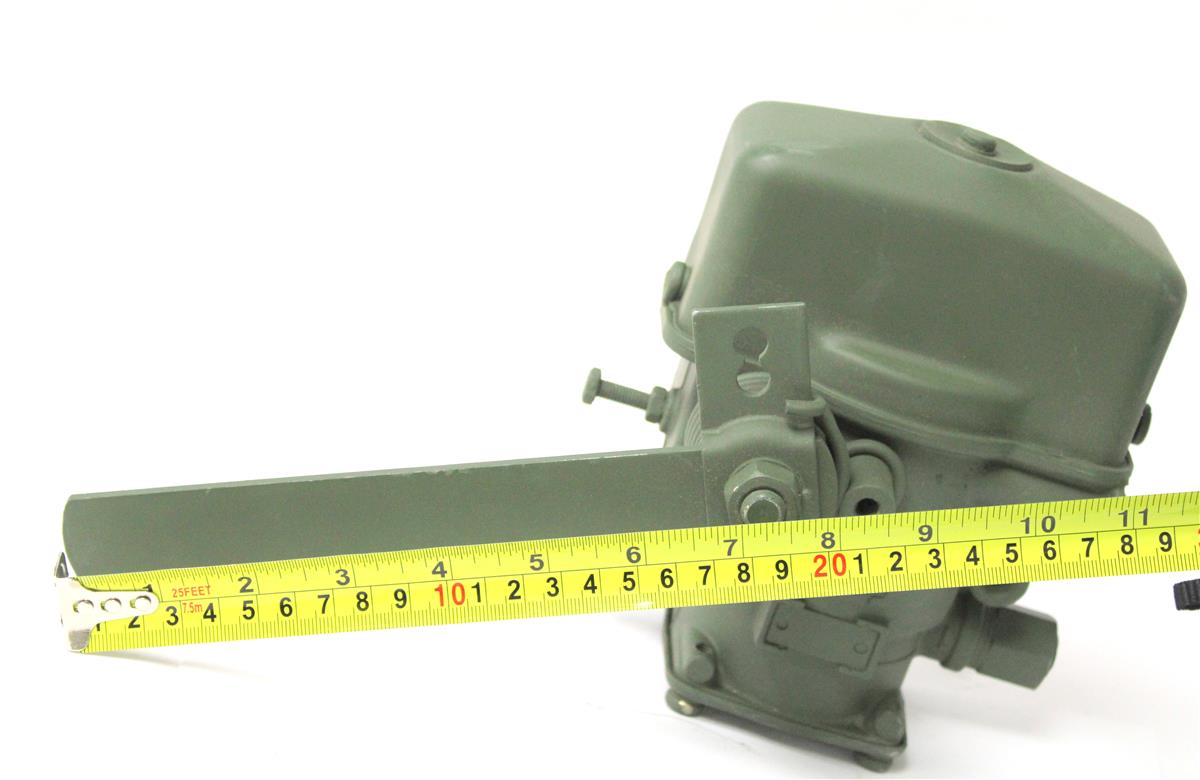

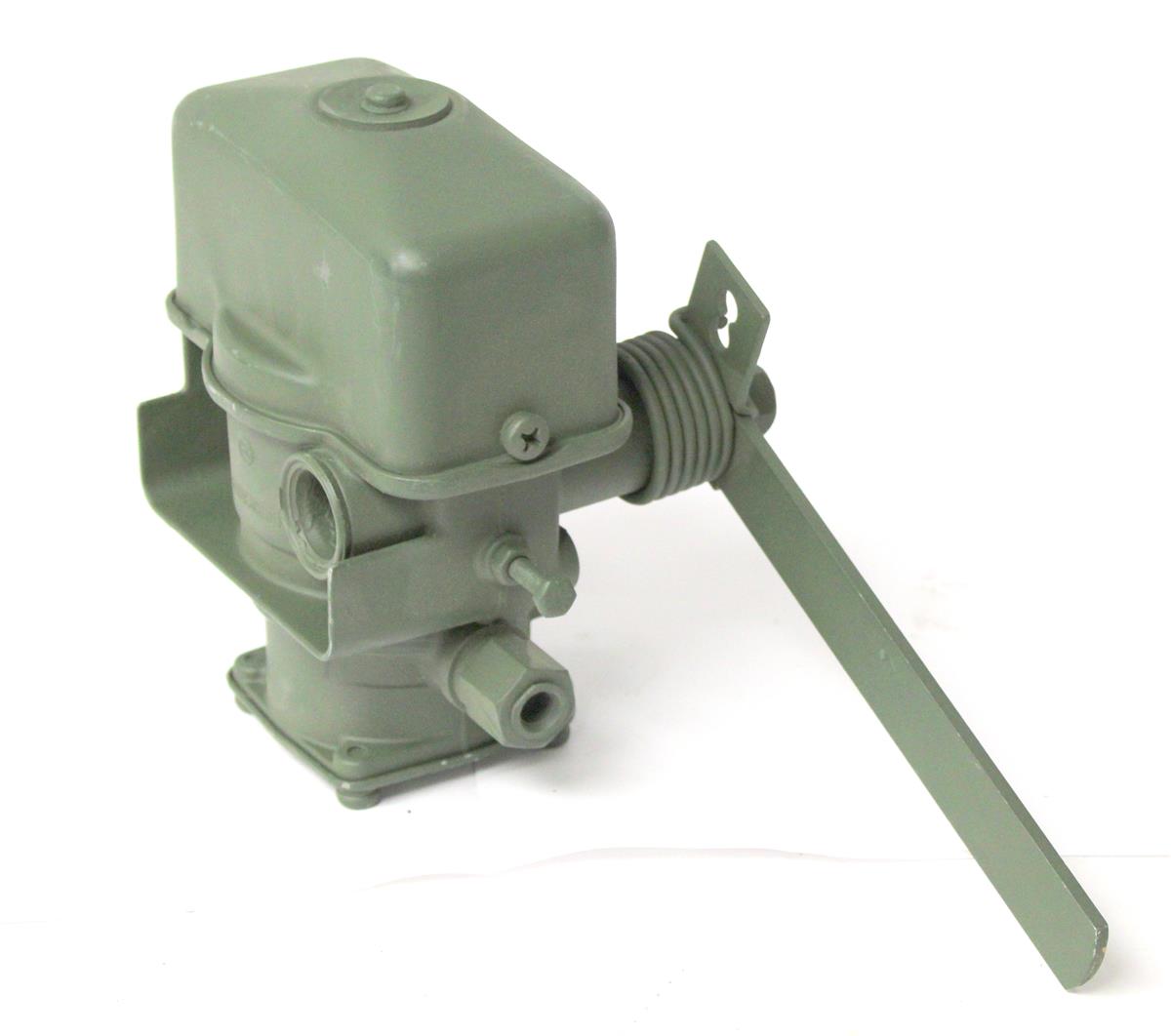

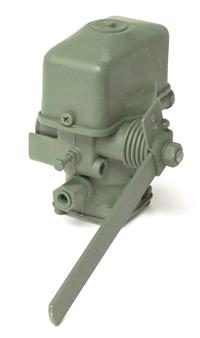

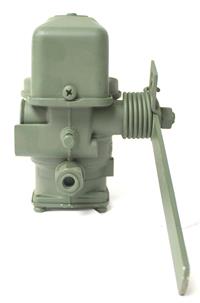

Load Sensing Brake And Suspension Valve LMTV FMTV
- Maximum operating pressure = 10 Bar
- Temperature range = -40°C to +80°C (-40°F to 176°F)
- Approach pressure = 0.0 Bar
- First time pressure = 0.4 Bar
- Pmax cushion pressure Peload - Pevide = 9b
- Pmin cushion pressure Peload - Pevide = 1.5b
- Admissible fluid = Air
- Ports: 1, 2: M 16 x 1.5
- 41, 42: M 12 x 1.5
- Port 1 = Supply in
- Port 2 = Delivery out
Fits: FMTV ( Family of Medium Tactical Vehicles ) 5 Ton 6x6 Military Truck
5-Ton Trucks --- M1083 M1084 M1085 M1086 M1087 M1088 M1089 M1090 M1091 M1095 M109
2 ½ Ton Trucks --- M1078 M1079 M1080
THIS IS A TEMPORARY WSDC FOR MRAP TO LINK NIINS
Semi-Trailers
