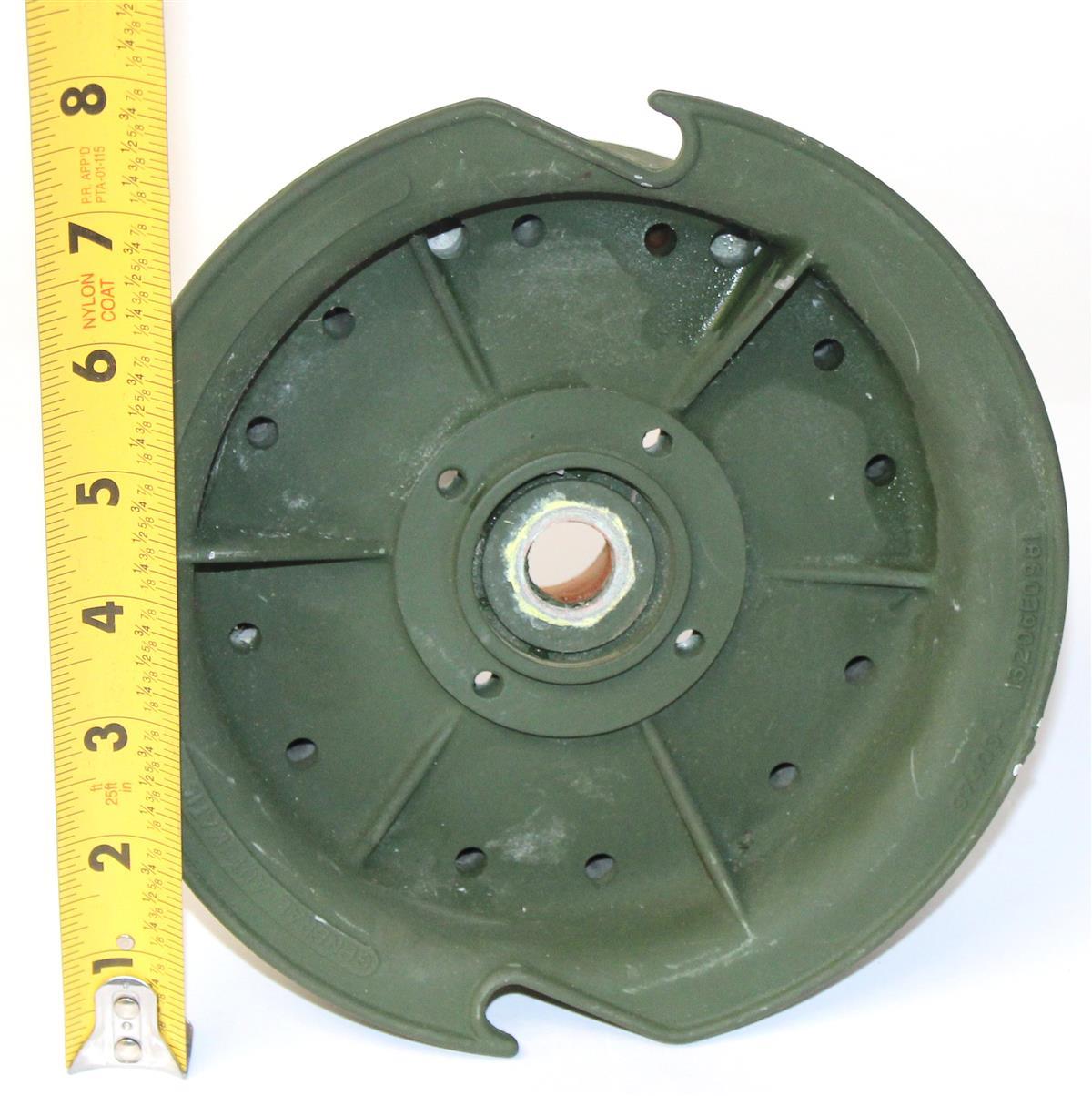

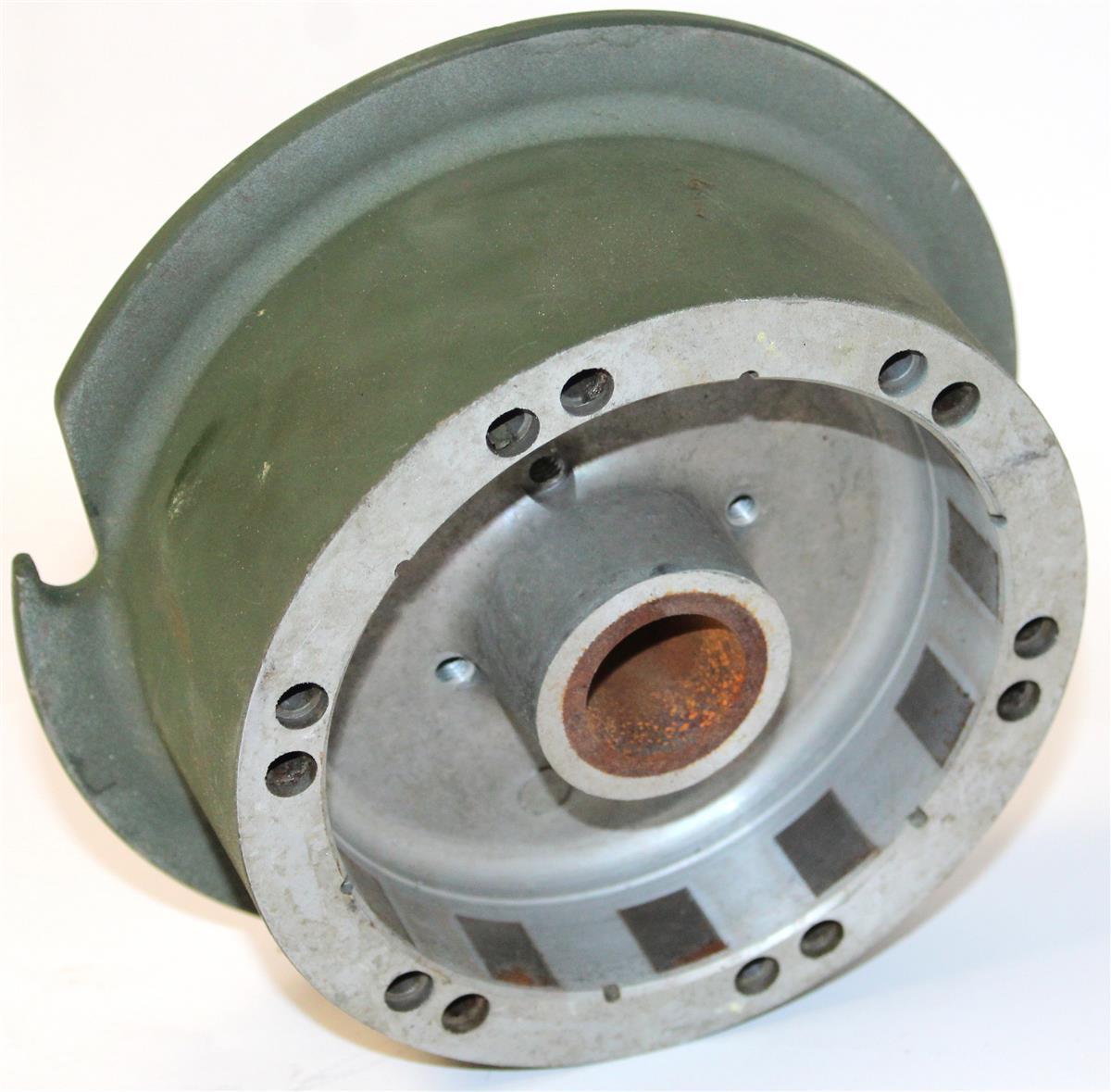

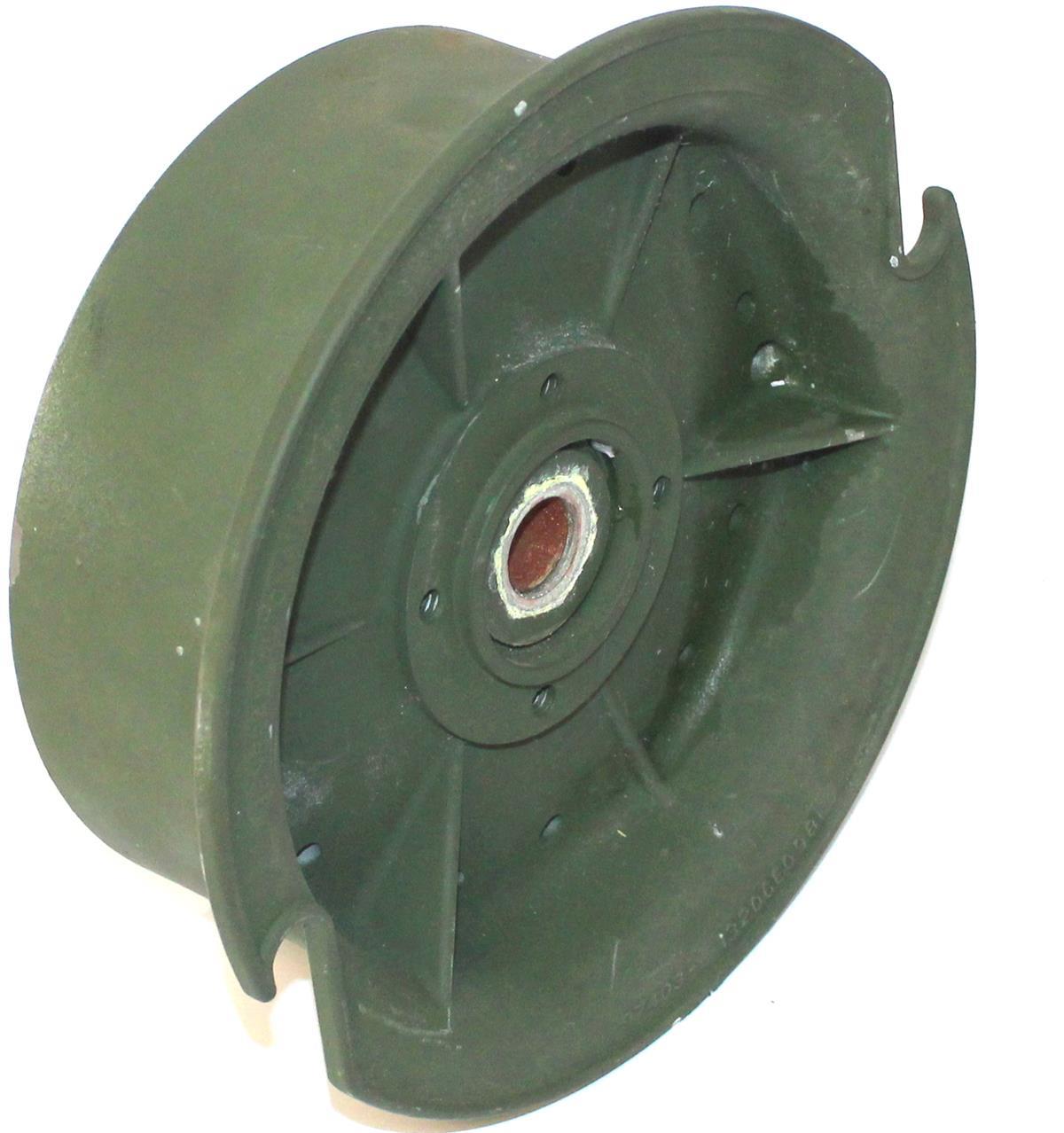

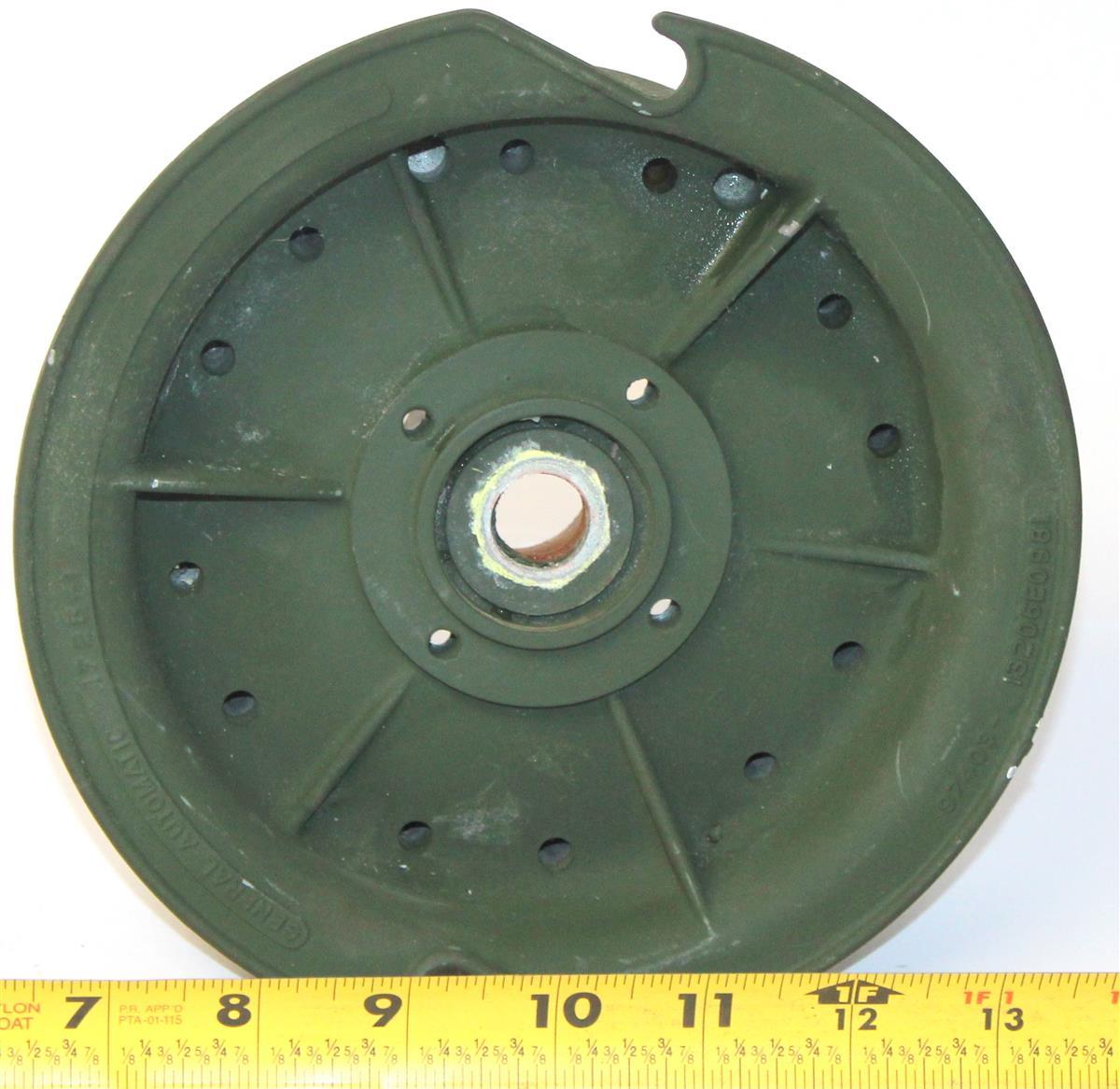

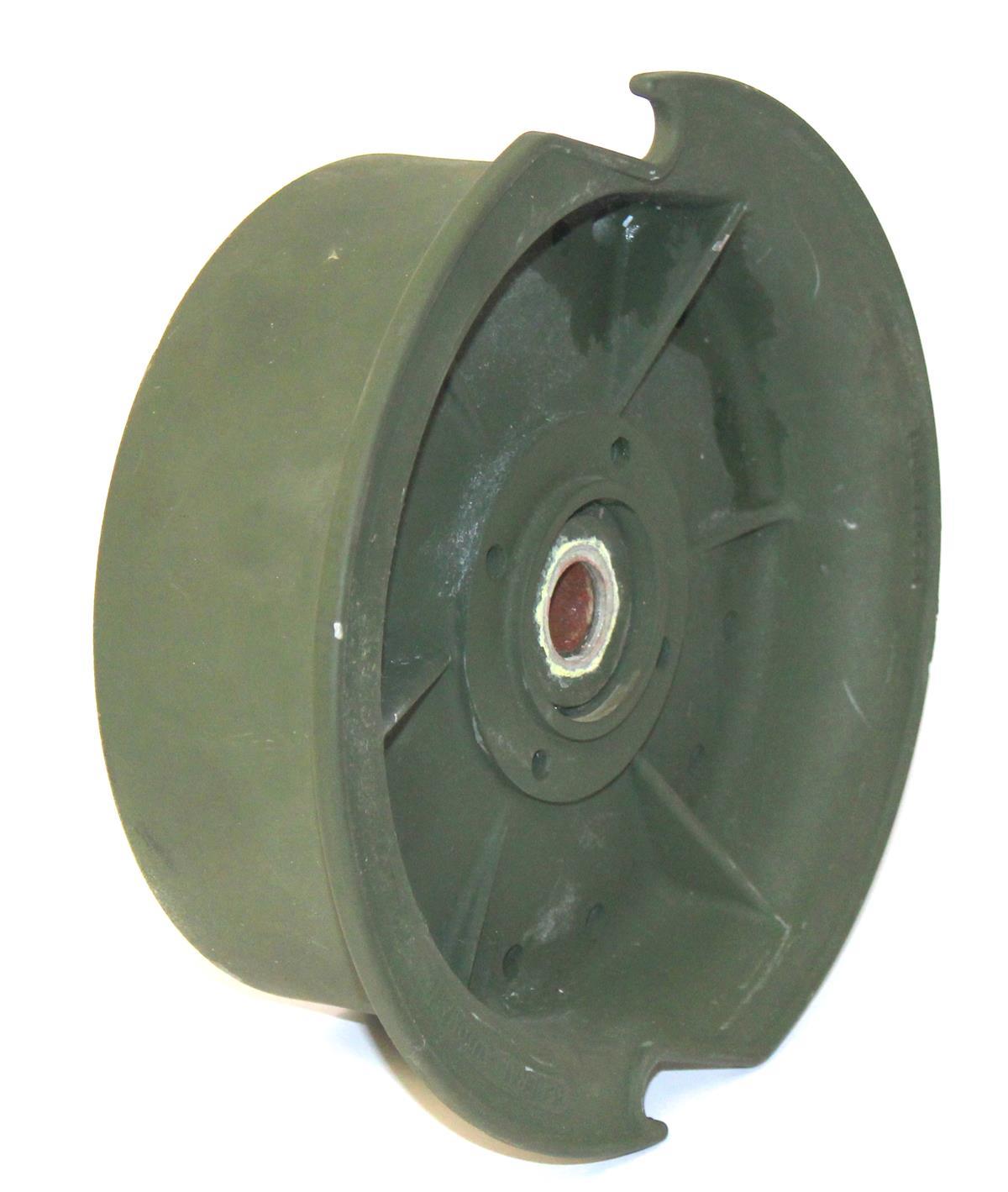

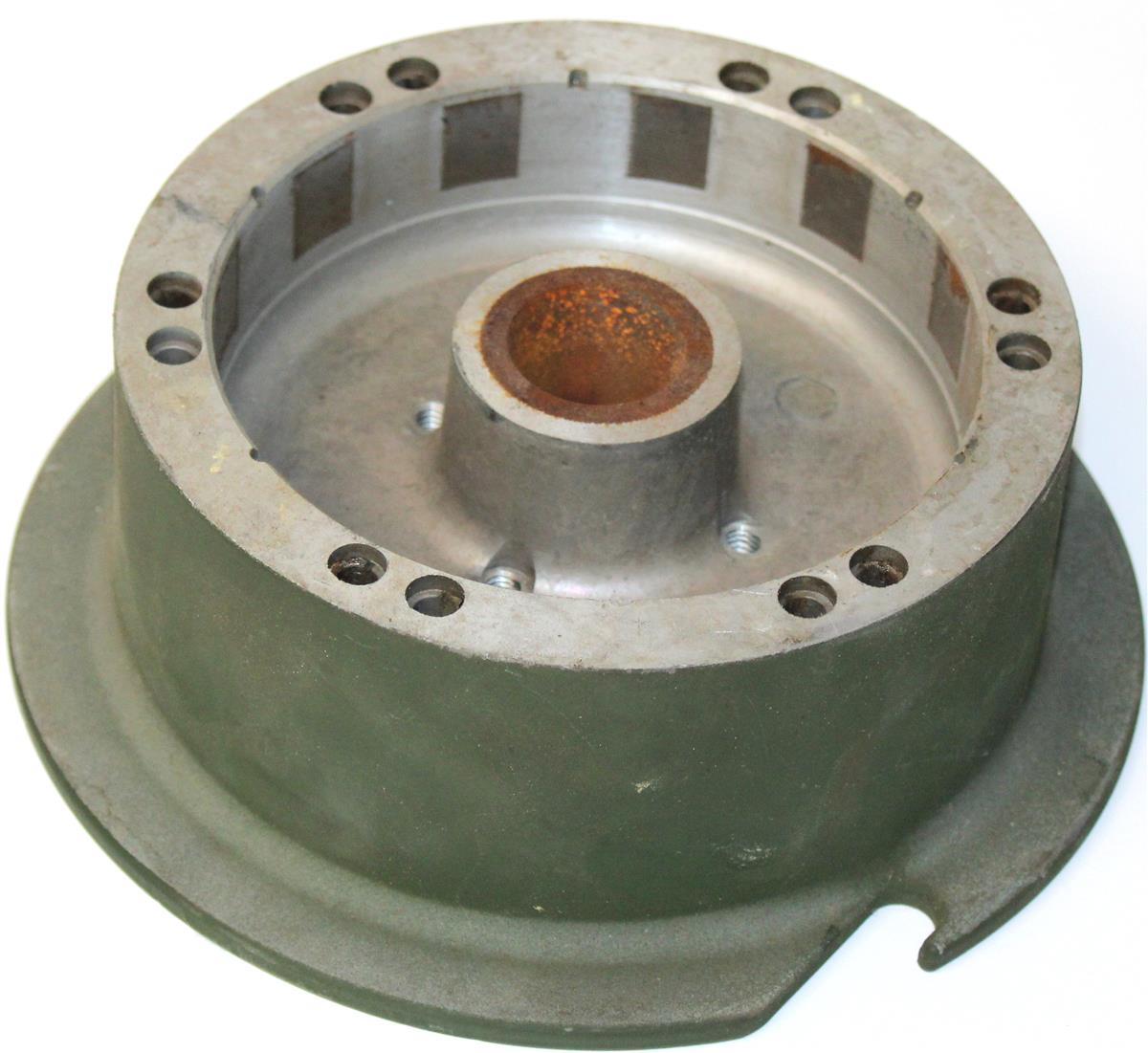

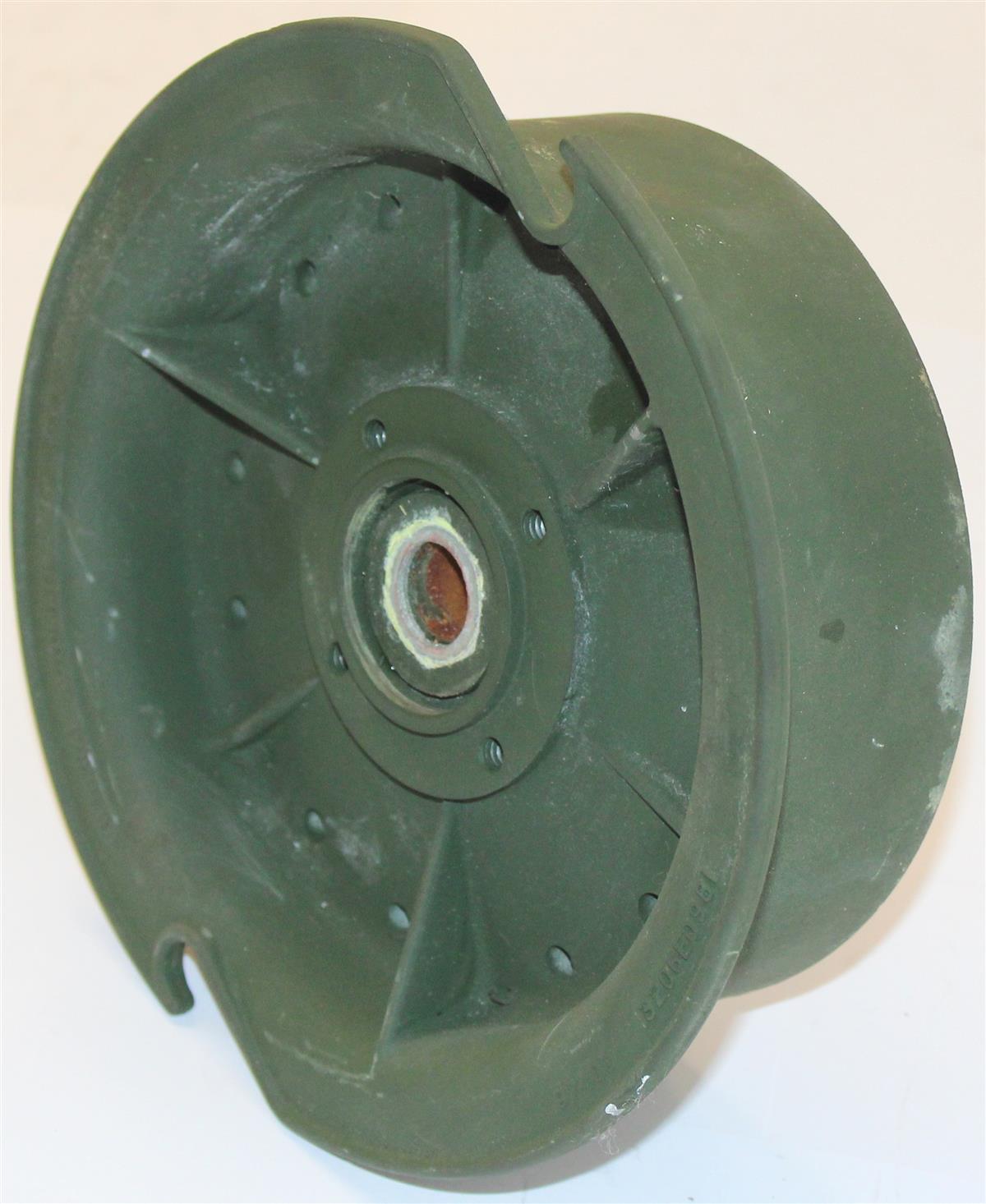

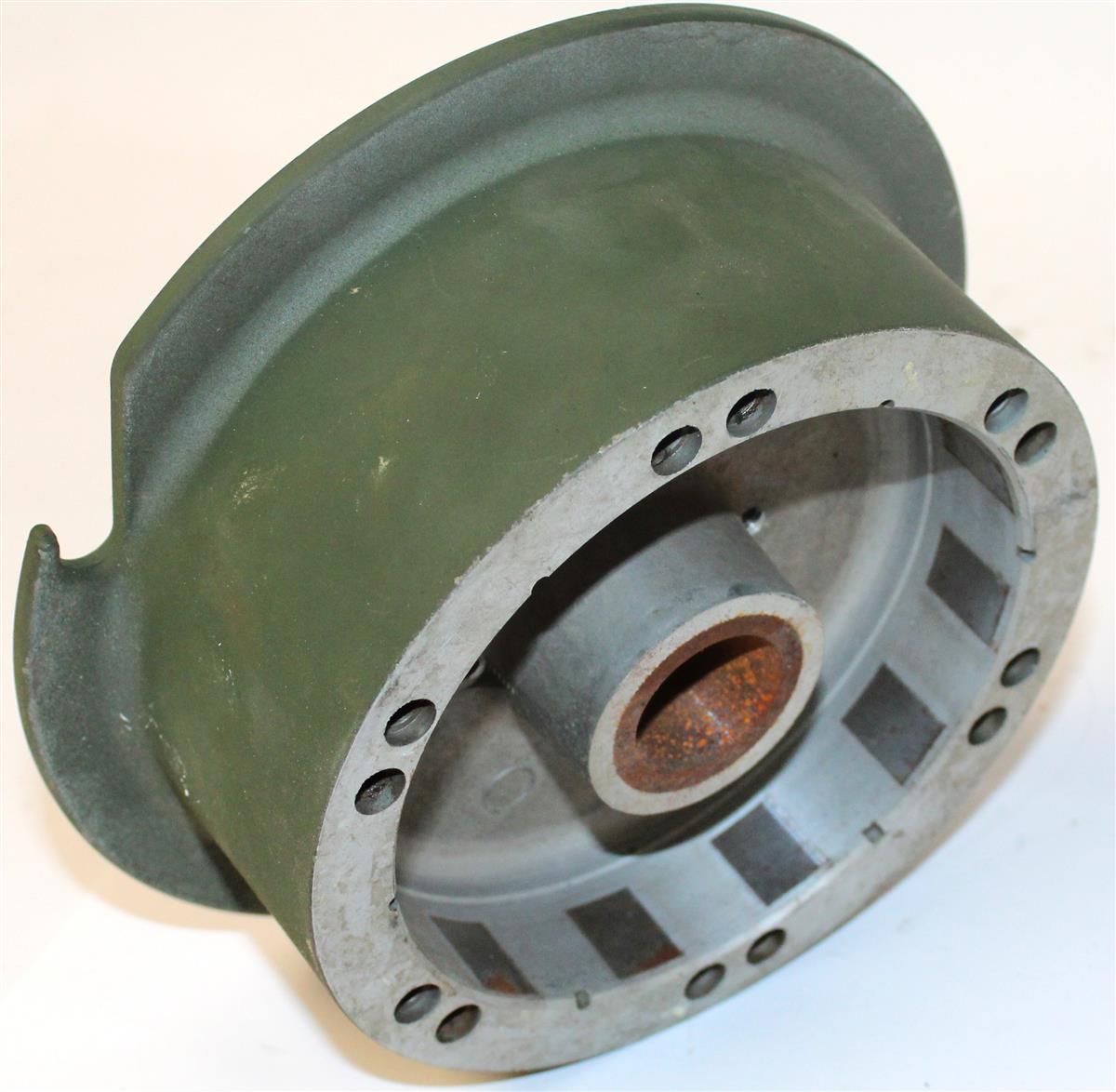

Starter Rope Pulley Military Standard Gasoline Engine 2A042 4A084 5KW 10KW MEP Electric Generator
- Outside Diameter is 7.250 inches
- Taper Major Diameter is 0.955 inches
- Length is 0.922 inches
- Face Shape is Flat
- Rope Accommodation Width is 1.281 inches
- Rope Accommodation Diameter is 5.840 inches
- Hub Diameter is 1.748 inches Minimum and 1.568 inches Maximum

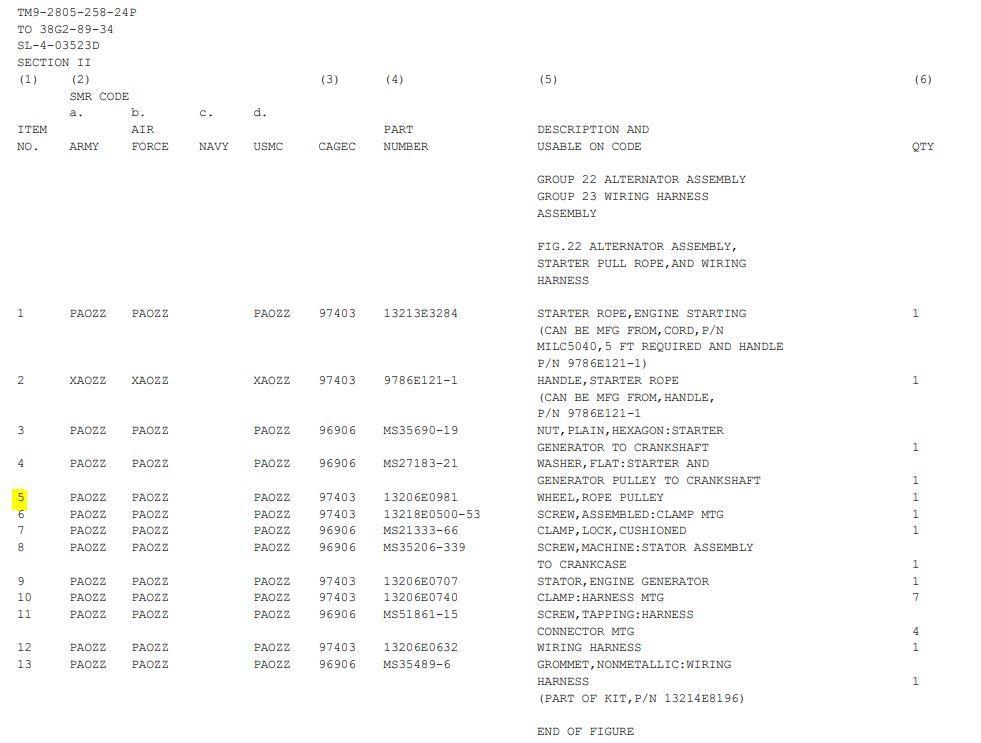

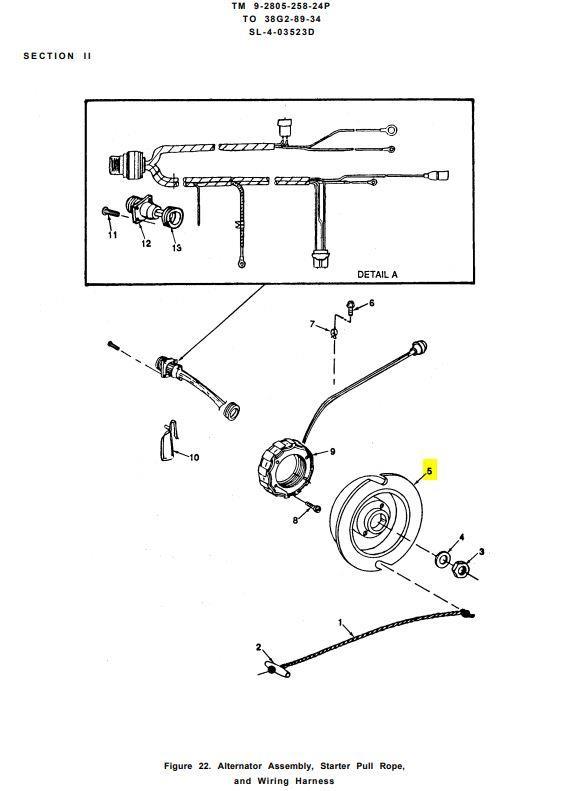

- Diagram shown in Pictures
Fits
Generator Model 2A042 Gen-Set 5 KW
MEP-017A – 60 HZ – Gasoline Engine Driven
MEP-002A – 60 HZ – Diesel Engine Driven
MEP-022A – 400 HZ – Gasoline Engine Driven
Generator Model 4A084 Gen-Set 10 KW
MEP-018A – 60 HZ – Gasoline Engine Driven
MEP-003A – 60 HZ – Diesel Engine Driven
MEP-412A – 60 HZ – Gasoline Turbine Engine Driven
MEP-112A – 400 HZ – Diesel Engine Driven
MEP-414A – DC – Gasoline Turbine Engine Driven
