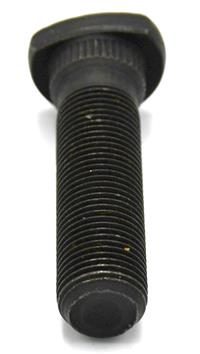

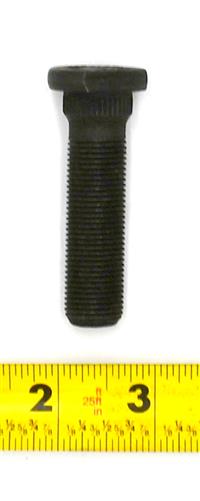

Bolt Wheel half 2 Piece Eccentric Head Wheel Stud FMTV LMTV
- 5/8-18 x 7/16
- Right Hand Thread Direction
- Fastener Length 2.440 IN
- Head Style Dee Chamfer
- Head Diameter 1.060 IN
- Head Height 0.220 IN
- Distance From Centerline to Flat 0.3437 IN MIN and 0.3462 IN MAX
- Distance from Center of Head to Center of Shank 0.780 IN
- Thread Diameter 0.625 IN
- Thread QTY per INCH 18
- Steel
- Item NO 3 in Diagram
Fits: FMTV / LMTV ( Medium Tactical Vehicle Variants ) 2 ½ Ton Military Truck, 5 Ton Military Truck
2 ½ Ton Trucks --- M1078 M1079 M1080
5-Ton Trucks --- M1083 M1084 M1085 M1086 M1087 M1088 M1089 M1090 M1091 M1095 M109
