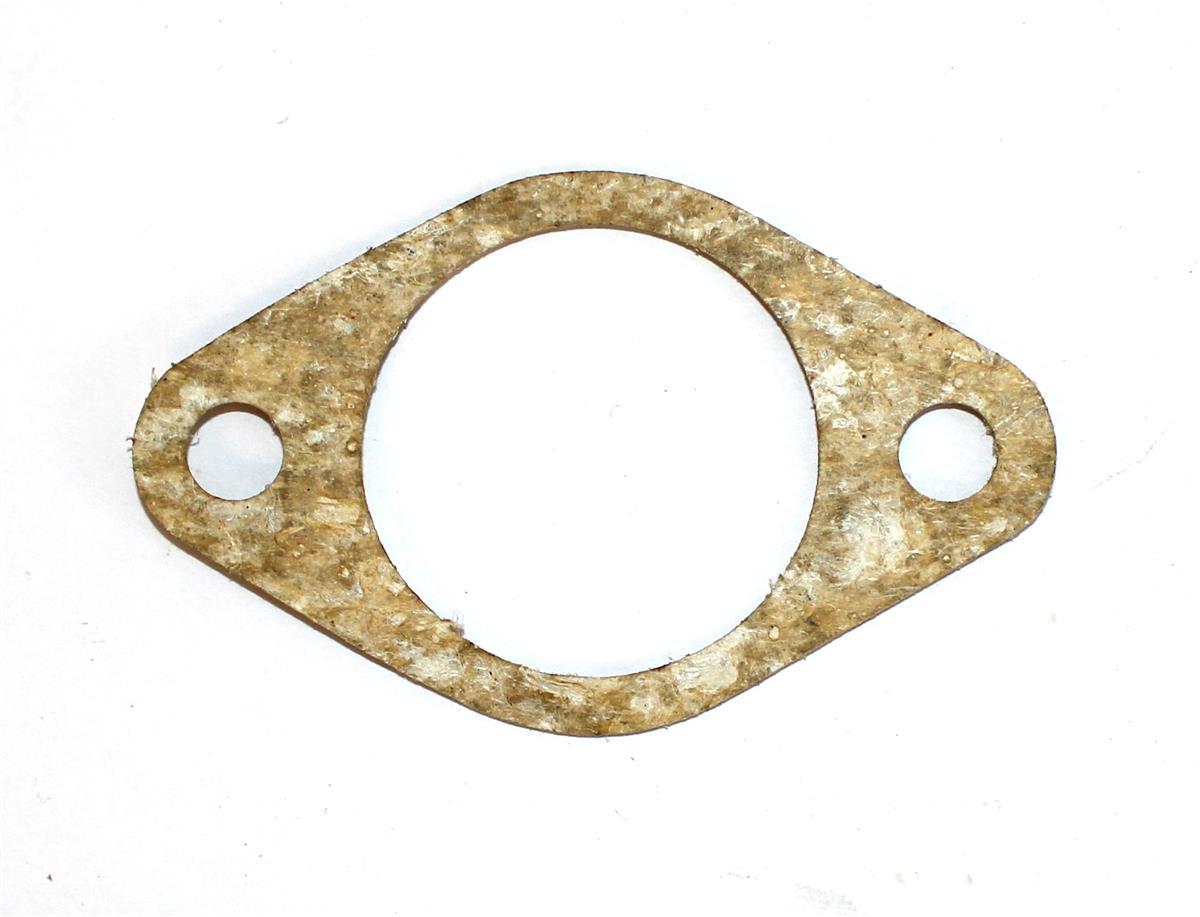

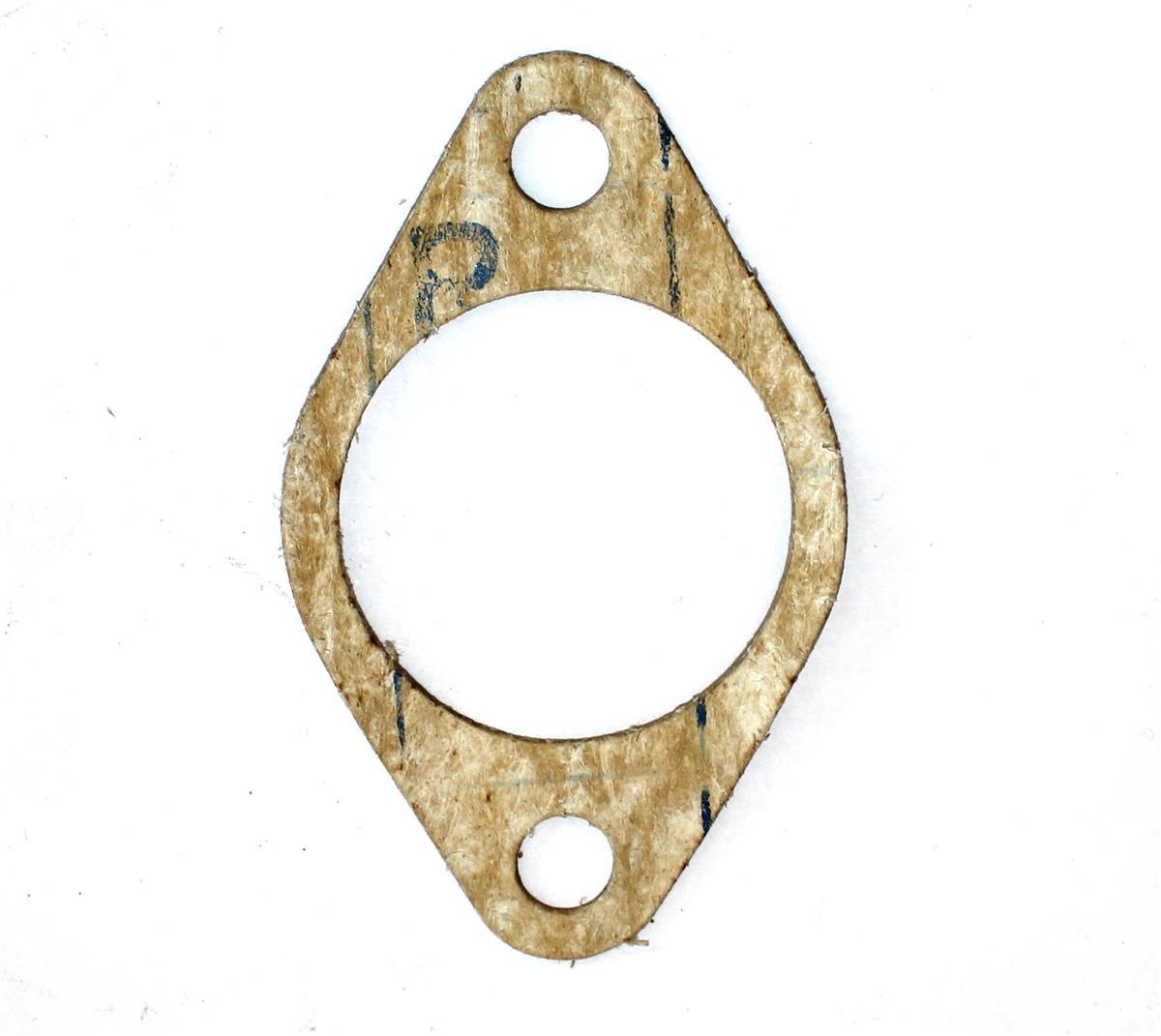

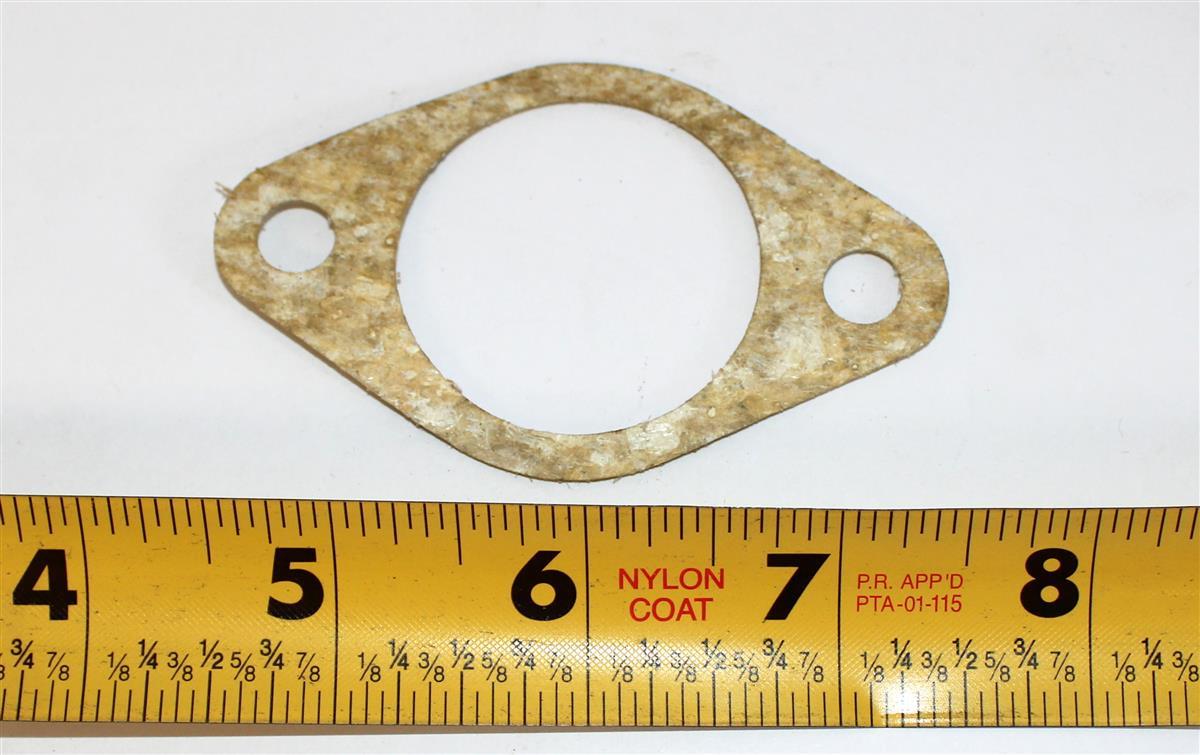

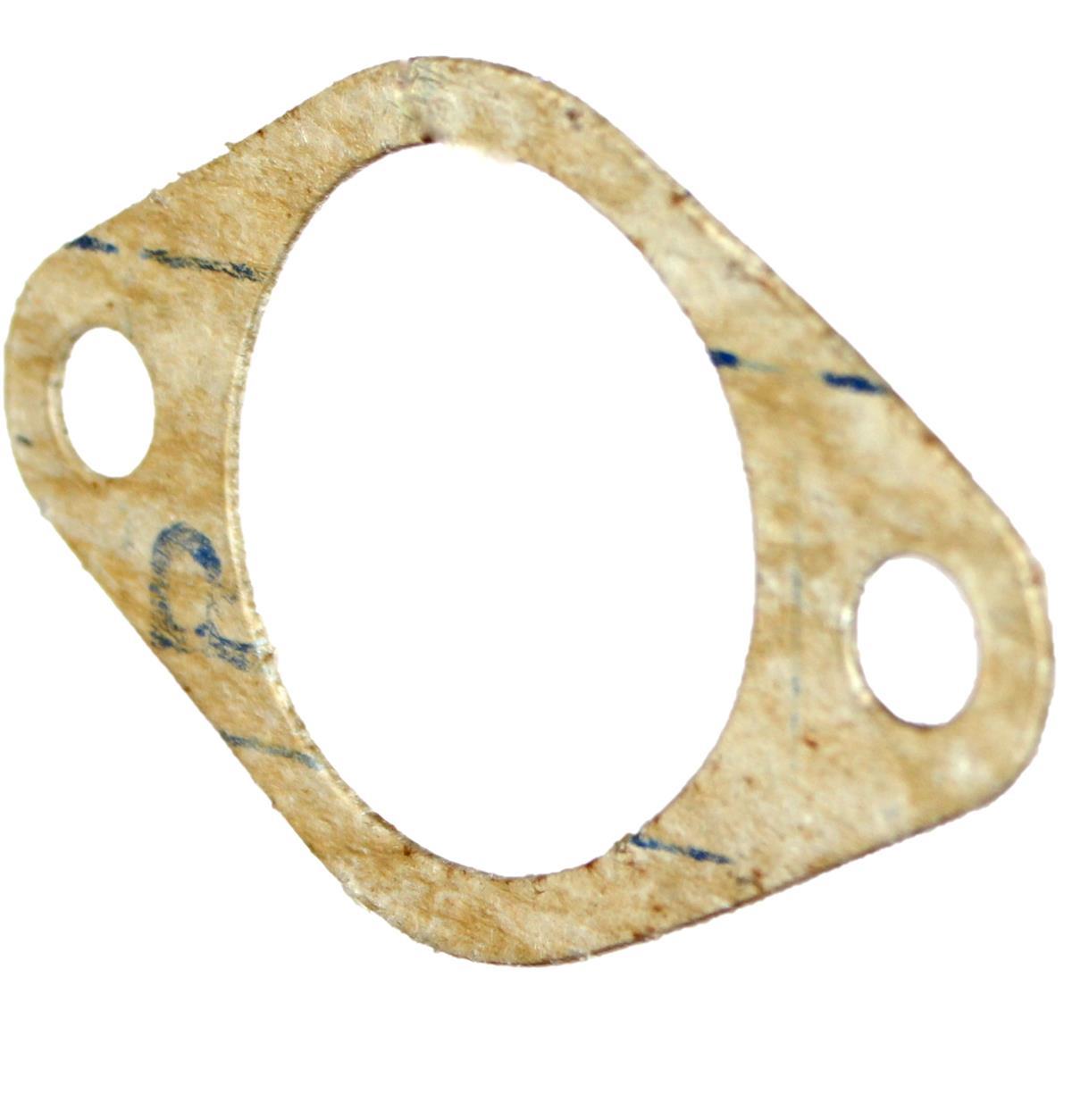

Carburetor Base Gasket Military Standard Gasoline Engine 2A042 4A084 5 KW 10 KW
- Hole Diameter is 0.328 inches
- Overall Length is 3.063 inches
- End Radius is 0.938 inches
- Aperture Diameter is 1.500 inches
- Outside Corner Radius is 0.344 inches
- Center to Center Distance Between Bolt Holes is 2.375 inches Length
- Bolt Hole Quantity is 2

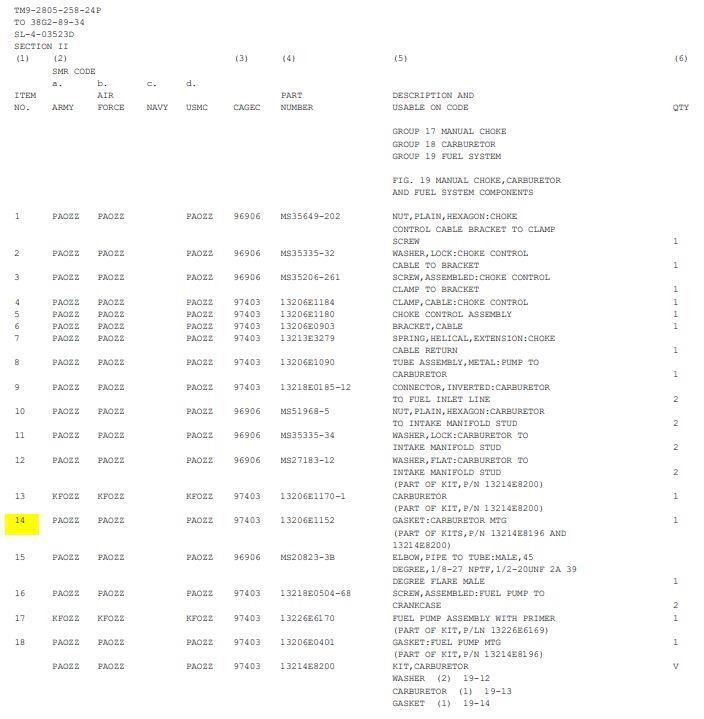

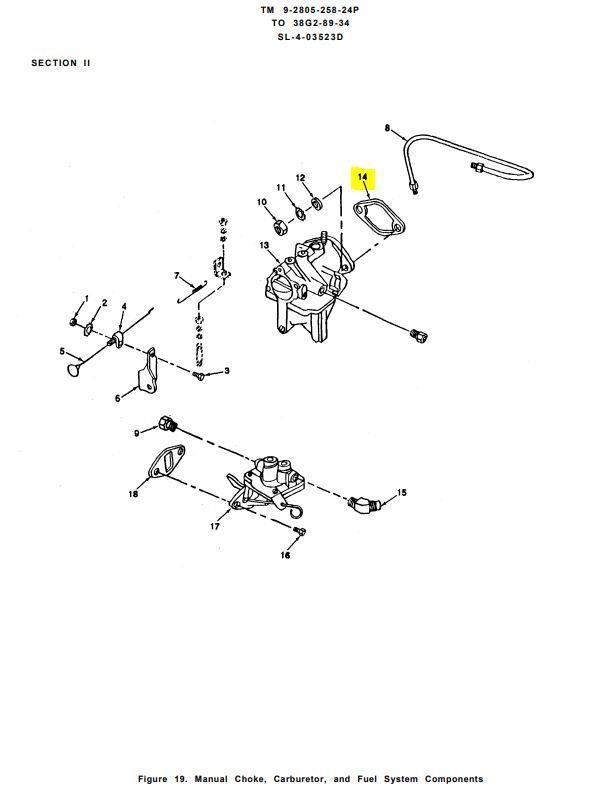

- Diagram Shown in Pictures
Click Here For Carburetor Parts Kit Zenith Military Standard Engine 2A042 4A084
Fits:
Engine Model 2A042 5 KW Gen-Set
MEP-017A – 60 HZ – Gasoline Engine Driven
MEP-002A – 60 HZ – Diesel Engine Driven
MEP-022A – 400 HZ – Gasoline Engine Driven
Engine Model 4A084 10 KW Gen-Set
MEP-018A – 60 HZ – Gasoline Engine Driven
MEP-003A – 60 HZ – Diesel Engine Driven
MEP-412A – 60 HZ – Gasoline Turbine Engine Driven
MEP-112A – 400 HZ – Diesel Engine Driven
MEP-414A – DC – Gasoline Turbine Engine Driven
