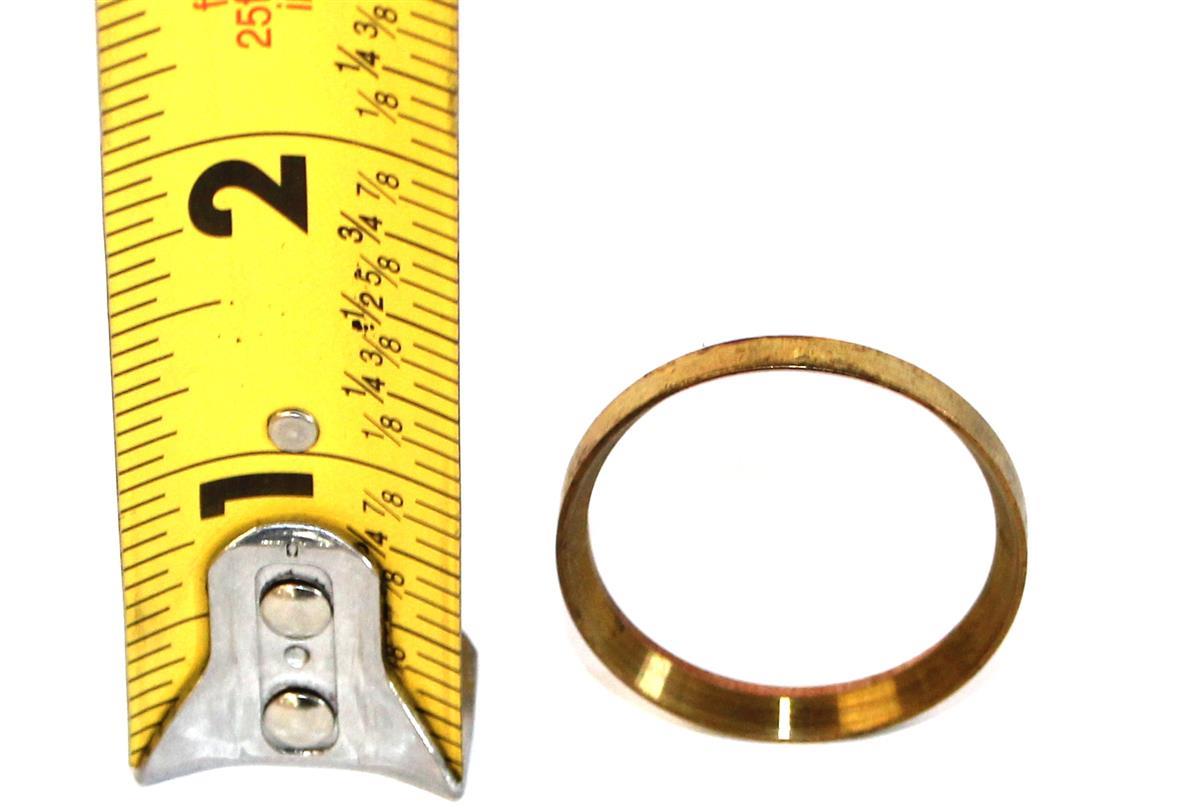

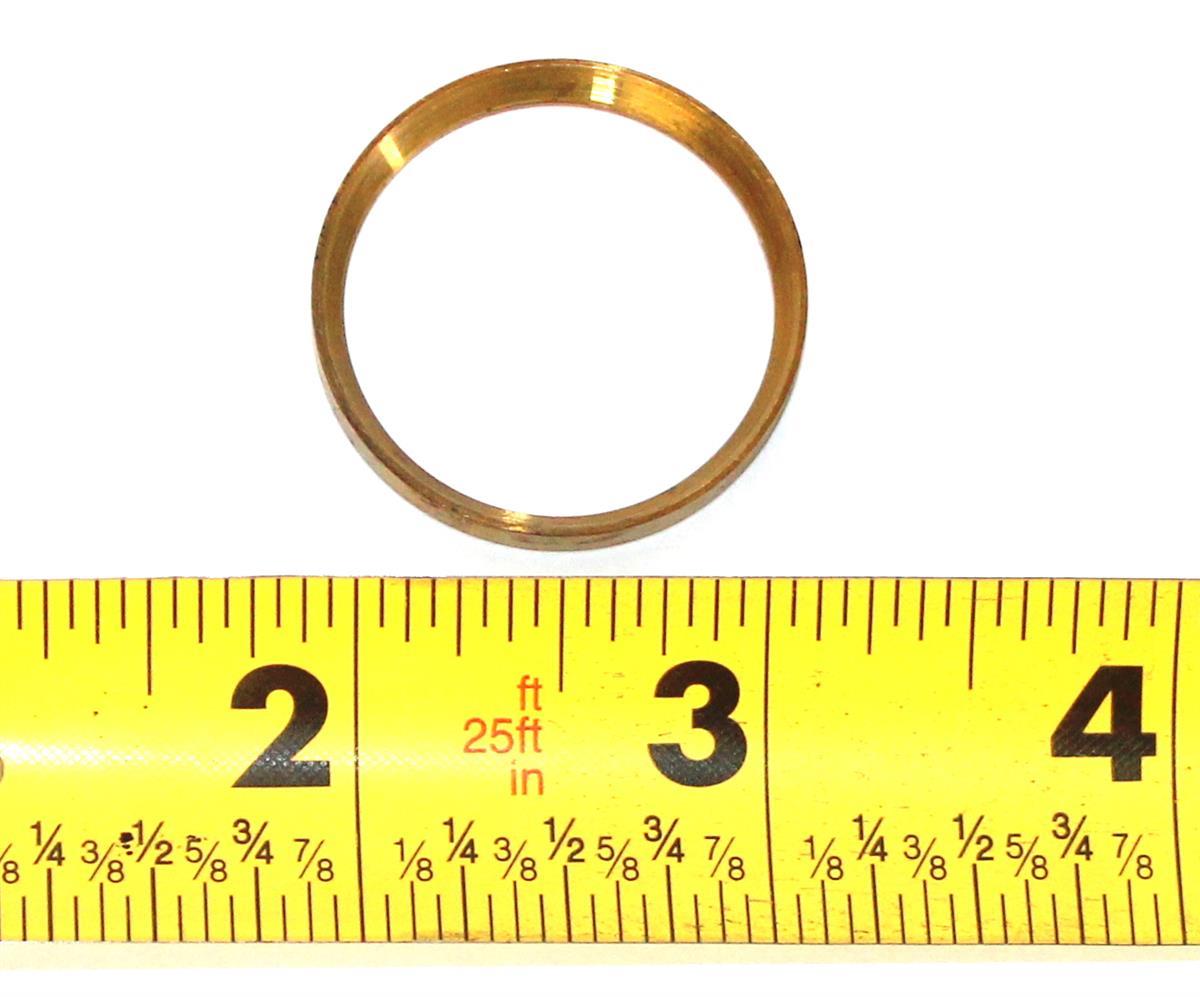

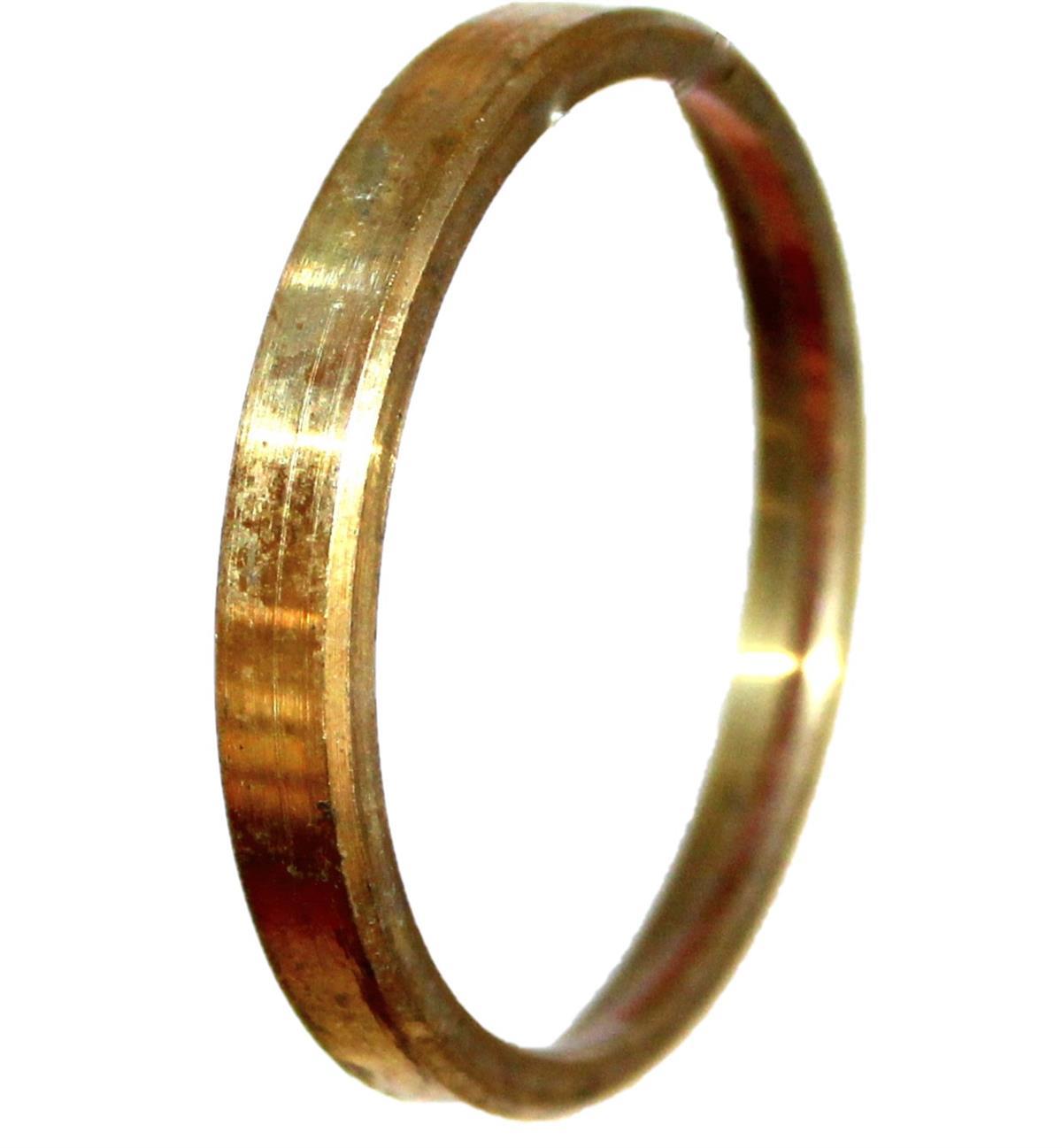

Bushing for Exhaust Manifold Military Standard Gasoline Engine 2A042 4A084 5 KW 10 KW
- Hole Diameter is 1.070 inches Minimum and 1.080 inches Maximum
- Outside Diameter is 1.240 inches Minimum and 1.245 inches Maximum
- Recess Diameter is 1.187 inches
- Material Thickness is 0.151 inches Minimum and 0.161 inches Maximum
- Recess Angle is 45 Degrees
- Copper Material

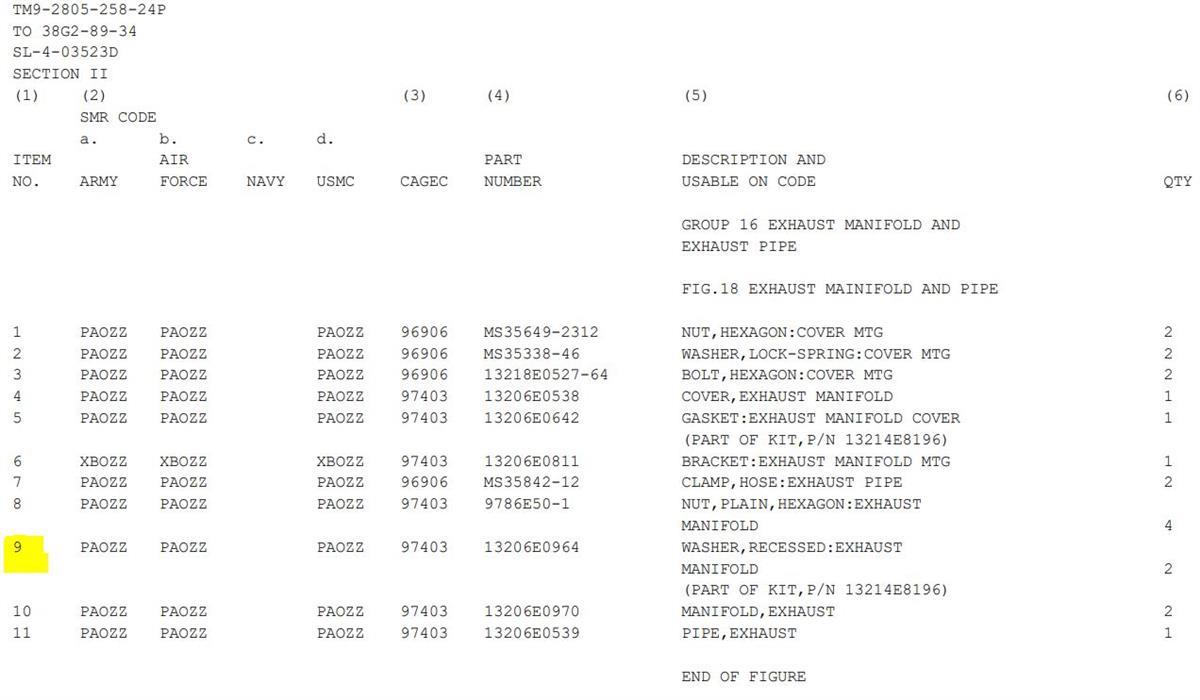

- Diagram shown in Pictures
Click Here For Exhaust Manifold Assembly Military Standard Gasoline Engine 2A042 M274 Mechanical Mule
Click Here For Exhaust Pipe to Manifold Tube Assembly Military Standard Engine 2A042 M274 Mechanical Mule
Click Here For Air Preheat Shell Assembly with Switch Military Standard Engine 2A042 4A084 M274 Mechanical Mule
Click Here For Air Preheat Shell Assembly Military Standard Gasoline Engine 2A042 4A084 M274 Mechanical Mule
Fits
Gen-Set Model 2A042 - 5 KW Generator Gen-Set
MEP-017A - 60 HZ - Gasoline Engine Driven
MEP-002A - 60 HZ - Diesel Engine Driven
MEP-022A - 400 HZ - Gasoline Engine Driven
Gen-Set Model 4A084 - 10 KW Generator Gen-Set
MEP-018A - 60 HZ - Gasoline Engine Driven
MEP-003A - 60 HZ - Diesel Engine Driven
MEP-412A - 60 HZ - Gasoline Turbine Engine Driven
MEP-112A - 400 HZ - Diesel Engine Driven
MEP-414A - DC - Gasoline Turbine Engine Driven
