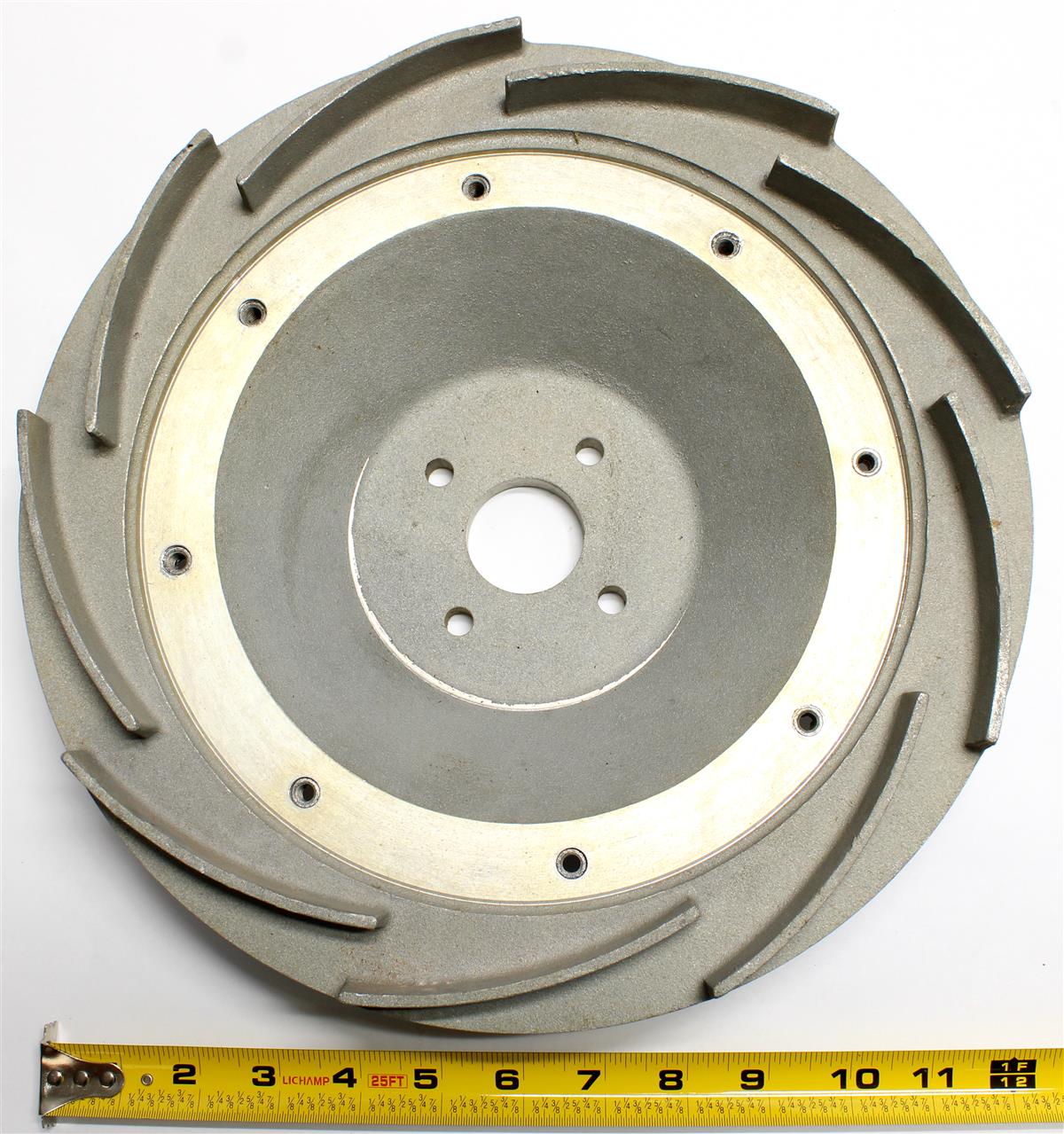

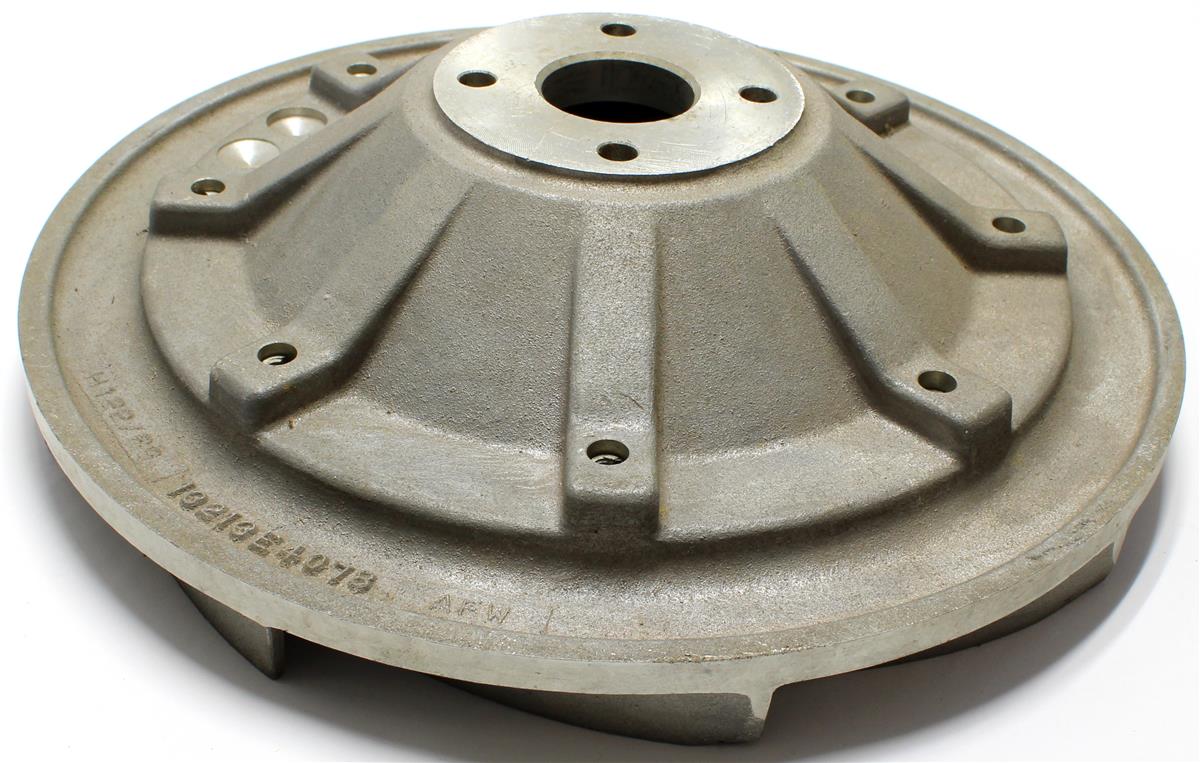

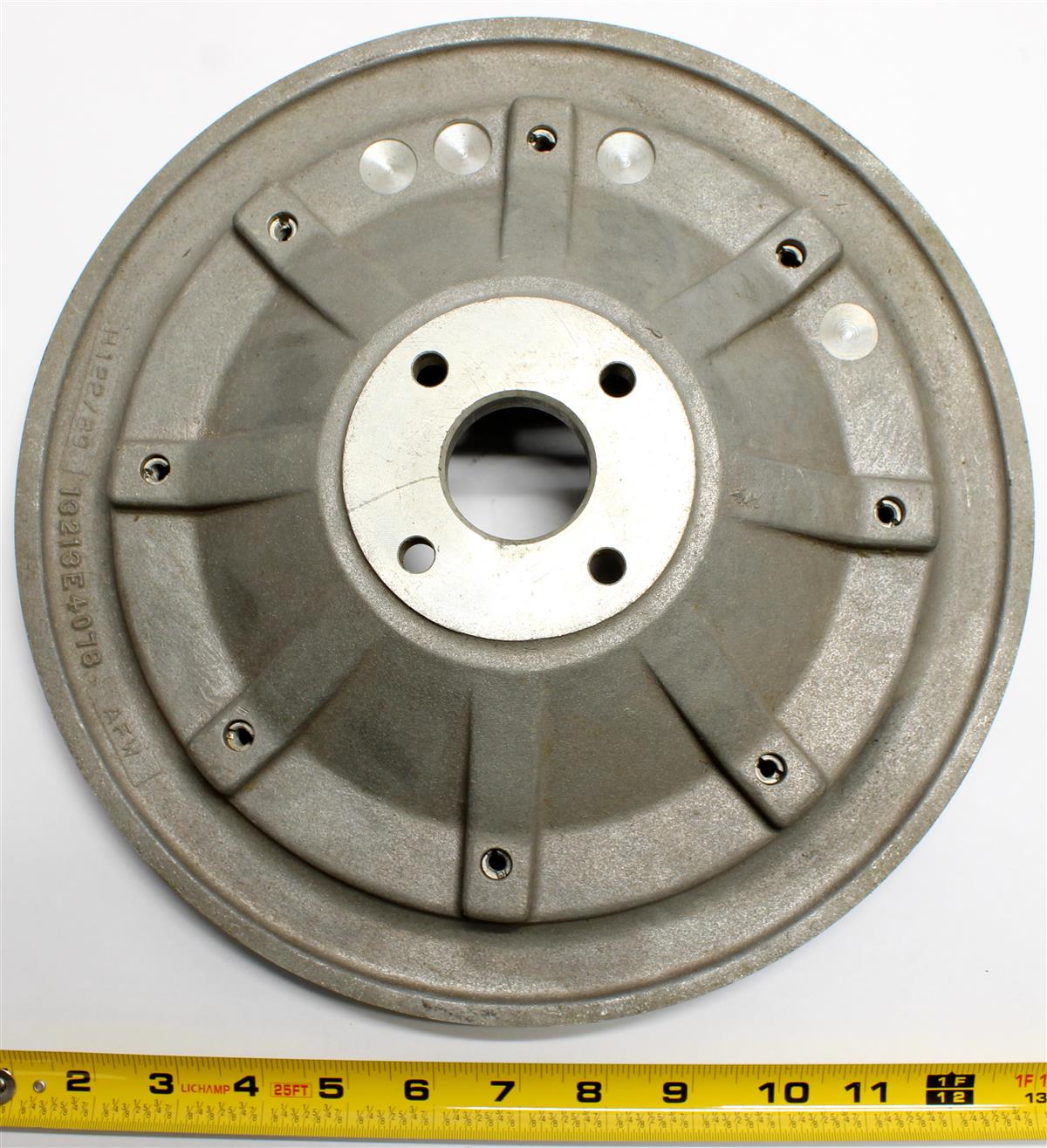

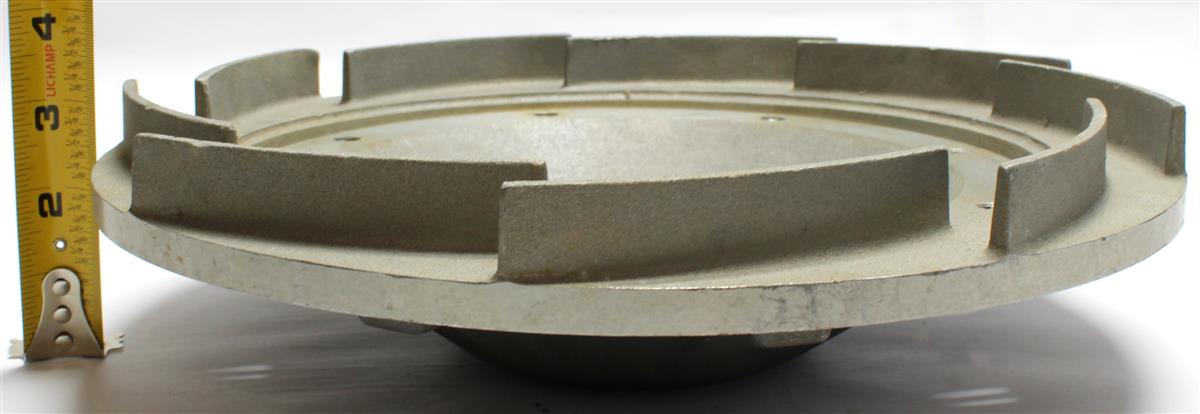

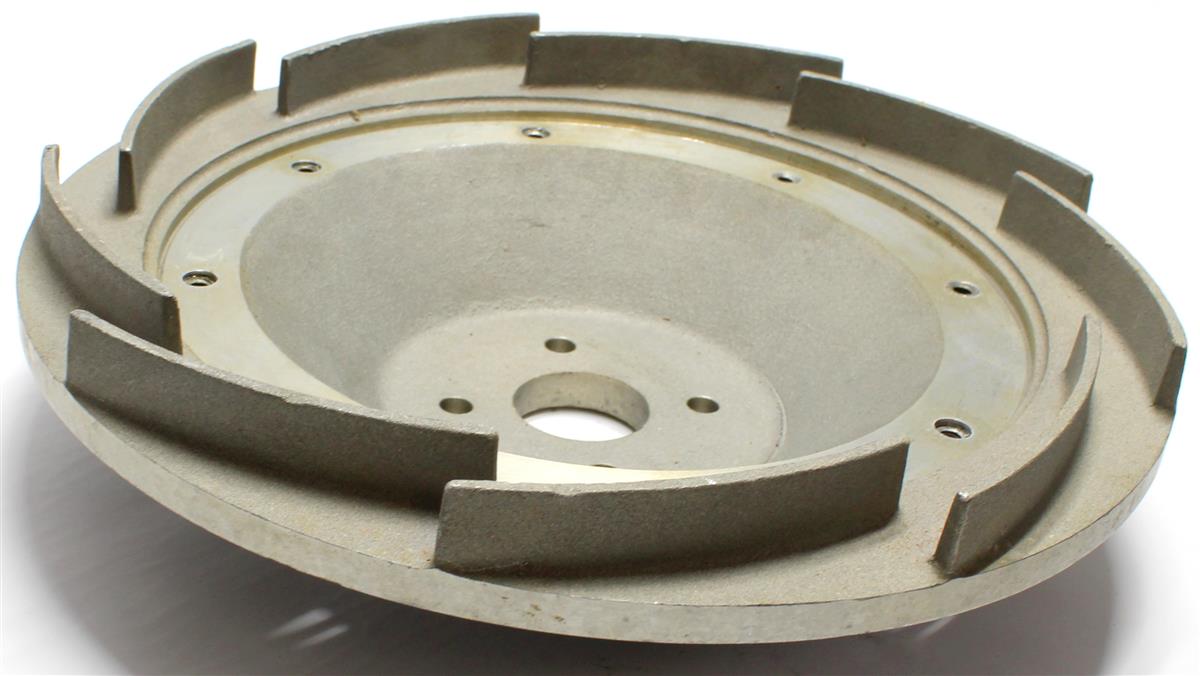

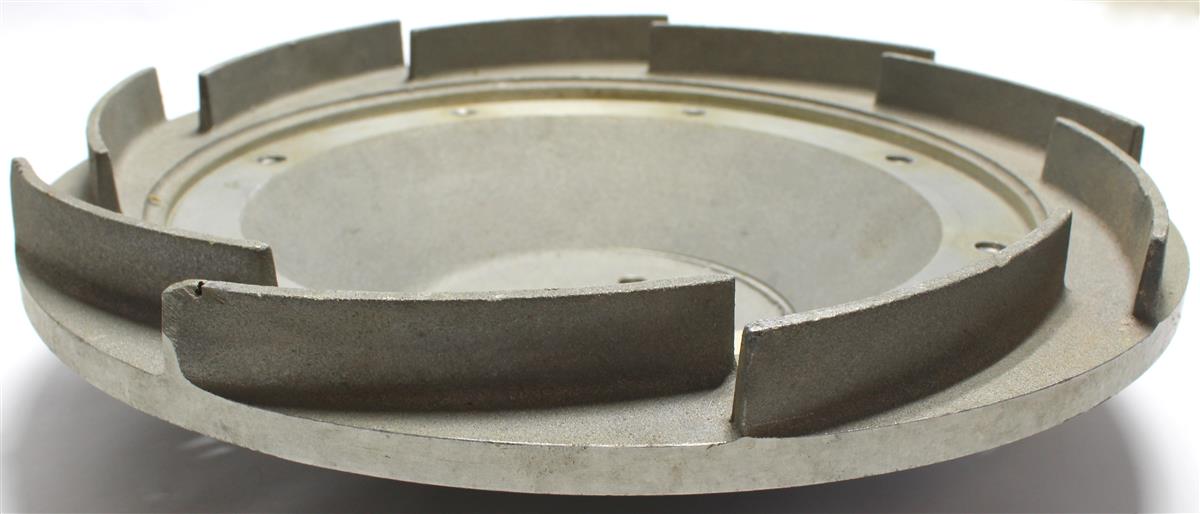

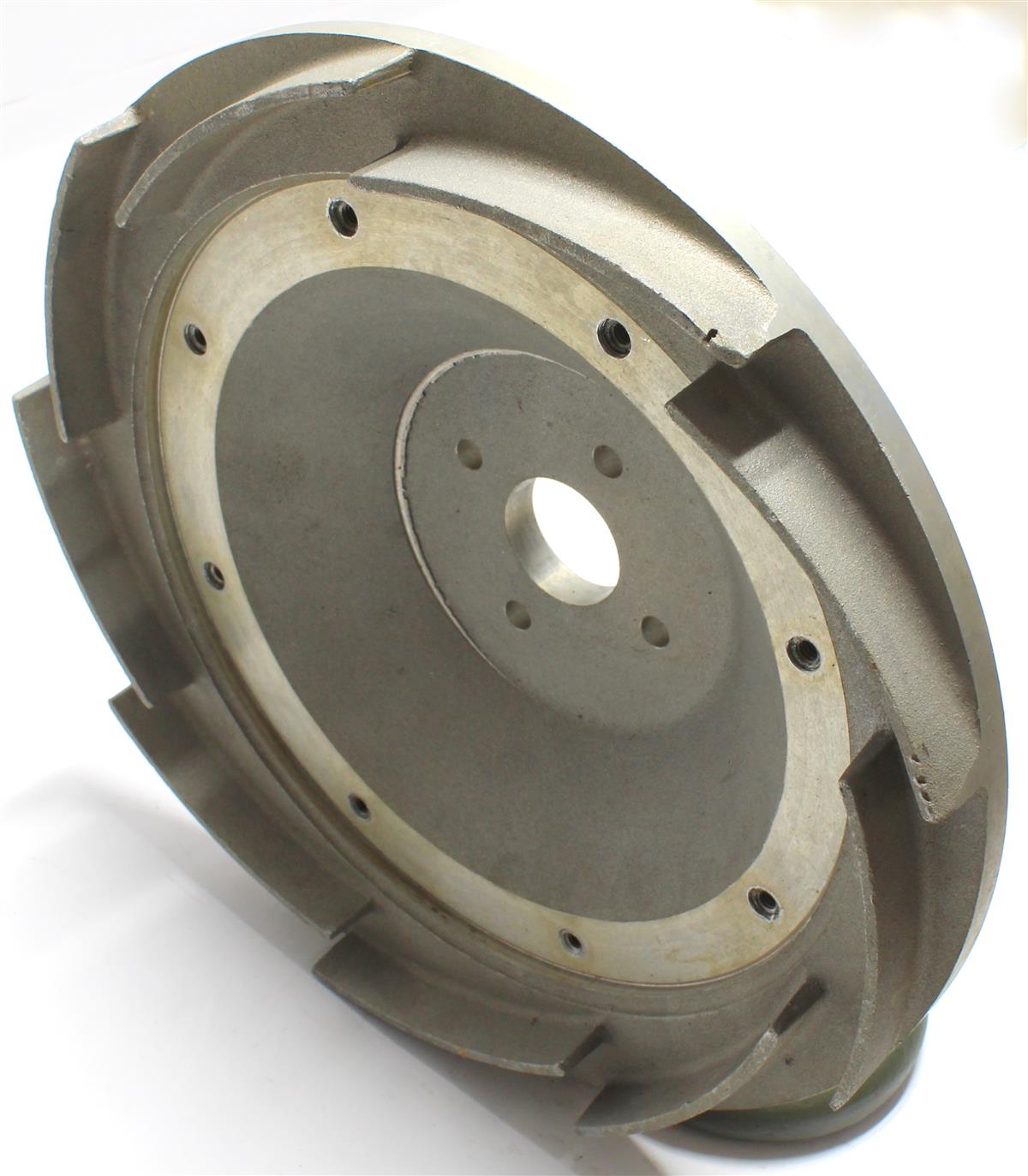

Axial Fan Impeller Military Standard Gasoline Engine 4A032 3KW
- Diameter - 11.920 Inches
- Mounting Hole Diameter - 0.357 Inches
- Mounting Hole Quantity - 4
- Mounting Bolt Circle Diameter - 2.750 Inches
- Blade Quantity - 9
- Attachment Method - Bolt Hole
- Hub Location - Center
- Special Features - 3.063 In. Deep From Rear of Hub To Face Of Blades
- Material - Aluminum Alloy Blade
- Style Designator - Integral Slinger Ring
- Bore Diameter - 1.625 Inches
- Hub Length - 0.500 Inches
- Hub Style - 79 Bolted
Fits
Generator Model 4A032 – 3 KW
MEP-021A – 400 HZ – Gasoline Engine Driven
MEP-026A – DC – Gasoline Engine Driven
