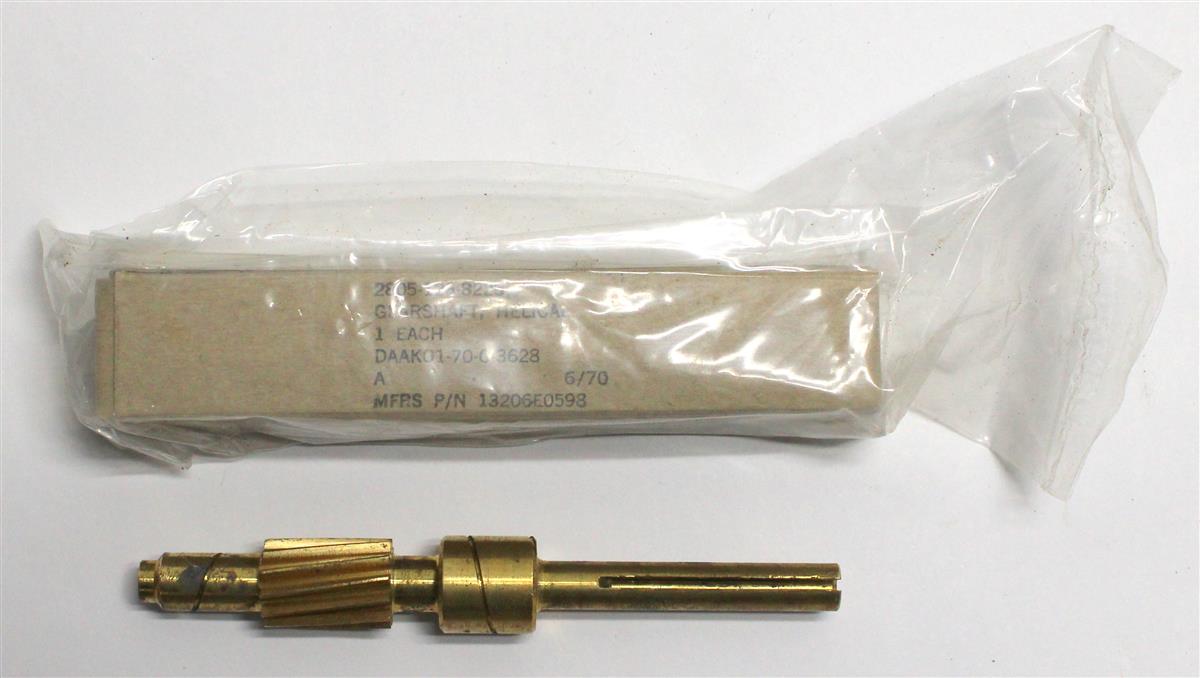

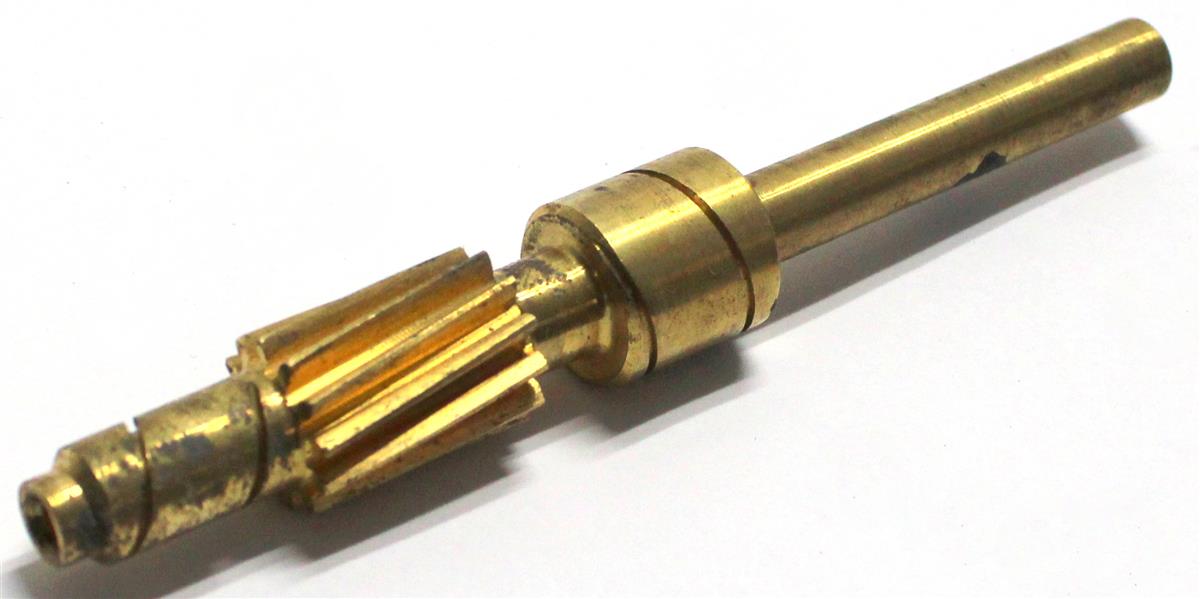

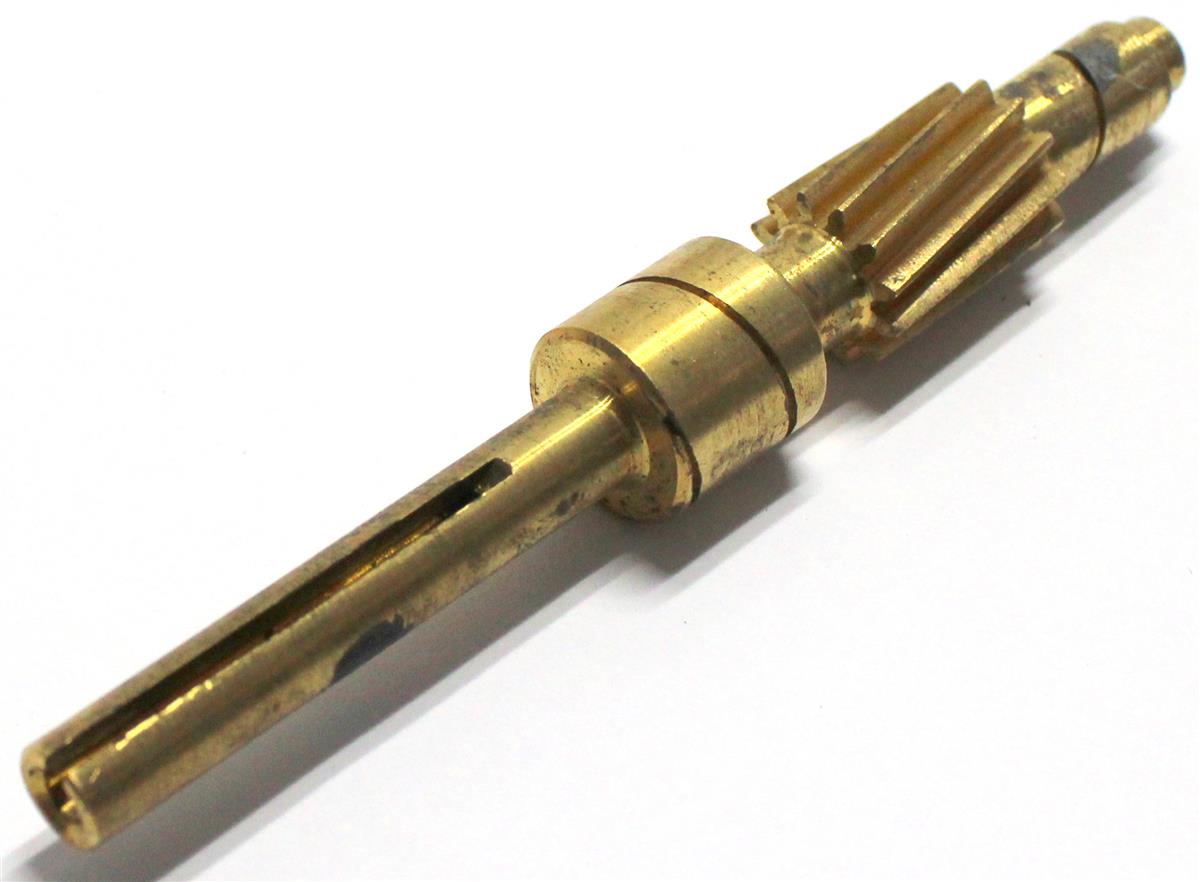

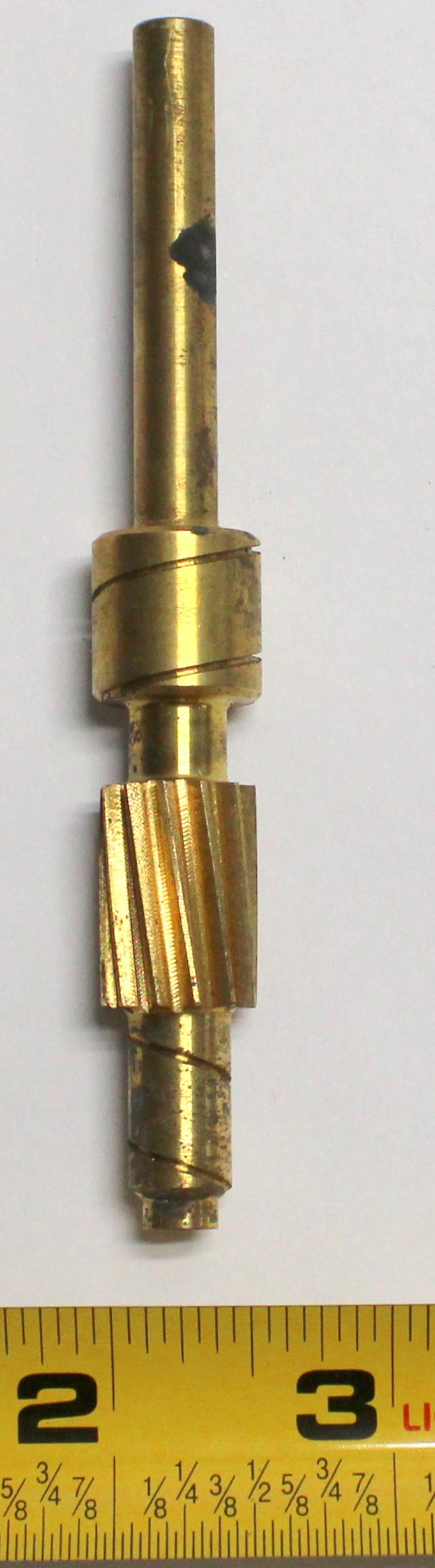

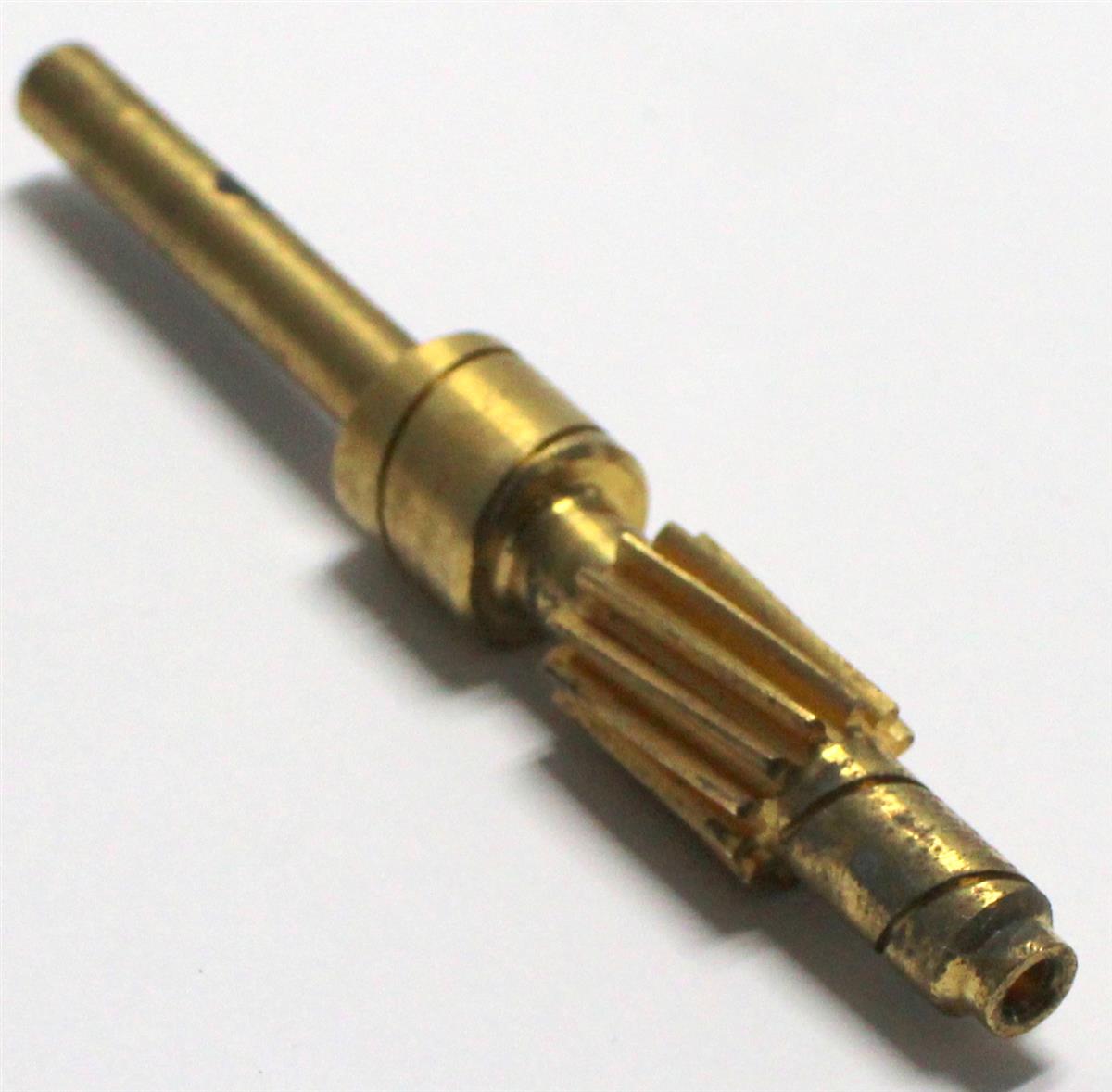

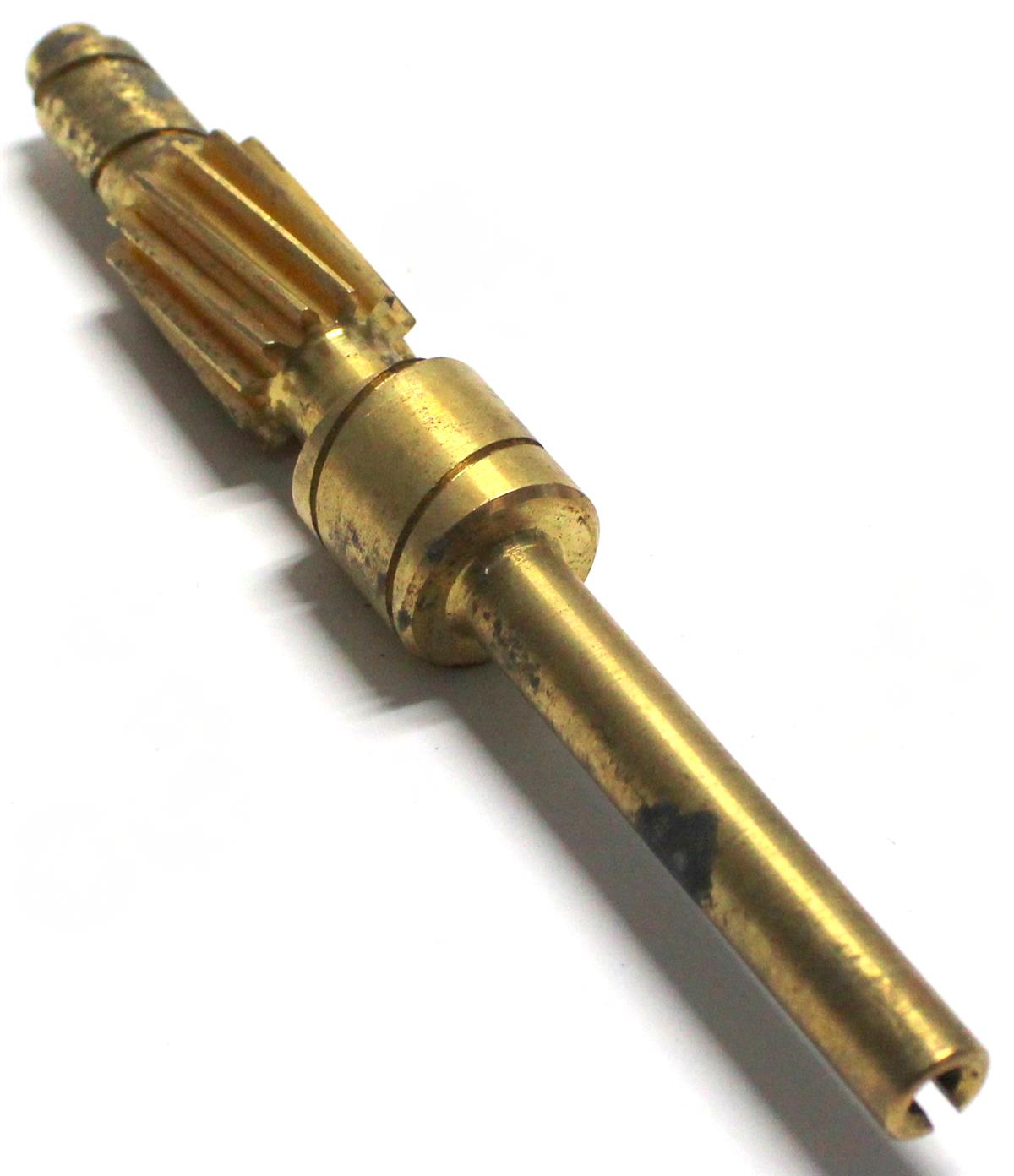

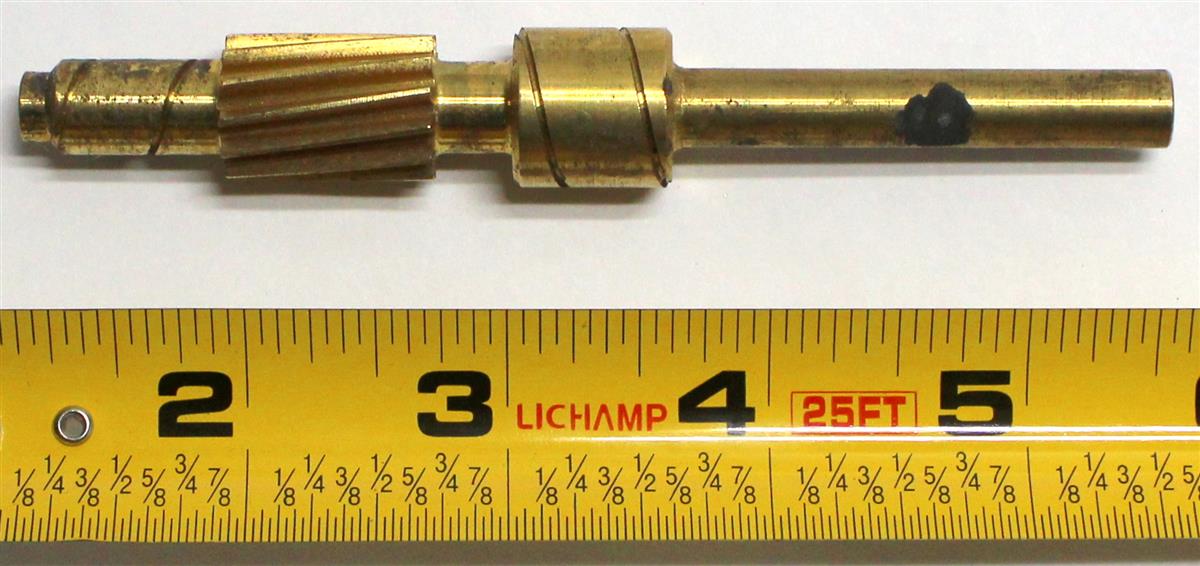

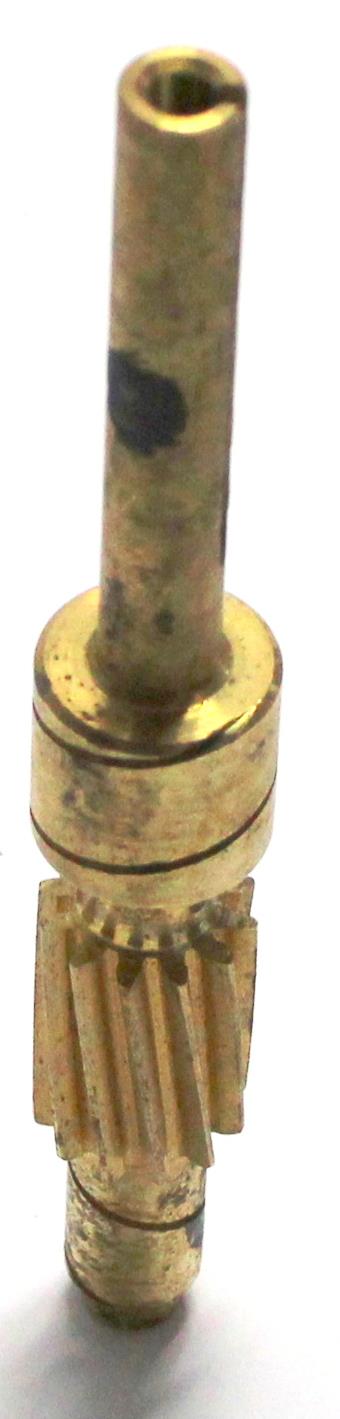

Helical Gear Shaft for Timing Gear Cover Military Standard Gasoline Engine 2A042 Gen-Set 5 KW
- Overall Length - 4.516 Inches
- Shaft Length - 4.516 Inches
- Teeth Quantity - 12
- Gear Outside Diameter - 0.5860 Inches
- Shaft End Type - Cross Drilled Unthreaded
- Diametral Pitch - 24
- Face Width - 0.812 Inches
- Shaft Type - Shouldered
- Teeth Type - Single Helix
- Pressure Angle - 20.0000 Degrees
- Helix Angle - 7.6916 Degrees
- Shaft Material - Copper Alloy
- Gear Material - Copper Alloy
- Shaft Largest Diameter - 0.632 Inches
- Gear Location On Shaft - Off Center Between Ends Of Shaft
- Longer Shaft Segment Length - 2.892 Inches
- Shaft End Size - 0.281 Inches And 0.308 Inches
Click Here For Timing Gear Parts Kit Cover Military Standard Gasoline Engine 2A042 Gen-Set 5 KW

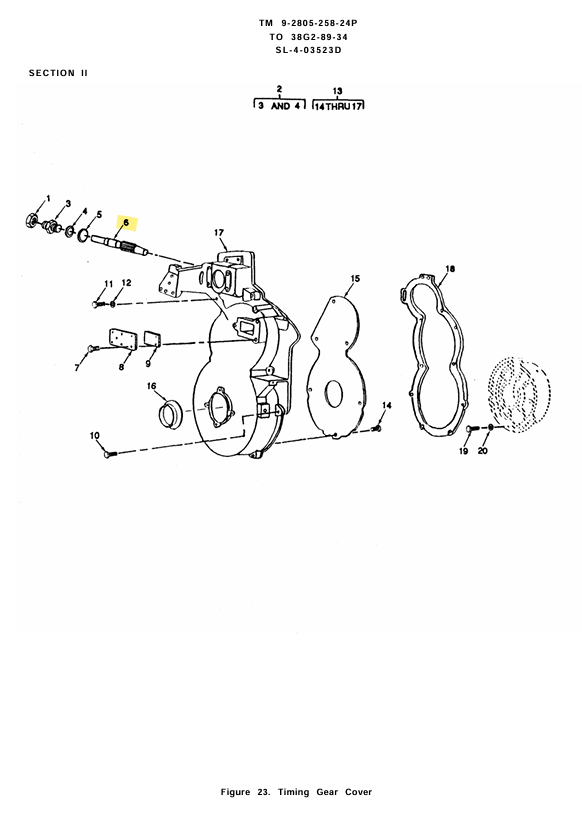

Click Here for Timing Gear Cover Military Standard Gasoline Engine 2A042 Gen-Set 5 KW
Fits
Engine Generator Model 2A042 Gen-Set 5 KW
MEP-017A – 60 HZ – Gasoline Engine Driven
MEP-002A – 60 HZ – Diesel Engine Driven
MEP-022A – 400 HZ – Gasoline Engine Driven
