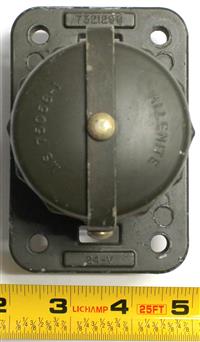

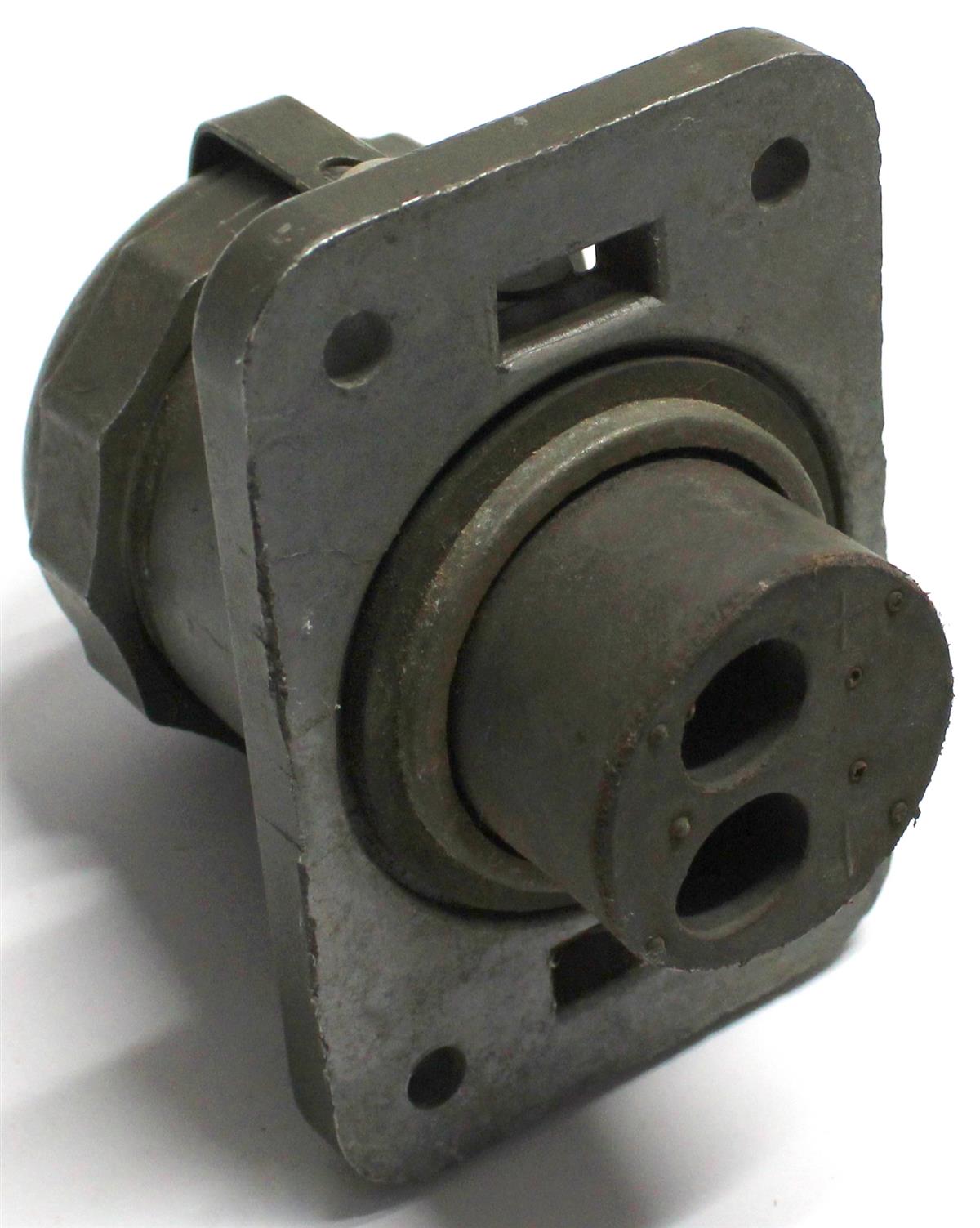

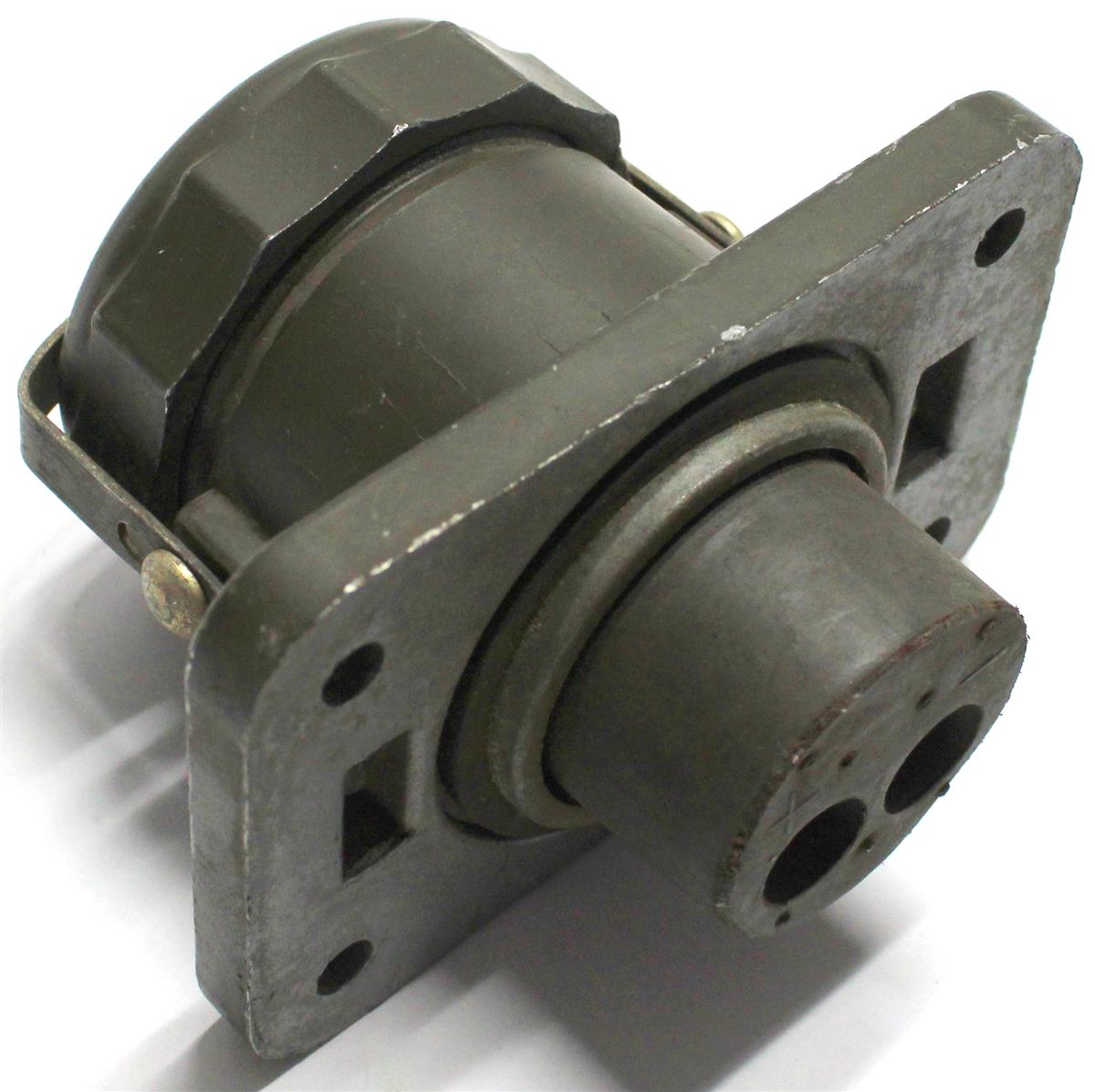

Slave Receptacle Electrical Connector for 4A032 3KW 2A042 5KW 4A084 10KW Military Standard Gasoline Engine
- 24 V
- Thread Class - 2a
- Thread Direction - Right-Hand
- Body Style - Straight Shape W/Cover
- Overall Length - 2.812 Inches
- Center To Center Distance Between Mounting Facilities Parallel To Length - 1.875 Inches
- Overall Height - 2.666 Inches Minimum And 2.806 Inches Maximum
- Overall Width - 4.188 Inches
- Unthreaded Mounting Hole Diameter - 0.281 Inches
- Distance Between Centerlines Of Mounting Facilities Parallel To Body Width - 3.250 Inches
- Shell Type - Solid
- Thread Quantity Per Inch - 12
- Nominal Thread Size - 2.125 Inches
- Contact Material - Copper Alloy Single Mating End Single Contact Grouping
- Contact Surface Treatment - Silver Single Mating End Single Contact Grouping
- Insert Material - Plastic Single Mating End
- Shell Material - Aluminum
- Shell Surface Treatment - Cadmium
- Precious Material - Silver
Click Here for Angle Bracket for 2A042 5KW Military Standard Gasoline Engine
Click Here for Slave Receptacle Bracket for 4A032 3KW 2A042 5KW 4A084 10KW Military Standard Gasoline Engine
Click Here for Slave Battery Jumper Connector Bracket for 4A084 10KW Military Standard Gasoline Engine
Click Here for Slave Receptacle Electrical Lead Assembly Kit
Click Here for Motor Starter Panel Parts Kit for 4A032 3KW Military Standard Gasoline Engine
Click Here for Slave Receptacle Electrical Lead Connector Assembly for 4A032 3KW 2A042 5KW 4A084 10KW
Click Here for Electrical Wire for 4A032 3KW 2A042 5KW 4A084 10KW Military Standard Gasoline Engine
Click Here for Electrical Wire for 4A032 3KW 2A042 5KW 4A084 10KW Military Standard Gasoline Engine
Fits:
Gen-Set 4A032 3 KW Generator
MEP-021A – 400 HZ – Gasoline Engine Driven
MEP-026A – DC – Gasoline Engine Driven
Gen-Set 2A042 5 KW Generator
MEP-017A – 60 HZ – Gasoline Engine Driven
MEP-022A – 400 HZ – Gasoline Engine Driven
Gen-Set 4A084 10 KW Generator
MEP-018A – 60 HZ – Gasoline Engine Driven
MEP-003A – 60 HZ – Diesel Engine Driven
MEP-412A – 60 HZ – Gasoline Turbine Engine Driven
MEP-112A – 400 HZ – Diesel Engine Driven
MEP-414A – DC – Gasoline Turbine Engine Driven
