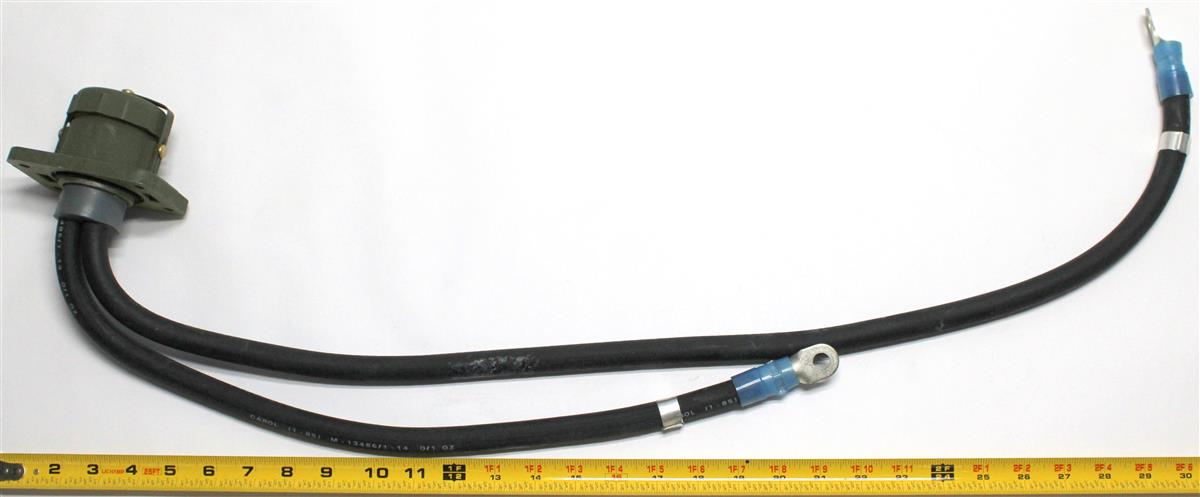

Slave Receptacle Electrical Lead Connector Assembly for 4A032 3KW 2A042 5KW 4A084 10KW Military Standard Gasoline Engine
- Wire Lengths - Approx. 9 and 60 Inches
- Overall Length - 2.812 Inches
- Center To Center Distance Between Mounting Facilities Parallel to Length - 1.875 Inches
- Overall Height - 3.806 Inches
- Overall Width - 4.188 Inches
- Unthreaded Mounting Hole Diameter - 0.281 Inches
- Distance Between Centerlines Of Mounting Facilities Parallel To Body Width - 3.250 Inches
- Nominal Thread Size - 2.250 Inches
- Terminal Location - Back Single Mating End Single Contact Grouping
- Contact Material - Copper Alloy Single Mating End Single Contact Grouping
- Contact Surface Treatment - Silver Single Mating End Single Contact Grouping
- Insert Material - Rubber Single Mating End
- Shell Material - Aluminum Alloy
- Shell Surface Treatment - Cadmium
- Precious Material and Location - Contacts Surface Silver
- Precious Material and Weight - 0.010 Gold Grains, Troy
- Precious Material - Silver
Click Here for Angle Bracket for 2A042 5KW Military Standard Gasoline Engine
Click Here for Slave Receptacle Bracket for 4A032 3KW 2A042 5KW 4A084 10KW Military Standard Gasoline Engine
Click Here for Slave Battery Jumper Connector Bracket for 4A084 10KW Military Standard Gasoline Engine
Click Here for Slave Receptacle Electrical Connector
Click Here for Electrical Wire for 4A032 3KW 2A042 5KW 4A084 10KW Military Standard Gasoline Engine
Click Here for Electrical Wire for 4A032 3KW 2A042 5KW 4A084 10KW Military Standard Gasoline Engine
Fits:
Gen-Set 4A032 3 KW Generator
MEP-021A – 400 HZ – Gasoline Engine Driven
MEP-026A – DC – Gasoline Engine Driven
Gen-Set 2A042 5 KW Generator
MEP-017A – 60 HZ – Gasoline Engine Driven
MEP-022A – 400 HZ – Gasoline Engine Driven
Gen-Set 4A084 10 KW Generator
MEP-018A – 60 HZ – Gasoline Engine Driven
MEP-003A – 60 HZ – Diesel Engine Driven
MEP-412A – 60 HZ – Gasoline Turbine Engine Driven
MEP-112A – 400 HZ – Diesel Engine Driven
MEP-414A – DC – Gasoline Turbine Engine Driven
