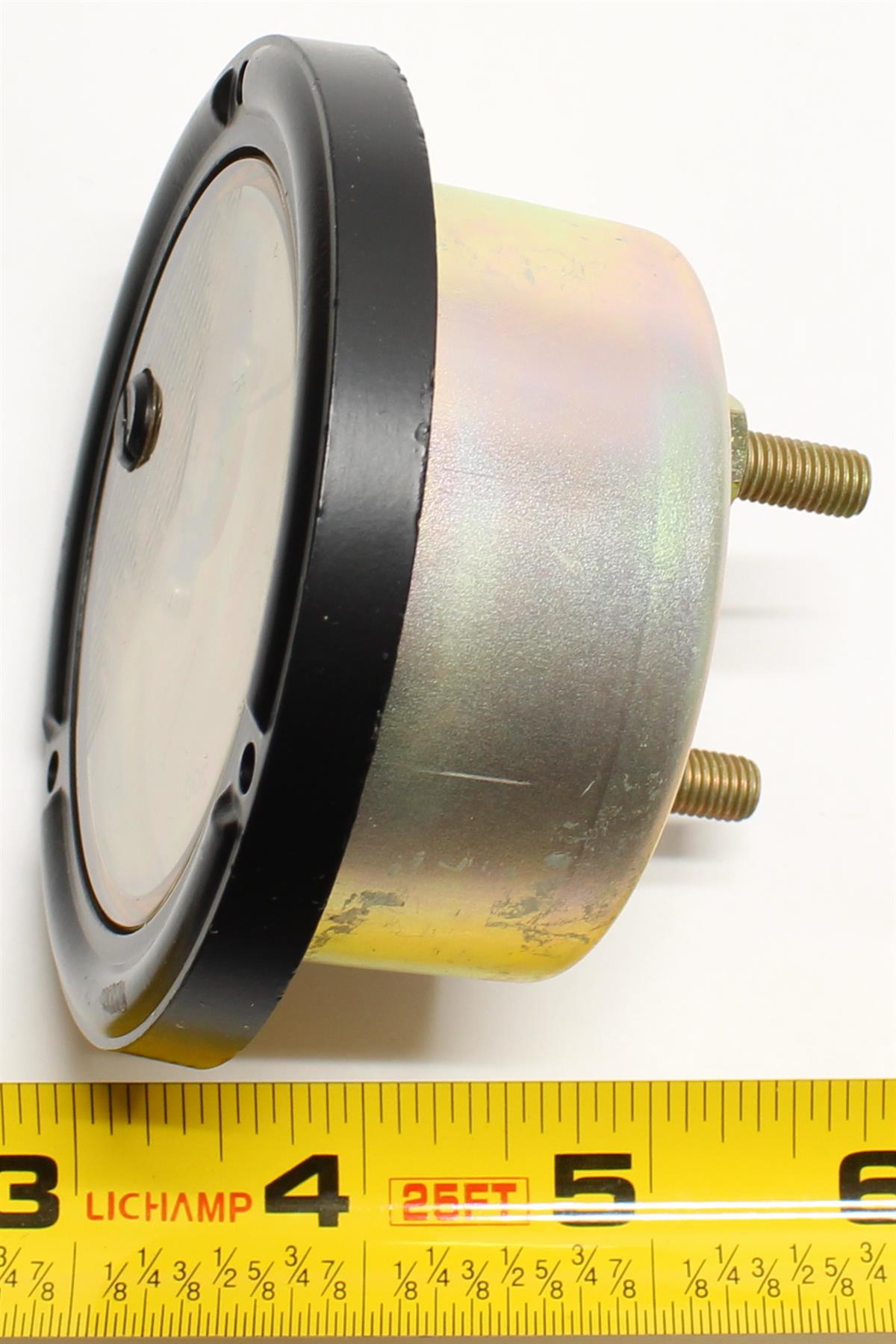

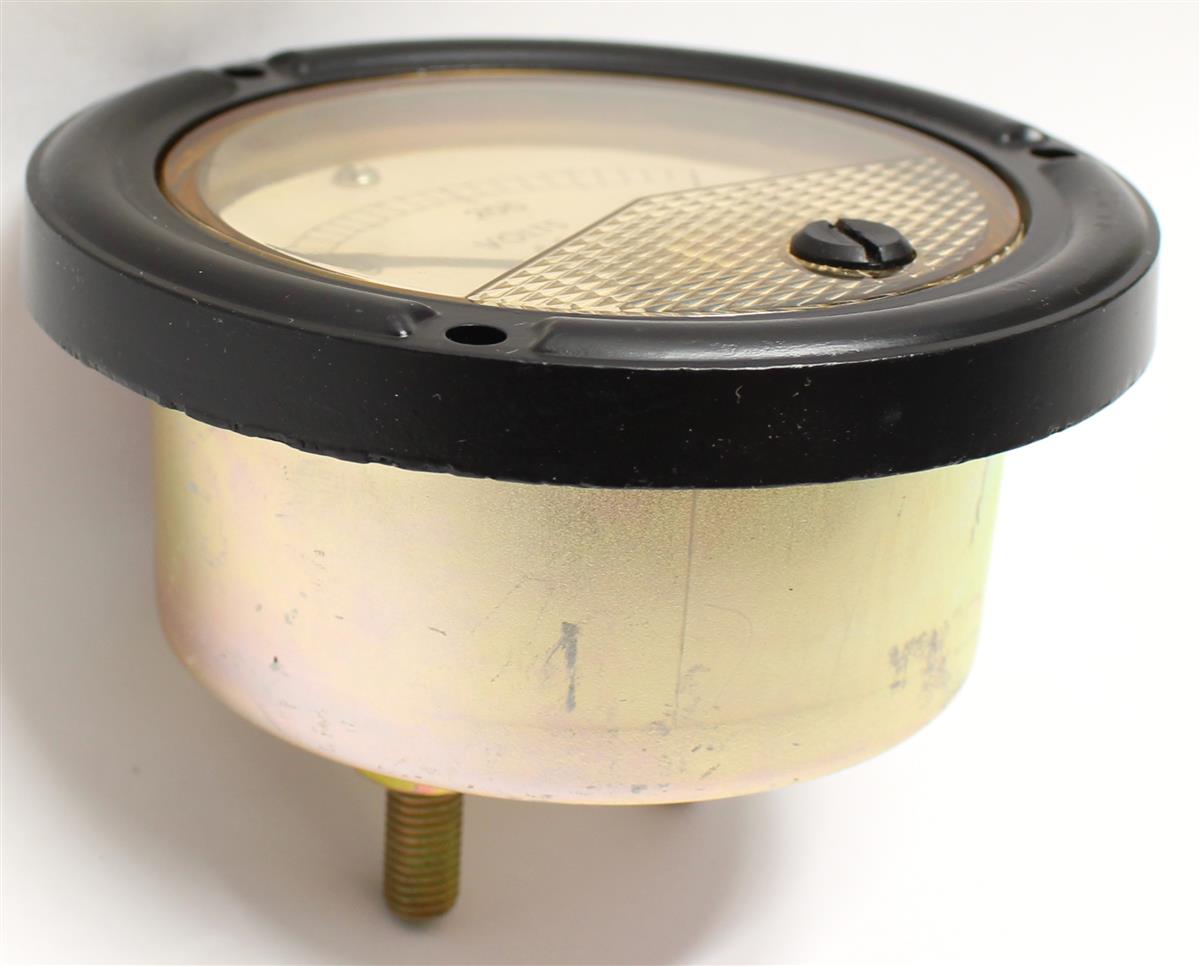

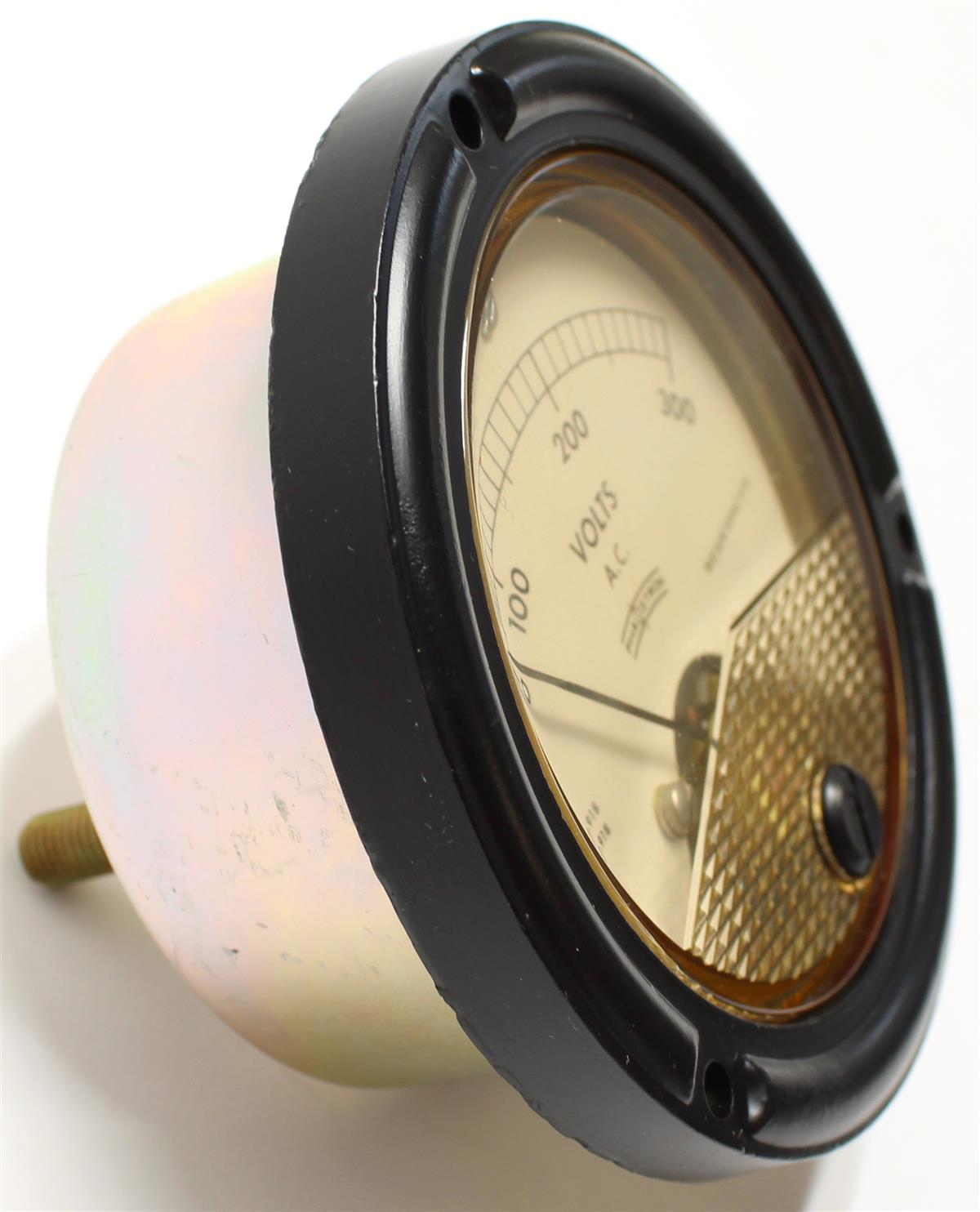

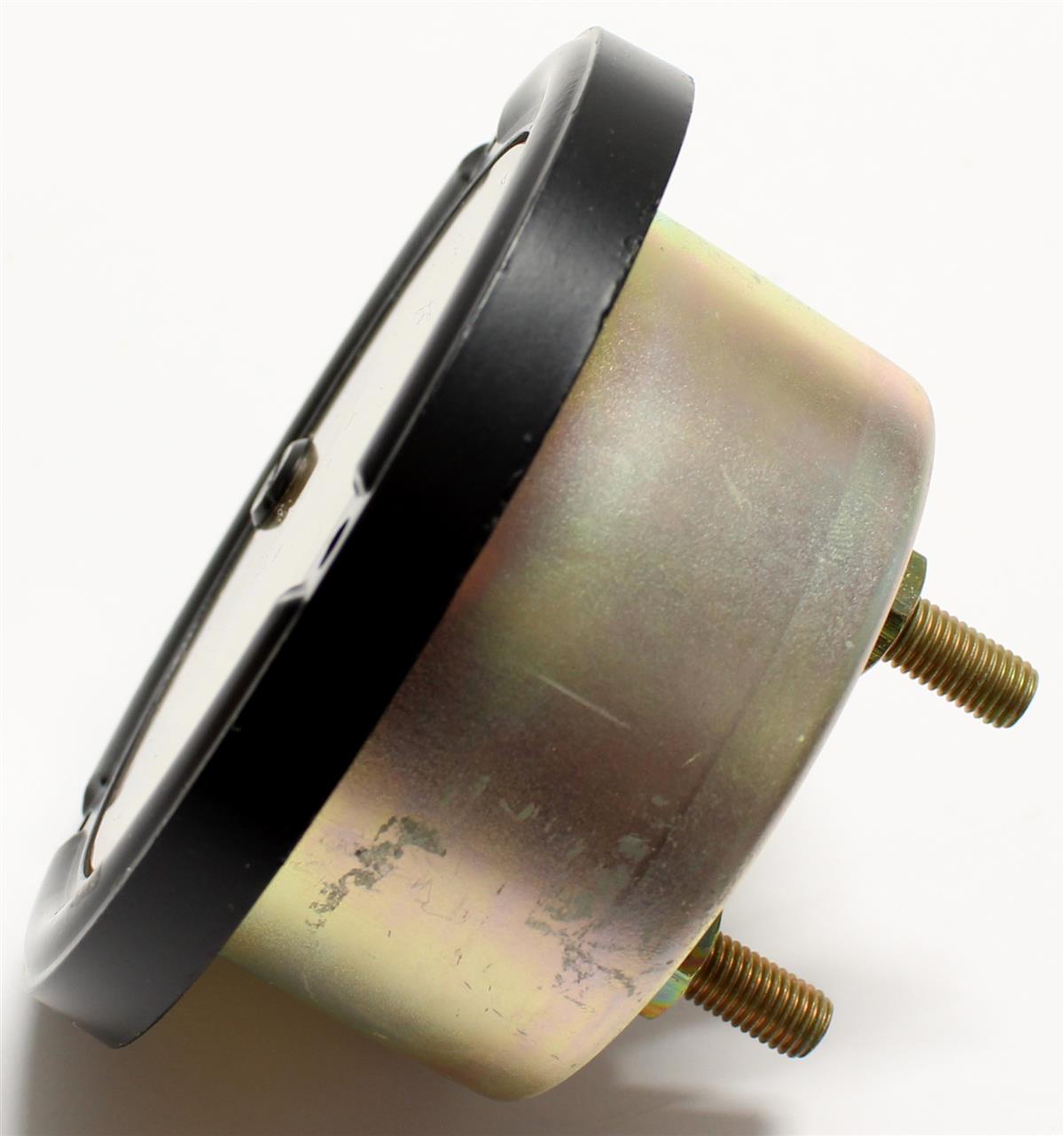

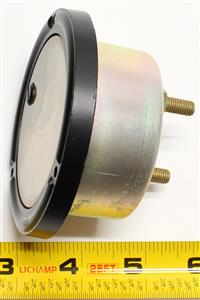

Voltmeter for Military Gasoline Engine Driven Generator
- Overall Length - 2.125 Inches
- Mounting Hole Diameter - 0.150 Inches

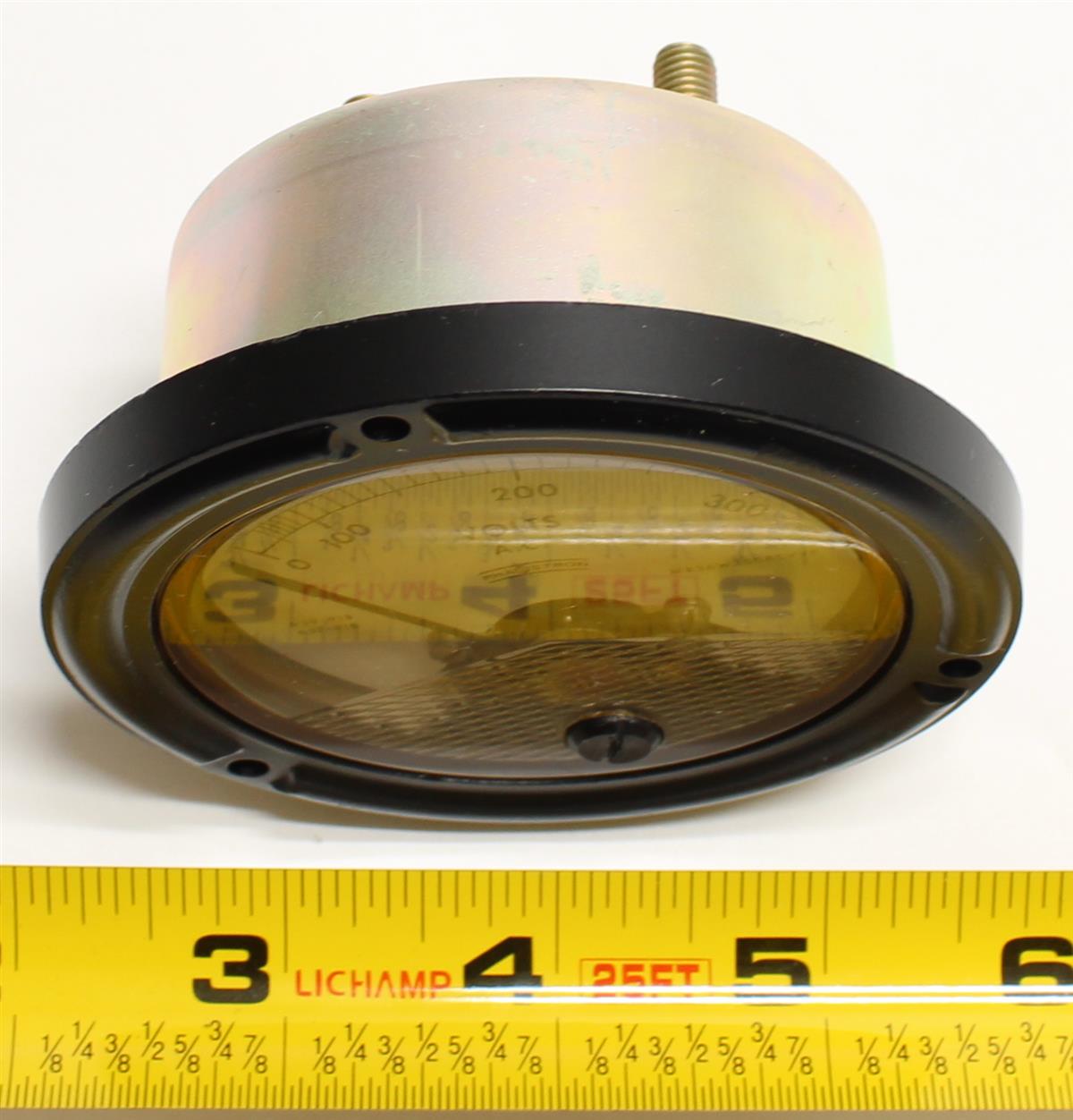

- Overall Diameter - 3.500 Inches
- Mounting Bolt Circle Diameter - 3.160 Inches
- Indicator Type - Dial W/Pointer
- Installation Design - Panel
- Mounting Arrangement Style - Three Hole/Stud Bolt Circle
- Sensitivity Rating - 49500.0 Ohms Per Volt
- Accuracy In Percent - -2.0 To 2.0 At Full Scale Single Indicator Single Range
- Meter Depth Behind Mounting Flange - 1.500 Inches
- Meter Body Diameter Behind Mounting Flange - 2.796 Inches
- Movement Type - Moving Coil, Permanent Magnet
- Mounting Facility Type and Quantity - 3 Unthreaded Hole
- Scale Graduation Type - Linear Single Indicator Single Range

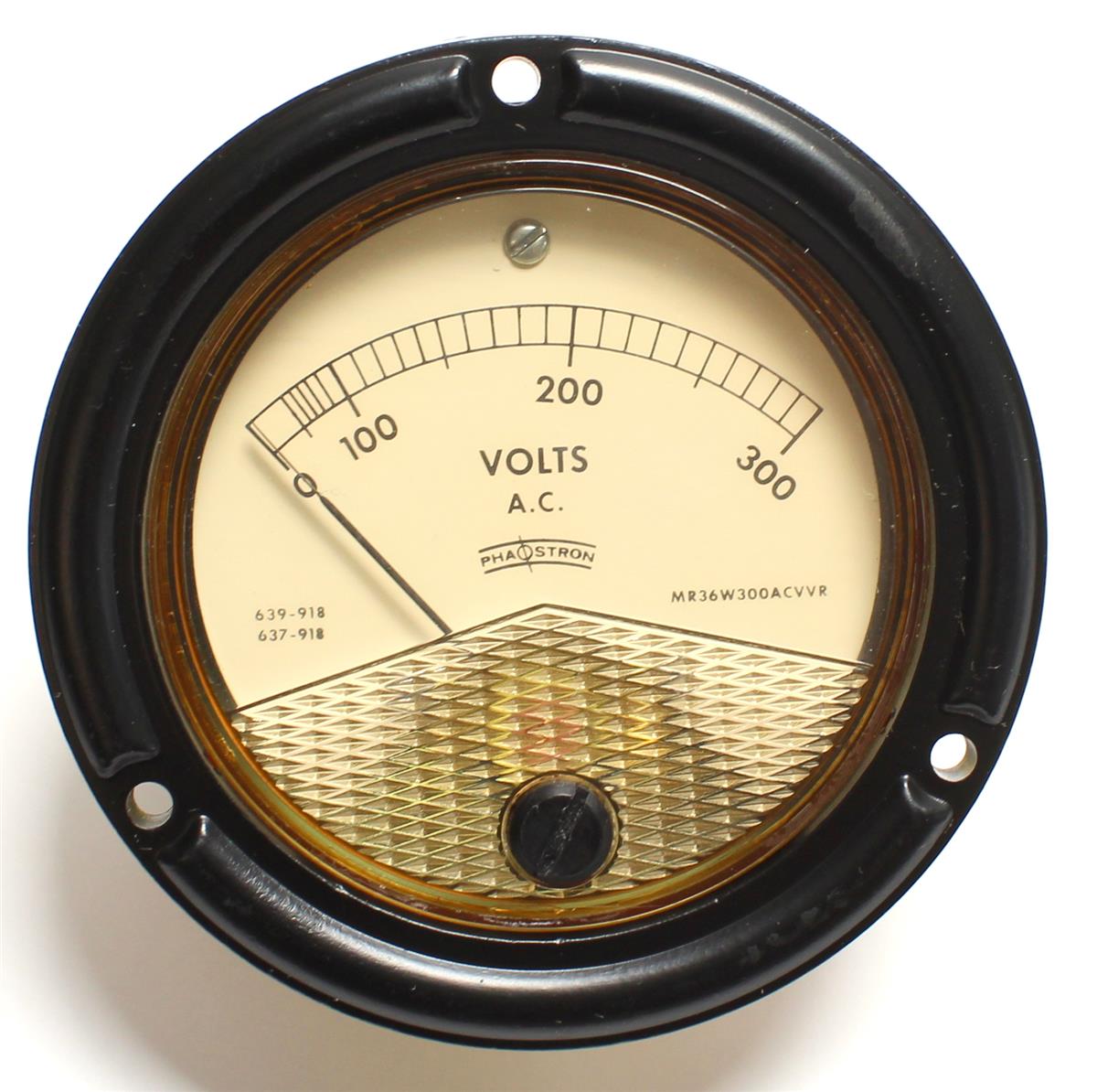

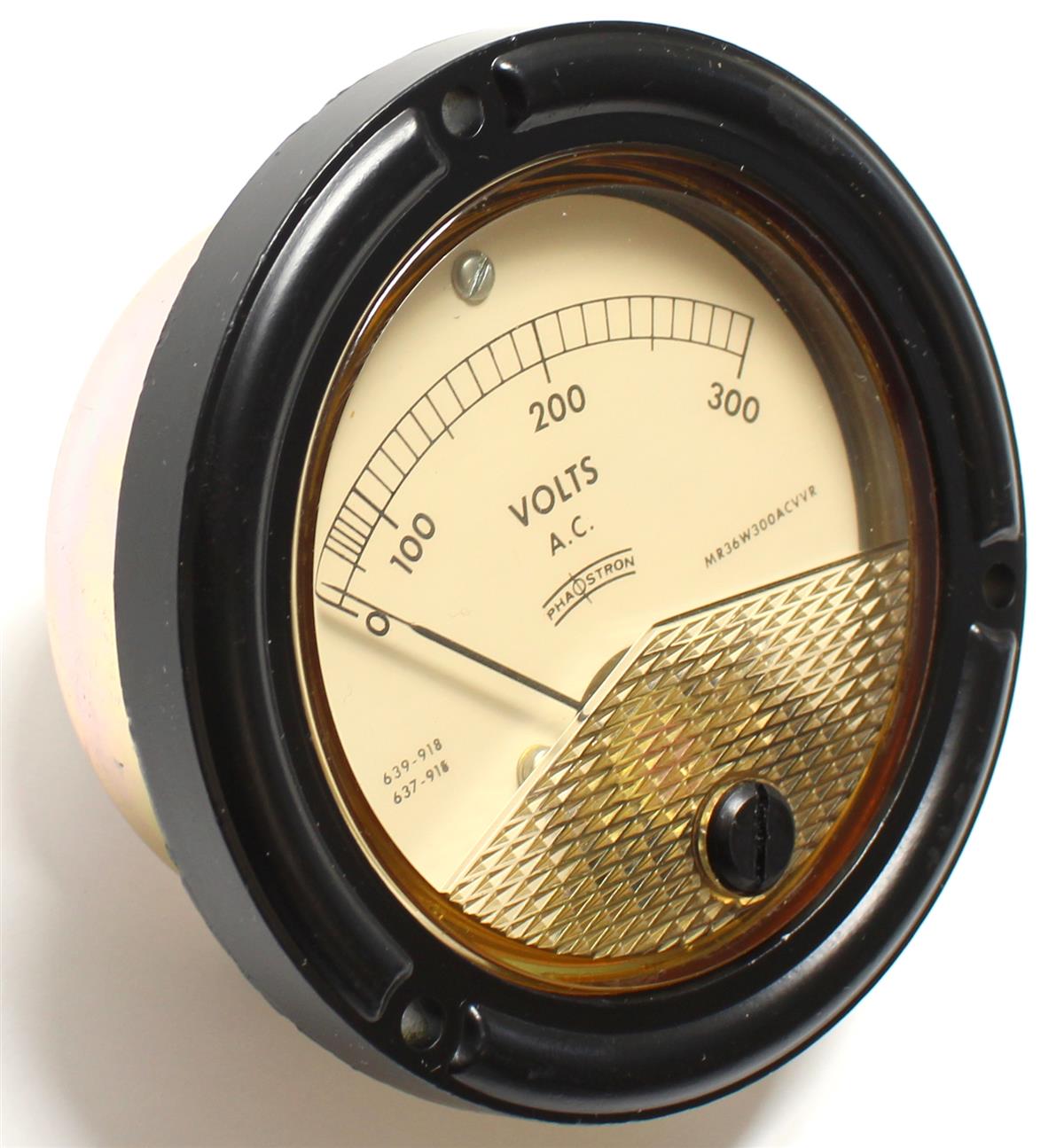

- Measurement Range - +0.0 To 300.0 Volts, Ac Single Indicator Single Range
- Movement Suspension Method - Jewel Pivot Base

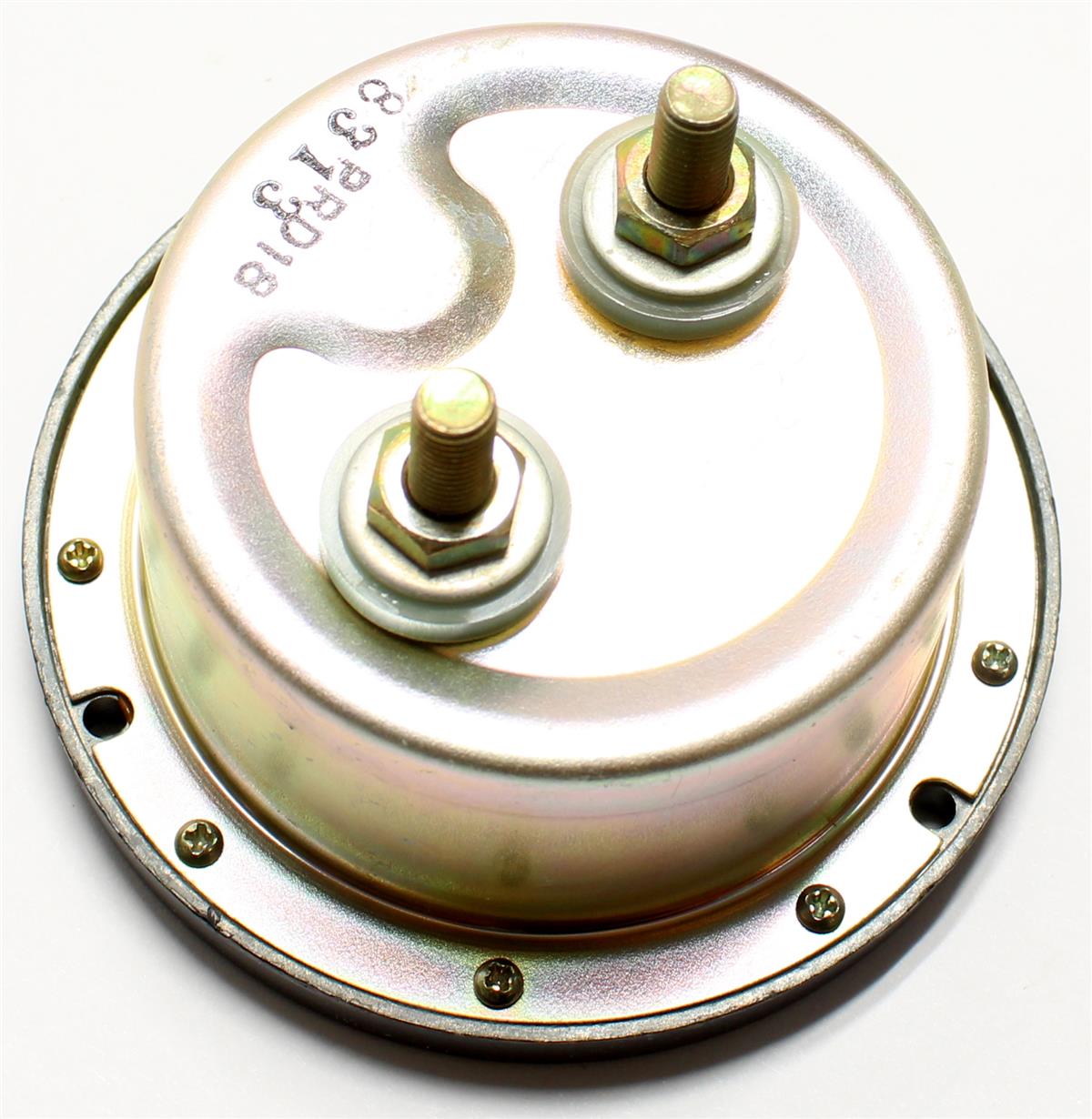

- Circuit Attachment Method and Quantity - 2 Solder Stud
- Material - Steel
Fits:
Military Standard Gasoline Engine Generator
