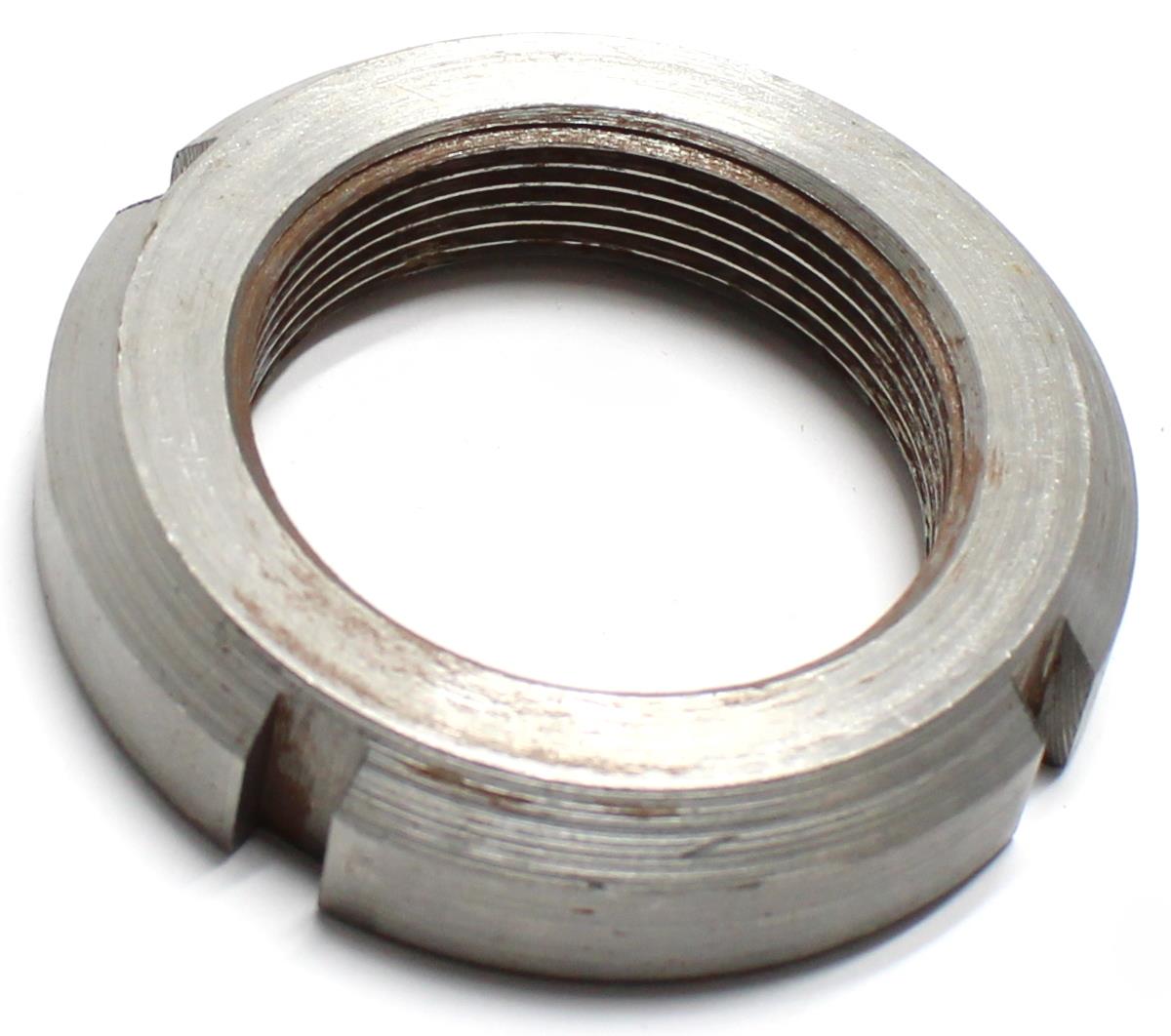

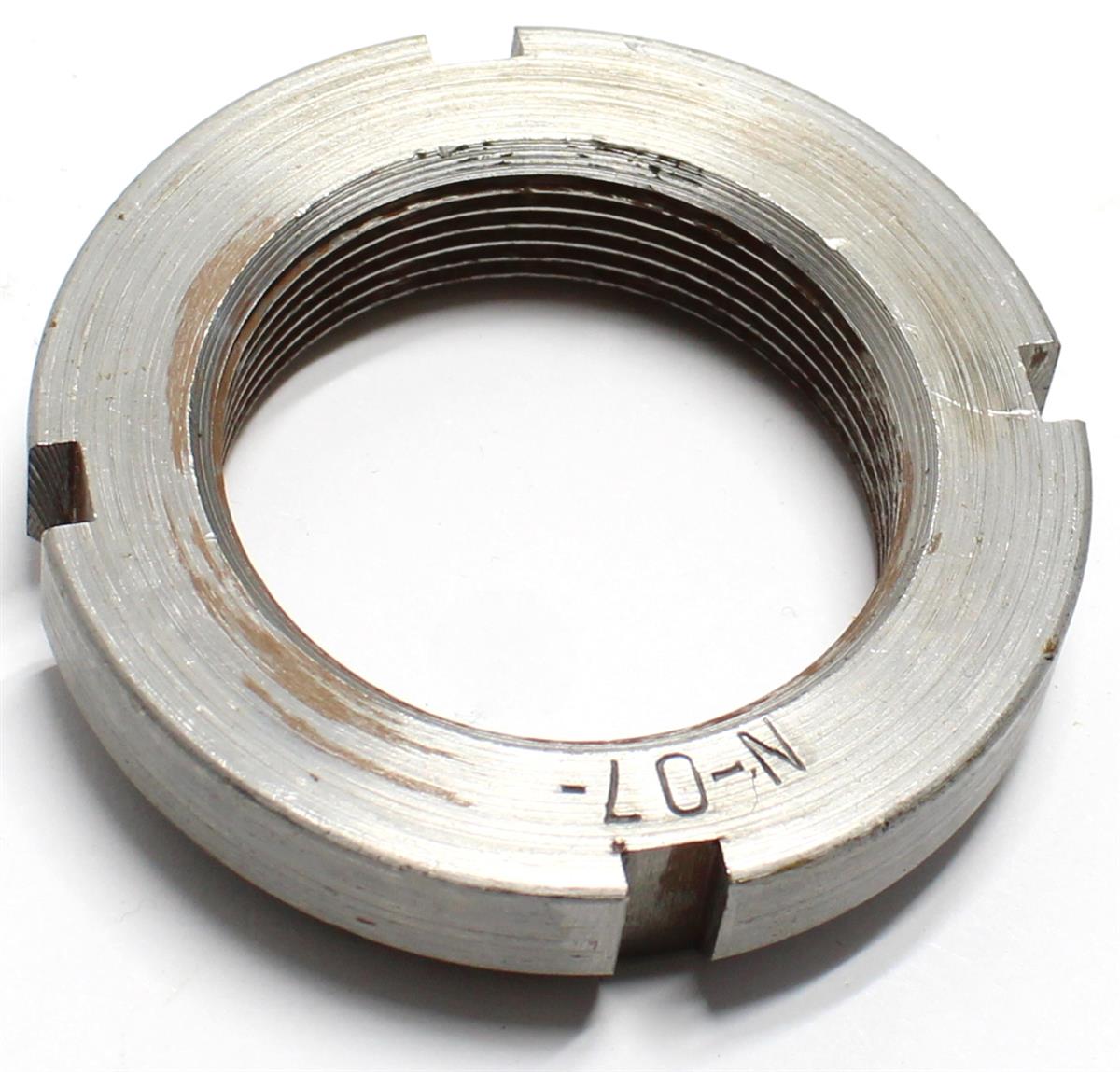

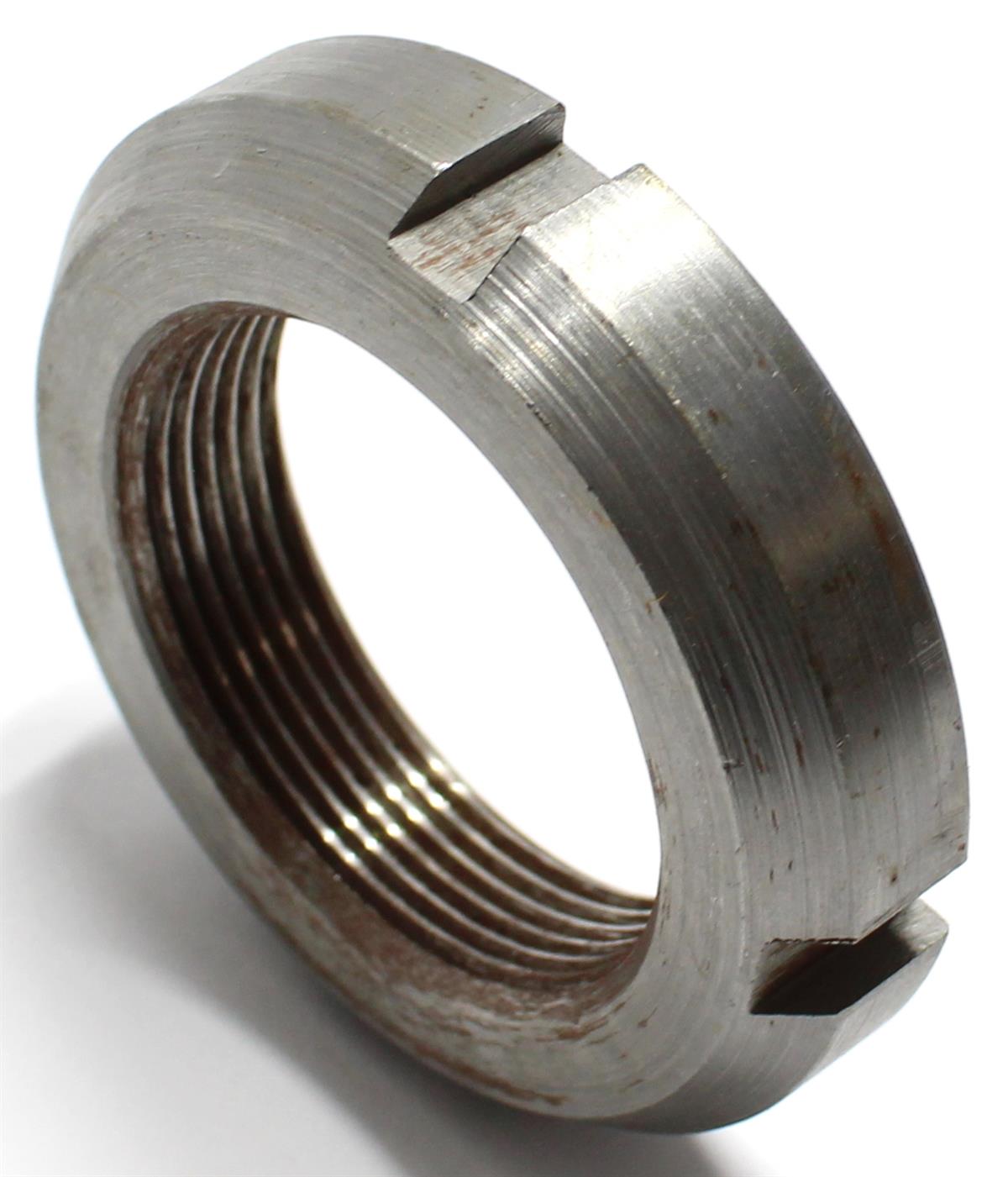

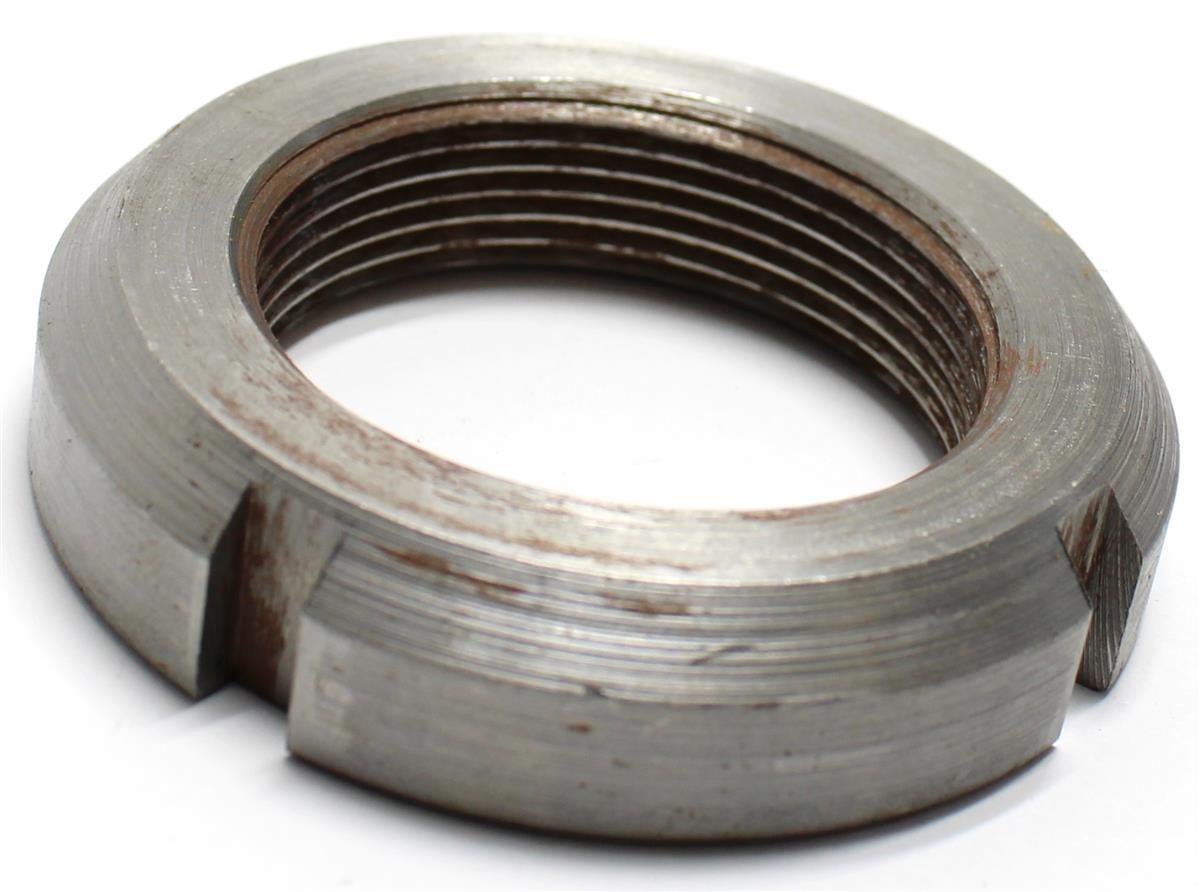

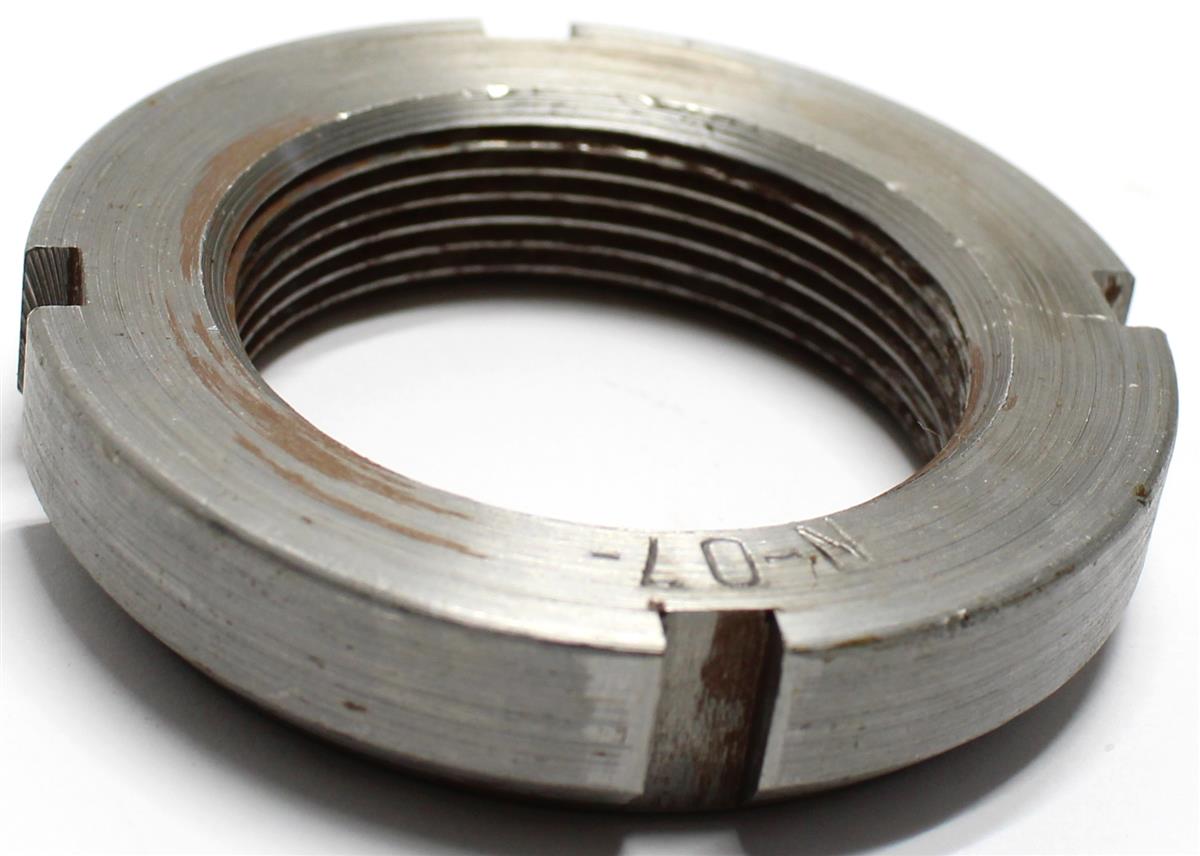

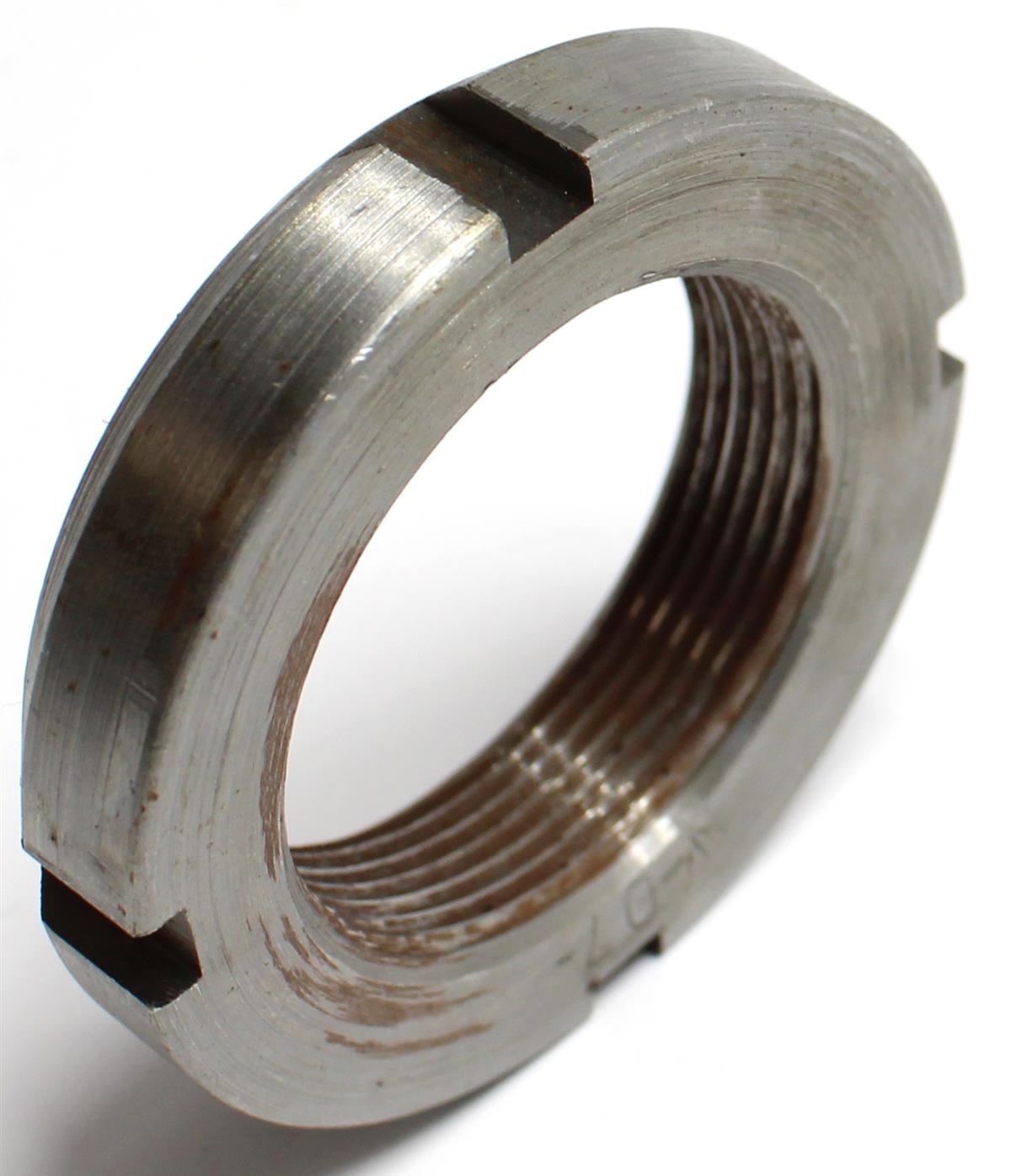

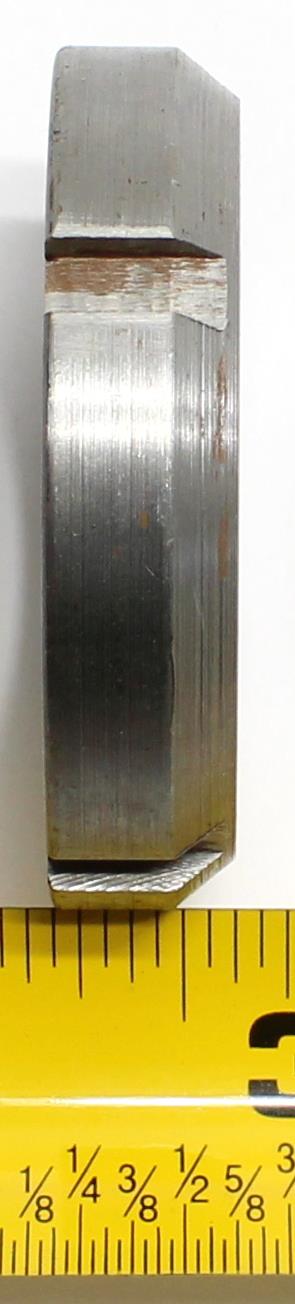

Crankshaft Lock Nut Military Standard Gasoline Engine 2A042 4A084 5KW 10KW
- Thread Class - 3b
- Thread Direction - Right-Hand
- Drive Point Depth - 0.084 Inches Minimum And 0.104 Inches Maximum
- Nut Style - Round

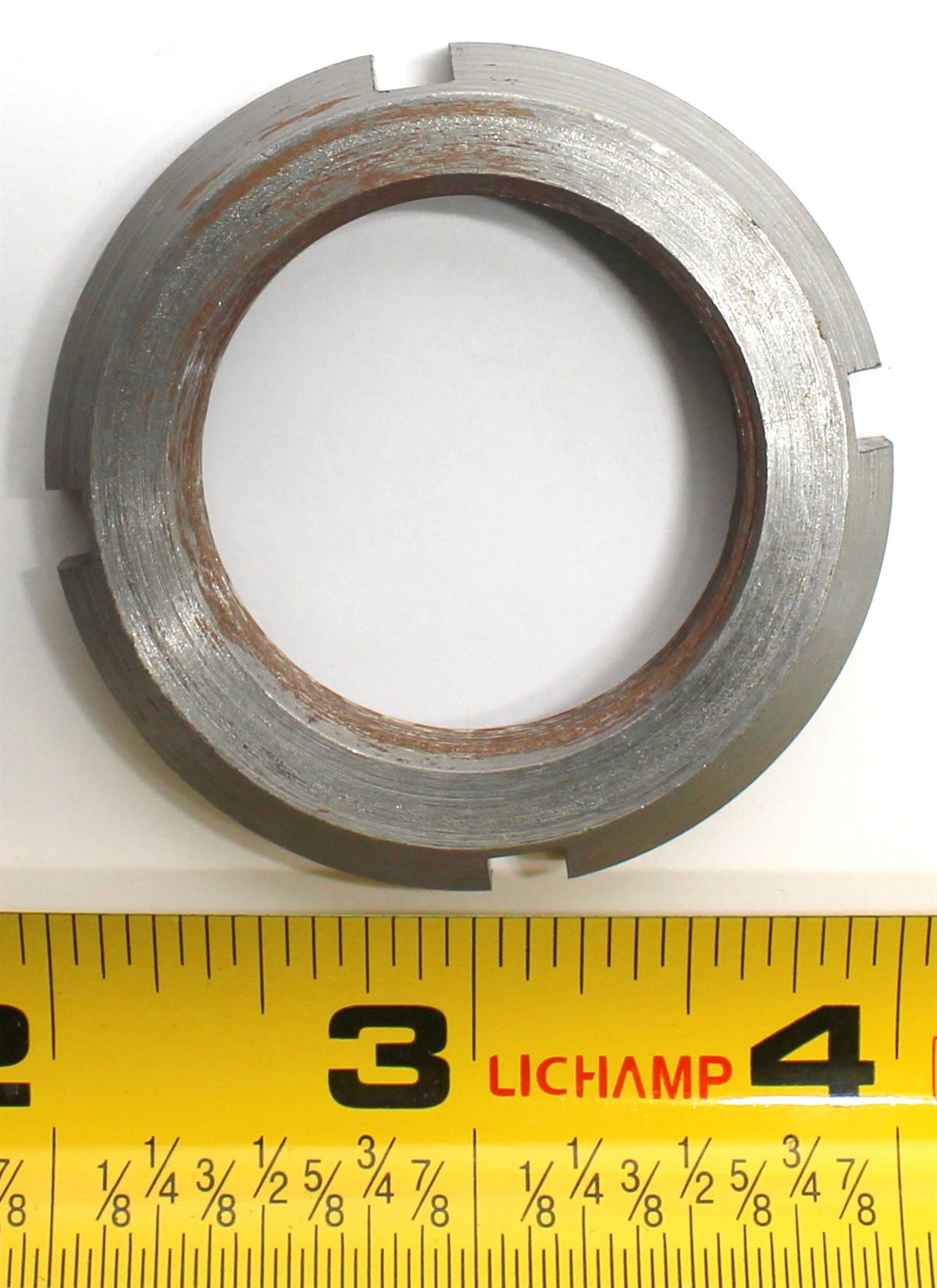

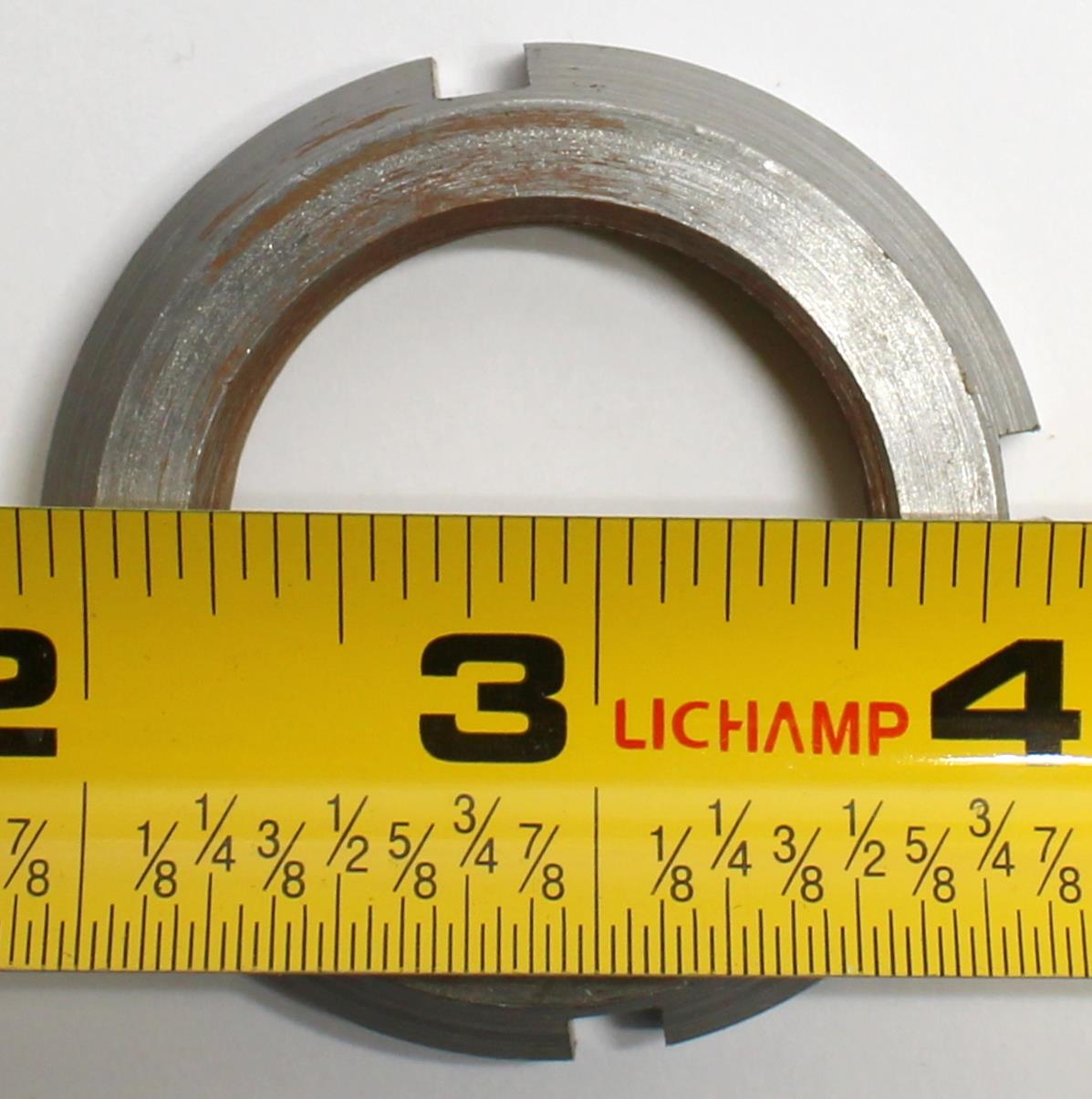

- Nut Diameter - 2.048 Inches Minimum And 2.068 Inches Maximum
- Nut Thickness - 0.428 Inches Minimum And 0.448 Inches Maximum
- Drive Point Width - 0.178 Inches Minimum And 0.198 Inches Maximum
- Drive Point Quantity - 4
- Thread Quantity Per Inch - 18
- Nominal Thread Size - 1.375 Inches
- Material - Steel Comp 1212 Overall or Steel Comp 1118 Overall
- Surface Treatment - Oxide Overall
Fits
Engine Model 2A042 - 5 KW Generator Gen-Set
MEP-017A - 60 HZ - Gasoline Engine Driven
MEP-002A - 60 HZ - Diesel Engine Driven
MEP-022A - 400 HZ - Gasoline Engine Driven
Engine Model 4A084 - 10 KW
MEP-018A - 60 HZ - Gasoline Engine Driven
MEP-003A – 60 HZ – Diesel Engine Driven
MEP-412A – 60 HZ – Gasoline Turbine Engine Driven
MEP-112A – 400 HZ – Diesel Engine Driven
MEP-414A – DC – Gasoline Turbine Engine Driven
